BMW Traffic Pro User manual

Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 10.2001
ON
ON
TP
TP
CD
CD
Rad
ad
Nav
BMW
Inf
nf
oOK
OK
ON TP CD Rad Nav
BMW
Info OK
046 0605 B
BMWTraffic Pro installation kit
BMW 3 Series Coupé (E 46/2)
BMW 3 Series touring (E 46/3)
BMW 3 Series Saloon (E
46/4)
BMW 3 Series compact (E 46/5)
BMW 3 Series Convertible (E 46/C)
These installation instructions are not valid for cars with SA358 (climate comfort windscreen).
Technical and electrical knowledge required
The installation time is approx. 1.5 hours but this may vary depending on the condition of the
car and the equipment in it.
Retrofit / Installation kit No.65 90 0 027 973
65 90 0 139 839
Parts and Accessories
Installation Instructions

EN/2
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
Contents
Section Page
1. Important information for the installation of the navigation radio . . . . . . . . . . . . . . . 3
2. Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Aerial adapter connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Installation and cabling diagram (LHD cars) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. Installation and cabling diagram (RHD cars) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7. Navigation radio connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. To install the GPS aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. To install the adapter cable (cars without a CD changer only) . . . . . . . . . . . . . . . . . 12
10. To install the adapter cable (cars with a CD changer only). . . . . . . . . . . . . . . . . . . . 14
11. To connect the navigation radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12. Coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13. Concluding work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
14. Language selection and commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
15. Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
16. Adapter wiring harness circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

EN/3
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
1. Important information for the installation of the navigation radio
Only for use in the BMW dealer organisation.
The navigation radio may only be installed by a specialist workshop that has the required special
tools and manuals.
Ensure that the cables/lines are not kinked or damaged as you install them in the car.
Additional cables/lines that you install must be secured with cable ties.
All the figures show LHD cars, proceed in exactly the same way on RHD cars.
Item numbers refer only to the overview drawings and to the texts next to the appropriate figure.
The operating manual supplied with the kit is to be given to the vehicle keeper.

Subject to technical modifications
Required tools and equipment
MoDIC III or DIS Combination pliers
Set of flat screwdrivers Angle cutter
Set of Philips screwdrivers Cable lamp

EN/4
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
2. Preparations
0
TIS instruction No.
Conduct a brief test
---
Disconnect the battery 12 00 ...
Remove the heating control 64 11 748
Remove the décor strip above the radio 51 16 221
Remove the radio 65 11 030
Remove the radio module holder from the instrument panel
---
Remove the glove compartment and bottom right instrument panel
trim
51 16 360
Remove the front right door sill trims 51 47 000
Remove the side footwell trim on the front right A pillar 51 43 075
Pull up the carpet at the front right
---
Remove the instrument carrier 62 21 000

EN/5
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001

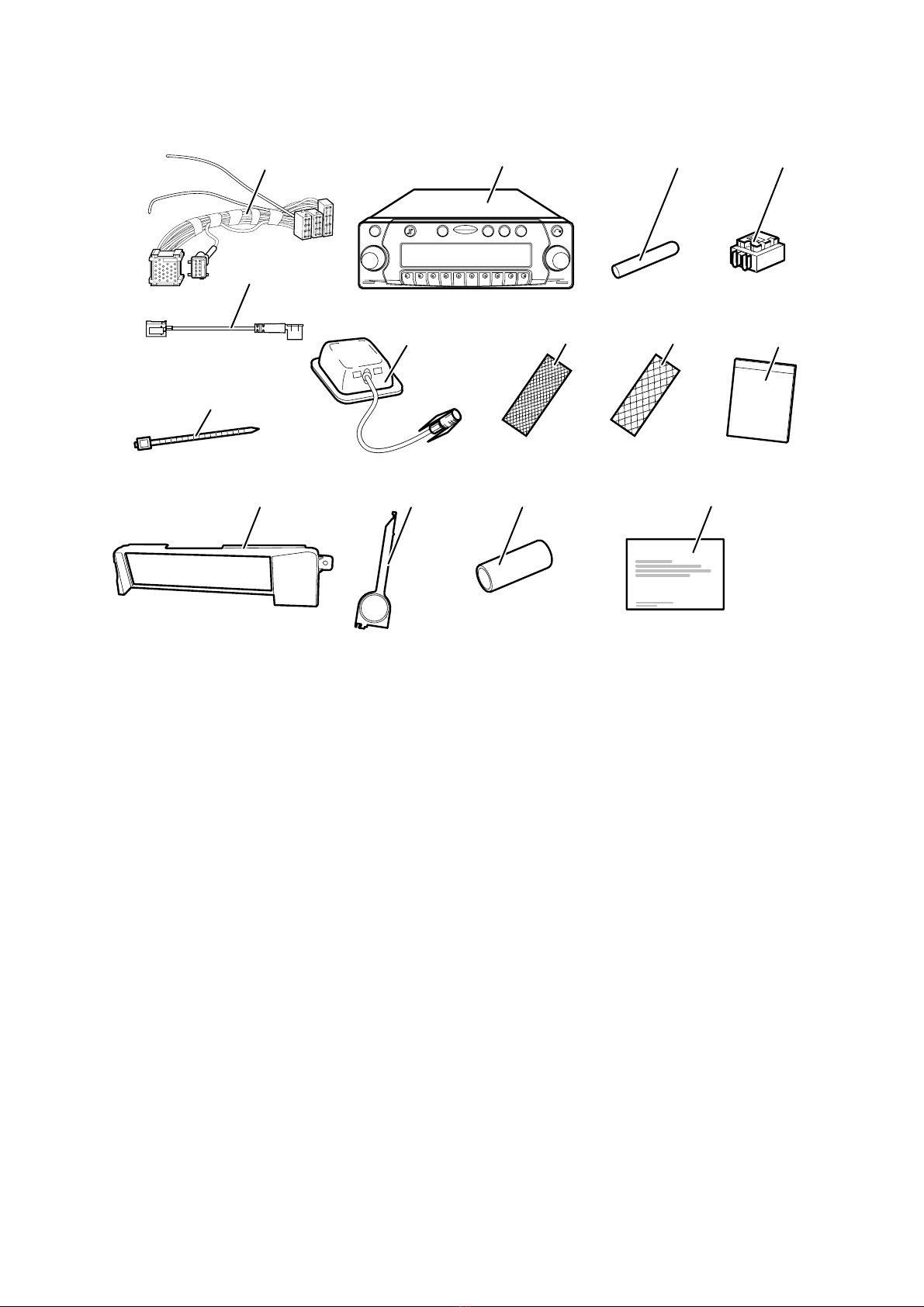

3. Parts list
0
Legend
0
A Adapter cable
B Aerial adapter (only required for cars with a Fakra aerial connector)
1 Navigation radio
2 Radio retaining pin
3 Double insulation-piercing connector (2x)
4 Cable tie (8x)
5 GPS aerial
6 Hook type Velcro strip*
7 Fleece type Velcro strip*
8 Rattle guard (2x)
9 Radio trim
10 Installation clip (2x)
11 Shrink hose
12 Owner’s manual
A
ON
ON
TP
TP
CD
CD
Rad
ad
Nav
BMW
Inf
nf
oOK
OK
ON TP CD Rad Nav
BMW
Info OK
cBedienungsanleitung d
5
1
6
12
8
2
4
7
10 119
3
B
046 0606 B

EN/6
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
4. Aerial adapter connection diagram
0
0
Item Description Signal Cable colour /
Cross-section Connection location in the car Abbreviation /
Slot
A Adapter cable --- --- --- ---
A1 Black 17-pin plug casing --- --- To black 17-pin socket casing in the
centre console
X18126
A2 Open cable end Reversing
light
terminal
BL/GE To the supply cable, near the front
right door sill using an insulation-
piercing connector (3) (check that
the signal is present) ---
A3 Open cable end Tacho A
signal
SW/WS To the standard wiring harness on
the black 26-pin plug for the
instrument cluster
X11175 PIN 8
A4 Red 20-pin socket casing --- To the navigation radio in the centre
console ---
A5 Black 16-pin socket casing --- --- To the navigation radio in the centre
console ---
A6 Coding loop --- GE --- ---
A7 10-pin plug casing
---
To socket casing X13321 for the CD
changer, insulate and tie back if the
car has no CD changer
---
A1
A2
A3
A
A7
A6
A5
A4
046 0689 B

EN/7
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
4. Aerial adapter connection diagram
0
Aerial adapter cable B is only required for cars with a Fakra aerial connector
Item Description Signal Cable colour /
Cross-section Connection location in the car Abbreviation /
Slot
B Aerial adapter --- --- --- ---
B1 Black coaxial plug casing --- --- To the navigation radio in the centre
console ---
B2 Black coaxial Fakra plug
casing --- ---
To the Fakra coaxial socket casing
on the aerial cable ---
B1 B2
B
046 0671 B

EN/8
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
5. Installation and cabling diagram (LHD cars)
0)
Lay the adapter cable A, as shown in the figure, and secure it with cable ties.
Branch A1 to the black 17-pin socket casing in the centre console
Branch A2 to the standard wiring harness at the front right near the door sill using an
insulation-piercing connector
Branch A3 to the black 26-pin plug X11175 PIN 8 on the instrument cluster
Branch A4 to the navigation radio in the centre console
Branch A5 to the navigation radio in the centre console
Branch A7 to socket casing X13321 (cars with a CD changer only)
Tie back any excess lengths.
A2
A7
A1
A3
A4
A4
046 0690 B

EN/9
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001
6. Installation and cabling diagram (RHD cars)
0)
Lay the adapter cable A, as shown in the figure, and secure it with cable ties.
Branch A1 to the black 17-pin socket casing in the centre console
Branch A2 to the standard wiring harness at the front right near the door sill using an
insulation-piercing connector
Branch A3 to the black 26-pin plug X11175 PIN 8 on the instrument cluster
Branch A4 to the navigation radio in the centre console
Branch A5 to the navigation radio in the centre console
Branch A7 to socket casing X13321 (cars with a CD changer only)
Tie back any excess lengths.
A2
A7
A1
A3
A4
A4
046 0755 B

EN/10
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001

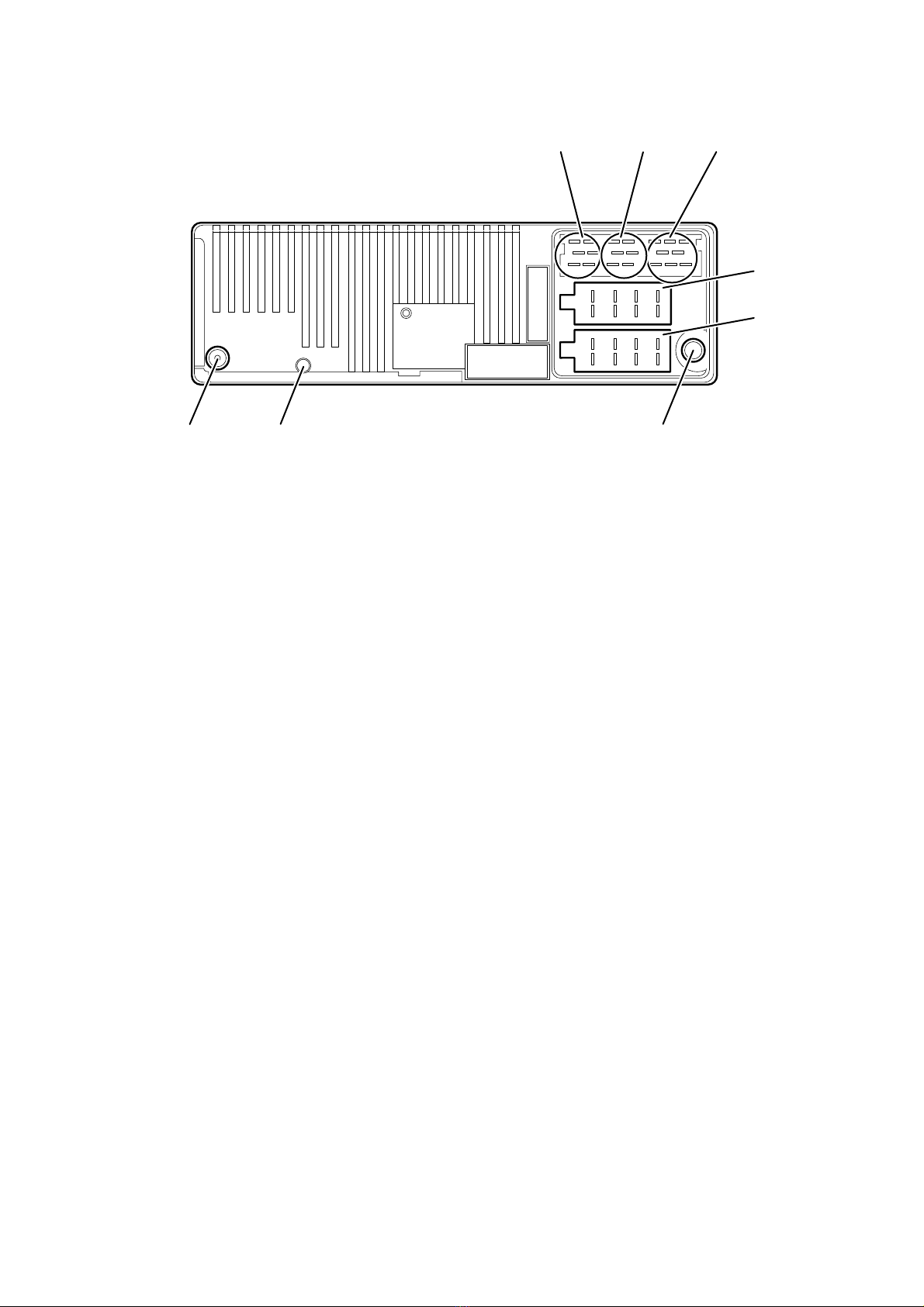

7. Navigation radio connection diagram
0
Legend
0
Chamber A Chamber C2
1 Speed signal (TAA) 7-12 Specific connection for CD
changer
2 Signal from reversing light
3 Telephone mute Chamber C3
4 Continuous positive (terminal 30) 13 Low frequency telephone input
5 Control output for automatic aerial/amplifier 14 Earth telephone input
6 Light (terminal 58G) 15-17 Specific connection for CD
changer
7 Switched positive (terminal 15) 18 CD low frequency earth (AUX)
8 Earth (terminal 31) 19 CD low frequency left (AUX)
20 CD low frequency right (AUX)
Chamber B
1 Speaker rear right+ Jack D
2 Speaker rear right- Radio aerial jack
3 Speaker front right+
4 Speaker front right- Jack E
5 Speaker front left+ GPS aerial jack
6 Speaker front left-
7 Speaker rear left+ Jack F
8 Speaker rear left- Aerial diversity connection
Chamber C1
1 LineOut rear left
2 LineOut rear right
3 Low frequency earth
4 LineOut front left
5 LineOut front right
6 Subwoofer LineOut
1 4 7 10 13 16 19
3 6 9 12 15 18
2 5 8 11 14 17 20
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
10
10
B
A
EF
C3
C2
C1
D
046 0608 B
