BOB Duallie Infant Car Seat User manual

This product is compatible
with strollers that have a serial
number within the range
listed. Using this product on
strollers with incompatible
serial numbers may lead
to injury or death.
Main Bar
Right Tray
Arm
Restraint Belt M
Accessory Bar
Left Tray
Bonnet Spacer 2x
Restraint Belt F
Sharp Screw 2x
Pivot Nut 2x
Pivot Screw 2x
Arm
Loctite 262
Pivot Plug 2x
Bonnet Screw 2x
TAKE TIME  READ AND UNDERSTAND INSTRUCTIONS COMPLETELY!
Before attempting to assemble or use your new Duallie ICSA, read and understand these assembly
instructions completely, as well as the warnings at the end of this document, to insure proper
assembly and safe operation.
If you are unclear on any point, contact your dealer or BOB before use.
Duallie Infant Car Seat
Adapter Instructions
TOOLS NEEDED:
To perform the
installation, you need a
Phillips screwdriver, 4mm
hex (Allen) wrench, an
8mm socket wrench and
a rag or paper towel.
Congratulations on
your purchase of the
BOB Duallie Infant Car
Seat Adapter (ICSA). It
is designed to allow the
attachment of an Infant Car
Seat to your BOB Duallie
Stroller. Please refer to the
tables at right for details
of compatible strollers and
car seats.
Car Seat Compatibility
Brand Model Year (s)
Britax Companion ™ 2003-2008
Graco®Snug Ride®2003 and newer
Graco®Snug Ride®30 2010 and newer
Graco®Snug Ride®32 2008 and newer
Graco®Snug Ride®35 2009 and newer
Graco®Safe Seat ™ 2006 and newer
Peg Perego®Primo Viaggio™ 2003 and newer
Peg Perego®Primo Viaggio SIP™ 2006 and newer
Peg Perego®Primo Viaggio SIP™ 30/30 2007 and newer
BOB®Stroller Compatibility
Model Serial Number Range
Duallie®AD000001 - AD999999
Ironman®Duallie AE000001 - AE999999
Revolution®Duallie AH000001 - AH999999
Revolution Duallie 12" AL000001 - AL999999
Stroller Strides®Duallie AM000001 - AM999999
OMA18B P1

SET PARKING BRAKE. See the “Parking Brake”section of your stroller owner’s manual.
REPEAT STEPS
3 though 6 for other side.
REASSEMBLE CANOPY
Insert new longer
bonnet screw through
washer, stroller tube,
spacer, puck with
curved stay and puck
with straight stay.
APPLY LOCTITE 262
ATTACH LOCKNUT
Apply a drop
of Loctite 262 to
exposed threads
of screw.
RAISE HANDLE BAR
Use an 8mm socket wrench on
locknut and a 4mm hex wrench
on bonnet screw head.
Turn socket wrench counter-
clockwise.
Remove locknut and disassemble.
Use an 8mm socket wrench on
locknut and a 4mm hex wrench
on screw head.
Turn socket wrench clockwise.
TIGHTEN FIRMLY (3.7 N.m)
Bonnet
Spacer Bonnet
Screw
COLLAPSE HANDLE BAR
INSTALL CANOPY SPACER
REMOVE EXISTING BONNET SCREW
Squeeze red handles and
fold handle bar forward.
curved
straight
pucks
SEE WARNINGS
at end of document.
OMA18B P2

Rotate arms into an
upright position.
POSITION ARMS
ATTACH MAIN BAR
Rest ICSA assembly on stroller seat.
Place pivot screws and
pivot plugs on stroller seat
next to ICSA.
PREPARE TO ASSEMBLE
INSTALL PIVOT NUT TIGHTEN PIVOT NUT
Use a Phillips screwdriver
to tighten the pivot screw
clockwise, while holding the
pivot nut.
Reach under fabric seat.
Thread pivot nut onto
pivot screw as shown.
REPEAT STEPS
14 and 15 for other side.
INSERT PIVOT SCREW
...just far enough to keep the
pivot plug from slipping o
pivot screw.
Insert a pivot screw
through end of main bar
and into pivot plug...
PICK UP ICSA
Slip either pivot
plug into opening
on pivot bracket
and push pivot
screw ush
against bar.
Position ends of
main bar over
corresponding
pivot brackets.
Pick up the ICSA assembly holding the pivot
screws and pivot plugs in place with hands.
INSERT PIVOT PLUGS
Pivot
Bracket
Repeat on other side.
OMA18B P3

Extend canopy to expose
lower fabric screw.
Remove screw
with Phillips
screwdriver,
exposing fabric
grommet and
rivet nut.
Repeat on other side.
Arm Post
Red pull ring
should face out.
ATTACH RESTRAINT BELT AND ARMS
LOCATE FABRIC SCREW REMOVE FABRIC SCREW
Insert sharp screw through end of arm,
fabric grommet and into rivet nut.
Sharp screw should tighten ush
against arm.
SECURE ARM
Note:
If screw does
not turn easily,
unscrew and
start again.
POSITION ARM TRAY SIDE
POSITION ASSEMBLY
ASSEMBLE RESTRAINT BELT M AND ARM
Slide restraint belt M
grommet over arm post.
Position arm between
canopy and frame.
Align arm hole over
fabric grommet
and rivet nut.
Position arm between
canopy and frame.
Align arm hole over fabric grommet
and rivet nut.

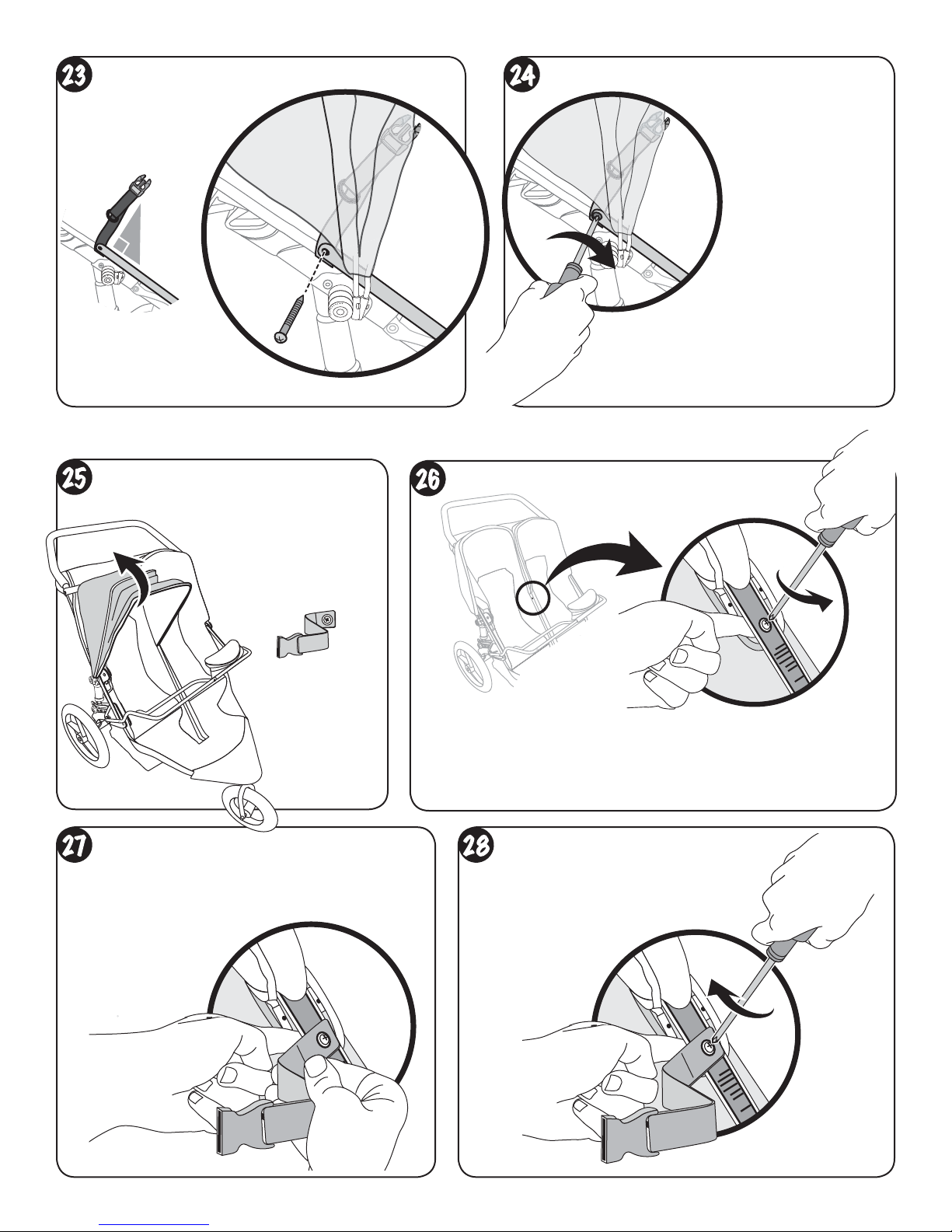

OMA18B P4

90°
Slip nger under fabric and
plastic mount to hold nut in place.
Remove lower screw with
Phillips screwdriver.
PREPARE ASSEMBLY
Position both canopies
against handle bar.
REMOVE EXISTING FABRIC SCREW
Keeping your nger on the
nut, insert restraint belt
screw through hole
and into nut.
ATTACH RESTRAINT BELT F
Place restraint belt F
on stroller seat.
Note:
Save screw for right
side tray installation.
TIGHTEN SCREW
Tighten restraint belt
screw rmly with Phillips
screwdriver.
INSERT SHARP SCREW
Insert sharp screw
through arm, fabric
grommet and into rivet nut.
Hold strap at a 90
degree angle.
TIGHTEN SHARP SCREW
Tighten rmly with
Phillips screwdriver.
ATTACH RESTRAINT BELT F
Note:
If screw does not turn easily,
unscrew and start again.
OMA18B P5

PULL
PUSH
Fasten restraint belt over top
of infant car seat as shown.
FASTEN RESTRAINT
BELT
Britax®
Move car seat
handle into upright
carrying position.
RAISE HANDLE
INSTALL INFANT CAR SEAT
ENGAGE CAR SEAT
POSITION CANOPY
Position both canopies
against handle bar.
LOWER SEAT BACK
UNBUCKLE
RESTRAINT BELT
Unbuckle restraint
belt. Place ends
outside seat.
PREPARE STROLLER FOR INFANT CAR SEAT INSTALLATION
SET PARKING
BRAKE
Britax®Go To
Slide grooves on underside
of car seat onto ICSA
accessory bar.
POSITION
CAR SEAT
SET CAR SEAT
Gently pull canopy
stays while pushing
car seat handle.
Peg Pérego®Go To Graco®Go To
When installing car seat in the Duallie ICSA for the rst time,
test t with the car seat unoccupied to ensure you understand
the process. Installing occupied Infant Car Seat on Duallie ICSA
for rst time may result in accident, serious injury or death.
Place car seat
“rear facing” onto
ICSA accessory
bar, in a straight
downward
motion.
Warning
See the “Parking Brake”
section of your stroller
owner’s manual.
Lower seat back 7” to 8”.
See the “Reclining Seat”section
of your stroller owner’s manual.
Car seat should
“set” down onto
seat of stroller.

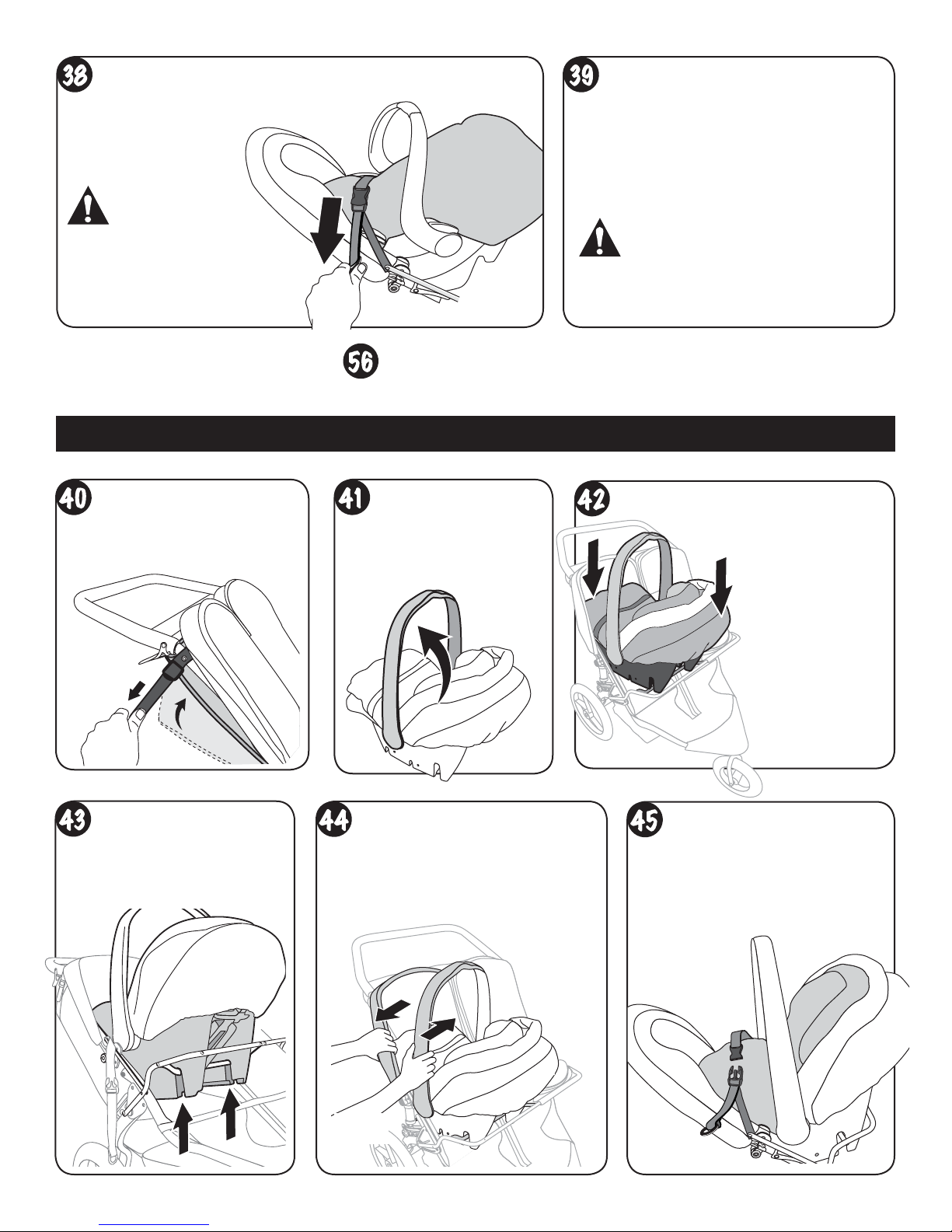

OMA18B P6

Fasten restraint belt over top
of infant car seat as shown.
FASTEN RESTRAINT BELT
Move car seat handle
into upright carrying
position.
POSITION HANDLE
Place car seat
“rear facing”
onto ICSA
accessory bar,
in a straight
downward
motion.
POSITION CAR SEAT
ENGAGE CAR SEAT
RAISE SEAT BACK
Peg Pérego®
Slide grooves on
underside of car seat onto
ICSA accessory bar.
TO REMOVE Britax®Go To
PULL
PUSH
SET CAR SEAT
Gently pull canopy stays while
pushing car seat handle.
Car seat should “set” down onto
seat of stroller.
Pull on red ring to tighten.
TIGHTEN RESTRAINT BELT
Be sure restraint belt tension
is not constricting child as it
may cause serious injury.
DOUBLE CHECK CAR SEAT IS
SECURELY ATTACHED
Warning
Pull car seat upward without
removing restraint belt.
You should not be able to
remove car seat without
unfastening restraint belt.
Warning
Failure to securely attach car seat
may result in serious injury or death.
See the “Reclining Seat”
section of your stroller
owner’s manual.
OMA18B P7

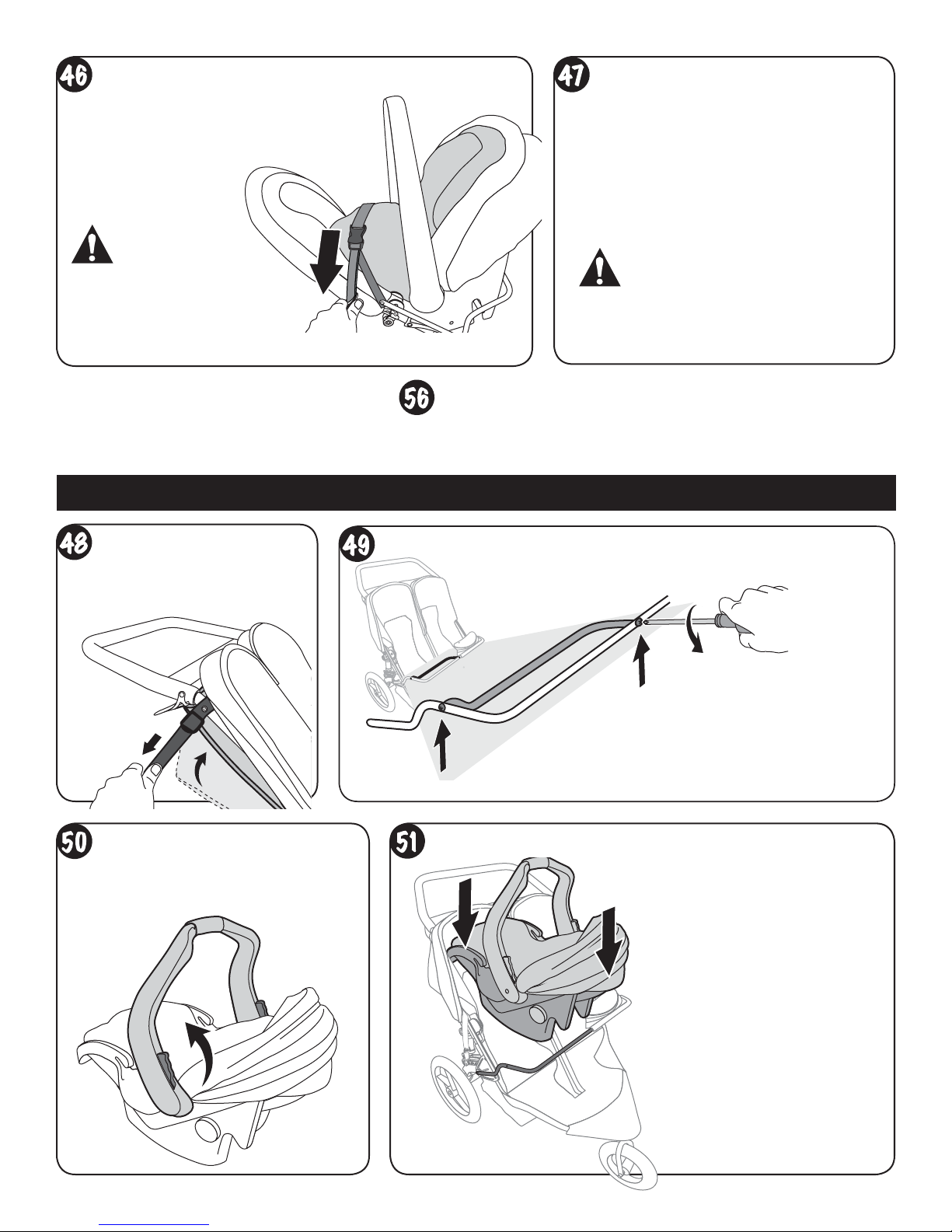

RAISE SEAT BACK REMOVE ACCESSORY BAR
Using a Phillips screwdriver,
remove both screws.
Move car seat handle into
upright carrying position.
POSITION HANDLE
TO REMOVE Peg Pérego®Go To
Graco®
POSITION CAR SEAT
Place car seat “rear facing”
onto ICSA main bar, in a
straight downward motion.
Be sure restraint
belt tension is not
constricting child as it
may cause serious injury.
Warning
Pull on red ring to tighten.
TIGHTEN RESTRAINT BELT DOUBLE CHECK CAR SEAT IS
SECURELY ATTACHED
Pull car seat upward without
removing restraint belt.
You should not be able to remove
car seat without unfastening
restraint belt.
Warning
Failure to securely attach car seat
may result in serious injury or death.
TIP: Attach screws to
accessory bar for future use.
CAUTION: Ends of accessory bar are sharp!
See the “Reclining Seat”
section of your stroller
owner’s manual.
OMA18B P8

ENGAGE CAR SEAT
Slide grooves on underside of
car seat onto ICSA main bar.
Fasten restraint belt over top of
infant car seat as shown.
FASTEN RESTRAINT BELT
Pull on red ring to tighten.
TIGHTEN RESTRAINT BELT
TO REMOVE Graco®Go To
UNFASTEN RESTRAINT BELT
Unfasten restraint belt.
Place ends outside seat.
With car seat handle
in upright position,
lift car seat straight
up and o ICSA bar.
Fasten restraint belt
when not in use.
SET PARKING BRAKE
FASTEN RESTRAINT BELT
Britax®
Peg Pérego®
Graco®
With car seat handle
in upright position,
squeeze red release
button under Graco®
car seat canopy, lift
car seat straight up
and o ICSA bar.
Red hook on Graco®
should be under
main bar.
Be sure restraint
belt tension is not
constricting child as it
may cause serious injury.
Warning
TO REMOVE CAR SEAT
Pull car seat upward without
removing restraint belt.
You should not be able to remove
car seat without unfastening
restraint belt.
DOUBLE CHECK CAR SEAT IS
SECURELY ATTACHED
Warning
Failure to securely attach car seat
may result in serious injury or death.
See the “Parking Brake”section of
your stroller owner’s manual.
OMA18B P9

63
TIP: Attach screws to
accessory bar for future use.
CAUTION: Ends of accessory bar are sharp!
REMOVE ACCESSORY BAR
RIGHT TRAY INSTALLATION
REMOVE LONG SCREWS
Using a Phillips screwdriver
remove both screws.
Using a Phillips
screwdriver, remove
3 long screws from
right tray.
ATTACH LONG SCREWS
Insert long screw through each hole in right tray,
main bar and into nut on underside of right tray.
Tighten rmly with Phillips screwdriver.
POSITION TRAY
Position right tray on main
bar, lining up holes.
Using a Phillips screwdriver and an 8 mm
socket wrench, remove short screw and nut.
REMOVE SHORT SCREW AND NUT
Reach under left tray and
press nut into hole.
Reach under right tray and insert
short screw through right tray,
left tray and into nut.
ATTACH SHORT SCREW AND NUT Tighten rmly with
Phillips screwdriver.
Children should not be
placed directly in the
BOB Stroller seat with the
Duallie ICSA installed,
unless tray is installed
directly in front of child for
safety and protection.
Warning
OMA18B P10

Retrieve original screw and
place on stroller seat.
REMOVE RESTRAINT BELT F
REMOVE SHARP SCREW
Remove right side
sharp screw from
right side arm.
MOVE ARM FORWARD
Remove restraint
belt M from post.
REMOVE RESTRAINT BELT
REPLACE ORIGINAL SCREW
Insert original screw
through hole and nut.
Tighten rmly.
REMOVE RESTRAINT
BELT M
REPLACE SHARP
SCREW
Rotate arm so end
of arm aligns with
rivet nut.
POSITION ARM
Insert sharp screw
through end of arm,
fabric grommet and
into rivet nut.
Sharp screw should tighten ush
against arm.
Note: If screw does not turn easily,
unscrew and start again.
Keeping your
nger on the nut,
remove restraint
belt screw with
Phillips screwdriver.
Tighten rmly with Phillips
screwdriver.
TIGHTEN SHARP SCREW
OMA18B P11

• The BOB Duallie Infant Car Seat Adapter
is designed for use with double seat BOB
Strollers and compatible Infant Car Seats. This
product is not a universal adapter. Do not use
with car seats and stroller models other than
those specically listed in the Stroller and Car
Seat Compatibility charts listed on page 1.
• Children should not be placed directly in
the BOB Stroller seat with the Duallie ICSA
installed, unless tray is installed directly in
front of child for safety and protection.
• The Duallie ICSA Restraint Belt can interfere
with the accessibility and proper function of
the right side safety harness system and the
Accessory Bar of the Duallie ICSA can interfere
with accessibility to the right seat. Duallie
ICSA restraint belt and accessory bar must be
removed from the BOB Stroller and Right Tray
must be installed prior to placing child directly
in right seat. Failure to do so may result in
serious injury or death.
• Read and understand all owner’s manuals and
warnings for all BOB products used with the
Duallie ICSA before use.
• Read and understand infant car seat owner’s
manual before use.
• Always use seat harness of Infant Car Seat to
avoid children falling out of stroller.
• Maximum capacity 17.5lb (weight of infant
including clothing). Exceeding capacity may
cause stroller to become unstable.
• Follow assembly instructions. Failure to
properly install this accessory product
may result in accidents, severe injury or
death. If you are not sure you can install this
accessory, contact your BOB retailer and
arrange for them to perform the installation.
• Never leave children unattended in the
stroller/infant car seat.
• Always secure the infant car seat with the
restraint belt when the car seat is placed in
the stroller. Failure to do so may result in
serious injury or death.
• Always keep your Infant Car Seat handle
in the vertical and locked position while in
stroller, as extra protection for your child.
• Stroller may become unstable if parcel bags
are incorrectly attached or if bags other than
those recommended by BOB Trailers, Inc. are
used.
• Do not run or jog when using the Duallie
ICSA with car seat installed. Doing so may
result in serious injury or death.
• Do not use o-road or on uneven terrain
when using the Duallie ICSA with car seat
installed. Doing so may cause stroller to
become unstable and result in accident,
serious injury or death.
• Children develop at dierent rates. Consult
with your pediatrician regarding the
suitability of the stroller use with your child.
Duallie Infant Car Seat Adapter Warnings
BOB IS NOT RESPONSIBLE FOR INJURY, DAMAGE OR FAILURE THAT RESULTS
FROM OWNERS FAULTY ASSEMBLY OR MAINTENANCE AFTER SHIPPING.
OMA18B P12
• Loctite 262 is a potentially hazardous chemical. Do not allow contact with skin or
eyes. Do not ingest. Use in well ventilated area. Keep out of reach of children and
dispose of vial properly. Other safety warnings for Loctite 262 can be found at
www.loctite.com

LIMITED WARRANTY
BOB Trailers Inc. takes pride in its workmanship and strives to manufacture the best products
possible. Therefore, we warranty the Duallie ICSA against defects in material and workmanship
subject to the conditions listed below. Since no product is indestructible, it does not cover defects
attributable to or resulting from normal wear, abuse or alteration.
• The Duallie ICSA is
warranted for one
year from the date of
original purchase.
• Warranty is only
valid for the original
purchaser.
• Proof of purchase is
required to exercise
this warranty.
• Labor and freight
charges are not included.
• Normal wear, neglect,
abuse, accidents, and
improper use are not
covered by this warranty.
• Warranty claims must
be made through an
authorized dealer.
B.O.B, B.O.B Logo, and BOB are proprietary
trademarks of BOB Trailers, Inc.
Britax® and Companion® are registered
trademarks of Britax Excelsior Ltd. and
related companies.
Graco® Snug Ride™ and SafeSeat™ are
registered and proprietary trademarks of
Graco Children’s Products, Inc.
Peg Pérego® Primo Viaggio™ and Primo
Viaggio SIP™ are registered and proprietary
trademarks of Peg Pérego S.P.A. Corporation.
• This warranty is limited to the
repair or replacement of the
defective part. BOB Trailers,
Inc. shall in no event be
responsible for consequential
or special damages.
• This Limited Warranty is
the only express or implied
warranty applicable to BOB
Trailers, Inc. Any implied
warranties, including
warranties of merchantability
and tness shall be limited
in scope and duration in
accordance with this limited
warranty.
BOB is a company that produces high
quality products designed to promote
a healthy outdoor life-style. Go to
www.bobgear.com for our complete
line of products. Before attempting
to assemble or use your new Duallie
ICSA, read and understand these
instructions completely to insure
proper assembly and operation.
If you are unclear on any point, contact
your dealer, place of purchase or BOB
[toll free 1-800-893-2447] before use.
A list of dealers is listed on our website
[www.bobgear.com]. For updates to
this manual, our warranty and for other
recent product notications, please visit
www.bobgear.com periodically.
OMA18B P13
