1 INTRODUCTION
1.1 Scope and definitions
This manual provides installation and maintenance instructions for the Disposable Liners for the
BOC Edwards Model 250 Water-Cooled Exhaust Trap. You must use the Disposable Liners as
specified in this manual.
Read this manual before you install the Disposable Liners. Important safety information is
highlighted as WARNING and CAUTION instructions; you must obey these instructions. The
use of WARNINGS and CAUTIONS is defined below.
WARNING
Warnings are given where failure to observe the instruction could result in injury or death
to people.
CAUTION
Cautions are given where failure to observe the instruction could result in damage to the
equipment, associated equipment and process.
1.2 Description
The Disposable Liners are designed to fit the Model 250 Water-Cooled Exhaust Trap.
The exhaust trap cools the exhaust gases from the pump and causes particulates to collect on the
liners in the trap. This minimises the collection of particulates in the exhaust-system, where they
may lead to blockage and so result in downtime of your pumping system. When fully coated, the
liners can be easily removed from the trap and be replaced with new liners.
The Water-Cooled Exhaust Trap and the Disposable Liners are particularly suitable for use with
a pump which is used for an LPCVD nitride process.
2 TECHNICAL DATA
Liner construction materials Zinc coated mild steel
Disposable Liners 3

3 INSTALLATION
3.1 Safety
WARNING
You must use the appropriate procedures to shut down the pumping system before you
start to install the Disposable Liners. Ensure that the system has been adequately purged
with nitrogen to remove any hazardous substances before you shut down the pumping
system.
WARNING
The substances accumulated in the exhaust trap are likely to be hazardous. Do not allow
your skin or eyes to come into contact with these substances. Do not inhale vapours
within the exhaust trap. Wear gloves, goggles and respiratory protective equipment.
WARNING
Obey the safety instructions given below and take note of appropriate precautions. If you
do not, you can cause injury to people and damage to equipment.
•A suitably trained and supervised technician must install the Disposable Liners.
•Ensure that the installation technician is familiar with the safety procedures which relate to
the products used and produced by the process system. Wear the appropriate
safety-clothing when you come into contact with contaminated components.
•Vent and purge the process system before you start installation work.
•Ensure that the exhaust trap and the connecting pipelines are at a safe temperature before
you start installation.
•You must only use BOC Edwards recommended components to install the Disposable
Liners.
•Check that all the required components are available and of the correct type before you start
work.
•Disconnect the other components in the process system from the electrical supply so that
they cannot be operated accidentally.
•Dispose of the old liners and particulates deposited in the exhaust trap safely.
•Take care to protect sealing-faces from damage.
•Leak-test the vacuum system after installation and seal any leaks found to prevent leakage of
dangerous substances out of the system and leakage of air into the system.
4Disposable Liners

3.2 Unpack and inspect
Remove all protective covers and check the Disposable Liners.
If the Disposable Liners are damaged, notify your supplier and the carrier in writing within three
days; state your order number and invoice number. Retain all packing materials for inspection.
Do not use the Disposable Liners if they are damaged.
Check that your package contains the items listed in Table 1. If any item is missing, notify your
supplier within three days.
Qty Description Check (✓)
1 Inlet liner ❏
2 Outlet liners ❏
1 Cold-finger liner ❏
1 Cold-finger end-cap ❏
1 Outlet end-shield ❏
1 Inlet end-shield ❏
1 Inner liner ❏
2 Top-flange 'O' rings * ❏
1 Inlet insulator ❏
2 Inlet isulator 'O' rings ❏
Outer liner assembly, which consists of:
10 Liner segments (8 small, 2 large) ❏
2 Retaining rings ❏
1 Inlet gasket ❏
1 Outlet gasket ❏
* Two sizes of 'O' ring are provided; choose the correct size for your exhaust trap.
(Early models of the exhaust trap use the smaller of the two 'O' rings.)
Table 1 - Checklist of components
If the Disposable Liners are not to be used immediately, replace the protective covers. Store the
Disposable Liners in suitable conditions as described in Section 5.1.
Disposable Liners 5

3.3 Prepare the exhaust trap
WARNING
Before you open the exhaust trap, ensure that the pressure in the exhaust trap is not above
atmospheric pressure.
Refer to Figure 1 and use the following procedure to prepare the exhaust trap.
1. Purge the pumping system, shut down the pump and turn off the cooling-water supply.
2. Allow the exhaust trap and the outlet and inlet elbows (2, 5) to cool to a safe temperature.
3. Undo and remove the clamp (3) which secures the elbow (2) to the trap outlet, then
disconnect the elbow from the trap outlet; retain the trapped 'O' ring seal.
4. Place protective caps over the elbow (2) and the trap outlet.
5. Undo and remove the clamp (6) which secures the pump outlet to the trap inlet elbow (5);
retain the trapped 'O' ring seal.
6. Place protective caps over the pump outlet and the inlet elbow (5).
7. Place a suitable container under the cooling-water outlet connector (7), then disconnect the
cooling-water outlet hose from the trap and allow the cooling-water to drain from the trap.
8. Disconnect the cooling-water inlet hose from the inlet connector (4) on the exhaust trap and
move the exhaust trap to a fume-cupboard or a well ventilated area.
6Disposable Liners

Disposable Liners 7
Figure 1 - Exhaust trap connections
1. Clamp and trapped 'O' ring
2. Outlet elbow
3. Clamp and trapped 'O' ring
4. Cooling-water inlet connector
5. Inlet elbow
6. Clamp and trapped 'O' ring
7. Cooling-water outlet connector

3.4 Remove the old liners
Refer to Figure 2 in the following procedure. An exploded view of the Disposable liners is
shown in Figure 3.
1. Undo and remove the eight thumbwheels (4) which secure the top-flange to the exhaust trap.
2. Remove the top-flange (21) and top-flange 'O' ring (20) from the trap.
3. Remove the outlet liner (2) from the trap outlet (1); note that you can slightly compress the
outlet liner to make it easier to remove.
4. Remove the outlet rubber gasket (3) from its position on top of the inner and outer liners.
5. Remove the outlet end-shield (5) from the trap.
6. Remove the inner liner (7) from the trap; note that you can slightly compress the liner to
make it easier to remove.
7. Remove the 10 outer liner segments (18) from the trap.
8. Remove the cold-finger end-cap (6) from the trap.
9. Remove the cold-finger liner (17) from the trap; note that you can slightly expand the liner to
make it easier to remove.
10. Remove the inlet liner (10) from the trap inlet elbow (11); note that you can slightly compress
the liner to make it easier to remove.
11. Undo and remove the eight M6 nuts and washers (12), and remove the inlet insulator (13)
and the inlet elbow (11).
12. Remove and dispose of the two 'O' rings (9).
13. Remove the inlet end-shield (16) from the trap; note that the end-shield has lifting-tabs
(Figure 3, item 10) to make it easier to remove.
14. Remove the inlet gasket (14) from the trap.
15. Dispose of the top-flange 'O' ring, the inlet and outlet liners, the inlet and outlet end-shields,
the inner and outer liners, the cold-finger liner, the cold-finger end-cap and the inlet and
outlet gaskets (refer to Section 5).
3.5 Clean the exhaust trap
WARNING
The substances accumulated in the trap may be dangerous. Do not allow your skin or eyes
to come into contact with these substances. Do not inhale vapours from the trap or the
connecting pipelines.
1. Use a suitable tool to remove any loose deposits from the body of the trap.
2. Inspect the body of the trap and the inlet flange for damage and corrosion. Do not use the
trap if there is excessive damage or corrosion.
8Disposable Liners

Disposable Liners 9
Figure 2 - Sectional view of trap and liner components
1. Trap outlet
2. Outlet liner
3. Outlet gasket
4. Thumbwheels (8 off)
5. Outlet end-shield
6. Cold-finger end-cap
7. Inner liner
8. Cold-finger
9. 'O' rings
10. Inlet liner
11. Trap inlet elbow
12. Nuts and washers
13. Inlet insulator
14. Inlet gasket
15. Trap base
16. Inlet end-shield
17. Cold-finger liner
18. Outer liner segment
19. Trap body
20. 'O' ring
21. Trap top-flange

10 Disposable Liners
1. Outlet liner
2. Trap outlet
3. Trap top-flange
4. Outlet end-shield
5. Inner liner
6. Outer liner segment
7. Cold-finger end-cap
8. Cold-finger liner
9. Cold-finger
10. Lifting-tabs
11. Inlet end-shield
12. Trap base
13. 'O' rings
14. Inlet liner
15. Inlet insulator
16. Trap inlet
17. M6 nuts and washers
18. Inlet gasket
19. Retaining-rings (2 off)
20. Outlet gasket
21. Thumbwheels (8 off)

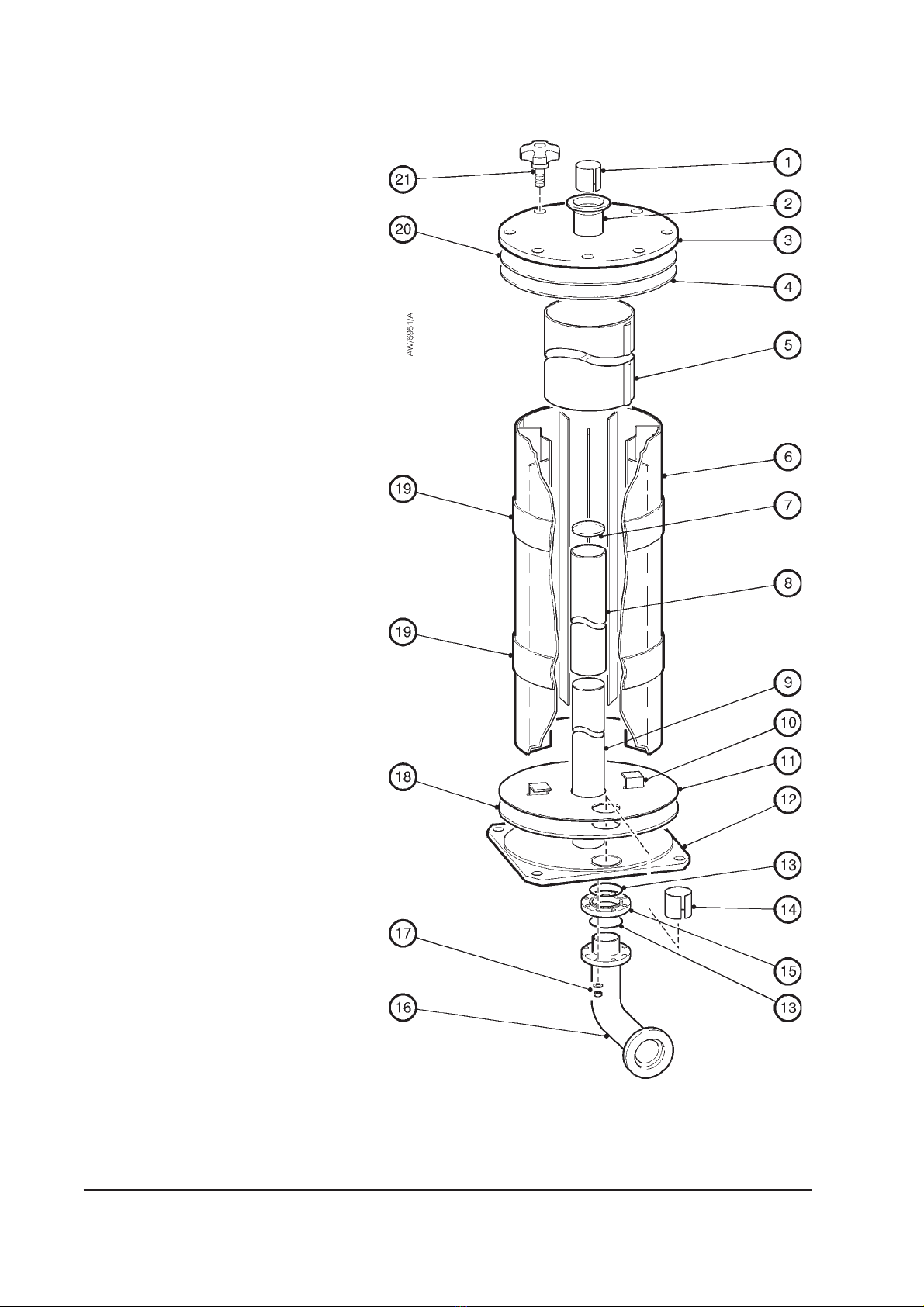

Figure 3 - Exploded view of liner components

3.6 Install the new liners
CAUTION
Ensure that you fit the inner liner (Figure 4, item 2) in the correct orientation. If you do
not, the pump exhaust gases will not flow correctly through the liners and the trap will not
operate effectively.
Refer to Figure 2 in the following procedure.
1. Fit the inlet elbow (11), the new inlet insulator (13) and the two new 'O' rings (9), then fit and
tighten the eight M6 nuts and washers (12): do not over-tighten the nuts, as you may damage
the inlet insulator.
2. Fit the new inlet liner (10) into the trap inlet (11); note that you can slightly compress the liner
to ease its insertion.
3. Fit the new inlet gasket (14) in the trap body; ensure that the off-centre hole in the gasket
aligns with the trap inlet (11).
4. Fit the new inlet end-shield (16) into the trap with the lifting-tabs (Figure 3, item 10)
upwards; ensure that the off-centre hole in the end-shield aligns with the trap inlet (11).
5. Fit the new cold-finger liner (17) over the cold-finger (8); note that you can slightly expand
the liner to ease its insertion.
6. Fit the new cold-finger end-cap (6) inside the top of the cold-finger liner (17); note that the
end-cap is tapered and you must fit the end-cap with the recess in the cap upwards.
7. Align the new outer liner assembly so that the long fin on the inlet segment is adjacent to the
trap inlet (see Figure 4), then slide the outer liner assembly into the body of the trap; as you
slide the assembly into the trap, allow the retaining rings (Figure 3, item 19) to slide up the
outside of the liner segments until they come off. Dispose of the two retaining rings.
8. Fit the new inner liner (7) into the trap so that the gap in the bottom of the liner aligns with the
long fin on the outer liner (see Figure 4); note that you can slightly compress the liner to ease
its insertion.
9. Fit the new outlet end-shield (5) into the trap.
11. Fit the new outlet gasket (3) into the trap.
11. Remove the dust-cover from the trap outlet and fit the new outlet liner (2) into the trap outlet
(1). Two outlet liners are supplied; use the correct size outlet liner for your trap. Note that
you can slightly compress the liner to ease its insertion.
12. Place the new top-flange 'O' ring (20) in position. Note that two 'O' rings are supplied; use
the correct size 'O' ring for your trap.
13. Refit the top-flange (21) to the trap-body (19); ensure that you do not displace the top-flange
'O' ring. Secure the top-flange to the trap with the eight thumbwheels (4).
Disposable Liners 11

3.7 Refit the exhaust trap
Refer to Figure 1 in the following procedure.
1. Move the exhaust trap to its operating location.
2. Inspect the trap outlet trapped 'O' ring seal and clamp (3) removed in Section 3.3. If any item
is damaged, replace it with a new one.
3. Use the trapped 'O' ring and clamp (3) to connect the elbow (2) to the trap outlet.
4. Use the trapped 'O' ring and clamp (6) to connect the pump outlet to the trap inlet elbow (5).
5. Connect the cooling-water inlet hose to the inlet connector (4) on the trap.
6. Connect the cooling-water outlet hose to the outlet connector (7) on the trap.
12 Disposable Liners
Figure 4 - Alignment of liners (viewed from the top of the trap)
1. Small outer liner segment (8 off)
2. Inner liner
3. Gap at bottom of inner liner
4. Long fin on inlet liner segment
5. Trap inlet position
6. Large (inlet) liner segment
7. Large liner segment

3.8 Leak-test the installation
WARNING
Leak-test the system after installation and seal any leaks found to prevent the leakage of
dangerous substances from the system and leakage of air into the system.
Leak-test the system after you have installed the trap and seal any leaks found. Dangerous
substances could otherwise leak from the system. Also, if air leaks into the exhaust-system, this
will promote the formation of particulates in the exhaust-system.
We recommend that the total leak rate of the system is 1 x 10-5 mbar l s-1 (1 x 10-3 Pals
-1) helium or
less.
4 MAINTENANCE
You cannot maintain the Disposable Liners. You must remove the liners and refit new liners
every six months or sooner.
5 STORAGE AND DISPOSAL
5.1 Storage
Store the Disposable Liners in cool, dry conditions until required for use. When required,
prepare and install the Disposable Liners as described in Section 3.
6.2 Disposal
Dispose of the Disposable Liners and any substances removed from the exhaust trap quickly and
safely in accordance with all local and national safety and environmental requirements.
Take particular care with components which have been contaminated with dangerous process
substances.
Disposable Liners 13

(This page deliberately left blank)
14 Disposable Liners
