Boca Flasher NICHE-HV User manual

Installation Manual
NICHE-HV
WARNING: DO NOT LIFT FIXTURE BY CABLES.
This could result in permanent damage to both the xture and the cables. Damage resulting from grasping cables and/
or putting undue pressure on the cable connections will not be covered under the warranty!
DO NOT ATTEMPT TO INSTALL OR USE THE NICHE-HV FIXTURE WITHOUT READING THE INSTALLATION
INSTRUCTIONS AND SAFETY LABELS COMPLETELY.
Failure to adhere to these instructions could result in serious injury or property damage.
DO NOT MODIFY, ALTER OR ATTEMPT TO SERVICE THE NICHE-HV. DOING SO WILL VOID THE WARRANTY.

Installation Instructions
NICHE-HV
Introduction:
The Boca Niche-HV is a very small prole line voltage xture well suited to coves or task areas where space and energy consumption are
constrained. Boca’s CleanDim® technology ensures even dimming from 0-100%. The Boca Flasher Niche-HV can be fabricated with a range
of color temperature choices, aording a multitude of options. The housing is clear anodized aluminum with a durable nish making it
temperature and abrasion resistant.
Maintenance:
CLEANING To clean surface use a soft damp cloth.
STORAGE Store in a dry, well-ventilated area when product is not in use.
Keep the electrical cord away from heated surfaces when in use or not in use.
If cord shows signs of damage do not use, return product to manufacturer.
Electrical Specifications:
1. Input Voltage: 90-120VAC
2. Total linear ft per 20A breaker: 165ft (8 wplf), 330ft (4 wplf)
3. Total linear ft per 15A breaker: 125ft (8 wplf), 250ft (4 wplf)
4. Input Current: 95mA RMS per linear ft (8 wplf),
48mA RMS per linear foot (4 wplf)
Fixtures must be installed by a
qualied and licensed electrician in
accordance with all national, state and
local electrical codes and regulations.
If any part of this manual does
not meet the necessary codes and
regulations, contact the factory for
more information before attempting
to install.
Model Dependent
Max temp: 55C
Min. temp: -40C
DAMP LISTING
IP65
WET LISTING
IP68
Turn Power Off At Circuit Breaker Before Beginning Installation!

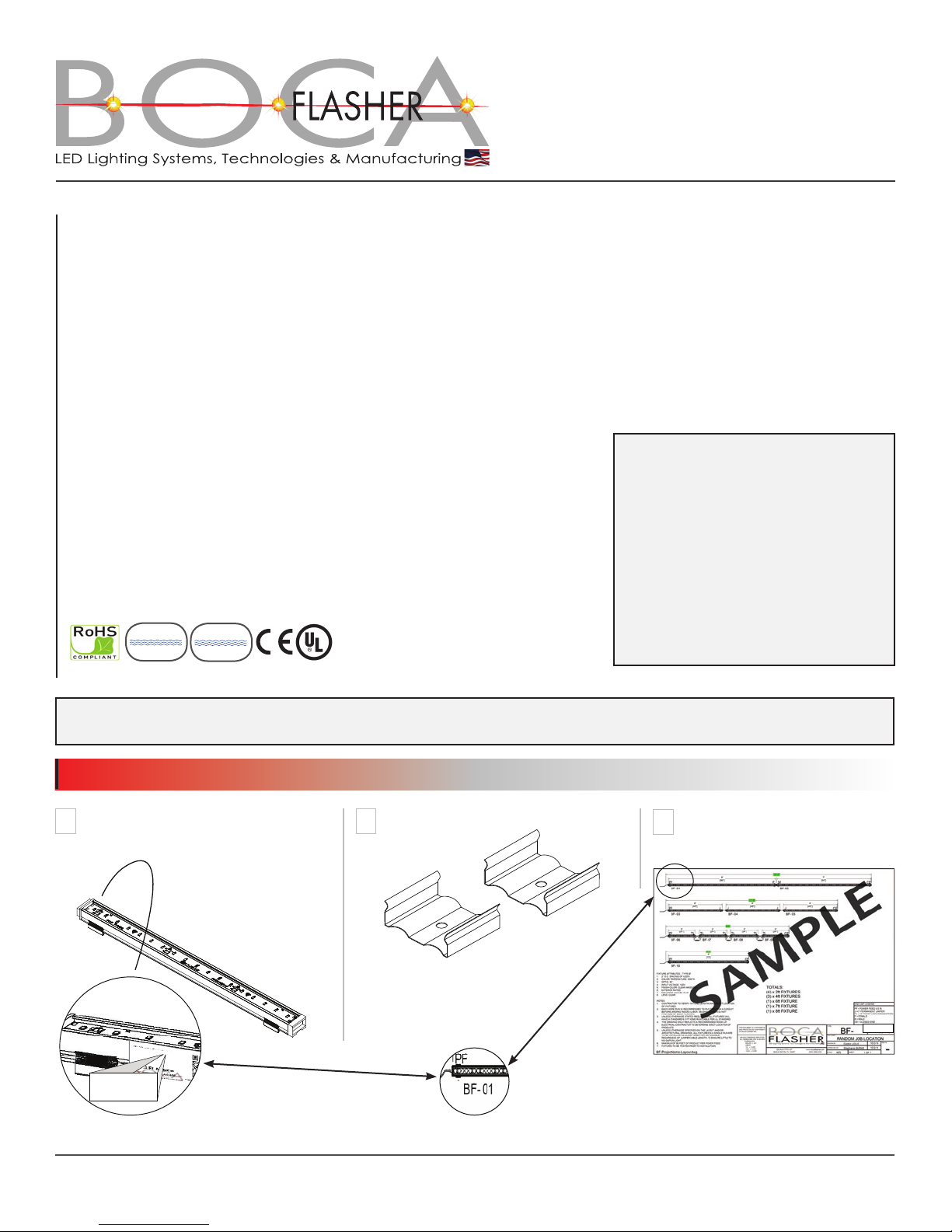

INCLUDED IN THIS PACKAGE:
Mounting Brackets
(2 brackets per xture)
12
PAGE 2 OF 5
NICHE-HV Fixtures
(In lengths shown on job specic drawings) 3Job Specic Drawings
Solid Color Line Voltage Dimmable LED Light Strips
▶
▶
BF-01
BF-01
NICHE-HV
Rotate Fixture to see
label on side.
Labels on xtures correspond with
nomenclatures on drawings.

2. INSTALL FIXTURES INTO CLIPS
Installation Instructions
NICHE-HV
PAGE 3 OF 5
1. INSTALL CLIPS INTO SUBSTRATE
Push Fixture down with slightly rm pressure.
1a 1b
Screw Information:
1. Screws not provided by Boca Flasher.
2. Boca Flasher recommends wide washer at
head Philips #6 screw.
(not to exceed .1380” in diameter).
3. Length of screw will vary depending on
mounting surface.
2a Clip will securely snap into place.
2b
3. CONNECT FIXTURE TO POWER
*For vertical installation, please contact the factory for specic mounting instructions.
▶
snap!
▶
snap!
*Green ground can be
removed or attached
to J-Box.
INDOOR / DRY INSTALLATION ONLY

4. CONNECT FIXTURES TO POWER WITH DIMMING SYSTEM
Installation Instructions
NICHE-HV
PAGE 4 OF 5
5.
*Green ground can be
removed or attached
to J-Box.
INDOOR / DRY
INSTALLATION ONLY
12
5a
12
CONNECT FIXTURES TOGEThER rIgID ConneCtIon
5b
Connect Male and Female end caps in then twist until
secure.
Push together until it locks.

Installation Instructions
NICHE-HV
IMPORTANT SAFETY REMINDERS:
We are constantly improving our fixtures and reserve the right to change options and specifications. Additional information &
details at www.bocaflasher.com. For specific requirements, contact your Boca Flasher sales representative. Boca Flasher, Inc. 508
S. Military Trail, Deerfield Beach, Florida 33442 USA Phone: [phone] Fax: [phone] © 2017 Boca Flasher, Inc. All rights
reserved. All names and trademarks are property of their respective owners. REV 07-2017
DAMP LISTING
IP65
WET LISTING
IP68
1. DANGER:
To reduce the risk of electric shock, always unplug the NICHE-HV from electrical outlet before
cleaning. Cut breaker if outlet is not available.
2. To reduce the risk of burns, re, electric shock or injury to persons:
• UsetheNICHE-HVonlyforitsintendeduseasdescribedintheseinstructions.
• DonotuseattachmentsnotrecommendedbyBocaFlasher.
• NeveroperatetheNICHE-HVifithasadamagedcordorplug,ifitisnotworking
properly, if it has been dropped or damaged, or dropped into water. If the seal appears
to be damaged/broken/torn return the NICHE-HV to a service center for examination or repair.
• Keepcordawayfromheatedsurfaces.
• Neverdroporinsertanyobjectintoanyopening.
• Donotoperatewhereaerosol(spray)productsarebeingusedorwhereoxygenis
being administered.
3. WARNING:
Do not attempt to install or use the NICHE-HV without reading the installation instructions
and safety labels. Failure to adhere to these instructions could result in serious injury or
property damage.
4. Do not modify, alter or attempt to service the NICHE-HV:
Doing so will void the warranty.
5. Do not use sharp tools near or on the xture lens:
Doing so will result in property damage and void the warranty.
Boca Flasher, Inc.
508 S. Military Trail nDeerfield Beach, Florida n33442 USA
Phone: [phone] nFax: 561-982-8323
www.bocaflasher.com
