Optifire
07DHOPFV2
Instructions for use
and maintenance
Caution: Remove the instructions from the fireplace and give them
to the client, along with the necessary instructions (explanations and
demonstrations).

2 Opti-

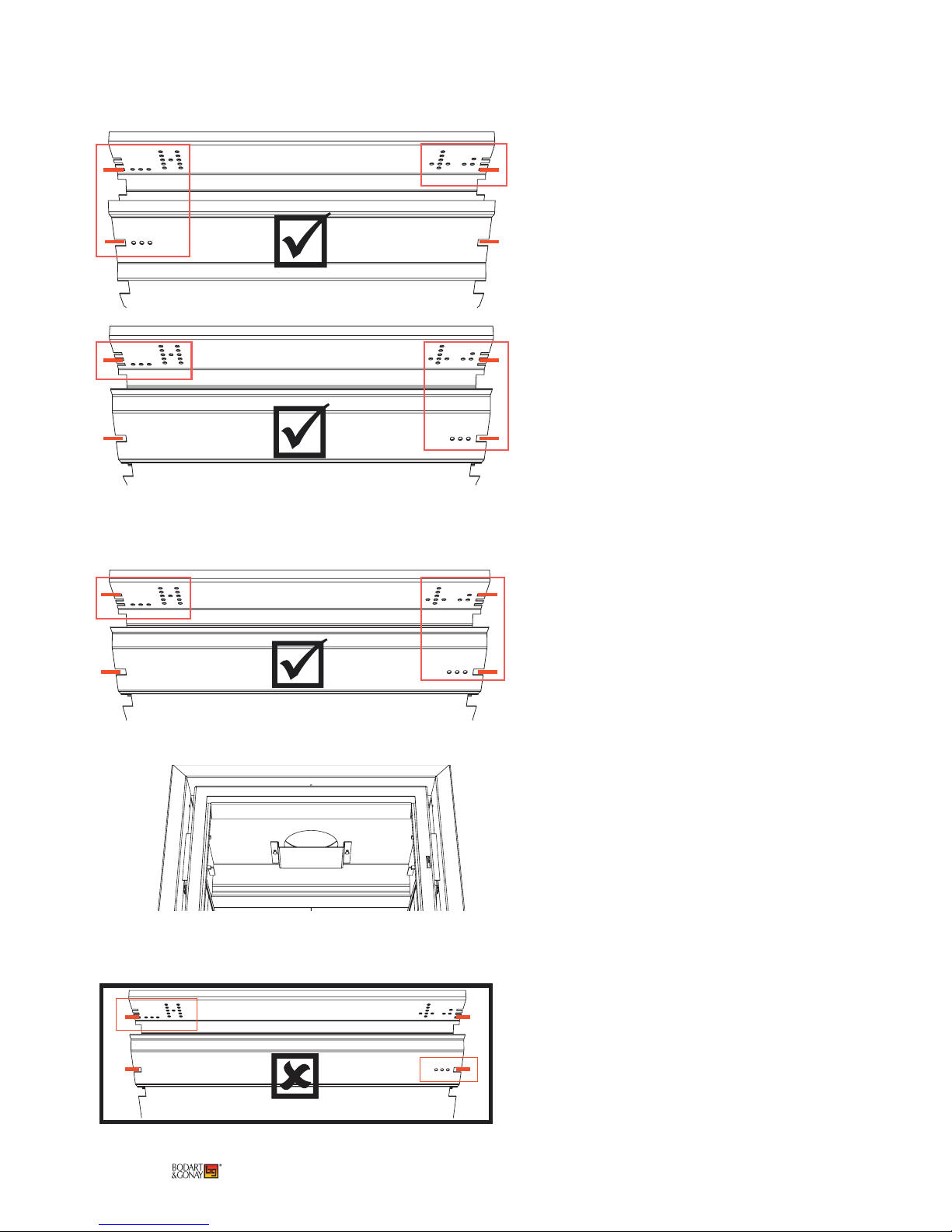

For the chimney sweep, tick the correct position of the baffles (see 1.5).

Optifire 3
MEMO
(to be completed by the installer)
* APPLIANCE TYPE OPTIFIRE
*REFERENCE:
OPTI700 :
OPTI760 :
OPTI760DF:
* DATE OF PURCHASE: ..... / ..... / .....
* SERIAL NUMBER:
(visible on the fireplace’s identification label, see
page 4 no.11 Description of elements)
…………………………………………………
*DISTRIBUTOR:
Name .........................................................
Street / No. ...................................................
Town ...............................................
Postcode .............................................
Tel. ...........................................................
Note:
Your supplier is the specialist chosen by BODART & GONAY to represent your region.
For your safety and satisfaction, we recommend that you have them carry out your installation
All local and national regulations and European standards must be observed when installing and using the
appliance.
If, however, you wish to carry out the installation yourself, to avoid any surprises, we recommend that you:
- consult the terms of our guarantee agreement,
- seek advice from your supplier.
Dear Client,
We congratulate you on the purchase of your Bodart & Gonay fireplace.
We are happy to inform you that you have chosen a quality product wholly designed and manufactured by our
company, using the most up-to-date production techniques.
To get the best use out of your appliance, we strongly recommend that you read these instructions carefully
and keep them safe.
Also keep your proof of purchase safe, as it will be used to determine the guarantee period.
We wish you lots of pleasure and warmth around your Bodart & Gonay fireplace.
Customer Services.
Concerning installation, given the impossibility of covering every particular case that might arise, we will
confine ourselves to the most important points.

4 Opti-
OK!
CONTENTS
RECOMMENDATIONS
1. Fuel 4
2. First fire 4
3. With each fire 4
1. Use: 5
1.1. Description of elements 5
1.2. Opening – closing the fireplace 6
1.3. Fire behaviour 6
1.3.1. Lighting 7
1.3.2. Ideal rate 7
1.3.3. Reduced rate 8
1.4. Operating with coal (occasional) 8
1.5. Adjusting baffles 9
1.6. Fans and speed variator 10
2. Maintenance: 11
2.1. Everyday maintenance 11
2.2. Annual servicing 12
3. Faults 13
4. Spare parts 14
5. Guarantee 23
RECOMMENDATIONS
1. Fuel:
This appliance burns (well dried!) wooden logs and
logs of compressed wood shavings.
Do not put too much wood in at once.
You can also use briquettes.
This appliance may not under any circumstances be
used as an incinerator!
2. First fire:
Bakes the paint, which causes a release of fumes and odours.
Ventilate the room!
Do not touch the paint until the fireplace has cooled down, as initially it softens
before hardening for good.
3. With each fire:
- Close the door of the ash box
- Position the grill properly depending on the fuel
- Turn on the fan (except for minimum rate)
It can also occasionally burn coal (anthracite or lean coal) of 12/22 or 20/30 grade.
It is prohibited, however, to burn coke or other fuels containing sulphur.

Optifire 5
68175342
12
11
10
9

 




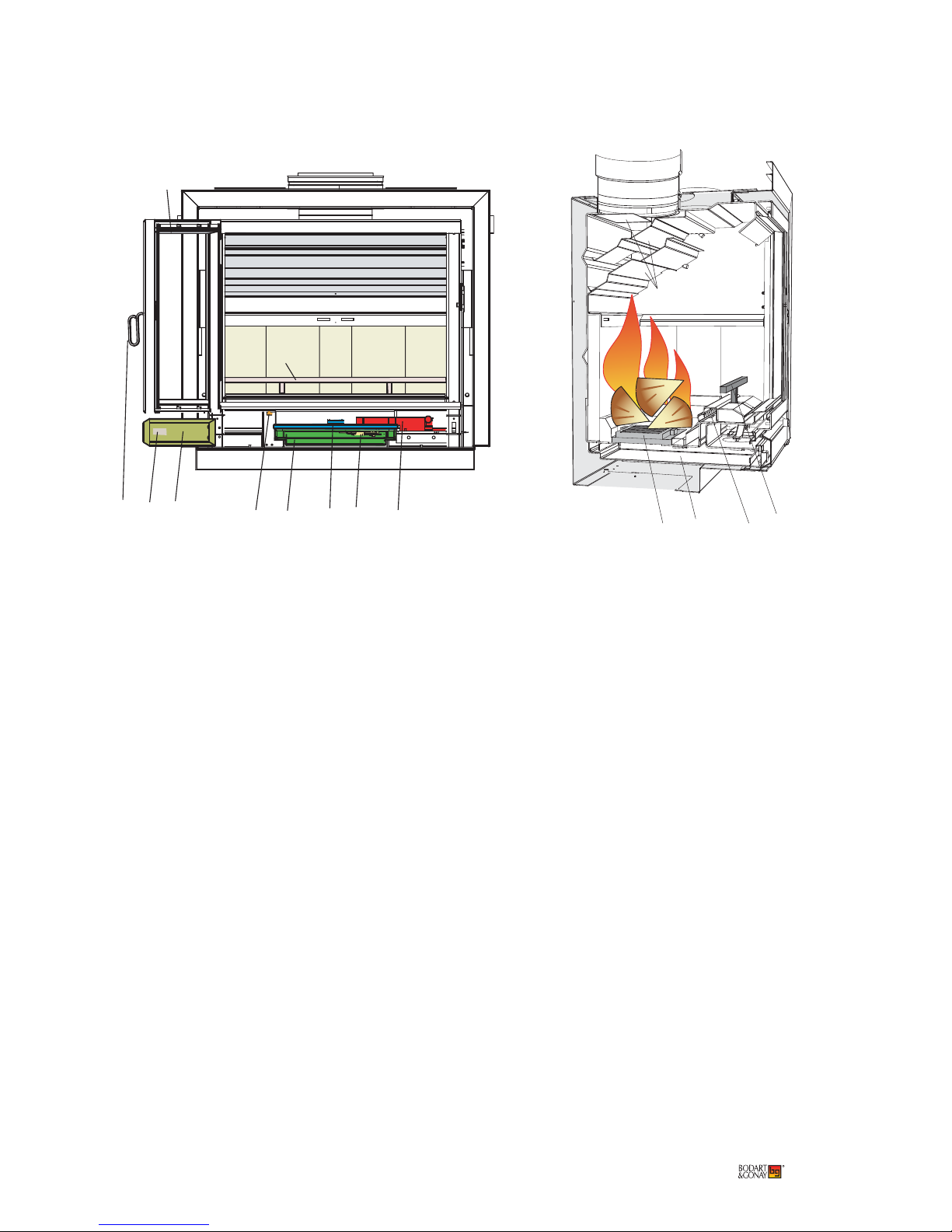

1. The gate: Never leave it open when the
appliance is in operation
2. The thermostat: It regulates the quantity of
primary air for combustion according to its
position. Its valve closes and opens according to
the temperature of the combustion chamber. Its
control knob is telescopic to facilitate operation.
3. The ashtray door: It gives access to the ashtray
and to the deashing arm. It must always be
closed during a fire (otherwise the combustion
air is no longer under control and the fire flares
up -> overheating of appliance).
4. The deashing arm :To use it, pull it towards you.
It is used to adapt the fireplace to the type of fuel
(left-hand position: open grill for coal; right-hand
position: closed grill for wood). Deashing is done
by moving it from right to left.
5. The ashtray: In the form of a shovel to enable
collection of ashes right at the bottom of the
appliance. Monitor the amount of ash in the
ashtray and empty it before it overflows.
6. Door lock and removable handle: With the
gate closed, place the removable handle in the
hole in the door latch to open and close.
7. Microswitch: A switch that automatically stops
the fan on opening the door.
8. Fireplace identification label
9. Log-guard: For safety.
10. Refractory bricks or cast iron plates: a natural
material that protects the heating unit whilst
limiting variations in temperature.
11. Baffles: Made of heat-resisting stainless steel,
they lengthen the path of fumes optimising
secondary combustion and increasing heat
transfer. They enable the fireplace to be
adapted to the draught of the chimney.
12. Inner door: These are hardwearing stainless
steel seals, to guarantee air tightness of the
door and trouble-free clearing of smoke from
the glass.
13. Distributors: They enable regular distribution
of primary air.
14. Grills: They are made of heat-resisting cast
iron, and the upper grill is operated by the
deashing arm.
1. Use:
1.1. Description of elements

6 Opti-
OK!
1
3
2


15. The variator: It enables adjustment of fan
speed.
1. Speed adjustment.
2. Minimum speed adjustment screw under the
knob
3. Fuse (Remove the knob, unscrew the plate,
remove old fuse, replace with identical fuse).
1.2. Opening – closing the door
1.3. Fire behaviour
Quality wood is:
- Dry wood that has been drying for at least 2 years in a ventilated
sheltered area.
- Use logs from broad-leaved trees in preference to those from coni-
fers, which tend to burn quickly and produce lots of soot. In order of
preference: hornbeam, oak, beech...
- It is also possible to use logs of compressed wood shavings and bri-
quettes.
An excessive load of wood leads to:
- A reduction in yield and an increase in
wood consumption.
- A significant loss of heat through the chimney.
- Premature ageing of the fireplace and chimney flue.
During the fire, open the door slowly. Opening it suddenly causes a
temporary backdraft in the fireplace.
To close the door: lift the handle, press the door against the heating
unit so that the seal is gently compressed, then lower the handle until
it is locked.
It is normal for the fan to cut out when opening the door.
The quality and the drying of the wood are of prime
importance for the fireplace to operate at its best
(heater power and yield, cleanliness of glass).
Do not forget to calibrate the variator; refer to the
installation manual in options 6.

Optifire 7
1.3.2. Ideal rate for good yield
1. Choose split logs (1or 2 depending on the quantity of heat needed)
2. Try to pile them in staggered rows to encourage gas exchanges.
3. Put the thermostat on 7-8.
4. Put the fan on maximum.
A sign of good combustion with wood, after a phase of degassing where the fireplace interior turns
black, during the actual combustion, this black tar must be burned and the fireplace interior must appear
clear, then blacken again with the following load and then be reburned once again.

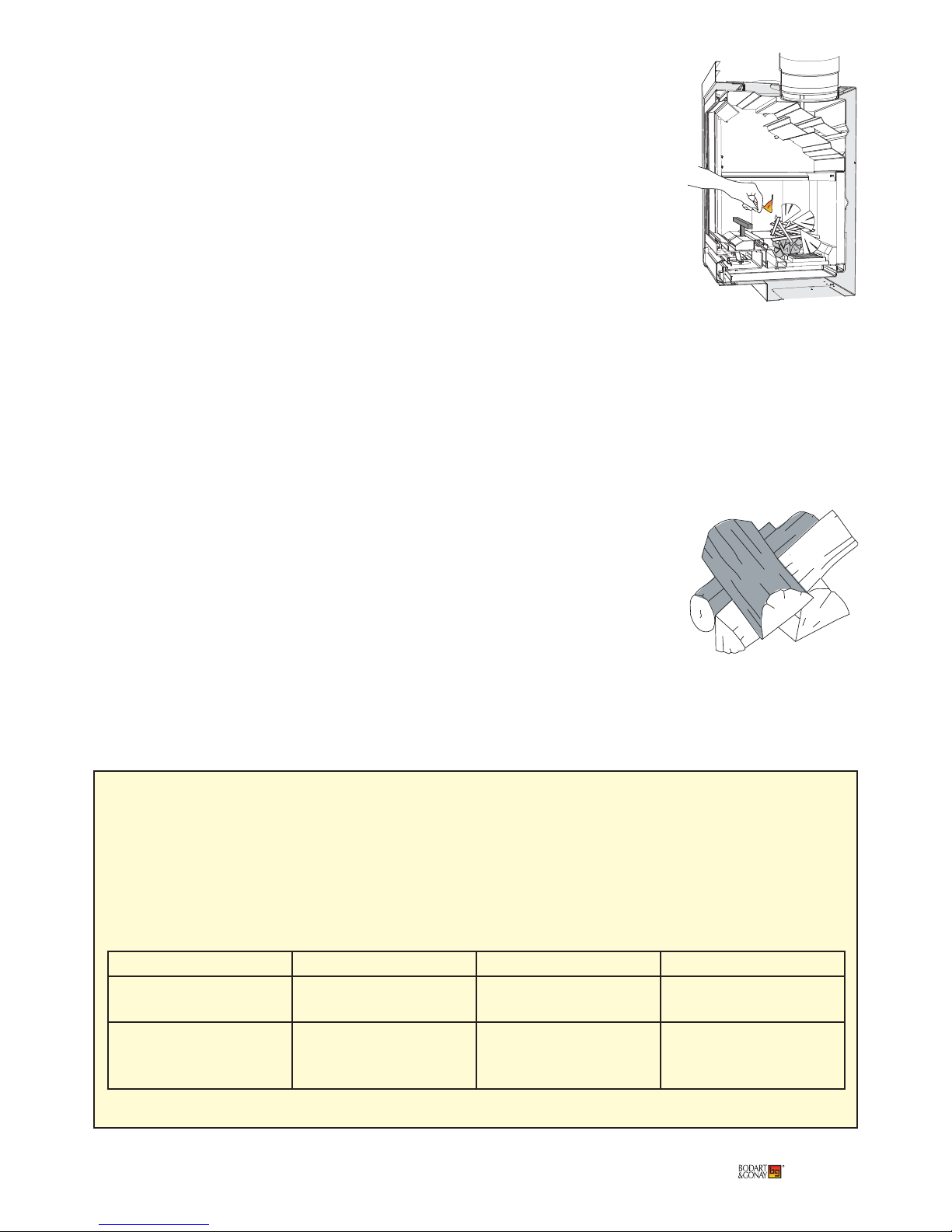

1.3.1. Lighting
1. OPEN the air control to maximum: Thermostat 9.
Place the grill in open position (lever to the left).
2. Lay firelighter or crumpled-up newspaper.
Finish off with kindling.
The use of inflammable liquids is prohibited.
3. Set light to it.
4. To avoid condensation of fumes on the glass and to facilitate
starting the fire: Leave the door slightly ajar to prevent the glass
sooting up, as its still too low temperature causes condensation and
deposit of particles.
5. Wait for the kindling to be well lit before LAYING the first logs, choosing the smallest ones first.
6. As soon as there are strong flames and the glass is sufficiently warm, close the door completely.
7. When the fire is blazing, close the grill and the ashtray and start the fan (Variator "ON" see 1.6).
8. When the appliance is hot, adjust the thermostat to the required position.
9. Adapt the fan speed to the quantity of hot air you need.
For better yield, it is best to have the thermostat on 7-8 and load log-by-log depending on the
quantity of heat you need.
This also enables you to keep the glass, bricks and chimney cleaner.
Also ensure that you close the baffles as far as possible and ideally put in place the third baffle
if your chimney allows it (see 1.5 Adjusting baffles).
Maximum permitted load at maximum rate:
Model OPTI700 OPTI760 OPTI760DF
Maximum load (for
reduced rate):
9Kg 11Kg 11Kg
Recommended load
for 1 hour at maxi-
mum rate:
3,5Kg 4,5Kg 3,68Kg

8 Opti-
1.3.3. Reduced rate and long-lasting combustion
Maximum permitted load in one go at reduced rate (see previous table).
1. Keep a 3 to 5 cm bed of embers at the bottom of the fireplace.
2. Choose logs with a very wide section.
3. Position the thermostat according to the draught of your chimney. A redu-
ced rate is generally achieved between 0 and 3.
This kind of load can only be used at reduced rate, to produce a long-lasting
fire.
Piling logs in parallel encourages a long-lasting fire. Add more logs when there are only embers left, just
after the last flames die out.
Continuous use at reduced rate may, through condensation, cause an accumulation of soot in
the chimney, and thereby a risk of chimney fire, and dirty the glass more quickly.
Avoid reduced rate during unfavourable atmospheric conditions (low pressure and high humi-
dity), as there is a risk of backdraft.
1. Position the GRILL in OPEN position.
2. OPEN the air control to maximum: THERMOSTAT 9.
3. Lay crumpled (non-glazed) paper and KINDLING in the fireplace.
4. SET LIGHT TO IT.
5. Leave the door slightly AJAR to prevent the glass sooting up, as its still too low temperature causes
condensation and deposit of particles.
6. As soon as the GLASS is sufficiently HOT, CLOSE THE DOOR.
7. START the FAN in MEDIUM POSITION (see 1.6).
8. Put the coal WITHOUT SPREADING IT OUT on the grill.
9. When the fire has penetrated the mass (appearance of flames), add a SECOND LOAD.
10. Allow the fire to continue to progress before reducing GRADUALLY the air intake up to the position
corresponding to the calorific requirement.
11. ADJUSTING FAN SPEED.
Use coal only in an casual way.
Use coal (anthracite or lean coal) of 12/22 or 20/30 grade.
Fuels containing sulphur, like coke and its by-products for example, are prohibited.
1.4. OPERATING WITH COAL
NB. Do not use the appliance with coal in mild weather. As the draught and rate are reduced, combus-
tion is liable to become incomplete.

Optifire 9
!
MAX.
MINI.
OFF= O
60
15
30
45
O
OFF=
ON
O

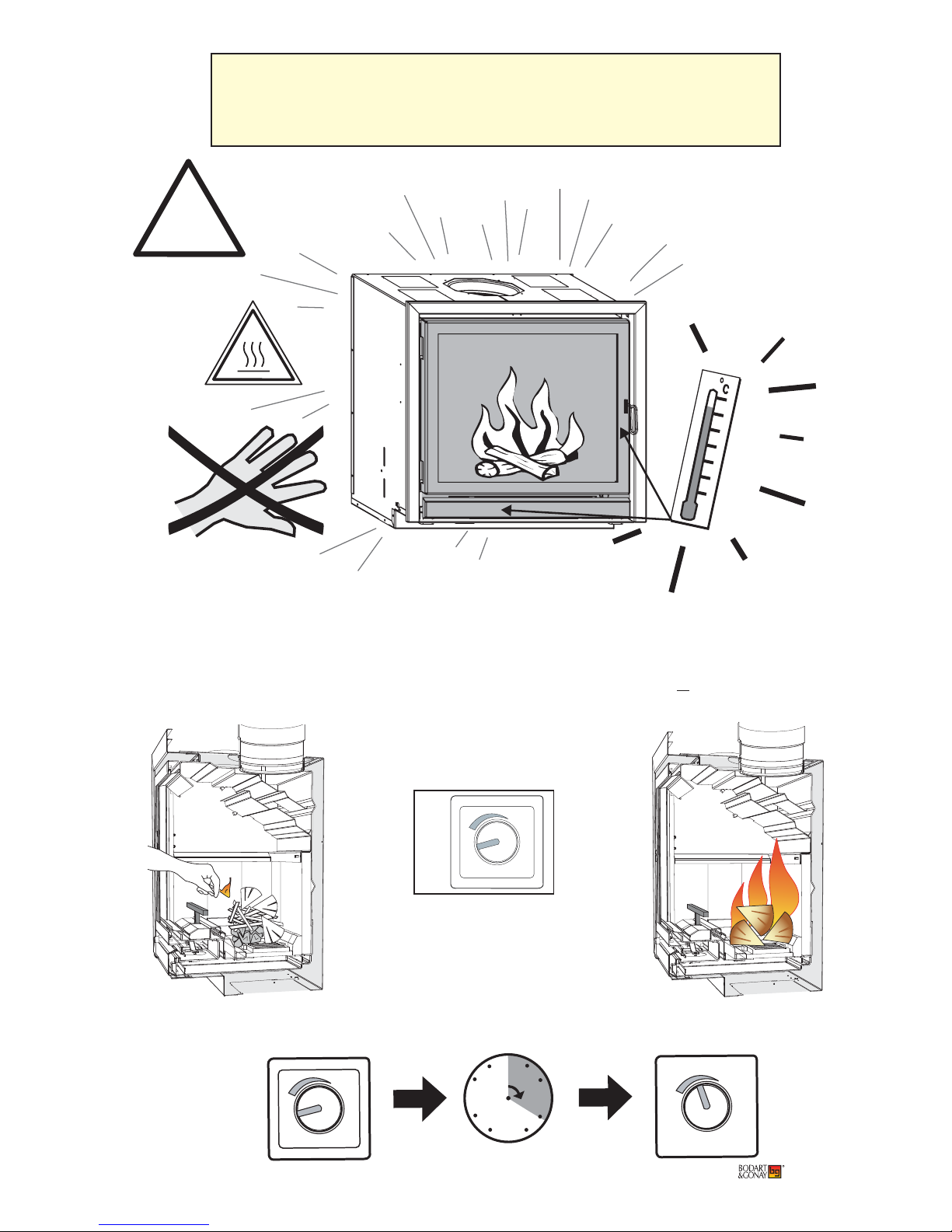

CAUTION!
When the fireplace is being used, and even if there are no more flames,
certain accessible parts of the appliance are at very high temperatures.
Do not leave children unsupervised near the fireplace.
1.6. Fans and speed variator
Caution ! The fan is engaged when the temperature switch is hot (+ 20 min.)

10 Opti-
Prohibited position:

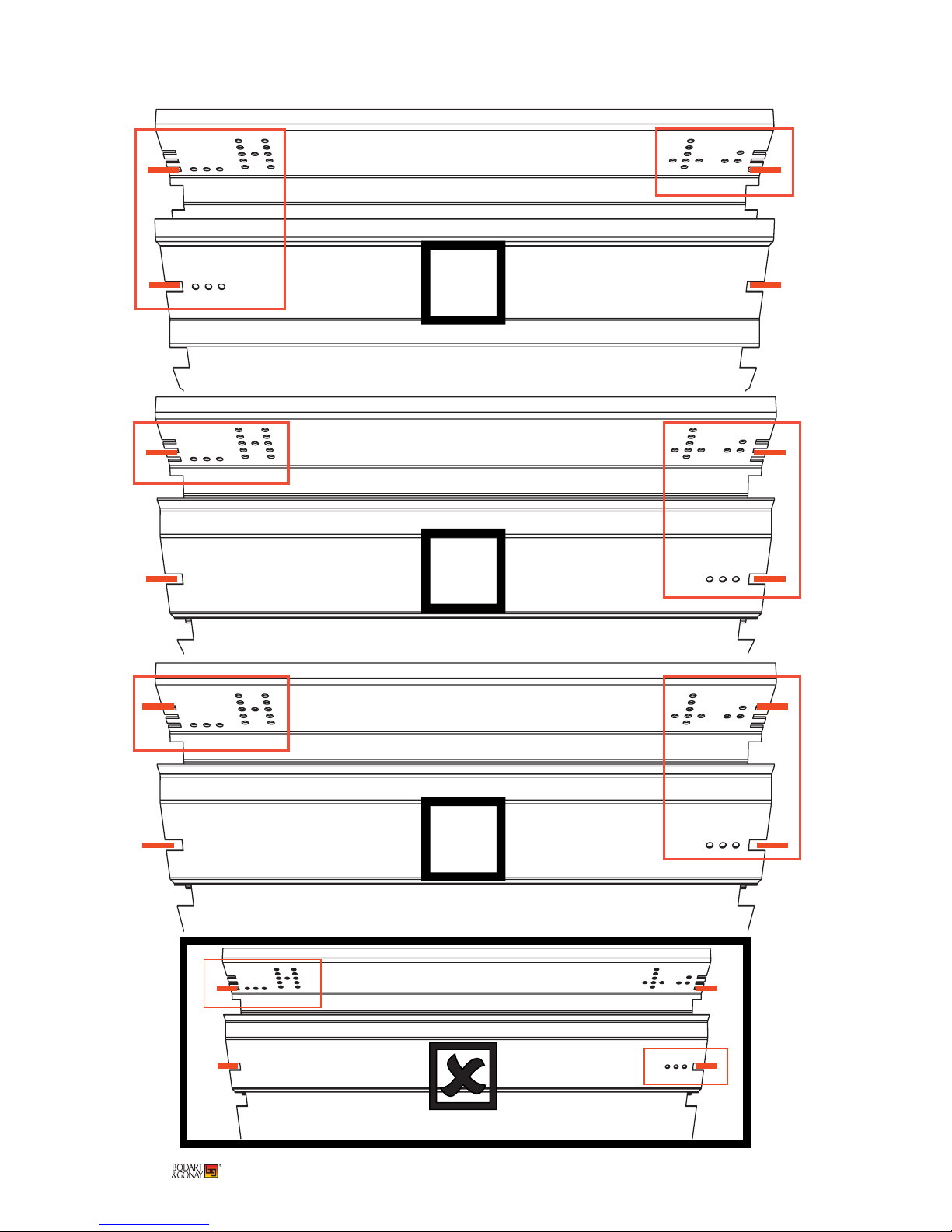

Most closed position: if there is still no
backdraft in intermediate position, close
it fully to always have the best yield the
fireplace can give in relation to the chi-
mney.
Third baffle: if there is still no backdraft
in closed position, you can install the
third baffle. Again with the aim of obtai-
ning the best yield the fireplace can give
in relation to the chimney.
Intermediate position: if no backdraft
is observed on opening, it is possible
to close the baffles slightly to increase
yield.
Caution: lower baffle perforations
on right, turn baffle round.
Most open position: the fireplace is
delivered with this configuration. It
allows easy passage of fumes.
Caution: lower baffle perforations
on left.
1.5. Adjusting baffles:

Optifire 11

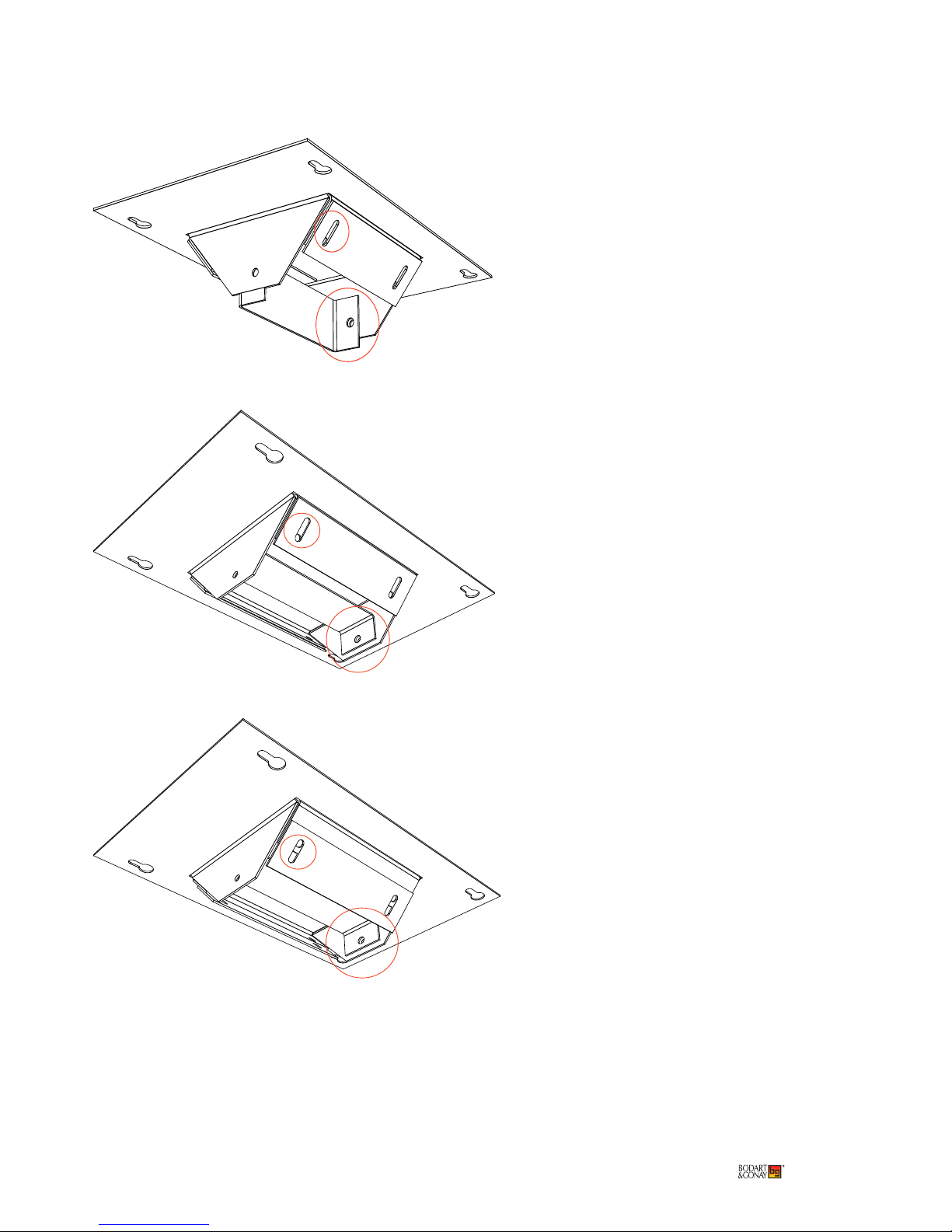

Most open position: the fireplace is
delivered with this configuration. It
allows easy passage of fumes.
Intermediate position: if no backdraft
is observed on opening, it is possible
to close the baffles slightly to increase
yield.
Most closed position: if there is still no
backdraft in intermediate position, close
it fully to always have the best yield the
fireplace can give in relation to the chi-
mney.
Except: OPTI 760 D

12 Opti-




CAUTION!
- Do not clean the glass when it is hot.
- Spray the product* on the centre of the glass, then spread it using a cloth or absorbent paper.
- Do not use water and/or cleaning products on the painted areas.
- For stubborn marks, it is possible to use a blade for scraping ceramic hobs.
- Cleaning the glass is easier if done regularly.
*We recommend use of the cleaning product “BG Clean”, available from your dealer. “BG Clean” does not
contain caustic soda and is biodegradable.
ASHTRAY DOOR
Check the condition of the seal and if necessary replace it to ensure air tightness. Degradation of this seal
leads to poor fire control and reduction in yield. Check the operation of the spring clips.
AIR DISTRIBUTORS
Where necessary, unblock the air inlet holes of the front distributor with a vacuum cleaner, as well as
those situated on both sides of the grill, which can easily be removed to facilitate the operation.
GRILLS
Make sure that there are no obstacles restricting their movement.
DUST FILTERS (if there are any, they are level with the air inlets)
Clean them with a vacuum cleaner and, where necessary, with water. New filters can be obtained form
your supplier.
THERMOSTAT
Check that it turns properly.
Your supplier is authorised to check the setting.
DOOR
Check that the stainless steel seal is airtight.
If necessary, your supplier can adjust and/or replace it. Check that both the lock and the opening safety
work properly. This is in order to ensure good yield and clean glass.
2. Maintenance:
2.1. Everyday maintenance
GLASS
To clean the glass, open the door using the following procedure:

Optifire 13




PAINTING METAL PARTS
Do not use water and/or cleaning products on the painted areas.
Stained areas may be restored using special B&G high temperature aerosol paint, which is available from
your dealer.
LUBRICATION
With frequent use, it is recommended that the following parts be lubricated annually:
- Door and gate: hinges and lock.
- Thermostat: control shaft.
FAN (as option)
UNPLUG the electricity supply, DISCONNECT the fan, and then REMOVE it. CLEAN the impeller blades using
a brush (COMPRESSED AIR IS PROHIBITED). REASSEMBLE everything.
FIREPROOF BRICKS
A split brick can still play a protective role. However, a missing piece must be replaced in order to main-
tain effective protection of the heating unit. Bricks are wearing parts that can be easily replaced indivi-
dually. You are advised to change parts that are too damaged.
CHIMNEY-SWEEPING
Have the chimney swept at least once a year, not only to
comply with the law, but also for safety reasons.
-Take note of the position of the 2 baffles.
- Remove the baffles, as shown in the drawing.
- If the third baffle is installed, you must first take down the
2 large baffles, unscrew the third baffle and remove it, then
manoeuvre and remove the two large baffles.
- Place the grill in closed position (wood).
- Close the door, thermostat and ashtray door.
- Simply clean up any fallen dust with a vacuum cleaner.
Take advantage of the chimney-sweeping to check the condition of the
chimney and connections.
- Reposition the baffles following the instructions in reverse, taking care to position them as before.
2.2. Annual servicing
DO NOT USE NORMAL LUBRICANT. At high temperatures the latter will dry out and cause seizing
up. If necessary, clean the surfaces thoroughly, then apply a LUBRICANT RESISTANT TO HIGH TEM-
PERATURES, available from your dealer.

14 Opti-
3. Faults
FAULTS SOLUTIONS
GLASS GETS DIRTY TOO QUICKLY -Check that the fuel is not damp.
- Use the thermostat on 7-8.
- Check the position of the air detector.
- Open the baffle passage.
FAN Not working any more - Check if the motor is working.
- Check the micro switch.
- Check (and replace) the variator fuse.
- Check the temperature switch (option).
- Check (and restore) the power supply.
FAN Operates but the output is weak - Check that the wires of the speed variator are properly
positioned.
- Clean or replace the filters.
- Clean the impeller blades.
DRAUGHT
Too strong
Tighten the baffle passage (see“Adjusting baffles”)
- Contact your supplier.
DRAUGHT
Too weak, possibly with fumes leaking into the room
- Check the chimney (see installation instructions).
- Remove any obstructions.
- Open the baffle passage.
- Check if there is any improvement when the window is
open.
- Have the chimney swept.
Disruptions connected with weather conditions - If this condition is permanent, consult your supplier.
THE FIRE LACKS INTENSITY - Check that the fuel is not damp.
- Check the thermostat (put it on 7-8 and check its move-
ment).
- Empty the ashtray.
- Unblock the distributor holes.
THERMOSTAT NO LONGER CLOSES:
- A foreign body is preventing the valve from closing
- Mechanical blockage
- Remove the foreign body.
- Replace the thermostat.
THERMOSTAT STAYS SHUT:
1. On COLD, the valve only raises from medium positions
2. On COLD, the valve does not raise any more
1) Recalibrate the setting.
2) Replace the thermostat (it has been damaged following
major overheating of the fireplace).
UNCONTROLLABLE FIRE:
- DOOR of ashtray open or not airtight
- DOOR of fireplace not airtight
- THERMOSTAT does not shut
- Check the ashtray door closes properly.
- Check the seal, and replace it where necessary.
- Readjust the door seal setting.
- Readjust the position of the lock roller.
- Check operation of the thermostat.
In the event of a CHIMNEY FIRE, close immediately the door and the
ashtray door, turn off the thermostat.

Optifire 15
4. Spare parts

16 Opti-

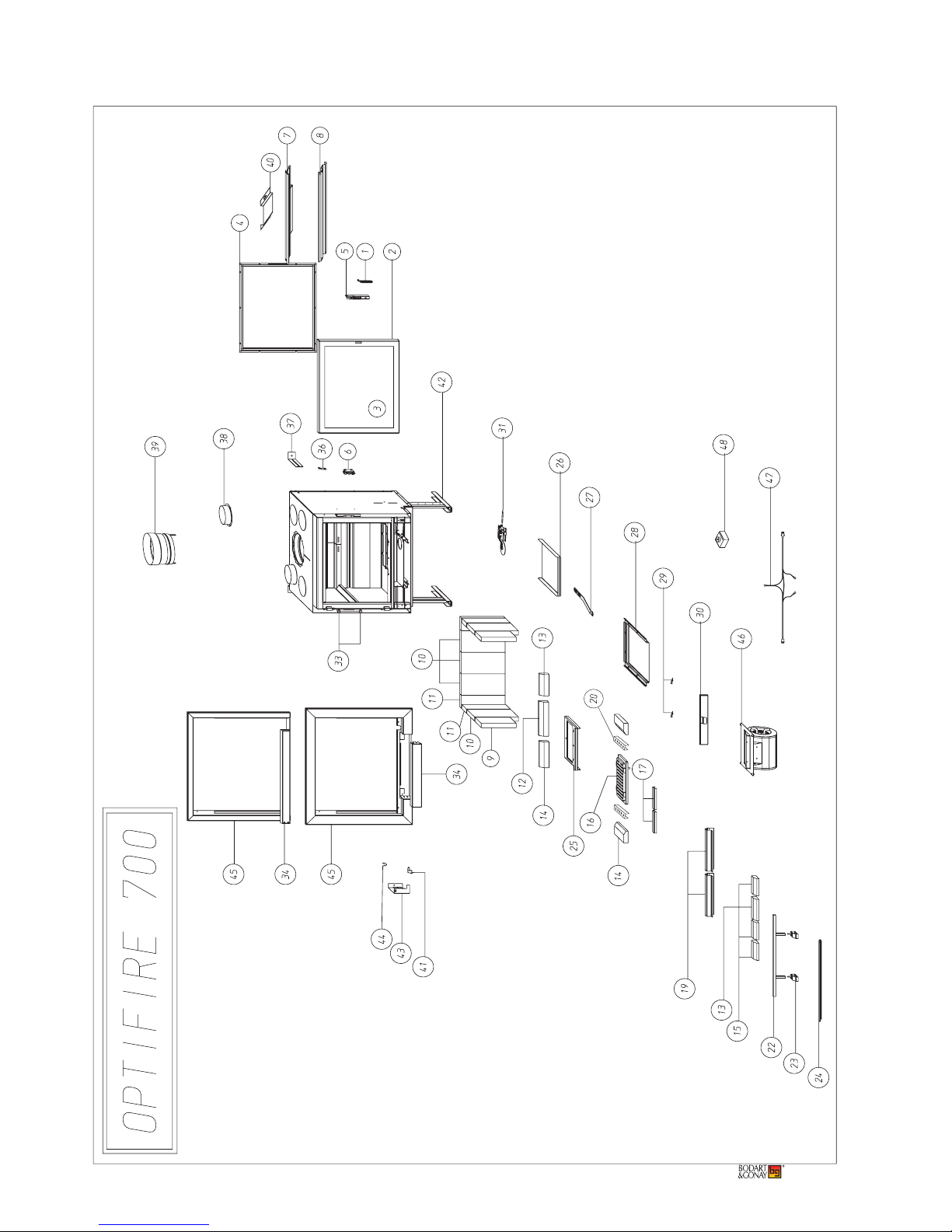

OPTIONS/RECHANGES/OPTIE/WISSELSTUKKEN OPTI 700
Pièces de rechan
g
e / wisselstukken
Ref Code Description Omschrijving
01 07BP03
p
oi
g
née fil 07BP0103 NOIRES ZWARTE KOUDE HANDGREEP
02 27M70016 PORTE SOUDEE OPTI 700 PLAT GELASTE DEUR OPTI 700 VLAK
03 07RV1050 CERAM. 596 X 497 X 4 OPTI 700 KERAM. 596 X 497 X 4 OPTI 700
04 27M70015 CONTREPORTE OPTI 700 PLAT TEGENDEUR OPTI 700 VLAK
05 27660002 FERMETURE IF 96 SLUITING IF 96
06 27660000 ACCROCHE CLENCHE IF 96 HENDEL VANGER IF 96
07 37M70014 CHICANE SUPERIEURE OPTI 700 626 x 166
,
6-75 BOVENSTE ROOKAFREMMER OPTI 700
08 37M70015 CHICANE INFERIEURE OPTI 700 626 x 221 ONDERSTE ROOKAFREMMER OPTI 700
09 07CB300 BRIQUE 240X120X30 VT20 VUURV.STEEN 240X120X30 VT20
10 07CB315 BRIQUE 300X150X30 VUURV. STEEN 300X150X30
11 07CB344 BRIQUE 300X90X30 VUURV. STEEN 300X90X30
12 07CB313 BRIQUE 240X60X30
(
BISEAUTEE
)
VUURV.STEEN 240X60X30 KANTG.
13 07CB326 BRIQUE 150X60X30 BISEAUTEE VUURV.STEEN 150X60X30 KANTG.
14 07CB325 BRIQUE 180X60X30 BISEAUTEE VUURV.STEEN 180X60X30 KANTG.
15 07CB327 BRIQUE 120X60X30 BISEAUTEE VUURV.STEEN 120X60X30 KANTG.
16 07FFIFG SA-PAIRE GRILLES IF-GAUMAIS-POELE VUURROOSTER INFIRE GAUMAIS-KACHEL
17 37B78013 BUTEE GRILLE AVANT OPTI 780 VOORSTE ROOSTER BLOK OPTI 780
19 37M70034 PAIRE DE REPARTITEUR OPTI 700 PAAR LUCHTVERDELERS OPTI 700
20 37M70035 CANAUX D'AIR FOND OPTI 700 LUCHTKANALEN BODEM OPTI 700
22 37M70029 BARREAU PARE BUCHE OPTI 700 BLOKKENHOUDER OPTI 700
23 37660016 SUPPORT BARREAU-CHENET IF 96 STEUN BLOKKENHOUDER IF 96
24 37M70016 DEFLECTEUR OPTI 700 PLAT LUCHTDEFLECTOR OPTI 700 VLAK
25 37B78006 SUPPORT GRILLES OPTI 780 ROOSTER SUPPORT OPTI 780
26 37B78008 CENDRIER OPTI 780 ASLADE OPTI 780
27 37B78007 BRAS DECENDRAGE OPTI 780 ROOSTERSTANG OPTI 780
28 27B78014 CAISSON CENDRIER OPTI 780 ASLADE AFSLUITPLAAT OPTI 780
29 07PBE001 SACLIPS PORTE CENDRIER D950207 VEERKLEM ASLADE DEUR
30 37B78009 PORTE CENDRIER OPTI 780 ASLADE DEUR OPTI 780
31 07FTS690 THERMOSTAT DIA90 TELESCOPIQUE THERMOSTAAT Ø90 TELESCOPISCH
33 07PBB049 POUSSOIR CADRE IF 60 VH KADER DRUKKNOP IF 60 VH
36 37116226 FIXATION SONDE BEVESTIGING HAARBUISJE
37 37B77016 STABILISATEUR OPTI 780-700
(
SOUVERAIN
)
SOEVEREIN STABILISATOR
38 37117400 BUSELOT AIR CHAUD DIA 125 WARMELUCHTBUISJE DIA 125
39 07VM0200 BUSELOT RACCORD.CHEMINEE DIA 200 INOX AANSLUITINGSBUISJE DIA 200
40 37M70033 TROISIEME CHICANE OPTI 700-760 DERDE ROOKAFREMMER OPTI 700-760
42 37M70003 PAIRE PIEDS OPTI 700 PAAR VOETEN OPTI 700
O
p
tions / o
p
ties
Ref Code Description Omschrijving
01 37B78005 KIT GRIL BARBECUE OPTI 780 - OPTI 700 kIT BARBECUE OPTI 780- OPTI 700
34 27M70027 PORTILLON CADRE 3 C. OPTI 700 DEURTJE 3Z KADER OPTI 700
34 27M70026 PORTILLON CADRE 4 C. OPTI 700 - 760 DF AFDEKPLAAT4 Z KADER OPTI 700 - 760 DF
41 07EEG006 SA - MICROSWITCH 831611 IW3 + 161L UL MICROSWITCH MET DRUKKNOP
43 37B78004 BOITIER ELECTRIQUE OPTI 780 ELEKTRISCH KASTJE OPTI 780
44 37660050 THERMOCONTACT MONTE 2006 GEMONTEERD THERMOCONTACT 2006
45 37M70011 CADRE HAB. 3 COTES OPTI 700 3Z KADER OPTI 700
45 37M70018 CADRE 4 COTES PLAT OPTI 700 4 ZIJ. KADER VLAK OPTI 700
46 37B77021 KIT VENTILATION 450 M3 VENTILATIE KIT 750 M3 PHENIX
47 37B78024 HARNAIS OPTIFIRE 780 SAV OPTIFRE 780 KABELSET
48 37660078 KIT VARIATEUR blanc ENCASTRABLE IF96 KIT INBOUWDIMMER IF96
Imprimé, le 16/10/2007

Optifire 17

18 Opti-

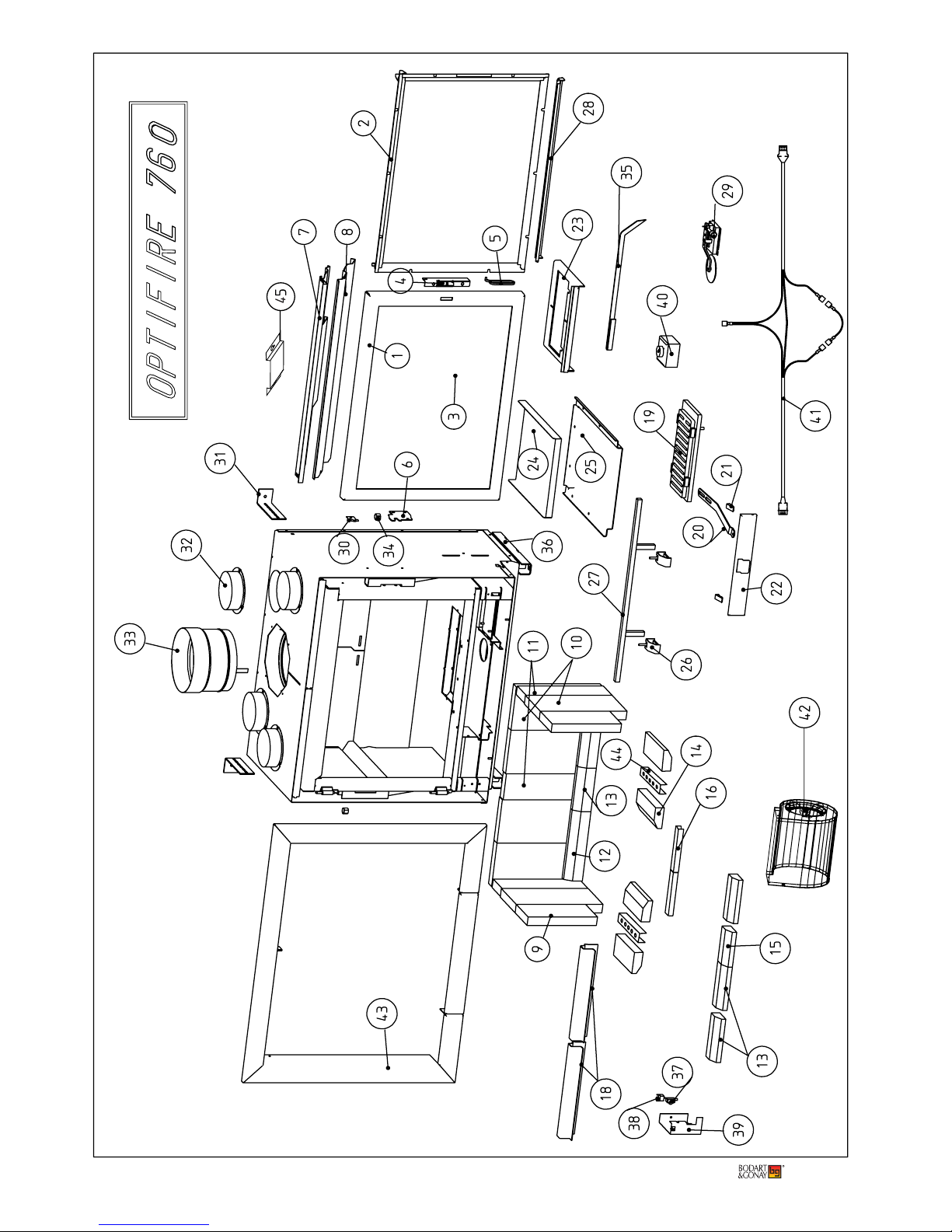

OPTIONS/RECHANGES/OPTIE/WISSELSTUKKEN OPTI 760
Pièces de rechan
g
e / wisselstukken
Ref Code Description Omschrijving
01 27B78016 PORTE SOUDEE OPTI 780 PLAT GELASTE DEUR OPTI 780 VLAK
01 27B78017 PORTE SOUDEE CINTREE OPTI 780 GEBOGEN GELASTE DEUR OPTI 780
02 27B78015 CONTREPORTE OPTI 780 PLAT TEGENDEUR OPTI 780 VLAK
02 27B78021 CONTREPORTE OPTI 780 CINTREE TEGENDEUR OPTI 780 AFGERONDE
03 07RV1039 CERAM. 656X487X4 OPTI 780 + OPTI 760 DF KERAM. 656X487X4 OPTI 780/760/760D
03 07RV1041 CERAM.R.900 DEV.638 H.490 EP.4 KERAM.R.900 DEV.638 H.490 EP.4 O
p
ti 780
04 27660002 FERMETURE IF 96 SLUITING IF 96
04 27B78022 FERMETURE PORTE CINTREE OPT780 SLUITING GEBOGEN DEUR OPTI 780
05 07BP03 MAIN FROIDE NICKEL.IF96+PRISMA ZWARTE KOUDE HANDGREEP
06 27660000 ACCROCHE CLENCHE IF 96 HENDEL VANGER IF 96
07 37B78014 CHICANE SUPERIEURE OPTI 780 686 x 166
,
6-75 BOVENSTE ROOKAFREMMER OPTI 780
08 37B78015 CHICANE INFERIEURE OPTI 780 686 x 221 ONDERSTE ROOKAFREMMER OPTI 780
09 07CB300 BRIQUE 240X120X30 VT20 VUURV.STEEN 240X120X30 VT20
09 07FF0301 PLAQUETTE FONTE 240X120X30 GIETIJZER PLAATJE 240X120X30
10 07CB315 BRIQUE 300X150X30 VUURV. STEEN 300X150X30
10 07FF0305 PLAQUETTE FONTE 300X150X30 GIETIJZER PLAATJE 300X150X30
11 07CB344 BRIQUE 300X90X30 VUURV. STEEN 300X90X30
11 07FF0306 PLAQUETTE FONTE 300X90X30 GIETIJZER PLAATJE 300X90X30
14 07CB325 BRIQUE 180X60X30 BISEAUTEE VUURV.STEEN 180X60X30 KANTG.
15 07CB327 BRIQUE 120X60X30 BISEAUTEE VUURV.STEEN 120X60X30 KANTG.
16 37B78013 BUTEE GRILLE AVANT OPTI 780 VOORSTE ROOSTER BLOK OPTI 780
18 37B76034 PAIRE DE REPARTITEUR OPTI 760 PAAR LUCHTVERDELERS OPTI 760
19 07FFIFG2 GRILLE ACIER CHR. SUP. LG 266 BOVENROOSTER+CHROME LG 266
19 07FFIFG3 GRILLE FONTE INF. LG 300 ONDERROOSTER LG 300
20 37B78007 BRAS DECENDRAGE OPTI 780 ROOSTERSTANG OPTI 780
21 07PBE001 SACLIPS PORTE CENDRIER D950207 VEERKLEM ASLADE DEUR
22 37B78009 PORTE CENDRIER OPTI 780 ASLADE DEUR OPTI 780
23 37B78006 SUPPORT GRILLES OPTI 780 ROOSTER SUPPORT OPTI 780
24 37B78008 CENDRIER OPTI 780 ASLADE OPTI 780
25 27B78014 CAISSON CENDRIER OPTI 780 ASLADE AFSLUITPLAAT OPTI 780
26 37660016 SUPPORT BARREAU-CHENET IF 96 STEUN BLOKKENHOUDER IF 96
27 37B78029 BARREAU PARE BUCHE OPTI 780 BLOKKENHOUDER OPTI 780
28 37B78016 DEFLECTEUR OPTI 780 PLAT LUCHTDEFLECTOR OPTI 780 VLAK
28 37B78026 DEFLECTEUR AIR OPTI 780 CINTRE LUCHTDEFLECTOR OPTI780 ROND
29 07FTS690 THERMOSTAT DIA90 TELESCOPIQUE THERMOSTAAT Ø90 TELESCOPISCH
30 37116226 FIXATION SONDE BEVESTIGING HAARBUISJE
31 37B77016 STABILISATEUR OPTI 780-700
(
SOUVERAIN
)
SOEVEREIN STABILISATOR
32 37117400 BUSELOT AIR CHAUD DIA 125 WARMELUCHTBUISJE DIA 125
33 07VM0200 BUSELOT RACCORD.CHEMINEE DIA 200 INOX AANSLUITINGSBUISJE DIA 200
34 07PBB049 POUSSOIR CADRE IF 60 VH KADER DRUKKNOP IF 60 VH
35 37115018 TISONNIER POOK
36 37M70003 PAIRE PIEDS OPTI 700 PAAR VOETEN OPTI 700
37 07EEG006 SA - MICROSWITCH 831611 IW3 + 161L UL MICROSWITCH MET DRUKKNOP
44 37B76035 PAIRE DE CANAUX AIR OPTI 760 PAAR LUCHTKANALEN OPTI 760
45 37M70033 TROISIEME CHICANE OPTI 700-760 DERDE ROOKAFREMMER OPTI 700-760
--- 37B78070 1/2 KIT FONTE OPTI 780 - 700 1/2 KIT GIETIJZER OPTI 780
--- 37B78075 1/2 KIT BRIQUE OPTI 780/700 1/2 KIT STENEN OPTI 760/700
O
p
tions / o
p
ties
Ref Code Description Omschrijving
38 37660050 THERMOCONTACT MONTE 2006 GEMONTEERD THERMOCONTACT 2006
39 37B78004 BOITIER ELECTRIQUE OPTI 780 ELEKTRISCH KASTJE OPTI 780
40 07EEVENC VARIATEUR A ENCASTRER
(
S.CABLE
)
INBOUW VARIATOR
(
Z.KABEL
)
41 37B78024 HARNAIS OPTIFIRE 780 SAV OPTIFRE 780 KABELSET
42 37B78023 KIT VENTILATION OPTI 780 - 700 KIT VENTILATIE OPTI 700 - 760 - 16/9
(
2006
)
43 37M76011 CADRE 3 COTES PLAT OPTI 760 DF 3Z VLAKKE KADER OPTI 760
43 37B76018 CADRE 4 C. PLAT OPTI 760 + CACHE THERMOSTAT 4 ZIJ. KADER VLAK OPTI 760
43 37M76020 CADRE 3 COTES CINTRE OPTI 760 DF 3 ZIJ.GEBOGEN BEKL.KAD.OPTI 760 DK
--- 07EVDDA6 SA-VENTILATEUR DDL 133-200
(
+ CONDENSATEUR 2
µ
F
)
VENTILATOR DDL 133-200
--- 3774H024 BOIT.FILT REPRISE 25X16 LAITON AANZUIGROOSTER KOPER 25X16
--- 37B78005 KIT GRIL BARBECUE OPTI 780 - OPTI 700 kIT BARBECUE OPTI 780- OPTI 700
--- 37B77032 CAISSON VENTILATION 450 M3 VENTILATIEKAST 750 M3
--- 37M76027 KIT CLAPET PIVOTANT OPTI 760-760 DF SPILDRAAIENDE KLEP OPTI 760-760 DK
--- 27B78029 PORTIL.CINTRE CADRE 3C OPTI780 ONDERDEUR OPTIFIRE 783/2

Optifire 19

20 Opti-

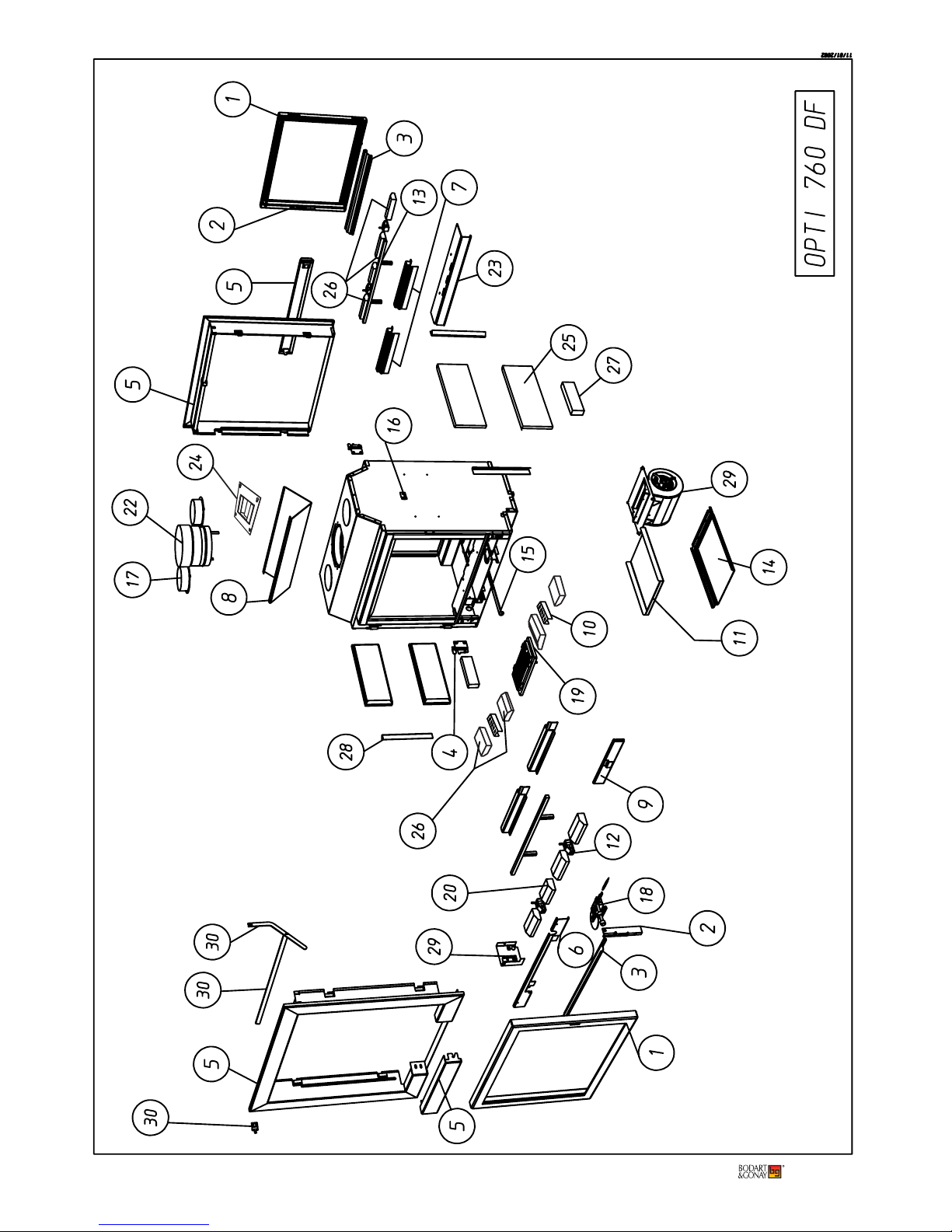

OPTIONS/RECHANGES/OPTIE/WISSELSTUKKEN OPTI 760 DF
Pièces de rechan
g
e / wisselstukken
Ref Code Description Omschrijving
01 37B78017 PORTE MONTEE OPTI 780 PLAT VOLLEDIGE DEUR OPTI 760/1
01 27B78015 CONTREPORTE OPTI 780 PLAT TEGENDEUR OPTI 780 VLAK
01 07RV1039 CERAM. 656X487X4 OPTI 780 + OPTI 760 DF KERAM. 656X487X4 OPTI 780/760/760D
02 27660002 FERMETURE IF 96 SLUITING IF 96
03 37B78016 DEFLECTEUR OPTI 780 PLAT LUCHTDEFLECTOR OPTI 780 VLAK
04 27660000 ACCROCHE CLENCHE IF 96 HENDEL VANGER IF 96
05 37M76018 CADRE 4 COTES OPTI 760 DF 4-ZIJDIGE KADER OPTI 760 DK
05 27M70026 PORTILLON CADRE 4 C. OPTI 700 - 760 DF AFDEKPLAAT4 Z KADER OPTI 700 - 760 DF
06 27M76034 CACHE THERMOSTAT OPTI 760 DF THERMOSTAAT BESCHERMING OPTI 760 DK
07 37B76034 PAIRE DE REPARTITEUR OPTI 760 PAAR LUCHTVERDELERS OPTI 760
08 37M76025 CHICANE INFERIEURE OPTI 760 DF ONDERSTE ROOKAFREMMER OPTI 760DK
09 37B78009 PORTE CENDRIER OPTI 780 ASLADE DEUR OPTI 780
10 37M76035 CANAUX D'AIR OPTI 760 DF LUCHTKANALEN OPTI 760DK
11 37B78008 CENDRIER OPTI 780 ASLADE OPTI 780
12 37660016 SUPPORT BARREAU-CHENET IF 96 STEUN BLOKKENHOUDER IF 96
13 37B78029 BARREAU PARE BUCHE OPTI 780 BLOKKENHOUDER OPTI 780
14 27B78014 CAISSON CENDRIER OPTI 780 ASLADE AFSLUITPLAAT OPTI 780
15 37M76004 BRAS DECENDRAGE OPTI 760 DF ROOSTERSTANG OPTI 760 DK
16 37116226 FIXATION SONDE BEVESTIGING HAARBUISJE
17 37117400 BUSELOT AIR CHAUD DIA 125 WARMELUCHTBUISJE DIA 125
18 07FTS690 THERMOSTAT DIA90 TELESCOPIQUE THERMOSTAAT Ø90 TELESCOPISCH
19 07FFIFG SA-PAIRE GRILLES IF-GAUMAIS-POELE VUURROOSTER INFIRE GAUMAIS-KACHEL
20 07CB327 BRIQUE 120X60X30 BISEAUTEE VUURV.STEEN 120X60X30 KANTG.
22 07VM0200 BUSELOT RACCORD.CHEMINEE DIA 200 INOX AANSLUITINGSBUISJE DIA 200
23 37M76032 COMPENSATION CORPS CHAUFFE OPTI 760 DF VULSTUK VERBRANDINGSKAMER OPTI 760 DK
24 37M76045 CHICANE SUPERIEUR OPTI 760 DF BOVENSTE ROOKAFREMMER OPTI 760DK
25 07CB352 BRIQUE 425X 150 X 30 BISEAUT.39/42% AL2O3 VUURV STEEN 425X150X30 KANTG 39/42% AL203
26 07CB326 BRIQUE 150X60X30 BISEAUTEE VUURV.STEEN 150X60X30 KANTG.
27 07CB354 BRIQUE REFRACT.220 X 60 X 30 VUURV STEEN 220 X 60 X 30
28 37M76005 CALE BRIQUE OPTI 760 DF STEEN HOUDER OPTI 760 DK
--- 07BP03 MAIN FROIDE NICKEL.IF96+PRISMA ZWARTE KOUDE HANDGREEP
--- 37115018 TISONNIER POOK
--- 07PBB049 POUSSOIR CADRE IF 60 VH KADER DRUKKNOP IF 60 VH
--- 07PBE001 SACLIPS PORTE CENDRIER D950207 VEERKLEM ASLADE DEUR
--- 37B78006 SUPPORT GRILLES OPTI 780 ROOSTER SUPPORT OPTI 780
O
p
tions / o
p
ties
Ref Code Description Omschrijving
01 37B78025 PORTE CINTRE MONTEE OPTI 780 VOLLEDIGE DEUR OPTI 780/2
01 37B78021 CONTREPORTE MONTEE OPTI780 CIN TEGENDEUR OPTI 780 ROND
01 07RV1041 CERAM.R.900 DEV.638 H.490 EP.4 KERAM.R.900 DEV.638 H.490 EP.4 O
p
ti 780
02 27B78022 FERMETURE PORTE CINTREE OPT780 SLUITING GEBOGEN DEUR OPTI 780
03 37B78026 DEFLECTEUR AIR OPTI 780 CINTRE LUCHTDEFLECTOR OPTI780 ROND
05 37M76011 CADRE 3 COTES PLAT OPTI 760 DF 3Z VLAKKE KADER OPTI 760
05 27B78027 PORTILLON CADRE 3 C. OPTI 780 - 760 DF AFDEKPLAAT3 Z KADER OPTI 780 - 760 DF
05 37M76020 CADRE 3 COTES CINTRE OPTI 760 DF 3 ZIJ.GEBOGEN BEKL.KAD.OPTI 760 DK
05 27B78029 PORTIL.CINTRE CADRE 3C OPTI780 ONDERDEUR OPTIFIRE 783/2
29 37B78023 KIT VENTILATION OPTI 780 - 700 KIT VENTILATIE OPTI 700 - 760 - 16/9
(
2006
)
30 37M76027 KIT CLAPET PIVOTANT OPTI 760 DF SPILDRAAIENDE KLEP OPTI 760-760 DK
30 37M76007 POIGNEE DE REGLAGE CLAPET PIVOTANT OPTI 700 -760 REGELINGSHENDEL SPILDRAAIENDE KLEP OPTI 700-760
30 27680052 PALIER CLAPET PIVOTANT IF RC93 STEUN DRAAIENDE KLEP IF RC93
--- 37B77021 KIT VENTILATION 450 M3 VENTILATIE KIT 750 M3 PHENIX
--- 37660078 KIT VARIATEUR blanc ENCASTRABLE IF96 KIT INBOUWDIMMER IF96
--- 07EEG006 SA - MICROSWITCH 831611 IW3 + 161L UL MICROSWITCH MET DRUKKNOP
--- 37680048 KIT THERMOCONTACT INFIRE RC93 SET THERMOCONTACT RC93
--- 27660029 KIT PARE BUCHE FONTE INFIRE 96 KIT GIETIJZEREN BLOKKENHOUDER 96
--- 37M76021 TRAVERSE 4 IEME COTE CADRE 3 COTES OPTI 760 DF ONDER 4DE ZIJDE 3Z KADER OPTI 760 DF
--- 37B78004 BOITIER ELECTRIQUE OPTI 780 ELEKTRISCH KASTJE OPTI 780
--- 37660051 KIT THERMOCONTACT 2006 COMPLET COMPLETE SET THERMOCONTACT 2006
Imprimé, le 11/09/2007
