Bodart & Gonay ARGOS Specification sheet

Argos 1
10.08
Argos
07DHARGA
Instructions for use
and maintenance
Attention: Remove the instructions from the fireplace and give them to the client, along with the neces-
sary instructions (explanations and demonstrations)

2 Argos
Dear Client,
We thank you and congratulate you on the purchase of one of our products.
Your supplier and we will not rest until we have given you complete satisfaction.
Your safety and comfort depend above all on the reasonable manner in which you use this appliance.
To help you, we recommend that you read these instructions immediately and keep them in a safe place.
We wish you lots of pleasure at your fireside.
Customer Services
AGREEMENT
Bodart & Gonay guarantees its appliances in accordance with:
- its instructions for use
- the safety standard for functional use
- standard EN 613
1 GUARANTEE
DURATION AND LIMITATION
- no guarantee on: glass, seals, gravel, and logs.
- 2 years guarantee on: valve, command box, thermocouple and pilot light, gas accessories, remote con-
trol, fan.
- 2 years guarantee on: removable parts and internal items, other than those mentioned above.
- 6 years guarantee on the overall structure.
RESERVES
Bodart and Gonay reserves the right to modify its appliances, catalogues, instructions for use, indepen-
dently, at any time, and without notice.
The validity of the guarantee is annulled in the event of non-compliance with the requirements and
recommendations in these instructions.
Maintenance under guarantee will be carried out exclusively through the dealer on presentation of the
purchase invoice.
Parts will only be delivered in exchange for faulty parts.

Argos 3
EXCLUSIONS
Accidents, damage and malfunctions connected with:
- unsuitability of the rated power of the appliance for the heat requirements of the premises;
- incorrect installation or connections;
- use of an unsuitable flue lining and/or installation not conforming to these instructions (chimney instal-
lation);
- misuse;
- inadequate maintenance;
- use of electrical or electronic components not approved by Bodart and Gonay;
- any internal modification or alteration to the fireplace;
- transportation and installation.
Transportation and packaging costs.
Any costs not agreed in advance by Bodart & Gonay.
Costs resulting from non-use of the appliance.
EFFECTIVE DATE
The guarantee takes effect from the date written on the invoice. The invoice is the sole authentic docu-
ment for the guarantee

4 Argos
1,26 m3/h (G20)
1,36 m3/h (G25) 0,43 m3/h -0,44 kg/h (G31)
1,22 m3/h (G25 - 20)
3 3
2 2
12 kW (G20)
11 kW (G25) 10,6 kW (G31)
10 kW (G25 - 20)
C11, C31,C31s C11, C31,C31s
2 x197 2 x122
90 kg 90 kg
G20 - 20 mbar (gaz nat.)
G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane)
G25 - 20 mbar (gaz nat.)
No. 47GV74E
Double cat. II 2E+3P , II2H3P
Natural gas Cat.I2H , I2L, I2ELL , I2E+ Gaz LPG Cat.I3P
Type ARGOS Gaz
- Category of gas
- Type
- CE Efficiency Category
- NOx emission classification
- Nominal heat input
- Marked injector
- Gas flow
- Electrical voltage
valve control
power
remote control
- Weight
230 VAC / 50 Hz
77 W
4,5 VDC (3 AAA batteries)
230 VAC / 50 Hz
77 W
4,5 VDC (3 AAA batteries)
This appliance conforms to electrical standard EN60 355-1.
2 DATA SHEET

Argos 5

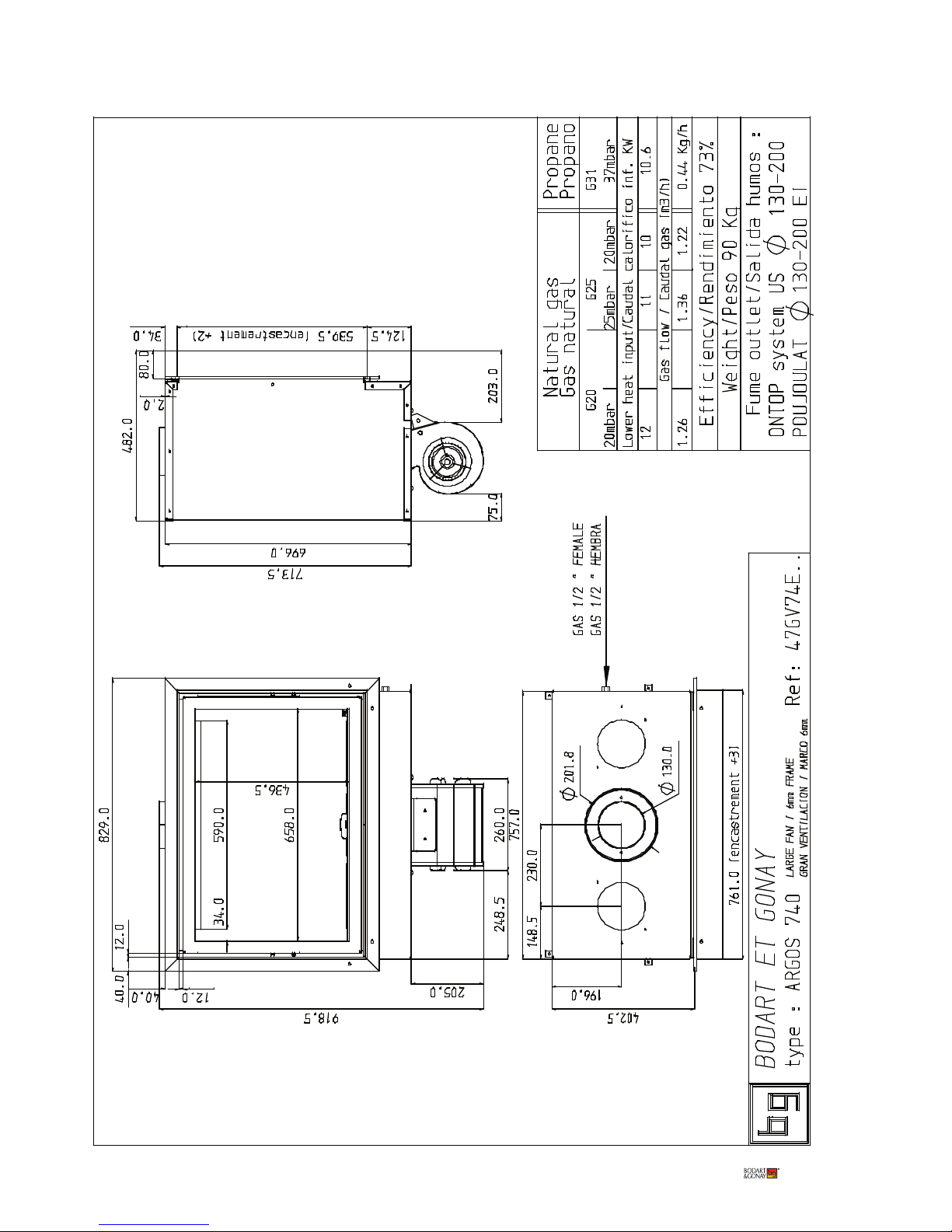

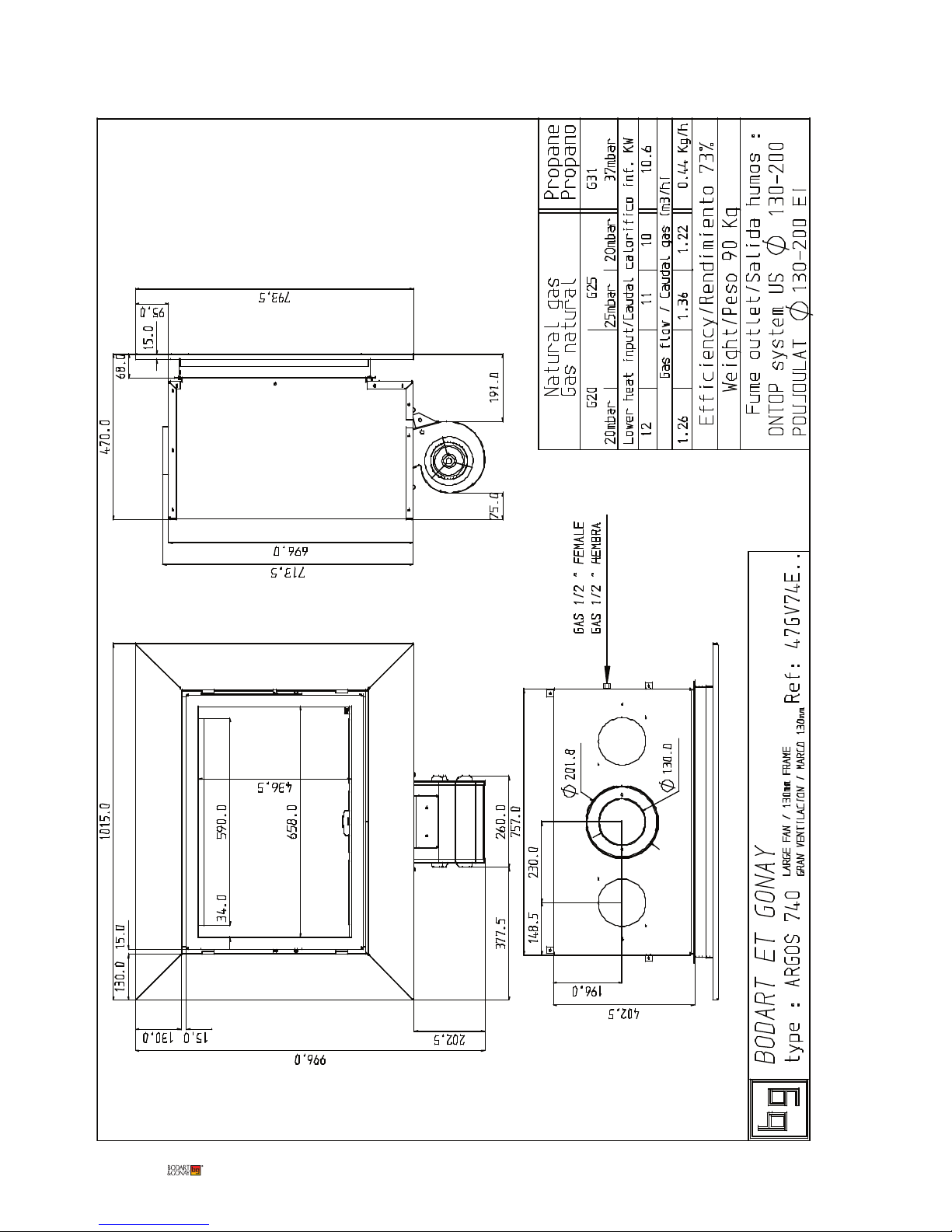

3 DIMENSIONS

6 Argos

Argos 7

8 Argos

Argos 9
SET
-
+
ON
AUTO °C
1
0
/NO
FFO

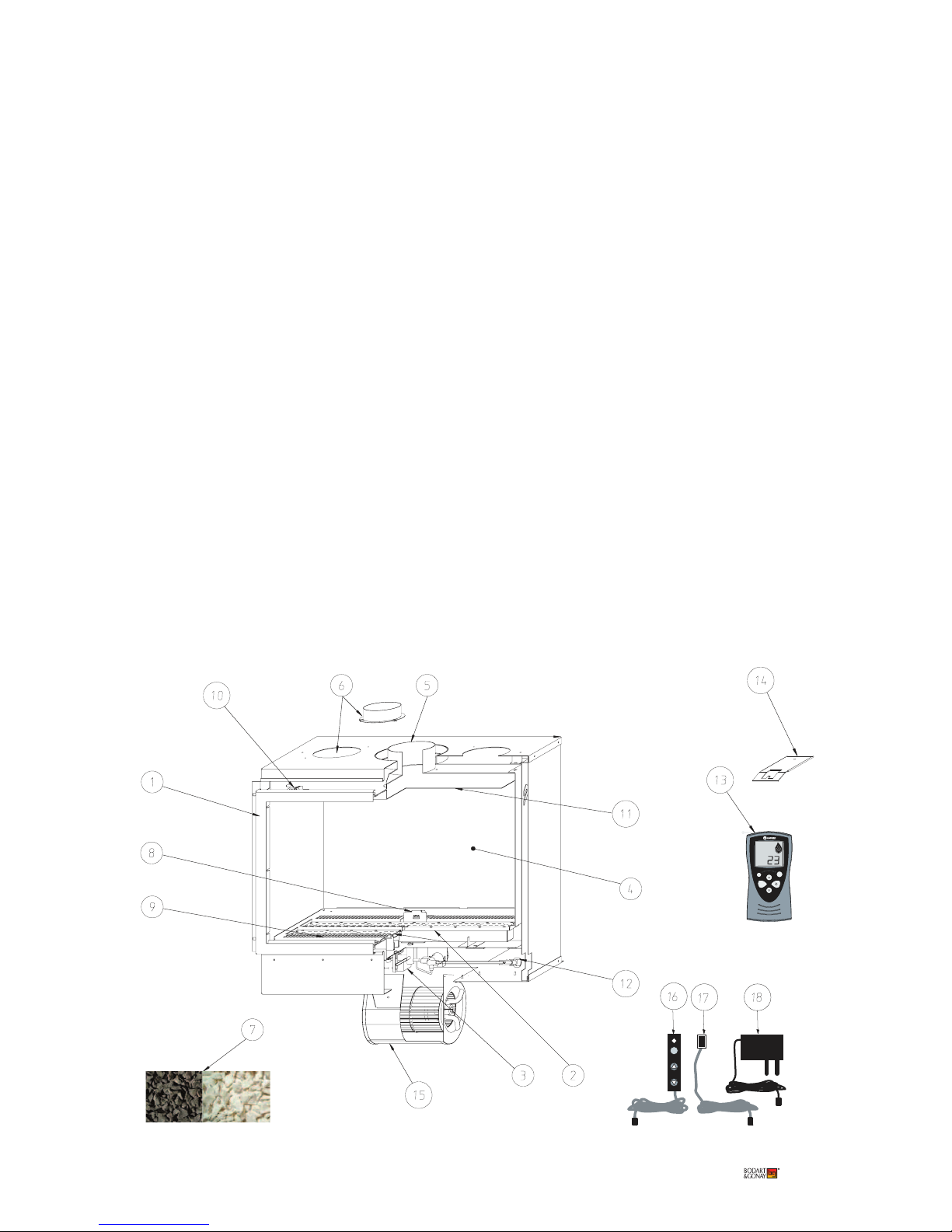

4 DESCRIPTION
FRONT VIEW AND DESCRIPTION
1 Door
2 Burners
3 Control box and reception sensor + fan control
4 Decorative plate
5 Concentric fume exhaust flue
6 Warm air duct and connection nozzle
7 Gravel
8 Pilot light + thermocouple + electrode
9 Stone support
10 Door-opening/anti-explosion system
11 Baffle
12 Gas inlet
13 Remote control
14 Door-opening tool
15 Fan
16 Manual command
17 switch 1/0
18 Tranformater

10 Argos



ON
AUTO
°C
5 EXPLODED VIEW

Argos 11
OPCIONES Y RECAMBIOS ARGOS 740 OPTIONS AND SPARE PARTS ARGOS 740
RECAMBIOS / SPARE PARTS
Ref Code Concepto Description
01 37GV74004 MARCO PUERTA MONTADO ARGOS 740
V
MOUNTEDD DOOR FRAME ARGOS 740 AIR-VENT
02 27GV74012 MARCO PUERTA SOLDADO ARGOS 740
V
WELDED DDOOR FRAME ARGOS 740 AIR-VENT
03 07RV1062 VITROCERAMICA ARGOS 740 PLANO 71 CERAMIC GLASS FLAT 718x498 THICK. 4mm ARGOS
04 07QA0200 e
j
e manilla Phenix-Cosmos HANDLE AXIS PHENIX-COSMOS CFR PLAN
05 27GV14022 com
p
as
p
uerta COSMOS DOORHOLDER COSMOS B/F
06 37GV14014 tram
p
illa visita coneccion
g
as COSMOS 145/1
0
SLUDGE HOLE GASRACCORD COSMOS 145/100 B/F
07 37GV74008 SOPORTE PIEDRA ARGOS 740 VENTOSA STONE SUPPORT ARGOS 740 AIR-VENT
08 07GV0058 CAJA DE MANDOS ARGOS 740 VENTOSA COMMAND BOX ARGOS 740 AIR-VENT
09 07GV0002 valvula COSMOS- HELIOS - SOLARIS Estan GAS VALVE COSMOS- HELIOS - SOLARIS
10 37GV74009 SUJECION JUNTA VERTICAL ARGOS 740
V
VERTICAL JOINT SUPPORT ARGOS 740 AIR-VENT
11 37GV74010 SUJECION JUNTA HORIZONTAL ARGOS
7
HORIZONTAL JOINT SUPPORT ARGOS 740 AIR-VE
12 37GV74024 PLACA DECORATIVA FONDO INOX ARG STAINLESS-STEEL BASE DECORATIVE PLATEARG
O
13 07GV0059 MANDO A DISTANCIA 1°C ARGOS 740 V REMOTE CONTROL 1°C ARGOS 740 AIR-VENT
14 07GV0055
Q
uemador Ar
g
os 740 BURNER ARGOS 740 AIR-VENT
15 37GV74050 TRAPA SUPERVISION MONTADA ARGOS MOUNTED HATCH CONTROL ARGOS 740 AIR-VE
16 37GV14011
p
arte fi
j
a cierre COSMOS FIXE PART FASTENER COSMOS 145/100 B/F
17 07PBB05 resorte hil. diam 1.3 LG70 diam ext 9 COMPRESSION SPRING THREAD DIA 1.3 25 SPIR LG
18 37GV14013 col
g
a resorte marco halto COSMOS 145/100 E UPPER MOBILE FASTENER FRAME COSMOS 145/1
19 37GV74006 DEFLECTOR ARGOS 740 VENTOSA BAFFLE ARGOS 740 AIR-VENT
20 27GV14028 man
g
o de maniovra
p
uerta COSMOS DOOR SPRING HANDLE COSMOS B/F
21 37GV14022 KIT MARMOL BLANCO COSMOS 145 - AR KIT WHITE MARBER COSMOS 145 - ARGOS
22 37GV74015 TRAPA SUPERVISION SOLDADA ARGOS
7
WELDED CONTROL HATCH ARGOS 740 AIR-VENT
23 27GV74044 INYETCOR GAS NAT. MARCA ARGOS 74 MARKED NAT. GAS INJECTOR ARGOS 740 AIR-V
24 37GV74070 KIT LPG ARGOS 740 VENTOSA LPG KIT ARGOS 740 AIR-VENT
25 07GV0054 Piloto vertical Gas Natural VERTICAL PILOT LIGHT NATURAL GAS
26 27GV74031 TUBO ALIMENTACION GAS VALVULA A GAS SUPPLY PIPE VALVE ARGOS 740 AIR-VENT
27 27GV14024 so
p
orte valvula COSMOS SUPPORT VALVE COSMOS B/F
28 27GV74032 TUBO ALIMENTACION GAS LLAMA PIL GAS SUPPLY PIPE VALVE ARGOS 740 AIR-VENT
29 27GV74037 JAULA DE PROTECTION LLAMA PILOTO
A
PROTECTION CAGE PILOT LIGHT RIGHT ARGOS 74
32 37B10045 TAPON SALIDA AIRE CALIENTE PHENIX PLUG WARM AIR OUTLET PHENIX - ARGOS
--- 37117400 BO
Q
UILLA AIRE CALIENTE DIA 125 HOT AIR PIPE DIA 125
--- 07EG014 tubo silicona trans
p
arente dia 14ext 10int TRANSPARENT SILICONE PIPE DIA 14 EXT 10 INT
--- 07GV0035 TRANSFO 220 VAC - 5 VDC ESTABILISAD TRANSFO 220 VAC - 5 VDC STABILISE
--- 07GV0022 cable LED cosmos
(
detector luz ro
j
a
)
COSMO CABLE LED COSMOS
(
DETECTION RED LIGHT
)
CO
--- 07GV0023 cable electrodo
(
SPARK
)
COSMOS - HELIOS ELECTRODECABLE
(
SPARK
)
COSMOS-HELIOS-SOL
--- 07GV0014
b
icono entrada valvula diam 8 BICONE GAS CONNECTOR ENTRANCE DIA 8
--- 07GV0024
b
icono salida
p
iloto diam 4 COSMOS - HELIO BICONE PILOT TERMINATIN DIA 4 COSMOS-HELIO
S
--- 07GV0025
b
icono salida
q
uemador diam 8 COSMOS - HE
L
BICONE TERMINATION BURNER DIA 8 COSMOS-HE
--- 07GV0060 Filtro elect EMC EPCOS SIFI B Ar
g
os EMC ELECTR. FILTER EPCOS SIFI B ARGOS 740 AI
--- 07FZ0005 TERMOCONTACTO FERNELL SEGURID THERMAL SWITCH FARRNELL FAN SAFETY 40°/25°
--- 07FZ0004 TERMOCONTACTO FARNELL SEGURID THERMAL SWITCH FARNELL SUPPLY SECURITY 1
--- 27GV74033 CONECTOR KIT VARIADOR --> FILTRO E CONNECTOR KIT VARIATOR --> EMC FILTER ARG
--- 27GV74034 CONECTOR VENTILADOR --> TARJETA V CONNECTOR FAN --> CARD FAN ARGOS 740 AIR-
--- 27GV74035 CONECTOR FILTRO EMC --> TERMOCON
T
CONNECTOR EMC FILTER --> THERMAL SWITCH F
OPCIONES / OPTIONS
Ref Code Concepto Description
30 37GV14023 KIT GRAVILLA GRIS COSMOS 145 - ARG
O
KIT GRAY STONES COSMOS 145 - ARGOS 740
31 37GV14025 KIT GRAVILLA NEGRA COSMOS 145 - AR KIT BLACK STONES COSMOS 145 - ARGOS 740
--- 37GV64030 KIT LENOS COSMOS-HELIOS-SOLARIS-A
R
LOG SET COSMOS-HELIOS-SOLARIS-ARGOS
--- 37GV74019 MARCO ACABADO 130 MM SOLARIS FINISHING FRAME 130 MM SOLARIS
--- 37GV74020 MARCO ACABADO 30 MM ARGOS FINISHING FRAME 30 MM ARGOS
--- 37GV74005 MARCO ACABADO ARGOS ESTANCO FINISHING FRAME ARGOS B/FLUE
--- 37GV74080 KIT VENTILACION 450m³/h ARGOS 740 V
E
FAN KIT 450m³/hr ARGOS 740 AIR-VENT
--- 37GV74090 KIT VENTILACION TANGENCIAL 240m³/h TANGENTIAL FAN KITS 240m³/h ARGOS 740 AIR-V
--- 37GV74060
Imprimé, le 3/11/2005

12 Argos
6 IMPORTANT RECOMMENDATIONS
- Check that there is always at least 1cm between the door and the frame or masonry.
- Keep all readily inflammable objects away from the appliance (nylon fabrics, inflammable
liquids, etc.). Furniture items must be kept at a minimum distance of 1m from the appliance.
- ATTENTION: children and people who do not know how to operate the air-vent gas fireplace
must completely refrain from using it. Where necessary, provide additional protection to
prevent, for example, children from touching the appliance.
- All visible parts must be treated as active heating surfaces and may not therefore be touched
during operation, at the risk of burning oneself.
- It is prohibited to use the appliance with the glass damaged or without the door.
- Only install the draught limiter if there is a difference in vertical length of over 3m in relation
to the horizontal length.
- The fan must always be in operation. If this is not the case, a thermal switch activates the
fireplace’s emergency shutdown mechanism.
FIRST FIRE
- On first lighting (start of season or new installation), air in the gas flue may disrupt flame
detection. In this case, simply restart the appliance several times (to purge the flue), and you
must open the door after each unsuccessful attempt to light, in order to prevent gas
accumulating in the combustion chamber.
- You must wait 5 seconds for the pilot light to stabilize, and visually check the presence of
the flame before lighting the burner. Also, it is recommended that the flame level be at
maximum in order to light the burner.
- Make sure you clean the glass well before and after the first lighting of the fireplace to prevent
accumulation of particles on the glass.
- After two hours of heating, turn the appliance off, let it cool down, open the door to
remove the whitish deposit on the glass using a damp cloth, and then close the door.
- The first fire bakes the paint, which causes a release of fumes:
- Ventilate the room.
- Do not touch the paint until the fireplace has cooled down as initially it softens.
After three unsuccessfull lighthing attemps,
the appliance goes into security mode and blocks for five minutes.

Argos 13
SET
SET
SET
SET
SET
SET
°C
OFF
°C
ON
°C
ON
°C
ON
°C
ON
°C
ON
MANUAL
MANUAL
MANUAL MANUAL
+
-
+
-
+
-
+
-
+
-
+
°C
:
5 sec
1X 1X
10 sec
-
+
2.
1.
2.
��
���
�
+
-
1.
SET
°C
ON
MANUAL
°C
1X
2.
�
�
�
1.
-
+
-
+

14 Argos
7 MAINTENANCE
- Never clean the glass when it is hot! Wait for it to cool down.
- Dusting: do not use an aggressive product or liquid; a dry cloth or preferably dry foam is recom-
mended.
- Soiled areas can be restored using SPECIAL HIGH TEMPERATURE (Bodart&Gonay) spray paints
available from your supplier.
- For cleaning the glass, do not use an aggressive product. We recommend the “BG CLEAN” pro-
duct, available from your supplier.
ANNUAL MAINTENANCE
- The appliance and exhaust flue must be checked and cleaned every year by your approved
installer.
- Turn off the gas supply stopcock.
- Open the door (take this opportunity to clean it).
- Remove the gravel.
- Remove the dust deposits from inside the heating unit and from the burner using a
vacuum cleaner or brush.
- Check that the connections are airtight and that the different parts of the appliance ope-
rate smoothly.
- The Fan:
- Unplug the electricity supply, disconnect the fan(s) then remove it/them.
- Clean the impeller blades using a brush. (COMPRESSED AIR IS PROHIBITED).
- Reconnect everything.
VENTILATION
- The ventilation must always be switched on.
- Fan speed is adjustable to allow you to adjust ventilation to your requirements.
- The ventilation system is fitted with a thermal switch. This device starts or stops ventilation
auto matically according to the temperature of the heating unit. When the latter reaches a
temperature of around 40°C, the thermal switch starts up the fan.
8 USING THE APPLIANCE
The fireplace is controlled by means of a remote control and a manual control for both starting and
stopping. Ventilation is managed using a variator.

Argos 15
9 USING THE REMOTE CONTROL

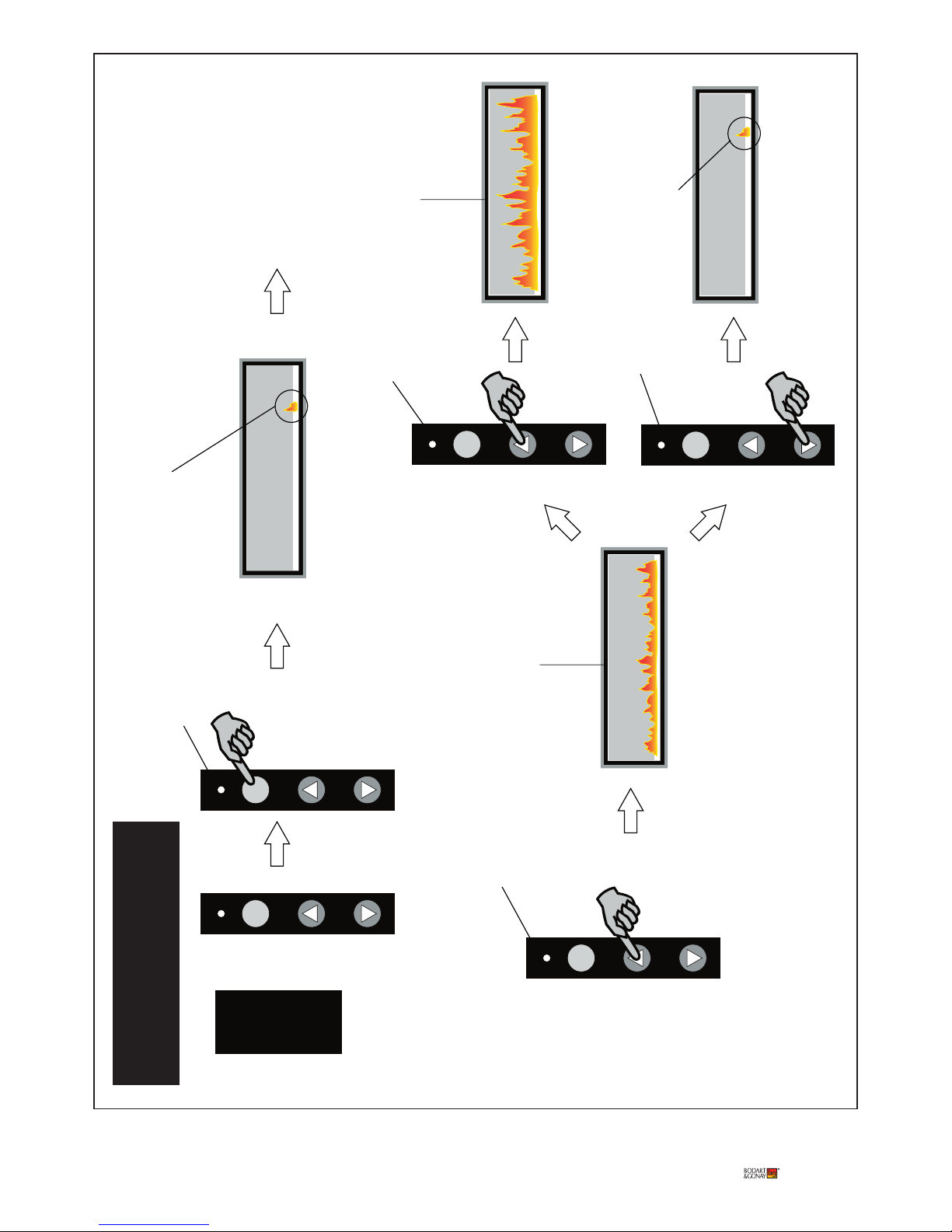

LIGHTING THE PILOT LIGHT: “Argos Me1.1” diagram
To light the pilot light, the remote control must be in OFF mode. Press the right (POWER) button
once, ON mode flashes, then validate the operation by pressing the left (SET) button, and ON
mode remains on the display.
Sparking continues for 10 seconds after the lighting procedure has started.
Before changing the flame level, wait 15 seconds for the pilot light to stabilize.
LIGHTING THE BURNER: “Argos Me1.1” diagram
When the pilot light has stabilized, press the (HIGH/HAUT) button to increase the gas flow and the (LOW/
BAS) button to reduce flow.
There are 3 gas levels.

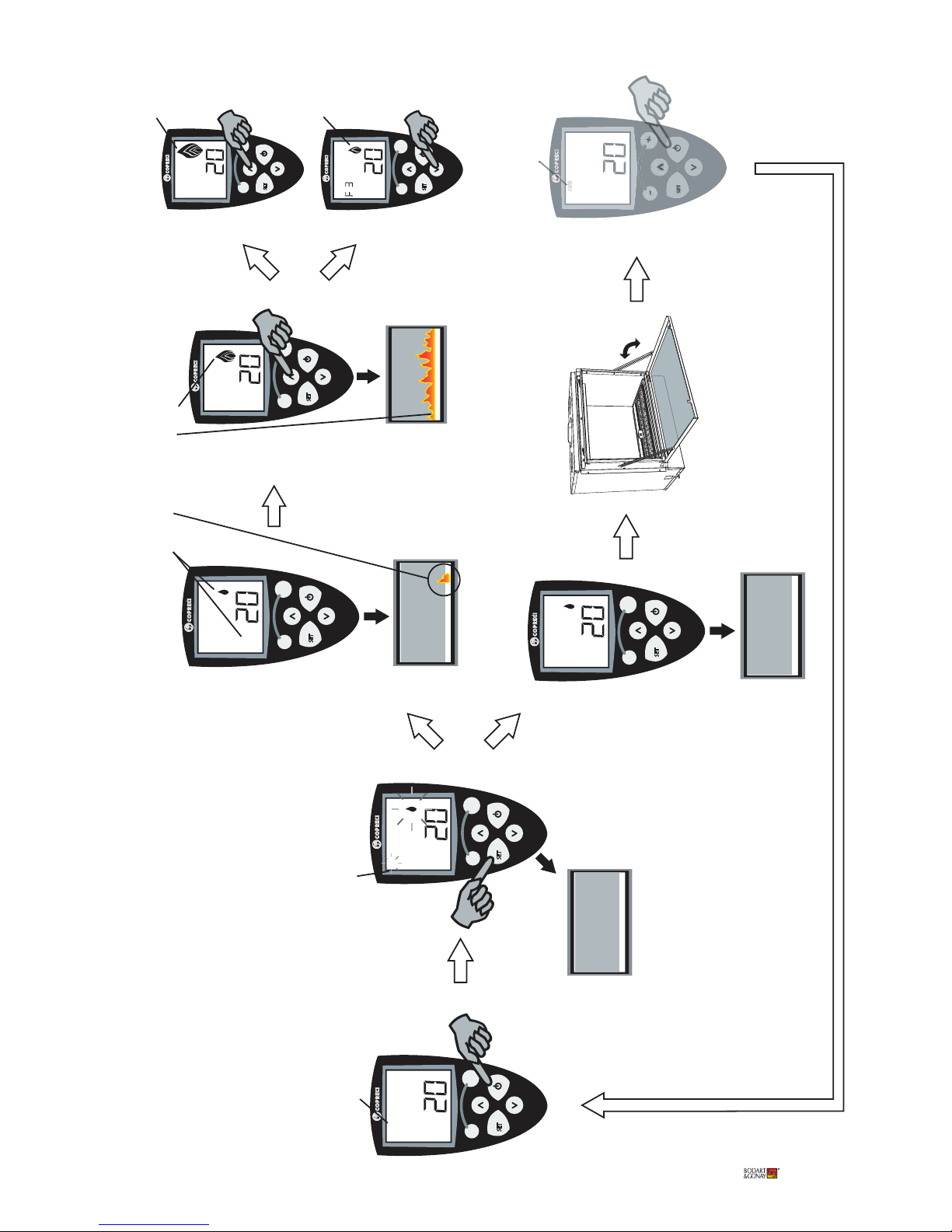

CHANGING TO THERMOSTAT MODE: “Argos Me2.2 en 2.3” diagram
To change to “thermostat” mode, press twice on the left (SET) button, and then choose the temperature
required using the plus and minus buttons.
Temperature information for adjusting the appliance is gathered every 6 minutes.
CHANGING TO MANUAL MODE: “Argos Me 2.4” diagram
To change to “manual” mode, press twice on the left (SET) button, then choose the level required
using the plus and minus buttons.
CHANGING THE UNIT OF TEMPERATURE: “Argos IT.2” diagram
To change from Fahrenheit to Celsius, first put the appliance in OFF mode, and then press POWER. Wait
for ON to flash then press POWER and HIGH simultaneously.
VENTILATION MANAGEMENT
Ventilation starts after around 15 minutes of the fireplace being in operation, when the
latter has reached a certain temperature.
As soon as the fan starts you can adjust its output with the aid of the remote control.
After three unsuccessfull lighthing attemps,
the appliance goes into security mode and blocks for five minutes.

16 Argos
10 OPERATING FAULTS
FAULTS SOLUTIONS
The fan is not working. Waiting for the appliance to be at the right tem-
perature.
- Check that it is switched on.
- Check and replace the fuse.
- Check (and replace) the thermal safety switch.
The fan works but the flow is weak. - Clean or replace the filters/down draught grills.
- Clean the impeller blades.
Disappearance of flame and safety mechanism
after 25 secs.
- Check chimney connection
- Check airtightness
- Check that the flue is free of blockages

Argos 17







°C
OFF
°C
OFF
°C
ON
°C
ON
°C
ON
°C
ON
°C
ON
MANUAL MANUAL
MANUAL MANUAL
MANUAL












°C
�
°C
�
°C
�
°C
�


15 sec
1X 1X
10 sec
...
...
1.
2.
1.
2.

AUTO
=
ON OFF
Argos ME 1

°C
ON
AUTO





+
-
+
= OK!

1.
THERMOSTATIQUE THERMOSTATIC THERMOSTATISCH...
1.
2.

18 Argos
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
°C
ON
°C
ON
AUTO AUTO
°C
ON
AUTO
°C °C
ON
°C
OFF
°C
°C
ON
AUTO
°C
ON
AUTO
°C
ON
AUTO
°C °C
ON
MANUAL MANUAL
AUTOAUTO






















°C °C °C
3 sec 5 sec
2X 1X
2X
1X

6.
+
1X
-1X
=
ON


1X 1X
ON
ON
=
MAX. 4 sec
SET
°C
ON
AUTO
SET


+
-
amb. T˚


+
-
AUTO
2.
AUTO
3.
ON OFF
4.
MANUAL
MANUAL MANUAL
A
B
A
B
SET
SET
SET
°C
ON
AUTO
°C
ON
AUTO
°C
ON
AUTO






+
1X
-
5.
�
�
°C
�
1.
ARGOS ME 2



Argos 19
5 sec
ON/ OFF
1X
ON/ OFF
ON/ OFF
1X
10 sec
...
...
ON/ OFF
ON/ OFF
1.
�
ON OFF
cosmos
�
�
�
�
+
-
1.
+
�
�
�
07DHCOSCM
ARGOS

20 Argos
Bodart & Gonay s.a.
Parc Artisanal de Harzé - Rue de Lambinon, 3 - B - 4920 HARZE (Aywaille)
[phone] [email protected] www.b-g.be
