Bodart & Gonay PHENIX 1150 Specification sheet

PHENIX II - Bodart & Gonay® 1
PHENIX 1000 PHENIX 850 PHENIX 650
PHENIX 1150 PHENIX 950DF
08.08
®
07DHPH2GB
Instructions for use
and maintenance

2PHENIX II - Bodart & Gonay®
Dear Customer,
Congratulations on the purchase of your Bodart & Gonay
appliance.
We are delighted that you have chosen a product entirely designed and produced by our
company.
In order to get the best use of your new appliance, we strongly recommend that you carefully
read and keep this notice.
You should also carefully keep your proof of purchase which will determine the expiry date of your
guarantee.
We wish you much enjoyment and warmth by your Bodart & Gonay hearth.
The Customer Service
Note:
Your supplier is the specialist chosen by BODART & GONAY to represent our company in your region.
For your SAFETY and SATISFACTION, we advise you to entrust the supplier with the installation of your
appliance.
All local and national regulations and European standards should be respected in the installation and
use of the appliance.
However, if you wish to install the appliance yourself, to avoid any misunderstandings we recommend that
you
- refer to the terms of our guarantee agreement,
- take the advice of your supplier.
Because it is impossible to cover all the features of every individual case, our instructions for
installation will only cover the most important points.
The appliance meets standards DIN 18895 and EN 13229* (*only with door closed).
NOTE
(to be completed by the installer)
* PHENIX II appliance
* REFERENCES: 47B11BOV PHENIX 1150
47B10BOV PHENIX 1000
47B95BOV PHENIX 950D
47B85BOV PHENIX 850
47B65BOV PHENIX 650
* PURCHASE DATE: ..... / ..... / .....
* SERIAL NUMBER:
(visible on the hearth identification label,
see p 5 no 26, description of parts)
........................................................................
.....
* DISTRIBUTOR:
Name ...............................................................
No / Street ........................................................
Town ........................................................
Post code .....................................................
Tel. ...................................................................

PHENIX II - Bodart & Gonay®3
RECOMMENDATIONS
1. Transport 4
2. Installation 4
3.Fue 4
4. First fire 4
5. Options 4
INSTRUCTIONS FOR USE AND MAINTENANCE
1.Use: 5
1.1. Description of parts 5
1.2. Operation of the automatic key 5
1.3. Opening and closing the hearth 6
1.4.Fire flue 6
1.4.1 Air regulator 6
1.4.2. Lighting 7
1.4.3. Reduced rate 7
1.4.4. Maximum rate 7
1.4.5. Open fire 7
WARNING 8
1.5. Option: Fan and speed variator 8
2. Maintenance: 9
2.1. Regular maintenance 9
2.4. Annual maintenance 10
3. Operating faults 11
4. Guarantee 12
INSTALLATION INSTRUCTIONS
1. Characteristics 2
2. Overall dimensions 7
2.1. Hearth 7
2.2. Ventilation 7
2.3. Surround 7
2.4. Legs 8
3. Smoke flue 8
4. External air supply 10
5. Convection air circuit 11
5.1. Air duct 11
5.2. Natural convection 11
5.3. Forced convection 12
6. Installation 12
6.1. Positioning the hearth 13
6.2. Fan and variator (optional) 13
6.3. Frame (option) 14
6.4. Placing the legs 15
7. Replacement parts 16
8. Check list 17
CONTENTS

4PHENIX II - Bodart & Gonay®
4.
1.
CHECK
3.
2.
6.
5.
7. 6.
OK!
RECOMMENDATIONS
1. Transport:
3. Fuel:
OPTION
4. The first fire bakes the painted surface, which results in a release of
fumes.
2. Installation:
Air the room!
Do not touch the paint until the hearth has cooled, because it softens
initially before hardening permanently.
2. Unscrew the two screws on the front and remove.
3. Cut the Colson collar around the counterweight and the support.
4. Ensure that the door is operating correctly (lateral opening, lifting/
lowering)
5. Open hot air vents and if required the hot air intakes for natural
convection (see pp 19 & 20)
6. After connecting to the chimney, we recommend that you fire up the
Phenix (door opened and door closed) before closing the decorative
chimney.
7. The finishing covers may be removed to facilitate the installation of
the decorative chimney. Always remove or replace the covers with door in the «down» position.
It is imperative that the masks side can always be dismantled.
1. The hearth must be absolutely level (references: from side and
front edge of the fire box).
5. Options:
1. Fan and variator: must be in operation when there is a fire in the
hearth. See installation, p. 22
2. Surround: Installation of surround before brickwork! See installation, p. 23
The appliances burns dry wood in logs and logs
made of compressed wood chips.
Do not add too much wood at once.
Briquettes may also be used.
Under no circumstances may this appliance be
used as an incinerator!

PHENIX II - Bodart & Gonay®5
1
2
10
4
5
6
9
7
3
13
12
14
11
15
16
7
8
4.
3. 5.
2.
1.
Phénix 650/850/1000/1150
INSTRUCTIONS FOR USE AND MAINTENANCE
1.Use:
1.1. Description of parts
1. Door
2. Counterweight and support.
3. Cover façade
4. Cover
5. Automatic key transmission
6. Automatic key valve
7. Side plates
8. Lateral base plates
9. Base bricks
10. Maintenance of vermiculite plaque
11. Air distributors
12. Air regulator
13. Finishing covers
14. Guiding shafts
15. Ventilation panel
16. Hearth identification label
1.2. Automatic lock principle
1. Primary combustion air.
2. Secondary smoke extraction and
post-combustion air.
3. Cross section of smoke vent
equivalent to cross section of primary
and secondary air intakes.
4. Air intake door open.
5. Crosssectionofsmokeventequivalent
to cross-section of hearth vent.
Note:
Automatic inversion of the key when
the door is lifted open.

6PHENIX II - Bodart & Gonay®
1
2
3
OK!
Phénix 1000/850/650 Phénix 1150/950DF
1.3. Opening and closing the hearth
1.4. Fire flue
The quality of the wood is of vital importance to the optimum
operation of the hearth (heat output and power, cleanliness of
the glass).
High quality wood is:
- dry, having been dried for at least two years under ventilated
shelter.
- preferably from deciduous trees rather than resinous trees
which tend to burn fast while producing a lot of soot.
In order of preference: hornbeam, oak, beech.
- logs made from compressed wood chips and briquettes may
also be used.
1.4.1. Air regulator
An excessive quantity of wood leads to:
- lower output and an increase in wood consumption.
- a significant loss of heat via the chimney.
- premature wear to the hearth.
Closed
Open
Closed
Open

PHENIX II - Bodart & Gonay®7
1.4.4. Maximum rate
The maximum load permissible at maximum rate (with the air regulator open) is 6 kg/hour
for the PHENIX 950D/1000/1150, 5 kg/hour for the PHENIX 850 and 3 kg/hour for the PHENIX
650.A dynamic fire adequately fed with dry wood gives you the best efficiency, a clean interior and
clean window.
Ensure that the door is properly lowered so that it closes completely
and thus engages the automatic key.
1.4.2. Lighting
* Set the air regulator in the maximum position (to the right)
* Put a fire lighter or crumpled paper towards the front.
Finish with kindling in the middle.
Place 2-4 split logs (according to size) at the back.
* Light and lower the door to 4-5 cm from the bottom.
To avoid smoke condensation on the glass and help to get the fire
going, the door should be left slightly open during lighting (+/- 4-5
cm less than complete closure)
*Close completely once the flames are well established and the glass has become hot.
1.4.3. Reduced rate
The maximum load permissible at reduced rate (with the air regulator
closed) is 10 kg/hour for the PHENIX 950D/1000/1150, 7 kg/hour for
the PHENIX 850 and 7 kg/hour for the PHENIX 650. Choose logs with a
very thick cross section.
This load may only be used at reduced rate (air regulator closed) to obtain
a slow-burning fire.
Parallel stacking of the logs encourages slow burning.
Add more logs when only embers remain, just after the disappearance of
the last flames.
NOTE:
- You need a large bed of embers to start slow combustion. This type of combustion is very
inefficient and pollutes.
- Constant use at the reduced rate may encourage an accumulation of soot in the chimney
due to condensation. This carries the risk of a chimney fire and causes the glass to become
soiled.
1.4.5. Open fire
To build up a stock of embers sufficient for combustion in open fire mode,
we recommend that you start with the door closed so that the hearth is
hot and the wood is burning well.
For well-established flames, pile 2-3 logs criss-crossed.
Each time more wood is added, there may be significant amounts of smoke if the wood is not
sufficiently dry. If this occurs, we recommend that you keep the door closed momentarily.
DO NOT use this door position (+/- 4-5 cm before complete closure) all the time
as this could damage the door.
It is essential to use the fan where installed. To avoid cold draughts, start the fan
10 to 15 minutes after lighting.
For the PHENIX 950DF:
half-open both doors and get a fairly brisk and strong fire going.

8PHENIX II - Bodart & Gonay®
60
15
30
45
O
OFF=
ON
O
!
MAX.
MINI.
O
FF= O
CAUTION

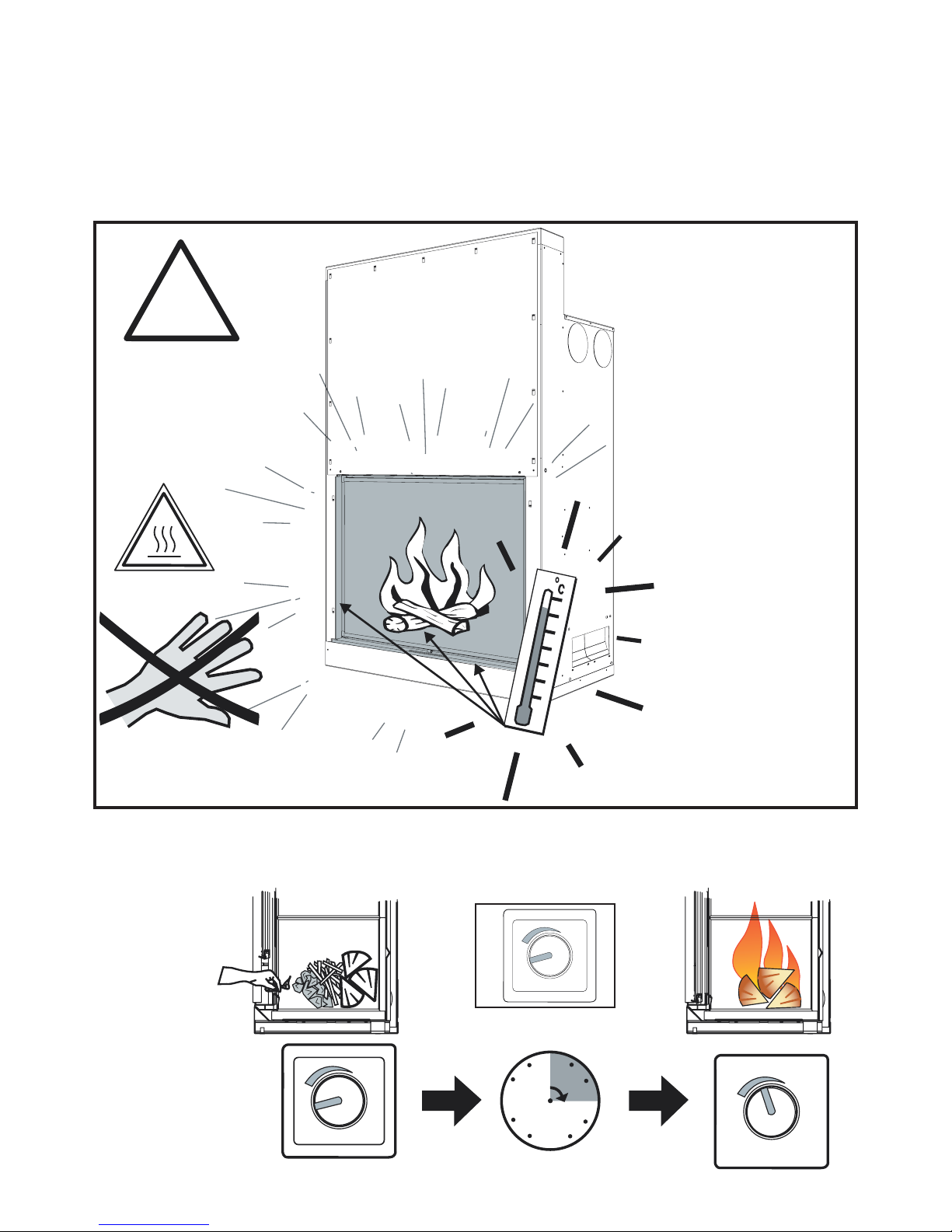

When the hearth is in
operation, some
accessible parts of the
appliance reach very
high temperatures, even
if no flames are visible.
Do not leave children
near the fire without
supervision.
1.5. Option: Fan and speed variator
NOTE:
- Avoid using in open fire mode under adverse weather conditions (low pressure and high humidity)
- there is a danger that smoke may blow back into the room!
- Attention! For the PHENIX 950D, only open one door at a time!
In certain draught conditions, there may be an odour of smoke from the side of the closed window,
in which case it is best to keep both doors closed for a moment.

PHENIX II - Bodart & Gonay®9
1
34
5
6
2
7
PUSH
PHENIX
650/850/1000
PHENIX
1150
WARNING
- Do not clean the glass while hot
- Spray the product* in the centre of the glass and
spread with a cloth or absorbent paper.
- Do not use abrasive cleaning materials or acid
products on the screen (the black area of glass).
- Do not use water and/or cleaning products on the
painted surfaces.
*we recommend the use of «BG Clean», available from your dealer.
«BG Clean» does not contain caustic soda and is biodegradable.
OPENING
CLOSING
2. Maintenance :
2.1. Regular maintenance
- Remove excess cinders, and if possible vacuum the ashes from the air distributor and air
regulator.
- If the fan has a dust filter, it should be cleaned frequently.
- To clean the glass, open the door laterally and proceed as follows:

10 PHENIX II - Bodart & Gonay®
1.
2.
n°10
1.
2.
1.
2.

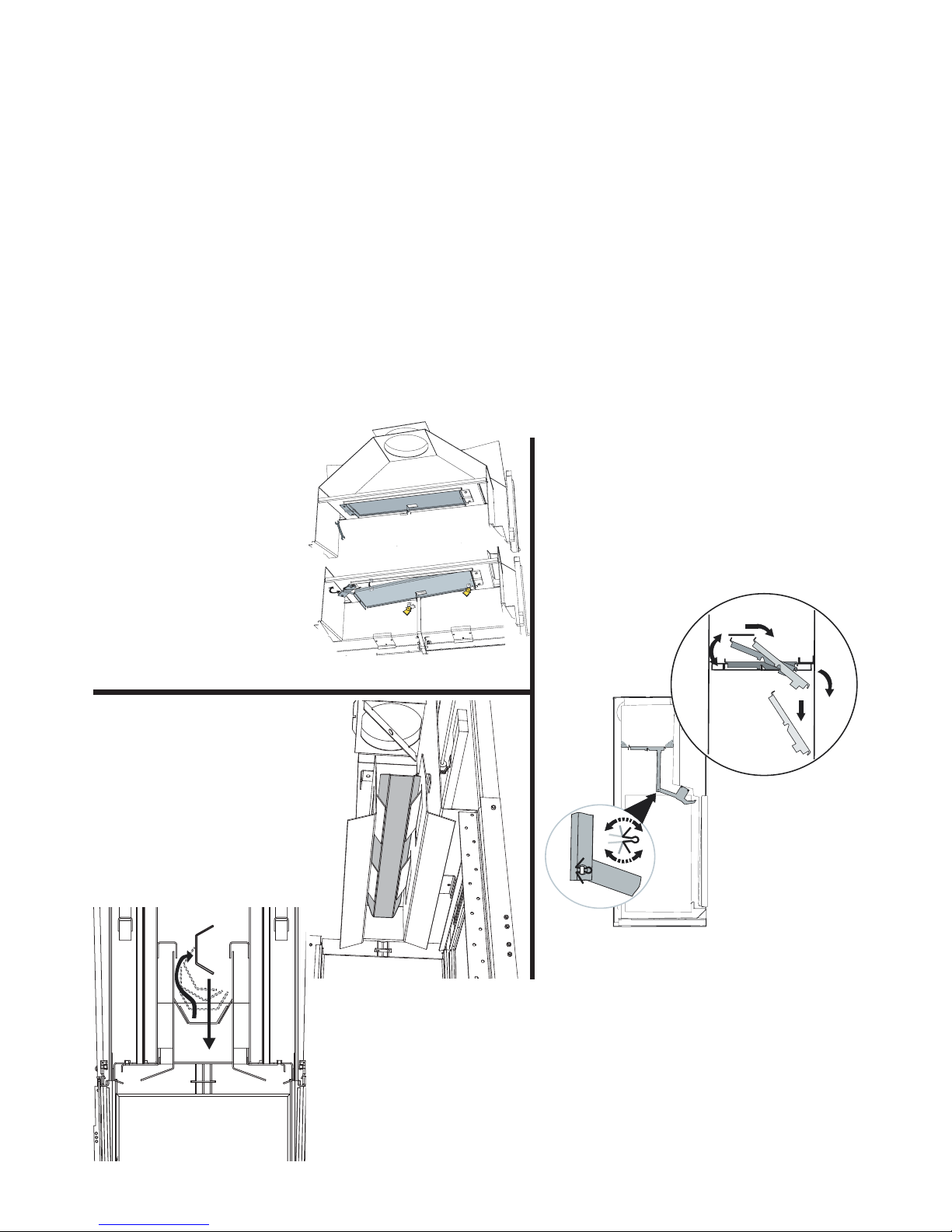

2.2. Annual maintenance
VERMICULITE PLATES
Vermiculite is a natural mineral substance (without asbestos) which has been processed
and which is completely recyclable. These insulating plates are resistant to very high
temperatures.
The vermiculite plates must not be exposed to water hence the importance of having a
cover on the chimney.
A cracked plate will still provide protection. However, if a small piece is missing the plate will
have to be replaced to ensure the effective protection of the combustion chamber. Vermiculite
plates are replaceable parts that can easily be changed individually. We recommend that any
damaged plates be changed. The base plates can be turned over.
CHIMNEY SWEEPING
Have the chimney swept at least once a year, not just to comply with legal requirements but
also for reasons of safety.
NOTE:
Take the opportunity to check the condition of the chimney and
the connector
Before sweeping:
Phénix 1150
1. Unscrew completely
one of both screws of
the valvesupport and
unscrew partely the
second one.
2. Turn the valvesupport.
3. Take the valve out of
between the 2 axes.
4. Close the air regulator.
5. Close the hearth door.
Phénix 650/850/1000
1. Remove the pin from the lever opera-
ting the automatic key.
2. Remove the valve.
3. Close the air regulator.
4. Close the hearth door.
After the dust has settled:
1. Gently open the door laterally (as for cleaning the glass).
2. Collect the dust in the hearth and the valve fixing frame.
Phénix 950D
1. Locate the grey-tinted
part.
2. Lift it and pivot it 90°.
3. Lower the part and
remove it.
4. Close the air feeder.
5. Close the fireplace door.

PHENIX II - Bodart & Gonay®11
PAINTWORK ON METAL AREAS
Do not use water and/or cleaning products on the painted parts.
Soiled areas can be restored using special high temperature B&G paint in aerosol form,
available from your dealer.
LUBRICATION
If the hearth is used frequently, it is advisable to lubricate the guiding shaft, using only high
temperature silicone lubricant (Bodart & Gonay high temperature lubricant available in
small packages from your dealer).
DO NOT USE OTHER LUBRICANTS - at high temperature they may dry out and block the
carriage
Clean the surfaces before applying the lubricant.
FAN (OPTIONAL, dismantling: see installation notice, p. 22)
Remove and disconnect the fan, clean the turbine blades with a brush (do not use com-
pressed air).
3. Guarantee
LENGTH AND RESTRICTIONS
- 6 years’ guarantee on: the general structure
- 2 years’ guarantee on: non-moving parts
- 1 year’s guarantee on: fan and speed variator
- no guarantee on: glass, vermiculite plates
RESERVED RIGHTS
Bodart & Gonay reserve the right to alter or amend their appliances, catalogues, and instructions for
use, independently, at any time and without prior notice.
Failure to follow the constraints and recommendations in these instructions shall render the
guarantee void.
Work under guarantee shall be carried out exclusively by the distributor’s agent on production of the
purchase invoice.
Replacement parts will only be provided in exchange for the faulty ones.
EXCLUSIONS
Accidents, problems and malfunctions arising from:
- mismatch between the nominal power of the appliance and the heat requirements of the room;
- faulty installation or connections;
- insufficient or excessive draught;
- improper use;
- incompatible, destructive or damp fuels (treated wood etc.)
- consumption exceeding the use limits;
- inadequate maintenance;
- the use of electrical and electronic components not approved by Bodart & Gonay;
- any internal modification or alteration to the hearth;
- transport and installation.
Freight and packing charges.
All expenses not agreed in advance by Bodart & Gonay.
Expenses resulting from a failure to use the appliance.

12 PHENIX II - Bodart & Gonay®
4. Operating faults
NOTE: In the event of a CHIMNEY FIRE, close the door, the air regulator and the
draught regulator if present immediately.
FAULTS
GLASS BECOMES DIRTY TOO QUICKLY
‘LAZY’ FIRE
Without backing-up, door open
With backing-up, door open
FIRE TOO FIERCE
NOISE FROM AIR PASSING AT THE BOTTOM
OF THE DOOR AND/OR REDUCED RATE
IMPOSSIBLE AND/OR VIBRATION OF GLASS
DISTURBANCES TO RATE LINKED TO ATMOS-
PHERIC CONDITIONS
SCRAPING NOISES OR SIGNIFICANT VIBRA-
TIONS WHEN DOOR OPENED OR CLOSED
BACKING-UP WITH DOOR RAISED
FAN NOT WORKING
Power no longer reaching motor
Power reaching motor, but motor fails to
start up
FAN WORKING BUT WITH WEAK FLOW
MINIMUM FLOW INADEQUATE
CAUSES / REMEDIES
- Door not sufficiently airtight (check the adjustment of the
door).
- Wood too damp- Rate of consumption too low
- Inappropriate draught (too much or too little)
- Air regulator insufficiently open
- Too many cinders in the bottom of the hearth
- Air intakes partly blocked
- Wood too damp or too thick
- Draught too weak (bad weather conditions etc.)
- Chimney flue unsuitable
See if the fire operates better with a window wide open
and the kitchen extractor fan, if present, switched off.
See p. 20
- Air regulator open too far
- Too much wood and/or logs too small
- Too much draught
- Too much draught
- Check the positioning and closure of the glass and door.
- Check the air circuits (p. 20).
- Chimney too wind-sensitive
- Chimney stack and cover to be modified
- Lack of lubricant to guiding shafts, use of high temperature
silicon lubricant.
- Adjust the door mechanism
- Bad atmospheric conditions
- Draught too weak, chimney too sensitive
-Too much wood added at once- Wood too damp
- Key jammed, remove the door completely and operate the
key manually using the door lifting tool.
- Check (reconnect) the supply and cabling
- Check (replace) the variator fuse
- Check (replace) the variator
- Check (replace) the condenser
- Check (replace) the fan
- The dust filter is blocked
- the turbine blades are covered in accumulated dust
- Adjust the minimum output power of the fan/ventilation
variator
Fan/ ventilation

PHENIX II - Bodart & Gonay® 13
EN 13229:2001 and EN 13229 A2:2004
4920 Harzé BELGIUM
Inset appliance fired by solid fuel
Mininum insulation thickness: Side wall:
Back wall:
Ceiling:
Floor:
Recommended fuels :Woodlogs
Emission of CO in
combustion products :
Flue gas temperature :
Energy efficiency :
Thermal output :
Read and follow the operating instructions!
0.20 %
307 °C
9.4 kW
70.2 %
100 mm minimum
100 mm minimum
100 mm minimum
no insulation required
Phenix 650
04
0.08 %
136 °C
4.1 kW
33.9 %
Open
door
Closed
door

14 PHENIX II - Bodart & Gonay®
EN 13229:2001 and EN 13229 A2:2004
4920 Harzé BELGIUM
Inset appliance fired by solid fuel
Mininum insulation thickness: Side wall:
Back wall:
Ceiling:
Floor:
Recommended fuels :Woodlogs
Emission of CO in
combustion products :
Flue gas temperature :
Energy efficiency :
Thermal output :
Read and follow the operating instructions!
0.19 %
349 °C
11.5 kW
71.0 %
100 mm minimum
100 mm minimum
100 mm minimum
no insulation required
Phenix 850
07
Open
door
0.07 %
132 °C
4.5 kW
31.9 %
Closed door

PHENIX II - Bodart & Gonay® 15
EN 13229:2001 and EN 13229 A2:2004
4920 Harzé BELGIUM
Inset appliance fired by solid fuel
Mininum insulation thickness: Side wall:
Back wall:
Ceiling:
Floor:
Recommended fuels :Woodlogs
Emission of CO in
combustion products :
Flue gas temperature :
Energy efficiency :
Thermal output :
Read and follow the operating instructions!
0.17 %
350 °C
14 kW
71.9 %
100 mm minimum
100 mm minimum
100 mm minimum
no insulation required
Phenix 1000
04
0.06 %
128 °C
5.5 kW
30.0 %
Open
door
Closed
door

PHENIX II - Bodart & Gonay® 15b
EN 13229:2001 and EN 13229 A2:2004
4920 Harzé BELGIUM
Inset appliance fired by solid fuel
Mininum insulation thickness: Side wall:
Back wall:
Ceiling:
Floor:
Recommended fuels :Woodlogs
Emission of CO in
combustion products :
Flue gas temperature :
Energy efficiency :
Thermal output :
Read and follow the operating instructions!
0.24 %
350 °C
12 kW
71.8 %
100 mm minimum
100 mm minimum
100 mm minimum
no insulation required
Phenix 1150
04
0.06 %
128 °C
5.5 kW
30.0 %
Open
door
Closed
door

1 PHENIX II - Bodart & Gonay®
PHENIX 1000 PHENIX 850 PHENIX 650
PHENIX 1150 PHENIX 950DF
®
Installation
Instructions

PHENIX II - Bodart & Gonay®2
PHENIX 1150
1. Characteristics: The appliance meets standards DIN 18895 and EN 13229* (*only
with door closed).
YANOG&TRADOB
VO
B
11VOB74:.FER
05
1
1XINEH
P
:OPYT
Wk21-01:AICNETOP
AREDAM:ELBITSUBMOC
)MM032(MM052:OMUHADIL
AS
5218-4
:
ETNEILACERI
A
SADI
L
AS
H/GK5:OMIXAMLAAHCRAMAREDAMAGRAC
GK522:OSEP
H/³M054NOICALIT
NEVOMIXAMLADUAC
W
77:A
C
IRTC
E
L
E
A
I
C
N
ETO
P
C
A
V0
3
2:AC
IR
T
C
E
L
ENO
I
SN
ET
A
52
.
1
E
LB
I
SUF
:
AC
IRTCELE
N
OI
CCET
O
RP
VOB11VOB7
4
:.FER
05
1
1XIN
E
HP:E
P
YT
Wk21-01:REWOP
DO
O
W:LEUF
)MM032(MM052:TNEVEKOMS
5218
-4:STNEVRIATOH
H/GK5:REW
O
PMUMIXAMTANO
I
TPMUSNOCL
E
UF
GK522:THGIEW
H/³M054ETARNAFMUMIXAM
W77
:REWOPLACIRTCELE
CAV0
3
2:EGA
T
LO
V
A
5
2.1
ESU
F
:
NO
IT
CET
O
R
P
L
AC
IRTCELE
OPCION
VENTILACION:
1 TURBINA
CENTRIFUGA
OPTIONAL
FAN:
CENTRIFUGAL
TURBINE

3PHENIX II - Bodart & Gonay®
PHENIX 1000

PHENIX II - Bodart & Gonay®4
PHENIX 950D
