Bodart & Gonay Phenix Green 75 Operating instructions

1
PHENIXgreen
01.12
PHENIX
WWWBGBE
75 - 85 - 95 - 120
GREEN
0461/11
User and maintenance
manual
Warning: Remove the manual from the fireplace and give to the customer
along with all relevant instructions
(explanations and demonstrations)
07DHPH3A

2PHENIX green
Dear Client,
Congratulations on your purchase of a Bodart & Gonay fireplace.
We are happy that you have chosen a quality product entirely designed and built by
our company using the most advanced production methods.
To get the most out of your new fireplace, we strongly recommend that you read this
manual carefully and keep it for future reference.
Carefully file your proof of purchase which may be needed to determine the validity
period of your warranty.
We wish you a great deal of pleasure and warmth around your Bodart & Gonay
fireplace.
Customer Service
Note:
Your supplier is the specialist BODART & GONAY has chosen as its representative in your area.
For your safety and satisfaction, we recommend that you contact them to install your product.
All local and national regulations, as well as European standards, must be followed during fireplace
installation and operation.
However, should you decide to do the installation yourself, we recommend that you do the following
in order to avoid any surprises:
- Carefully read the warranty agreement
- Ask your dealer for their advice
As it is impossible to cover every situation that could arise during an installation, we will
only address the most important points.

3
PHENIXgreen
TABLE OF CONTENTS
SAFETY 4
1. WARRANTY 5
2. CERTIFICATE OF COMPLIANCE 6
3. RECOMMANDATIONS 10
3.1. Installation 10

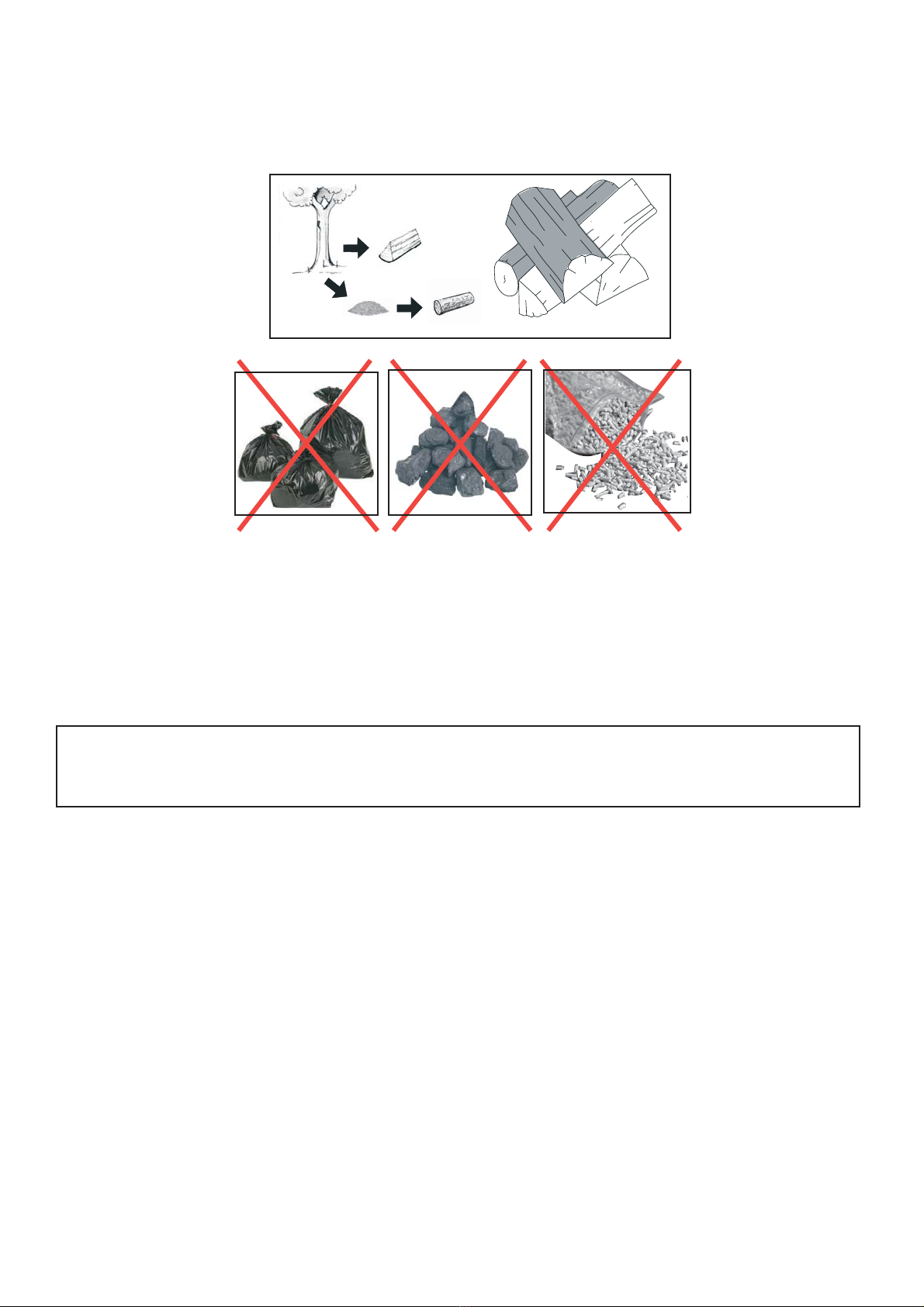

3.2. Fuel 10
3.3. First fire 11
3.4. Required for every use 11
4. OPERATION 12
4.1. Components description 12
4.2. Opening-Closing 13
4.3. Using the fireplace 14
4.3.1 Starting the fire 14
4.3.2 Ideal burn rate 15
4.3.3 Slow burn rate 15
4.4. Fan (optional) 16
4.5. Baffles 16
5. MAINTENANCE 18
5.1. Ongoing maintenance 18
5.2. Yearly maintenance 19
6. TROUBLESHOOTING 20
7.SPAREPARTS 21

4PHENIX green
!
WARNING!
Some accessible parts of the fireplace are extremely hot when it is in use,
even when there are no longer any flames.
Do not leave children unsupervised around the fireplace.
WARNING: SAFETY!
Never place any combustible items (including furniture) within a one metre radius of
the front of the fireplace (heat radiation zone), particularly during open door use.
In the event of a CHIMNEYFIRE, immediately close the door and shut off the thermostat
and the damper adjuster if there is one!

5
PHENIXgreen
1. WARRANTY
DURATION AND LIMITATIONS
- Six-year warranty on the overall fireplace
- Two-year warranty on removable parts
- Two-year warranty on the fan and speed controller
- No warranty on glass, brickwork
AGREEMENT
Bodart & Gonay guarantees that its products comply with:
- Its catalogues and user manuals
- Operational safety standards
LIMITATIONS
Bodart & Gonay reserves the right to change its products, catalogues and user manuals independently,
at any time, and without prior notice.
The warranty will become null and void if the requirements and recommendations described in this
user manual are not complied with.
Service under warranty will only be done by a certified dealer on presentation of the purchase
invoice.
New parts will only be delivered in exchange for the defective ones.
EXCLUSIONS
Accidents, damage, and malfunctions caused by:
- A mismatch between the nominal power of the product and the heating requirements of the room
- Incorrect installation or connections
- Destruction of the thermostat caused by overheating due to intensive use by:
• Leaving the ash pan door open
• Leaving the fan off
- Insufficient or excessive draught
- Abusive use
- Incompatible, destructive and/or damp fuel (treated wood, etc.)
- Consumption above set usage limits
- Insufficient maintenance
- The use of electrical or electronic components not certified by Bodart & Gonay
- Any modifications or internal changes to the fireplace
- Transport and installation
Transport and packaging costs.
Any costs not approved in advance by Bodart & Gonay.
Any costs incurred because of non-use of the fireplace.
EFFECTIVE DATE
The warranty is effective as of the date on the invoice. The invoice is the only document recognised
for warranty purposes.

6PHENIX green
4920 Harzé BELGIUM
EN 13229:2001 and EN 13229 A2:2004
Inset appliance fired by solid fuel
MINIMUM AIR INSULATION SPACE
Side walls : 50mm
Back wall : 50mm
Ceiling : 100mm
Floor : no insulation required
RECOMMENDED FUELS : Woodlogs
INPUT : Kg/h
OUTPUT : kW
EFFICIENCY : %
CO2 : %
CO: %
NOX: mg/Nm³
CmHm : mg/Nm³
Dust : mg/Nm³
Flue gas temperature : °C
Report Number :
Laboratory : ARGB - KVBG
READ AND FOLLOW THE OPERATING INSTRUCTIONS!
PHENIX 75 GREEN
3.21
11
82
8.25
0.096
54
41
30
206.4
10060-2
2. CERTIFICATE OF COMPLIANCE

7
PHENIXgreen
4920 Harzé BELGIUM
EN 13229:2001 and EN 13229 A2:2004
Inset appliance fired by solid fuel
MINIMUM AIR INSULATION SPACE
Side walls : 50mm
Back wall : 50mm
Ceiling : 100mm
Floor : no insulation required
RECOMMENDED FUELS : Woodlogs
INPUT : Kg/h
OUTPUT : kW
EFFICIENCY : %
CO2 : %
CO: %
NOX: mg/Nm³
CmHm : mg/Nm³
Dust : mg/Nm³
Flue gas temperature : °C
Report Number :
Laboratory : ARGB - KVBG
READ AND FOLLOW THE OPERATING INSTRUCTIONS!
PHENIX 85 GREEN
3.75
12.2
77.3
7.7
0.091
57
35
30
236
INTERPOLATION

8PHENIX green
4920 Harzé BELGIUM
EN 13229:2001 and EN 13229 A2:2004
Inset appliance fired by solid fuel
MINIMUM AIR INSULATION SPACE
Side walls : 50mm
Back wall : 50mm
Ceiling : 100mm
Floor : no insulation required
RECOMMENDED FUELS : Woodlogs
INPUT : Kg/h
OUTPUT : kW
EFFICIENCY : %
CO2 : %
CO: %
NOX: mg/Nm³
CmHm : mg/Nm³
Dust : mg/Nm³
Flue gas temperature : °C
Report Number :
Laboratory : ARGB - KVBG
READ AND FOLLOW THE OPERATING INSTRUCTIONS!
PHENIX 95 GREEN
4
13.4
76
7.32
0.097
60
26
50
252
10001-2

9
PHENIXgreen
4920 Harzé BELGIUM
EN 13229:2001 and EN 13229 A2:2004
Inset appliance fired by solid fuel
MINIMUM AIR INSULATION SPACE
Side walls : 50mm
Back wall : 50mm
Ceiling : 100mm
Floor : no insulation required
RECOMMENDED FUELS : Woodlogs
INPUT : Kg/h
OUTPUT : kW
EFFICIENCY : %
CO2 : %
CO: %
NOX: mg/Nm³
CmHm : mg/Nm³
Dust : mg/Nm³
Flue gas temperature : °C
Report Number :
Laboratory : ARGB - KVBG
READ AND FOLLOW THE OPERATING INSTRUCTIONS!
PHENIX 120 GREEN
5.07
17.2
76
7.41
0.096
56
16
31
266.1
10049-2

10 PHENIX green
Royaume de Belgique
SPF Santé publique, Sécurité de la Chaîne alimentaire et Environnement,
Direction générale de l'Environnement
AR 12 octobre 2010 réglementant les exigences minimales de rendement et les niveaux
des émissions des polluants des appareils de chauffage alimentés en combustible solide
Fabricant:
Nom du fabricant BODART & GONAY
Adresse du fabricant Rue de LAMBINON 3
4920 HARZE BELGIUM
Nom de son mandataire établi dans la
Communauté européenne BODART & GONAY
Produit(s):
Type de combustible Renouvable
Type of products Insert alimenté en combustible solide
Puissance 7 - 11 KW
Modèle PHENIX 75 GREEN
Type 47L75...
N° CE PHENIX 75 GREEN
Niveaux d'émission:
CO Continuous % or
mg/Nm3
NBN EN 13229
CO Non Continuous .1 % or
mg/Nm3
NBN EN 13229
PM Continuous % or
mg/Nm3
NBN EN 13229
PM Non Continuous 30 % or
mg/Nm3
NBN EN 13229
EFF Continuous % NBN EN 13229
EFF Non Continuous 81.75 % NBN EN 13229

11
PHENIXgreen
informations supplémentaires :
le nom de l'organisme agréé NB nr -
les coordonnées de la personne habilité
à signer la déclaration Daniel CHALI-RACHED
le lieu et la date de la déclaration 30-11-2011 BRUSSELS
Daniel CHALI-RACHED
Date d'impression: 20-12-2011

12 PHENIX green
Royaume de Belgique
SPF Santé publique, Sécurité de la Chaîne alimentaire et Environnement,
Direction générale de l'Environnement
AR 12 octobre 2010 réglementant les exigences minimales de rendement et les niveaux
des émissions des polluants des appareils de chauffage alimentés en combustible solide
Fabricant:
Nom du fabricant BODART & GONAY
Adresse du fabricant Rue de LAMBINON 3
4920 HARZE BELGIUM
Nom de son mandataire établi dans la
Communauté européenne BODART & GONAY
Produit(s):
Type de combustible Renouvable
Type of products Insert alimenté en combustible solide
Puissance 8 - 12 KW
Modèle PHENIX 75 GREEN
Type 47L85...
N° CE PHENIX 85 GREEN
Niveaux d'émission:
CO Continuous % or
mg/Nm3
NBN EN 13229
CO Non Continuous .09 % or
mg/Nm3
NBN EN 13229
PM Continuous % or
mg/Nm3
NBN EN 13229
PM Non Continuous 30 % or
mg/Nm3
NBN EN 13229
EFF Continuous % NBN EN 13229
EFF Non Continuous 77.3 % NBN EN 13229
PHENIX 85 GREEN

13
PHENIXgreen
informations supplémentaires :
le nom de l'organisme agréé NB nr -
les coordonnées de la personne habilité
à signer la déclaration Daniel CHALI-RACHED
le lieu et la date de la déclaration 30-11-2011 BRUSSELS
Daniel CHALI-RACHED
Date d'impression: 20-12-2011

14 PHENIX green
Royaume de Belgique
SPF Santé publique, Sécurité de la Chaîne alimentaire et Environnement,
Direction générale de l'Environnement
AR 12 octobre 2010 réglementant les exigences minimales de rendement et les niveaux
des émissions des polluants des appareils de chauffage alimentés en combustible solide
Fabricant:
Nom du fabricant BODART & GONAY
Adresse du fabricant Rue de LAMBINON 3
4920 HARZE BELGIUM
Nom de son mandataire établi dans la
Communauté européenne BODART & GONAY
Produit(s):
Type de combustible Renouvable
Type of products Insert alimenté en combustible solide
Puissance 9 - 14 KW
Modèle PHENIX 95 GREEN
Type 47L90...
N° CE PHENIX 95 GREEN
Niveaux d'émission:
CO Continuous % or
mg/Nm3
NBN EN 13229
CO Non Continuous .09 % or
mg/Nm3
NBN EN 13229
PM Continuous % or
mg/Nm3
NBN EN 13229
PM Non Continuous 50 % or
mg/Nm3
NBN EN 13229
EFF Continuous % NBN EN 13229
EFF Non Continuous 76.38 % NBN EN 13229

15
PHENIXgreen
informations supplémentaires :
le nom de l'organisme agréé NB nr -
les coordonnées de la personne habilité
à signer la déclaration Daniel CHALI-RACHED
le lieu et la date de la déclaration 30-11-2011 BRUSSELS
Daniel CHALI-RACHED
Date d'impression: 20-12-2011

16 PHENIX green
Royaume de Belgique
SPF Santé publique, Sécurité de la Chaîne alimentaire et Environnement,
Direction générale de l'Environnement
AR 12 octobre 2010 réglementant les exigences minimales de rendement et les niveaux
des émissions des polluants des appareils de chauffage alimentés en combustible solide
Fabricant:
Nom du fabricant BODART & GONAY
Adresse du fabricant Rue de LAMBINON 3
4920 HARZE BELGIUM
Nom de son mandataire établi dans la
Communauté européenne BODART & GONAY
Produit(s):
Type de combustible Renouvable
Type of products Insert alimenté en combustible solide
Puissance 11 - 17 KW
Modèle PHENIX 120 GREEN
Type 47L12...
N° CE PHENIX 120 GREEN
Niveaux d'émission:
CO Continuous % or
mg/Nm3
NBN EN 13229
CO Non Continuous .09 % or
mg/Nm3
NBN EN 13229
PM Continuous % or
mg/Nm3
NBN EN 13229
PM Non Continuous 31 % or
mg/Nm3
NBN EN 13229
EFF Continuous % NBN EN 13229
EFF Non Continuous 75.66 % NBN EN 13229

17
PHENIXgreen
informations supplémentaires :
le nom de l'organisme agréé NB nr -
les coordonnées de la personne habilité
à signer la déclaration Daniel CHALI-RACHED
le lieu et la date de la déclaration 30-11-2011 BRUSSELS
Daniel CHALI-RACHED
Date d'impression: 20-12-2011

18 PHENIX green
$
%
Fig.1
Fig.2
Type A A’ B C
Phenix 75 344 114 200 85
Phenix 85 340 218 200 85
Phenix 95 329 329 200 85
Phenix 120 454 454 200 85
,
260
210 210
201
3. GENERAL RECOMMENDATIONS
3.1. INSTALLATION
3.1.1 Fan dimensions
3.1.2 Outside combustion air intake
For combustion, the fireplace must be connected to an outside
air intake, that is, outside the room or in a ventilated air space. It
is also possible to draw air from the room. Special precautions
are required in this case (see installation manual).
Two air intakes are possible: at the back OR underneath
(see Fig. 2). Only use one of the two and block the second
one (on delivery, one will be plugged but you can change the
configuration).
The connection is made with a 110 mm diameter PVC pipe. The
pipe can be up to 7 m long with one 90° elbow or 5 m long with
three 90° elbows.
3.2. FUEL
This fireplace uses (very dry! with no paint or varnish) wood logs or logs made of pressed wood

19
PHENIXgreen
OK!
chips. Wood briquettes can also be used. Do not load too much wood at a time.
This fireplace should never be used to incinerate waste!
PROHIBITED:
3.3. FIRST FIRE
The first fire will set the paint. This will cause smoke and an odour.
Ventilate the room!
Do not touch the paint before the fireplace has cooled down. The paint will be soft until it
cools and hardens permanently.
3.4. REQUIRED FOR EVERY FIRE
- Always turn on the fan if one has been installed. In the event of a temporary power failure,
decrease the burn rate of the fire to avoid overheating the fireplace.
- Always open the door slowly to add wood when a fire is burning: Opening the door quickly will
cause temporary smoke spill out.
- To close the door: slide the handle into the door opening and lower it with a slight movement of
the arm downward.
WARNING! Avoid opening and closing the door abruptly as this can
damage the glass!

20 PHENIX green
!
""
6
6@
7
8
9
:
4. OPERATION
4.1. DESCRIPTION
A: Cold convection air
B: Hot convection air
V: Outside combustion air intake under the fireplace
V’: Outside combustion air intake at back of fireplace
W: Smoke removal area and accessory secondary
combustion
X: Primary combustion
Y: Main secondary combustion
Z: Smoke
1. The door: Can go up or down in use,
depending on the need.
2. The thermostat: Regulates the flow of
primary combustion air based on its setting.
The flap opens and closes depending on the
temperature in the combustion chamber.
The control button is operated with the
handle provided (cold hand). The flat end of the
handle is placed in the thermostat notch to rotate
it: from left (0) to right (9) counter-clockwise
(illustration page 14).
3. Removable stainless steel cold hand. Used to
adjust the thermostat (flat end) and to lift the
window (round end).
4. Fireplace identification label
5. Vermiculite or decorative metal: Protective
plate of skamol or painted stainless steel (black)
which acts as an insulator. These plates must be
protected from dampness: a cap must be installed
on the chimney.
6. Baffles: Made of refractory stainless steel. They
lengthentheroutetakenbythesmoketooptimise
secondary combustion and increase heat transfer.
They enable adjustment of the fireplace to the
