Regency City Series Operating manual

Regency City Series San Francisco Bay 72
CB72EPV-NG / CB72EPV-LP
FRAMING
DIMENSIONS
SPECIFICATIONS
HEAT RELEASE REQUIREMENTS
QR LINK FOR
PDF DIGITAL COPY
OF SPECIFICATIONS:
MUST READ BEFORE
FRAMING
IMPORTANT INFORMATION

8| City Series CB72EPV
dimensions
82 11
16 "
2104mm
20
11
16
"
525.79mm
15 1
16
"
382mm
10
1
4
"
260mm
20 3
8"
517mm
46"
1169mm
41
7
16 "
1052mm
41
7
16 "
1052mm
8"
[ 203mm ]
5"
[ 127mm ]
13"
329mm
7 3
8
"
187mm
83-7/8"
[ 2130mm ]
Dimensions - Bay Install
Note: Height Dimension is taken with leveling legs fully inserted and may vary depending on the height of the leveling legs, when unscrewed or extended.
Dimensions will appear as (inches)" / (metric) mm
throughout this manual. The inches are rounded to the
nearest 1/16" when converted, when greater accuracy
is required, use the metric dimensions.
Note: These units are non-load bearing.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

City Series CB72EPV | 9
dimensions
DATE
DO NOT
DIMENSIONAL NOTES

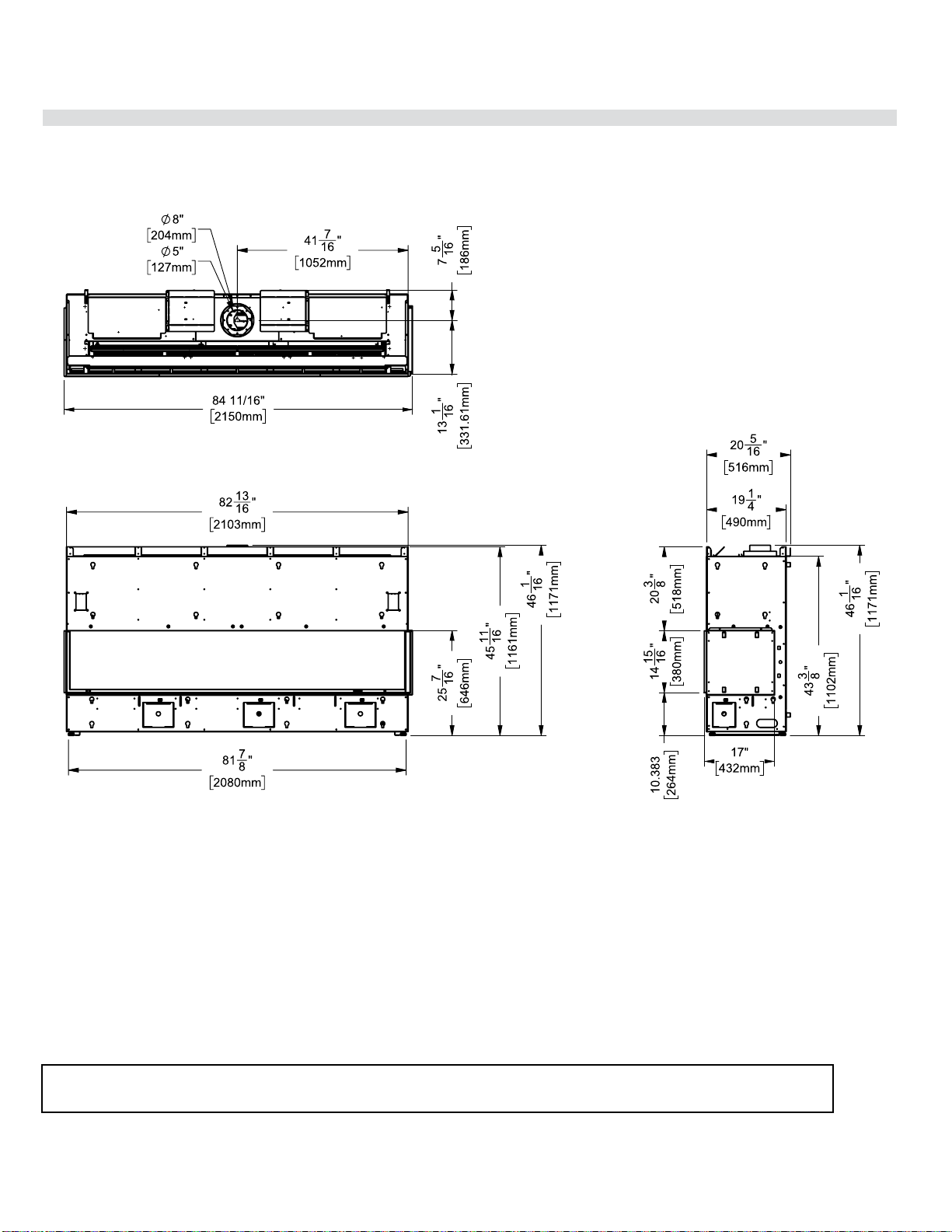

Dimensions - Corner Install
Note: Height Dimension is taken with leveling legs fully inserted and may vary depending on the height of the leveling legs, when unscrewed or extended.
Dimensions will appear as (inches)" / (metric) mm
throughout this manual. The inches are rounded to the
nearest 1/16" when converted, when greater accuracy
is required, use the metric dimensions.
Note: These units are non-load bearing.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

10 | City Series CB72EPV
installation
Gas Connection - Back of Unit
Gas Connection - Bottom of Unit
Gas Connection - Side of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit
Right Side Left Side

City Series CB72EPV | 11
installation
Electrical Connection - Bottom of Unit
Electrical Connection - Side of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit
3 1
4
"
5"
12 1
4
"
4"
1 1
2
"
2 1
2
"
11 1
2
"
5"
18 1
2
"
5"
18 1
2
"
5"
11 1
2
"
2 1
2
"
1 1
2
"
15 1
2
"
39"
4"
12 1
4
"
5"
3 1
4
"
14 1
2
"
19 1
2
"
11 1
4
"
6 3
4
"
Opening at unit base Gas Valve
Back of Unit
Front of Unit

36 | City Series CB72EPV
installation
Ventilation Openings (Three-sided/Bay Installation)
Regency's patented Cool Wall system releases warmth at ceiling level. This
system reduces excessive radiant heat in front of the replace so you can
enjoy your replace more often.
• Design your own chase vent solution to suit your home
• Use optional front or left & right side chase vent grills
• Release warmth into the room discreetly
Front Exit
The ventilation opening may be placed in front ensuring it meets the 288
square inch opening & is located 0-2" (51mm) from the enclosure ceiling.
SIde Exit (Left/Right)
Ventilation openings, when placed on both sides, must be of the same size.
They must be have an equal split (50/50) free air opening to balance air ow.
A ventilation opening may never be on one side only.
The ventilation openings cannot be any smaller than 6" (152mm) wide to
equal the total area of 288 square inches of free open area.
Example: 6" (152mm) wide x 24" (610mm) High = 144 square inches per
side of free open area. A second ventilation grill is installed on the other side
to =100%.
The ventilation openings must be located 0-2" (51mm) from the enclosure
ceiling.
Top Exit
The ventilation opening may be short of the ceiling as shown below.
Minimum opening height must be 2-1/2" (64mm) measured from top of
enclosure to the ceiling and must be in open in front and both sides to
meet the minimum 288 square inches free open air requirement.

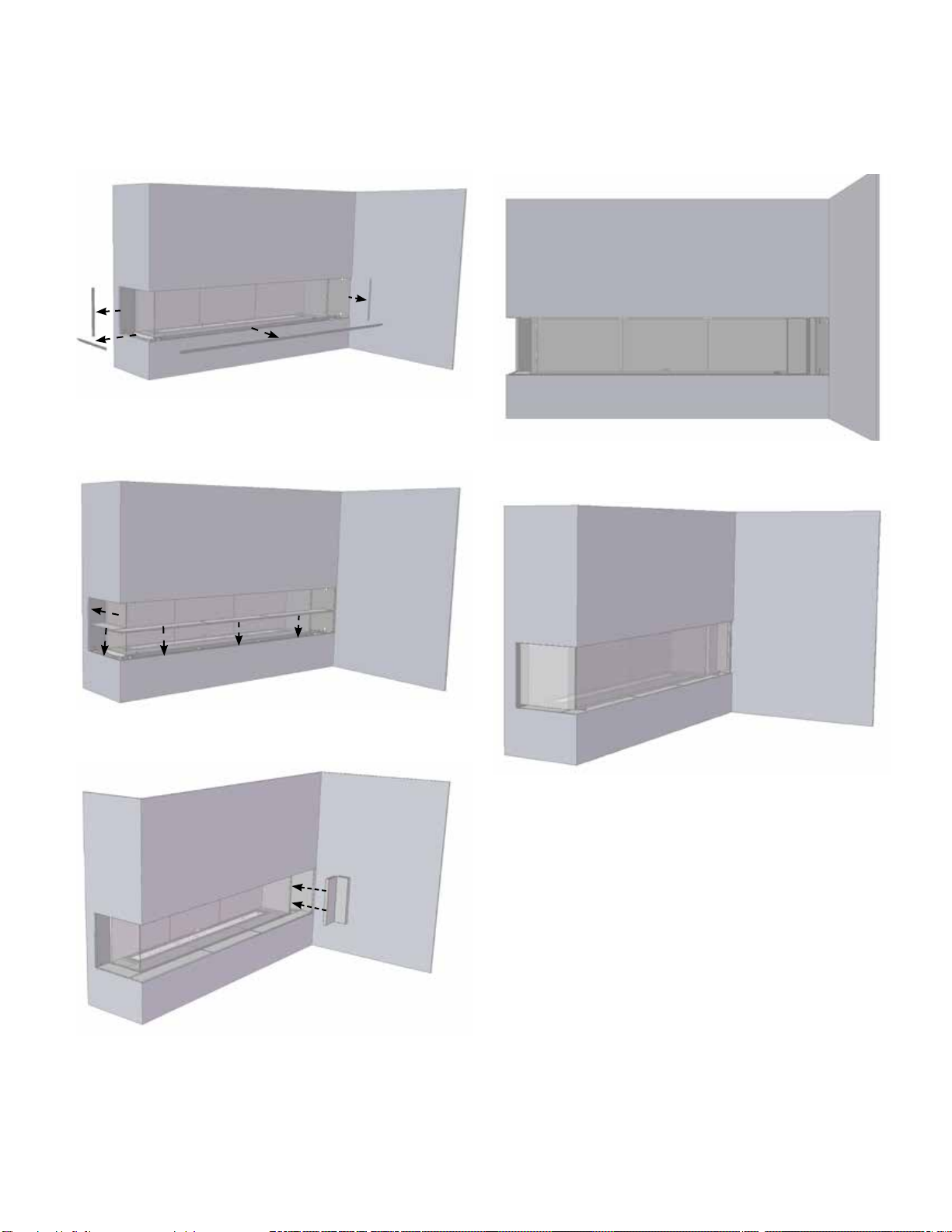

Ventilation Opening Locations
The following are examples of how the ventilation openings may be placed
above the replace.
If using the optional heat wave kit, this does not reduce the size of the
ventilation opening. The ventilation opening(s) must be a minimum 288
square inches regardless.
The air travelling through the heat exchanger is heated by the replace and
then directed out the back of the replace. The combined warmed air is then
vented back into the room.
The ventilation opening may be fully open at the top of the enclosure.
This type of ventilation opening would be used when the top of the
enclosure is not visible from above and where the ceiling within the
room is higher than normal. When creating this type of ventilation
opening, measures should be into place to avoid having objects of any
type falling or be thrown into the ventilation opening. Mesh screen or
other preventative measures should be put into place.
The ventilation opening may be placed on top ensuring it meets the
288 square inch opening. This type of ventilation opening would be used
when the top of the enclosure is visible from above and where the ceil-
ing within the room is higher than normal.
NOTE
• For right/left two-sided corner, see next page.

City Series CB72EPV | 37
installation
Ventilation Openings (Right/Left Corner)
Regency's patented Cool Wall system releases warmth at ceiling level. This
system reduces excessive radiant heat in front of the replace so you can
enjoy your replace more often.
• Design your own chase vent solution to suit your home
• Use optional front or left & right side chase vent grills
• Release warmth into the room discreetly
Front Exit
The ventilation opening may be placed in front ensuring it meets the 288
square inch opening & is located 0-2" (51 mm) from the enclosure ceiling.
Side/Front Exit
Ventilation openings, when placed on the side, must also have the same size
ventilation opening in front. They must be have an equal split (50/50) free
air opening to balance air ow. A ventilation opening may never be on one
side only.
The side ventilation opening cannot be any smaller than 6" (152mm) wide to
equal the total area of 288 square inches of free open area.
Example: 6" (152mm) wide x 24" (610mm) High = 144 square inches of free
open area. A second ventilation grill is installed in front to =100%.
The ventilation openings must be located 0-2" (51 mm) from the enclosure
ceiling.
Top Exit
The ventilation opening may be short of the ceiling as shown below.
Minimum width/depth of chase x height measured from top of enclosure
to the ceiling and must be in open in front and side to meet the minimum
288 square inches free open air requirement.
Ventilation Opening Locations
The following are examples of how the ventilation openings may be placed
above the replace.
If using the optional heat wave kit, this does not reduce the size of the
ventilation opening. The ventilation opening(s) must be a minimum 288
square inches regardless.
The air travelling through the heat exchanger is heated by the replace and
then directed out the back of the replace. The combined warmed air is then
vented back into the room.
The ventilation opening may be fully open at the top of the enclosure.
This type of ventilation opening would be used when the top of the
enclosure is not visible from above and where the ceiling within the
room is higher than normal. When creating this type of ventilation
opening, measures should be into place to avoid having objects of any
type falling or be thrown into the ventilation opening. Mesh screen or
other preventative measures should be put into place.
The ventilation opening may be placed on top ensuring it meets the 288
square inch opening. This type of ventilation opening would be used
when the top of the enclosure is visible from above and where the ceiling
within the room is higher than normal.

38 | City Series CB72EPV
installation
Chase Enclosure
Max 3”
(76 mm)
Ceiling Ceiling
Top of chase enclosure
Max 3”
(76 mm)
Stud
Stud
Stud
Stud
40” (1016 mm) Chase Vent
C40 Chase Vent Framing Clearances
Opening for vent
4”-4.5”
(102 mm x 114 mm)
Min 42.25” (1073 mm)
Framed opening must be between 4” (102 mm) and 4.5” (114 mm) tall, and at least 42.25”(1073 mm) wide
to accommodate the chase vent. The top of the chase vent opening must be 3” or less from the top of the
chase enclosure.
40” (1016 mm) Chase Vent
Top of chase enclosure
In the example above, the ceiling does not
meet the requirement as it is higher than
the specied minimum.
Top of chase enclosure is sealed o to
meet the 0-2'' (51mm) requirement.
Top of chase enclosure
Minimum 288sq. inch opening
Minimum 288sq. inch opening
When choosing to install the ventilation openings from the front or both sides, The top of the ventilation opening cannot be any lower than 0-2" (51mm)
from the top of the chase enclosure for all installations.
Minimum height of enclosure from base of appliance is 87" (2210mm).
A minimum 288in2 opening in the enclosure is required to maintain safe operating temperatures. This can be achieved in a number of ways including the
examples shown in this manual.
IMPORTANT:
Exterior wall/Alcove enclosure: When installing into an exterior cavity or alcove enclosure (ceiling, back and sides), regardless of where appliance is
placed within the home, requires the use of either drywall or other means such as plywood, wood studs, etc. to prevent heat from escaping anywhere above
/through the enclosure other than the required grill / ventilation opening.
Internal chase: When installing as an internal chase framing installation ,regardless of where appliance is placed within the home, requires the use of either
drywall or other means such as plywood, on the rear wall of the chase to eliminate heat escaping into the rear wall cavity. If the chase is extended to the
ceiling ,the ceiling will also need to be nished in a manner to prevent heat escaping into oor joist/attic space.
One of the following methods must be used to prevent the heat from escaping.
a. If choosing drywall, ensure that the drywall is butt up tight with no gaps.
b. Plywood, wood studs, etc. installed tightly with no gaps.
As this appliance has been designed with all hot air escaping through the chase enclosure ventilation/grill openings only, if hot air is trapped as a result of
the hot air escaping through joints, crevasses, open studs, or other openings within the enclosure above, this will change the clearances within the enclosure
causing the enclosure to overheat. It is vital that all the hot air from within the enclosure exits through the ventilation openings only.
Ensure that the ventilation openings are made as such to prevent debris, objects from falling into the enclosure.
Warning: DO NOT cover or place objects in front of the ventilation opening air outlet(s).
Max. 2''
(51mm)
Max. 2''
(51mm)

City Series CB72EPV | 39
installation
Clearances - Bay Install
The clearances listed below are minimum distances unless otherwise stated.
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that
this replace and vent system be installed only in accordance with these instructions.
Flue Clearances to Combustibles
Horizontal - Top 3"
Horizontal - Side 2"
Horizontal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
restop is used.
1-1/2"
Note: This appliance uses 4" x 6-5/8" venting
Caution Requirements
The top, back and sides of the replace are dened by
standos. The metal ends of the stando may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are
not adhered to. It is of greatest importance that this replace
and vent system be installed only in accordance with these
instructions.
The HeatWave Duct Kit has
dierent clearance and framing re-
quirements, check the HeatWave
manual for details.
E
F
B
Alcove
Clearance: single sided Dimension Measured From:
A1: Mantel Height (min.) ** Top of Fireplace Opening
A: From Floor min. 0" Bottom of Fireplace Opening
B: Sidewall (on one side) Min. 8" (203mm) Side of Fireplace Opening
C: Enclosure Width (min.) 82-11/16" (2100mm) Minimum inside dimensions
D: Mantel Depth (max.) **
E: Alcove Width 120" (3048mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Unit (Maximum)
G: Convection Air Outlet Opening Oset* *0-2" (0-51mm) Max. oset from top of chase enclosure
H: Convection Air Outlet *288 square inches
I Enclosure Depth (min.) 20-3/8" (517mm) Minimum inside dimensions
J: Opening Height 15-1/16" (383mm) Bottom/Top of Fireplace Opening
K: To Ceiling (Min.) all 3 sides 2-1/2" (64mm) To Top of Ceiling
L: Chase Enclosure (Min.) 87" (2210mm) From base of unit/oor to top of enclosure
M:Clearance to Sprinkler Head (Min.) 36" (914mm) Perpendicular from chase grill
Hearth 0" No hearth required
*Also see page 35 for alternate ventilation opening locations.
** See mantel clearances chart in this manual.
L
Chase grill
Sprinkler
Side view
M

40 | City Series CB72EPV
installation
Clearances - Bay Install
Floor to ceiling with top opening Low framing with vents in front/2 sides or top
Full framing with low vents in front or 2 sides Full framing with vents in front or 2 sides
K
C
I
A1
A
D
L
J
H
B
L
I
C
D
A1
A
J
G
G
H
H
H
B
I
C
G
A
A1
G
D
J
L
H
H
B
I
A
D
C
J
GG
L
H
H
A1
Bottom of replace
opening Bottom of replace
opening
Bottom of replace
opening
Bottom of replace
opening

City Series CB72EPV | 41
installation
Caution Requirements
The top, back and sides of the replace are dened by
standos. The metal ends of the stando may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
Clearances - Corner Install
The clearances listed below are minimum distances unless otherwise stated.
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that
this replace and vent system be installed only in accordance with these instructions.
Note: Left handed corner shown in illustration. Clearances will be the same for the right hand side.
Flue Clearances to Combustibles
Horizontal - Top 3"
Horizontal - Side 2"
Horizontal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
restop is used.
1-1/2"
Top View
Alcove
The HeatWave Duct Kit has
dierent clearance and framing re-
quirements, check the HeatWave
manual for details.
H
I
A
E
B
C
G
D
F
D
F
Left Corner
Shown
Clearance: single sided Dimension Measured From:
A: Mantel Height (min.) ** Top of Fireplace Opening
B: Opening Height 15-1/16" (383mm) Bottom/Top of Fireplace Opening
C: From Floor Min. 0" Bottom of Fireplace Opening
D: Sidewall (on one side) Min. 26" (660mm) Side of Fireplace Opening
E: Mantel Depth (Max.) ** Front of Fireplace Opening
F: Alcove Depth Min. 36" (914mm) Front of Fireplace Opening
G: Convection Air Outlet* 288 square inches
H: Convection Air Outlet Opening
Oset 0-2" (51mm) Max. oset from top of chase enclosure
I: Chase Enclosure (Min.) 87" (2210mm) From Base of Unit/Floor to top of
enclosure
Hearth 0" No hearth required
*Also see page 36 for alternate ventilation opening locations.
** See mantel clearances chart in this manual.

42 | City Series CB72EPV
installation
Mantel Clearances
Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram:
212 6 4810
0
14
15-1/16"
(382mm)
10
20
26
Top of
Fireplace
Opening
12" (305mm)
1/2" (13mm) Drywall, wood, wood panel, etc.
5-1/8"
(130mm)
To Bottom of
Fireplace
Opening
9”
(229mm)
12" (305mm)
MANTEL LEG
8" (203mm)

City Series CB72EPV | 43
installation
Framing Dimensions - Bay Install
NOTE: Framing may be constructed of combustible material (ie. 2 x 4) and does not require steel studs.
Framing
Dimensions Description CB72EPV
AFraming Height 51" (1295mm)
BFraming Width 82-11/16" (2100mm)
C* Framing Depth 20-5/8" (524mm)
D Minimum Height to Combustibles 87"(2210mm)
G*** Vent Centerline Height (Flex) 55-1/4" (1403mm)
G*** Vent Centerline Height (Rigid) 59-1/4" (1505mm)
** Gas Connection Opening Height See gas connection location in this manual
** Gas Connection Height See gas connection location in this manual
** Gas Connection Inset-Centre Opening See gas connection location in this manual
* Not shown in diagram below
** See manual for alternate Gas/ Electrical connection options
*** Important: Minimum overall vent run must be 4 feet. Even though centerline is 55 1/4 (ex) & 59 1/4" (rigid), if
appliance is framed at minimum depth, the 4 feet of vent run could not be obtained. Center line will need to be increased
in height in order to achieve a minimum vent run of 4 feet.
Note: A combined minimum of
288 square inches of open area
is required for the convection
air outlet to cool the enclosure.
Ensure clearances for Convec-
tion Air Outlets are met.
See clearances CB72EPV in this
manual as there are dierent
methods as to how this can
be achieved.
Note: This appliance must be
installed on a solid surface
such as a plywood oor which
must be the full width and
depth of the appliance.
Ensure that the wood base that the appliance will sit on is strong enough to support the full weight of this appliance.
The overall weight of this appliance is 582 pounds (shipping weight).
Note: Unit must be installed onto a solid
backwall - do not install directly onto
studs.
*C
Note : The framing depth does not take into
account drywall/wood or similar materials
against the back wall. The framing depth will
need to change based on the thickness of the
material (example: 20 5/8 framing depth +
1/2 drywall = 21 1/8")
Note: Studs in back can be
either wood 2'' x 4'' or 2'' x 6''.

44 | City Series CB72EPV
installation
Framing Dimensions Corner Kit - Corner Install (Right Corner)
NOTE: Framing may be constructed of combustible material (ie. 2 x 4) and does not require steel studs.
Note: A combined minimum of
288 square inches of open area is
required for the convection air outlet
to cool the enclosure.
Ensure clearances for Convection
Air Outlets are met.
See clearances CB72EPV in this
manual as there are dierent meth-
ods as to how this can be achieved.
Note: This appliance must be in-
stalled on a level and solid surface
such as a plywood oor which must
be the full width and depth of the
appliance.
Framing
Dimensions Description Corner Kit
AFraming Height 51” (1295mm)
BFraming Width 84" (2134mm)
CFraming Depth 20-5/8" (524mm)
D Unit Base to Top Enclosure (Min.) 87"(2210mm)
G*** Vent Centerline Height (Flex) 55-1/4" (1403mm)
G*** Vent Centerline Height (Rigid) 59-1/4" (1505mm)
*** Important: Minimum overall vent run must be 4 feet. Even though centerline is 55 1/4" (ex) & 59 1/4" (rigid), if
appliance is framed at minimum depth, the 4 feet of vent run could not be obtained. Center line will need to be increased
in height in order to achieve a minimum vent run of 4 feet.
NOTE: Unit cannot be load-bearing. All nishing materials must be supported by the framing.
Maximum material di-
mensions 2" x 4" for
header studs (installed
on edge and at)
Note: Studs in back and side
can be either wood 2'' x 4''
or 2'' x 6''.

City Series CB72EPV | 45
installation
Framing Dimensions Corner Kit - Corner Install (Left Corner)
NOTE: Framing may be constructed of combustible material (ie. 2 x 4) and does not require steel studs.
Note: A combined minimum of
120 square inches of open area
is required for the convection air
outlet to cool the enclosure. En-
sure clearances for Convection Air
Outlets are met.
See clearances CB72EPV in this
manual as there are dierent meth-
ods as to how this can be achieved.
NOTE: Unit cannot be load-bearing. All nishing materials must be supported by the framing.
Note: This appliance must be in-
stalled on a level and solid surface
such as a plywood oor which must
be the full width and depth of the
appliance.
Maximum material di-
mensions 2" x 4" for
header studs (installed
on edge and at)
Framing
Dimensions Description Corner Kit
AFraming Height 51” (1295mm)
BFraming Width 84" (2134mm)
CFraming Depth 20-5/8" (524mm)
D Unit Base to Top Enclosure (Min.) 87"(2210mm)
G*** Vent Centerline Height (Flex) 55-1/4" (1403mm)
G*** Vent Centerline Height (Rigid) 59-1/4" (1505mm)
*** Important: Minimum overall vent run must be 4 feet. Even though centerline is 55 1/4 (ex) & 59 1/4" (rigid), if
appliance is framed at minimum depth, the 4 feet of vent run could not be obtained. Center line will need to be increased
in height in order to achieve a minimum vent run of 4 feet.
Note: Studs in back and side
can be either wood 2'' x 4''
or 2'' x 6''.

46 | City Series CB72EPV
installation
Corner Conversion - Assembly Steps
920-068 02.20.19
CB72 CORNER CONVERSION - ASSEMBLY STEPS
1. Decide on Left or Right install - Install outer panel of corner conversion
before placing unit in framing.
2. Install trim guide for left or right install to the outer side panel.
L
R
LEFT RIGHT
1
CB72 CORNER

City Series CB72EPV | 47
installation
920-068 02.20.19
3. Bend tabs closest to the finishing trim inwards 90 degrees on the outer
side panel.
L
R
4. Loosen screws using offset screwdriver and remove trim guides from
side of unit and recycle them.
6. Screw in the two self-tapping screws to the top of the outer side panel.
Unit can be placed in framing at this point.
5. Slide outer side panel down onto screws that remain from removable
trim. Tighten screws with offset screwdriver.
7. See inner panel install section. Once firebox panels are installed, then
install corner conversion liner panel inside of side barrier glass. Note:
Gasket side of panel sits against the glass and the flange sits at top.
2
CB72 CORNER

48 | City Series CB72EPV
installation
920-068 02.20.19
8. Once all framing and wall finishing is complete, use offset screwdriver
and remove finishing trim guides.
9. Install outer liner panels and then recycle unused side and back panel.
10. Slide corner piece in right up to firebox glass.
11. Slide corner piece up to outer side panel until contact with magnet is
made.
12. Once corner conversion is installed, continue regular install of barrier
glass. Discard unused side glass barrier.
3
CB72 CORNER

City Series CB72EPV | 49
installation
Optional Framing Kit
919-951a 01.24.19
1
CITY SERIES
Optional Framing Kit











[[
[[
[[
[[
[[
[[
[[
[[
[[
[[
[[
$
%
&
'
(
)
*
+
,
-
.
CB72EPV framing kit parts layout*
*See last page of these instructions for assembled overview.
Assemble back frame
(view from back)
Install back frame on unit
Note: Extra screws are provided to assemble this kit.
Tools/hardware required:
- Level
- Stud fi nder
- Cordless screwdriver
- Phillips bit
- 5/16 inch hex head bit
- 2'' to 3'' wood screws (minimum 16)
- Flashlight
1. Assemble the back frame as shown below by assembling 2x Part B with 2x
Part H with 8 screws installed from back of frame.
%
%
+
+
2. Install the frame assembled in Step 1, onto the back of the unit as shown
with 2 screws on each side.
WRROWLS
3. Place unit against wall in desired location. Level the unit by adjusting 4
leveling bolts on unit.
4. Install venting before proceeding further with framing kit construction. Refer
to manual for venting instructions.

 w



w

 w

 w
Framing Kit with unit - Overall dimensions
Additional wall studs required
81-1/4" center to center
Before starting the installation, ensure the wall framing contains 2 additional
studs spaced 81-1/4" (2064mm) apart from center to center. The framing will
need to be secured to these studs as well as secured to the original studs
of the wall framing.

50 | City Series CB72EPV
installation
919-951a 01.24.19
2
CITY SERIES
WRROWLS
-
-
-
-
WRROWLS
*
*
WRROWLS
(
)
WRROWLS
$
$
WRROWLS
,,
WRROWLS

5. Secure the unit with framing to the wall studs with 2-1/2"-3" wood screws
(not supplied). Use 8 screws and secure to 4 studs minimum. Ensure the
frame is also secured to the 2 additional studs spaced 77.5" apart, using
the last hole on the upper and lower Part B framing part as shown below.
6. Attach the 2 center supports (Part I ) to upper and lower Part B of the back
frame with 2 screws each as shown.
7. Attach the 4 x end pieces (Part J) to the upper and lower Part B of the
back frame with two screws each.
8. Attach 2 x Part G to the previously installed Part J parts with 2 screws
at each end.
9. Attach end cross braces (Parts E + F ) with 2 screws at each end as
shown below.
10. Install Part A (x2) to Part G on each side with 2 screws on each end.
Secure framing to wall
Note: only 2 additional studs shown (regular framing not shown)
Part G
Part I
Part J
Part E + F
Part A
screw
