Bodor BCL-B Series User manual

TWO YEARS WARRANTY
www.bodorcnc.com

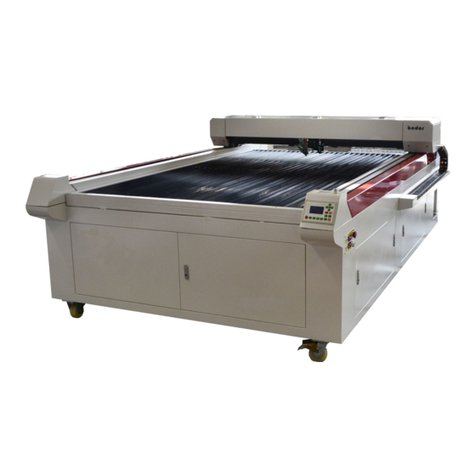

Bodor Laser Cutting Bed
BCL-B Series
Product’s Description：Laser cutting bed BCL-B Series
1.To meet the demand of cutting in large width,Bodor cutting machine bed adopts the
machine tool-level chasis to ensure the stability and accuracy in high speed working.
2.The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up
with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
3.The new style laser tube which is stable and extra durable can make nice smooth
cutting work at one time, never need a secondary processing
4.The wholly open type stainless steel working platform was specially treated, operates
easy and never fray.
5.The automatic feeding system can be added to save time and cost, and to improve work
efficiency.
6.With red light positioning device accurately indicates the location of the processing of
the laser head, eliminate the trouble about manual positioning.

TWO YEARS WARRANTY
www.bodorcnc.com
Specifications: Laser cutting bed BCL-B Series
Model BCL1318B BCL1325B BCL1530B Option
Working area 1300*1800mm 1300*2500mm 1500*3000mm According to
demands
Laser power 60w/80w/100w/130w/150w/180w
Laser type Sealed co2 laser tube,10.6μm
Cooling type Water cooling
Cutting speed 0—30000mm/min
Laser output control 0—100% software setting
Smallest character engraving 2.0*2.0mm 1.0*1.0mm / English 1.0mm*1.0mm
Highest scanning precision 4000DPI
Locating precision ≤+0.01mm
Controlling software DSP control system
Graphic format supported DST PLT BMP DXF DWG AI LAS,etc
Compatible software TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of
AUTOCAD software in cloth
color separation yes
Drive system High-precision 3-phase stepper motor
Auxiliary equipments Exhaust fan and air exhaust pipe
power supply AC110V/220V+10%,50HZ/60HZ
Packing size According to the model
Net weight According to the model
Option honeycomb worktable,rotary device
red dot position system,Auto-focus device
Configuration: Laser cutting bed BCL-B Series
USA focus lens and mirrors long life laser tube

TWO YEARS WARRANTY
www.bodorcnc.com
Taiwan HIWIN linear guide rail Anticaustic tool section DSP control system
Optional Configuration:
Imported ball screw honeycomb platform
Protecting cover
Applicable Industries:
Garments sampling, large format tailoring ,leather
industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding
and crafts industries,etc.
Applicable Materials:
Fabrics, laser , paper, bamboo ware, acrylic, glass, thin film and canvas, etc.
Samples:

TWO YEARS WARRANTY
www.bodorcnc.com

TWO YEARS WARRANTY
www.bodorcnc.com

TWO YEARS WARRANTY
www.bodorcnc.com

TWO YEARS WARRANTY
www.bodorcnc.com
Training to Use
1) We will supply you with the operation and installation manual in English version together with
the machine, including introduction for the composing of equipment, working principle,
common knowledge of computer, controlling principle of electronic devices, daily maintenance
measures. Personal demonstration will be supplied for equipment installing, adjusting,
operating and programming of computer, common malfunction eliminating measures, etc.
2) We will supply you with brochures for simple trouble shootings of the machine which can help
you deal with the ecumenic problems happened unexpected. Meanwhile, one set of
"Instruction Book", "Operation Manual" and “Training Video Disk”for machine / software will
be also sent to you together with the machine that could be easily understood and kindly
handled by you and your customer.
Quality Warranty and After Service
1) The quality warranty period is 24 months which counted from the day that the shipping
commodity arrived at the port of destination, excluding the physical damage. We will provide
you with the fittings for free during the guarantee period. But please kindly noted that all users
are kindly required to return us the damaged fittings by courier with your charge before we
send back the alternative fitting parts. After warranty period, the fittings which you need
repaired or changed should be in charge by you, and there will be reasonable charged.
2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a
plenty of online-supports. That is to say, we will give you technical supports by email,
MSN/Skype, camera, video, telephone and fax when user meets some problems on installing,
operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can
not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or
maintain or adjust the machine in your area, you would like to be required to assist us to deal
with the visa formality, traveling expenses prepaid and accommodation arrangement during
the business trip and the service period before they dispatched. And please kindly arrange the
translating person for the service engineer during their service period. Otherwise, you also can
arrange your engineer to come to visit our factory to get a long-term free technical training.
