body Power Trio-Trainer BRT5128 User manual

BRT5128 BRT5118
OWNER’S MANUAL
This product is intended for indoor, home use only and is not to be used in a commercial setting.
U.S. Patent US474925B1

BRT5128 BRT5118
Page
1
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE.
DO NOT DISCARD.
WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS
ARE NOT FOLLOWED.

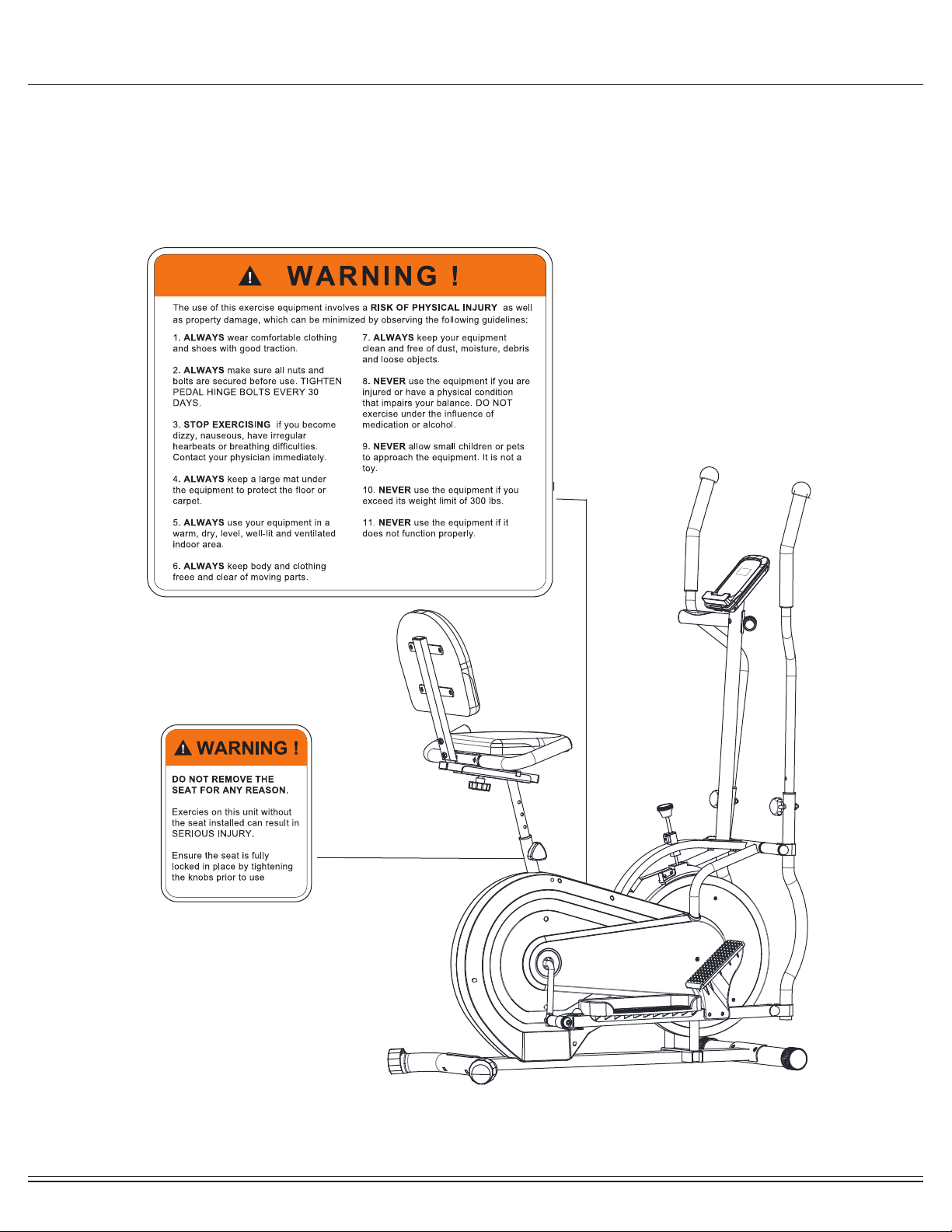

The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
Please ensure any user of the unit familiarizes themselves with this Safety and Warning guidelines before use.

BRT5128 BRT5118 Page
2
Before you undertake any exercise program, please be sure to
consult with your doctor.
Frequent strenuous exercise should be approved by your
doctor and proper use of your product is essential.
Excessive or incorrect training may result in health injuries.
Please read this manual carefully before commencing the
assembly of your product or starting to exercise.
• Please keep all children away from this item when in use.
Do not allow children to climb or play on this item when it
is not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there are at least
3 feet of free space in all directions around your product
while you are exercising.
•Regularly check to see that all nuts, bolts and ttings are
securely tightened. Periodically check all moving parts for
obvious signs of wear or damage.
• Any adjustment devices that could interfere with the user’s
movement of this unit should not be left projecting.
• Clean only with a damp cloth, do not use solvent
cleaners. Lubricate the moving parts of your unit every 30
days with a silicone-based grease or product.
If you are in any doubt, do not use your product; contact
CUSTOMER SUPPORT.
• Before use, always ensure that your product is positioned
on a solid, hard-at surface.
• Do not place on carpet. If necessary, use a rubber mat
underneath to reduce the possibility of slipping.
• Always wear appropriate clothing and footwear such as
training shoes when exercising. Do not wear loose clothing
that could become caught in moving parts during exercise.
• Do not use this unit if it is not functioning properly or if it is
not fully assembled.
• Do not use this unit for commercial purposes. This unit is
for home use only.
• Before use, you must read and understand all instructions
& warnings stated in this Owner’s Manual as well as post-
ed on the equipment.
• It is the facility owner’s responsibility to properly instruct
users on the proper operation of the equipment and to
warn them of the potential hazards.
• If at any time during exercise you feel faint, dizzy or
experience pain, stop and consult your physician.
Your product is intended for use in clean dry conditions. You
should avoid storage in excessively cold or damp places as
this may lead to corrosion and other related problems.
If you have any questions concerning the assembly of your
item or if any parts are missing, please DO NOT RETURN
THE ITEM TO THE STORE OR CONTACT THE
RETAILER.
Our dedicated customer service sta󰀨 can help you with
any questions you may have regarding the assembly of this
unit and can also mail you replacement parts.
Customer Support is open 9:00 a.m. to 5:00 p.m. (Pacic
Time) Monday through Friday.
Please contact us by any of the following means :
Hupa International, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: [phone] - 6789
Fax: [phone] - 6707
Email: [email protected]
Hupa International warrants your product is free of any defects
in workmanship and materials for a period of 1 year for the
frame and 90 days on all parts if the item is used for the
intended purpose, properly maintained and not used
commercially.
Any alterations or incorrect assembly of the product will void
this warranty.
Proof of purchase must be presented for any warranty vali-
dation (no exceptions). This warranty applies to the original
purchaser only and is not transferable.
This warranty covers parts damaged due to defect in work-
manship and materials; it does not cover abuse or damages
caused during use, storage or assembly. During the warranty
period, Hupa International reserves the right to:
1. provide replacement parts to the purchaser in an e󰀨ort to
repair the item.
2. repair the product returned to our warehouse
(at purchaser’s cost).
3. replace the product if neither of the two previously
- Ruler with both Metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
Your product is suitable for users weighing:
300 pounds or less
General Information
Safety Storage and Use
Questions
Customer Support
Warranty
Assembling Tools
Weight Limit

BRT5128 BRT5118 Page
3
Before Assembly
1. Take a few minutes to familiarize yourself with the parts and hardware included with your product.
2. The assembly may require two people.
3. Check the frame for any damage and check any wiring (if present) for rips or tears. If you detect damage, rips, or
tears, please contact our Customer Support Team before beginning any assembly.
4. Make sure all the hardware needed is included.
5. It is very important to follow the assembly instructions correctly and to make sure all parts are attached correctly and
rmly tightened when the assembly process is complete.
6. Parts that are not tightened correctly will seem loose and can cause irritating noises and will cause damage to the
equipment.

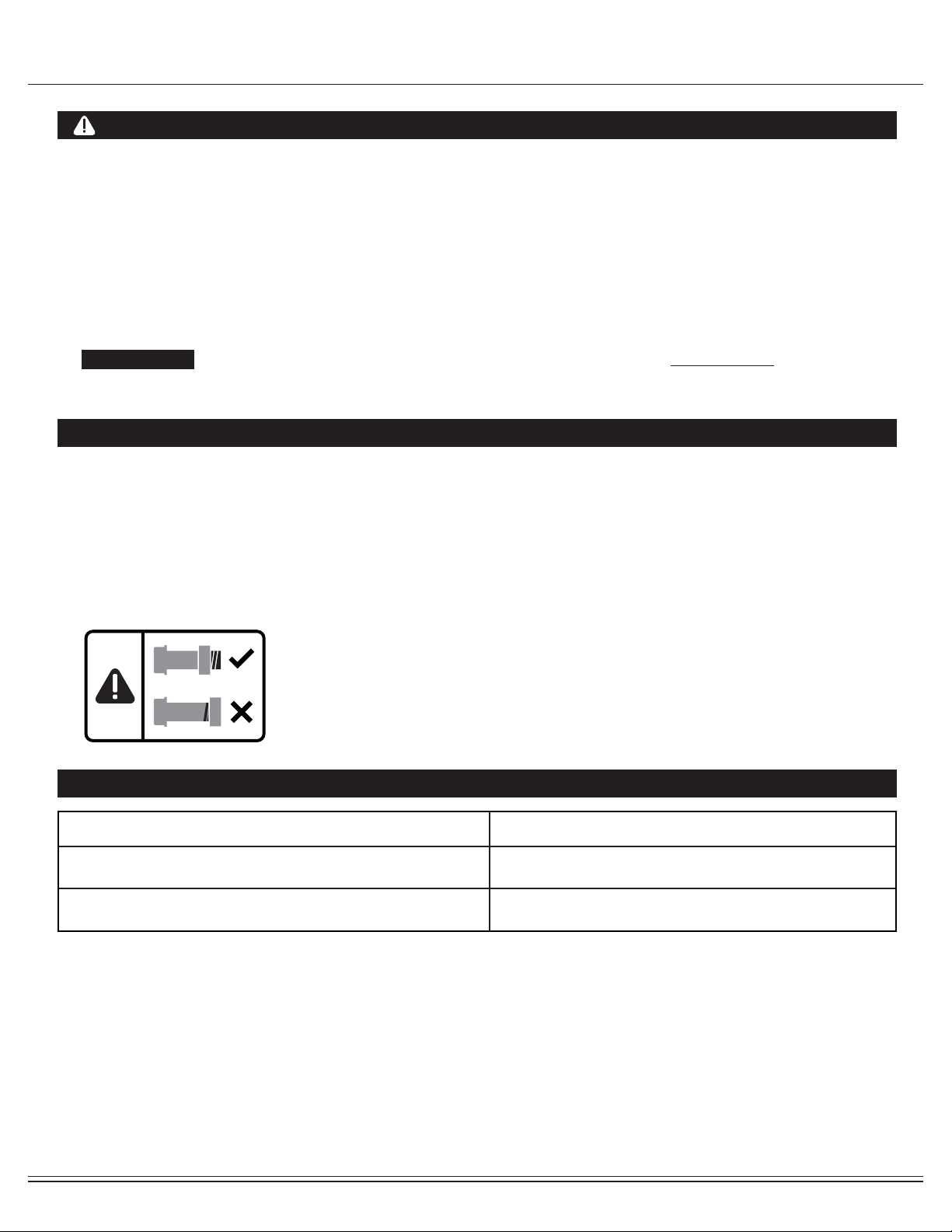

1. It is only necessary to tighten the bolts and nuts to “nger tight” during the assembly process. This will make it
easier to complete certain steps by allowing more tolerance for all the parts to t properly.
2. Do not tighten all the nuts onto the bolts securely until after you have completed assembly of your product.
3. Use wrenches, pliers, or ratchet and sockets to tighten the bolts and nuts.
4. The Nylon Nut should thread onto the Hex Bolt until the end of the Hex Bolt has passed through the Nylon insert in-
side the Nut. Please follow this guideline every time you see this Nylon Nut icon throughout the assembly steps.
Nylon Lock Safety Nuts
Tools Required For Assembly
WARNING
PLEASE NOTE : Many of the parts and hardwares listed on the parts list are already pre-assembled or
installed on the unit.
Tool Description/Purpose
Ruler (with both Metric and English measurements)
QTY: 1
Use to measure the length or size of hardware including
bolts to ensure you are using the correct part.
Adjustable or at wrenches
QTY: 2
Use to securely install parts including nuts and bolts.

BRT5128 BRT5118
Page
4
Part Listing
The following parts list describes all of the parts illustrated in the exploded diagram on the following page.
PLEASE NOTE: most of these parts are already pre-assembled on your unit.
# Description
01 Main Frame
02 Seat Post
03 Rear Stabilizer
04 Front Stabilizer
05L/05R Left/Right Handle Bar
06L/06R Left/Right Pedal
07 Foot Pedal
08 Pedal Connection Joint
09L/09R Left/Right Coupler Bar
10 Pulse Handle Bar
11 Monitor
12 Center Post
13 Rear Handle Bar
14 Reinforcement Plate
15 Cushion
16 Backrest Cushion Tube
17 Arc Washer (M8)
18 Cap Nut (M8)
19 Carriage Bolt (M8x73 mm)
20 Handlebar Axle
21 Hex Bolt (M10x55 mm)
22 Hex Bolt (M10x45 mm)
23 Carriage Bolt (M10x57 mm)
24 Washer (M8)
25 Right Pedal Hinge Bolt (1/2”x89 mm)
26 Left Pedal Hinge Bolt (1/2”x89 mm)
27 Nylon Nut (M10)
28 Cap Nut (M10)
29 Left Nylon Nut (with BLACK inner nylon ring)
(B0.5x20 S19)
30 Right Nylon Nut (with White inner nylon ring)
(B0.5x20 S19)
31 Arc Washer (M10)
32 Spring Washer (1/2")
33 Washer (M10)
34 Bolt Cap (S17)
35 Bolt Cap (S13)
36 Knob Bolt (M8x36 mm)
37 Knob Bolt (M12x30 mm)
38 Knob Bolt (M8x37 mm)
39 Pedal Tube
# Description
40 Crankshaft
41 Bolt (M8x50 mm)
42 Washer (M8)
43 Nylon Nut (M8)
44 Bolt (M8x30 mm)
45 Carriage Bolt (M8x45 mm)
46 Bolt (M8x16 mm)
47 Bushing (Φ28x4xΦ24x12xΦ16.1 mm)
48 End Cap for Front Stabilizer
49 Hex Bolt (M6x45 mm)
50 Roller (Φ23x32xΦ6 mm)
51 Nylon Nut (M6)
52 End Cap for Rear Stabilizer
53 End Cap (ф25 mm)
54 Foam Roller (Φ23x5x155 mm)
55 Hand Pulse Sensor
56 Screw (ST4.2x20mm)
57 End Cap (ф25 mm)
58 Foam Roller (Φ23x5x320 mm)
59 Wavy Washer
60 Square End Cap (30 mm)
61 Bushing (Φ18x3xΦ14x7xΦ10.1 mm)
62 Wire Plug
63 Sleeve (Φ32xΦ25xL83 mm)
66 Rectangular End Cap (20x40 mm)
67 Emergency Brake/Tension Adjuster
68 Orientation Joint
70 Plastic Washer (M8)
71 Nut (M8)
72 Spring
73 Washer (M6)
74 Nylon Nut (M6)
75 Screw
77 Screw (M5x12 mm)
78 Main Frame Sensor Wire
79 Center Post Sensor Wire
80 Pulse Sensor Wire
Seat Cushion Tube
69
64 Washer (M8)
65 Spring Washer (M8)
76 Washer (M4)
81 Rectangular End Cap (25x40 mm)

BRT5128 BRT5118
Page
5
Exploded View
The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the
assembly process.
: : Not all of the parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please use this page only as a reference guide for parts and
hardware.
PLEASE NOTE
04
02
38
24
16
69
13
14
18
42
45
46
42
15
15
46
42
05R
05L
12
11
36
19
17
18
44
77
35
11a
79
09L
78
80
06L
22
27
06R
27
22
07
43
41
64
07
64
43
64
25
27
21
34
08
26
27
21
34
08
23
31 28
23
31
28
33
27 34
27 33
34
34
34
34 34
30
32
32 29 47
47
47
47
47
47
20
48
48
49
50
51
49
50
51
52
52
53
53
53
53
54
54
55 55
56
56
76
57
57
58
58
63
76
37
60
61
60
61
61
62
62
47
60
60
09R
36
35
21
27
21
27
64
61
61
61
63
63
58
58
47
47
66
66
81
66
44
41
67
68
71
70 72
70
59
59
73
74
75
61
01
40
03
39
39
10
47
44
42
65
59
59

BRT5128 BRT5118 Page 6
#23
Carriage Bolt (M10x57 mm)
[4 pieces ]
#19
Carriage Bolt (M8x73 mm)
[1 piece]
#17
Arc Washer
(M8)
[1 piece]
#28
Cap Nut (M10)
[4 pieces]
#18
Cap Nut (M8)
[3 pieces]
#29
Left Nylon Nut
[1 piece]
#30
Right Nylon Nut
[1 piece]
#20
Handlebar Axle
[1 piece]
#27
Nylon Nut (M10)
[8 pieces]
[4 pieces pre-assembled]
#43
Nylon Nut (M8)
[4 pieces]
#34
Bolt Cap (S17)
[8 pieces]
#35
Bolt Cap (S13)
[2 pieces]
#D
(S6)
[1 piece]
#A
(S17-19)
[2 pieces]
#C
(S8)
[1 piece]
#B
(S13-14-15)
[1 piece]
#38
Knob Bolt
(M8x37mm)
[1 piece]
#36
Knob Bolt
(M8x36mm)
[2 pieces]
#37
Knob Bolt
(M12x30 mm)
[1 piece pre-assembled]
#32
Spring Washer
(1/2")
[2 pieces]
#24
Washer
(M8)
[1 piece]
#31
Arc Washer
(M10)
[4 pieces ]
#33
Washer
(M10)
[2 pieces pre-assembled]
#42
Washer
(M8)
[12 pieces]
#22
Hex Bolt (M10x45 mm)
[4 pieces]
#45
Carriage Bolt
(M8x45 mm)
#21
Hex Bolt (M10x55 mm)
[2 pieces pre-assembled]
#41
Bolt (M8x50 mm)
[4 pieces]
#26
Left Pedal Hinge Bolt
[1 piece]
#25
Right Pedal Hinge Bolt
[1 piece]
#44
Bolt (M8x30 mm)
Bolt
Washer
Nut
Others
Tools (Included)
#46
Bolt (M8x16 mm)
[8 pieces pre-assembled]
#77
Screw (M5x12 mm)
[2 pieces pre-assembled]
[2 pieces pre-assembled]
Hardware and Tool List
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE: Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this
page that are not included in your hardware packet.
[8 pieces pre-assembled]
[2 pieces]
[4 pieces]
#64
Washer
(M8)
[8 pieces]
#59
Wavy Washer
[2 pieces pre-assembled]
[4 pieces]
#65
(M8)
[2 pieces]
Spring Washer

BRT5128 BRT5118
Page
7
Assembly STEP 1
Remove the Carriage Bolts (#23), Arc Washers (#31)
and Cap Nuts (#28) that are pre-assembled on the Front
Stabilizer (#04) and Rear Stabilizer (#03), set them aside
as they will be used in a later process.
With the help of an assistant, attach the Rear Stabilizer
(#03) to the rear of the Main Frame (#01). Insert two
Carriage Bolts (#23) through the Rear Stabilizer
(#03) followed by the rear of the Main Frame (#01).
Secure them together using two Arc Washers (#31)
and two Cap Nuts (#28).
FRONT STABILIZER ASSEMBLY
Now, attach the Front Stabilizer (#04) to the front of
the Main Frame (#01). Insert two Carriage Bolts (#23)
through the Front Stabilizer (#04) followed by the front of
the Main Frame (#01).Secure them together using two
Arc Washers (#31) and two Cap Nuts (#28).
Note:
Please note that the Front Stabilizer (#04) has Front
Rollers that spin for ease of relocating the unit.
REAR STABILIZER ASSEMBLY
Hardware Required
#23
Carriage Bolt (M10x57mm)
[4 pieces]
#31
Arc Washer
(M10)
[4 pieces]
#28
Cap Nut (M10)
[4 pieces]
Front Roller
01
03
04
23
23
31
31
28
28

BRT5128 BRT5118 Page 8
Assembly STEP 2
Remove the Nylon Nuts (#27) and Washers (#33) and Wavy
Washers (#59) that are pre-assembled on the Handlebar Axle
(#20) and set them aside as they will be used later in this step.
Insert the Handlebar Axle (#20) through the main frame.
Make sure the Handlebar Axle (#20) is centered. If you
encounter too much friction, try using WD40 or Vaseline as
a lubricant.
Attach Left Coupler Bar (#09L) and Right Coupler Bar
(#09R) to the main frame via the Handlebar Axle (#20).
Again, use WD40 or Vaseline to reduce friction if needed.
Once the Left Coupler Bar (#09L) and Right Coupler Bar
(#09R) are correctly situated, fasten each end of the
Handlebar Axle (#20) with a Wavy Washer (#59), a Washer (#33)
and a Nylon Nut (#27) on each side. Then cap each end with a
Bolt Cap (#34).
Note:
Make sure Left /Right Coupler Bar (#09L/09R) are at the correct side when its horizontal pivot tube,
which is welded at the top, faces the REAR of the machine as seen from the user
Hardware Required
#27
Nylon Nut
(M10)
[2 pieces]
#33
Washer
(M10)
[2 pieces]
#20
Handlebar Axle
[1 piece]
#34
Bolt Cap (S17)
[2 pieces]
01
Pivot Tube
(See Note)
09R
09R
09L
33
33
33
27
27
27
20
20
34
34
34
01
[2 pieces]
#59
Wavy Washer
59
59 59

BRT5128 BRT5118 Page 9

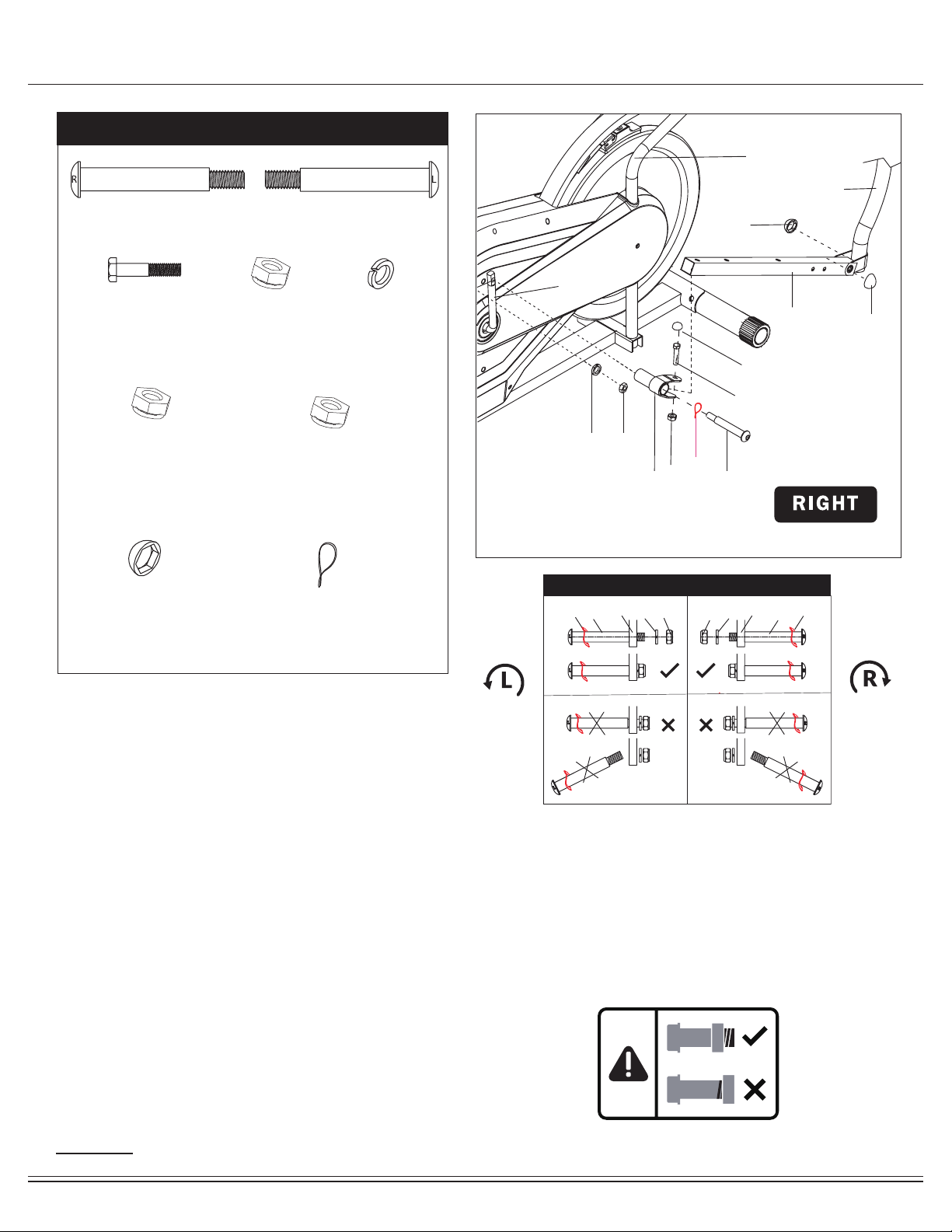

Assembly STEP 3
Remove Hex Bolts (#21) and Nylon Nuts (#27) that are
pre-assembled on the Pedal Connection Joint (#08) and set
them aside as they will be used in later in this step.
Align and attach the Pedal Connection Joint (#08) to the
right Crankshaft (#40). Insert the Right Pedal Hinge Bolt
(#25) through Pedal Connection Joint (#08) and Crankshaft.
Secure the Right Pedal Hinge Bolt (#25) with a Wavy Washer
(#59) tightly into the Crankshaft (#40) by turning CLOCKWISE.
Then, secure with one Spring Washer (#32) and a Right Nylon
Nut [w/white inner nylon ring] (#30).
Attach the Pedal Connection Joint (#08) to the Right Pedal
Tube (#39). Insert one Hex Bolt (#21) through the upper
bracket of the Pedal Connection Joint (#08), followed by
Right Pedal Tube (#39) then the lower bracket of the Pedal
Connection Joint (#08). Secure them with one
Nylon Nut (#27).
Attach three Bolt Caps (#34) over three Bolts as illustrated
in the drawing.
Repeat the above process on the LEFT side of the machine
and turning the Left Pedal Hinge Bolt (#26)
COUNTER-CLOCKWISE.
Note :
Keep the Right/Left Pedal Hinge Bolt (#25/26) perfectly
straight as they go through the Pedal Connection Joint
(#08) and the Crankshaft (#40).
If the Right/Left Pedal Hinge Bolt (#25/26) are connected to
the Crankshaft (#40) incorrectly, damage to the Right/Left
Pedal Hinge Bolt (#25/26) and Crankshaft (#40) will occur.
Hardware Required
#26
Left Pedal Hinge Bolt
[1 piece]
#25
Right Pedal Hinge Bolt
[1 piece]
#21
Hex Bolt (M10x55 mm)
[2 pieces]
#32
Spring Washer
(1/2")
[2 pieces]
#29
Left Nylon Nut
(w/ black inner nylon ring)
[1 piece]
#30
Right Nylon Nut
(w/ white inner nylon ring)
[1 piece]
#27
Nylon Nut (M10)
[2 pieces]
#34
Bolt Cap (S17)
[6 pieces]
01
25
59
30
32
40
27
08
09R
34
34
39
21
34
59 25 59
2640 40
32 29 30 32
LEFT CRANK RIGHT CRANK
counter-
clockwise
clockwise
#59
Wavy Washer
[2 pieces]

BRT5128 BRT5118 Page 10

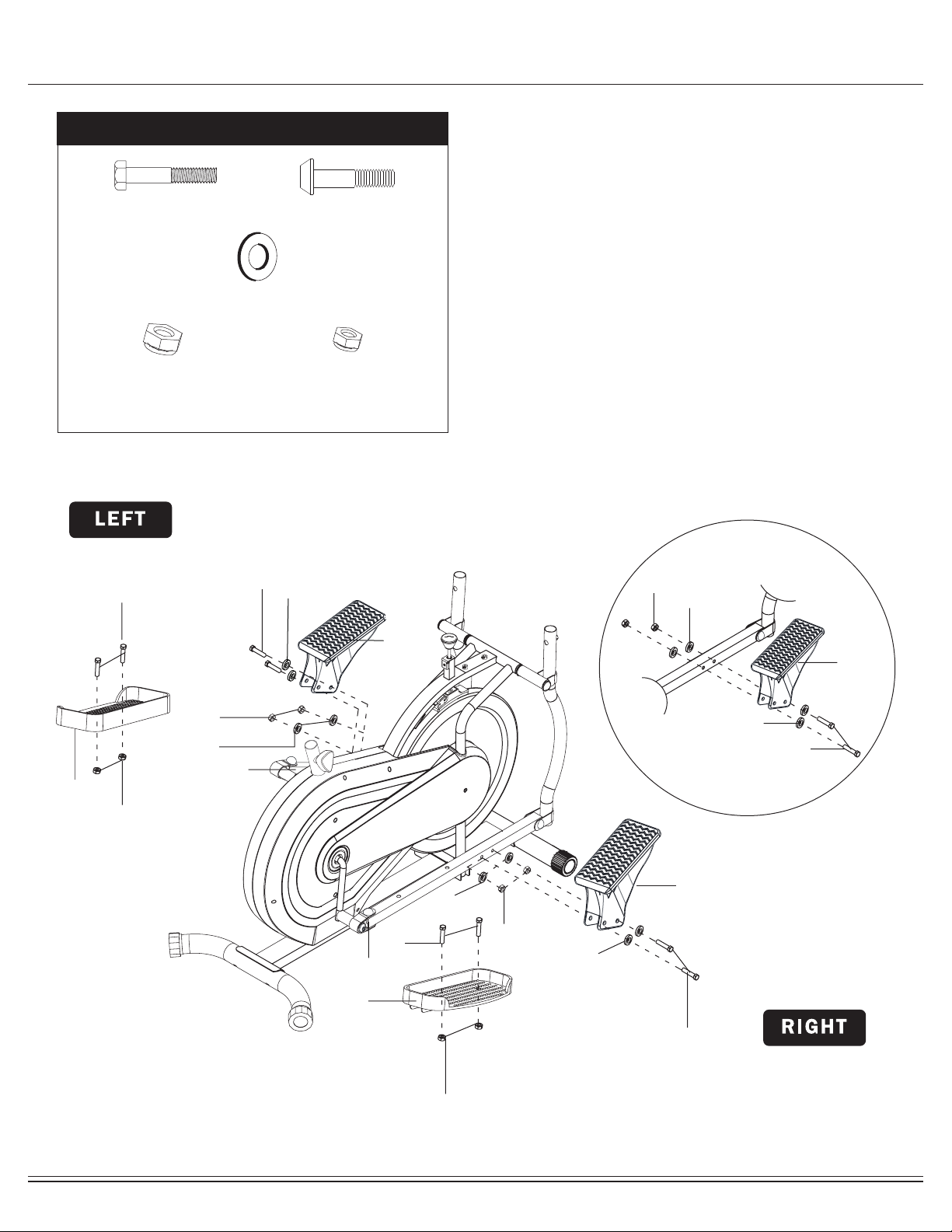

Assembly STEP 4
On the right side, attach Right Pedal (#06R) to the Right
Pedal Tube (#39) and secure them together using two Hex
Bolts (#22) and two Nylon Nuts (#27).
Next, attach one Foot Pedal (#07) to the front of Right Pedal
Tube (#39) using two Bolts (#41) and secure with four
Washers (#64) and two Nylon Nuts (#43).
Repeat this process on the left side using Left Pedal (#06L)
and one Foot Pedal (#07).
Hardware Required
#27
Nylon Nut (M10)
[4 pieces]
#43
Nylon Nut (M8)
[4 pieces]
#22
Hex Bolt (M10x45 mm)
[4 pieces]
#41
Bolt (M8x50 mm)
[4 pieces]
22
27
41
43
64
27
22 43
64
64
41
39
39
06L
06R
07
07 07
41
64
64
43
64
#64
Washer (M8)
[8 pieces]

BRT5128 BRT5118
Page
11
Assembly STEP 5
A. CENTER POST
Remove the Bolts (#44) that are pre-assembled on the
Main Frame (#01) and set them aside as they will be used in
later in this step.
Attach the Center Post (#12) to the Main Frame (#01) and
secure them together by inserting two Bolts (#44) through
the Center Post (#12) followed by the Main Frame (#01).
Connect Main Frame Sensor Wire (#78) to the bottom end of
Center Post Sensor Wire (#79).
B. PULSE HANDLEBAR
Attach Pulse Handle Bar (#10) to Center Post
(#12). Insert one Carriage Bolt (#19) through Pulse
Handle Bar (#10) followed by Center Post (#12).
Secure them together using one Arc Washer (#17) and one
Nut (#18).
C. COMPUTER
Remove the Screws (#77) and Washers (#81) that are
pre-assembled on the back of the monitor and set them aside
as they will be used later in this step.
Connect upper end of Center Post Sensor Wire (#79) to
the Wire on the back of Monitor (#11a). Being careful not to
pinch any wires, tuck the connected wires down the open-
ing and mount the Monitor (#11) to the Center Post (#12).
Secure them together using two Screws (#77) .
Plug Pulse Sensor Wire (#80) into hole on the back of
monitor (#11).
D. HANDLEBARS
Insert the Left Handlebar (#05L) through the Left Coupler
Bar (#09L) and Right Handlebar (#05R) through the
Right Coupler Bar (#09R). Select a height setting that is
comfortable to the user, and make sure both handlebars are
set at the same height. Secure Left and Right Handlebar
(#05L/05R) in place with two Knob Bolts (#36).
Attach the Bolt Caps (#35) over two Knob Bolts (#36) as
illustrated in the drawing.
If you encounter too much friction, try using WD40 or
Vaseline as a lubricant.
Hardware Required
#36
Knob Bolt
(M8x36mm)
[2 pieces]
#19
Carriage Bolt (M8x73mm)
[1 piece]
#17
Arc Washer
(M8)
[1 piece]
#18
Cap Nut (M8)
[1 piece]
#44
Bolt (M8x30 mm)
[2 pieces]
#77
Screw (M5x12 mm)
[2 pieces]
#35
Bolt Cap (S13)
[2 pieces]
11a
79
79
78
05R
05L
12
11
36
36
19
17
18
44
10
35
35
11a 79
09R
09L
01
78
79
80
77
A
B
C
D
D
11
80

BRT5128 BRT5118 Page 12
Assembly STEP 6
Remove Knob Bolt (#37) that is pre-assembled on the
Main Frame (#01) and set it aside as it will be used
in a later process.
Select the desired height and secure the Seat Post (#02)
to the Main Frame (#01) using one Knob bolt (#37).
Attach the Backrest Cushion Tube (#16) onto the Seat Cushion
Remove Carriage Bolts (#45), Washers (#42) and Cap Nuts
(#18) that are pre-assembled on the Rear Handle Bar (#13)
and set them aside as they will be used in a later process.
Attach the Rear Handle Bar (#13) to the bracket on the
Cushion Tube (#16) and place the Reinforcement Plate
(#14) over the middle of the Rear Handle Bar (#13). Attach
by inserting two Carriage Bolts (#45) through and securing
with two Washers (#42) and two Cap Nuts (#18).
Remove Bolts (#46) and Washers (#42) that are
pre-assembled on the two Cushions (#15) and set them
aside as they will be used in a later process.
Attach one Cushion (#15) to the horizontal bar of
Cushion Tube (#16). Secure with four Washers (#42) and
four Bolts (#46).
Attach another Cushion (#15) to the vertical bar of
Cushion Tube (#16). Secure with four Washers (#42)
and four Bolts (#46).
Hardware Required
#38
Knob Bolt
(M8x37mm)
[1 piece]
#42
Washer
(M8)
[12 pieces]
02
13
14
37
42
46
46
42
15
15
16
38
24
18
42
45
01
#37
Knob Bolt
(M12x30mm)
[1 piece]
#18
Cap Nut (M8)
[2 pieces]
#24
Washer
(M8)
[1 piece]
#46
Bolt (M8x16mm)
[8 pieces]
#45
Carriage Bolt
(M8x45mm)
[2 pieces]
THE ASSEMBLY PROCESS IS NOW COMPLETE.
However, for your own safety, please make sure to read this entire Owner’s Manual which
product before use. For your safety , please visually and functionally inspect and test the unit
after assembly is complete.
42 65 44
16
#65
Spring Washer
(M8)
[2 pieces]
#44
Bolt (M8x30 mm)
[2 pieces]
69
69
Attach the Seat Cushion Tube (#69) onto the trough of
the Seat Post (#02) with it correctly aligned and inserted into
the corresponding hole of Seat Post (#02), secure them
together by using one Washer (#24) and one Knob Bolt
(#38).
Tube (#69), secure them together by using two Bolts (#44),
two Spring Washers (#65) and two Washers (#42).

BRT5128 BRT5118 Page
13

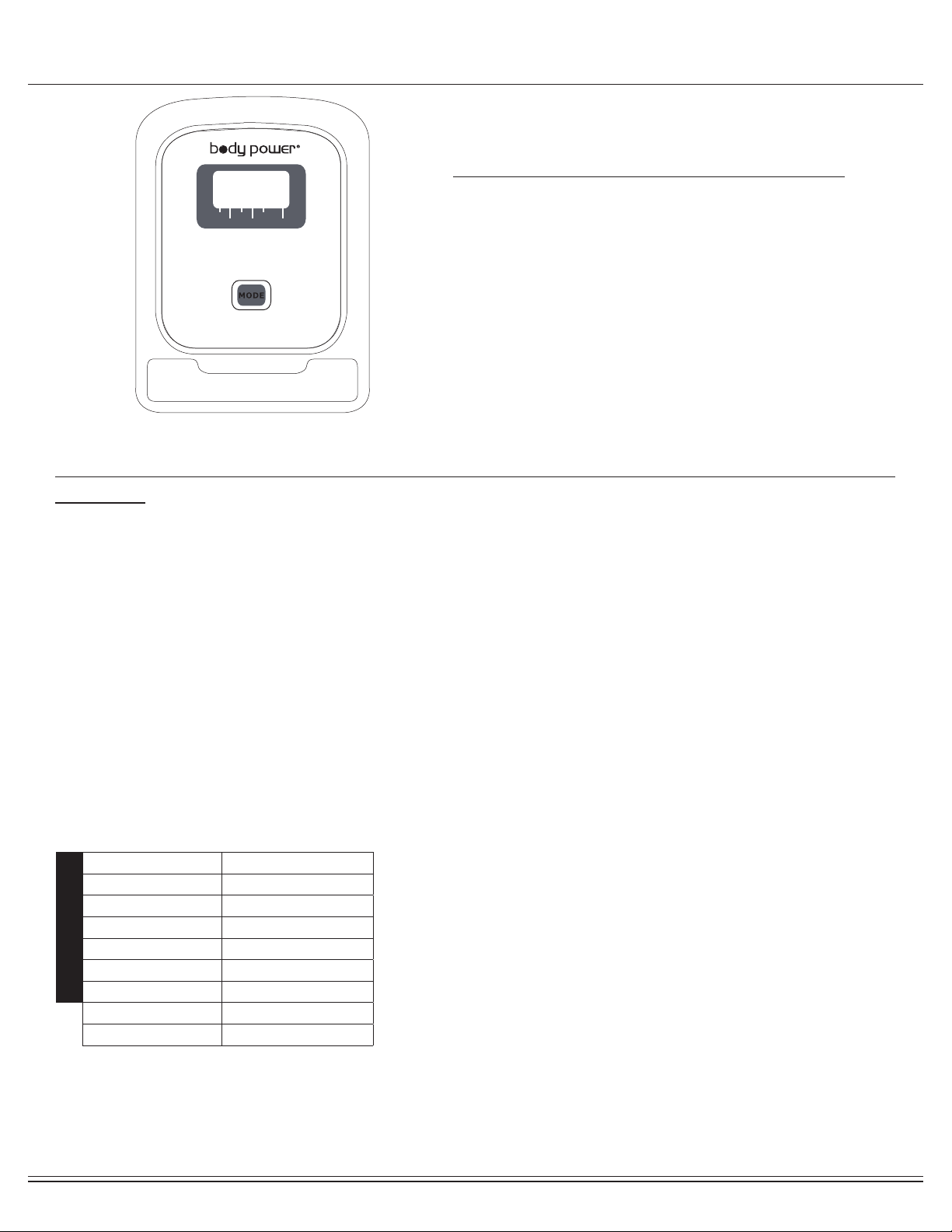

Computer Operation
*IMPORTANT NOTE :
Please remember that the functions in this computer are only meant to be tools to
monitor your workout progress; they are not meant to provide medical information
or be used for medical purposes. Please consult a physician before beginning any
workout program.
SCAN : The monitor will then rotate displaying through the following functions: time,speed,distance,
calories and odometer. Each function will display for 4 seconds.
TIME : Displays the total amount of time using the machine.
SPEED : Displays current speed.
DISTANCE : Displays the distance traveled.
CALORIES : Displays the amount of calories burned.
PULSE : Hold the pulse sensor and read your heart rate per minute.

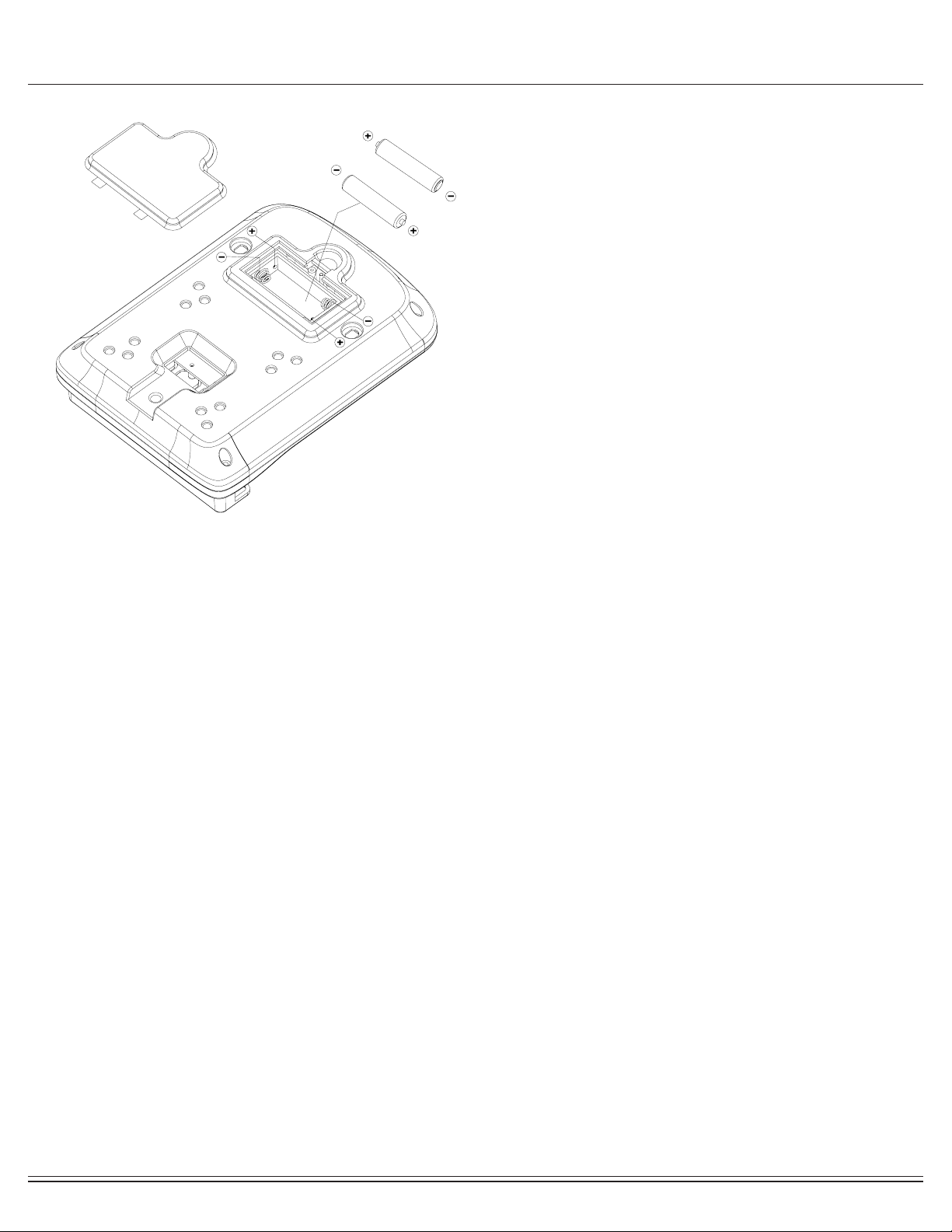

1. If the display is faint or shows no gures ,please replace the batteries.
2. The monitor will automatically shut o󰀨 if there is no signal received after 4 minutes .
3. The monitor will auto-power on when exercise and/or motion input is detected.
4. The monitor will automatically start calculating when you start to exercise and will stop calculating when you stop
exercising for 4 minutes .
FUNCTIONS
NOTE
Operation Procedures
Specications
AUTO SCAN Every 6 seconds
TIME 00:00-99:00 min
SPEED Max 999.9 mi./H
CALORIES 0.0-999.9 KCal
DISTANCE 0.0-999.9 mi.
BATTERY TYPE 2 pcs of AAA
PULSE RATE 40-240 bpm
OPERATING TEMP 32°F - 104°F
STORAGE TEMP 14°F - 140°F
FUNCTIONS
MODE :
Press this button to select the display function of your
choice.
RESET :
Hold MODE button for 3 seconds to reset all value to
zero.
Key Function
SCAN
TIME
SPEED
DISTANCE
CALORIES
PULSE

BRT5128 BRT5118 Page
14
Computer Operation
How To Install and Replace Batteries
1. Open the battery door on the back of the computer.
2. The computer operates on two AAA batteries (included).
Refer to the illustration to install or replace the batteries.
NOTE :
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline
battery with another type of battery.
3. Rechargeable batteries are not recommended.
4. Battery disposal should be handled according to all state
and federal laws and regulations.
5. Do not dispose of batteries in re.

BRT5128 BRT5118 Page
15
Safety and Maintenance
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components and make proper adjustments prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use. If tears or bends are found,
DO NOT use the unit and contact our CUSTOMER SUPPORT.
•Extreme care must be taken to not allow your feet, ngers, hair, clothing, and/or any loose items to be snagged into
any portion of the bike when the unit is in motion. Failure to follow these instructions could result in serious injury,
including the loss of ngers.
• Always wait for the pedals and other moving parts (which can gain great momentum during riding) to come to a
complete stop before dismounting the unit to avoid serious injury.
NOTE: Always wait for the pedals and/or any other moving parts (which can gain great momentum during riding)
to come to a complete stop before dismounting the unit to avoid serious injury.
• To reduce speed on the bike, you may use the combinations of your feet on the Left/Right Pedals (#06R/06L) and
your hands on the Left/Right Handlebars (#05L/#05R) to gently and safely apply counter-momentum.
• Wait for the pedals to come to a complete stop.
• Now you may safely dismount the unit
NOTE:
To safely move, transport, and/or store the unit, please seek the help of capable assistants (minimum of 2 people).
The unit has integrated Front Rollers purposely intended to help ease this process.
• Position one person on each side at the front of the bike toward the handle Bar
(one person on the left, and one on the right).
• Have each person use both hands to grip the corresponding Pulse Handle Bar (#10).
(These are the safest areas to avoid injury during this process.)
• Have both people simultaneously lift the rear end of the unit, leaving the weight and pressure into the front of the unit
and onto the Front Rollers to move/transport the unit to the desired area.
• Please review all safety instructions and warnings in this entire Owner’s Manual, as well as any safety/warning labels
a󰀩xed to the product before use.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product; contact
CUSTOMER SUPPORT.
•The specic parts on your unit which may see possible signs of wear after prolonged use are listed as follows
(please check these parts before each use):
Emergency Brake/Tension Adjuster (#67); Foot Pedals (#07); Left/Right Handlebars (#05L/#05R).
• For any replacement warning labels, please contact our CUSTOMER SUPPORT at
1 [phone] or 1 [phone], or mail in a written request to:
Hupa International, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 2 of the
Owner’s Manual under the “CUSTOMER SUPPORT” section.
Safety & Warning
How To (Emergency) Stop
How To Move/Transport The Bike For
Maintenance & Care

BRT5128 BRT5118 Page
16
Troubleshooting
If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.)
functions (or you are getting inaccurate readings), please adjust
the following:
1. Check to ensure all computer sensor wires are properly
connected and are not damaged.
2. You may need to refer to installation/assembly directions for the sensor
wires in this manual.
If the computer display is blank & not displaying any data (or does not
appear to power on), please adjust the following:
1. Check to ensure all sensor wires are all properly connected and are not
damaged.
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or
fully charged.
3. Check your product manual to determine if your model uses either AC
Adapter or batteries to power your unit.
(AFTER COMPLETE ASSEMBLY)
Troubleshoot Area
Calories/Distance/
Time (Etc.)
Computer Display
Solution

BRT5128 BRT5118 Page
17
Warm-Up Instructions
1. Sit with your knees exed and
soles of feet together.
2. Hold your ankles and bend
at your hips (keep your back
straight) as you press your
knees toward the oor with your
elbows.
1. Lie on your back and raise
your right leg as you clasp both
hands under the back of the
knee. Keep your left leg straight.
2. Gently pull your right leg toward
your trunk without
raising your upper body. Switch
leg positions and repeat.
1. Sit with your left leg extended
and bend your right leg at the
knee as you place the sole of
your right foot against the inner
thigh of your extended leg.
2. Flex the foot of your extended
leg (toes pointed toward
ceiling) and gently bend forward
from your hips; keep your back
straight.
3. Reach your hands on your
extended leg as far as possible
and then switch legs and repeat.
1. Assume the depicted position on your hands and knees. Stretch your
hands out in front of you and then slowly start to pull them back in toward
your body as you tuck your chin and arch your back upward.
2. Return to the starting position slowly.
1. Sit with your leg extended and
bend your right knee as you
cross your right leg over your
left leg. Your right foot of your
extended leg foot should be at
on the oor alongside your left
knee.
2. Place your left arm on the
outside of your right leg and pull
against that leg while twisting
your trunk as far as possible to
the right. Place your right hand
on the oor behind your but-
tocks. Reverse leg positions and
repeat.
Before use, you must read and understand all instructions & warnings stated in this Owner’s Manual as well as posted
on the equipment. Before beginning any exercise program including the following exibility exercises, please consult with
your physician.
The following exibility exercises are provided to you as a means to prevent injury while you are exercising. A proper
warm-up routine decreases the chance of injuring your muscles while you are exercising. Please take the time to do these
exibility exercises before and after each time you exercise.
Groin Stretch
Groin Stretch
Hamstring Stretch
Trunk Flexion, Prone
Trunk Twister

BRT5128 BRT5118 Page
18
Warm-Up Instructions
1. Bring your right hand over your
right shoulder to the
upper back and bring your left
hand under your left shoulder to
the upper back.
2. Try to reach your ngertips. If
you are not able to reach your
ngertips, use a towel as an
extension of your hands and
gently pull one hand toward the
other.
Reverse arm positions and
1. Stand on your left leg and hold
onto a support with your left
hand.
2. Flex your right leg behind you,
grasp your ankle or foot with
your right hand and pull your
foot toward your buttocks. Keep
your back straight and right
knee pointed down.
Repeat on the other leg.
1. Place both hands against a wall
to aid your balance. Press the
ball of your left foot against the
wall and keep the heel of the
same foot rested on the oor
(make sure your left knee is
bent).
2. Slowly start to straighten your
left knee and you will feel the
muscles in your left calf stretch.
Switch leg positions and repeat.
Shoulder Stretch Quadriceps Stretch Calf Twister

THANK YOU FOR YOUR PURCHASE
MODEL NO.: BRT5128 BRT5118
Please ll in the information below and keep this manual
along with your sales receipt as proof of purchase.
Serial Number :
Date of Purchase :
Retailer :
Hupa International, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
Phone: [phone]
Fax : [phone]
Email : [email protected]
Ver. 08/07/2019 Printed in China
