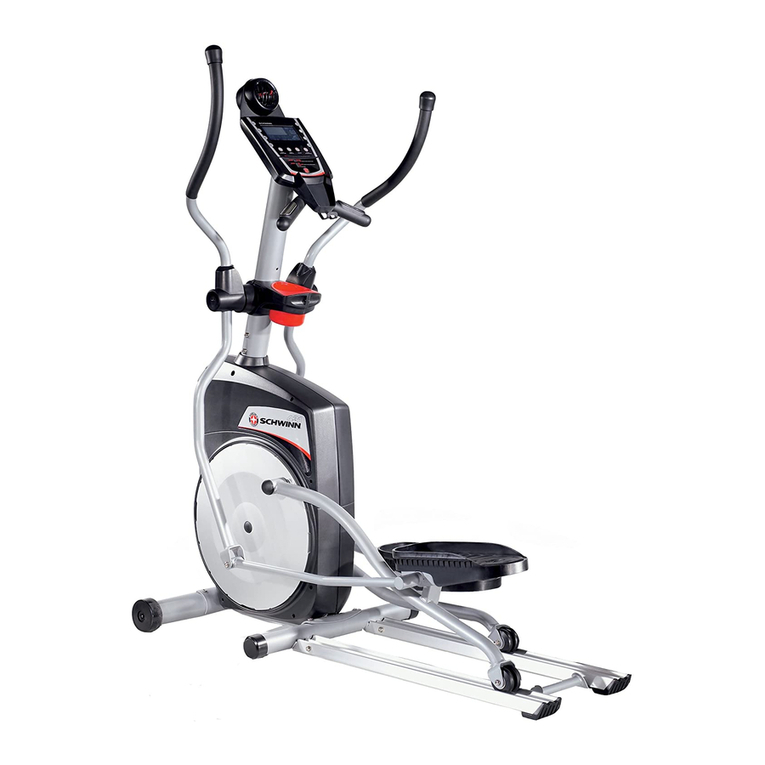

ELLIPTICAL
ASSEMBLY GUIDE
ASSEMBLY GUIDE 001-7077-072809C

1
CONTENTS
Table of Contents
Hardware ................................................................................................2
Exploded View .......................................................................................4
Parts List .................................................................................................5
Assembly Instructions ..........................................................................6
Important Contact Numbers ...............................................................19
ATTENTION!
When unpacking the box, please inspect all styrofoam and
packaging before discarding.
Some parts are packaged on the outside of the
styrofoam packaging.

HARDWARE
2
Note: Please verify you have all correct parts and quantities before
assembling unit.
If you are missing items, are short quantities, or have damaged com-
ponents, please contact Schwinn at 1.800.864.1270.
M8 x 15L
BUTTON HEAD (32)
M8 x 20L
BUTTON HEAD (4)
M8 x 20L HEX HEAD
THREAD LOCK (4)
M8 WASHER
WIDE (4)
M5 x 10L
PHILLIPS HEAD (4)
M8 WASHER
REGULAR (36)
M8 WASHER
LOCKING (40)
M8 x 25L FLAT HEAD
THREAD LOCK (6)
ALLEN WRENCH (1)
COTTER PIN (2)
END CAPS (2)
WRENCHES (2)
STAPLEDTOTHE HARDWARE CARD
M8 WAVE
WASHER (2)

3
HARDWARE
Note: Please verify you have all correct parts and quantities before
assembling unit.
If you are missing items, are short quantities, or have damaged com-
ponents, please contact Schwinn at 1.800.864.1270.
M8 x 15L
BUTTON HEAD (32)
M8 x 20L
BUTTON HEAD (4)
M8 x 20L HEX HEAD
THREAD LOCK (4)
M8 WASHER
WIDE (4)
M5 x 10L
PHILLIPS HEAD (4)
M8 WASHER
REGULAR (36)
M8 WASHER
LOCKING (40)
M8 x 25L FLAT HEAD
THREAD LOCK (6)
ALLEN WRENCH (1)
COTTER PIN (2)
END CAPS (2)
WRENCHES (2)
STAPLEDTOTHE HARDWARE CARD

EXPLODED VIEW
4
ITEM QTY.
DESCRIPTION
A1
Schwinn 431 Hardware Cards
B1
SWN 431 ASSEMBLY MANUAL
C1
Main Frame Assembly
D1
Console Handle Assembly
E1
Cup holder
F2
Pivot shoulder cover
G2
Movement arm wire cover
H1
Console mast cover
I1
Console Mast Assembly
J1
Left Foot Assembly
K1
Right Foot Assembly
L1
Upper Right Handlebar Assembly
M1
Upper Left Handlebar Assembly
N1
Lower Left Handlebar Assembly
O1
Lower Right Handlebar Assembly
P1
Front Stabilizer Assembly
Q1
Rear Stabilizer Assembly
R1
Right Leg Assembly
S1
Left Leg Assembly
T1
130/230/430 Console Assembly
U1
AC Adaptor, 9V - 500ma
V2
Extrusion Assembly
W2
Foot Mount Plate
X1
Arm Pivot Rod
Y2
45 mm Round Cover
Z1
Extrusion Handlebar Assembly
Z
Q
P
J
A
B
U
S
W
W
Y
F
G
N
V
M
E
T
D
H
I
X
O
F
G
L
KYRC
EXPLODED VIEW

5
HARDWARE
5
PARTS LIST
PARTS LIST
Ref. Description Qty
A SCHWINN 431 HARDWARE CARDS 1
B SCHWINN 431 ASSEMBLY MANUAL 1
C MAIN FRAME ASSEMBLY 1
D CONSOLE HANDLE ASSEMBLY 1
E CUP HOLDER 1
F PIVOT SHOULDER COVER 2
G MOVEMENT ARM WIRE COVER 2
H CONSOLE MAST COVER 1
I CONSOLE MAST ASSEMBLY 1
J LEFT FOOT ASSEMBLY 1
K RIGHT FOOT ASSEMBLY 1
L UPPER RIGHT HANDLEBAR ASSEMBLY 1
M UPPER LEFT HANDLEBAR ASSEMBLY 1
N LOWER LEFT HANDLEBAR ASSEMBLY 1
O LOWER RIGHT HANDLEBAR ASSEMBLY 1
P FRONT STABILIZER ASSEMBLY 1
Q REAR STABILIZER ASSEMBLY 1
R RIGHT LEG ASSEMBLY 1
S LEFT LEG ASSEMBLY 1
T 131/231/431 CONSOLE ASSEMBLY 1
U 110VAC Adaptor, 9V - 1A 1
V EXTRUSION ASSEMBLY 2
W FOOT MOUNT PLATE 2
X ARM PIVOT ROD 1
Y 45 mm ROUND COVER 2
Z EXTRUSION HANDLEBAR ASSEMBLY 1

ASSEMBLY INSTRUCTIONS
6
Basic Assembly Principles
Here are a few basic tips that will aid in the assembly process.
By using these principles, you can simplify each process and save
yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces you need
for each step and thoroughly read the assembly instructions for that
step prior to starting assembly for the step.
2. When attaching two pieces, gently lift and look through the bolt holes
to help guide the bolt through the holes.
3. As a general rule, and for all bolts and nuts, turn bolts or nuts toward
the right to tighten and left to loosen. Or you can remember the
mnemonic: “Righty tighty, lefty loosey.”

7
ASSEMBLY INSTRUCTIONS
Step 1 Install Rear Stabilizer and Extrusion Handlebar
Parts:
• Two Extrusion Assemblies (Ref. V)
• Rear Stabilizer (Ref. Q )
• Extrusion Handlebar Assembly (Ref. Z)
Tools:
• Supplied Allen Wrench
1-1 Attach, but do not tighten, the Extrusion Assemblies (Ref V)
to the Rear Stabilizer Assembly (Ref Q) using twelve
M8x15L button head (Ref 1) twelve M8 washers locking
(Ref 5) and twelve M8 washers regular (Ref 3).
1-2 Attach the Extrusion Handlebar Assembly (Ref Z) to the Extrusion
Assemblies using two M8x15L button head (Ref 1),
two M8 washers locking (Ref 5) and two M8 washers regular
(Ref 3).
1-3 Completely tighten all of the hardware.
V
Q
Z
1
3
3
3
1
5
5
5

ASSEMBLY INSTRUCTIONS
8
Step 2 Install front stabilizer and Extrusion Assembly
Parts:
• Front Stabilizer (Ref P)
• Extrusion Assembly (From step 1)
• Main Unit (Ref C)
Tools:
• Supplied Allen Wrench
2-1 Attach the Front Stabilizer (Ref P) to the Main Unit (Ref C) using
two M8x25 at head screws (Ref 2) and completely tighten the
hardware.
2-2 Attach the Extrusion Assembly from Step 1 to the Main Unit using
four M8x25 at head screws (Ref 2) and completely tighten the
hardware.
2-3 If Extrusion Assembly is above the floor, stand with both feet on
the two rear extrusions for approximately 20 seconds, step off of
the unit, and then adjust foot pad (Ref Q) under extrusion
assembly until it just touches the floor on both sides.
C
P
2
2
Q
Q

9
ASSEMBLY INSTRUCTIONS
Step 3 Install Console Mast
Parts:
• Console Mast (Ref I)
• Main Unit
Tools:
• Supplied Allen Wrench
3-1 Connect the wire harness from the Main Unit to the
wire harness in the Console Mast.
3-2 Slide the Console Mast (Ref I) down onto the Main Unit and
secure using six M8x15L button head (Ref 1), six M8 washers
regular (Ref 3) and six M8 washers locking (Ref 5).
NOTE: Be careful not to pinch the wires when sliding the
Console Mast onto the Main Unit
I
1
3
5

ASSEMBLY INSTRUCTIONS
10
Step 4 Install Console Handlebar
Parts:
• Console Handlebar (Ref D)
Tools:
• Supplied Phillips Head Screwdriver
4-1 Feed the Wire Harness (Ref W1) from the Mast (Ref I) and the
Contact Heart Rate Wire (Ref W2) from the Console Handlebar
through the hole in the Console Handlebar (Ref D).
4-2 Secure the Console Handlebar to the Mast using four
M5x10L phillps screws (Ref 8).
I
8
D
W1
W2

11
ASSEMBLY INSTRUCTIONS
Step 5 Install Console
Parts:
• Console (Ref T)
Tools:
• Supplied Phillips Head Screwdriver
NOTE: Before installing the console, make sure the toggle
switch on the back of the Console (beside wire connectors)
is set to EP.
5-1 Remove the four phillps head screws (Ref 9) from the back of
the console.
5-2 Connect the Wire Harness (Ref W1), Contact Heart Rate Wire
(Ref W2), and Fan Wire (Ref W3) to the back of the Console.
5-3 Reinstall the Console (Ref T), including the Cover, to the Console
Handlebar (Ref D) using the screws removed in Step 5-1.
T
W1
W3
D
9W2

ASSEMBLY INSTRUCTIONS
12
Step 6 Install Right and Left leg
Parts:
• Right Leg (Ref R)
• Left Leg (Ref S)
Tools:
• Supplied Combo Wrench
6-1 Attach the Right leg (Ref R), marked with an “R” sticker that can
be removed, to the post on the Crank (Ref C1) using one M8x20L
hex head thread lock (Ref 10) one M8 washer locking (Ref 5) and
one M8 washer wide (Ref 4).
6-2 Repeat the procedure for the Left Leg (Ref S) marked with an “L”
sticker that can be removed.
6-3 Place a Round Cover (Ref Y) over the head of each bolt.
NOTE: Make sure the wheels on the Legs are properly seated in
the Extrusion Assembies. If not, they legs may have been
reversed.
S
R
C1
Y
Y
10
54

13
ASSEMBLY INSTRUCTIONS
Step 7 Install Right and Left Lower Handlebars
Parts:
• Arm Pivot Rod (Ref X)
• Right Lower Handlebar (Ref O)
• Left Lower Handlebar (Ref N)
Tools:
• Two Supplied Combo Wrenches
7-1 Slide the Arm Pivot Rod (Ref X) through the Console Mast
(Ref I).
7-2 Slide the Right Lower Handlebar (Ref O), marked with an “R” sticker, along
with one M8 wave washer (Ref 12) onto the Arm Pivot Rod and secure using
one M8x20L hexhead threadlock (Ref 10), one M8 washer locking (Ref 5) and
one M8 washer wide (Ref 4).
7-3 Repeat the procedure for the Left Lower Handlebar (Ref N)
marked with an “L”sticker that can be removed. Use the
two supplied combo wrenches thoroughly tighten the hardware.
O
10
54N
X
I
12

ASSEMBLY INSTRUCTIONS
14
Step 8 Install Right and Left Foot Assembly
Parts:
• Foot Mount Plate Qty. 2 (Ref W)
• Right Foot Assembly (Ref K)
• Left Foot Assembly (Ref J)
• Arm Cotter Pin (Ref AC)
Tools:
• Supplied Allen Wrench
8-1 Slide the shaft under the Left Foot Assembly into the Pivot (Ref P1) on the
Left Leg Assembly. Align a Foot Mount Plate (Ref W) with the Pivot and
Foot assembly and secure using one M8x20L button head (Ref 11),
two M8x15L button head (Ref 1), three M8 washers locking (Ref 5) and
three M8 washers regular (Ref 3).
8-2 Position the Left Foot Assembly (Ref J), marked with an “L”, in the
U bracket at the bottom of the Left Lower Handlebar (Ref N). Insert a
Cotter Pin (Ref AC) , from the inside, through the U bracket and Foot
Assembly and secure with one M8x20L button head (Ref 11) one
M8 washer regular (Ref 3) and one M8 washer locking (Ref 5).
NOTE:
1. Make sure Key on Cotter Pin engages the Slot in the U bracket. (see detail).
2. Make sure the M8x20 bolt (Ref 10) stays concentric with Cotter Pin (Ref N), and
then use tool to tighten the bolt (Ref 10).
8-3 Repeat the procedure for the Right Foot Assembly (Ref K) marked
with an “R”.
K
J
N
11 1
11
3
AC
1
5
P1
W
Key
Slot
Detail
5
3

15
ASSEMBLY INSTRUCTIONS
Step 9 Install Upper Handlebar Covers and Upper Handlebars
Parts:
• Upper Handlebar Cover Qty. 2 (Ref G)
• Right Upper Handlebar (Ref L)
• Left Upper Handlebar (Ref M)
Tools:
• Supplied Allen Wrench
9-1 At the bottom of the Handlebar, slide the Upper Handlebar
Cover (Ref G) up onto the Upper Left Handlebar (Ref M).
9-2 Slide the Upper Left Handlebar (Ref M) into the Lower Left
Handlebar and secure using four M8x15l button head (Ref 1)
four M8 washers regular (Ref 3) and four M8 washers locking
(Ref 5).
9-2 Repeat the procedure for the Upper Right Handlebar (Ref L).
L
M
3
535
1
1
G
Detail

ASSEMBLY INSTRUCTIONS
16
Step 10 Install Pivot Shoulder Cover
Parts:
• Pivot Shoulder Cover Qty. 2 (Ref F)
Tools:
• None
10-1 Align the Pivot Shoulder Covers (Ref F) with the holes for the Arm Pivot Rod
in each of the Handlebar Assemblies (Ref N and Ref O).
10-2 Push the Pivot Shoulder Covers until each rests snuggly against each
Handlebar.
10-3 Slide the Upper Handlebar Covers (G) into place over the Pivot Shoulder
Covers.
F
O
N
F
G

17
ASSEMBLY INSTRUCTIONS
Step 11 Install AC Adapter
Parts:
• AC Adapter (Ref U)
Tools:
• None
11-1 Connect the AC Adapter (Ref U).
Pre-Assembled
I
U
