OWNER'S MANUAL

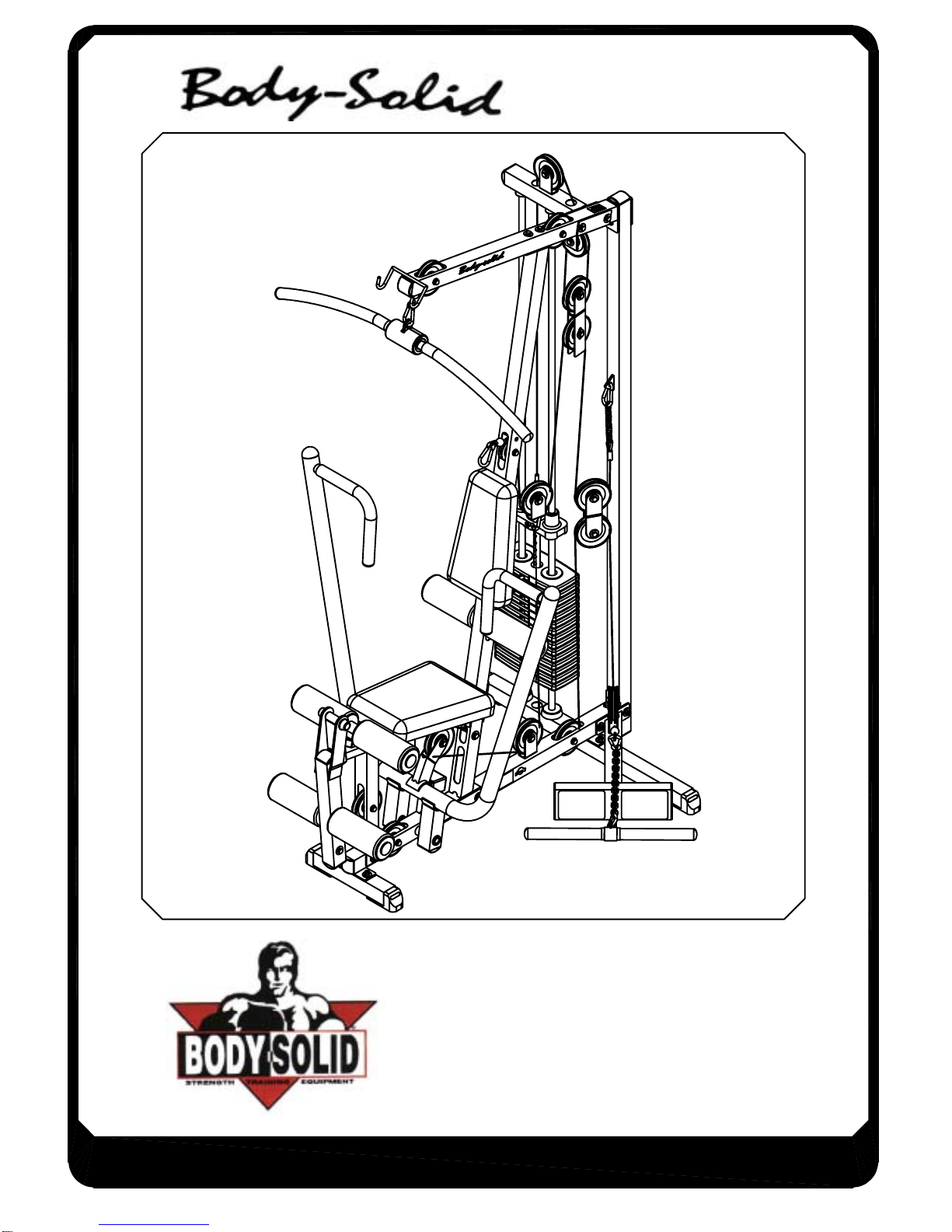

EXM-1500G

TABLE OF CONTENTS
General Instructions………………………………..……..….……..2
Training Tips and Safety Information…………..………….……..3
Hardware Illustrations…………………………..……..……………4-5
Parts Illustrations……..………………………..…………..………..6
Assembly（Step 1）…………………..……………………………..7-8
Assembly（Step 2）………………..………………………………..9-10
Assembly（Step 3）…………..……………………………………..11-12
Assembly（Step 4）………………………………………………....13-14
Assembly（Step 5）………………………………………..………..15-16
Assembly（Step 6）…………………………………………..……..17-18
Assembly（Step 7）…………………………………………..……..19-20
Assembly（Step 8）…………………………………………..……..21-22
Assembly（Step 9）……………………………………………..…..23-24
Cable Adjustments…………………………………………………...25
Inspections and Maintenance Schedule…………………..……..26
Page 1
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

GENERAL INSTRUCTIONS
Thank you for purchasing the Body-Solid EXM1500S Gym. At Body-solid,
our goal is to ensure customer satisfaction. If you have any questions
about these instructions or have any problems with assembly or parts for
this machine, please call our Customer Service Department at
1-800-556-3113.
Prior to assembling any Body-Solid machine, please take the time to read
the instructions thoroughly. Please use this manual to make sure that all
parts have been included with your shipment. When ordering
replacement parts, please refer to the part number and description of
each part from this manual. Use only Body-Solid replacement parts when
servicing any Body-Solid machine. Failure to do so may void your
warranty and could result in personal injury.
Body-Solid equipment is designed to provide the safest, smoothest and
most effective workouts possible. After you have finished assembling this
product, check all stations to ensure correct operation. If for some reason
you experience problems with any functions of this machine, do not
continue operation. First, re-check all of the assembly instructions to
locate any possible errors made during assembly. If you are not able to
correct the problem, contact our Customer Service Department
immediately at 1-800-556-3113.
TOOLS REQUIRED
•Socket Wrench
•5/16"、3/8" and 1/2" Sockets
•Crescent Wrench
•Rubber Mallet
•Tape Measure
•5/16" Allen Wrench（included）
•5/32" Allen Wrench（included）
Page 2
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

TRAINING TIPS AND SAFETY INFORMATION
Before starting any exercise program, it is recommended that you consult
your physician and get a complete physical examination. There is a risk
assumed by individuals who use this type of equipment. To minimize risk,
follow the rules below.
• Always consult your physician before starting any exercise program.
• Do not allow children or minors to play on or around the equipment.
• Warm up properly before engaging in any weight training regimen.
• Before using, read all the warning labels and instructions on the use of this
machine.
• Do not modify the machine in any way.
• Inspect the machine before use for any damaged, worn or missing parts. If
there is any doubt about the ability of this equipment to operate safely, do not
use the equipment until it is serviced.
• Exercise with care, performing exercises at a smooth, moderate pace. Never
perform jerky or uncoordinated movements that may result in injury.
• Never hold your breath while exercising.
• Learn how to perform the exercise correctly before using heavy weight.
Correct form is important to avoid injury and to ensure that you work the
proper muscle groups.
• It is recommended that you train with a training partner.
• Keep body and clothing clear of cables and moving parts when the machine
is in use.
• Know your limitations. If you are new to resistance training or are starting an
exercise routine after a prolonged lay-off, start slowly and build up to a more
intense routine.
Failure to follow these rules may result in serious injury. If unsure about
the proper use of the machine, consult your local Body-Solid distributor or
call the Body-Solid Customer Service department at 1-800-556-3113.
Page 3
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page

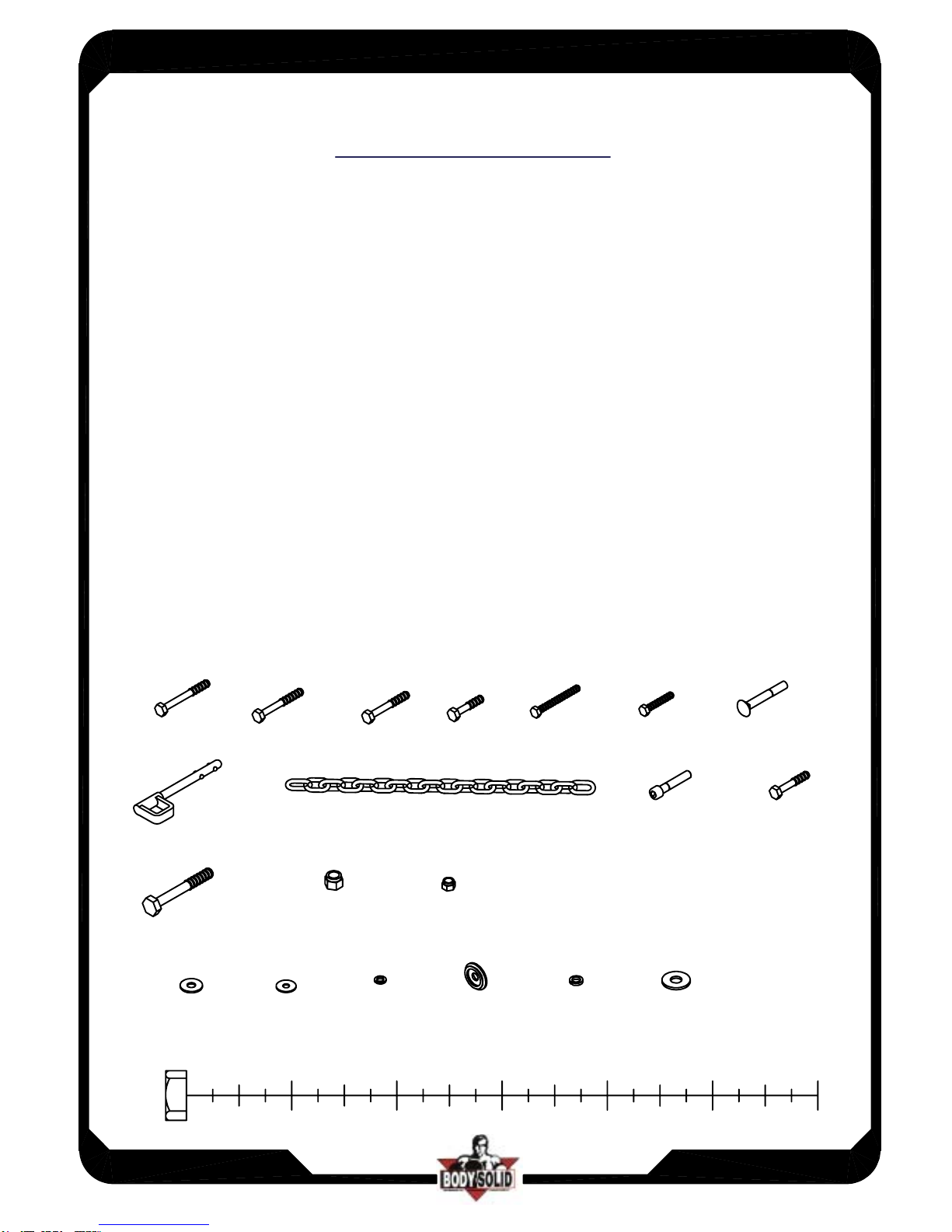

HARDWARE ILLUSTRATION
2
13456
A2. 3/8"x3" Hex Head Bolt------------------------------------[7PCS]
A3. 3/8"x2 3/4" Hex Head Bolt-------------------------------[12PCS]
A4. 3/8"x2 1/2" Hex Head Bolt-------------------------------[4PCS]
A5.3/8"x1 3/4"Hex Head Bolt---------------------------------[9PCS]
A7.5/16"x2 3/4"Hex Head Bolt-------------------------------[2PCS]
A8. 5/16"x1 3/4"Hex Head Bolt------------------------------[2PCS]
A9. 3/8"x2 3/4"CARRIAGE BOLT---------------------------[4PCS]
A10. SELECTOR PIN------------------------------------------[1PCS]
A11. STEEL CHAIN---------------------------------------------[1PCS]
A12. 3/8"x2" ROUND BOLT-----------------------------------[1PCS]
A13. 3/8"x2" Hex Head Bolt-----------------------------------[1PCS]
A14. 1/2"x3 3/4" Hex Head Bolt------------------------------[1PCS]
B1. 1/2" NYLON LOCK NUT----------------------------------[2PCS]
B2. 3/8" NYLON LOCK NUT--------------------------------[33PCS]
C1. 3/8"(I.D)WASHER----------------------------------------[44PCS]
C2. 5/16"(I.D)WASHER-----------------------------------------[4PCS]
C3. 5/16" SPRING WASHER---------------------------------[4PCS]
C4. 1/2" ROUND END CAP WASHER---------------------[2PCS]
C5. 3/8" SPRING WASHER-----------------------------------[1PCS]
C6.1/2" WASHER------------------------------------------------[2PCS]
EXM-1500G
EXM1500G-112003 4
A2 A3 A4 A7 A8 A9
A5
A10 A11 A12
A14
C1 C2 C3 C4
A13
B1 B2
C5 C6

ASSEMBLY INSTRUCTIONS
Page

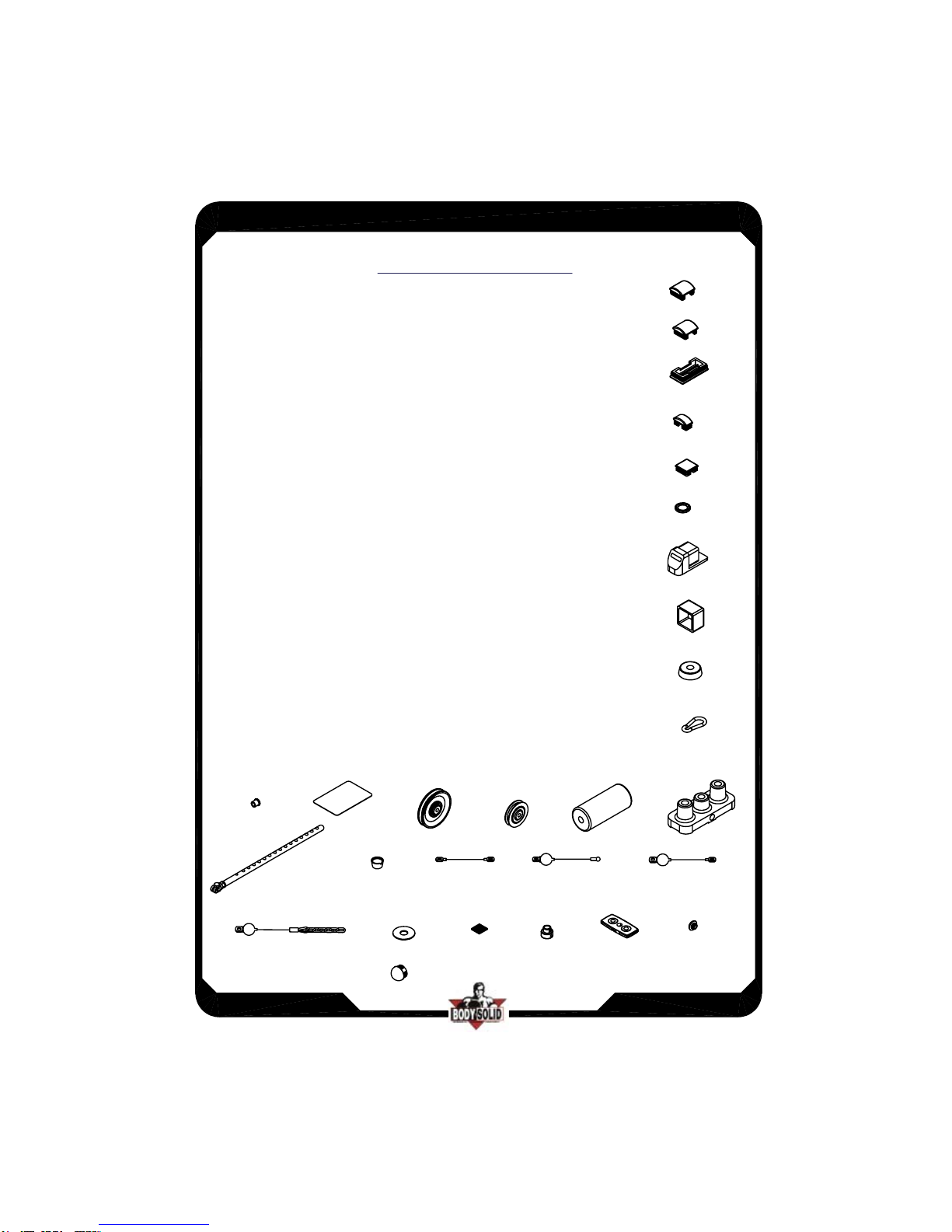

HARDWARE ILLUSTRATION
EXM-1500G
EXM1500G-112003 5
D1. 2"x2"x1.8t ROUND END CAP(9211-087)---------------[8PCS]
D2. 2"x2"x2.5t ROUND END CAP(9211-088)---------------[1PCS]
D3. 2"x4" END CAP(9211-014)---------------------------------[2PCS]
D4. 1"x2" END CAP(9211-086)---------------------------------[3PCS]
D5. 1 3/4"x1 3/4" END CAP(9211-004)-----------------------[1PCS]
D6. n1" CHROME END CAP(8341-033)---------------------[6PCS]
D7. 2"x2" FOOT CAP(9211-024)-------------------------------[4PCS]
D8. 2"x2" ROUBBER CAP(9310-020)-------------------------[1PCS]
D9. n2 1/2" RUBBER DOUNT(9310-010)-------------------[2PCS]
D10. n8mm SPRING SNAP LINK(8810-001)---------------[5PCS]
D11. n16 STEEL BUSHING(9211-041)----------------------[12PCS]
D13. 95X140mm NO SLIP TAPE(9310-035)----------------[2PCS]
D14. n110(4 1/4")PULLEY(9213-002C)----------------------[15PCS]
D15. n3"PULLEY(9213-006)------------------------------------[1PCS]
D16. n3 1/2x8" FOAM ROLLER(9161-007)-----------------[6PCS]
D17. TOP PLATE(8400-005)------------------------------------[1PCS]
D18. WEIGHT SELECTOR BAR(8210-052A)---------------[1PCS]
D19. 1/2" BOLT CAP----------------------------------------------[2PCS]
D20. 1440mm STEEL CABLE-----------------------------------[1PCS]
D21. 3235mm STEEL CABLE-----------------------------------[1PCS]
D22. 3050mm STEEL CABLE----------------------------------[1PCS]
D23. 2210mm STEEL CABLE-----------------------------------[1PCS]
D25. n3" NYLON WASHER(9214-008)----------------------[8PCS]
D26. 38X4tx38 RUBBER PAD(9310-001)--------------------[1PCS]
D28.n3/4 SHAFT COOLAR(9211-046)----------------------[2PCS]
D29. 10LB SELECTOR PLATE---------------------------------[15PCS]
D30. n1" ROUND END CAP(9260-021)---------------------[6PCS]
D31. n50 ROUND END CAP(9211-080)---------------------[2PCS]
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11 D13 D14 D15 D16 D17
D18 D21 D22
D20
D19
D23 D25 D26 D28 D29 D30
D31

ASSEMBLY INSTRUCTIONS
Page
PARTS ILLUSTRATION SHEET
EXM-1500G
EXM1500G-112003 6
A.MAIN BASH FRAME[1PCS]
B.REAR BASE FRAME[1PCS]
C.ANGLED SUPPORT PILLAR[1PCS]
D.TOP FRAME[1PCS]
E.BENCH PRESS FRAME[1PCS]
F.SEAT/EXTEMSION FRAME[1PCS]
G.LEG FRAME[1PCS]
H.SEAT FRAME[1PCS]
I.TOP WEIGHT
STACK FRAME[1PCS]
J.FOOT BRACE
K.LOW
PULLEYBRACKET(1PCS]
L.WELDED
DOUBLE
BRACKET[1PCS]
M.SINGLE
PULLEY
HOOK[1PCS]
N.WELDED
"ADJUSTABLE"
DOUBLE
BRACKET[1PCS]
O.REAR BASE FRAME[1PCS]
P.FRONT BASE FRAME[1PCS]
Q.CHROME GUIDE ROD[2PCS]
R.FOAM ROLLER BAR[3PCS]
S.2"x5 1/2" PLATE[2PCS]
8312-090
110 140
T.2"x4" PLATE[1PCS]
8312-049
50
100
U.LAT BAR[1PCS]
20LB1100D
V.LOW ROW BAR[1PCS]
20LB500C
W.SEAT PAD
9123-010
X.BACK PAD
9113-006

ASSEMBLY- STEP 1
**Note ： Do Not fully tighten frame bolts and nuts until after completing Step 3
**Note
： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 1
Parts Description Hardware Description
Qty Part Part Description Qty Part Part Description
1 A Main Base Frame 2 A2 3/8"×3"hex head bolt
1 B Vertical Support Pillar 5 A3
3/8"×2 3/4"hex head bolt
1 C Angled Support Pillar 1 A5 3/8"×1 3/4"hex head bolt
1 O Rear Base Frame 4 A9 3/8"×2 ¾"carriage bolt
1 P Front Base Frame 12 B2 3/8"nylon lock nut
14 C1
3/8"I.D. washer
2 D1 2”x2”x1.8t rounf end cap
1 D2
2"×2"×2.5t round end cap
4 D7
2"×2"foot cap
1 D8
2"×2"rubber cap
6 D11 phi 16 nylon bushing
3 D14
4 ½"pulley
1 D15
3"pulley
Step by Step
1. Attach 4 (D7) - Foot Caps to (P) Front Base Frame and (O) Rear Base Frame
2. Attach (A) - Main Base Frame to (O) - Rear Base Frame
3. Attach (A) - Main Base Frame to (P) - Front Base Frame
4. Attach (C) - Angled Support Pillar to (A) - Main Base Frame
5. Attach (B) - Vertical Support Pillar to (A) - Main Base Frame
6. Attach 3 (D14) and 1 (D15) pulleys to frame as shown
(Note：DO NOT fully tighten pulley bolts and nuts until after cable routing)
Page 7
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
1
P
EXM1500G-112003 8
EXM-1500G
D7
C1x2
B2x2 B2
D14
D8
D7
D11x2 A3
D15
D11
B2 D11
A3
C
B
D14 B2x2
C1x2 B2x2
C1x2 A3x2
C1x2
D11x2 A3
B2
C1
B2
A9x2
C1
A5
O
D7
A9
A9 D7
A
D14
D2
D1
D1
O

ASSEMBLY- STEP 2
**Note ： Do Not fully tighten frame bolts and nuts until after completing Step 3
**Note
： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 2
Parts Description Hardware Description
Qty Part Part Description Qty Part Part Description
1 D Top Frame 4 A3
3/8"×2 ¾"hex head bolt
1 E Bench Press Frame 2 A4 3/8"×2 ½"hex head bolt
1 R Foam Roller Bar 1 A5 3/8"×1 3/4"hex head bolt
1 T
2"×4"Plate 3 B2
3/8"nylon lock nut
6 C1
3/8"I.D. washer
3 D1
2"×2"×1.8t round end cap
2 D6
phi 1"round end cap
4 D11 phi 16 nylon bushing
3 D14
4 ¼"pulley
2 D16
phi 3 ½"×8"foam roller
2 D25
phi 3"nylon washer
2 D30 Round end cap
2 D31 Round end cap
Step by Step
1. Attach (D) - Top Frame to (C) - Angled Support Pillar
2. Attach (D) - Top Frame to (B) - Vertical Support Pillar and (T) - 2"×4" Plate
3. Attach (R) - Foam Roller Bar to (B - Vertical Support Pillar using 2 (D16), 2 (D25), and
2 (D6)
4. Loosen allen head screws at the bottom of (E) - Bench Press Frame. Slide out pivot
shaft inside of (E) - Bench Press Frame.
5. Attach (E) - Bench Press Frame to (A) - Main Base Frame, (note：once (E) and (A) are
attached and pivot shaft is back in place, re-tighten allen head screws at the bottom
of (E)
6. Attach 3 (D14) pulleys to frame to (E) - Bench Press Frame and (D) - Top Frame as
shown
(Note：Do Not fully tighten pulley bolts and nuts until after cable routing)
(Note: When attaching the (D14) Pulley to (E) Bench Press Frame the threaded side
of the pulley bolts must face the right side if you are standing in front of the unit,
facing the unit.)
EXM-1500G ASSEMBLY INSTRUCTIONS
Page 9
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
2
EXM1500G-112003 10
EXM-1500G
D31
D30
D30
E
B2
C1D14
C1x2
A5
D14
B2 D11 D
D11
D31
A3
A4
C1
B2 T
D14
D11x2 C1x2
A3x2
A3
*
*: NEED TO LOOSEN BOTH ALLEN HEAD BOLT
IN ORDER TO REMOVE SHAFT
Ø3/4"X205L SHAFT
RD16x2
D25x2
D6x2
D1
D1
D1

ASSEMBLY- STEP 3
**Note ： Do Not fully tighten frame bolts and nuts until after completing Step 3
**Note
： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 3
Parts Description Hardware Description
Qty Part Part Description Qty Part Part Description
15 D29 Weight Stack Plates 2 A2 3/8"×3"hex head bolt
1 I Top Weight Stack Frame 1 A5 3/8"×1 ¾"hex head bolt
2 Q Guide Rods 1 A10 Selector pin
1 S 2"×5 ½"Plate 1 A12 3/8"×2"round bolt
1 A13
3/8"×2" hex head bolt
4 B2
3/8"nylon lock nut
8 C1 3/8” I.D. washer
1 C5 3/8” spring washer
1 D1
2"×2"×1.8t end cap
2 D9 phi 2 ½"rubber donut
2 D14 4 ¼"pulley
1 D17 top plate
1 D18 weight selector bar
2 D28 phi3/4”shaftcollar
Step by Step
1. Place 2 (D9) on (O) - Rear Base Frame, slide 2 (Q) - Guide Rods into 2 (D9) and (O)-
Rear Base Frame
2. Slide 15 (D29) - Weight Stack Plates onto 2 (Q) - Guide Rods (note：make sure housing
for selector pin on Weight Stack Plates is facing forward as shown)
3. Slide (D17) - Top Plate noto 2 (Q) - Guide Rods (note:make sure that housing for (A12)
- Round Bolt is facing forward as shown)
4. Slide (D18) - Selector Shaft into center of weight stack. Connect (D17) - Top Plate to
(D18) - Selector Shaft using (A12) - Round Bolt
5. Slide 2 (D28) - Shaft Collars onto 2 (Q) - Guide Rods (note：If (D28) - Shaft Collars do
not slide onto 2 (Q) - Guide Rods, make sure that the allen head screws in (D28) are
loose)
6. Attach (S) 2"×5 ½"Plate and (I) - Top Weight Stack Frame to (D) - Top Frame and 2 (Q) -
Guide Rods
7. Secure 2 (D28) into (I) - Top Weight Stack Frame. Re-tighten allen head screws
8. Attach 2 (D14) pulleys to frame to (I) - Top Weight Stack Frame as shown (Note：Do Not
fully tighten pulley bolts and nuts until after cable routing)
Securely Tighten All Frame Bolts Used in Steps 1-3, (Note：Leave Pulley Bolts Loose
Until Cable Routing)
EXM-1500G ASSEMBLY INSTRUCTIONS
Page 11
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
1. Inspect equipment before each workout. Checke that all nuts,
bolts, screws and pop pins are in place and fully tightened.
Also,before use,check cables for signs of wear. Replace all
worn parts immediately. Never use machine if any parts are
damaged or missing. Failure to follow these rules may result
in serious injury.
2. Keep clear of the cables and all moving parts when the machine
is in use.
3. Always make sure all Snap Links are closed when doing any
cable/pulley exercises.
4. Exercise with care. Perform your exercises at a smooth moderate
pace; never perform jerky or uncoordinated movements that may
cause injury.
5. It is recommended that you should workout with a training partner.
6. Do not allow children or minors to play on or around this equipment.
7. If unsure of proper use of equipment, call your local Body-Solid
distributor or the Body-Solid customer service department at
1-800-556-3113.
8. WARNING: Consult your physician before starting your exercise program.
For your own safety. do not begin any exercise program without proper
instruction.
RAL2-11-98
I
D14
A13
C5A12
D9x2
D29
D17
D18
A10
Qx2
EXM-1500G
EXM1500G-112003 12
B2
B2
C1
C1
C1A5
C1
D14
3
D28x2

ASSEMBLY- STEP 4
**Note ： Do Not fully tighten frame bolts and nuts until after completing Step 4
**Note
： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 4
Parts Description Hardware Description
Qty Part Part Description Qty Part Part Description
1 F Seat / Extension Frame 3 A2 3/8"×3"hex head bolt
1 J Foot Brace 3 A3 3/8"×2 ¾"hex head bolt
1 K Low Pulley Bracket 1 A5 3/8"×1 3/4"hex head bolt
1 S 2"×5 ½"Plate 1 B1 1/2"nylon lock nut
7 B2
3/8"nylon lock nut
12 C1
3/8"I.D. washer
2 C6 1/2”I.D. washer
2 D3
2"×4"end cap
1 D4
1"×2"end cap
2 D11 phi 16 nylon bushing
2 D13 no slip tape
2 D14 4 ¼"pulley
1 D26 rubber pad
Step by Step
1. Attach (K) - Low Pulley Bracket to (J) - Foot Brace
2. Attach (K) - Foot Brace to (A) - Main Base Frame
3. Attach (F) - Seat / Extension Frame and (S) - 2"×5 ½"Plate to (C) - Angled Support
Pillar and (A) - Main Base Frame
4. Attach 1 (D14) pulleys to frame to (D) - Seat / Extension Frame as shown (Note：Do
Not fully tighten pulley bolts and nuts until after cable routing)
Page 13
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
EXM-1500G
EXM1500G-112003 14
F
D26
D4 J
D3
D13 D13
D3
B1
C6
D14
K
C6
4
B2
B2
D11
D14
C1
C1 A2
C1
A2
C1x2
B2x2
S
C1 A2
D11 A3
C1 B2
C1 A5
B2 C1
A3x2 C1x2
C1B2

ASSEMBLY- STEP 5
**Note ： Do Not fully tighten frame bolts and nuts until after completing Step 5
**Note
： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 5
Parts Description Hardware Description
Qty Part Part Description Qty Part Part Description
1 G Leg Frame 2 A7 5/16"×2 ¾"hex head bolt
1 H Seat Frame 2 A8 5/16"×1 ½"hex head bolt
2 R Foam Roller Bar 1 A14 1/2”X3 3/4 hex head bolt
1 W Seat Pad 1 B1
1/2"nylon lock nut
1 X Back Pad 4 C2
5/16"I.D. washer
4 C3
5/16"spring washer
2 C4
1/2"round end cap washer
2 D1
2"×2"×1.8t round end cap
2 D4 1”x2” round end cap
1 D5 1 ¾"×1 ¾"end cap
4 D6
phi 1"chrome end cap
4 D16 phi 3 ½"×8"foam roller
2 D19
1/2"bolt cap
6 D25
phi 3"nylon washer
Step by Step
1. Attach (X) - Back Pad to (C) - Angled Support Pillar (note：Do not overtighten pad
bolts, overtightening will strip the t-nuts pressed into the wood)
2. Attach (W) - Seat Pad to (H) - Seat Frame (note：Do not overtighten pad bolts,
overtightening will strip the t-nuts pressed into the wood)
3. Attach (R) - Foam Roller Bar and 2 (D16) - Foam Rollers to (G) - Leg Frame (note:
There are two possible holes to mount (R) Foam Roller Bar to (G) Leg Frame. For
taller people (6'-plus) mount in bottom hole, for shorter people (under 6') mount in
top hole.)
4. Attach (G) - Leg Frame to (F) - Seat / Extension Frame
5. Attach (R) - Foam Roller Bar and 2 (D16) - Foam Rollers to (H) - Seat Frame
6. Slide (H) - Seat Frame into (F) - Seat / Extension Frame
Page 15
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
EXM-1500G
EXM1500G-112003 16
5
W
D5
C2x2
C3x2
A8x2
A7x2
C3x2
C2x2
X
G
H
D19
C4
C4A14
D19
D4
D4
D16x2
D25x2
D6x2
B1
D1
D1 D16x2
D25x2
D6x2
D25x2

ASSEMBLY- STEP 6
**Note ： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 6
Parts Description
Qty Part Part Description
1 U Lat Bar
1 N Welded Adjustable Double Bracket
2 A5 3/8"×1 3/4"hex head bolt
2 B2
3/8"nylon lock nut
1 D10 Spring snap link
2 D14 4 ¼"pulley
1 D21 lat / stack cable 3235mm
2 D30 Round end cap
Step by Step
1. Begin routing cable (D21) from the housing where the (U) - Lat Bar hangs
2. Route cable over the top of (D) - Top Frame, down through
3. (N) - Welded Adjustable Double Bracket and back up and over (I) - Top Weight Stack
Frame as shown
4. When connecting screw end of (D21) - Cable to (D18) - Selector Shaft, ensure that the
screw is threaded a minimum of 1/2".
Page 17
EXM-1500G ASSEMBLY INSTRUCTIONS
EXM1500G-112003

ASSEMBLY INSTRUCTIONS
Page
ASSEMBLY STEP
6
EXM-1500G
EXM1500G-112003 18
N
B2x2
D14x2
C1x2
C1x2
A5x2
1
23
4
5
D21
U
D30
D30
D10
Lat Cable
Start Here
1ST
CABLE INSTALL

ASSEMBLY- STEP 7
**Note ： Do Not fully tighten pulley bolts and nuts until after cable routing
The following Parts and Hardware will be needed to complete Step 7
Parts Description
Qty Part Part Description
1 L Welded Double Bracket
1 M Single Pulley Hook
3 A5 3/8"x1 3/4"hex head bolt
3 B2
3/8"nylon lock nut
2 D10 spring snap link
3 D14 4
¼"pulley
1 D23 ab crunch cable 2210mm
Step by Step
1. Begin routing cable (D23) from the ab crunch housing on (C) - Angled Support Pillar
2. Route cable through (R), (N), and (Q) as shown, connect cable to (B) - Vertical
Support Pillar as shown
Page 19
EXM-1500G ASSEMB
L
Y INSTRUCTIONS
EXM1500G-112003
