Bodyworx ABX350AT User manual

Model No: ABX350AT
MAGNETIC
PROGRAMMABLE BIKE
Retain this owner’s manual for future reference.
Read and follow all instructions in this owner’s manual.
Version A

Step 1
Visit our Website
Go to the GPI Sports website: www.gpisports.com.au/warranty
Warranty Registration Form
Step 2
Enter Purchase Information
Enter all purchase information including the serial number and proof
of purchase which can be uploaded from this page
Step 3
Call Our Toll Free Number
If a warranty service request is required on your product
please call the toll free number - 1800 005 770
Congratulations on purchasing your product, we at GPI believe that our product range is of the
highest quality and represents great value for money.
We back our product range up with our industry leading warranty.
Please see below for the step by step instructions on how to register your product warranty
online.
GPI Sports & Fitness

1
IMPORTANT SAFETY NOTICE:：
Dear Customer,
Please read this instruction very carefully before using the item.
Note the following precaution before assembling or operating the machine
1、Assemble the machine exactly as the descriptions in the instruction manual.
2、Check all the screws, nuts and other connections before using the machine
for the first time and ensure that the bike is in a safe working condition.
3、Set up the machine in a dry level place and leave it away from moisture and
water.
4、Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the
machine in the area of assembly to avoid dirt and scratches.
5、Before beginning training, remove all objects within a radius of 2 meters from
the machine.
6、Do not use aggressive cleaning articles to clean the machine. Only use the
supplied tools or suitable tools of your own to assemble the machine or
repair any parts of machine. Remove drops of sweat from the machine
immediately after finishing training.
7、Your health can be affected by incorrect or excessive training. Consult a
doctor before beginning a training program. Your doctor can define the
maximum setting (Pulse. Watts. Duration of training etc) to which you may
train yourself and can get precise information during training. This machine
is not suitable for therapeutic purpose.
8、Only do training on the machine when it is in correct working order. Use only
original spare parts for any necessary repairs.
IMPORTANT SAFETY NOTICE 1-2
EXPLODED-VIEW & PARTS LIST 3-5
ASSEMBLY INSTRUCTION 6-7
EXERCISE INSTRUCTIONS 8-9
MONITOR INSTRUCTIONS 10-15

2
9、This machine can be used for only one person’s training at a time.
10、Wear training clothes and shoes, which are suitable for fitness training with
the machine. Your training shoes should be appropriate for the trainer.
11、If you have any feeling of dizziness, sickness or other abnormal symptoms,
please stop training and consult a doctor immediately.
12、People such as children and handicapped persons should only use the
machine in the presence of another person who can give aid and advice.
13、The power of the machine increases with increasing the speed, and the
reverse. The machine is equipped with adjustable knob, which can adjust
the resistance. Reduce the resistance by turning the adjusting knob for the
resistance setting towards stage 1. Increase the resistance by turning the
adjusting knob for the resistance setting towards stage 8. The maximum
user’s weight is 130kg/286.6lbs.
14、Care must be taken when lifting or moving the equipment so as not to injure
your back. Always use proper lifting techniques and/or use assistance.

3
EXPLODED-VIEW & PARTS LIST：

4
NO
NAME
QUA.
NO
NAME
QUA.
1
Computer
1
37
Seat post plastic cover
1
2
Bolt M5*10
5
38
D bushing
1
3
End cap Φ25
2
39
Spring knob M16
1
4
Handlebar (L)
1
40L/R
Pedal
各1
5
Handlebar (R)
1
41L/R
Crank 170
各1
6
Foam
2
42
Crank cover
2
7
Screw ST4.2*19
18
43
Nut M10*1.25
2
8
Pulse Φ25
2
44
Chain cover molding
2
9
Bolt M8*16
20
45L/R
Chain cover
各1
10
washer d8*Φ20*1.5
23
46
Snap ring d17
2
11
Handlebar wire
2
47
Bearing 6203
2
12
motor
1
48
Belt pulley
1
13
Sensor line
1
49
Axle
1
14
Screw M5*10
4
50
Belt
1
15
Support tube
1
51
Bolt M6*15
4
16
Middle wire
1
52
Nylon nut M6
4
17
Front stabiliser
1
53
Pinch roller
1
18
End cap L
1
54
screw
1
19
End cap R
1
55
Tension spring
1
20
Rear stabiliser
1
56
Nut M10*1.0
2
21
End cap L
1
57
Bolt group
2
22
End cap R
1
58
Hexagon thin nut M10*1.0
2
23
Front plastic cover
1
59
U bracket
2
24
Tension line
1
60
Hex thin nut M12*1
1
25
Power line
1
61
Power adapter
1
26
Main frame
1
27
Seat
1
28
Seat tube
1
Open-end wrench S13-14-15
1
29
Stopper F38*38
2
Allen wrench S6
1
30
Flywheel
1
31
plastic cover
1
32
Vertical seat post
1
33
Nylon nut M8
5
34
U bracket
1
35
Washer d10*Φ20*2
3
36
Knob M10
1

5
HARDWARE PACKS :
9# M8*16 20PCS
10# d8*Φ20*1.5 23PCS
36# M10 1PC 39# M16 1PC
33# M8 3PCS
35# d10* 20*2 1PC
2# M5*10 5PCS
S13-S14-S15
S6

6
ASSEMBLY INSTRUCTION
STEP 1：Attach the front stabiliser (17) and the rear stabiliser (20) to the main frame (26) with bolt
(9) and washer (10); Attach the pedal (40L/R) to the crank arms as shown in FIG.1.
CAUTION: be sure the right pedal (40R) marked (R) is attached to the right crank arm and
tightened in the clockwise direction. The left pedal (40L) marked (L) is attached to the left crank
arm and tightened in the anti-clockwise direction.
9# M8*16 8PCS
10# d8*Φ20*1.5 8PCS
S15
STEP 2:
Put the front plastic cover (23) to the support tube (15), then connect the sensor 16 & 25 and
tension control wire 12 & 24 as shown in FIG.3, and install the support tube (15) on the main frame
(26) with bolt (9) and washer (10).
9# M8*16 8PCS
10# d8*Φ20*1.5 8PCS
12
24

7
STEP 3:
Attach the seat (27) to the seat tube (28) with washer (10) and nylon nut (33), then tighten seat
(27). Slide the seat tube (28) into the vertical seat post (32) and at the desired position, align holes
and fix in place with the locking knob (36) and washer (35). Insert the vertical Seat Post (32) into
the main frame (26) and line up the holes. Secure the seat in position with the Adjustment Knob
(39). The correct height for the seat can be adjusted after the bike is fully assembled.
33# M8 3PCS 10# d8* 20*1.5 3PCS
35# d10* 20*2 1PC
36# M10 1PC
39# M16 1PC
2# M5*10 1PC
STEP 4:
Attach the handlebar (4 & 5) to the support tube (15) with the screw (9) and washer (10). Connect
the sensor as shown in FIG.4, then Install the computer (1) into the support tube (15) with bolt (2).
9# M8*16 4PCS
10# d8*Φ20*1.5 4PCS
2# M5*10 4PCS
S15
CAUTION: MAKE SURE YOU HAVE TIGHTENED ALL THE BOLTS AND NUTS WELL BEFORE BEGINNING YOUR WORKOUT.
NOTE: THE FRONT STABILISER HAS WHEELS SO YOU CAN EASILY MOVE YOUR BIKE. THE REAR STABILISER HAS
ADJUSTABLE FEET SO YOU CAN LEVEL OUT YOUR BIKE.

8
EXERCISE INSTRUCTIONS
Using your Upright Bike provides you with several benefits, it will improve your physical
fitness, tone muscles and in conjunction with calorie controlled diet help you lose weight.
1.The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It
will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises
as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk
your muscles into a stretch - if it hurts, STOP.
2.The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs will
become Stronger. Work to your level but it is very important to maintain a steady tempo
throughout. The rate of work should be sufficient to raise your heart beat into the target zone

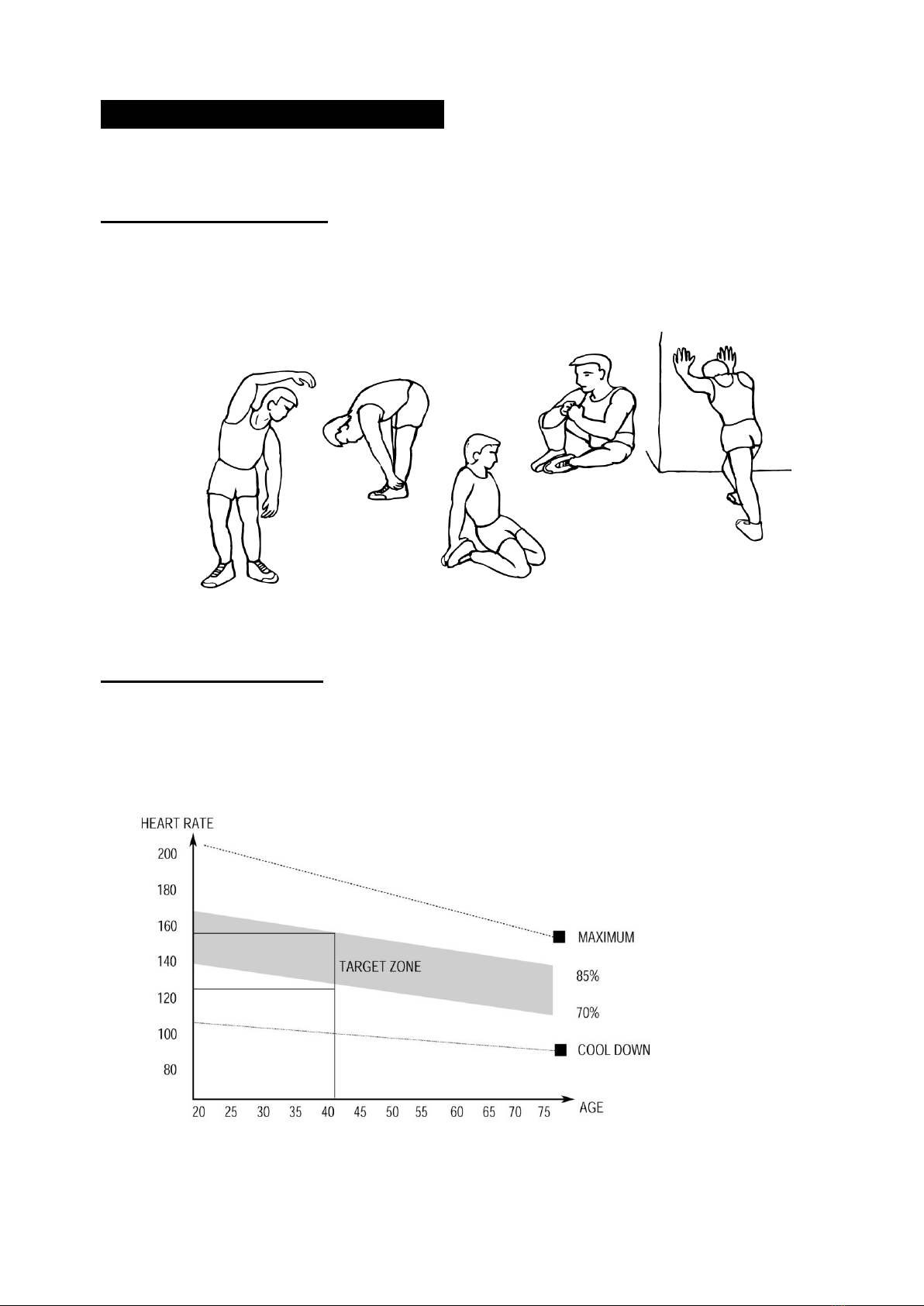

shown on the graph below.
SIDE BENDS OUTER THIGH
INNER THIGH
FORWARD
BENDS
CALF / ACHILLES
This stage should last for a minimum of 12 minutes though most people
start at about 15-20 minutes

9
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles to wind down. This is a repeat
of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The
stretching exercises should now be repeated, again remembering not to force or jerk your
muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three
times a week, and if possible space your workouts evenly throughout the week.
Muscle Toning
To tone muscle while on your Upright Bike you will need to have the resistance set quite high.
This will put more strain on our leg muscles and may mean you cannot train for as long as you
would like. If you are also trying to improve your fitness you need to alter your training program.
You should train as normal during the warm up and cool down phases, but towards the end of the
exercise phase you should increase resistance, making your legs work harden than normal. You
may have to reduce your speed to keep your heart rate in the target zone.
Weight Loss
The important factor here is the amount of effort you put in. The harder and longer you work
the more calories you will burn. Effectively this is the same as if you were training to improve your
fitness, the difference is the goal.
Use
The tension control knob allows you to alter the resistance of the pedals. A high resistance
makes it more difficult to pedal, a low resistance makes it easier. For the best results set the
tension while the bike is in use.

10
SM1900 SERIES INSTRUCTION MANUAL
【BUTTON FUNCTIONS】
UP (Encoder)
To make upward adjustment to each function data or increase training resistance.
DOWN
(Encoder)
To make downward adjustment to each function data or decrease training resistance.
MODE/ ENTER
To confirm all settings.
START/STOP
To start or stop workout.
RESET
To reset current setting and have the monitor switch to initial training mode for
selection.
RECOVERY
To test heart rate recovery status.
BODY FAT
In stop mode, press it for body fat measurement.
【DISPLAY FUNCTIONS】
TIME
Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each
increment is 1 minute.
Count down - If training with preset Time, Time will count down from preset to 00:00.
Each preset increment or decrement is 1 minute between 00:00 to 99:00.
SPEED
Displays current training speed. Maximum speed is 99.9 KM/H or ML/H.
RPM
Displays the Rotation Per Minute. Display range 0~15~999.
DISTANCE
Accumulates total distance from 00.00 up to 99.99 KM or ML. The user may preset target
distance data by pressing UP/DOWN button.
Each preset increment or decrement is 0.1KM or ML between 00.00 to 99.90.
CALORIES
Accumulates calories consumption during training from 0 to maximum 9999 calories.
(This data is a rough guide for comparison of different exercise sessions which cannot be
used in medical treatment.)
PULSE
User may set up target pulse from 0 - 30 to 230; and computer buzzer will beep when
actual heart rate is over the target value during workout.
WATTS
Display current workout watts. Display range 0~999.
OPERATING PROCEDURE
Power on:
1. Please connect power adaptor to DC JACK. Or the RESET key for 2 seconds to reboot the
console. LCD will have 2 seconds of all segments displaying on the screen (Drawing 1) with a
long beep.
Drawing 1

11
2. Console will show “SELECT USER” (Drawing 2 & 3), user may press ENTER into user
selection mode. Use UP/DOWN button to select U1 to U4 (Drawing 4) and press
MODE/ENTER for confirmation.And then preset user information for SEX, AGE, HEIGHT and
WEIGHT.
Drawing 2 Drawing 3
Drawing 4
3. In standby mode, console will display “SELECT WORKOUT” (Drawing 5 & 6); user may press
the MODE/ ENTER key to enter into selection mode. And use UP / DOWN button to select
MANUAL PROGRAM USER PROGRAM H.R.C. WATT.
Drawing 5 Drawing 6
Quick Start: User may press the START/STOP key to start training in MANUAL, all exercise
values will start counting up from zero.
Workout in MANUAL mode:
In standby mode, select MANUAL (Drawing 7) and press the MODE/ ENTER button to enter.
After entering into MANUAL mode, user may set up TIME DISTANCE CALORIES PULSE
RESISTANCE LEVEL in order with flashing readout texts, and press the START/ STOP button
to start exercising. All values will start counting down to zero. (Press the RESET button to clear all
settings.)
In MANUAL mode (the biking animation) will move forward once every 0.1 km. PC speed will
maintain the same as user’s speed (Drawing 8).

12
Drawing 7 Drawing 8
Workout in PROGRAM mode:
In standby mode, select a PROGRAM (Drawing 9) and press the MODE/ENTER button to enter.
User may use UP/DOWN button to select a preferred program from 1 to 12, and press the MODE/
ENTER button for confirmation. Program profile will be in flashing texts; user may use UP/DOWN
button to adjust profile’s resistance level.
TIME is fixed in 20:00 minutes, which is not adjustable. Press the START/STOP button to start
workout and racing with PC (Drawing 10).
After start, TIME will start counting down; the runway animation will follow user’s RPM input.
User need to follow PC speed by checking below symbols to finish the entire 20 minutes of
training:
▲：USER speed ＞PC RPM –user needs to slow down
●：USER speed = PC RPM
▼：USER speed ＜PC RPM –user needs to speed up
When TIME counts down to zero, console will beep for 8 seconds and LCD will display the racing
result: PC WIN or USER WIN (Drawing 11).
Drawing 9 Drawing 10
Drawing 11

13
Workout in User program mode:
In standby mode, select USER PROGRAM and press the MODE/ENTER button to enter.
User may create his/her own preferred profile by use UP and DOWN button to set up resistance
level of each row (Drawing 12), and press the MODE/ENTER button to confirm. Press the MODE/
ENTER button when settings are completed.
Time is fixed in 20:00 minutes (Drawing 13), which is not adjustable. User may press the
START/STOP button to start exercising (Drawing 14).
After start, TIME will start counting down; the runway animation will follow user’s RPM input. User
needs to follow PC’s speed by checking below symbols to finish the entire 20 minutes of training:
▲：USER speed ＞PC RPM –user needs to slow down
●：USER speed = PC RPM
▼：USER speed ＜PC RPM –user needs to speed up
When TIME counts down to zero, console will beep for 8 seconds, and display racing result:
PC WIN or USER WIN.
Drawing 12 Drawing 13
Drawing 14
Workout in H.R.C. mode:
In standby mode, select H.R.C. (Drawing 15) and press the MODE/ENTER button to enter.
Default AGE value will be 25 showing with flashing text (Drawing 16) and user may set his/her age
by using UP/DOWN button and press the MODE/ENTER button after determined. The monitor will
calculate preset heart rate value automatically according to user’s age setting. Screen will show
heart rate percentage 55% (Drawing 17), 75%, 90% and TARGET. User may select heart rate
percentage by UP/DOWN/ ENTER/MODE button for training.
If there is no HR input detected for 5 seconds, LCD will display “NEED H.R.” (Drawing 18) until a
HR signal is inputted.

14
Drawing 15 Drawing 16
Drawing 17 Drawing 18
Workout in WATT constant mode:
In standby mode, select WATT and press MODE/ENTER button to enter.
The preset watt value 120 will be in flashing form showing in the WATT setting mode (Drawing
19), select UP/DOWN/MODE/ENTER button to set target value from 10 to 350. Press the START
button to start training (Drawing 20).
After start, Level is adjusted according to RPM to reach the setting WATT.
▲：WATT ＞setting WATT 25% –user needs to slow down
●：WATT = setting 25%
▼：WATT ＜setting 25% –user needs to speed up
--- ：WATT ＞or ＜setting WATT 50% (OVER SPEC) (Drawing 21)
Drawing 19 Drawing 20
Drawing 21

15
RECOVERY:
After exercising for a period of time, keep holding on the hand grips or wearing chest strap and
press the “RECOVERY” button. All functions displaying on LCD will stop, except “TIME” will start
counting down from 00:60 to 00:00 (Drawing 22). LCD will display user’s heart rate recovery
status with F1, F2….to F6 (Drawing 23). F1 is the best and F6 is the worst. User is suggested to
keep exercising continuously to improve the heart rate recovery status from F6 to F1. Press the
RECOVERY button again to return to the main menu.
Drawing 22 Drawing 23
BODY FAT
You may test and have the BODY FAT advice when the computer is in STOP mode. Please follow
the steps as below:
1. Press BODY FAT button, and hold on hand grip to start body fat testing (Drawing 24).
2. The symbol "- - - - - - - - " (Drawing 25, 26) will display while testing period in 8 seconds. After 8
seconds, you will see the BODY FAT advice in percentage (Drawing 27) and BMI (Drawing 28)
and the fat advice in different symbol.
3. It would be possible to display other indication if you have the following situation:
"E-1" - It means you did not put your thumb properly on the conductor (Drawing 29).
"E-4" - It means the BODY FAT advice is exceeded the available area which is fixed in the
program.
After BODY FAT testing, press BODY FAT button to have the computer back to working continues
from the previous data before testing. The BODY FAT advice figure and BMI will disappear.
Drawing 24 Drawing 25
Drawing 26 Drawing 27

16
Drawing 28 Drawing 29
Noted:
1. After 4 minutes without pedaling or pulse input, console will enter into power saving mode.
Press any key may wake the console up.
2. When the computer acts abnormally please unplug the adaptor and plug it in again.

To register your warranty, please go to
www.gpisports.com.au
MAGNETIC
PROGRAMMABLE BIKE
Model No: ABX350AT
