Bohle UVAHAND 250 H1 User manual

User’s Manual

User's Manual 3
List of contents
1Introduction................................................................................................................5
2 Description.................................................................................................................6
Areas of application .....................................................................................................6
Description of the individual parts and operating elements..........................................7
3 Safety instructions ....................................................................................................8
General information .....................................................................................................8
Staff obligation.............................................................................................................8
Danger when using the equipment ..............................................................................8
Appropriate use ...........................................................................................................8
Warranty and liability ...................................................................................................9
4 Safety regulations....................................................................................................10
Organisational measures...........................................................................................10
Informal safety measures ..........................................................................................10
Danger due to electricity ............................................................................................10
Thermal hazards........................................................................................................11
Danger caused by radiation.......................................................................................12
Danger caused by gas...............................................................................................13
Service, maintenance, remedying faults ....................................................................13
5 Transport, storage, delivery ...................................................................................14
6 Setting-up, commissioning and operation ............................................................15
General information ...................................................................................................15
Setting-up ..................................................................................................................16
Fitting the protective grille..........................................................................................16
Commissioning ..........................................................................................................18
Connecting up to the mains .......................................................................................18
Switching the UVAHAND 250 on and off ...................................................................19
Operation...................................................................................................................19
Operation as a hand-held lamp .................................................................................19
Operation on a tripod .................................................................................................19
Operation as a fitted device .......................................................................................21
7 Servicing, maintenance and cleaning....................................................................22
Servicing....................................................................................................................22
Replacing the UV lamp ..............................................................................................22
Maintenance ..............................................................................................................25
Replacing the UV filter ...............................................................................................25
Cleaning ....................................................................................................................26
Cleaning the reflector, the UV filter and the UV lamp ................................................26
Cleaning the surface of the equipment ......................................................................27
8 Order data for equipment, spare parts and accessories......................................28
Ordering.....................................................................................................................28
Equipment .................................................................................................................28
Spare parts ................................................................................................................28
Accessories ...............................................................................................................29

4Issue 010910
9Faults....................................................................................................................... 30
General information .................................................................................................. 30
Fault list Part 1 .......................................................................................................... 30
Fault list Part 2 .......................................................................................................... 30
10 Technical data ......................................................................................................... 32
Dimensions and weights ........................................................................................... 32
Electrical data ........................................................................................................... 32
UV spectrum ............................................................................................................. 32
Radiation intensity..................................................................................................... 33

User’s Manual 5
1 Introduction
This User’s Manual describes the UVAHAND 250, how to operate it and its areas of applica-
tion.
Safety instructions and hazard warnings explain how to operate the UVAHAND 250 safely
and correctly.
The following symbols and terms are used in the manual:
Danger
This symbol indicates imminent danger threatening the life and
health of personnel!
Warning
This symbol indicates possible danger to the life and health of per-
sonnel..
Caution
This symbol refers to a potentially dangerous situation
Note
This symbol refers to notes, tips for application and useful informa-
tion.

6Issue 010910

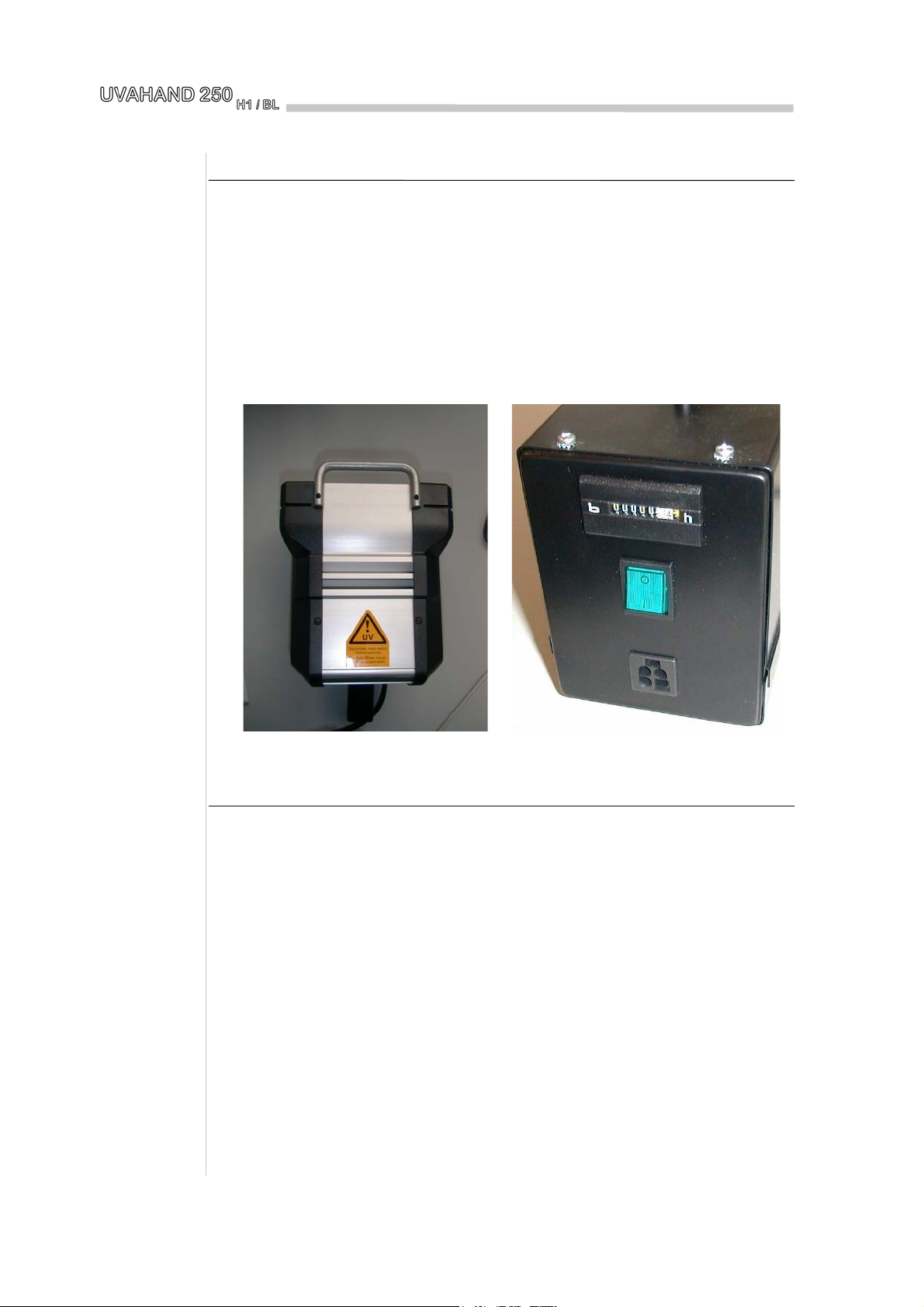

2 Description
The UVAHAND 250 is a high-intensity ultra-
violet (UV) lamp unit designed for mobile
applications.
The emission spectrum of the UVAHAND
250 has its maximum in the long-wave UV
range (UVA).
Various ranges of the spectrum can be fil-
tered out by using different filters.
This makes the UVAHAND 250 ideal for use
in widely differing areas of application.
The UVAHAND 250 consists of a lamp and a
ballast unit.
The ballast supplies the electricity for the
lamp.
Areas of application
The UVAHAND 250 is used in laboratories,
in production and repair processes in the
following applications:
•hardening UV-reactive sealing and cast-
ing masses
•bonding glass, plastics and metals
•hardening fibreglass-reinforced polyester
resins (e. g. for repairing fibreglass -
reinforced plastics on automobiles and
boats)
•fluorescence analysis (e.g. in material
testing and paint penetration testing)
Areas of
application

User’s Manual 7

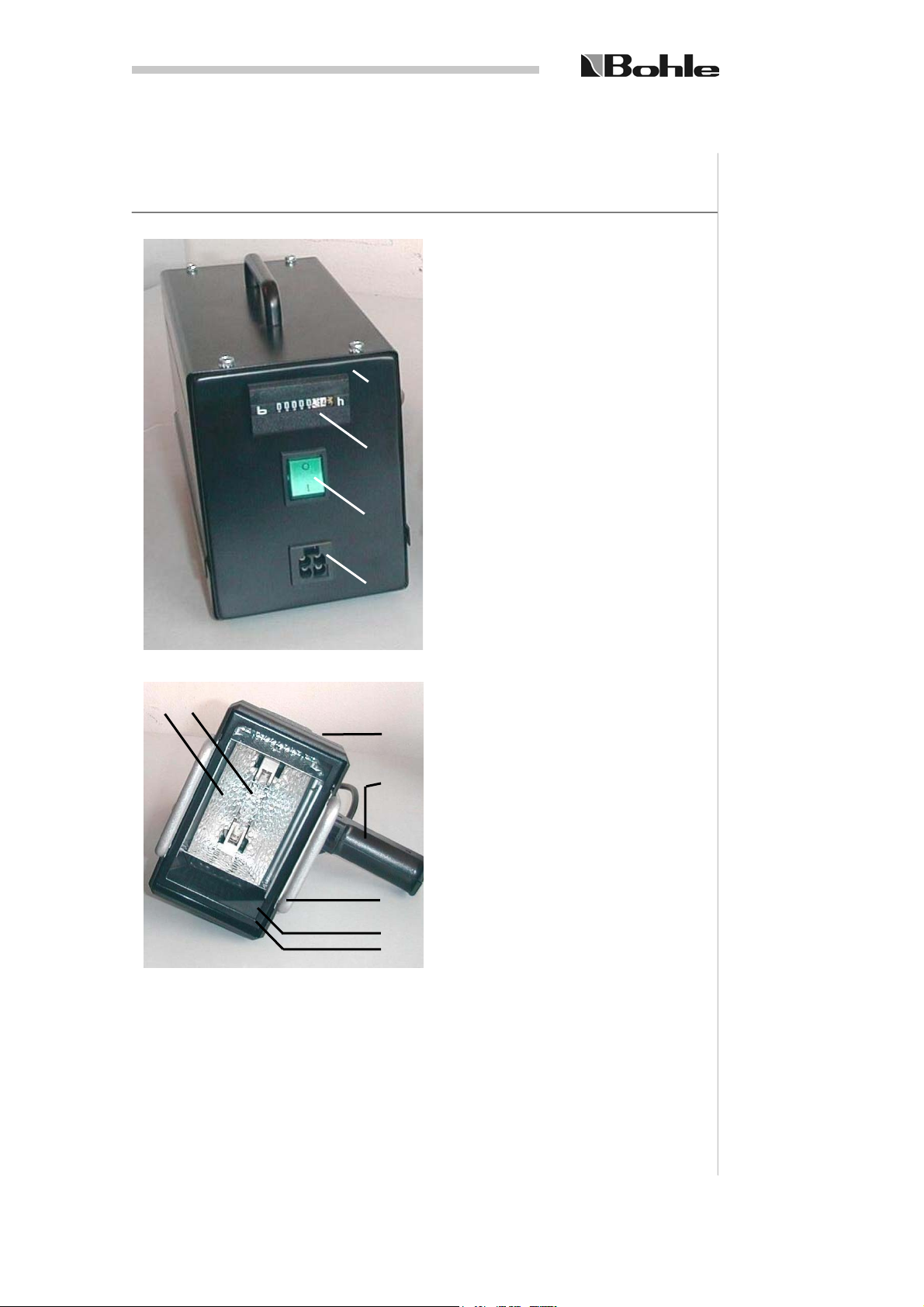

Description of the individual parts and operating elements
(1) Ballast
Supplies the electricity for the hand-held
lamp.
(2) Operating hours counter
Shows the number of operating hours of
the ballast.
The operating hours counter is built-in
and cannot be reset. It is used to as-
certain how many hours of operation the
equipment has behind it in order to
know when the lamp needs replacing.
See the chapter ‘Replacing the UV
lamp’ for details of lamp servicing.
(3) Mains switch
Used to turn the UVAHAND 250 on and
off.
(4) Socket for connector cable
The cable connects the ballast unit to
the mobile hand-held lamp.
(5) Mobile hand-held lamp
(6) Reflector with lamp (7)
Lamps are available in three different
spectra.
(8) Handle
Can be turned 90°.
Can be removed for operation on a tri-
pod or with the equipment firmly
mounted.
(9) Spacer bar
(10) Filter
Available in three types.
(11) Filter frame
The filter unit consists of the filter and
the filter frame.
Individual parts
and operating
elements
1
2
3
4
5
8
9
10
11
6 7

8Issue 010910
3 Safety instructions
General information
A sound knowledge of all basic safety regu-
lations is essential to ensure safe and fault-
free operation of the UVAHAND 250. This
user’s manual contains all important safety
regulations to ensure safe operation of the
equipment.
This user’s manual, and in particular the
safety instructions, must be observed by all
persons working with the equipment.
In addition, all relevant rules and accident
prevention regulations relating to the opera-
tion site must be observed.
At regular intervals, the operator will check
that all personnel are observing the safety
regulations.
Staff obligation
Before commencing work, all persons en-
trusted with work to be performed on the
UVAHAND 250 undertake the following:
•to observe the safety at work and acci-
dent prevention regulations.
•to read the chapter on safety and the
warnings printed in this manual and to
observe them at all times while using the
equipment.
Danger when using the equipment
The UVAHAND 250 has been manufactured
in accordance with the very latest state-of-
the-art technology and the recognized rules
of safety technology.
The equipment may only be used under the
following conditions:
•for the purpose for which it was con-
structed
•in a condition in which the equipment
complies with all safety technology re-
quirements.
Danger
Improper use of the equipment can endanger the health of personnel
using it or cause a risk to third parties (including the risk of serious
skin damage or eye injury). It may also cause damage to the device
or other material damage.
Note
Faults which impair the safe operation of the equipment must be
remedied immediately.
Appropriate use
General
information
Staff obligation
Danger when
using the
equipment
Appropriate use

The UVAHAND is a high-intensity ultraviolet
area lamp (UV) for the radiation of surfaces.
Any other use or use above and beyond
these terms is defined as inappropriate and
is thus dangerous.
The UVAHAND 250 must not be used for
tanning the skin.
The operator may only operate the equip-
ment as stipulated by the operating instruc-
tions in this manual.
The operator is under obligation to ensure
that the prescribed inspections and servicing
work are carried out and that the indicated
replacement of worn parts is effected.
The following are further conditions for ap-
propriate use:
•the observance of all points listed in the
user’s manual
•the execution of all servicing and mainte-
nance work
•compliance with the general and specific
safety instructions in this manual
•compliance with the relevant accident
prevention regulations.
Note
The supplier is not liable for damage resulting from inappropriate use
of the equipment.
Warranty and liability
The ‛General sales and delivery conditions’
of the Bohle AG apply. The operator will
have received these terms, at the latest upon
signing the contract. The supplier is not liable
for any damage to persons or property aris-
ing from any one or more of the following:
•inappropriate use of the UVAHAND 250,
•incorrect assembly, commissioning and
operation of the UVAHAND 250,
•operation of the UVAHAND 250 with
faulty and/or non-functioning safety and
protection devices,
•non-observance of the instructions given
in the user’s manual with reference to the
safety, transport, storage, assembly,
commissioning, operation and servicing
of the device.
•unauthorised alterations to the construc-
tion of the UVAHAND 250,
•negligent monitoring of equipment parts
subject to wear
•repairs which are carried out incorrectly
•catastrophes, the action of foreign bodies
or acts of God.
Warranty and
liability

10 Issue 010910
4 Safety regulations
Organisational measures
All safety devices on the equipment must be tested for correct functioning regularly, prior to
carrying out work and at each shift change. Look for external signs of damage.
Informal safety measures
In addition to this user’s manual, the generally and locally applicable accident prevention
and environmental protection regulations must be made available and observed.
Danger due to electricity
The electrical components of the UVAHAND
250 must be inspected regularly.
Before commencing work:
•check all equipment components for
external signs of damage
•check that all electric cables are in per-
fect condition.
Loose connections must be tightened and
damaged wiring replaced immediately.
Danger
There is a danger caused by direct or indirect contact with electricity!
Organisational
measures
Informal safety
measures
Danger due to
electricity

User’s Manual 11
Thermal hazards
The following safety precautions must be
observed when operating the UVAHAND
250:
•Never touch the filter during operation.
Danger
There is an acute danger of fire and burns caused by the high tem-
perature of the filter during operation (up to 200 °C)!
•Protective clothing (protective gloves, UV
protection goggles) must be worn when
working within the radiation field.
•There must always be a distance of at
least 1m between the equipment and
flammable objects.
•If the reflector is temporarily covered with
a screen, leave a gap of 3 to 5 cm be-
tween the screen and the filter to prevent
a build-up of heat.
•The UV lamp must not be used inside
explosion-protected areas.
Danger
The UV lamp must not be used in explosion-protected areas because
of the high temperature it reaches (1000 °C). There is an acute dan-
ger of explosion!
•Never lay the lamp unit filter down while
the equipment is switched on.
This would trigger the thermal fuse and
cause damage to temperature-sensitive
and combustible surfaces.
Thermal
hazards

12 Issue 010910
Danger caused by radiation
In addition to UVA rays, the radiation source of the UVAHAND 250 also emits short-wave
UV radiation (UVC and UVB).
For this reason, the UVAHAND 250 must only be operated with an intact filter.
Danger
If not used properly, UV radiation can damage the skin and eyes!
It can cause severe sunburn or inflammation of the retina and con-
junctiva.
The following instructions must be observed
when working with the equipment:
•Never look directly into the lamp when it
is switched on.
•The UVAHAND 250 must not be oper-
ated without the filter.
•The lamp must be positioned in such a
way that no-one is exposed to direct ra-
diation.
•The filter must be inspected regularly for
signs of damage.
•The equipment must not be operated
unless the filter is intact.
•When working within the radiation field,
always wear the corresponding protective
clothing and UV goggles.
•When working without protective clothing,
the UV radiation must be completely
shielded so that personnel is not ex-
posed.
Note
Protective articles are listed in the chapter ‘Order data for equipment,
spare parts and accessories’.
Caution
UV radiation can cause damage to electronic components!
If EPROMs are used in the vicinity of the UVAHAND 250, they must
be protected against UV radiation.
Caution
UV radiation accelerates the aging process of materials!
Surfaces and objects sensitive to UV radiation must be protected
before operation.
Danger caused
by gases and
radiation

User’s Manual 13
Danger caused by gas
Chemical fumes can be released when radi-
ating materials with the UVAHAND 250.
•Observe the safety data sheets for the
materials to be radiated.
•Where necessary, breathing equipment is
to be worn, and it must be ensured that
the work area is adequately ventilated.
•At the start of operation, measure the
level of radiation in the atmosphere. If the
level is too high, a ventilation and suction
unit must be installed.
•UV rays encourage the production of
ozone. For this reason, it is essential to
ensure that the workroom is well
ventilated.
Danger
The lamp contains mercury!
If it breaks when it gets hot or during operation, mercury vapour is
released.
Everyone present must leave the room immediately. The room must
be thoroughly ventilated.
Subsequently, the mercury residue must be collected using a suit-
able binding agent and disposed of appropriately.
Waste code number: 35326
Binding agent: Powdered copper or zinc or Protectasan
Fa. Frankenberg Königstein/TS
Tel.: [phone]
Service, maintenance, remedying faults
All necessary servicing tasks are described
in the chapter ‘Servicing, maintenance and
cleaning; Servicing’. They must be carried
out to ensure trouble-free operation.
In the unlikely event of faults occurring on
the UVAHAND 250, the chapter 'Faults’
offers information on the causes of the fault
and possible remedial action.
In the unlikely event of a fault occurring
which cannot be remedied by any of the
procedures listed, please contact the cus-
tomer service department of the Bohle AG.
Replace any worn or damaged parts imme-
diately.
Use only original spare parts and replace-
ment parts.
Parts made by other manufacturers may not
be satisfactory from the point of view of
safety technology or their suitability for this
application.
No changes may be made to the UVAHAND
250, no fittings may be added or conversions
carried out without obtaining the prior per-
mission of the supplier. In the event of claims
under the warranty, for our repair and spare
parts service, please contact:
Bohle AG
Dieselstrasse 10, D-42781 Haan
Postbox 1163, D-42755 Haan
Telefon: [phone]
Telefax: 0049 (0) 2129 5568-201
Internet: www.Bohle.de
E-mail: [email protected]
Warning
No repairs or changes to the equipment other than those described
in this manual may be carried out.
Danger caused
by gas
Service, main-
tenance, reme-
dying faults

14 Issue 010910
5 Transport, storage, delivery
The UVAHAND 250 consists of two units
which are delivered in two cartons, or, if
desired, in a plastic box:
Lamp unit
- spacer bar
- connector cable for linking the lamp with
the ballast
- filter frame with filter
- casing
- reflector with holder and
UV lamp
- protective goggles
- protective grille (optional)
Ballast
- The UVAHAND 250 is connected to the
electricity supply via the ballast.
The delivered goods must be inspected to ensure that the consignment is complete, that
there is no damage or anything else conspicuous.
Any damage detected must be documented at once and reported immediately to your spe-
cialist dealer or directly to the supplier.
Note
Packing material must be disposed of in an environment-friendly way
or re-used if possible.
We would recommend that the packing material be kept to protect
the equipment if it needs to be shipped onward or otherwise trans-
ported.

User’s Manual 15
6 Setting-up, commissioning and operation
General information
•When setting up the equipment, ensure
that there are no fingerprints on the re-
flector, the lamp or the filter.
•Never touch the reflector.
•Only handle the UV lamp by its ceramic
bases or with a clean cloth.
•If it is necessary to clean the reflector, the
lamp and the filter, do so when they are
cold, and always use a clean cloth and
alcohol.
Note
Marks on the UV lamp or the reflector (e.g. fingerprints) will be burnt
on when the lamp is put into operation. They reduce the service life
and the performance of the UV lamp.
•Check the air inlets and outlets in the
casing before switching the equipment
on.
There must be no foreign bodies covering
or blocking the apertures.
•When the hand-held lamps are switched
on, never deposit them on temperature-
sensitive or combustible surfaces with the
filter facing downwards.
•If the reflector is to be covered with a
screen for any period of time during op-
eration, ensure that there is a gap of be-
tween 3 and 5 cm between the screen
and the filter.
This will prevent the build-up of heat,
which can lead to the destruction of the
filter. While the spacer bar is fitted, this
gap is automatically given, so please do
not remove this bar.
Danger
Ensure that the cooling is sufficient when setting up the UVAHAND
250. There is acute danger of fire if the equipment is not sufficiently
cooled!
Neither the ambient temperature nor the cooling air temperature may
exceed 45 °C.
•The equipment must be protected against
chemical fumes.
•Only operate the UVAHAND 250 in dry
rooms.
General
information

16 Issue 010910
Setting-up
Fitting the protective grille
The protective grille is an optional extra. •When fitting it, ensure that there are no
fingerprints on the reflector, the lamp or
the filter.
•Unscrew the four fixing screws (12) of the
filter frame (11) and the spacer bar (9).
•Remove the spacer bar (9) and the filter
screen (11) from the hand-held lamp (5).
•Place the protective grille (13) over the
filter screen (11).
The four bore holes (14) in the protective
grille must be located directly over the
four holes (15) in the filter screen (11).
Setting-up
Fitting the pro-
tective grille
11
12 5
9
13
15 11
14

User’s Manual 17

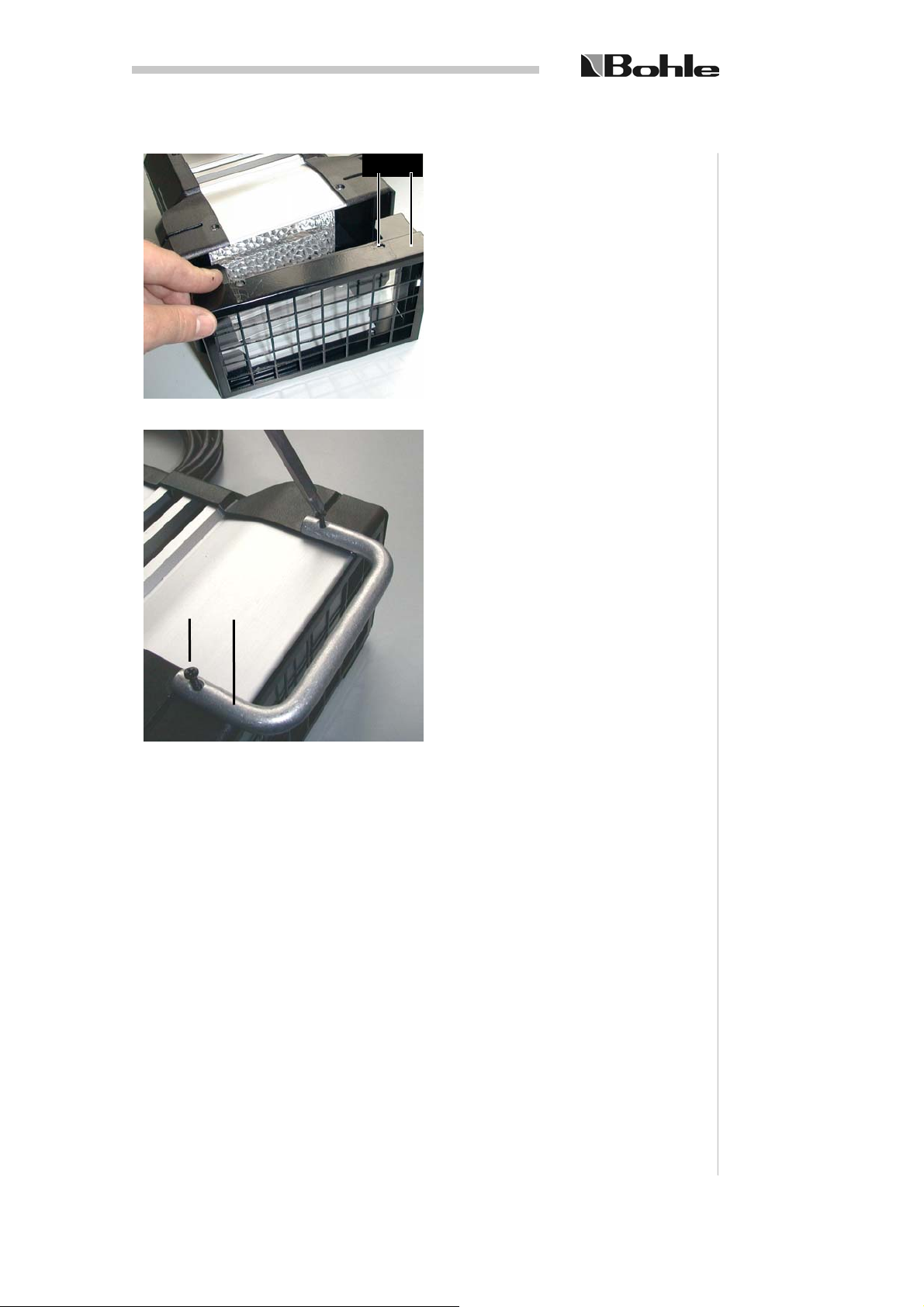

•Insert the filter frame (11) with the fitted
protective grille (13) into the opening at
the front of the device.
•Check that it is fitted correctly.
•Bring the spacer bar (9) into position and
tighten the four fixing screws (12) again.
The filter and the protective grille are now
held in position and cannot fall off.
13 11
12 9

18 Issue 010910
Commissioning
Connecting up to the mains
•Plug the connector cable of the
UVAHAND 250 into the socket (4) on the
ballast (1).
•Plug the mains cable of the ballast (1)
into the socket.
The green lamp in the mains switch (3) lights
up.
Danger
The UVAHAND 250 may only be connected up to properly installed
and earthed sockets.
Warning
Do not connect or disconnect the connector cable unless the ballast
is switched off and de-energised.
Commissioning
Connecting up
to the mains
1
3
4

User’s Manual 19

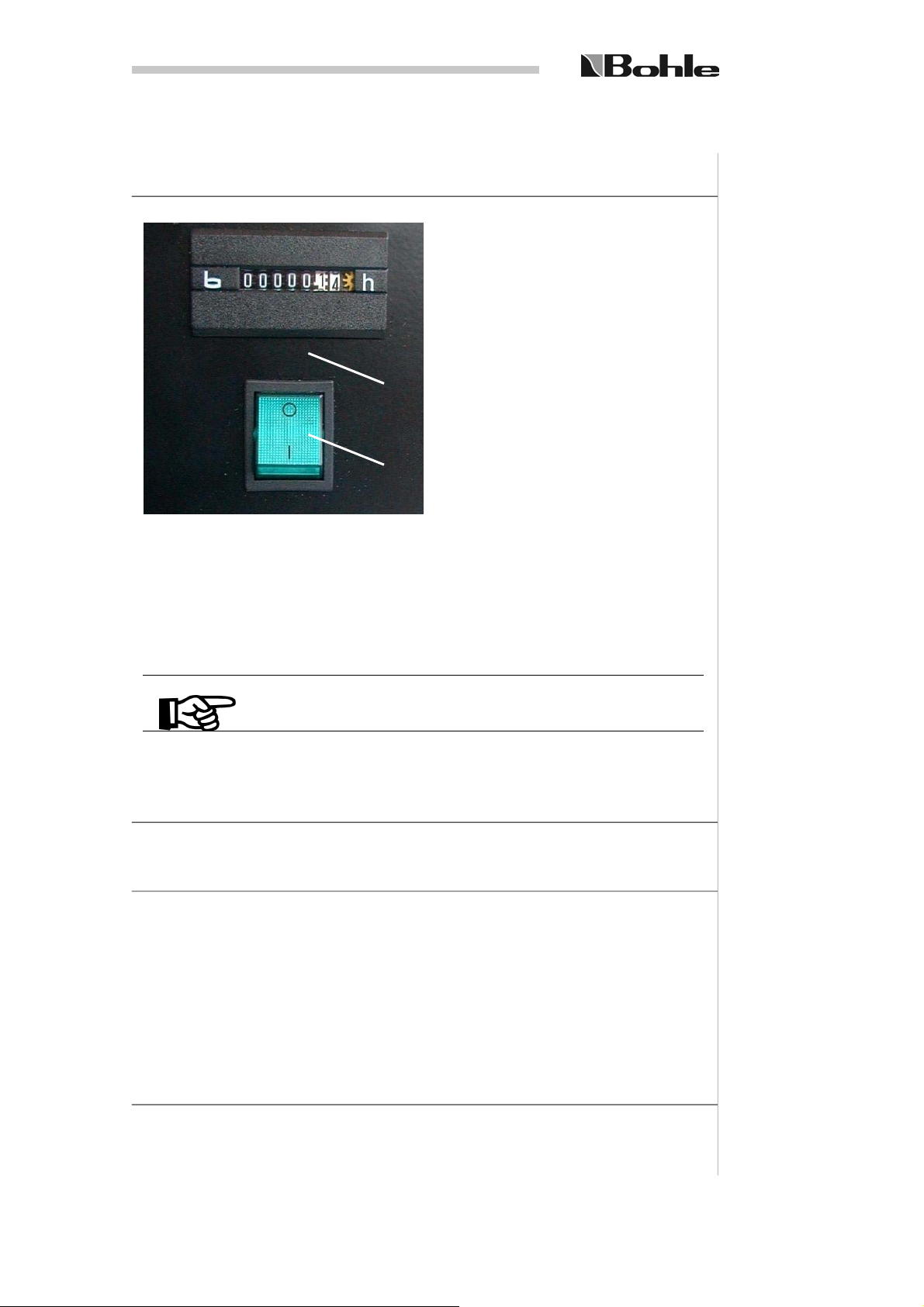

Switching the UVAHAND 250 on and off
•The UVAHAND 250 is switched on and
off by pressing the mains switch (3) on
the ballast (1).
The UV lamp reaches its full power after
approx. 3 minutes.
If the equipment is cold, the ignition process
can take up to approx. 60 seconds.
The UVAHAND 250 is not equipped with hot
ignition, which means that the lamp can only
be switched on again after a cooling-off pe-
riod of 3 to 5 minutes.
If interrupting work for some time, the ballast
should be disconnected from the mains.
Note
Each time the equipment is switched on and off, its service life is
reduced. Avoid switching it on and off unnecessarily.
Operation
Operation as a hand-held lamp
For ease of operation, the UVAHAND 250 is fitted with a handle which can be turned 90°.
Operation on a tripod
Switching the
UVAHAND 250
on and off
Operation
Operation as a
hand-held lamp
Operation on a
tripod
1
3

20 Issue 010910

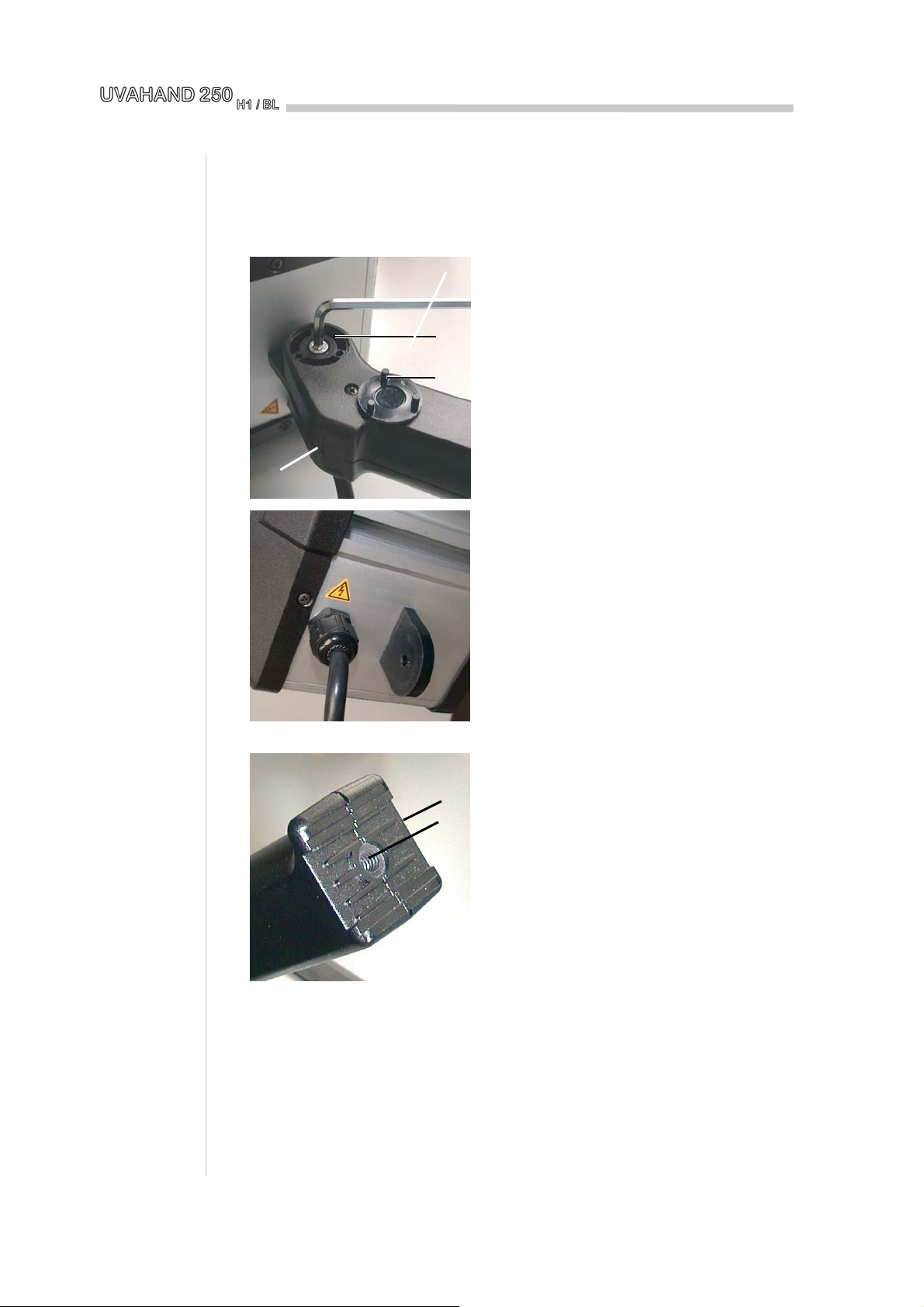

The UVAHAND 250 can be directly mounted on a tripod using the socket or the handle
itself.
Tripod operation via the socket on the
casing
Remove the handle (8). To do this:
•Remove the plastic cap (16) on the screw
side of the handle (8).
•Using a hexagon socket screw key, undo
the screw (17).
•Pull off the handle (8).
•Mount the hand-held lamp on the tripod
via the socket (18) on the handle, using
an M5 screw.
Tripod operation via the handle
To fix the lamp directly, without first remov-
ing the handle (8):
•Screw the photographic tripod into the
threaded bore (19) in the handle (8).
Tripod opera-
tion via the
socket on the
casing
Tripod opera-
tion via the
handle
8
17
16
8
19
18
