BOLD LINKIN 135 User manual

LINKIN 135/150 MANUAL

2BOLD TECH MANUAL ENGLISH
Technical Data:
Seatpost: 34.9mm
Seatpost Clamp: 38.2mm
Travel: 135mm / 150mm
Linkage Specific
Shock Length: 185mm
Shock Stroke: 55mm
Hardware M/Frame: IGUS
Hardware Linkage: 17 x 8mm
BB Housing: 92x41mm
Chainring Max: 36 Tooth
Chain Line: 55mm
Tyre Width Max: 2.6 Inches

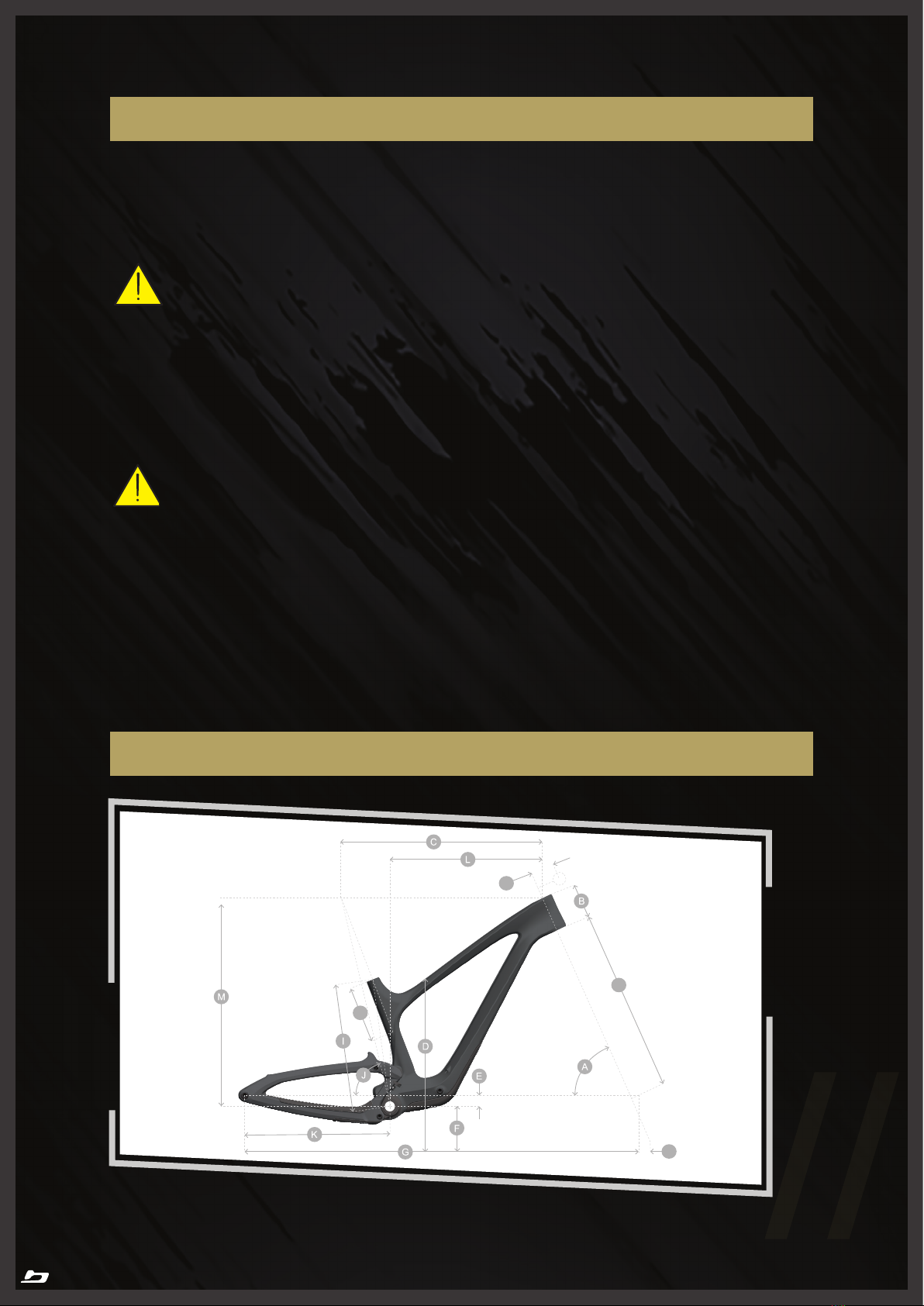

Geometry:
Tyre sizes often vary from brand to
brand.
Always ensure that the frame, linkage
and swingarm tyre clearance are
correct when replacing the rear tyre.
N
O
Q
P
For a complete installation, only take
your bike to an authorized Bold dealer
for assistance.

3
BOLD TECH MANUAL ENGLISH
Linkin 135 Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Small Medium Large X/Large
A HEAD TUBE ANGLE 64.4 / 65.8 64.4 / 65.8 64.4 / 65.8 64.4 / 65.8
B HEAD TUBE LENGTH 90.0 105.0 120.0 135.0
C HORIZONTAL TOP TUBE 546.2 597.0 628.4 661.5
D SUPPORT HEIGHT 675.0 707.0 733.0 760.0
E BOTTOM BRACKET OFFSET 41 / 33 41 / 33 41 / 33 41 / 33
F BOTTOM BRACKET HEIGHT 334 / 342 334 / 342 334 / 342 334 / 342
G WHEELBASE 1171.0 1213.0 1249.0 1286.0
I BOTTOM BRACKET CENTRE TOP TUBE 365.0 395.0 425.0 455.0
J SEAT TUBE ANGLE 78.7 77.7 77.7 77.7
K CHAINSTAY LENGTH 434.1 434.1 434.1 434.1
L REACH 425.0 460.0 490.0 520.0
M STACK 602.0 616.0 629.0 642.0
N STEM LENGTH 50.0 50.0 50.0 50.0
O TRAIL 130.6/120 130.7/120.2 130.8/120.4 130.9/120.5
P FORK LENGTH 551.0 551.0 551.0 551.0
CRANK LENGTH 170.0 170.0 170.0 170.0
FORK OFFSET 44.0 44.0 44.0 44.0
Linkin 150 Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Small Medium Large X/Large
A HEAD TUBE ANGLE 64.2/65.6 64.2/65.6 64.2/65.6 64.2/65.6
B HEAD TUBE LENGTH 90.0 105.0 120.0 135.0
C HORIZONTAL TOP TUBE 546.8 595.9 629.0 662.1
D SUPPORT HEIGHT 683.0 715.0 740.0 766.0
E BOTTOM BRACKET OFFSET 35 / 27 35 / 27 35 / 27 35 / 27
F BOTTOM BRACKET HEIGHT 683 715 740 766
G WHEELBASE 1175.0 1216.0 1253.0 1289.0
I BOTTOM BRACKET CENTRE TOP TUBE 305.0 395.0 425.0 455.0
J SEAT TUBE ANGLE 78.4 77.4 77.4 77.4
K CHAINSTAY LENGTH 434.0 434.0 434.0 434.0
L REACH 425.0 460.0 490.0 520.0
M STACK 604.0 617.0 631.0 644.0
N STEM LENGTH 50.0 50.0 50.0 50.0
O TRAIL 132.5/121.9 132.6/122.1 132.6/122.2 132.7/122.3
P FORK LENGTH 561.0 561.0 561.0 561.0
CRANK LENGTH 170.0 170.0 170.0 170.0
FORK OFFSET 44.0 44.0 44.0 44.0

4BOLD TECH MANUAL ENGLISH
EASY TECHNICAL STEP
IMPORTANT TECHNICAL STEP
WARNING/ATTENTION
THREADLOC
NO GREASE
WITH GREASE
LOCTITE
TORQUE CHECK
PLEASE NOTE THE ICONS BELOW THROUGHOUT THIS
MANUAL FOR SAFE PRACTICE.

5
BOLD TECH MANUAL ENGLISH
The Linkin has only one option
of the rear hanger, this is the
Sram UDH available from Sram
and Scott. UDH has a torque of
25 NM reverse thread.
No grease on the hanger
assembly.
286000 - SCO DROPOUT
SRAM UDH 21
The new rear axle for the Linkin
contains a “plug in “ tool
containing T30/T25 and M6 Hex
key.
Torque for this is 10 Nm
290016 - SCO AXLE RWS
REAR 148X12 SPARK PLUG 22
HANGERS & AXLES:

6BOLD TECH MANUAL ENGLISH
6

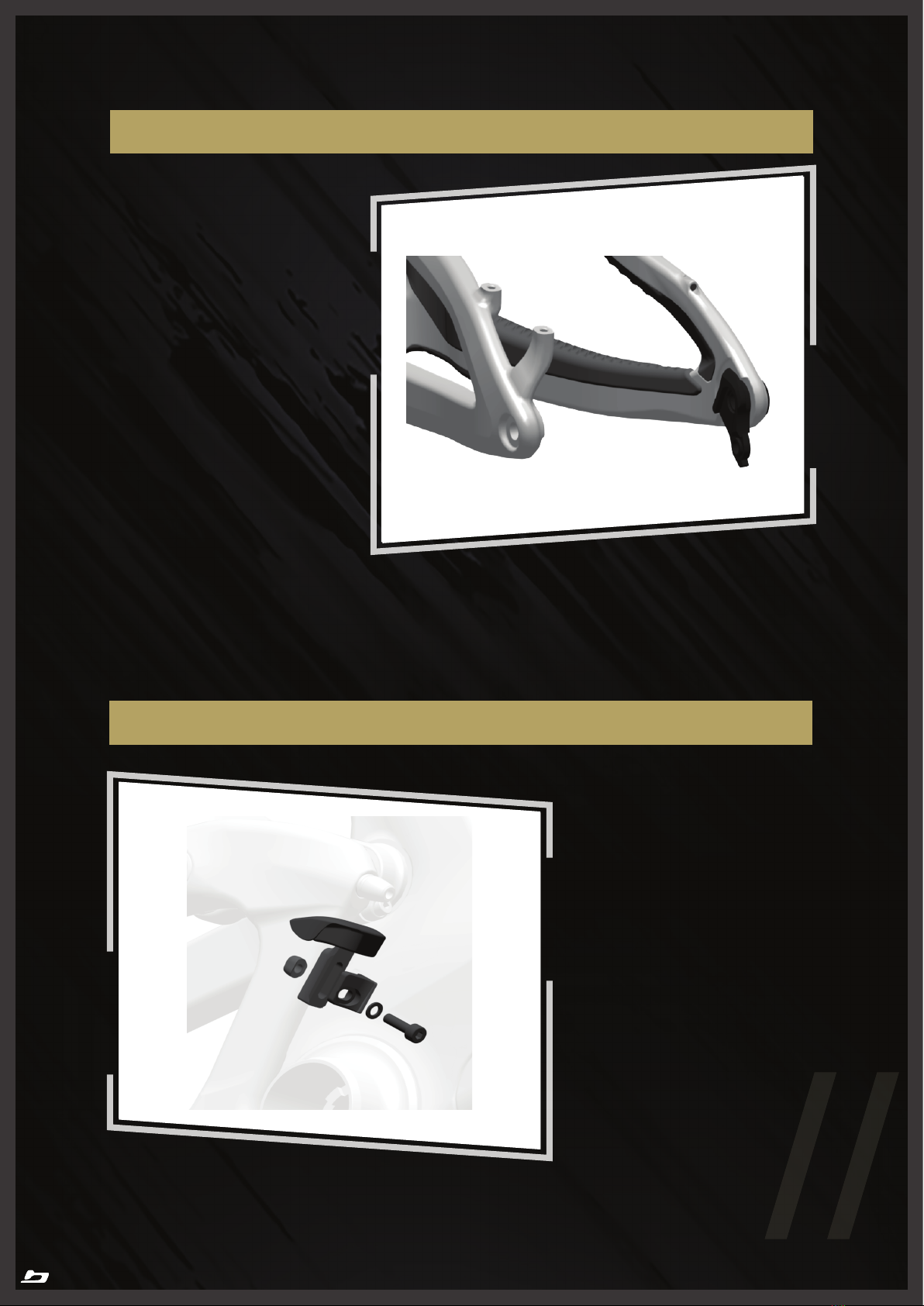

REAR BRAKE:
The brake caliper mount is a
standard post mount with no
adapter for 160mm.
MAX SIZE 180 MM
CHAINGUIDE & PROTECTION:
The Linkin Chainguide has a
maximum chainring size of 36T
291214 - BLD CHAINGUIDE
LINKIN 22

7
BOLD TECH MANUAL ENGLISH

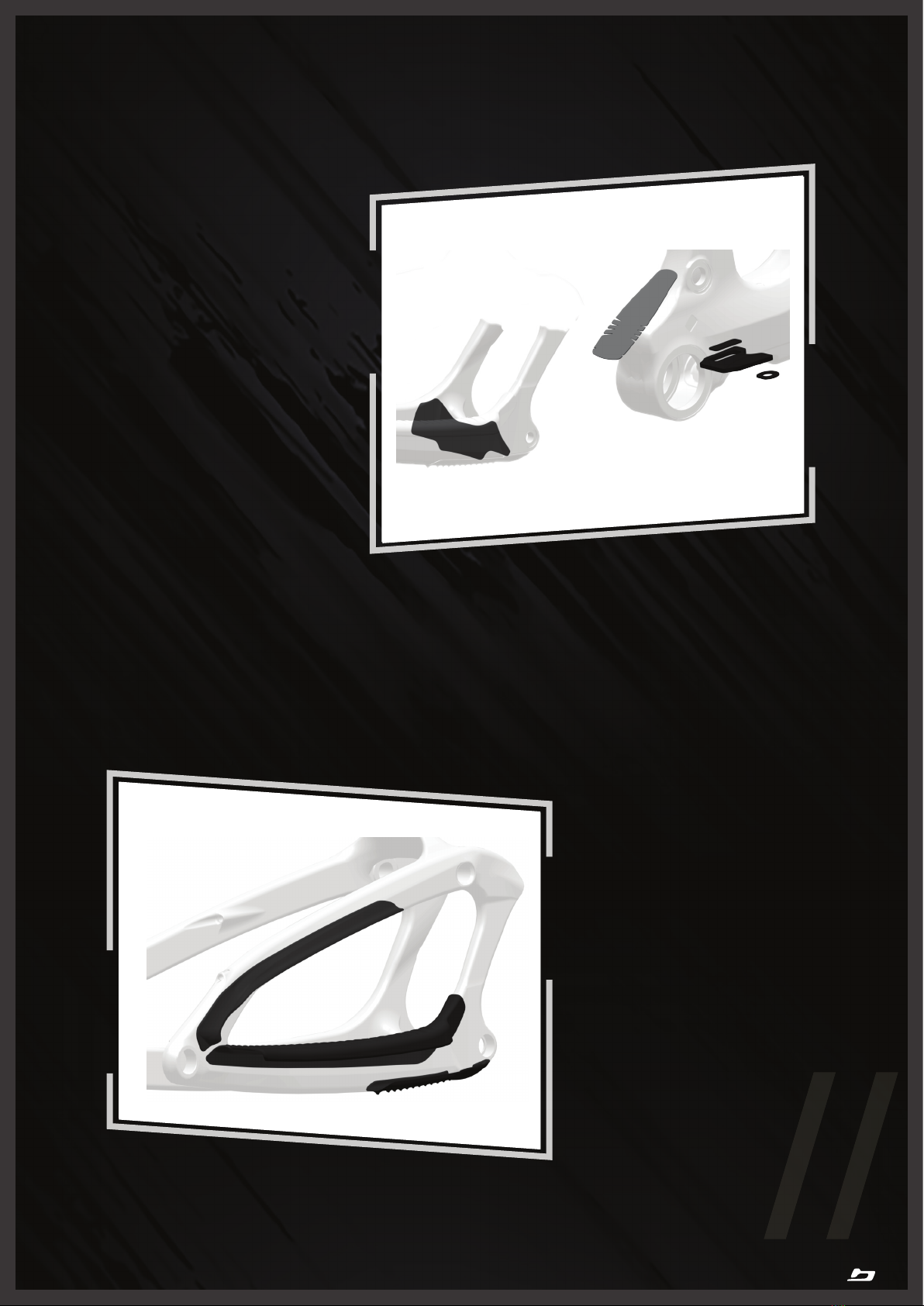

There are two protection kits
available.
291221 - BLD PROTECTION
FILM LINKIN 22
Chainstay / seatstay kit.
291215 - BLD C-STAY S-STAY
PROTECTOR LINKIN 22

8BOLD TECH MANUAL ENGLISH 8
MAXIMUM SEATPOST INSERTION:
Please observe the maximum
seatpost insertion as not
to damage the frame, this
number is size specific.
This number should not be
exceeded.
Small - 272mm
Medium - 302mm
Large - 332mm
X-Large - 362mm
DROPPER SEATPOST:
The Linkin has a dropper in 34.9mm, there will be 2 service kits available.
292669- BLD SEATPOST-SERV AIR CART SYNC 34.9
Air cartridge only in either 150mm/170//200mm
292670 - BLD SEATPOST-SERV.SEAL KIT SYNC 34.9
Including upper and lower bushings, seal, spring, mid-cap, brass pins and 50ML lube.

9
BOLD TECH MANUAL ENGLISH
HEADSET:
The Headset on the Linkin has
several options and setup
variants.
The headset is available in the
following option.
SYNCROS 288251 -SYN
HEADSET ZS56/28.6 –
ZS56/40 MTB
This includes the bearings,
crown, and compression ring.
Cup kit (no bearings) this
comes with 0° and 0.6°.
290060 SCO HEADSET CUP KIT SPARK 22
Please note these kits are size specific.
Headset indication and
orientation. It is important to
have the headset installed
correctly depending on the
setup, there are two types 0°
and 0.6°.
These can be identified from
the stamp on the inner surface
of the headset cup.

10 BOLD TECH MANUAL ENGLISH
10

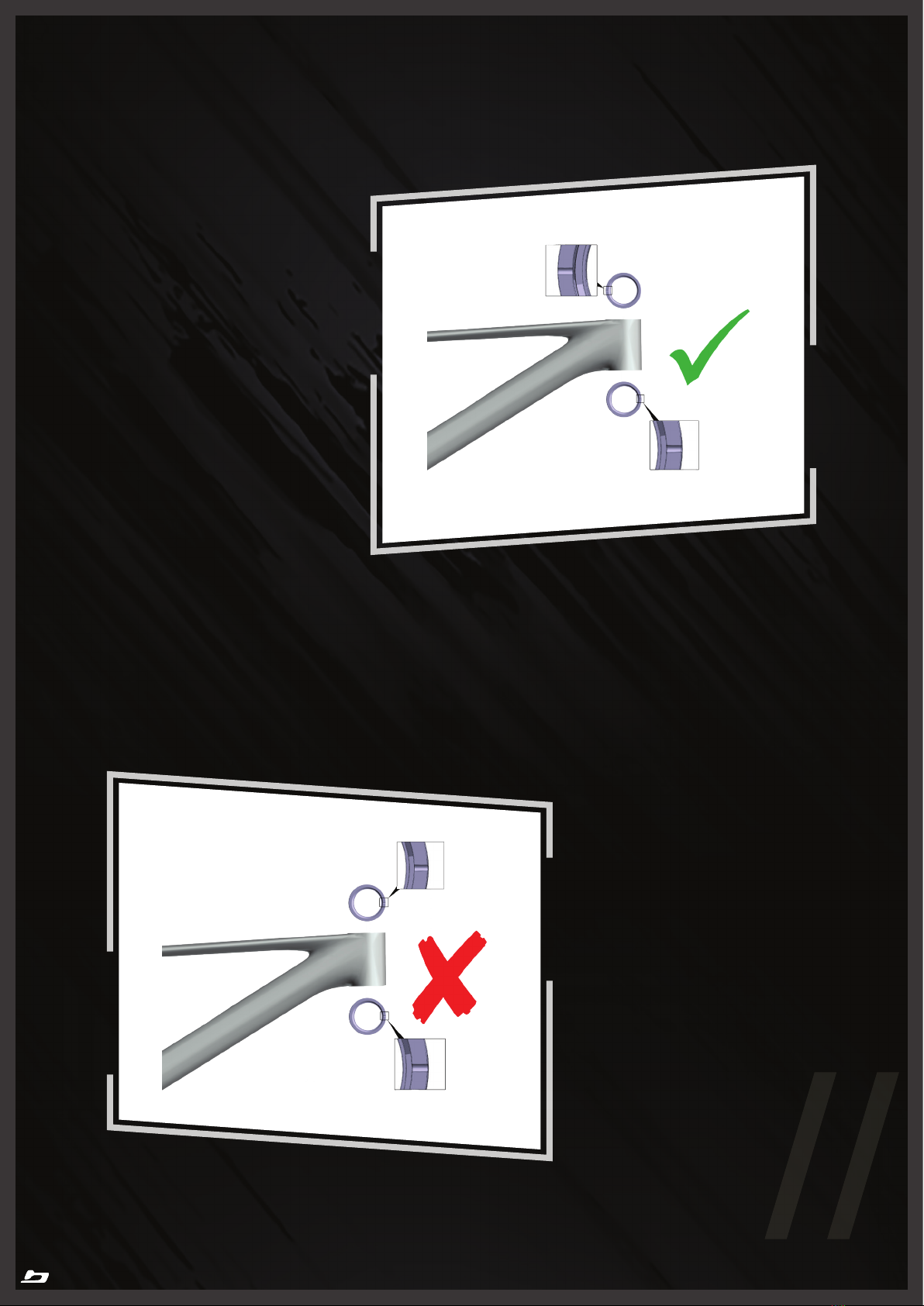

For the 0.6° this can be
installed at + or – but it
is essential that the angle
indication markers on the
headset are set opposite to
each other, top facing forward
and bottom facing backwards
(or vice versa).

11
BOLD TECH MANUAL ENGLISH

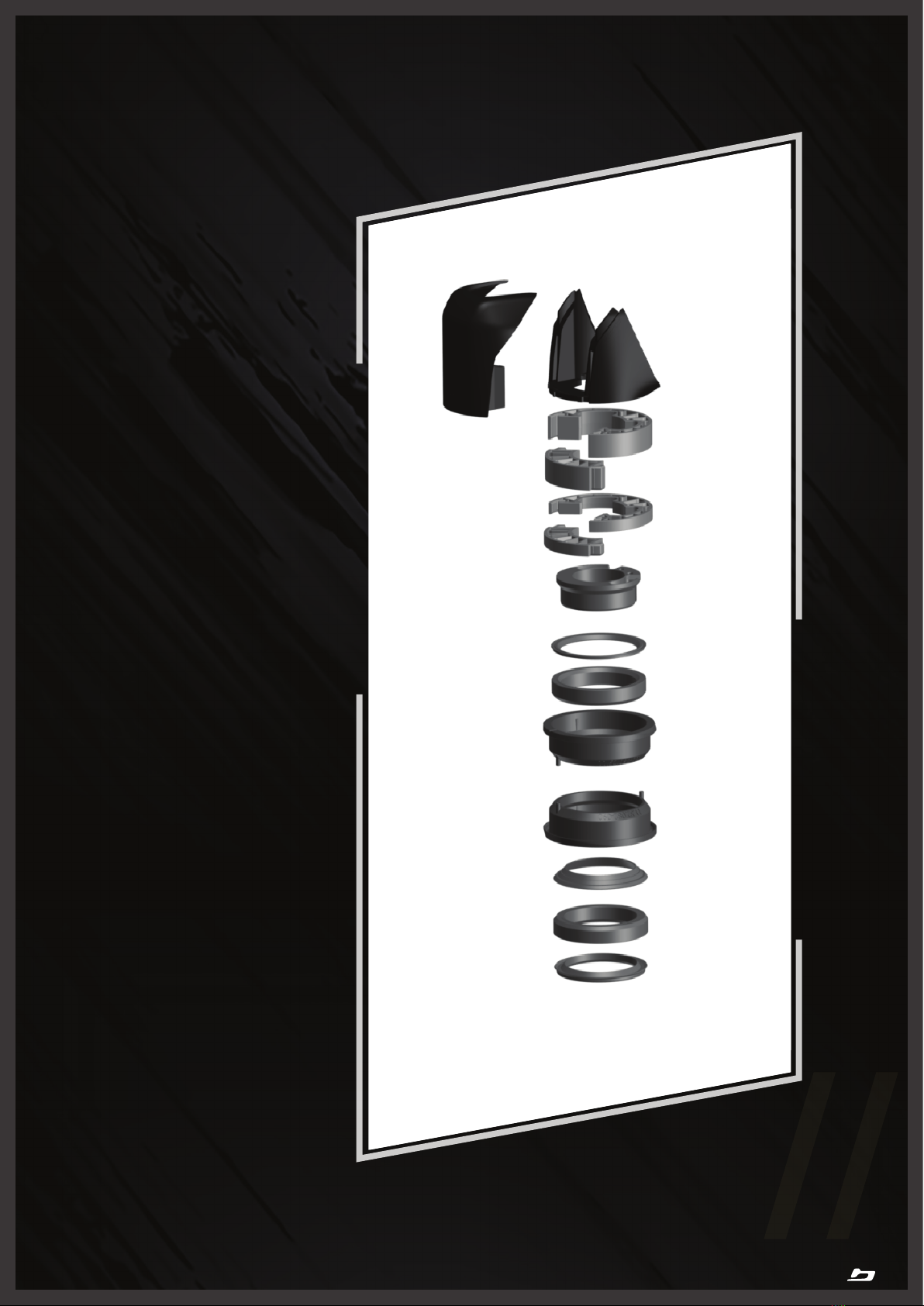

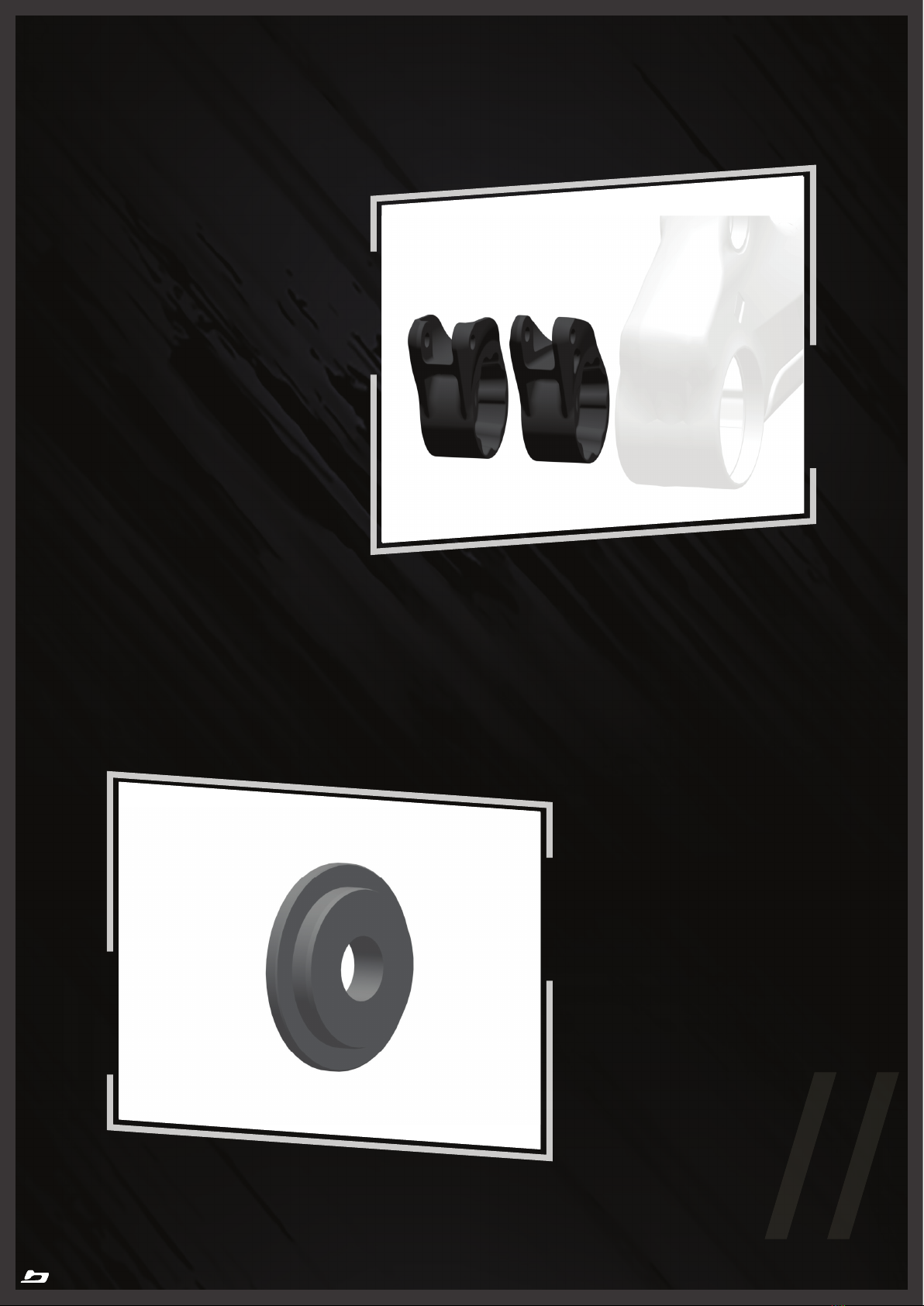

For the stem cover and spacers
there will be one kit to cover all
options.
The headset spacer kit for all
Linkin bikes contains 2 x 5mm
/ 2 x 10mm / compression ring
and the stem cap assembly.
292667 BLD - STEM SPACER
KIT LINKIN 22

12 BOLD TECH MANUAL ENGLISH

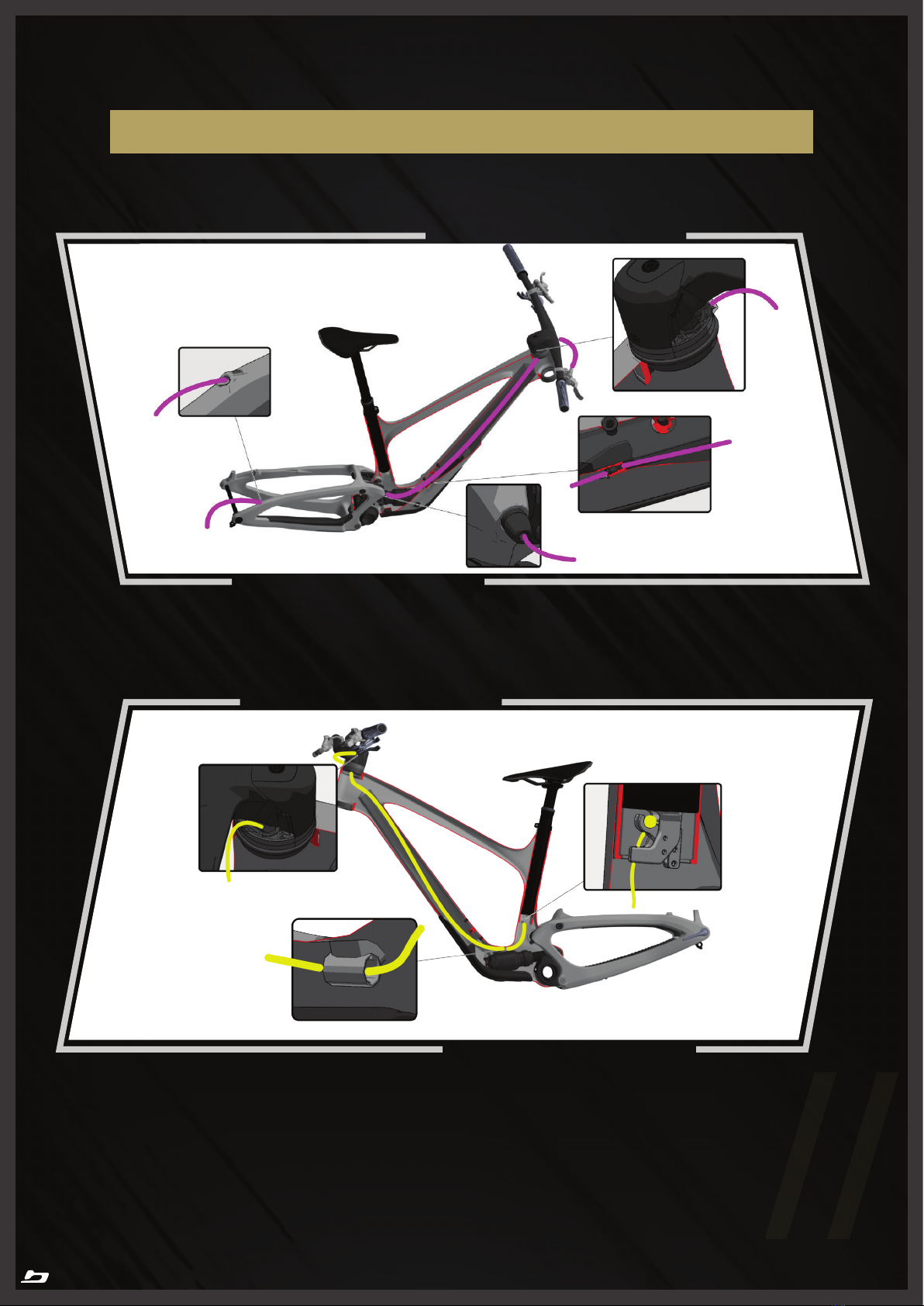

CABLE ROUTING:
REAR DERAILLEUR
DROPPER SEATPOST

13
BOLD TECH MANUAL ENGLISH

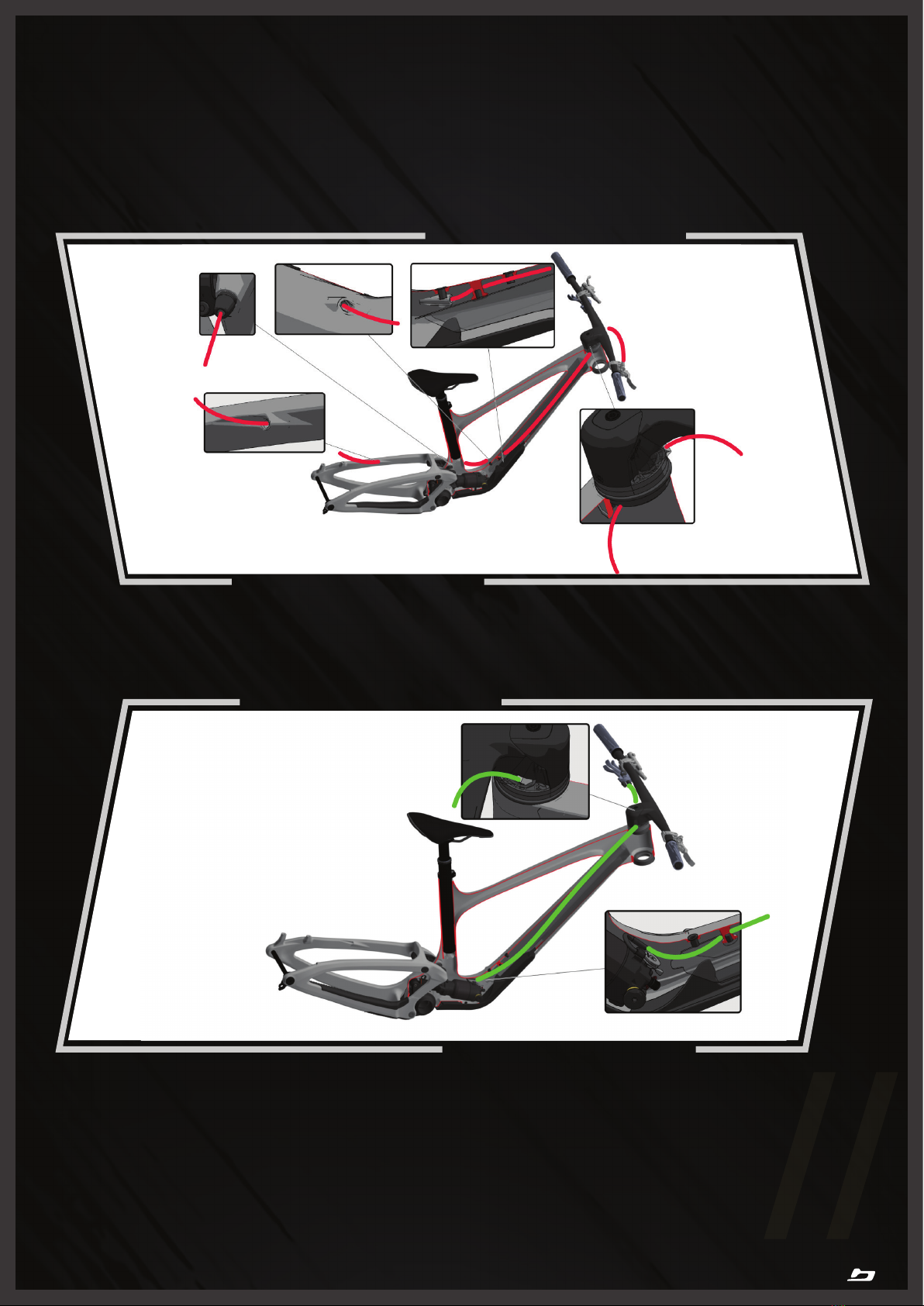

REAR BRAKE HOSE
TRACLOC CABLE

14 BOLD TECH MANUAL ENGLISH
Dropper Seatpost
Rear Shifting
Remote Tracloc
Rear Brake

15
BOLD TECH MANUAL ENGLISH

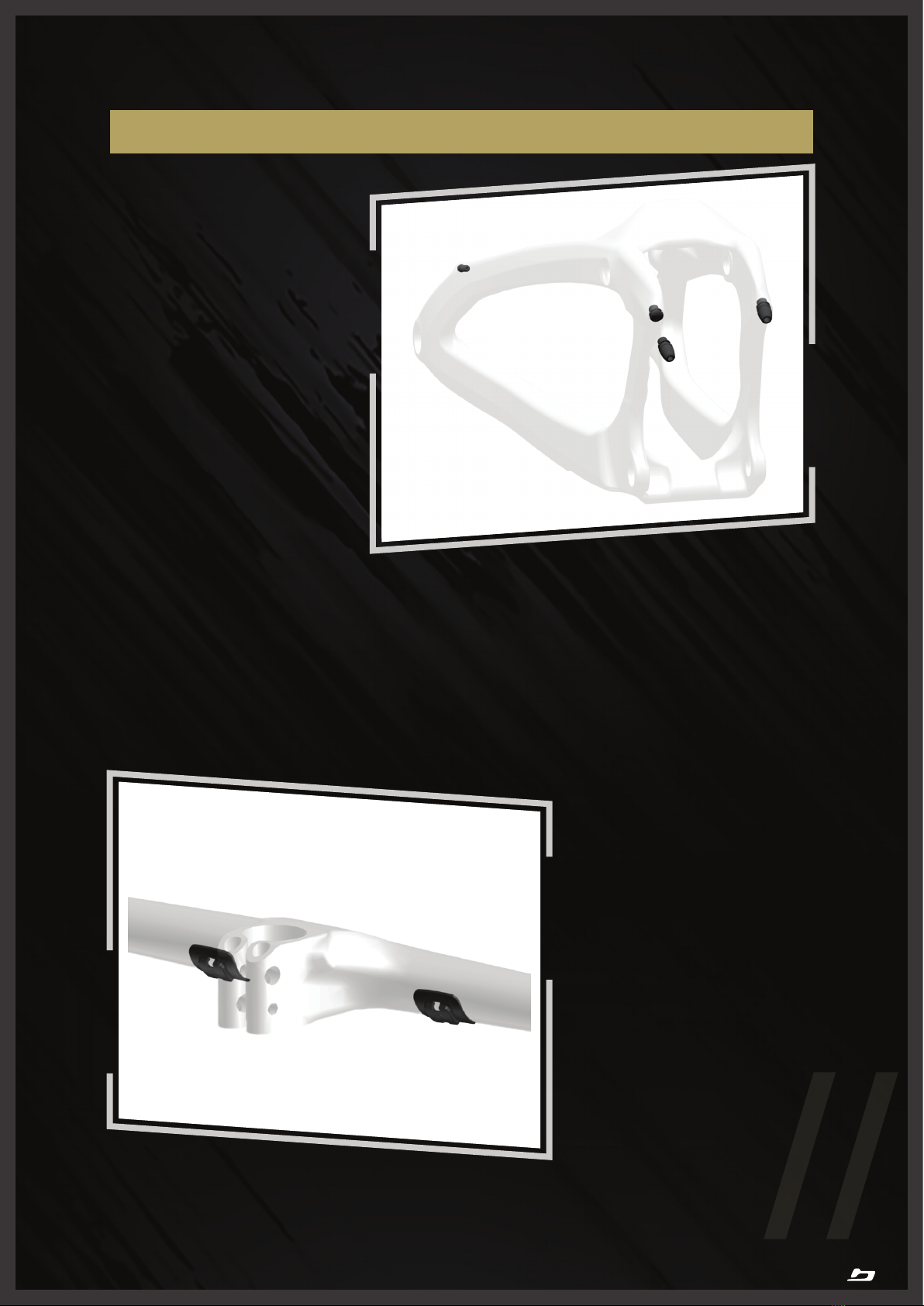

CABLE GUIDES:
The Linkin has internal cable
routing, so just one small kit
for the front of the swingarm is
needed.
291222 - BLD CABLEGUIDE
LINKIN 22
The handlebar cable guide.
290054 - SCO HANDLEBAR
CABLEGUIDE KIT MTB IC 22

16 BOLD TECH MANUAL ENGLISH
16
BOTTLE MOUNTING:
There will be a larger cover for
the base of the downtube, this
will cover the access to the
shock and cable routing.
291223 BLD - CABLE/SHOCK
DT COVER LINKIN 22
The Linkin will only
accommodate one bottle on
the downtube.

17
BOLD TECH MANUAL ENGLISH
STORAGE:
The Linkin will have a storage
box in the downtube. This will
include a tube, pump and a
multi tool (complete bike only)
291216 - BLD DT STORAGE
BOX INTERNAL LINKIN 22
(This is the tube between the
downtube and the tool wallet,
box only).
291217 - BLD DT TOOL
WALLET STORAGE LINKIN 22
(just the tool wallet, no tools)
Multi tool:
294420 - BLD Multi tool
Linkin 22
Pump:
270234 - SYN MINI- PUMP
BOUNDARY 1.5HV
Tyre levers:
228355 - SYN TIRE LEVER
SET

18 BOLD TECH MANUAL ENGLISH 18
SHOCK / SUSPENSION / PIVOTS / LINKAGES:
STROKE 55mm
EYE 2 EYE 185mm
The rear shock has a tracloc
system, this will incorporate
the dropper seatpost as well.
291219 - BLD TRACLOC
LINKIN 22
The rear shock is a Standard Fox part with a medium tune.
The lower shock bush is unique to the Linkin , 17 X 8MM
292666 - BLD REAR SHOCK LINKIN FOX KSH 22
294418 - BLD SHOCK BUSH SET FOX LINKIN 22
REMOVE THE SAG RUBBER, NOT TO BE USED

19
BOLD TECH MANUAL ENGLISH

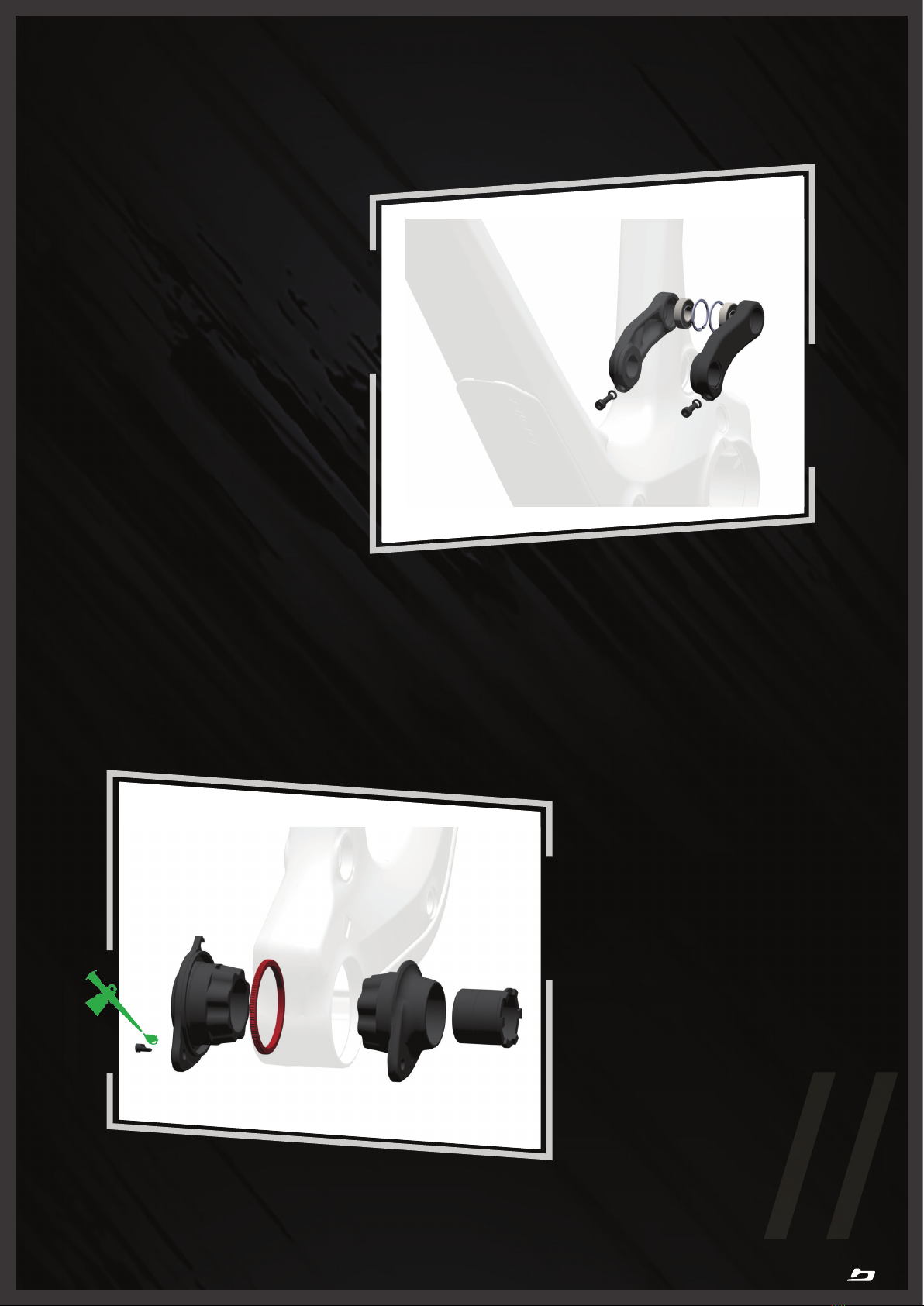

There are three linkage sets for
the Linkin.
The upper linkage set.
291213 - BLD LINKAGE
UPPER LINKIN 22
The lower link set (outer).
Each outer link comes with a
pre-load ring, ensure that the
thread on the pre-load ring is
greased.
291286 - BLD LINKAGE
LOWER OUTER LINKIN 22

20 BOLD TECH MANUAL ENGLISH
20
The inner lower linkage,
can be changed to alter the
travel, between 135mm and
150mm.
291287 - BLD LINKAGE INNER
TRAVEL ADJ LINKIN 22
150mm
135mm
The bearings will be three different types.
SEATSTAY/ UPPER LINKAGE X2- 22X10X6MM (9600)
CHAINSTAY / LOWER LINK - X2- 19X10X8MM (3800)
BB MAIN LINK X2 – 72X55X9MM (6811)
To help the fitting of the main
lower bearing 72x55x9mm
(6811) there is a press
available that is compatible
with the Park HHP-2 headset
press.
292672 - BLD TOOL MAIN
PIVOT PRESS LINKIN
291288 - BLD SWINGARM
REP KIT LINKIN 22
291285 - BLD SHOCK MOUNT
BOLT KIT LINKIN 22
