BOLD Unplugged 160 29 User manual

MANUAL

2BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 2
Seatpost: 34.9mm
Seatpost Clamp: 38.2mm
Travel: Fr: 170mm / Rr: 160mm
Shock Length: 185mm
Shock Stroke: 55mm
Hardware M/Frame: Trunnion
Hardware Linkage: 17 x 8mm
BB Housing: 92x41mm
Chainring Max: 34 Tooth
Tyre Width Max: 2.5 Inch
Technical Data:

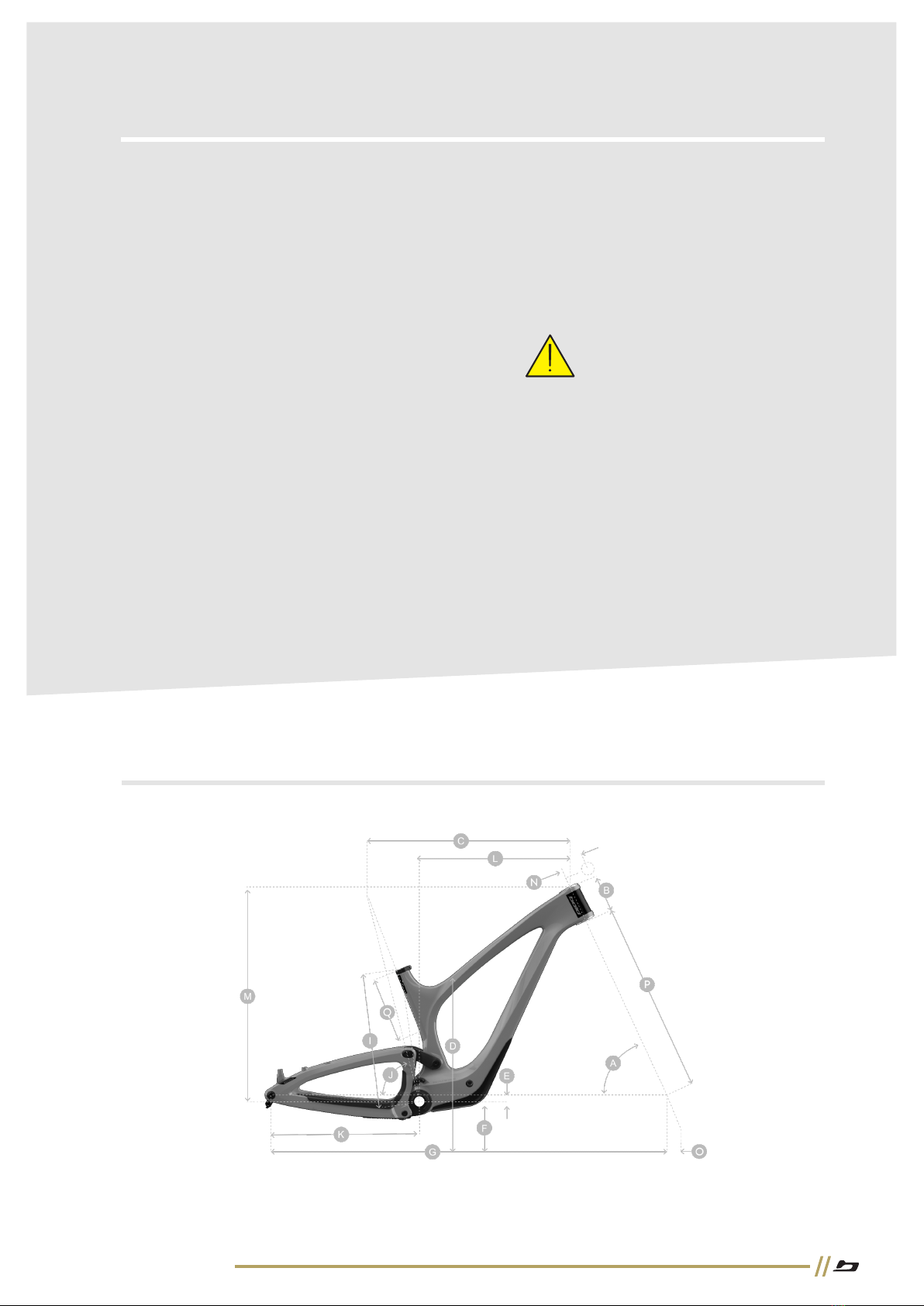

Geometry:
Tyre sizes often vary from brand
to brand, always ensure the tyre
clearance is adequate throughout
the tyres rotation.

3BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 3
Unplugged 160/170 29 Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Sm Med Lg X/Lg
A HEAD TUBE ANGLE 63,2 / 64,5 63,2 / 64,5 63,2 / 64,5 63,2 / 64,5
B HEAD TUBE LENGTH 90 105 120 135
C HORIZONTAL TOP TUBE 548 596 628 661
D STANDOVER HEIGHT 693.0 715.0 733.0 762.0
E BOTTOM BRACKET OFFSET 33 / 25 33 / 25 33 / 25 33 / 25
F BOTTOM BRACKET HEIGHT 340 / 348 340 / 348 340 / 348 340 / 348
G WHEELBASE 1203 / 1193 1244 / 1235 1281 / 1271 1317 / 1308
I BOTTOM BRACKET CENTRE TOP TUBE 381 403 435 470
J SEAT TUBE ANGLE 78.6 77.8 77.8 77.8
K CHAINSTAY LENGTH 437.0 437.0 437.0 437.0
L REACH 424.0 459.0 489.0 519.0
M STACK 617.0 631.0 644.0 658.0
N STEM LENGTH 40.0 40.0 40.0 40.0
O TRAIL 139 / 129 139 / 129 139 / 129 139 / 129
P FORK LENGTH 583.7 583.7 583.7 583.7
CRANK LENGTH 170.0 170.0 170.0 170.0
FORK OFFSET 44.0 44.0 44.0 44.0
Unplugged 160/170 Mullet Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Low-Slack
High-Steep
Sm Med Lg X/Lg
A HEAD TUBE ANGLE 63.2 / 64,5 63.2 / 64,5 63.2 / 64,5 63.2 / 64,5
B HEAD TUBE LENGTH 90.0 105.0 120.0 135.0
C HORIZONTAL TOP TUBE 548.0 595.0 628.0 661.0
D STANDOVER HEIGHT 693.0 715.0 733.0 762.0
E BOTTOM BRACKET OFFSET 21 / 14 21 / 14 21 / 14 21 / 14
F BOTTOM BRACKET HEIGHT 340 / 347 340 / 347 340 / 347 340 / 347
G WHEELBASE 1205 / 1196 1246 / 1237 1283 / 1274 1320 / 1310
I BOTTOM BRACKET CENTRE TOP TUBE 381 403 435 470
J SEAT TUBE ANGLE 78.6 77.8 77.8 77.8
K CHAINSTAY LENGTH 438.0 438.0 438.0 438.0
L REACH 424.0 459.0 489.0 519.0
M STACK 617.0 631.0 644.0 658.0
N STEM LENGTH 40 40 40 40
O TRAIL 139 / 129 139 / 129 139 / 129 139 / 129
P FORK LENGTH 583.7 583.7 583.7 583.7
CRANK LENGTH 170.0 170.0 170.0 170.0
FORK OFFSET 44.0 44.0 44.0 44.0

4BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 4
ANTI SEIZE REQUIRED TASK DIFFICULTY TORQUE AMOUNT Nm
TORX TOOL SIZE
ALLEN KEY SIZE MMTHREADLOC
GREASE NO GREASE CARBON GREASE
BEARING FIT
TORQUE CHECK
T 25
10 Nm
PLEASE NOTE THE ICONS BELOW THROUGHOUT THIS
MANUAL FOR SAFE PRATICE.

5BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 5

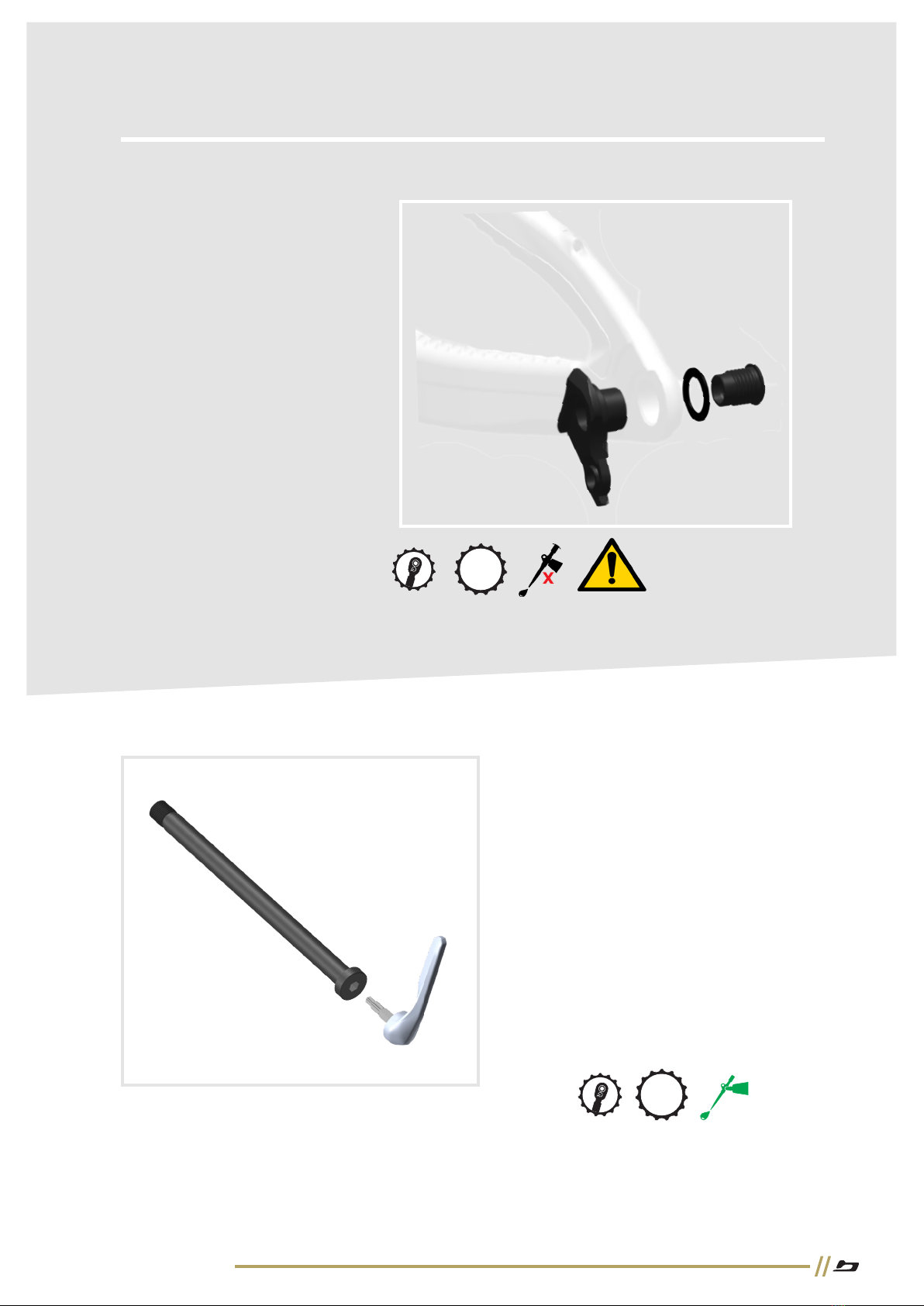

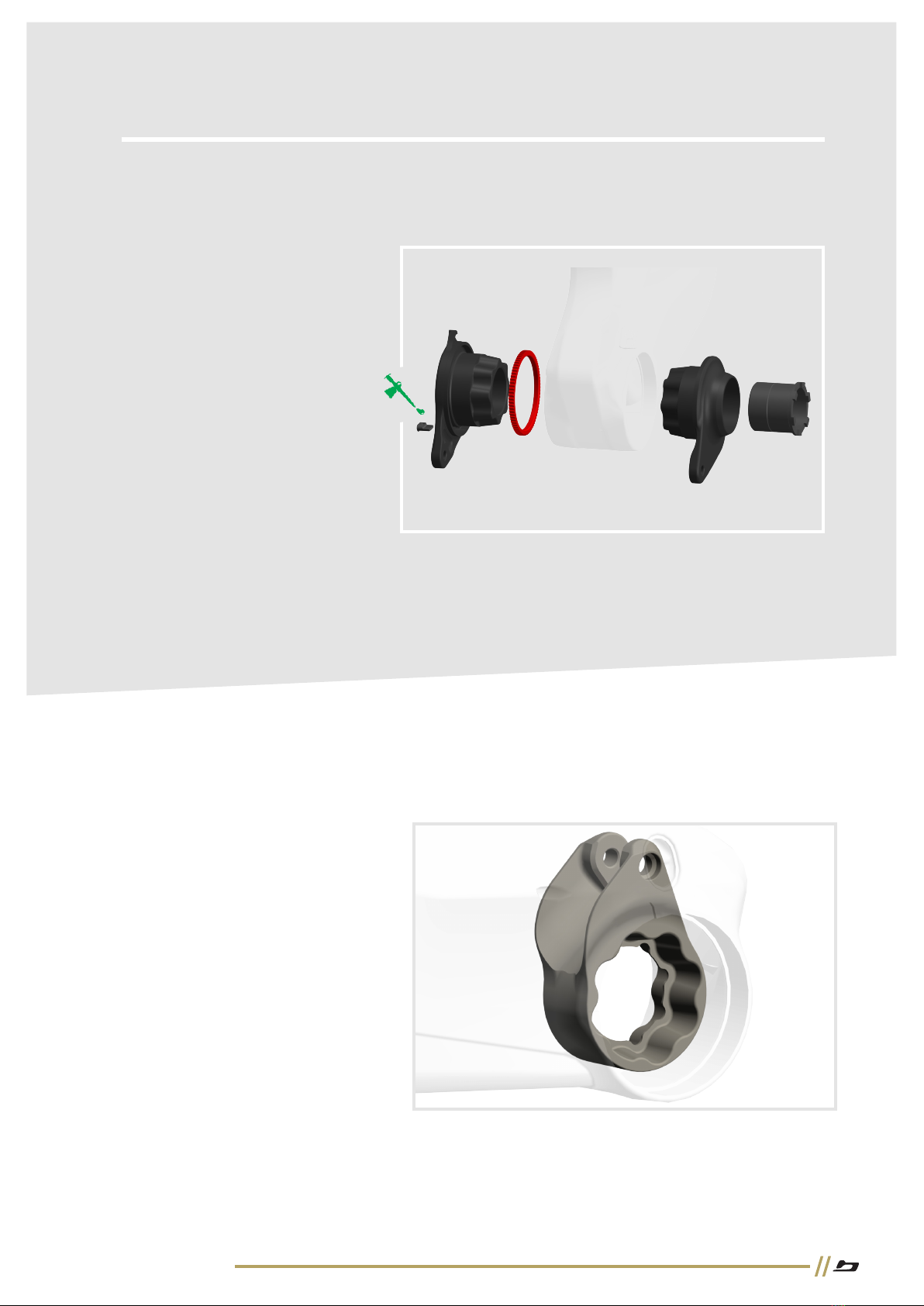

The Unplugged has only one
option of the rear hanger, this
is the Sram UDH available
from Sram and Bold (only
if your local agent cannot
supply). UDH note no grease
on fitting and correct torque 25
Nm reverse thread.
No grease on the hanger
assembly.
286000 - SCO DROPOUT SRAM
UDH 21
The new rear axle for the 2022
Unplugged is identical to the
2022 Scott Spark and contains
a “plug in” tool containing
T30/T25 and M6 Hex key.
Recommended Torque for this
is 10 Nm
290016 - SCO AXLE RWS REAR
148X12 SPARK PLUG 22
25 Nm Reverse Thread
10 Nm
Hangers & Axles:

6BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 6
Chainguide & Protection:

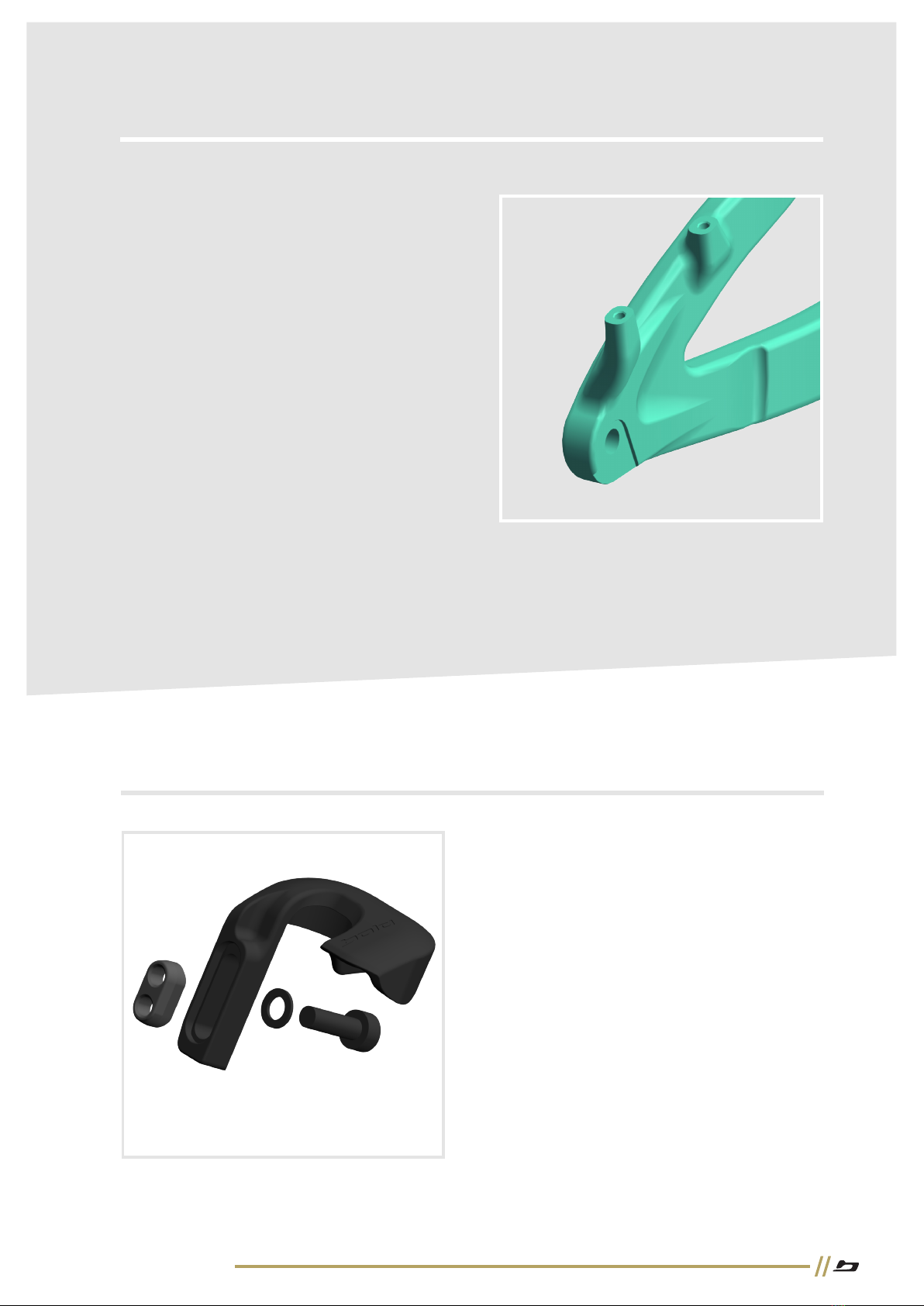

The brake caliper mount is a
standard post mount 180mm
with no adapter.
The Unplugged chainguide has
a maximum chainring size of
34T.
297742 - BLD CHAINGUIDE KIT
UNPLUGGED 23
Rear Brake:

7BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 7
There are two protection kits available.
297496 - BLD C-STAY S-STAY PROTECTOR
UNPLUGGED 23
Protection kit.
297744 - BLD PROTECTION
SET UNPLUGGED RT 23
Chainguide & Protection:

8BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 8
Please observe the maximum
seatpost insertion as not
to damage the frame, this
number is size specific.
This number should not be
exceeded.
Small - 217mm
Medium - 240mm
Large - 275mm
X-Large - 320mm
The Unplugged has a Syncros dropper in 34.9mm, there will be 2 service kits available.
297733 - SCO SEATPOST SERV. CART KIT DUNCAN 1.5
297734 - SCO SEATPOST SERV. SEAL KIT DUNCAN 1.5
Maximum Seatpost Insertion:
Dropper Seatpost:

9BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 9
Headset:
Slacker Steeper

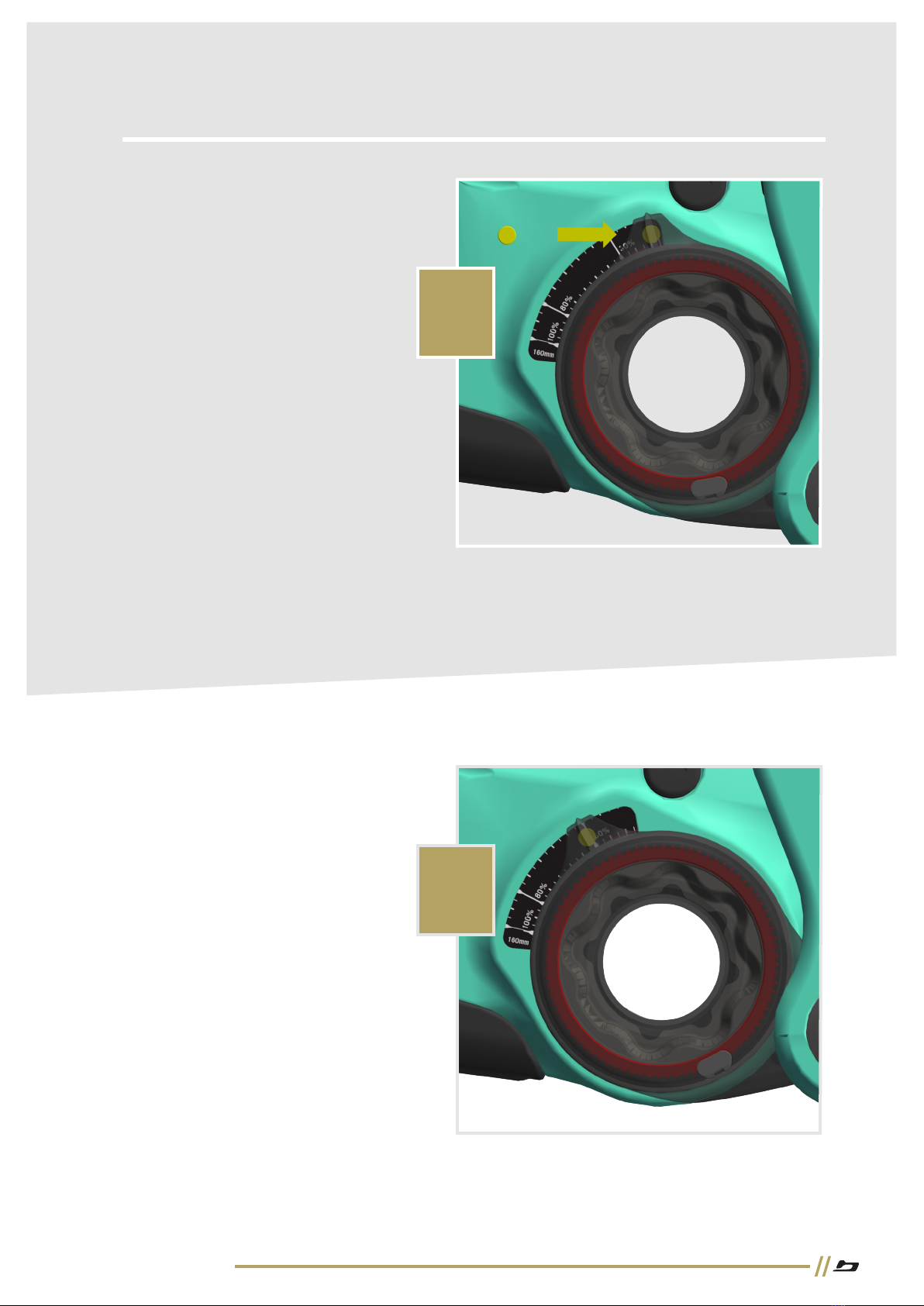

It is important to install the headset correctly
depending on the set up required. There are two
types of headset cups.
0° & 0.6° ( 64° & 65°) These can be indentified from
the stamp on the inner surface of the headset cup.
The headset is available in two options:
288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB
290060 SCO HEADSET CUP KIT SPARK 22
Do not use a standard headset tool to
remove these plastic headset cups.
Frame size:
Small: HT090
Med: HT105
Large: HT115
XLarge: HT 135

10 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 10

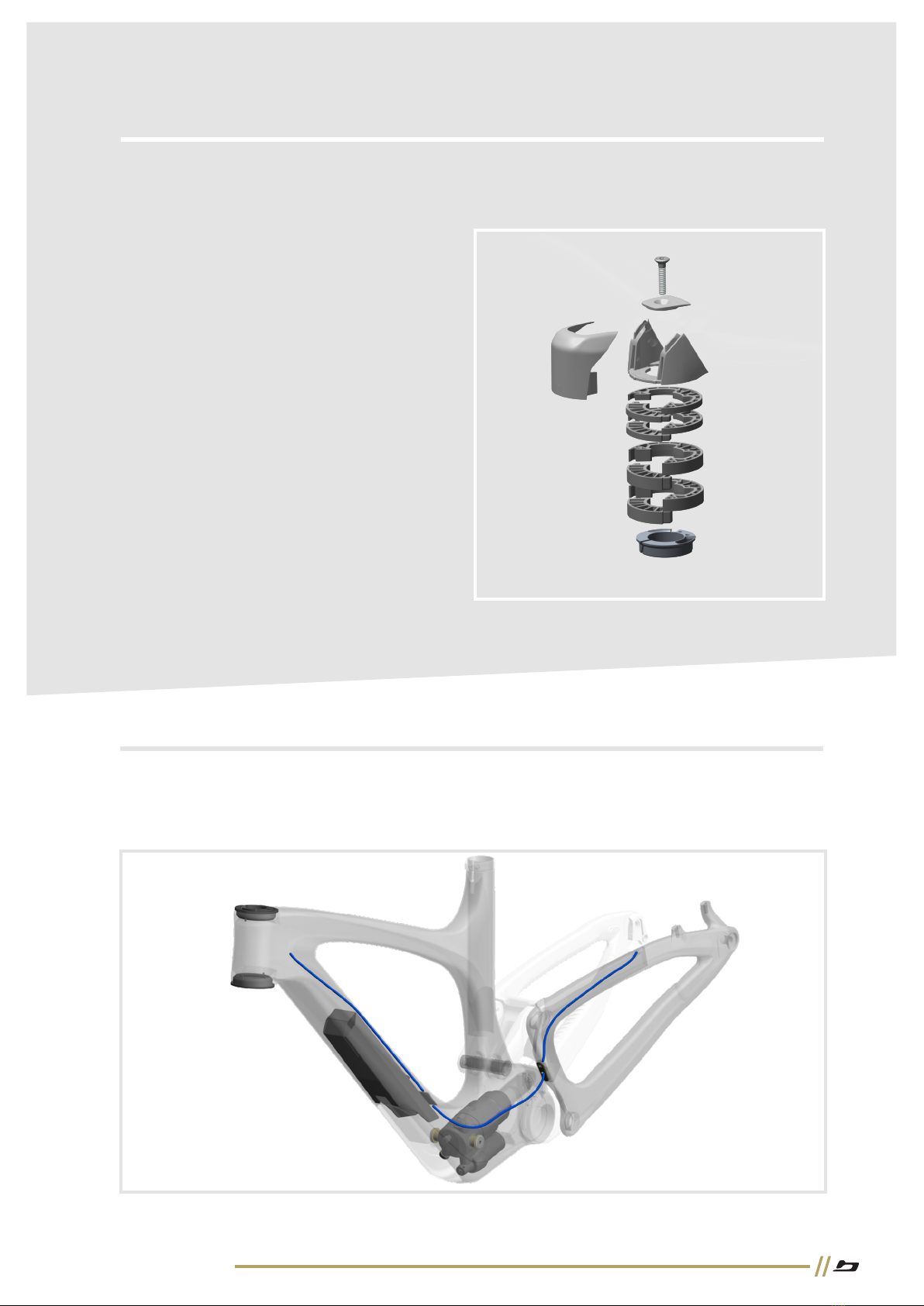

For the stem cover and spacers there
will be one kit to cover all options.
The headset spacer kit for all
Unplugged bikes contains 2 x 5mm / 2
x 10mm / 2 x 2mm + compression ring
and the stem cap assembly.
The kit will fit all stem options on this
bike, Syncros Hixon IC Combo / AM 1.5
/ AM 2.0
297522 SCO - STEM SPACER/TOP CAP
GENIUS 23
Headset:
Cable Routing:

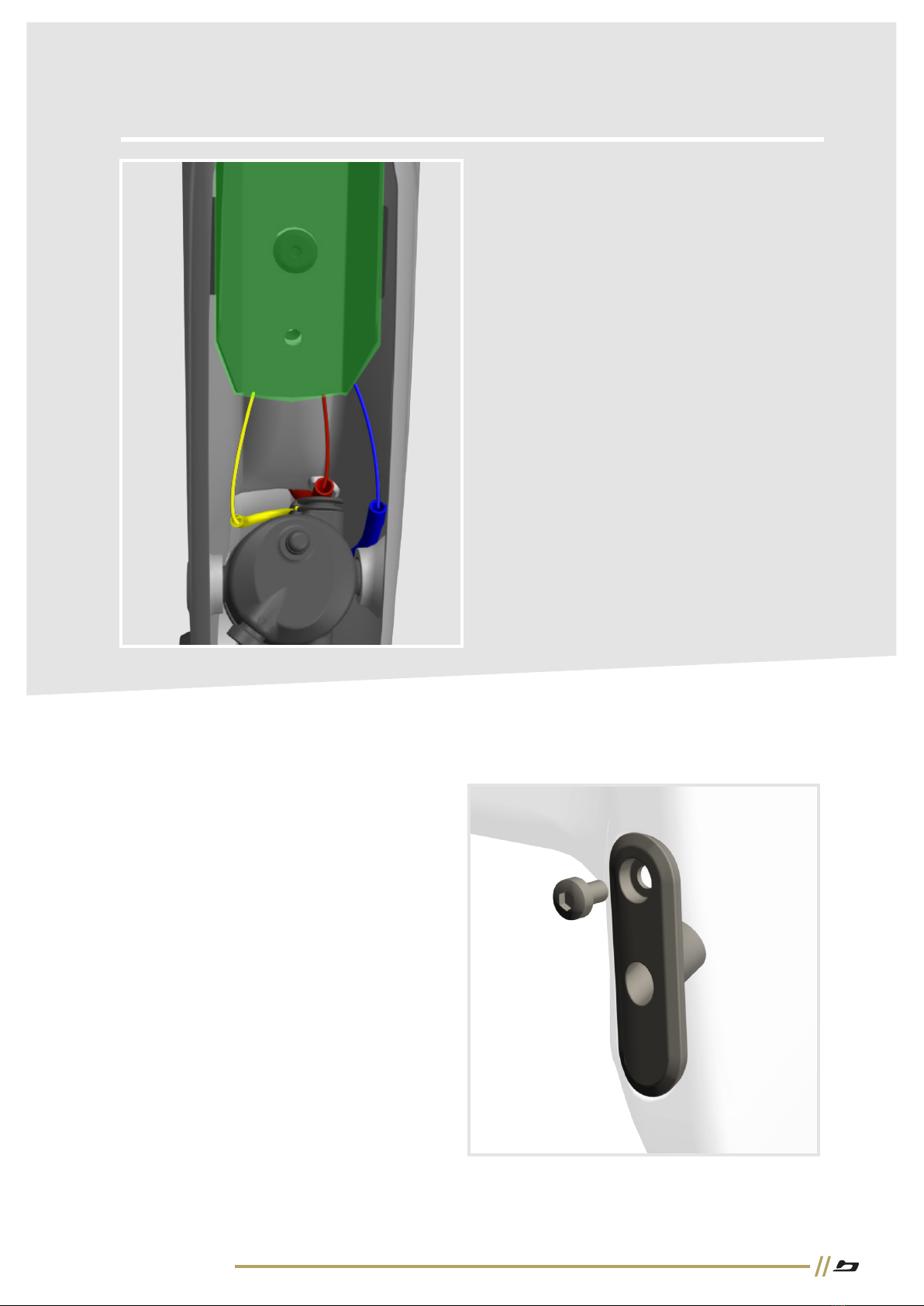

Please ensure all cables are away from any moving components. All cables & hoses will run
above the “Save the day kit” and the cable plate. Gear shifting is wireless only.
Rear Brake

11 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 11
Dropper Seatpost
Tracloc
Cable Routing:

12 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 12

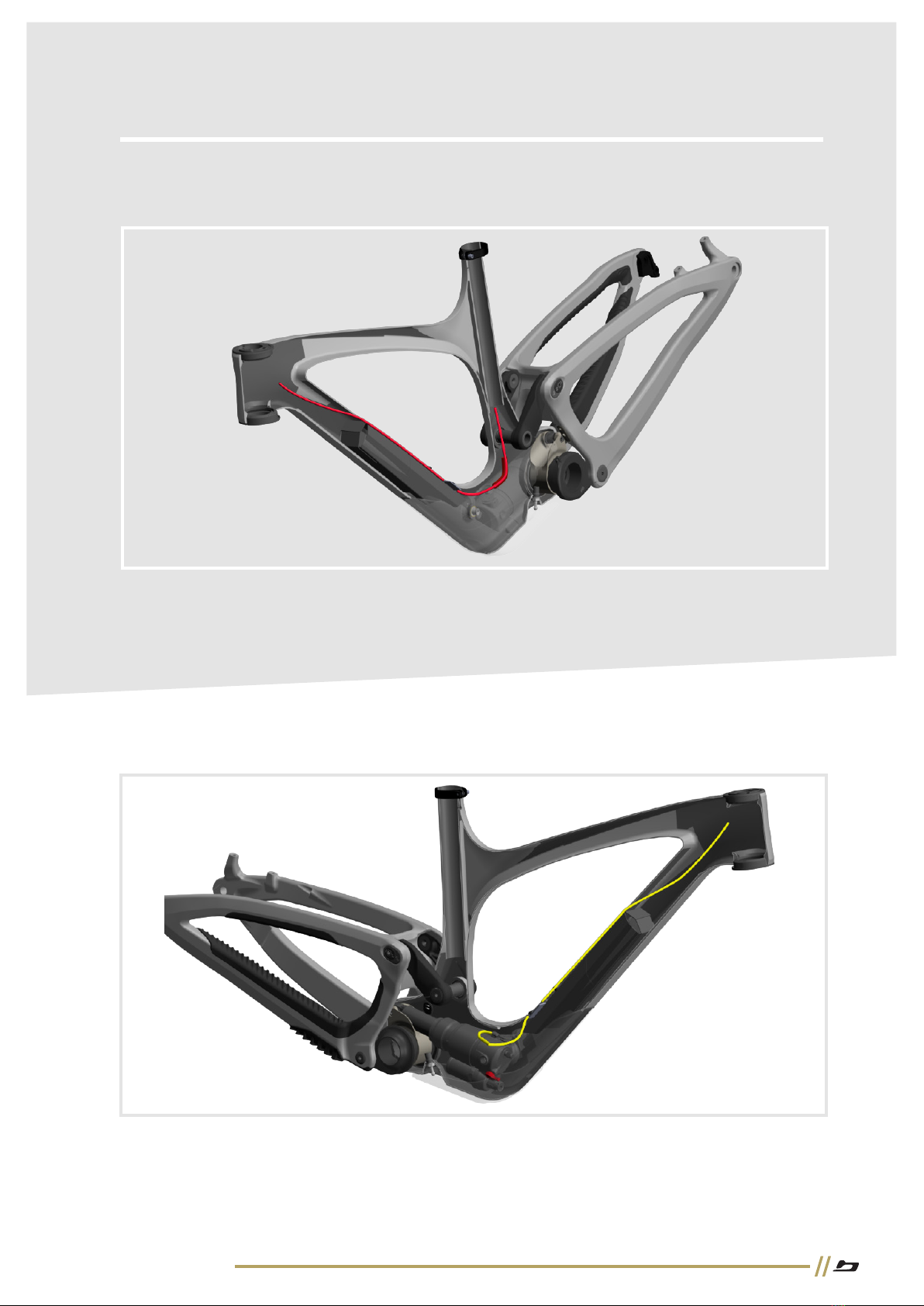

Cable Routing:
Cable Plate: Green
Dropper Seatpost: Red
Rear Brake: Blue
Tracloc: Yellow
The Unplugged has one swingarm
cableguide for the rear brake hose.
421510 - BLD CABLEGUIDE R-BRAKE
UNPLUGGED 23

13 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 13

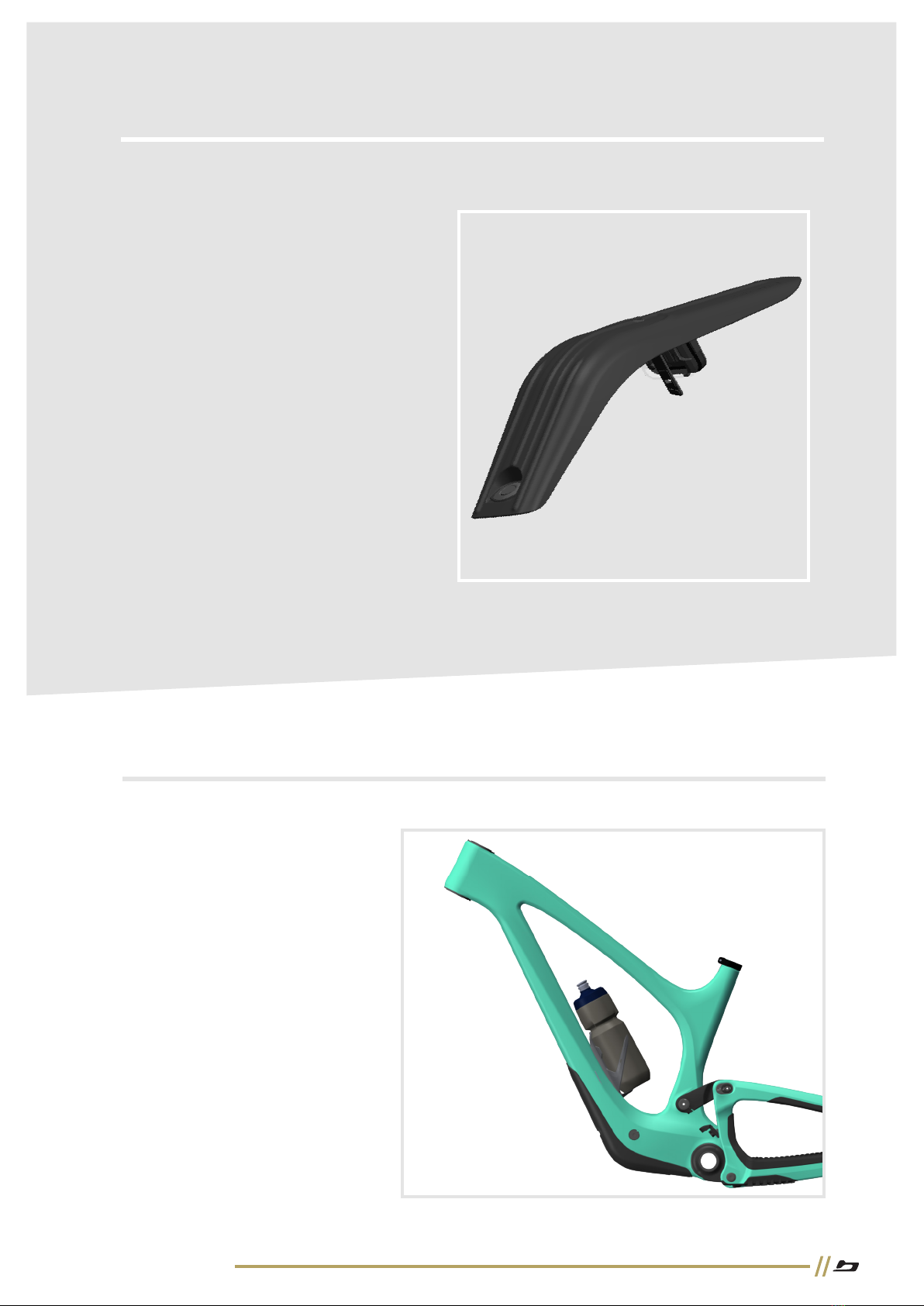

There will be a larger cover for the
base of the downtube, this will cover
the access to the shock and cable
routing.
297748 BLD - CABLE/SHOCK DT
COVER UNPLUGGED 23
Cable Routing:
The UNPLUGGED will only
accommodate one bottle on
the downtube.
Bottle Mounting:

14 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 14
Storage:
The Unplugged has a storage
box in the DT. This will include
a tube, pump, multi tool,
tyre levers & cable plates.
(complete bike only)
297745 - BLD SAVE THE DAY
KIT 2.0
Shock / Suspension / Pivots / linkages:
The rear shock has a tracloc
system, this will incorporate the
dropper seatpost as well.
291219 - BLD TRACLOC LINKIN 22

15 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 15

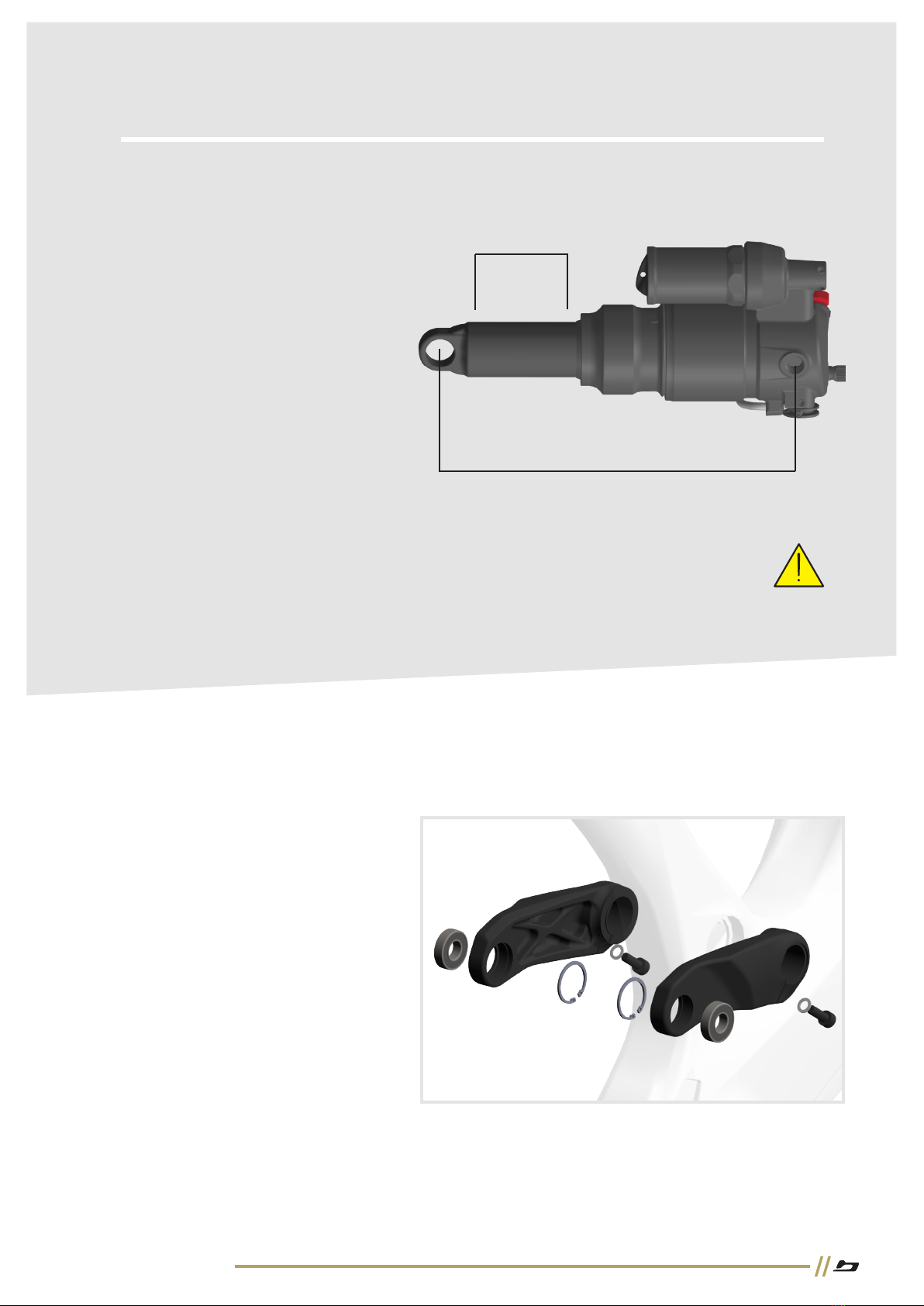

The lower shock bush is unique
to the Unplugged, 17 X 8MM
294418 - BLD SHOCK BUSH SET
FOX LINKIN 22
297709 - BLD SHOCK NOODLE
W/O CAP 22/23
STROKE 55mm
EYE 2 EYE 185mm
REMOVE THE SAG RUBBER, NOT TO BE USED
Shock / Suspension / Pivots / linkages:
There are three linkage sets for
the Unplugged.
The upper linkage set.
297739 - BLD LINKAGE UPPER
UNPLUGGED 23

16 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 16

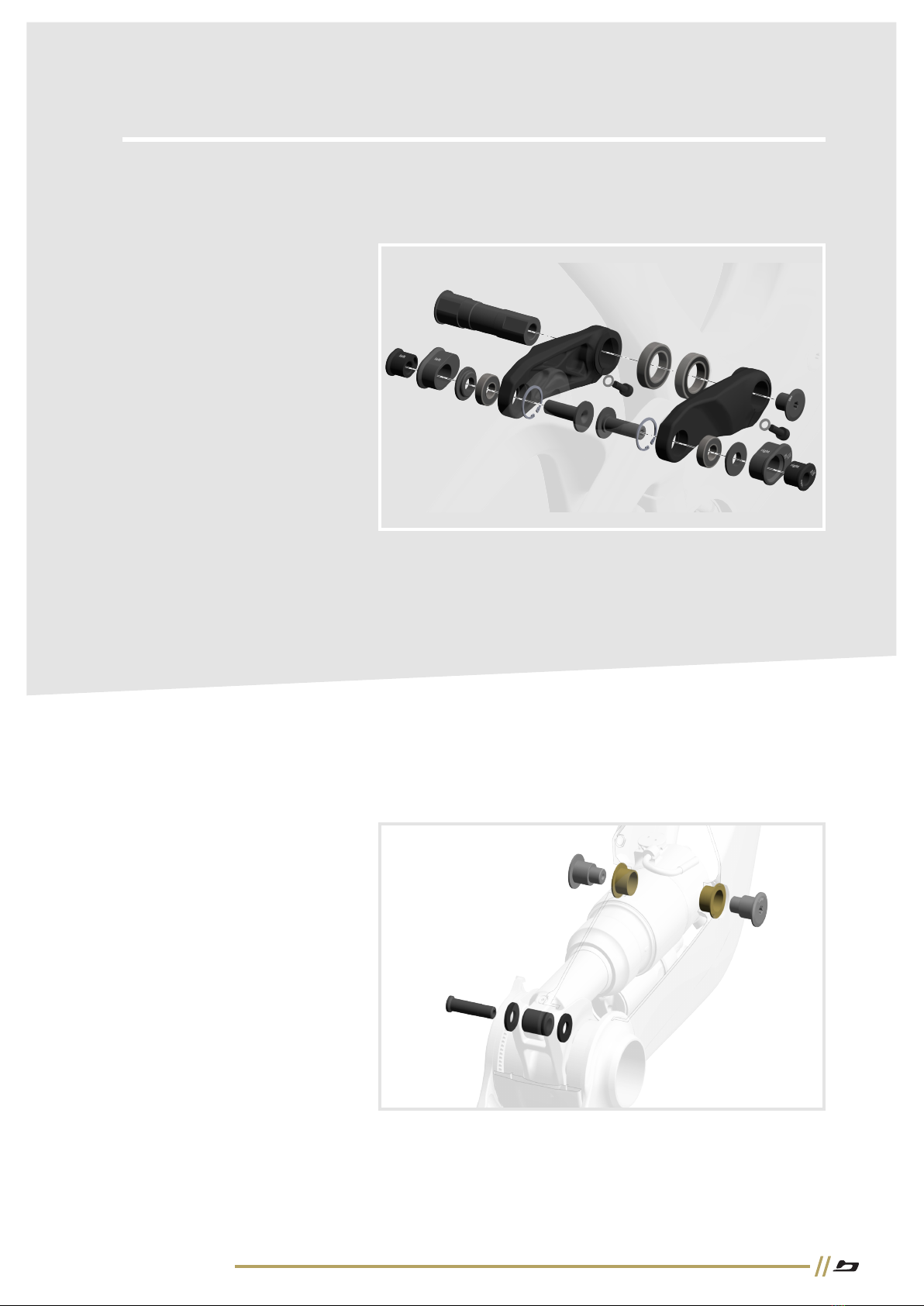

The lower link set (outer)
Each outer link comes with a
pre-load ring, ensure that the
thread on the pre-load ring is
greased.
297740 - BLD LINKAGE LOWER
OUTER UNPLUGGED 23
297741 - BLD LINKAGE INNER
UNPLUGGED 23
291285 - BLD SHOCK MOUNT
BOLT KIT LINKIN 22
Shock / Suspension / Pivots / linkages:

17 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 17
The bearings will be five different types.
CHAINSTAY FRONT RIGHT-X1-
19X10X8MM (3800)
CHAINSTAY FRONT LEFT-X1-26X10X8MM
(6000)
BB LINKAGE-72X55X9MM-X2-(6811)
UPPER LINKAGE / SEATSTAY-X2-
22X10X6MM (9600)
UPPER LINKAGE/ SEATTUBE-X2-
32X20X7MM (6804)
To help the fitting of the
main lower bearing 72 x 55 x
9mm (6811) there is a press
available that is compatible
with the Park HHP-2 headset
press.
292672 - BLD TOOL MAIN
PIVOT PRESS LINKIN
297743 - BLD SWINGARM REP
KIT UNPLUGGED 23
Shock / Suspension / Pivots / linkages:

18 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 18
Please ensure standard SAG
setting protocol is used when
setting the SAG, the below only
covers the unique setup of the
Unplugged.
For setting the SAG on the
Unplugged without assistance
you will need the magnet that is
suppled with the bike.
If this needs to be replaced it can
be found with the following.
297745 BLD MAGNET SAG KIT
UNPLUGGED 23
This kit also includes new SAG
guides if the travel is to be
adjusted.

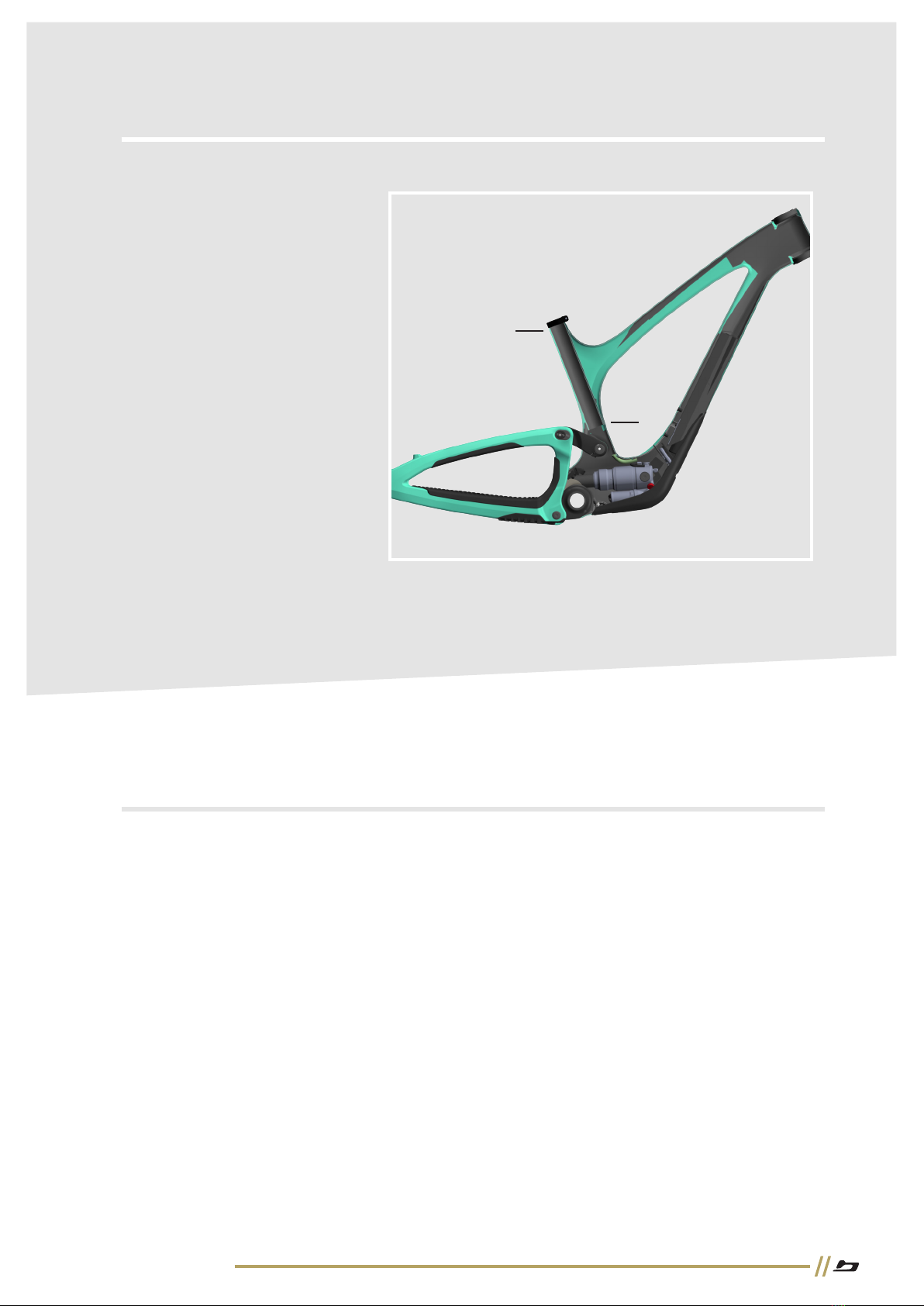

With the bike unloaded slide the magnet
under the linkage plate on the left-hand
side.
Then sit on the bike, this will
allow the linkage to push the
magnet into place.
Sag:
1
2

19 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 19
Once the rider has dismounted the
bike the SAG can be checked.
Adjust the shock pressure as
required.
3
Sag:
Suspension Overview:
MAIN PIVOT BB / CHAINSTAY
The Unplugged has a simple
bearing system which is easy
to maintain.

20 BOLD TECH MANUAL ENGLISH
BOLD UNPLUGGED MY23 / English 20
TOP LINKAGE / SEATSTAY
SHOCK MOUNTING
Suspension Overview:
