Bomet U 031 User manual

------------ ------------
OWNER'S MANUAL
WARRANTY CARD
SPARE PARTS CATALOGUE
1-BEAM PLOUGH mounted
Libra
U 031 - 3-furrow plough
U 031/1 - 4-furrow plough (3+1)
U 031/2 - 4-furrow plough
U 031/3 - 5-furrow plough (4+1)
PRIOR TO STARTING WORK, PLEASE READ
THIS OPERATING INSTRUCTIONS
BOMET®
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
Printing date: 09/05/2019
Węgrów 2017, Edition 1, Eng
Original manual

Copying of the manual or its parts is allowed only with the written permission of Bomet®

- 1 -
BOMET®
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
http:www.bomet.pl; e-mail: [email protected]
DECLARATION OF CONFORMITY
for a machine
According to the Ordinance of Minister of Economy of 21 October 2008 (Journal of Laws [“Dziennik Ustaw”] No 199, item
1228) and European Union Directive 2006/42/WE of 17 May 2006 (Journal of of Laws [Dz. U.] UE L157 p. 24-86)
we declare with full responsibility that the machine:
Machine:
1-BEAM PLOUGH MOUNTED
Type/model:
U 031
Year of production:
201 ....
Function:
Cultivation of soil, ploughing, reverse and crushing soil
to which this declaration relates, is in conformity with:
the Ordinance of Minister of Economy of 21 October 2008 on essential
requirements for machines (Journal of Laws [“Dziennik Ustaw”] No 199, item 1228)
and European Union Directive 2006/42/WE of 17 May 2006
Person responsible for technical documentation of the machine: Andrzej Sińczuk, ul. B. Joselewicza 2, 07-100 Węgrów
Following harmonized standards have been applied:
PN-EN ISO 12100:2012
PN-EN ISO 4254-1:2016E
This Declaration of Conformity WE loses its validity if the product is misused or modified
without proper authorization.
THE MANUAL CONSTITUTES MACHINE BASIC EQUIPMENT!
Węgrów, .......................................
..........................................................
Place and date of issue
Name and function of the signatory

- 2 -

- 3 -
BOMET®
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
http:www.bomet.pl; e-mail: [email protected]
DECLARATION OF CONFORMITY
for a machine
According to the Ordinance of Minister of Economy of 21 October 2008 (Journal of Laws [“Dziennik Ustaw”] No 199, item
1228) and European Union Directive 2006/42/WE of 17 May 2006 (Journal of of Laws [Dz. U.] UE L157 p. 24-86)
we declare with full responsibility that the machine:
Machine:
1-BEAM PLOUGH MOUNTED
Type/model:
U 031
Year of production:
201 ....
Function:
Cultivation of soil, ploughing, reverse and crushing soil
to which this declaration relates, is in conformity with:
the Ordinance of Minister of Economy of 21 October 2008 on essential
requirements for machines (Journal of Laws [“Dziennik Ustaw”] No 199, item 1228)
and European Union Directive 2006/42/WE of 17 May 2006
Person responsible for technical documentation of the machine: Andrzej Sińczuk, ul. B. Joselewicza 2, 07-100 Węgrów
Following harmonized standards have been applied:
PN-EN ISO 12100:2012
PN-EN ISO 4254-1:2016E
This Declaration of Conformity WE loses its validity if the product is misused or modified
without proper authorization.
THE MANUAL CONSTITUTES MACHINE BASIC EQUIPMENT!
Węgrów, .......................................
..........................................................
Place and date of issue
Name and function of the signatory

- 4 -
W A R R A N T Y C A R D
1-beam plough mounted type U031
Serial number ................................................
Date of production ........201 ....
Inspector signature ...............................................
Date of sale ..................................................
Seller signature .......................................
...................................................
Seller stamp
CAUTION: It is seller’s obligation to fill in the warranty card and complaint forms carefully
(legibly). Lack of e.g. date of sale or stamp of sales point will put the user at risk of not
acknowledging possible complaints. Warranty card with any written corrections or filled in
illegibly –is invalid.
Warranty proceedings rules
1. A user is understood as a natural or legal person purchasing an agricultural equipment
and a seller –as a corporate unit providing equipment to the user and a manufacturer -
as a producer of agricultural equipment.
2. Manufacturer ensures good quality and efficient operation of the plough, to which the
warranty card is attached.
3. Any defects or damage of the plough shall be fixed free of charge at the place of the
purchaser in the period of 12 months from the sales date.
4. Any revealed defects or damages shall be reported in person, by post mail or by phone.
5. If during warranty period, a necessity of performing 3 warranty repairs occurs, and the
product will still reveal defects disabling its usage according to its intended use, the
purchaser is entitled to have the product exchanged into a new, flawless one or refund.
6. If the manufacturer, a seller and a user will not establish another deadline for
considering the complaint, exchanging the product or refund, it should be made within
14 days from the date of reporting it by the user.
7. Warranty repairs do not cover repairs caused by:
- using the plough inconsistently with the manual and intended use,
- acts of God or others for which the manufacturer does not take responsibility.
These repairs can be made only at the expense of the user, purchaser.
8. The manufacturer can cancel warranty on the product in case of stating:
- introducing structural changes,
- occurring any damages caused by acts of God,
- lack of necessary records or made by one’s own any records in the warranty card,
-using the plough inconsistently with intended use or manual.
CAUTION!
Complaint about the reversible plough will not be recognised if the plough is aggregated to a
tractor with too much power. The maximum allowable power for individual ploughs:
3-furrow plough - 82 hp, 4-furrow plough - 105 hp and 5-furrow plough - 126 hp

- 5 -
Complaint form no 1
1-beam plough mounted U 031 / ..........
Serial number ................................................ Date of sale
..................................................
………………………………………………………….
Seller’s signature and stamp
Complaint protocol number ...........................
Complaint form no 2
1-beam plough mounted U 031 / ..........
Serial number ................................................ Date of sale
..................................................
………………………………………………………….
Seller’s signature and stamp
Complaint protocol number ...........................
Complaint form no 3
1-beam plough mounted U 031 / ..........
Serial number ................................................ Date of sale
..................................................
………………………………………………………….
Seller’s signature and stamp
Complaint protocol number ...........................

- 6 -
After repair I received technically efficient machine
on .............................................
……………………………………………………..
user’s signature
Notices:
.......................................................................................................................
.......................................................................................................................
.......................................................................................................................
After repair I received technically efficient machine
on .............................................
……………………………………………………..
User’s signature
Notices:
.......................................................................................................................
.......................................................................................................................
.......................................................................................................................
After repair I received technically efficient machine
on .............................................
……………………………………………………..
user’s signature
Notices:
.......................................................................................................................
.......................................................................................................................
.......................................................................................................................

- 7 -
IDENTIFICATION
1-BEAM PLOUGH MOUNTED
1-beam plough mounted of U031 series has a rating plate, fitted in the front part of
the plough frame. Basic data which serves for identification of the machine: manufacturer’s
name, machine symbol, serial number, year of production, is put there.
Data placed on the rating plate serves for identification of the plough and ought to
correspond to the following data, filled in during the sales.
Symbol U031 / ............
Year of production 201 ....
Serial number .............................
IT IS ADVISED THAT THE SUPPLIER OF MACHINES, BOTH NEW AND
USED ONES, KEEP THE SIGNED BY THE PURCHASER CONFIRMATION OF
RECEIPT OF MANUAL ALONG WITH THE MACHINE.
THE MANUAL CONSTITUTES MACHINE BASIC EQUIPMENT
KEEP THIS INSTRUCTION FOR FUTURE REFERENCE
CAUTION!
When lending the machine to another person, the manual shall be
attached to the machine.

- 8 -
TABLE OF CONTENTS
WARRANTY CARD……………………………………………………………………………. 4
1. INTRODUCTION……………………………………………………………………………..9
2. INTENDED USE OF THE PLOUGH…………………………………………………….. 9
3. SAFETY PRECAUTIONS AND WARNINGS…………………………………………… 10
3.1. Symbols: meaning and application……………………………………….……………. 10
3.2. Expected use of the machine.................................................................................. 10
3.3. Description of residual risk....................................................................................... 10
3.4. Estimation of residual risk....................................................................................... 11
3.5 Regulations for occupational health and safety....................................................... 11
3.6. Standard conformity................................................................................................ 14
3.7 Manufacturer’s responsibility and guarantee..............................................................14
3.8. Noise and vibrations.............................................................................................. 14
3.9. Safety signs and captions……………………........................................................... 14
4. USAGE REGULATIONS........................................................................................... 15
4.1. General Information............................................................................................... 15
4.2. Construction and operation of the plough............................................................. 16
4.3. Equipment and fittings…………....................................................................... 17
4.4. Preparing the tractor to work......................................................................................17
4.5. Preparing the plough to work................................................................................. 18
4.6. Mounting the plough with the tractor........................................................................ 19
4.7. Safety instructions................................................................................................. 19
4.7.1. Initial adjustment........................................................................................... 20
4.7.2. Operation with the mounted plough............................................................... 21
4.7.3. Plough adjustment......................................................................................... 22
5. TECHNICAL OPERATION........................................................................................ 27
5.1. Instruction on maintenance of the plough.............................................................. 27
5.2. After-seasonal maintenance......................................................................................27
5.3. Plough storage........................................................................................................ 27
5.4. Working parts exchange........................................................................................... 27
5.5 Lubrication instruction................................................................................................ 28
5.5. Detection and removal of failure................................................................................29
6. TRANSPORTATION ON PUBLIC ROADS................................................................ 30
6.1. Plough transportation by means of transport........................................................... 30
6.2. Transportation of the plough on the tractor............................................................ 30
7. DISASSEMBLY............................................................................................................30
8. TOTALING.................................................................................................................. 31
9. TECHNICAL CHARACTERISTICS............................................................................. 31
SPARE PARTS CATALOGUE........................................................................................32

- 9 -
1. INTRODUCTION
This manual aim is to make a user acquainted with a proper operation, usage and
adjustment of the mounted plough. Its aim is also warning about existing or possible
threats. The manual also contains information on preparation of the plough for operation
and for transportation on public roads.
Strict compliance with recommendations included in the content of the manual will
ensure long-term and non-failure operation and contribute to reduction of operating costs
of the machine.
Each section of the instruction (according to the contents) presents proper issues in
detail. If there is any unclear information for the user, they can obtain exhaustive
explanation by writing to the manufacturer’s address (the address is on the cover) –you
are asked to give: exact address of the purchaser of the machine, machine symbol, serial
number, year of production, year and number of issuing the manual.
Terms used in the manual: left side, right side, back and front –refer to the settings
of an observer with his face turned according to the direction of the machine drive.
Warranty proceedings regulations and rights resulting from them, are given in the
warranty card, attached to each plough.
2. INTENDED USE OF THE PLOUGH
1-beam mounted ploughs of U031 series with a width step adjustment are intended
to operate exclusively in the agriculture. Using it for other purposes shall be understood as
using it against the intended use. Ploughs are designed to perform ploughing of flat fields,
on all soil types - from light to heavy but not on stony soils. Ploughs of U031 series are
equipped with shear fuse securing the body against damage on stony soils. Meeting
requirements referring to operation of the machine, its maintenance and repairs according
to recommendations of the manufacturer and strictly complying with them state the
condition of using it according to the intended use.
The machine shall be employed, operated and repaired only by people acquainted
with its detailed characteristics and with procedures in the field of safety.
Regulations concerning accident prevention and all the basic regulations in the field
of occupational health and safety and also traffic regulations should be always abided by.
Unauthorized structural modifications introduced to the tool without the
manufacturer’s consent may absolve the manufacturer from liability for any resulting
damages and harms.
1-beam mounted ploughs are intended for performing middle-deep ploughing of all
soils with moisture enabling proper operation. The ploughs should be aggregated only with
tractor classes recommended by the manufacturer (see technical characteristics) equipped
with suspension category II and standard ballasts of the front axle to keep the required
controllability factor (s ≥ 0.2).

- 10 -
3. SAFETY PRECAUTIONS AND WARNINGS
3.1. Symbols: meaning and application
In the present manual symbols are used in order to draw the reader’s attention and
stress certain particularly important aspects requiring discussion.
DANGER
This indicates danger, with a possible serious accident risk. Not obeying
recommendations marked with this sign may cause a situation of a serious risk of
sustaining an injury by the operator and/or people nearby! Obey strictly these
recommendations!
CAUTION
The symbol indicates possibility of damaging the machine or other object and
demands to be cautious. It is the advice which should be paid special attention!
REMEMBER
The symbol indicates advice or notice regarding key functions or useful information
concerning proper functioning of the machine.
3.2. Expected use
1-beam mounted ploughs of U031 series have been designed, built and adjusted for
operation in agricultural production for farming - ploughing on flat fields, on all types of soil
with moisture enabling proper operation. As a standard, ploughs of U031 series are
equipped with shear bolt securing the body against damage on stony soils. Operation with
a plough can be performed on slopes up to 8.5. Ploughs should be aggregated only with
tractors classes recommended by the manufacturer, see technical characteristics.
REMEMBER
Regulations concerning the intended use and configurations, provided for this
machine are the only ones, which are exclusively allowed. The machine shall not be
employed for other purposes than those, which have been provided for it. The
regulations given in this manual do not substitute obligation towards present
regulations with force of a statute, referring to standards concerning safety and
prevention from misadventure, but they summarize them.
3.3. Description of residual risk
Residual risk results from wrong or incorrect behaviour of the plough operator. The
greatest danger can occur in performing following activities:
-operation of the plough by minors and also people not acquainted with the manual
or not having qualifications for driving an agricultural tractor,
-operation of the plough by people with a disease, in a state indicating for using
alcohol or narcotic drugs,
-transportation and operation without proper safety measures,
-aggregation of the plough with a tractor if the operator is between the machine and
the tractor at the engine working,
-operation when people or animals stay within the range of operation of the assembly
tractor + machine,
-maintenance and adjustment at the plough when the tractor engine is working and
the plough is not protected against falling down.

- 11 -
When describing residual risk of the plough, the plough is treated as a machine, which
since the moment of starting the production, has been designed and manufactured
according to the present technique condition.
3.4. Estimation of residual risk
During operation of the plough, threat and residual risk can be limited to the
minimum when such recommendations are abided by:
-careful reading the manual,
-prohibition of people staying on the plough during operation and transport,
-prohibition of people staying between the tractor and the plough when the tractor
engine is working,
-all adjustment, maintenance and lubrication of the plough shall be performed only at
the tractor engine stopped,
-repairs of the plough performed only by people trained in this field,
-operation of the machine by people who have qualifications to drive agricultural
tractors and are familiar with the manual of the machine
-protection of the plough against children access.
Although BOMET®company takes responsibility for pattern-designing and
construction in order to eliminate danger, certain risk elements during mounted plough
operation are unavoidable.
1) Danger of being caught or hurt by the frame edges or sharp edges of the
ploughshare or mouldboard wing during aggregation or changing transportation-operation
position and inversely.
2) Danger of being hurt or caught by a support wheel or a tillage tool. No part of the
body should be situated between the support wheel with a tillage roller and the frame or
near the plough during operation. Unauthorized persons should not be near the working
plough.
3) Danger of wound or abrasion by sharp working elements of the machine during
performing maintenance or adjustment resulting from improper position of the operator
during these activities.
4) Danger of being crushed or hit by the hitch for tillage tools as a result of the
operator's improper position during maintenance and adjustment.
5) Danger of turning over the machine during storage or transportation. When
stored to keep stability, the plough should be set on the flat ground leaning on the copying
wheel and plough bodies. The plough shall be aggregated only with tractor classes
recommended by the manufacturer.
3.5 Regulations for occupational health and safety
CAUTION
In order to avoid threats, before starting operation of the plough, please
read the present manual and follow these rules concerning threats and
safety measures:

- 12 -
General regulations
Apart from this manual, one shall also follow traffic regulations and occupational safety
and health regulations.

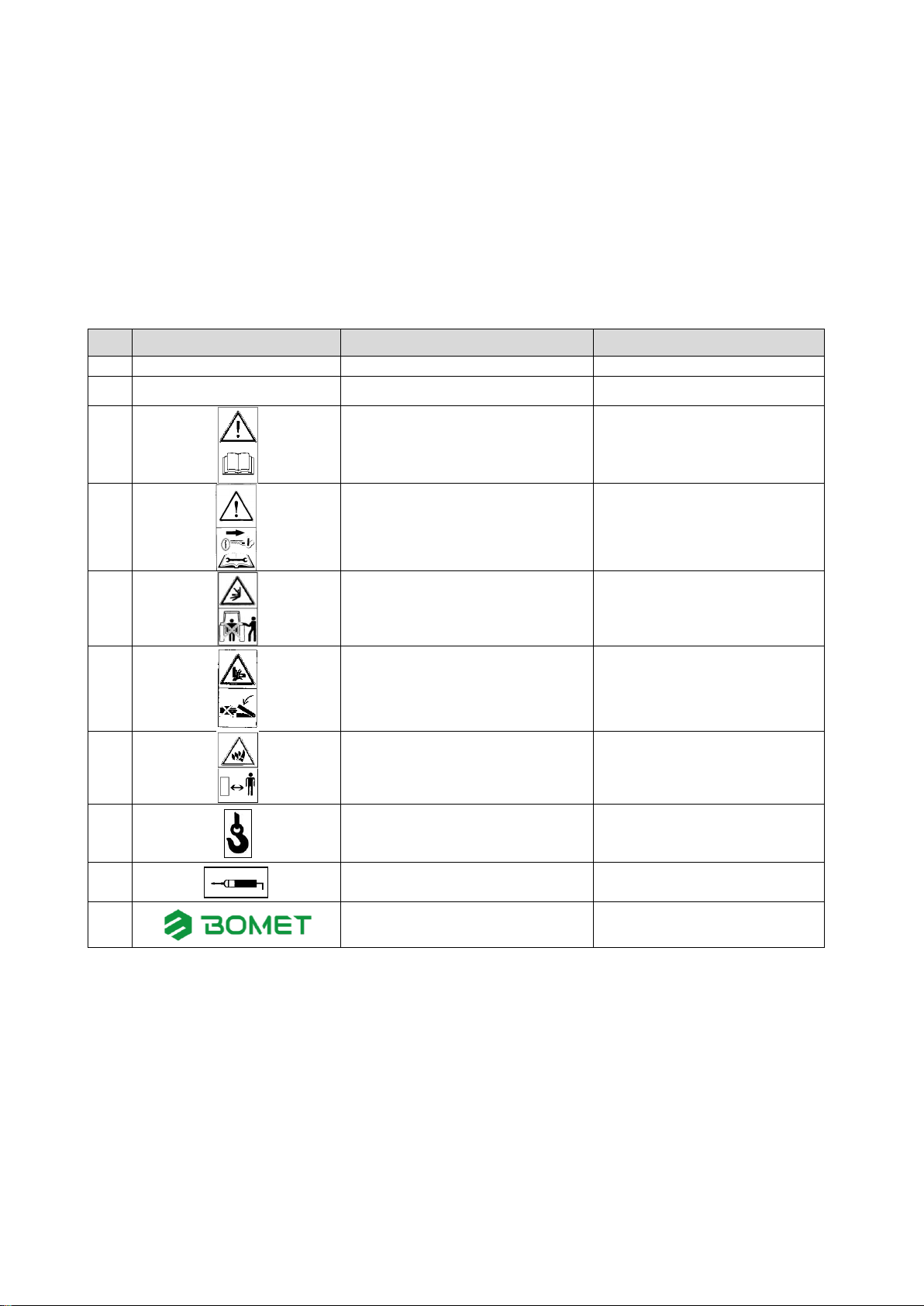

Warnings (pictograms) placed on the plough give advice concerning safety of the user
and other people, and avoiding accidents.
When driving on public roads, it is obligatory to follow regulations included in Highway
Code.
It is recommended to cooperate with a tractor equipped with a cabin or a protective
frame.
Before each using the machine, it is necessary to check if all elements of the plough are
in a good condition. Damage incurred shall be fixed without delay and possible
deficiencies filled up.
Avoid staying within the range of the working plough.
Before leaving the tractor cabin and before each activity made at the plough, stop the
tractor engine, remove the key from the ignition switch.
The plough shall be stored in a dry room, on the tough and flat ground. During lowering
the plough onto the ground, keep particular caution. Danger of injury!!!
Aggregation
Keep particular caution during connecting the plough with a tractor and during its
disconnection.
It is forbidden to stay between the plough and a tractor during any activities performed
with a hydraulic system lever.
While aggregating the plough with a tractor, it is forbidden to stay between the tool and
the tractor at the tractor engine working.
During performing any maintenance at the plough, it is necessary to stop the engine,
remove the key from the ignition switch and pull the handbrake.
Pivots of the plough suspension system shall be secured only with the use of typical
protection in the form of cotter pins.
The plough shall be aggregated only with recommended tractor classes equipped with
front axle ballasts.
The plough can be operated by a person with qualifications allowing for using
agricultural tractors.
During aggregation, keep the minimum load of the tractor front.
CAUTION
Operation with a tractor of another class than recommended by the manufacturer may
cause threat of stability loss in operation or in stoppage.
Tractor front axle load cannot be less than 0.2 of the tractor’s weight.
Maintenance
A plough can be operated by a person with qualifications allowing for using agricultural
tractors and acquainted with the manual of the plough.
All maintenance (lubrication, repairs, cleaning etc.) shall be performed with the plough
lowered onto the ground, the tractor engine stopped, key taken out from the ignition
switch and handbrake pulled.
It is not allowed for other people not acquainted with the manual to operate the plough.
It is not allowed for children and people after drinking alcohol to operate the plough.
The plough shall be raised onto the tractor suspension system easily, without jerks or
vibrations.
Raise the plough upwards each time when turning and making returns.
Work with a plough on slopes with gradient exceeding 8is not allowed.

- 13 -
At each getting off the tractor by the operator, leave the plough in the lowered position.
Removing clogs can be performed after lowering the tool onto the ground and turning
off the tractor engine.
It is not allowed to use tractor reverse gear during work, when the tool is in the working
position.
People operating agricultural equipment should be equipped with working clothes and
footwear, and personal protection measures appropriate for existing threats e.g. gloves.
Transportation
Transportation of a plough by means of transport from the manufacturer to a sales
person or a client is described in the section ‘Transportation on public roads’ in detail.
One shall remember safety rules during the loading and proper fixing of the plough on a
car trailer. Hooks for ropes or chains are marked with pictograms.
The plough transported on public roads must be equipped with portable light and
warning devices and a triangular sign for low-speed vehicles, fixed in special handles on
the plough frame, see details in section ‘Transportation on public roads’.
It is forbidden to transport any people or items on the plough frame.
Due to the length of the plough and a fixed connection with the tractor, keep caution
especially at returns during operation and turnings during transportation on public roads
with regard to overlapping of the tool.
Keep extreme caution while making a turn of a tractor with a mounted plough, both
during transportation and also while making returns in the field, especially when there
are any people or items nearby.
Driving speed of the tractor with the plough during transportation cannot exceed:
- driving on hardened roads with flat surface –15 km/h,
- on field ways –10 km/h.
Storage
Disconnecting the plough from the tractor can take place only after the tractor engine
stopped, key driving removed and the handbrake pulled.
The plough shall be stored in a dry room, on the tough and flat ground. During lowering
the plough onto the ground, keep particular caution - danger of being injured!!!
During storage the plough should be leant firmly on the bodies and the wheel. The
plough should be stored in places where there is no possibility of accidental injury on
the flat ground, preferably under a roof.
The plough shall be stored in a clean condition.
Threat!
Pay attention to sharp endings of ploughshares, mouldboard wings and disc coulter
–danger of being hurt, keep caution during operations and maintenance of the
plough.
Others
It is not allowed to use the plough for other purposes than given in the manual.
CAUTION
Not following these rules may cause threat to the operator and other people and also
may cause damage to the plough. Any damage resulting from not following these
rules is the only responsibility of the user.

- 14 -
3.6. Standard conformity
The machine has been designed and made in accordance with standards
concerning safety in the machine industry, valid on the day of marketing the mounted
plough. Particularly, following legal acts and harmonized standards have been taken into
account:
2006/42/WE - Directive on machinery safety introduced by the Ordinance of Minister of
Economy on 21 October 2008 (Journal of Laws [“Dziennik Ustaw”] No 199, item 1228).
PN-EN ISO 12100:2012P - Machinery. Safety. General principles for design. Risk
assessment and risk reduction.
PN-EN ISO 4254-1:2016E –Agricultural machinery. Safety. Part 1: General
requirements (orig).
PN-ISO 730-1+AC1:1996P –Wheeled agricultural tractors. Rear three-point
suspension system. Categories 1, 2, 3 and 4.
PN-ISO 2332:1998P –Tractors and agricultural machinery. Mounting machinery on a
three-point suspension system. Free space zone.
PN-ISO 3600:1998P –Tractors, agricultural and forest machinery, mototools. Manual.
Contents and form.
PN-ISO 11684:1998P –Tractors, agricultural and forest machinery, mototools. Safety
and warning signs. General principles.
3.7. Manufacturer’s responsibility and guarantee
In relation to described in this manual machine types, BOMET®company does not
acknowledge any civil responsibility towards:
-improper or inconsistent with the manufacturer’s recommendations using the machine,
-using the machine in a way breaking domestic law concerning safety and preventing
from unfortunate accidents,
-non-compliance or improper following regulations cited in this manual,
-making unauthorized changes in the machine,
-using the machine by unqualified staff,
-using spare parts that are not original.
As long as the purchaser wants to make use of warranty, he should strictly follow
recommendations and regulations given in the manual. In particular:
-he should work only in the given ranges of the machine operation,
-he should always perform unchangeable and thorough maintenance,
-only operators with proper abilities and qualifications shall be allowed to use the
machine,
-he should use only original spare parts recommended by the manufacturer.
3.8. Noise and vibrations
During the operation of a plough for the operator there is no threat caused by noise
contributing to the loss of hearing because the plough is an inactive tool and the workplace
of the operator is in the tractor cabin. The tractor and not the machine is the source of
noise.
There is no threat caused by vibrations when working with a plough because it is an
inactive tool and the operator’s workplace is located in the tractor cabin where the seat is
amortized and properly ergonomically shaped.
3.9 Safety signs and captions
1-beam mounted ploughs of U031 series of BOMET®company are equipped with
all devices that ensure safe work. Where it is not possible to secure dangerous places

- 15 -
entirely due to the proper operation of the plough, there are warning signs –pictograms
which indicate for possibility of danger and present manners of avoiding it.
In table 1 pictograms placed on the machine and their meaning have been
specified. Safety pictograms should be protected against being lost and against loss of
legibility. Lost or illegible signs and captions should be replaced with new ones. It is
required that new assemblies employed during repair were marked with all safety signs
predicted by the manufacturer. If you want to buy pictograms, write to the manufacturer’s
address and give the sign number (according to the table 1), version and year of issuing
this manual.
Table 1. Safety signs and captions
No
Pictogram
Significance
Location
1
2
3
4
1.
(Rating plate)
Rating plate
At the front of the frame
2.
Prior to starting work, please read this
operating instructions
On the plough frame
3.
Caution. Before operation turn off the
engine and remove the key from the
ignition switch
On the plough frame
4.
Do not stay near the lift rods, while
controlling the lift
On the plough frame
5.
Danger of crushing hands. Do not
reach crushing area if the elements
can be in motion
On the roller movable arms
6.
Danger of hurting a leg. Keep the safe
distance from ploughshare, disc sharp
endings
On the plough frame
7.
Marking places of loading hooks
On the plough frame
8.
Marking lubrication points
On the plough frame
9.
Company logo
On the plough frame
4. USAGE REGULATIONS
4.1. General information
1-beam mounted ploughs of U031 series are produced in series as 3-furrow and 4-
furrow ploughs with the possibility of mounting an attachment with 1-furrow. They are
adjusted to work on terrain slopes not exceeding 8.5and cooperate with tractors
equipped with suspension system category III (see technical characteristics –table 4)
equipped with wheel standard ballasts. User with the tractor, enabling the use of force
adjustment of the ploughing depth, should use this adjustment, which allows for saving
about 10% of fuel.

- 16 -
4.2. Construction and operation of the plough
1-beam mounted ploughs of U031 series (figure 1) are tools mounted on the tractor
three-point suspension system. Construction of the ploughs is modular, i.e. they have the
same structural elements but only differ in the number of bodies and the size of the frame.

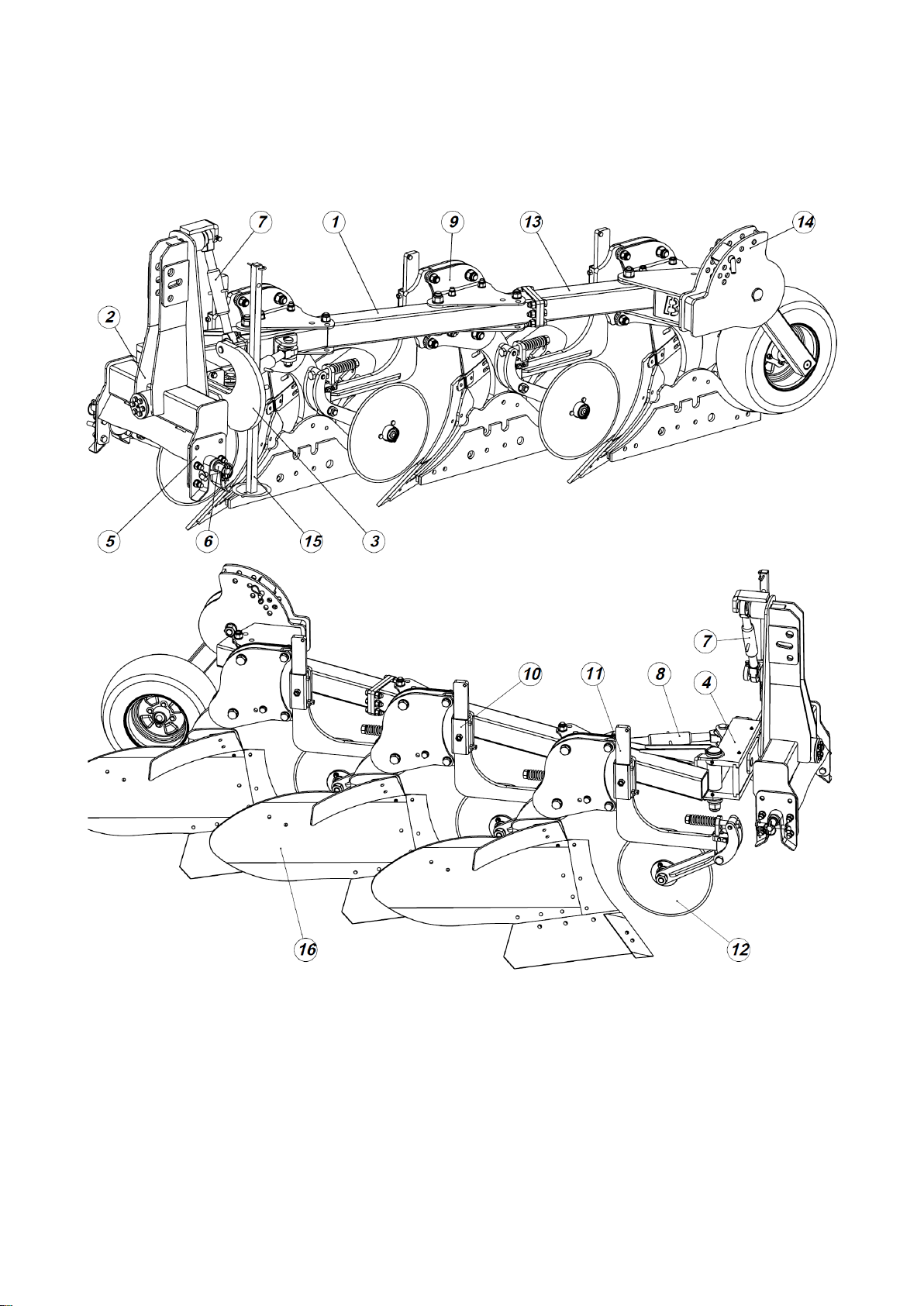

Figure 1. 1-beam plough - general construction: 1 - main frame 2 - three-point suspension system rack, 3 -
ledger, 4 - slider, 5 - lower axle overlay 6 - quick hitch beam, 7 - transversal adjustment screw, 8 -
longitudinal adjustment screw - alignment, 9 - body saddle, 10 - handle of the coulter or skimmer,
11 - coulter foot, 12 - coulter disc, 13 - frame +1, 14 - support wheel, 15 - support, 16 - body
1-beam ploughs of U031 series are connected to a tractor with the three-point suspension
system. Suspension lower axle - quick hitch beam, is mounted in adjustable hitches of the
coupler head. The plough coupler head with three-point suspension system rack
comprises the rotary head of the plough, which is held in the proper position by a
turnbuckle. Plough main beam is connected to a stud to a slider which slides on the
ledger. The beam stud allows for rotation of the frame horizontally while width adjustment
of the first furrow is possible by sliding the slider on the ledger. Plough bodies equipped

- 17 -
with divided mouldboards (breast and wing), ploughshare with screwed chisel, scraper
bars mounted over the mouldboard and the skid are attached to the body core. Saddles of
plough bodies are attached to the plough frame with screw connections. The leg of the
plough body is connected to the saddle with screw connections, which protect the body
against overload.
Saddles fixing plough bodies on the frame allow for a step change in adjustment of
ploughing width between 30 cm - 38 cm - 45 cm. Plough is equipped with a disc coulter
mounted on the last body, other bodies are also equipped with brackets allowing for
mounting of coulters (optional equipment) or a skimmer.
1-beam plough is equipped with a support wheel fitted as standard on the last body. The
wheel saddle is mounted on the body saddle and along with the change in the ploughing
width there is also shifting of the wheel to the direction corresponding with the direction of
ploughing. Ploughs of U031 series are equipped with handles, in which there are light
devices and a triangular warning sign installed.
4.3. Equipment and fittings
The manufacturer delivers the plough for sale assembled. The manual with a spare
parts catalogue and a warranty card are delivered along with the machine by the
manufacturer.
REMEMBER
Manual with a spare parts catalogue comprise basic equipment of the plough.
1-beam plough can be optionally equipped with a skimmer or a disc coulter on
each body. Basic equipment of the machine does not involve portable light and warning
devices and a triangular sign for low-speed vehicles which are available at agricultural
equipment storehouses.
Each user of a plough shall have light and warning signs, in working order, and a
triangular sign for low-speed vehicles (sign description is available in the section
‘Transportation’). Not having them during transportation may result in an accident. For
damage incurred during an accident the user of the machine is responsible.
4.4. Preparing the tractor to work
Preparation of a tractor to cooperation with a plough consists in checking its general
efficiency in accordance with the tractor manual (pay particular attention to the proper
operation of the suspension system). It is mandatory to aggregate the plough with
recommended tractor classes equipped with standard ballasts of front axle and rear
wheels in accordance with data given in the technical characteristics of the tractor.
Hitch system
Hitch of the tractor three-point suspension system is a universal hitch adapted to connect
all machines with a typical hitch system for a given category of the suspension. Hitch
elements should be installed in such a way to enable easy adjustment. Before suspension
of the machine, ball joints of lower rods of the tractor suspension system should be in
lower position at the same height (distance between joints and the ground is minimum 200
mm). Rods set at the equal height from the ground facilitate mounting the plough on the
tractor.

- 18 -

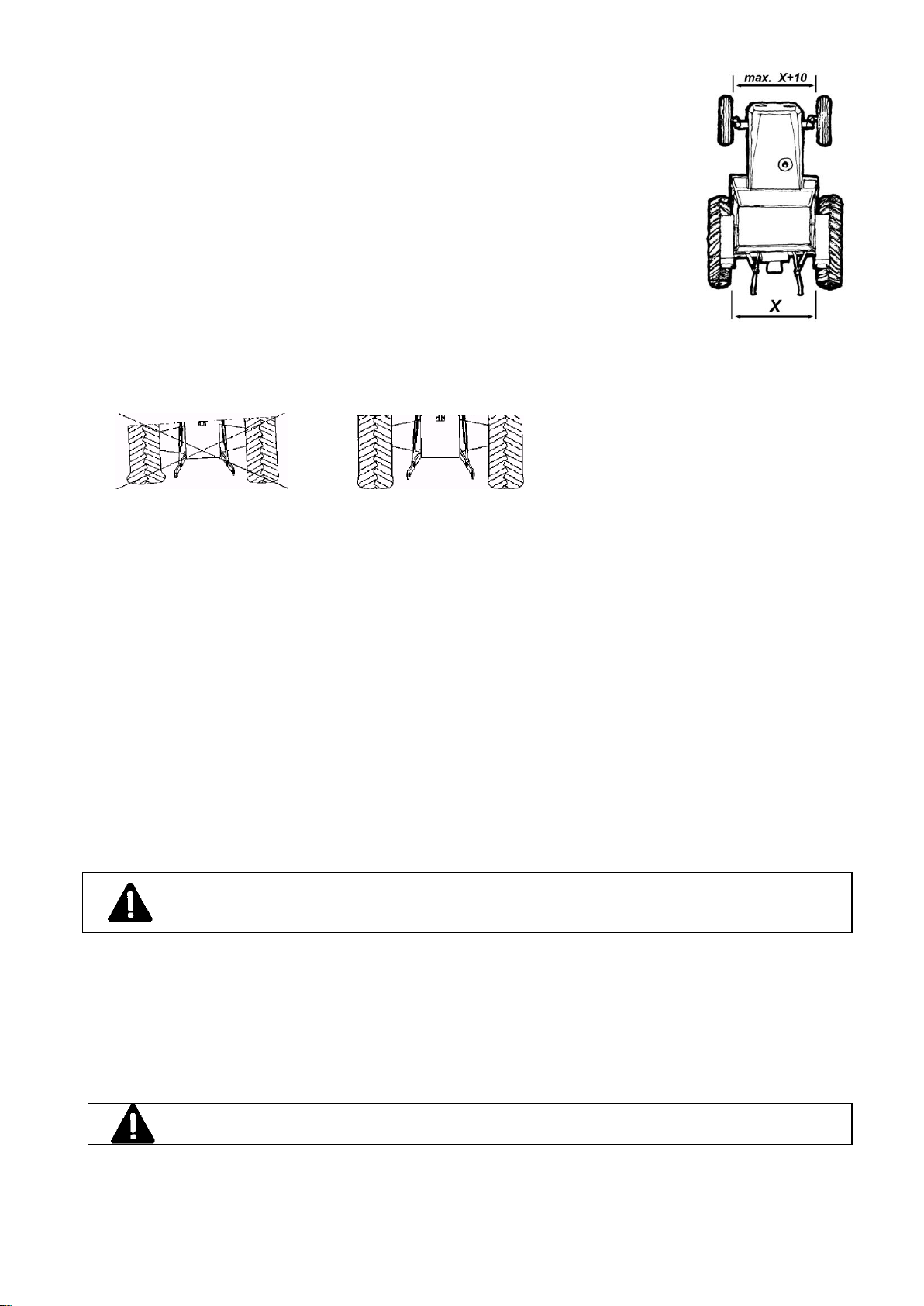

Wheel spacing - adjustment
When ploughing the wheel spacing should always be measured inside
the tires.
Internal distance between the front tires must be at least equal to the
internal distance of the rear tires. It is permitted that the front wheels are
wider by approx. 10 cm. The distance between the wheels must be
symmetrical in relation to the longitudinal axle of the tractor.
The following spacing of wheels is recommended: 1200 - 1500 mm
Perfect wheel spacing = 3 x groove width + 100-150 mm
Example: groove width: 16" 3 x 380 + 150 = 1290 mm
Tire pressure
The optimum driving properties as well as the proper and long-term use can be improved
by applying the recommended tire pressure. Air pressure, particularly in rear tires of the
tractor should be equal in both wheels and in accordance with the tractor’s manual!
Figure 2. Position of the lower rods
Before suspension of the machine, lower rods of the tractor’s suspension system
shall be set in lower position at the same height (distance between joints and the ground is
minimum 200 mm). Rods set at the equal height from the ground facilitate mounting the
plough on the tractor.
Ballasts of the tractor front axle
The front of the tractor should be equipped with ballasts, in order to ensure optimal driving
properties and longitudinal balance of the tractor. Controllability factor should equal Ws 
20% i.e. front axle should be ballasted with weight equalling or higher than 20% of the total
weight of the tractor.
4.5. Preparing the plough to work
Preparation of a new 1-beam plough to operation and after storage period (e.g. after
winter) consists in checking its technical condition and most of all durability of connections
of working elements with the frame. In case of stating damage or worn elements it is
necessary to exchange them into new or regenerated ones. Otherwise, it can lead to
reduction of the tool work quality.
Caution
It is forbidden for the operator to stay between the tractor and the machine at the tractor
engine running. The plough shall be raised easily, without jerks or vibrations.
In addition, it is necessary to:
- check screw connections, in case of backlash tighten the nuts,
- check if the copying wheel, adjustment screw and adjusting spindle move easily and
without jamming, in case of stating jamming of the support wheel, it shall be uninstalled,
cleaned and lubricated,
- lubricate the plough in accordance with recommendations (see section "Lubrication
instruction").
CAUTION
All maintenance in the plough shall be performed before installing it on the tractor.
