BOND MANUFACTURING Signature Series User manual

Owner’s Manual
Portable Gas Fire Pit
Item# 67380-D
Lowe’s# 466652
SERIES
Save these instructions for future use. If you are
assembling this unit for someone else, give this
manual to him or her and read and save for the
future.
DANGER
WARNING
WARNING
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the owner’s manual thoroughly before installing or servicing this
equipment. If the information in this manual is not followed exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
For outdoor use only.

Bond Manufacturing Company | Page 2
WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
may result in a re, explosion, injury or death.
SAFETY INFORMATION
• The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI
Z223. 1/NFPA54, OR CAN/CGA-B149.1, National Gas and Propane Installation Code.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• This unit is not intended for natural gas.
• Converting this unit to natural gas is dangerous and not recommended. The conversion of this unit
will void the manufacturer warranty.
• Do not use any solid fuel or charcoal for this unit.
• When igniting this unit, stay away from the burner as the ame will light up and may cause injury.
• LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass™
above the burner holes. Doing so will suffocate the ame.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
1. Disconnect the propane gas tank. 2. Do not attempt to x the problem yourself. 3. Contact your gas
supplier or re department for help.
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
• Do not use a ame to check for gas leaks.
• The max. inlet supply pressure: max. Gas supply 11 in w.c. (2.74kPa)
•
• You must use a propane tank that has a collar to protect the gas valve.
• DO NOT ll tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this re table.
• Keep away from the unit for the rst 20 minutes after igniting your unit for the rst time, as lava
rocks/pumice stones/LavaGlass™ could pop out and cause injury. Should any rocks pop out, discard
them.
• Always ensure that lava rocks/pumice stones/LavaGlass™are completely dry before use. Failure to
do so will cause them to crack or pop.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any ammable items away and do not use any other replace cover for this unit.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or ngers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.

1-866-771-2663 | Page 3
• Combustible material should not be within 72 inches of the top of the unit, or within 48 inches
around the entire unit.
• Keep the appliance area clear and free from combustible material, gasoline and other ammable
vapors and liquids.
• If the ame goes out while burning, turn the gas valve off. Wait 5 minutes before repeating the initial
lighting procedure. Once you have a ame started, hold down the control knob for 1 minute.
• Do not add water into the unit.
• Do not operate unit if any part has been under water. Call a service technician to replace any
damaged parts should this occur.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
• Do not operate on a boat or vehicle. This unit must be used on a at surface and outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• The maximum gas supply pressure is 250psi.
• All installation and repair should be done by a qualied professional. This unit should be
inspected annually and cleaned regularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
• Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
• The gas supply tank should be constructed and marked with the specications for the LP gas tanks
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
• The LP gas tank must have a listed overlling prevention device and a QCCI or Type I, (CGA810) LP
gas tank connection.
• This heating appliance should not be used on plastic or articial wood desks.
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the appliance.
• Clothing or other ammable materials should not be hung from the appliance or placed on or
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
• Installation and repair should be done by a qualied service person. The appliance should be
inspected before use and at least annually by a qualied service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.

Bond Manufacturing Company | Page 4
Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied
directly by Bond Manufacturing Co.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, calls Bond
Manufacturing at 1.866.771.2663.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.
SAFETY INFORMATION
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Combustible materials should not be within 72
inches of the top of the unit, or within 48 inches
around the entire unit.

1-866-771-2663 | Page 5
AA BB CC DD
Item Description Qty
AA Cushion 2
BB Spring Washer 2
CC Flat Washer 2
DD M6 Nut 2
HARDWARE

Bond Manufacturing Company | Page 6
A
F
E
D
B
G
C
Item Description Qty
A Lid 1
B Body 1
C Pumice Stones 1 box
D Handle 1
E Wrench 1
F Tank Holder 1
G Control Knob (preassembled) 1
CONTENTS

1-866-771-2663 | Page 7
ASSEMBLY INSTRUCTIONS
1. Place 2 cushions (AA) onto threaded part of
handle (D). Insert handle (D) into holes on top of
the lid (A).
2. From the underside of the lid (A), place 2 spring
washers (BB) and then 2 at washers (CC) onto
threaded part of the handle (D). Secure with 2 M6
nuts (DD), tightening with wrench (E).
3. Place pumice stones (C) into body (B).
AAA
D
D
DD
CC
BB
To ensure proper function, the screen on this
burner should be free of pumice stones at all
times.
CAUTION
B
C

Bond Manufacturing Company | Page 8
ASSEMBLY INSTRUCTIONS
4. Put the 20 lb. propane gas tank (not included)
into the tank holder (F). Turn the wing screw on
the outside of the tank holder (F) clockwise to
tighten the tank into the tank holder.
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
5. Turn the cylinder valve on the tank
clockwise to close the propane tank.
Attach the preassembled regulator from
the hose to the cylinder valve by turning
the regulator coupling nut clockwise.
Make sure it is fastened securely and
tighten connections by hand only.
6. Cover body (B) with lid (A). To lock lid
(A) in place, turn clockwise. To unlock, turn
counterclockwise.
F
A
B
Propane tank must be a minimum of 60 inches
away at all times.
DANGER
LOCK UNLOCK

1-866-771-2663 | Page 9
To Light
To Extinguish
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off”
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles
occur on any connection there may be a leak. If you smell gas or a leak is discovered turn the
gas valve off, disconnect propane gas tank and do not use the appliance until the leak is
repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable). If there are signs of wear or abrasion you must replace the
hose. Pumice stones/lava rocks/LavaGlass™could pop up and strike somebody’s face during the
process of lighting this unit; stand away from the unit for the rst 20 minutes after igniting. Flame
height should be a yellow/blue color between 2 - 10 inches in height.
Wait 5 minutes after extinguishing ame prior to placing a lid (if applicable) or protective cover on
heating item.
1. Be sure to remove the lid before lighting the repit.
2. To light the repit, push and turn the control knob (G) on the side of the body (B)
counterclockwise to ignite the piezo ignition. It may take several attempts to light the ignition.
3. To adjust the ame, turn the control knob (G) either clockwise or counterclockwise depending on
whether you want to lower or raise the ame.
1. Push and turn the control knob (G) clockwise to turn off repit.
2. After repit is completely cool, lock lid in place by turning clockwise.
OPERATION

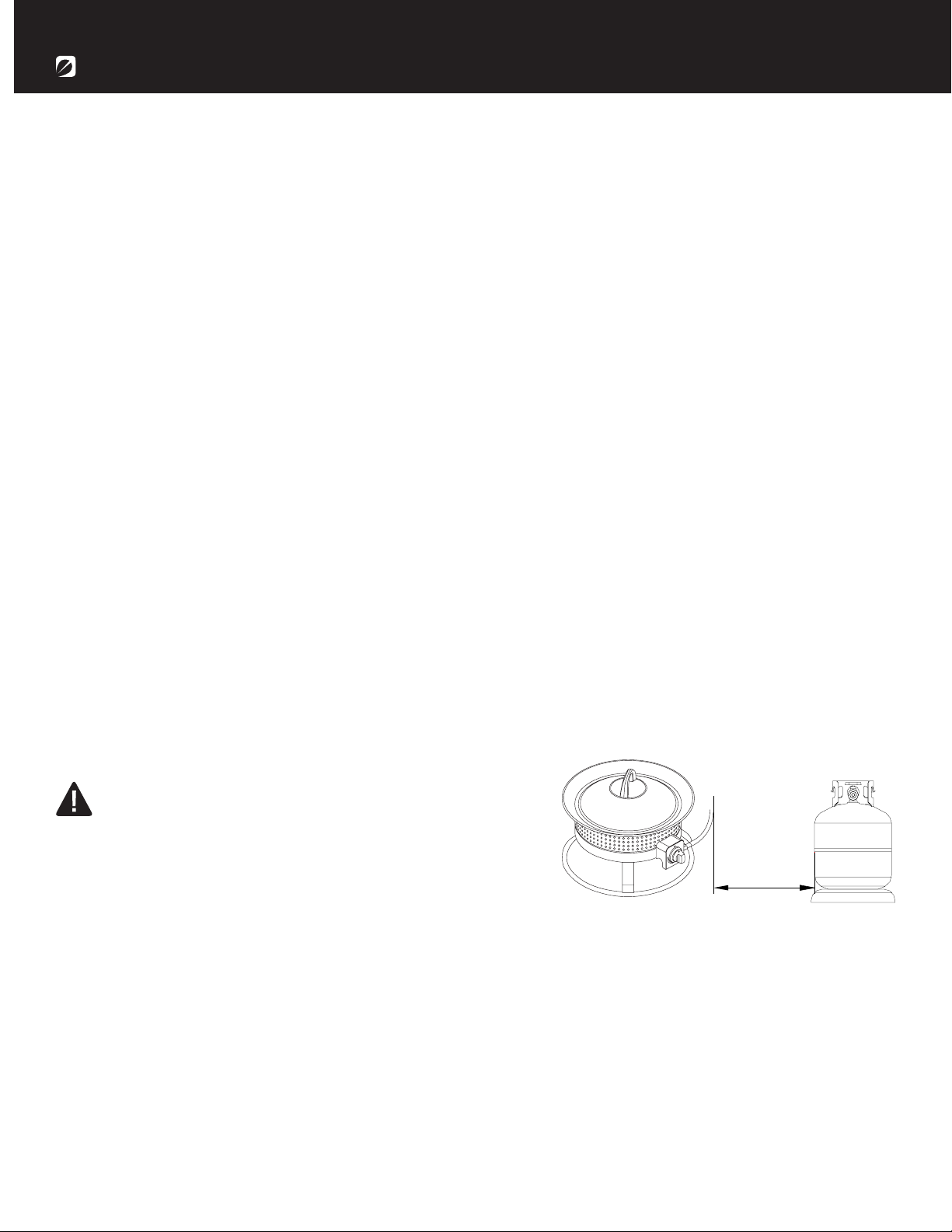

Fire product and propane gas cylinder minimum
distance must be over 60 inches (as per right side
photo)
WARNING
60"

Bond Manufacturing Company | Page 10
MAINTENANCE
•Before performing any maintenance always disconnect propane gas tank.
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/LavaGlass™ are completely cooled down. Wipe down with a soft cloth.
•Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
•Always place lid (if applicable) or protective cover on heating item when not in use.

1-866-771-2663 | Page 11
TROUBLESHOOTING
Problem Cause Solution
Igniter pin and burner are wet Dry off with a soft cloth
Igniter pin is broken Contact Bond Manufacturing for a
replacement part
Electrode wire is loose or disconnected Reconnect wire to the igniter box located
inside the table behind the igniter box
Electrode wire is shorting between valve
and igniter pin
Contact Bond Manufacturing for a re-
placement part
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to the
tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them
out.
Flame is obstructed at burner ports Check that all burner ports are free of any
small lava rocks/pumice stones/Lava-
Glass™ pieces
Regulator hose is kinked Straighten hose of all bends or kinks
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
Turn the control knob to the ‘off’ posi-
tion. Close the tank valve and disconnect
propane gas tank. Turn the control knob
to ‘high’; wait 1 minute. Turn the control
knob back to the ‘off’ position. Recon-
nect propane gas tank. Light the fire unit
as indicated in the ‘To Light’ section of
this manual.
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
See ‘sudden drop in gas flow’ above
Heating unit won’t light
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas
flow
Flame blows out easily

Bond Manufacturing Company | Page 12
WARRANTY
If you have any questions or concerns, please contact Bond Manufacturing Company at the below
resources:
CONTACT
Toll Free Phone [phone]-BOND (2663) | Monday - Friday, 8am - 4:30pm PST
Email customer[email protected]
Online www.bondmfg.com
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
•Modication of the unit and/or components including the gas valve assembly.
•Use of any component part not manufactured or approved by Bond Manufacturing.
•Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
