Boneco D7064 User manual

BONECO D7064
27175 D7064-EU-Manual.indd 1 7.6.2007 17:41:58 Uhr

13
Instructions for use en
27175 D7064-EU-Manual_vec.indd 13 7.6.2007 17:37:50 Uhr

14
en
Preface
We would like to congratulate you on your decision to
purchase a BONECO D7064 dehumidifier. If the relative
humidity is too high, the air in a room cannot absorb the
moisture in it. The result is that it condenses on cold sur-
faces (windows, badly insulated walls) or household ob-
jects.
The consequences are:
• Mildew/fungi
• Stains
• Corrosion
• Polluted air
The possible effects of fungi on health vary from problems
with breathing, allergy reactions and irritated eyes to
stomach complaints.
Tips for your health
The use of a dehumidifier does not replace the need to air
a room regularly. The dehumidifier may absorb the excess
moisture but it cannot remove harmful substances.If
you think that your health complaints are connected with
influences in living or working areas, you should undergo a
full health examination and have yourself specially tested
for the presence of harmful substances in your body.
Depending on the diagnosis, it is advisable to have a bio-
logical test carried out on the areas.
Important safety directions
• Carefully read the safety directions before using
and maintaining your product.
• Remove all packaging material from the appliance.
Ensure that it does not come into the vicinity of
babies or small children, thus preventing the danger
of suffocation.
• Before you connect the appliance to the power
supply, you should check whether the voltage is
within the limits indicated on the type plate.
• The dehumidifier may only be used for the ends
for which it was developed. PLASTON is not liable
for damage arising from inappropriate use.
• The dehumidifier is a safe appliance. But you should,
in common with other electrical appliances, always
use it with care.
• Before turning on the appliance for the first time,
you should ensure that it has been upright for at
least 2 hours prior to operation.
This appliance may not be used in tempera-
tures lower than 5 °C.
Important!
• The appliance has been designed for indoor use.
• Voltage:This appliance must be connected to an
earthed socket with 220 – 240 V / 50Hz.
• The use of the appliance must meet the directives
of the country in which it is used. If you are not
sure whether the power socket is suitable, have
it checked and, where necessary, adapted by a
certified electrician.
• Remove the plug from the socket when the appliance
is not in use. Never remove the plug by pulling on the
lead (1).
• Do not operate the appliance with wet hands (2).
• Do not allow children in the vicinity of the appliance (3).
• Do not clean the appliance with water nor immerse it
in water (4).
• Remove the plug from the socket before cleaning the
appliance or parts of the appliance.
• Do not connect the appliance with an extension cable.
If there is no socket in the vicinity, you should have a
new socket installed by a qualified electrician. If the
electrical lead is damaged, you should have this re-
placed by a recognised representative of customer
service or a person similarly qualified, in order to pre-
vent the chance of injury.
Do not use the dehumidifier in the following
circumstances:
27175 D7064-EU-Manual_vec.indd 14 7.6.2007 17:37:50 Uhr

15
en
6
3
7
2 8
1
5
4
9
27175 D7064-EU-Manual_vec.indd 15 7.6.2007 17:37:50 Uhr

16
en
Installation
• Once you have switched on your appliance, the
BONECO dehumidifier protects your home from
the damaging effects of high humidity.
• Surplus moisture spreads through your house in the
same way as cooking smells. For this reason, the
dehumidifier should be place in a central and easily
accessible position, so that it can remove the moist
air from all areas within the house.A heated hall or
landing is an ideal place for the dehumidifier. If pos-
sible, the doors inside the house should be left open
to allow air circulation.
• If you have a special moisture problem in a particular
room, you can first place the dehumidifier there and
later place it in a more central position.
• When the dehumidifier is operating, outside doors and
windows should be kept closed so that the appliance
can operate effectively. Make sure that the appliance is
not situated directly next to a radiator or other source
of heat.
• When situating the BONECO dehumidifier, make sure
that the place chosen is level and that it is sufficiently
far from interior objects to allow air to circulate freely.
• Before moving the appliance, it should be switched off
and the water reservoir should be emptied.
Make sure that there is a distance of
0.2 metres between the appliance and
all flammable materials.
Description of the appliance
Air supply
Control panel
Connection for drainage hose
Electrical wire
Drainage hose
Float
Filter
Handle
Air intake
Water reservoir
27175 D7064-EU-Manual_vec.indd 16 7.6.2007 17:37:51 Uhr

17
en
Operation
Switching the appliance on and off
(ON/OFF)
When the appliance is connected to the power supply, a
signal is heard and the display indicates the current level of
humidity in the area. Press the ON/OFF switch (A) once to
turn the appliance on. It operates with the preset humidity
level of 60% and with a low fan speed; LEDs [2] and [6]
will light up. If the switch is pressed again, the appliance
is switched off.
Setting the timer switch (TIMER)
The timer switch (B) turns the appliance automatically on
and off in a period of 24 hours.If the timer is activated,LED
[3] will light up.
67 5
D C B A
34 2 1
Setting the timer to switch the appliance
on – appliance is switched off
With the appliance connected to the power supply, but
not switched on, press the TIMER switch (B) several times
until the time [4] is indicated when the appliance must be
switched on.
Setting the timer to switch the appliance
off – appliance is operating
With the appliance operating, press the TIMER switch (B)
several times until the time is indicated when the appliance
must switch off.
Deleting the settings of the timer
To delete the settings of the timer, keep the TIMER switch
(B) depressed until the timer indicates 00. LED [3] will go
out.
Setting the humidity
In this appliance,the humidity can be set between 40% and
80%. Press the humidity switch (C) several times until the
desired humidity level is shown (the humidity can be set
in steps of 5%). The display shows the various stages of
humidity in the following sequence:60,65...80, 40,45...60.
LED [5] will light up during adjustment.When the dehumi-
difier is operating, LED [2] will light up. If the humidity in
the area is lower than the set humidity, the appliance will
automatically switch off the humidity function. In that case,
only the fan will operate.
Setting the fan speed
Press the switch for fan speed (D) to set the fan speed.
LED [6] lights up at low speed and LED [7] at high fan
speed.
Automatic defrosting
If the ambient temperature is between 5 °C and 12 °C, the
appliance will automatically switch off every 30 minutes to
defrost; between 12 °C and 20 °C, the appliance switches
off every 45 minutes.
27175 D7064-EU-Manual_vec.indd 17 7.6.2007 17:37:51 Uhr

18
en
Maintenance
Before undertaking maintenance and cleaning,
always remove the plug from the socket.

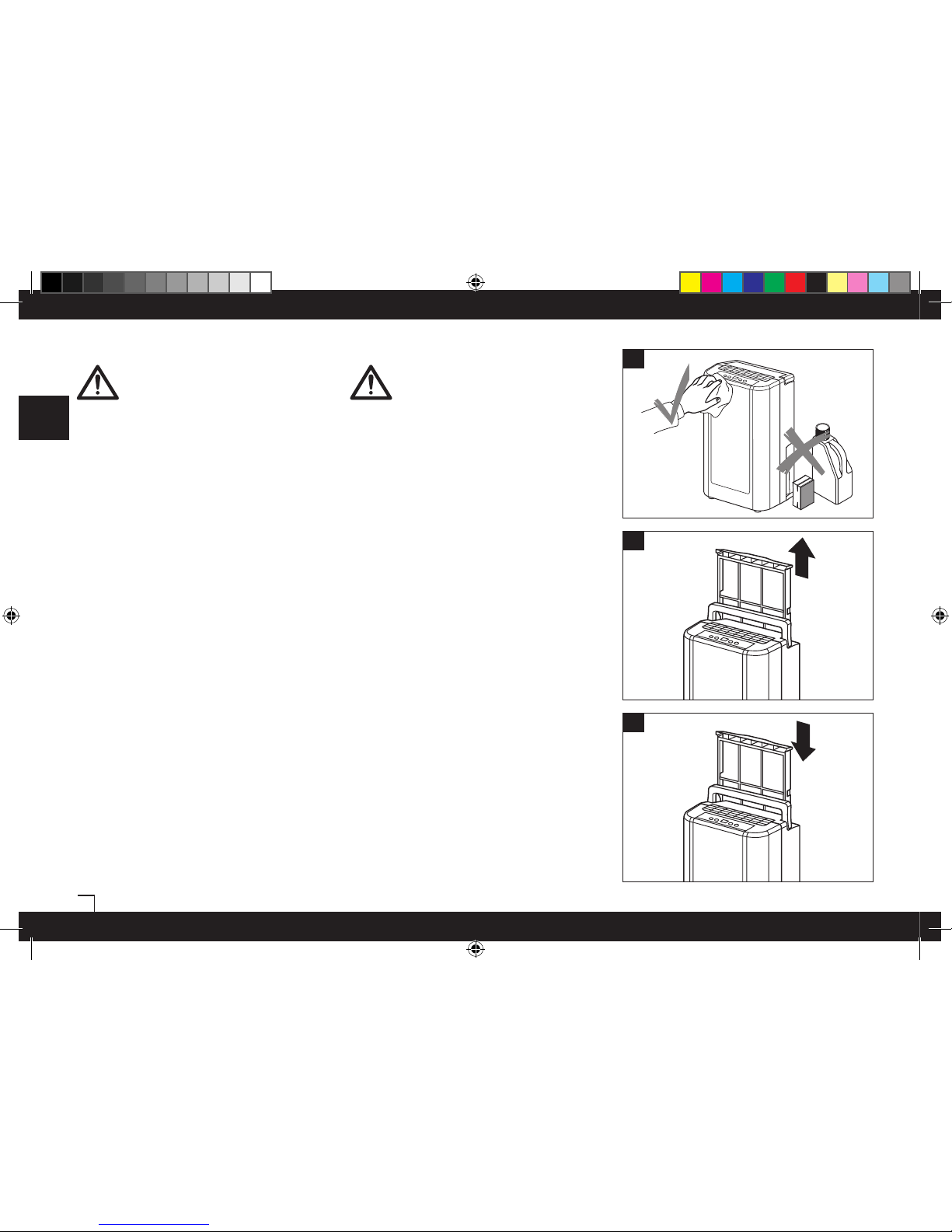

Cleaning the appliance
Use a soft cloth to clean the appliance. Do not use any
chemical sprays, petrol, solvents, chemically treated cloths
or other damaging cleaning product. These could damage
the casing of the appliance.
Cleaning the washable filter
This dehumidifier is fitted with a washable filter. The filter
cleans the air of most pollutants and thus ensures a less
oppressive living environment. We advise you to check the
filter regularly (at least once a month and after storing the
appliance) and if necessary to clean it as follows:
• Pull out the filter holder
• Use a vacuum cleaner or carefully wash the filter.
If the filter is partially polluted, use warm water and a
mildly aggressive cleaning product. Rinse out the filter un-
der running cold water. Make sure the filter is completely
dry before replacing it. Never expose the filter to sunlight
or other direct heat sources. This could result in the filter
and frame buckling.
StorageIf you do not intend to use the appliance for a
lengthy period and wish to store it, you should
take the following precautions:
1. Completely empty the water reservoir.
2. Roll up the electrical wire and place it in the
water reservoir.
3. Clean the air filter.
4. Store the appliance in a dry, cool place.
12
11
ACID ACID
10
27175 D7064-EU-Manual_vec.indd 18 7.6.2007 17:37:51 Uhr

19
en
Emptying the water reservoir
When the water reservoir is full, the appliance automati-
cally switches itself off and a signal is sounded, consisting
of 15 tones. LED [1] lights up and signals that the water
reservoir is full. The water reservoir should be emptied as
follows:
• Using both hands, push gently against the sides
of the reservoir and carefully pull it out.
• Pour away the water and carefully replace the
reservoir. The LED goes out.
Directions:
1. Do not remove the float from the water reservoir. The
sensor that measures the water level in the reservoir
will not work correctly without float. If that happens,
the reservoir could leak water.
2. If the water reservoir becomes dirty, you can clean
it with cold or lukewarm water. Do not use cleaning
or scouring products, chemically treated cloths, petrol,
thinner or other solvents, as these can scratch or
damage the reservoir which can lead to it leaking
water.
3. When replacing the water reservoir, push it firmly using
both hands into the correct position. If the reservoir is
not replaced correctly, the sensor will continue to show
«RESERVOIR FULL» and the dehumidifier cannot be
turned on.

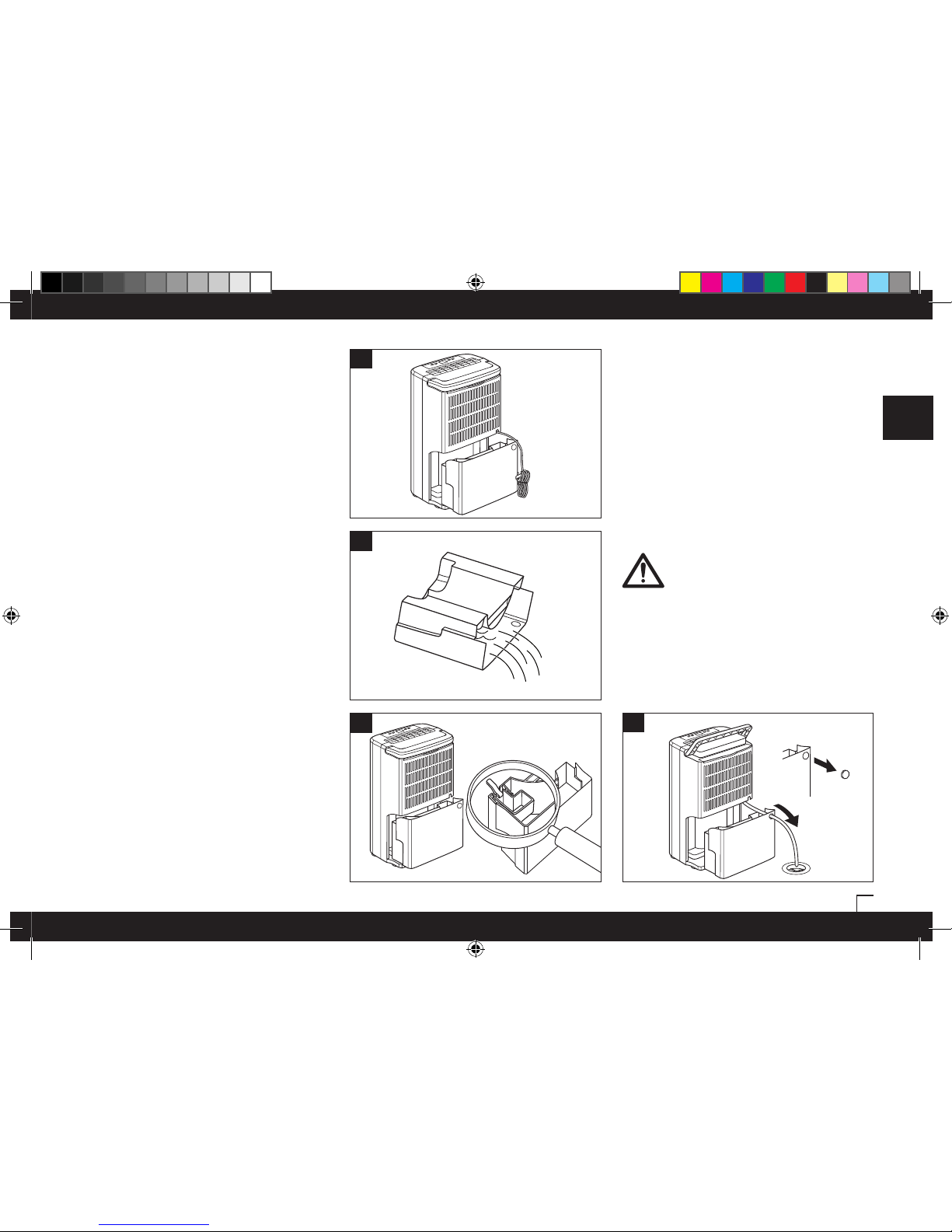

Permanent water drainage
To allow the dehumidifier to operate with continuous water
drainage, the following measures should be taken (see
illustration):
1. Turn off the appliance and remove the plug from
the socket.
2. Open the hole for the water drainage pipe in the
water reservoir (by removing part A).
3. Push a water hose (outer diameter 14 mm, inner
diameter 10 mm) through the hole and connect the
hose to the water draining connection (part B).
4. Place the end of the hose in the drain. Make sure
the hose is not folded and is laying straight.
When using permanent drainage, the water
reservoir must remain in place.
A
B
13
14
15 16
27175 D7064-EU-Manual_vec.indd 19 7.6.2007 17:37:51 Uhr

20
en
Problem Possible cause Solution
The appliance isn’t working. The plug is not in the power socket. Plug in the appliance to the power socket.
The warning lamp that indicates that the water Empty the water reservoir and replace it.
reservoir is full is flashing.
The ambient temperature is above 35 °C or The fuse has been activated and this ensures
below 5 °C. that the appliance cannot be started.
The dehumidifying does not work. The air filter is blocked. Clean the air filter as directed under
«Maintenance».
The air intake or outlet is blocked. Remove the blockage in the air intake or
outlet.
No air is being circulated. The air filter is blocked. Clean the air filter as directed under
«Maintenance».
The appliance is making a noise. The appliance is in an unsafe place or is Place the appliance in a firm, safe place.
unstable.
The air filter is blocked. Clean the air filter as directed under
«Maintenance».
Don’t forget
Discarded electrical appliances may never
be placed with normal household refuse.
Bring this product to the local refuse coll-
ection place, so that it can be disposed in a
proper manner.
Technical data
Voltage supply 220 - 240 V / 50 Hz
Power consumption 360 W
Dehumidifying power (at 30 °C, 80% RH) 18 lit/day
Water reservoir 2.7 l
Coolant R134A
Coolant amount 160 g
Dimensions (l x w x h) 310 x 230 x 535 mm
Weight 11.6 kg
Trouble shooting
Do not try to repair or dismantle the appliance yourself. Before calling in a repairman, check the following points:
27175 D7064-EU-Manual_vec.indd 20 7.6.2007 17:37:52 Uhr

BONECO is a brand name of
PLASTON AG, Switzerland.
27175 D7064-EU-Manual_vec.indd 112 7.6.2007 17:38:13 Uhr
