BONKOTE V-SOLDER Series User manual

BON-6002
V-cut solder machine
Applicable solder wire diameter 0.6 ~ 1.6 mm
User’s manual
Preparation in October 2017
The 7th edition
JAPAN BONKOTE CO., LTD.
V-SOLDER

Contents page
1. Preface ·························································································· 1
2. Notes for safety··············································································· 1
3. Notes for installation and use ··························································· 2
4. How to use
(A)Contents and name····································································· 3
(B)Name of parts ············································································ 4
(C)How to set up············································································· 5
(D)How to use ··············································································· 6
5. How to maintenance
(A) How to check Depth of V-groove ··················································· 7
(B) How to adjust Depth of V-groove ················································· 8
(C) Replacement parts
(C-1) V-blade ············································································ 9
(C-2) Guide pulley ······································································10
(C-3) Needle shaft spring ····························································11
(C-4) Solder guide ······································································12
(C-5) Fuse ················································································12
6. Consumption parts
(A) Guide pulley and V-blade ···························································13
Needle shaft spring ···································································13
Solder guide ·············································································13
(B) Fuse ·······················································································13
7. Specifications ··············································································· 14
8. Trouble shooting ··········································································· 15
9. Guarantee and After sales service ··················································· 16

1
1. Preface
Thank you very much for purchasing the V-cut solder machine.
The V-cut solder machine is effective to prevent solder balls & flux scattering by
making V-groove onto a solder wire.
If your solder wire originally have solder ball prevention effect, this machine
may not provide you with a sufficient effect.
Read below “ 2. Notes for safety ”before use.
Keep this manual after read.
2. Notes for safety
Be sure to read this manual before use the machine.
Never touch the power cable or plug with wet hands.
Never dampen the machine with water or liquid.
Keep the power cable or plug away from flammable materials.
Do not overhaul this machine.
For the replacement of the parts, use the genuine parts only.
！
CAUTION !

2
3. Notes for installation and use
For safety, make sure to observe the following matters.
This machine is designed with ground specification. For safety, be sure to use a
grounded electrical outlet.
If you do not have such outlet, install it separately.
Do not place where the machine would be exposed such as too much moisture,
direct sunshine, much dust and vibration.
Be sure to pull out the power plug when the machine is not used.
Be sure to grab the power plug when plugging or unplugging.
Please check your using voltage before use.
Before adjustment and cleaning of V-blade, Guide pulley and so on, be sure to
turn the power off and pull out the power plug from the electrical outlet.
Do not use the machine for purpose other than the original purpose.
Never touch V-blade during operation.
Please use single-core solder wire in order to obtain sufficient effect.
Be sure to make V-groove just before the soldering work in order to obtain
sufficient effect.

3
4. How to use
(A) Contents and Name
①BON-6002 BODY
②3PIN POWER CABLE
③WRENCH (14 mm)
④SOLDER REEL SHAFT
⑤FOOT SWITCH
①
②
③
④
⑤

4
(B) Name of parts
SIDE FRONT
①GUIDE SHAFT
⑨NEEDLE SHAFT SPRING
②ADJUSTER SCREW
⑩V-BLADE SHAFT
③V-BLADE
⑪GUIDE PULLEY SHAFT
④V-BLADE HOLDER
⑫GEAR 28
⑤GUIDE PULLEY
⑬GEAR 30
⑥SPRING
⑭UPPER HOUSING
⑦SOLDER GUIDE
⑮LOWER HOUSING
⑧SOLDER GUIDE HOLDER
①
③
②
①
④
②
③
④
⑤
⑥
⑦
⑥
⑧
⑨
⑨
⑩
⑫
⑬
⑪
⑭
⑮
⑤

5
(C) How to set up
1) Connect the power cable to the V-cut
solder machine.
2) Set the solder wire reel to the reel
holder.
Conform each diameter of the solder
wire and the guide pulley is the same.
3) Remove a cushioning material
before use .

6
(D) How to use
Insert the power plug into the receptacle and turn on the switch.
1) Feed the solder wire into the
solder guide.
2) Lead the solder wire along the groove
of the guide pulley and V-blade little
by little by pressing the foot switch.
Feed the solder wire by pressing the foot switch.
3) The V-grooved solder wire will
come out by pressing the foot switch.

7
5. How to maintenance
( A ) How to check Depth of V-groove
1) Cut a V-grooved solder wire vertically
into 4 pieces by 2 cm intervals.
When cutting, place the V-grooved
section to topside so that it will be
easier to observe it..
2) Observe each cut section with a lupe
whether it looks almost the same as
below fig. “ GOOD “.
V-groove cut section
GOOD
TOO SHALLOW
TOO DEEP
※Too shallow
V-groove obtain less effect of prevention of solder balls and flux scattering.
※Too deep
It makes flux residues stick to V-blade, and then V-blade gets deteriorated easily.
In addition, solder wire may possibly twist around V-blade.
It cause the damage of both of V-blade and guide pulley.
※Please adjust depth of V-groove flexibly. Appropriate adjusting position will depend on the type
of solder wire, flux size and so on.
It is better to adjust it after using with checking the solder ball scattering.

8

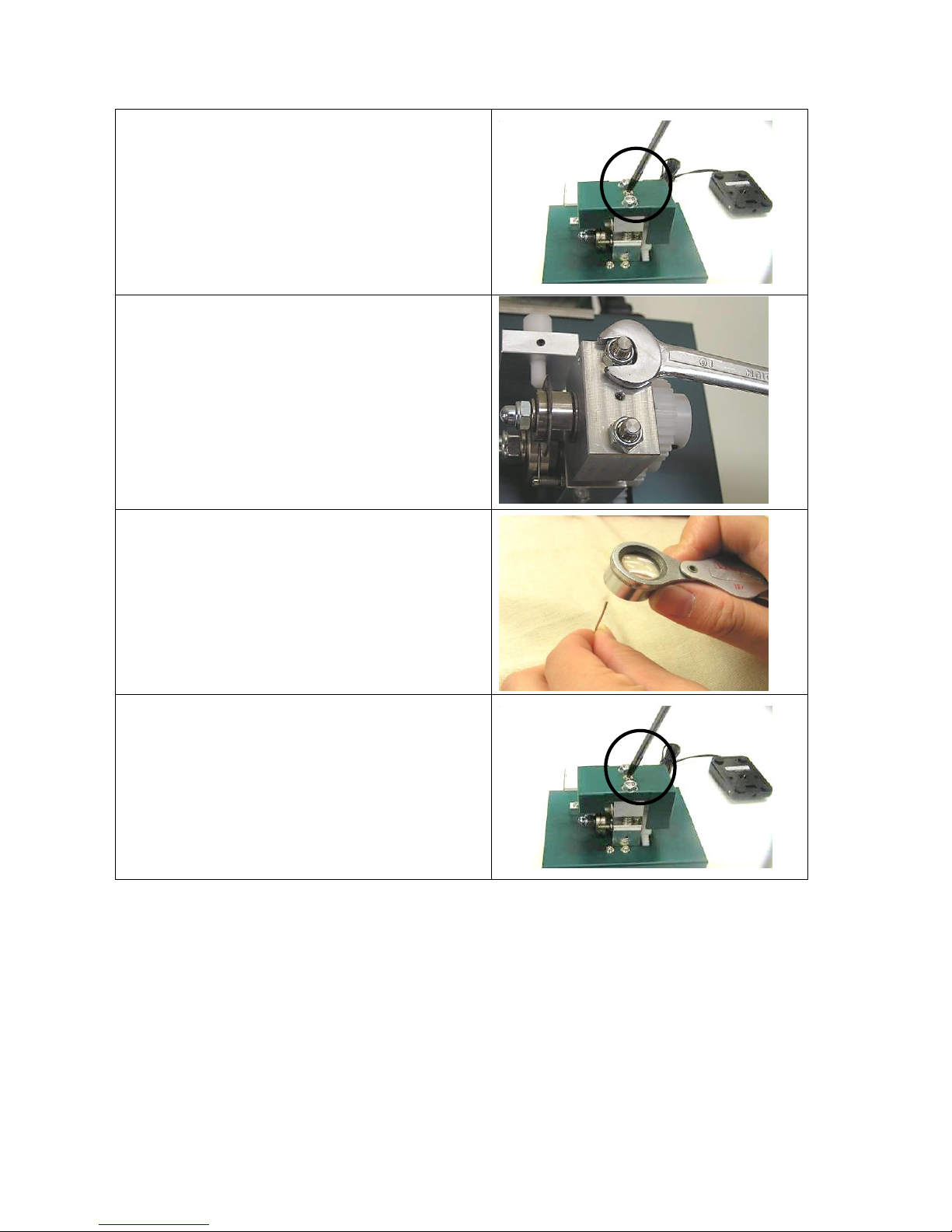

(B) How to adjust Depth of V-groove
1) Remove the housing cover by loosening
the screw.
2) Adjust the upper housing position to meet
below conditions:
※V-groove is too shallow:
Set the housing lower.
※V-groove is too deep:
Set the housing upper.
Once the position is fixed, tighten each
screw alternately
3) Observe the cut section with a lupe.
4) Replace the housing cover back and
tighten the screw.

9
( C ) Replacement parts
(C-1) V-blade
1) Remove the housing cover by loosening
the screw.
2) In order to remove the V-blade from the
upper housing, loosen the adjuster screws
alternately until having enough space
between the V-blade and the guide pulley.
3) Hold the V-blade shaft with a wrench A
and the V-blade holder with a wrench B.
Remove a cover nut of the V-blade holder
while pushing each wrench in the direction
of the arrows.
Remove the V-blade and exchange with
a new one.
4) Fix the new V-blade firmly while pushing
each wrench in the direction of the arrows.
5) Follow the step 2) ~ 5) on the page 8.
B
A
B

10
(C-2) Guide pulley
1) Remove the housing cover by loosening
the screw.
2) In order to remove the guide pulley from
the lower housing, loosen the adjuster
screws alternately until having enough
space between the V-blade and the guide
pulley.
3) Remove the needle shaft spring first.
Refer to P.11
4) Hold the guide pulley shaft with a wrench
A and the guide pulley holder with a
wrench B.
Remove a cover nut of the guide pulley
holder while pushing each wrench in the
direction of the arrows.
Remove the guide pulley and exchange
with a new one.
5) Fix the new guide pulley firmly while
pushing each wrench in the direction of
the arrows.
A
B
A
B

11
6) Put back the needle shaft spring.
Refer to P.11.
7) Follow the step 2) ~ 5) on the page 8.
※Each solder wire has an suitable needle shaft spring and a guide pulley by its diameter. When
you exchange solder wire size, please exchange a guide pulley or a needle shaft spring accordingly.
(C-3) Needle shaft spring
1) Hold a screw of the needle shaft spring
with a screw driver.
Loosen a nut with a wrench and remove
it from the lower housing.
2) Attach a new needle shaft spring.
Make sure to insert the edge of the
spring into a small hole on the lower
housing.
3) Hold a screw of the needle shaft spring
with a screw driver.
Tighten a nut with a wrench firmly.
Make sure that the needle must
be placed into the groove of the
guide pulley.

12
(C-4) Solder guide
1) Loosen a screw of the solder guide
holder with a hexangular wrench and
remove the solder guide.
2) Attach a new solder guide.
The solder guide should be aligned to
the groove.
Tighten a screw of the guide holder.
(C-5) Fuse
1) Loosen a fuse holder by hand.
Replace a fuse with a new one.

13
6. Consumption parts
(A)
Guide pulley
Model No.
Applicable solder wire
diameter
Needle shaft spring
Model No.
V-blade
Model No.
Solder guide
Model No.
GP-06
DIA. 0.6 mm
TN-05
VE-1
HP-20
BP-065
DIA. 0.65 mm
BP-08
DIA. 0.8 mm
BP-10
DIA. 1.0 mm
TN-08
BP-12
DIA. 1.2 mm
BP-16
DIA. 1.6 mm
(B) Fuse
Glass tube Fuse: 250V 1A ( DIA.5.2 x 20 mm)

14
7. Specifications
Input voltage
100VAC ・110VAC
Frequency
50 Hz
60 Hz
Feeding amount
40 mm/sec.
48 mm/sec.
Feeding method
Footswitch
Applicable solder diameter
DIA. 0.6 ~ DIA. 1.6 mm
Dimension
142W x 122D x 160H mm
Weight
1950 g
Power consumption
approx.. 6.0 VA
Power cable
L= 1.6 m 3pin plug cable
Case material
Steel : t = 1.0
Fuse
Glass tube fuse: 250V 1A(DIA.5.2 x 20 mm)

15
8. Trouble shooting
Phenomena
Possible causes
Measures
Page.
Motor does not move
Switch lamp is unable to light.
The Power cable is unplugged.
Insert the power plug into the
receptacle firmly.
-
The Fuse can be blown out.
Exchange the fuse with a new one
P12
Switch lamp lights
The V-blade touches the Guide pulley.
Adjust the upper housing position
and separate the V-blade and the
Guide pulley
P8
The Foot switch has trouble.
Contact us for repair.
-
The Motor has trouble.
Contact us for repair
-
Solder balls increase.
The solder wire is not V-grooved
properly
The V-blade is consumed.
Exchange it with a new one.
P9
Observe the depth of V-groove
referring to page 7.
The cut section of V-groove does not
appear correctly.
Adjust the upper housing position
accordingly.
P8
The V-blade is consumed.
Exchange it with a new one.
P9
The Guide pulley is consumed,
Exchange it with a new one.
P10
V-grooved solder wire
is coiled around the
Guide pulley.
The diameter of Solder wire and the
Guide pulley is different.
Match the diameter of Solder wire and
the Guide pulley.
P10
The wrong sized Needle shaft spring is
attached.
Exchange the Needle shaft spring
with a correct size one.
P11
The solder wire is buried
in the Guide pulley
The diameter of Solder wire and the
Guide pulley is different.
Match the diameter of Solder wire and
the Guide pulley.
P10
The Needle shaft spring
is bended, or got rust.
The needle shaft spring is consumed.
Exchange the needle shaft spring
with a new one.
P11
The Solder wire
comes off from the
Guide pulley
The solder guide is not aligned to the
Guide pulley properly.
Adjust Solder guide and Guide pulley
properly..
P12
The Guide pulley is consumed
Exchange the Guide pulley with a new
one.
P10

16
9. Guarantee and After sales service
(A) Guarantee
We will ship our products after severe factory tests and inspections.
However, if you find any malfunctions or defects due to problem in
workmanship or transportation, please contact your dealer or us.
The guarantee period of your machine is in one year after purchased, except for
replacement parts.
(B) After sales service
If the machine has trouble, please read this guide manual once again.
If the trouble is still not resolved, please contact your dealer or our service
department.

NOTE:

JAPAN BONKOTE CO., LTD.
600-14 Kasahara-cho, Mito-shi, Ibaraki
310-0852 JAPAN
TEL: [phone]
FAX: [phone]
URL: http://bonkote.co.jp
E-mail: [e-mail]
