BoomRacing Scale 4WD Series User manual

아무것도 없는 도면으로 시작하여 1/10 BRX01은 "트럭 혈통"을 기반으로 하여 R/C 크라울러(트라이얼) 섀시로 개발되었습니다. 여러 가지 성능 및 스케일의 기능을
섀시에 결합 합니다. BRX01을 특별하게 만드는 이유는 섀시의 많은 기능이 동료 R/C 애호가의 상상력에서 비롯된 것입니다. 아이디어와 피드백을 듣고 BRX01에
새롭고 흥미로운 기능을 많이 추가 할 수 있었습니다. 이것이 바로 우리 붐레이싱이 항상 혁신을 추구하는것과 관련이 있습니다.
BRX01은 어떻게 다른가요?
멋지게 즐기세요!
Starting with a clean sheet of paper the 1/10 BRX01 was developed as a performance based R/C crawler chassis with a scale "stock truck" appearance. It combines
many performance and scale features into a single ground breaking vehicle.
What makes the BRX01 special is that many of the features on the chassis come from the imaginations of fellow R/C hobbyists. By listening to their ideas and feedback,
we are able to include many new and exciting features into the BRX01.
This is what Boom Racing has always been about - involving our community to push innovations forward.
HOW IS THE BRX01 DIFFERENT?
ENJOY BEING A BADASS!
Comenzando con una hoja de papel limpia, el 1/10 BRX01 se desarrolló como un chasis de Crawler de R / C basado en el rendimiento con una apariencia "stock".
Combina muchas características de rendimiento y escala en un único chasis innovador. Lo que hace que el BRX01 sea especial es que muchas de las características del
chasis provienen de la imaginación de otros acionados de R / C. Al escuchar sus ideas y comentarios, pudimos incluir muchas características nuevas y emocionantes
en el BRX01. De esto se ha tratado Boom Racing: “involucrar a nuestra comunidad para impulsar innovaciones.”
¿En qué se diferencia el BRX01?
¡DISFRUTE Siendo BADASS!
Começando com uma folha de papel limpa o BRX01 foi desenvolvido baseado na performance de um chassi de R/C crawler, mantendo uma aparência stock.
Combina muitas características de performance e aparência realística num único chassi inovador. O que torna o BRX01 num chassi tão especial foi que muitas das
características vieram da imaginação de membros acionados do mundo do R/C. Ouvindo as suas ideias e comentários foi possível incluir muitas características
novas e emocionantes ao BRX01. É disto que a Boom Racing, como sempre se baseia: "envolver a nossa comunidade para promover o desenvolvimento de
inovações".
Como é que o BRX01 é diferente?
Diverte te sendo um rebelde!
Beginnend mit einem leeren Blatt Papier, wurde das 1/10 BRX01 als performance basiertes RC-Crawler Chassis mit möglichst realistischer Scale Optik entwickelt. Es
vereint viele Performance- und Scaleeigenschaften in einem einzigen bahnbrechenden Scaler.
Das Besondere an dem BRX01 ist, dass viele Funktionen des Chassis auf Vorstellungen und Wünsche anderer RC-Hobbyisten basieren. Wir haben Euch zugehört und
möglichst viele Eurer Ideen und Feedbacks bei der Konstruktion des BRX01 berücksichtigt und in das Chassis integriert.
Darum ging es uns bei Boom Racing schon immer - die Einbindung unserer Community in die Entwicklung um Innovationen voranzutreiben.
Wie unterscheidet sich das BRX01 von anderen Chassis?
ENJOY BEING A BADASS!
Issu d'une page blanche, Le BRX01 1/10 a été développé sur une base performante avec son châssis de crawler et un look de véhicule de série très réaliste.
La combinaison de ses nombreuses performances et fonctionnalités en font un véhicule révolutionnaire.
Les spécicités du BRX01 proviennent du fait que son châssis est né de l'inspiration de l'équipe de Boom Racing avec la contribution des passionnés de modélisme.
Le savant mélange des idées de l'équipe, combiné aux retours des passionnés a permis d'inclure de nombreuses fonctionnalités innovantes.
C'est là tout l'esprit "BADASS" de Boom Racing : impliquer la communauté des passionnés dans l'innovation !
En quoi le BRX01 est si diérent ?
ENJOY BEING A BADASS!

FOR HOBBYISTS BY HOBBYISTS
A Bolt-On Kit means parts of the chassis are pre-assembled and require minor assembly for completion. The factory assembled
parts oer convenience for builders eager to get started.
The BRX01 kit includes factory pre-built axles, transmission, transfer case and shocks. Shocks require oil to be lled (included).
The Scale 4WD Series is Boom Racing’s line of scale based 4WD R/C products geared towards realistic appearance.
BOLT-ON KIT
PARTIAL ASSEMBLY REQUIRED
BOLT-ON KIT
Owning a BRX01 is a truly unique and special experience.
All BRX01 chassis kits include a BRX01 Owners Card. As the original owner, you are eligible to receive a special promotion at each of the events being attended by Boom Racing.
Follow the instructions on the back of the Owners Card to register your vehicle.
Once your vehicle is registered online, the chassis is ocially registered to you and no one else can claim it. This will help with any future updates and can be used to notify you
of new options in the future.
All BRX01 chassis kits are numbered and include a VIN#. The Car No. and VIN# match those on the BRX01 Owners Card. No two chassis will ever have the same numbers.
We believe that this will encourage enthusiasm and interaction between owners and we hope that it will boost attendance at events to push the hobby industry further down
the road.
To register your BRX01 visit: https://www.boomracingrc.com/BRX01/register
现在的遥控车市场上还没有一款同时兼具仿真与攀爬性能的车架。一个外观比例几乎接近于现实真车还同时兼备了许多优越攀爬性能的车架 -- BRX01，应运而生！
BRX01从设计之初就定位在是一辆具备攀爬性能的仿真车。我们广泛听取了用户和一些顶级发烧友的建议和意见，把一些新的特性和现有的性能特点都巧妙地结合
在这一款车架中。
Boom Racing 坚持服务于消费者，真诚地联合世界各地模友，以共同创新推动模型车发展为己任！
BRX01与众不同
尽情嗨起来吧！
BRX01與眾不同
現在的遙控車市場上還沒有一款同時兼具仿真與攀爬性能的車架。一個外觀比例幾乎接近於現實真車還同時兼備了許多優越攀爬性能的車架 -- BRX01，應運而生！
BRX01從設計之初就定位在是一輛具備攀爬性能的仿真車。我們廣泛聽取了用戶和一些頂級發燒友的建議和意見，把一些新的特性和現有的性能特點都巧妙地結合
在這一款車架中。
Boom Racing 堅持服務於消費者，真誠地聯繫世界各地玩家，以共同創新推動模型車發展為己任！
ENJOY BEING A BADASS!
2

CAUTIONS
BEFORE YOU PROCEED
Congratulations! Owning the BRX01 is a truly special experience.
Carefully read and follow all instructions to prevent serious damage to your model. Failure to follow these instructions will be considered abuse and/or neglect.
Study the instructions thoroughly before assembly.
There are many small screws, nuts and similar parts. Assemble them carefully referring to the drawings. Follow the steps exactly as shown to build the vehicle correctly without issues.
If you decide to return the BRX01, do not begin assembly. Your hobby dealer will not accept a model for return or exchange after you have started assembly.
Boom Racing oers Spare Parts & Upgrade Options for improved performance. Visit our website (https://www.boomracingrc.com) or your local Boom Racing dealer for assistance. Please note that specications, availability and price are subject to
change without notice.
SAFETY PRECAUTIONS
All of us here at Boom Racing want you to enjoy your new truck. Operate your BRX01 sensibly and with care, and it will be exciting, safe and fun for you and those around you. Failure to operate your BRX01 in a safe and responsible manner may
cause damage and injury.
Follow these outlined rules for safe radio control operation
• Read carefully and fully understand the instructions before assembly.
• This model is not intended for use by children (minors) under 14 years of age without the supervision of a
responsible and knowledgeable adult who should also read the instructions.
• When assembling this kit, extra care should be taken to avoid personal injury. Keep out of reach of small children.
• Avoid running the vehicle in crowded areas and near small children.
• BRX01 can be very fast and quiet. It could cause injury to those unaware of its presence.
Inspect Your BRX01 Before and After Operation
• Make sure that all screws and nuts are properly tightened.
• Use thread lock on screws for any metal on metal surface.
• Adjust steering servo and trim so that the BRX01 runs straight with transmitter in neutral.
• Disconnect/remove all batteries after operation.
• Replace any batteries that have been dented, are bloated, or have frayed wires, short circuits can cause re.
• Completely remove sand, mud, dirt etc after use to prolong the life of the BRX01.
• Maintain bearings by cleaning or replacing them regularly.
Boom Racing’s One (1) Year Factory Limited Warranty – A Peace Of Mind Right From The Start
WHO IS COVERED
This warranty is extended to the original end-user that registers it online (https://www.boomracingrc.com/BRX01/register) only, whether purchased or received as a gift.
FACTORY LIMITED WARRANTY
What Is Covered and How Long
Boom Racing warrants that all new products are free from defects in manufacturing, materials and workmanship for a period of one (1) year from date of retail purchase. The receipt or invoice at the time of purchase is your proof of purchase and
is required for Boom Racing to honor any warranty.
What Is Not Covered
It does not cover defects or malfunction caused by user error of assembly, damages due to normal wear and tear, failure to follow operating instructions, misuse or abuse, users’ failure to perform routine maintenance, or use with products with
which is not intended to be used. It also does not cover damages caused by unauthorized alteration, modication or repair. It does not cover cosmetic or incidental damages. Boom Racing does not warrant or provide service or support for any
third party products.
The JX mini servo warranty will be void if it is disassembled.
What We Will Do
We will, at our discretion, repair or replace any product free of charge that is incorrectly made or proves to be defective in material or workmanship during the warranty period. If your product is no longer being manufactured or is out of stock,
we may replace your product with a comparable or improved product at our option.
What We Will Not Do
We will not pay for shipping, insurance or transportation charges from you to us, or any import fees, duties and taxes.
What To Do To Obtain Warranty Service
To obtain warranty service for products purchased from a third-party, retail or directly from Boom Racing you must return the product with proof of purchase using the following procedures:
1. Contact Boom Racing Customer Support for specic warranty instructions via our website, by email or by telephone as follows:
•Online @: https://www.boomracingrc.com/contact-us
•Email: [email protected]om
•Telephone: [phone]
You may be asked to complete a warranty service request form. A copy of your purchase receipt may be required.
2. Our Customer Support may ask you to return and ship the defective product back to us. Label and ship the product, freight prepaid, to the address provided by Boom Racing; and
3. Place any necessary return authorization number prominently on the outside of the return packaging. Return packaging not bearing a return authorization number where required may be refused.
Boom Racing reserves the right to nal decision, change or modify this warranty without notice.
WARRANTY

Scissors Long Nose PliersHobby Knife
Equipment Required
Tools Recommended
Hex Wrench
1.5
2.0
3CH Radio Battery ESC Steering Servo 540/550 MotorCharger
Lubricate all moving parts including joints and bearings.
Apply grease to the places shown by this mark.
Apply grease rst, then assemble.
Lubricate all gears.
Apply grease to the places shown by this mark.
Apply grease rst, then assemble.
Item not included.
Pay attention to note on page.Apply shock oil to the places shown by this mark.
Apply thread lock to places shown by this mark.
Apply thread lock rst, then assemble.
Thread Lock Black Graphite Grease
Shock Oil
Siliking Grease
160 170 180 190 200110 120 130 140 15060 70 80 90 100 260
mmmm
210 220 230 240 2500 10 20 30 40 50
4

DEDICATED TO ALL OF YOU WHO HAVE HELPED US BRING THIS AWESOME
CHASSIS FROM IMAGINATION INTO REALITY.
ENJOY BEING A BADASS.

Parts Location Map
Chassis Rail - Left Side
Complete BCF2TM Gearbox
Gearbox Adapter Motor Mount
Chassis Rail - Right Side
32mm Soft Coil x 425mm Soft Coil x 4
80mm Shock x 4
A
F
E
K
LI
J
H
G
D
C C
B
A A
B
B#BRLC7052
#BRLC7011
#BRLC7027
PARTS REFERENCE
Rebuild Kit Available
#BRLC7052-REBUILD
6

1.55 SP ROAD TRACKERTM Crawler Tire GEKKO Compound
3.46x0.94 Inch (88x24mm) w/ Single Stage Open Cell Foam x 4
#BRTR15501
M3x8 SC x 2
M2.5x8 SC x 9
M3x12 SS x 2
M3x8 RS x 4
M3x8 CSS x 1
M3x12 CSS x 1
D8x1.5 O-Ring x 4
Motor Spacer
#BRLC7032
M3x8 RS x 4 M2.5x6 RS x 2
#BRASFH3012
#BRASCH2508
#BRASORD8-15
#BRASCH3008
#BRASBH3008
M3x8 RS x 4
#BRASBH3008
#BRASBH3008
M3x8 RS x 8
#BRASBH3008
M3x10 RS x 4
#BRASBH3010
M3x14 RS x 2
#BRASBH3014
M3x16 RS x 5
#BRASBH3016
#BRASFH3008
M2.5x8 CSS x 2
M3x8 CSS x 4
M3x10 CSS x 4
M3x18 CSS x 4
#BRASFH2508
#BRASFH3008
#BRASFH3010
#BRASFH3018
M2.5x10 SC x 2
M3x12 SS x 2
3x6x5 Tapper Spacer x 4
3x6x3 Tapper Spacer x 2
#BRLC7040
#BRLC7041
#BRASCH2510
#BRASST3012/DS
#BRASST3012/DS
M3x12 RS x 4
#BRASBH3012
M3x18 RS x 3
#BRASBH3018
M3x24 RS x 1
#BRASBH3024
M4x16 SS x 16
#BRASST4016
M3 Nuts -Nyloc x5
M3 Nuts -Nyloc x 2
D6x1.5 O-Ring x 2
D4x7x2 Nylon Spacer x 2
3x6x5 Tapper Spacer x 2
#BRLC7040
#BRASSPD471/N
#BRASSPD5801
M3x22 CSS x 2
M3x20 CSS x 4
M3x26 CSS x 2
3x6x6 Tapper Spacer x2
#BRASFH3020 #BRASNUTM3
#BRASNUTM3 #BRASNUTM2
#BRASFH3022 #BRSORD6-15
#BRASSPD427/N#BRASFH3026
#BRLC7042
#BRASBH2506
M2x8 RS x 1
M3x12 RS x 2
M2 Nut x 1
#BRASNUTM2
M2 Nuts x 4
#BRASBH3012
#BRASBH2008
M2x7 RS x 1
M3x6 RS x 2
#BRASBH3006
#BRASBH2007

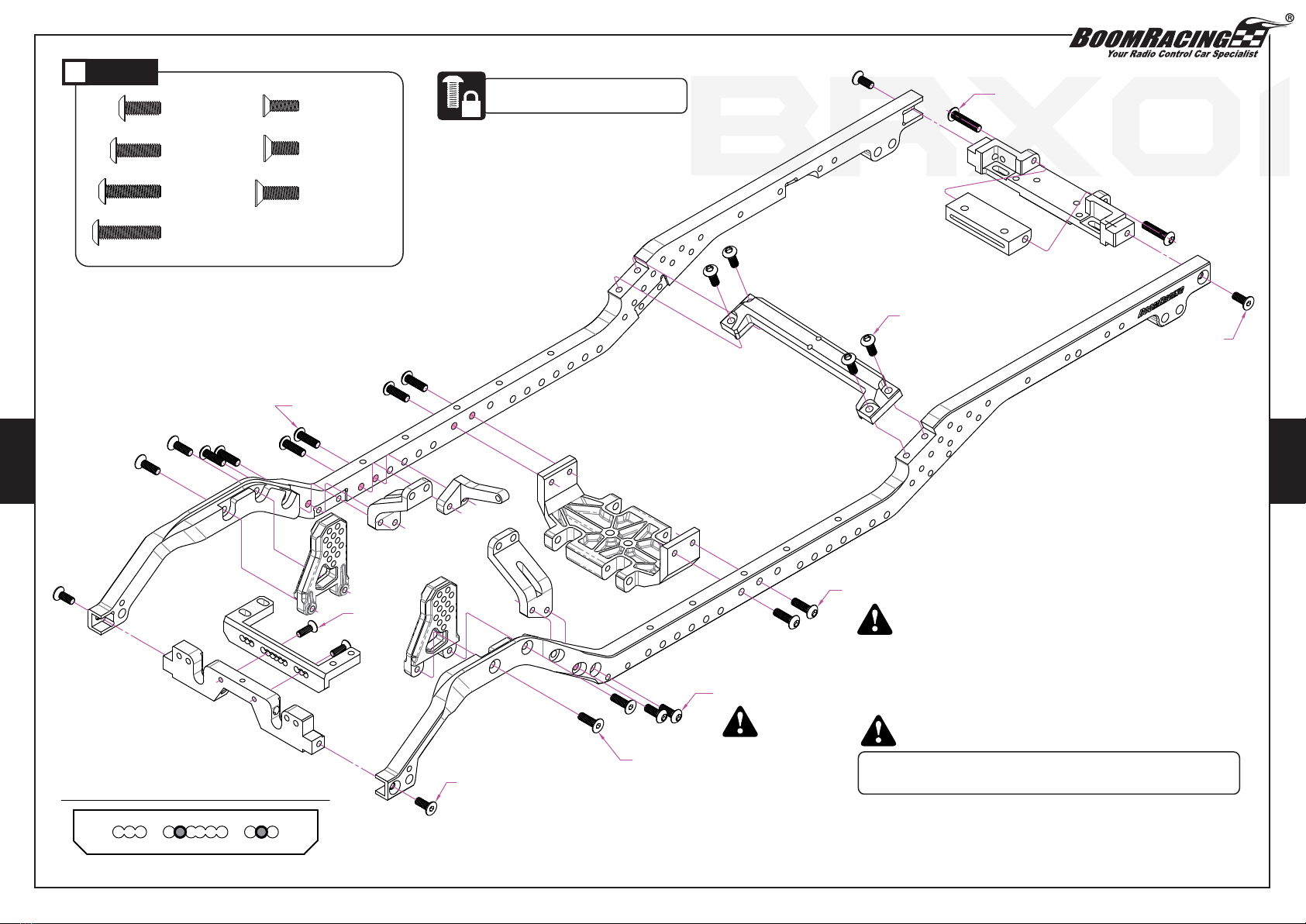

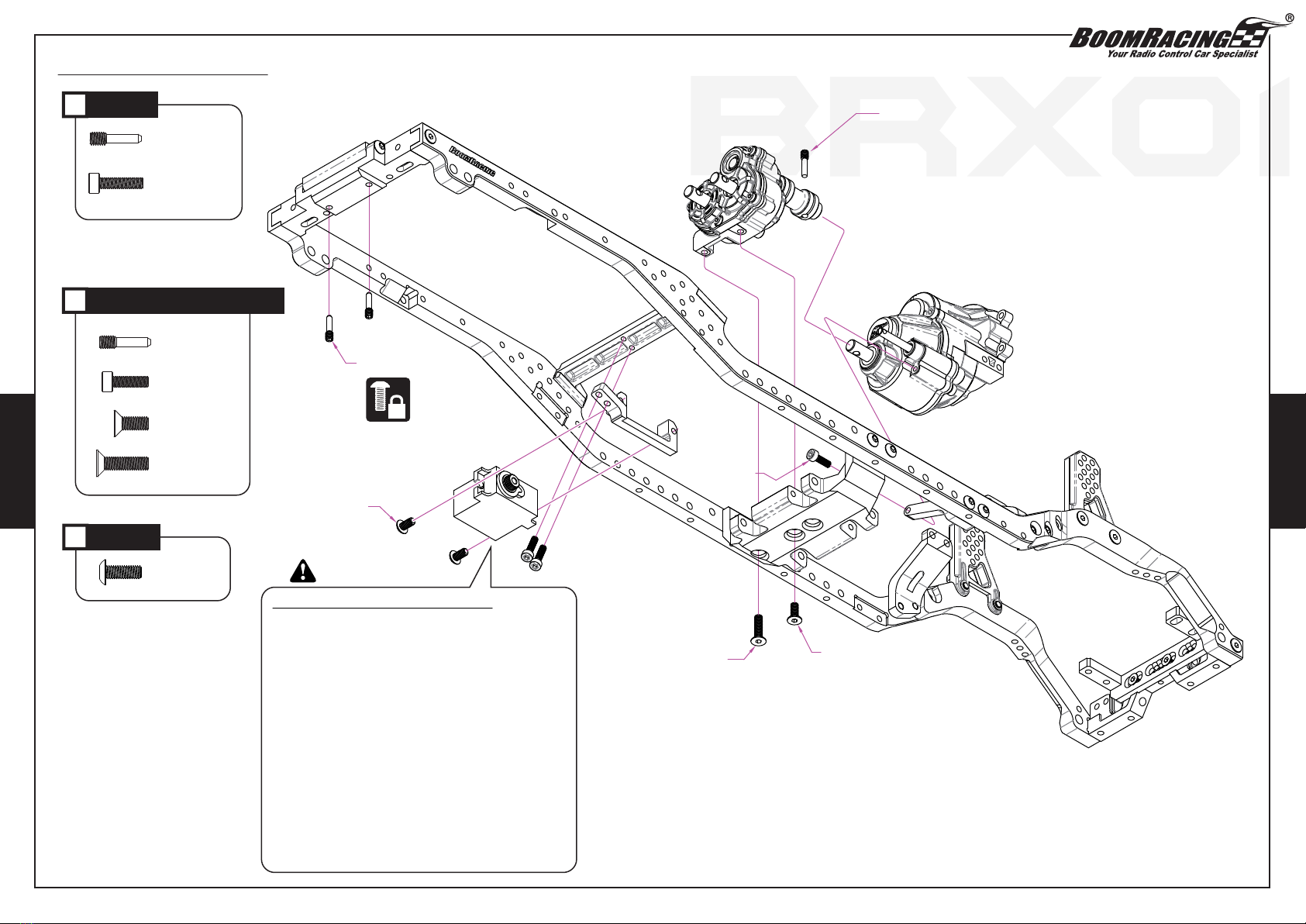

CHASSIS

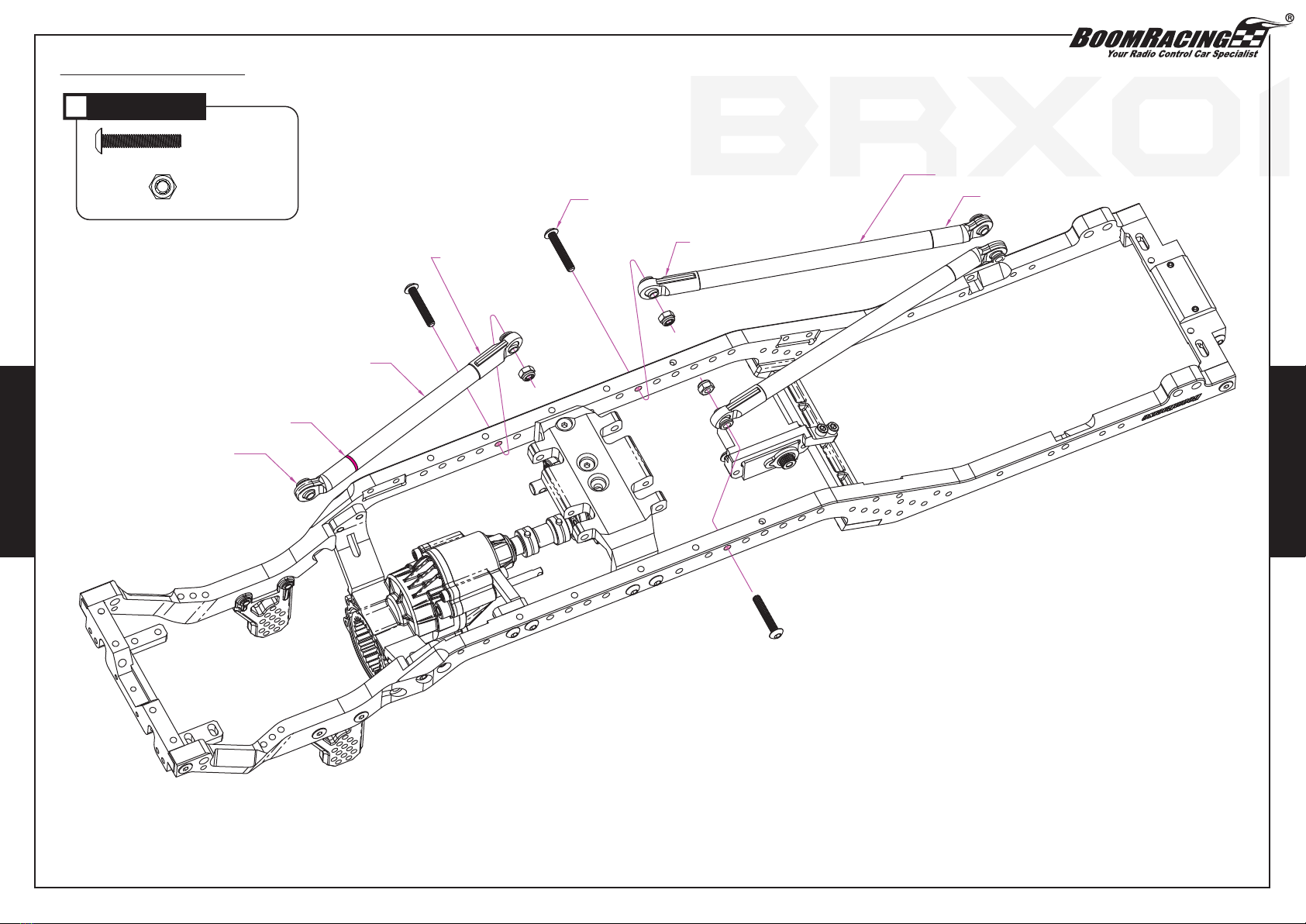

3LINKS / SHOCKS
6RECEIVER BOX
4SERVOS
7
BODY MOUNTS

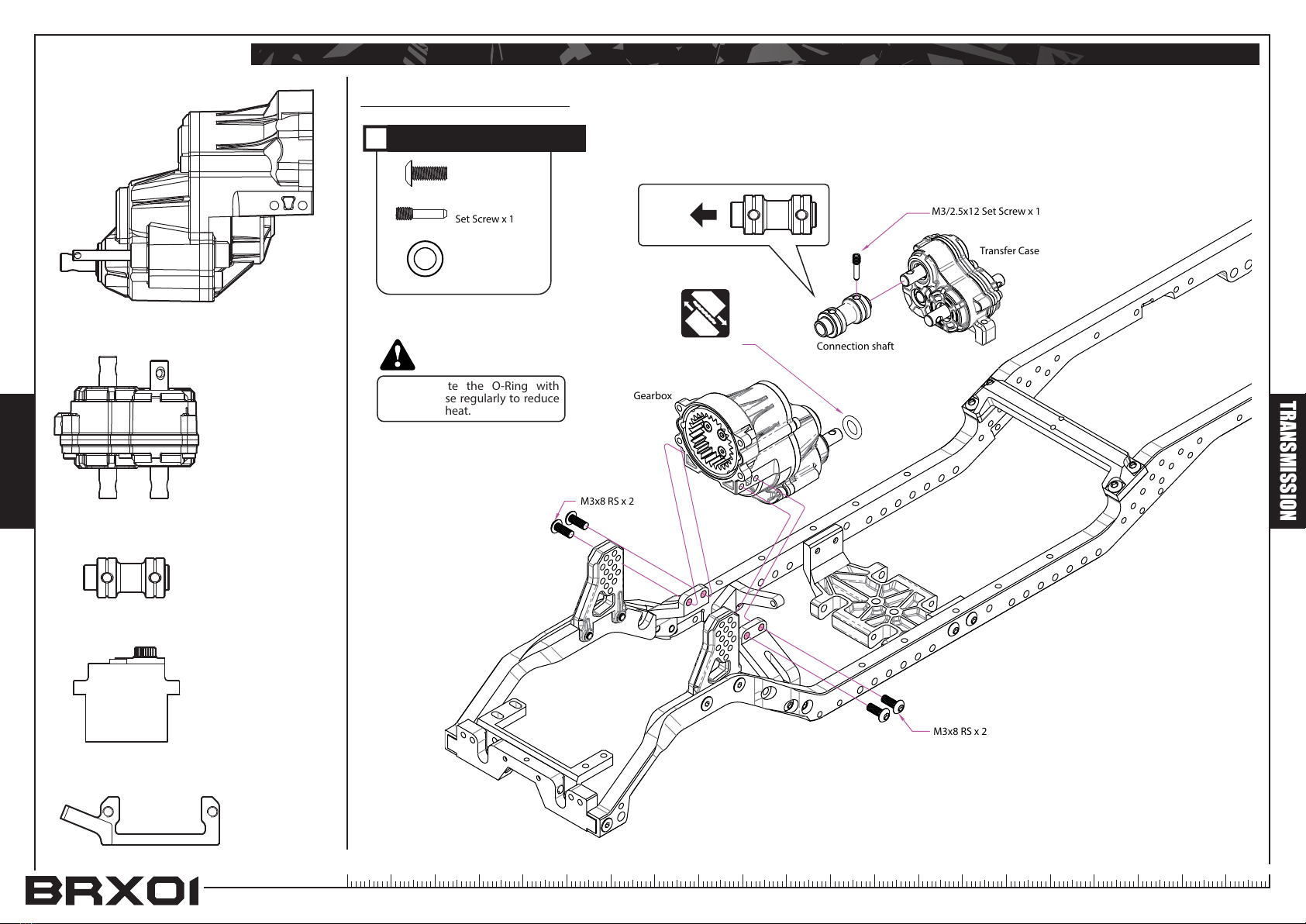

GEARBOX /
TRANSFER CASE
M2.5x8 SC x 2M3x12 Self Tapping x2
M4x12 SC x 2 M2x5 SC x 4
Cross Bar x 2
#BRASBH3012/ST
#BRACH4012 #BRASCH2005
#BRASCH2508
#BRLC7048C
Connection Shaft
#BRLC7028 #BRPG3212-3
D
D
D D
D
D
ACCESSORIES
D
D
5
FINE TUNE
SPACERS
12T 32P Pinion Gear
D4x7x1 Nylon Spacer x 2
D5x8x0.1 Spacer x 5 Hex Adapter x 42x10mm Pin x 4 M3x3 SS x 4
8WHEELS
D
M4 Nuts - Nyloc x 4
D
#BRASST3003#BRASPIN210 #BRASNUTM4
#BRLC7056
2
1
9
Steelie Wheels (Front) x 2
#BRW780955FGM
Steelie Wheels (Rear) x 2
#BRW780955RGM
C
7
M3x12 RS x 4
#BRASBH3012

JX Waterproof HV Mini Servo

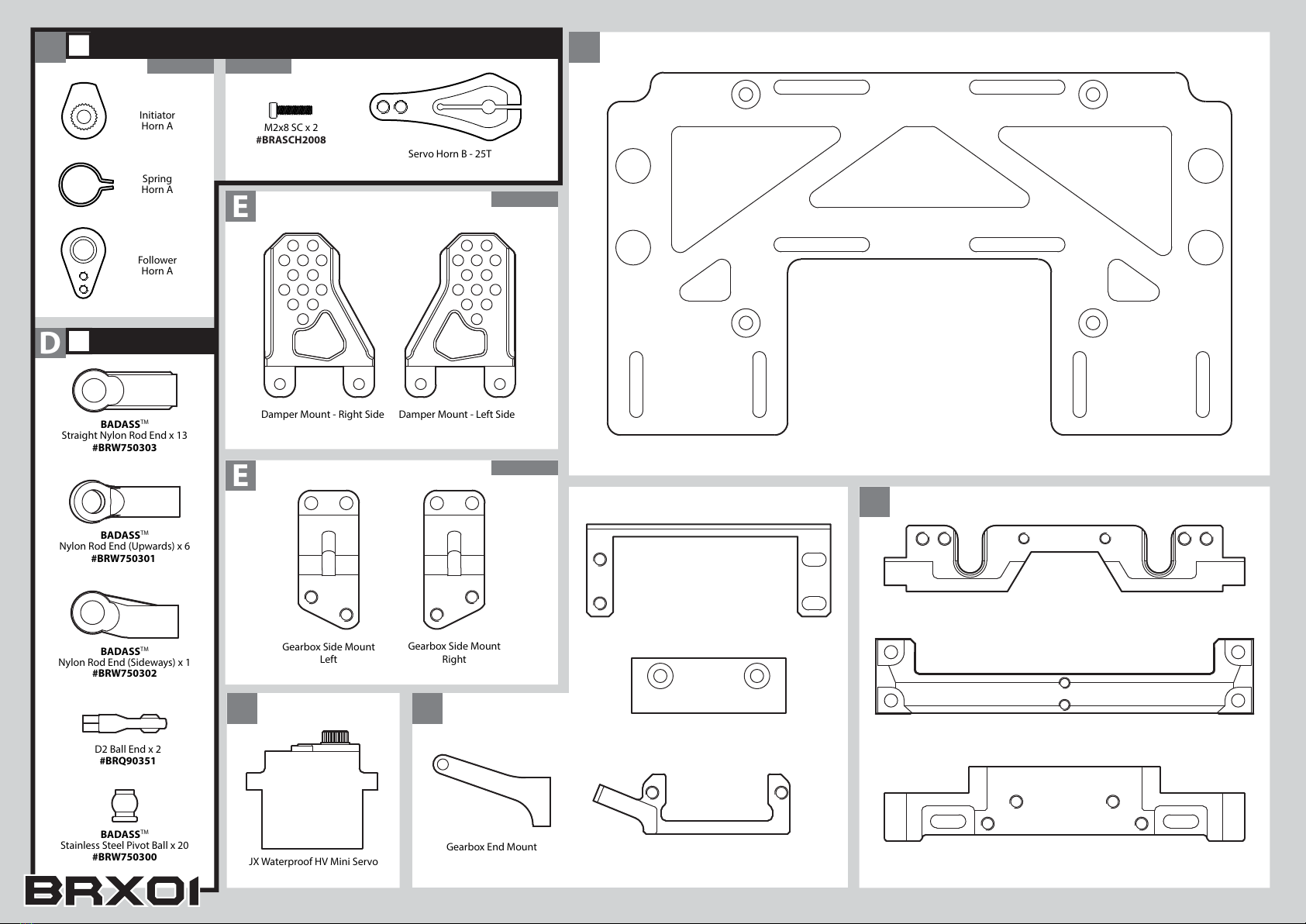

Damper Mount - Right Side Damper Mount - Left Side

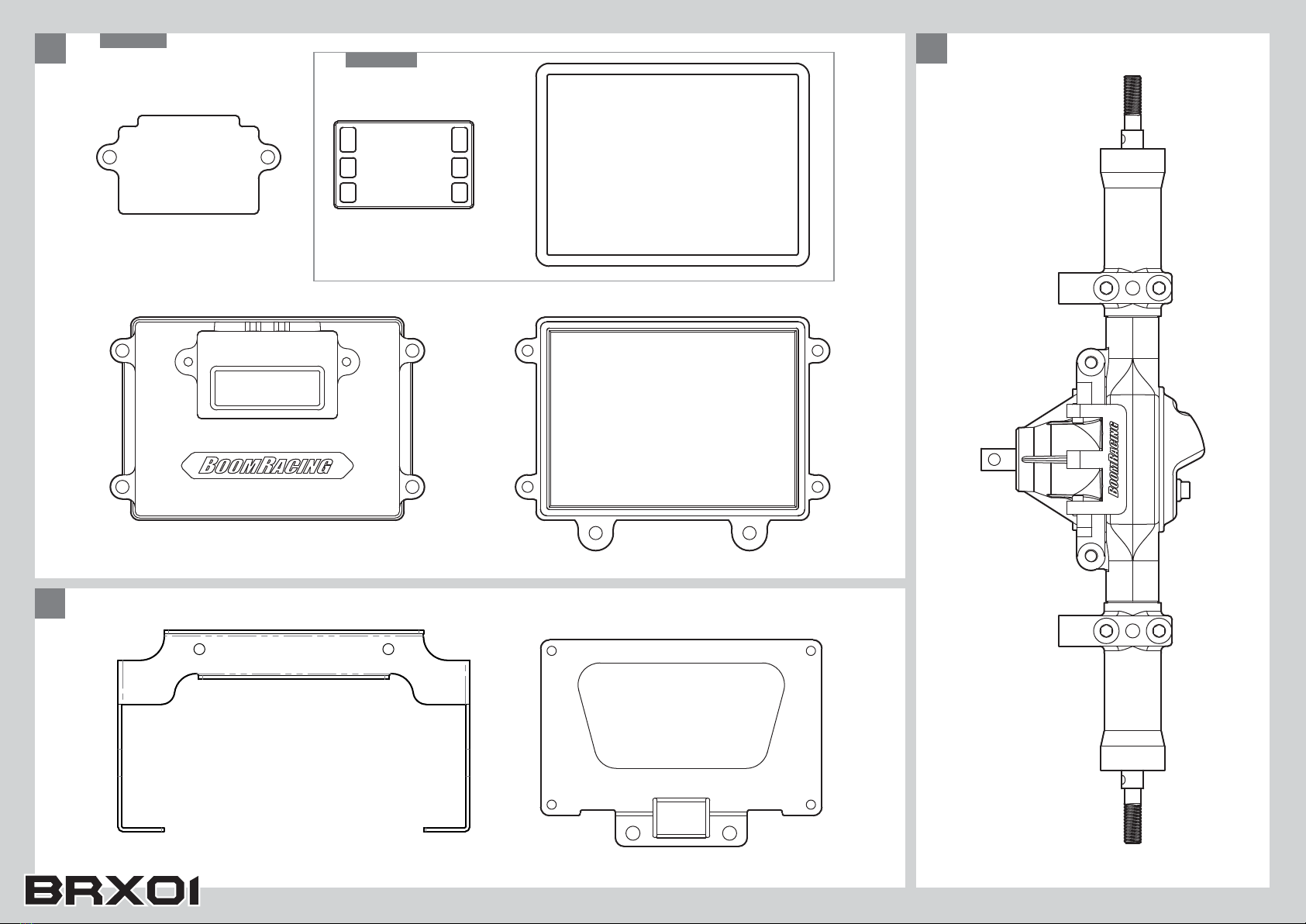

Battery & Electronics Mount Plate
D
Middle Crossmember
#BRLC7014
Front Crossmember
#BRLC7015
Rear Crossmember
#BRLC7012
D
Gearbox Side Mount
Right
Gearbox Side Mount
Left
E
BADASSTM
Straight Nylon Rod End x 13
#BRW750303
BADASSTM
Stainless Steel Pivot Ball x 20
BADASSTM
Nylon Rod End (Upwards) x 6
#BRW750301
BADASSTM
Nylon Rod End (Sideways) x 1
#BRW750302
#BRQ90351
#BRW750300
D2 Ball End x 2
D
E
Gearbox End Mount
Initiator
Horn A
Spring
Horn A
Follower
Horn A
M2x8 SC x 2
Servo Horn B - 25T
#BRASCH2008
9ACCESSORIES
D
10 ROD ENDS
Body Hinge Mount
#BRLC7013
#BRLC7009
Steering Servo Mount
#BRLC7016
2 Speed Servo Mount
EF
#BRLC7008
#BRLC7018
#BRLC7055#BRLC7049
#BRLC7019
#BRLC7021
#JX/PDI-HV1151MG
Voltage Range:
6V - 8.4V
8

#BRLC7057

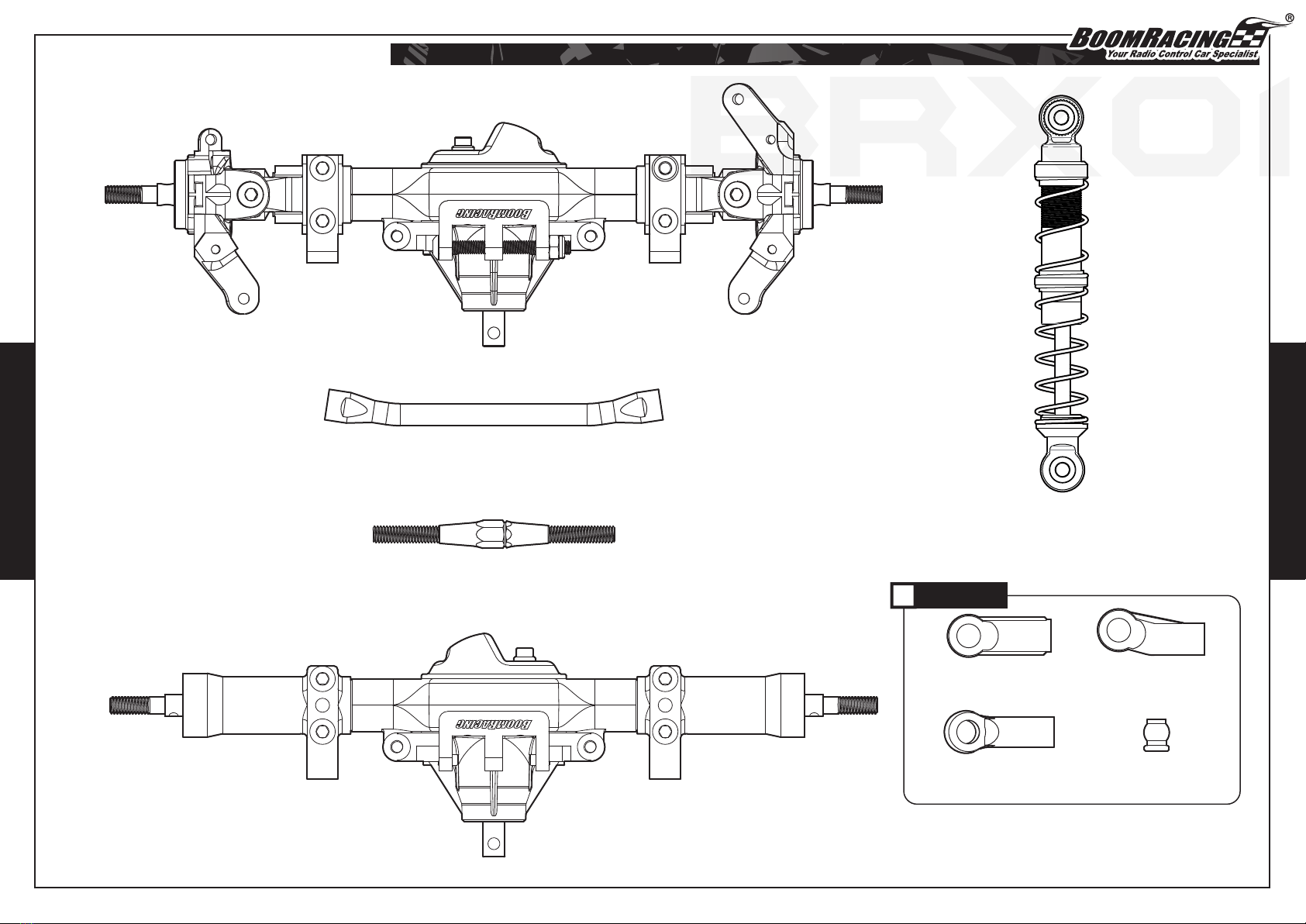

BRX70 Complete Front PHATTM Axle
w/ 30/8T HD Keyed Gear & BADASSTM HD Steel Uni. Drive Shafts
High Clearance Skid Plate

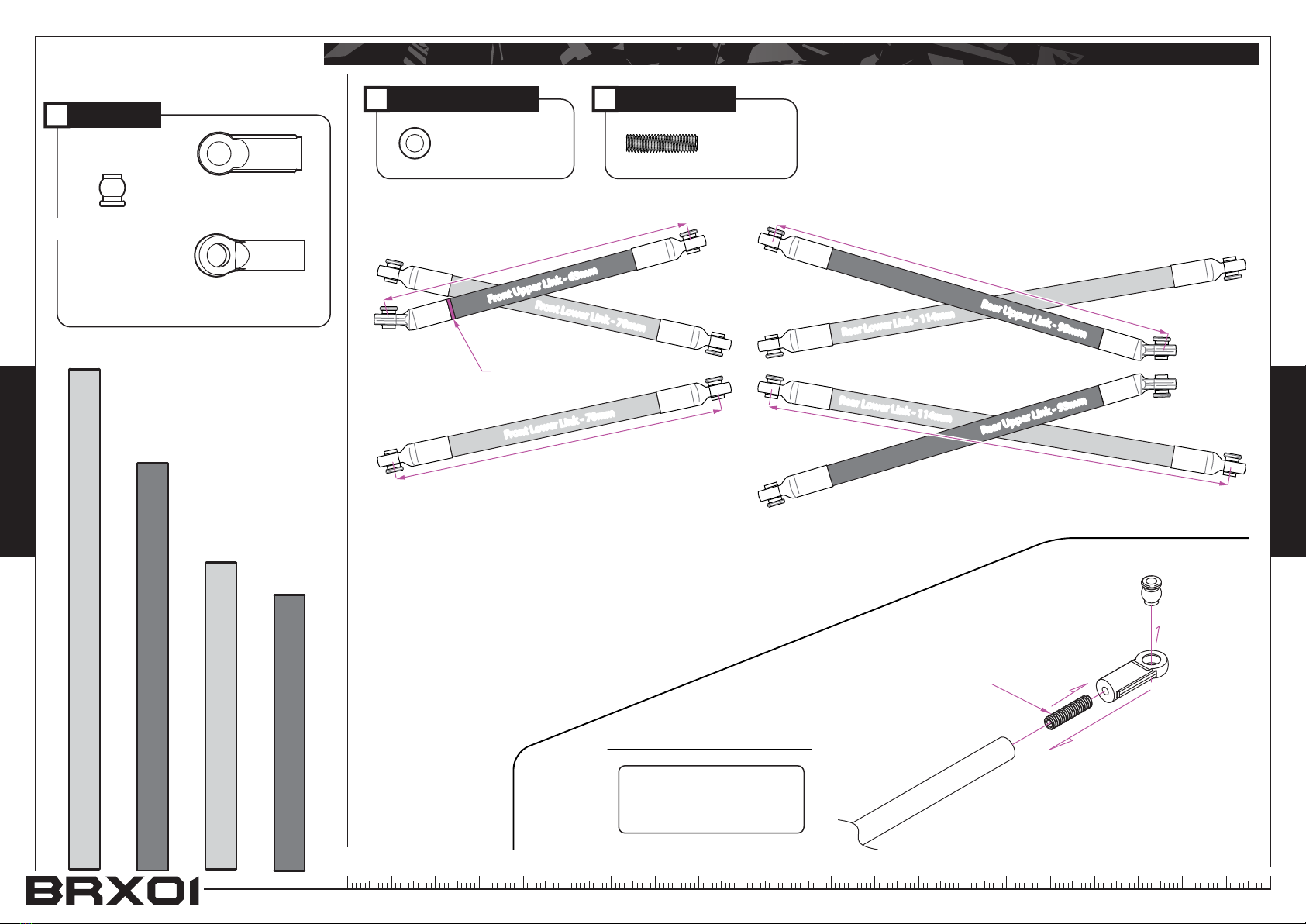

Link - 70mm x 2
Link - 114mm x 2
Link - 63mm x 1
Link - 93mm x 2
Shift Rod
Steel Rear Drive Shaft x 1
M3/2.5x12 Set Screw x 4
Steel Front Drive Shaft x 1
D5x7x2.7 Spacer x 4
H
H
H I
E
Complete SRDTM Transfer Case
Counter Threaded Link
55mm x 2
Tie Rod
G
#BRLC7051
#BRASSPD5727
#BRLC7050
#BRLC7003
#BRLC7034
#BRLC7043
#BRQ763069/CA
#BRLC7020
#BRASST3012/DS
Rebuild Kit Available
#BRQ90279KIT
9

BRX70 Complete Rear PHATTM Axle
w/ Reversed 30/8T HD Keyed Gear & BADASSTM HD Steel Shaft
Receiver Box
Receiver Box Lid
Silicone Seal
Silicone PortStainless Steel Sealing Cap
Rear Body Mount
JK
K
Front Body Mount
#BRLC7048A
#BRLC7048B
#BRLC7033
#BRLC7033A
#BRLC7058
10

Battery Strap x 2
Tool - Socket x 1
1.5mm
Hex Key x 4
7mm
Wrench 5.5mm/5.0mm x 1
Black Graphite Grease 5g
SW Siliking Grease 5g
LD
Extension Cable x 2
F
B
D
10 x 1.5cm Double Side tape
18 pieces / Use M2.5 or M3 Round Head Bolts
D
Cable Wiring Retainer
#BRGRS08
#BRGRS01
#BRT10037
#BRGRS10
#BRLC7059
242 Thread Lock 2g
(Available separately in 10g)
#BRGRS242
WT
30
30WT Shock Oil 15ml
(Available separately in 60ml)
#BRSHK030
#BRT10028
11
2.0mm
2.5mm
3.0mm
5.5mm

Rear Crossmember
Body Mount Hinge
Gearbox End Mount
Front Crossmember Steering Servo Mount
Middle Crossmember
Damper Mount - Right Side Damper Mount - Left Side
High Clearance Skid Plate
1 - CHASSIS
Gearbox Side Mount
Right
Gearbox Side Mount
Left
CHASSIS
CHASSIS
Chassis Rail - Left Side
Chassis Rail - Right Side
Parts Needed:
12

Front Crossmember
Steering Servo Mount
STEERING SERVO MOUNT DEFAULT SETUP
Damper Mount
Rear Crossmember
Gearbox End Mount
Body Mount Hinge
Middle Crossmember
M3x8 CSS x 2
M3x8 CSS x 2
M3x10 CSS x 4
M3x12 RS x 4
M3x8 RS x 4
M3x10 RS x 2
M3x8 RS x 4
M2.5x8
CSS x 2
M3x14 RS x 2
M3x8 CSS x 4
M3x10 CSS x 4
M2.5x8 CSS x 2
Chassis Rail - Left Side
Chassis Rail - Right Side
High Clearance Skid Plate
Gearbox Side Mount
Left
Gearbox Side Mount
Right
1CHASSIS
Apply Thread Lock to all screws.
When installing the gearbox and T-case, align them by tightening all of
the screws down in stages and check for binding as it is being tightened.
13
CHASSIS
CHASSIS
M3x14 RS x 2
M3x10 RS x 2
M3x8 RS x 8
M3x12 RS x 4

Tip: Lubricate the O-Ring with
Silking Grease regularly to reduce
friction and heat.
TRANSMISSION
TRANSMISSION
2.1  TRANSMISSION
M3x8 RS x 4
M3/2.5x12
Set Screw x 1
Transfer Case
Connection shaft
Gearbox
M3x8 RS x 2
M3x8 RS x 2
M3/2.5x12 Set Screw x 1
2GEARBOX / TRANSFER CASE
D8x1.5 O-ring
Complete BCF2TM Gearbox
(Exploded Diagram on Page 43)
Complete SRDTM Transfer Case
(Exploded Diagram on Page 44)
Connection Shaft
JX Waterproof HV Mini Servo
(6V - 8.4V)
2 Speed Servo Mount
2 - TRANSMISSION
Gearbox
D8x1.5 O-Ring x 1
Parts Needed:
160 170 180 190 200110 120 130 140 15060 70 80 90 100
mm
2100 10 20 30 40 50
14

M3x8 CSS x 1
M3x12 CSS x 1
M2.5x10 SC x 2
M3x8 RS x 2
Transfer Case
Connection shaft
2.2  TRANSMISSION
M3/2.5x12
Set Screw x 2
M3x12 CSS M3x8 CSS
M3x8 RS x 2
M2.5x10 SC x 2
M2.5x8 SC
M3/2.5x12
Set Screw x 2
M2.5x8 SC x 1
Waterproof Servo
(prefered to install rst)
2 Speed Servo Mount
1CHASSIS
Gearbox
M3/2.5x12 Set Screw x 1
M3/2.5x12
Set Screw x 1
2GEARBOX / TRANSFER CASE
15
TRANSMISSION
TRANSMISSION
4SERVOS
Model:
Working voltage:
Working temperature:
Dead band:
Motor type:
Signal booster type:
Gear material:
Operating Speed:
Stall Torque:
Idle Current:
Load Current:
Size:
Weight:
Tooth Count:
Wire length:
Black:
Red:
White:
JX/PDI-HV1151MG
6V~8.4V
-20C°~ +60C°
4usec
Core Motor
Digital
Metal gear
0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
150mA (6.0V) | 180mA (8.4V)
260mA (6.0V) | 340mA (8.4V)
23.2 x 12.5 x 25.6mm
15g
25
310mm JR plug
Negative
Positive
Signal
JX Waterproof High Voltage Mini Servo Specs:

BADASSTM
Straight Nylon Rod End x 11
Straight Rod End
Straight Rod End
Straight Rod End
Straight Rod End
Straight Rod End
Straight Rod End
151.5mm (hole to hole)
Straight Rod End
BADASSTM
Nylon Rod End (Upwards) x 3
Upwards Rod End Upwards Rod End
Upwards Rod End
Front Lower Link
70mm x 2
Rear Lower Link
114mm x 2
Front Upper Link
63mm x 1
Rear Upper Link
93mm x 2
Nylon Rod End
Stainless Steel Pivot Ball
Link
- Install the set screw into the rod end
before inserting into the link.
- Repeat 14 times.
- Tip: Use a 2.0 Hex Driver to torque the
set screw into the rod end.
ROD END INSTALLATION
M4x16 Set Screw step 2
step 3
step 1
UPPER & LOWER LINKS
UPPER & LOWER LINKS
10 ROD ENDS
BADASSTM
Stainless Steel Pivot Ball x 14
3 - UPPER & LOWER LINKS
Parts Needed: 5FINE TUNE SPACERS
D4x7x1 Nylon Spacer x 1
D4x7x1 Nylon Spacer
Front Upper Link - 63mmFront Upper Link - 63mm
Rear Upper Link - 93mmRear Upper Link - 93mm
Rear Upper Link - 93mmRear Upper Link - 93mm
Front Lower Link - 70mmFront Lower Link - 70mm
Front Lower Link - 70mmFront Lower Link - 70mm
Rear Lower Link - 114mmRear Lower Link - 114mm
Rear Lower Link - 114mmRear Lower Link - 114mm
160 170 180 190 200110 120 130 140 15060 70 80 90 100
mm
2100 10 20 30 40 50
16
102.78mm (hole to hole)
107.5mm (hole to hole)
131.78mm (hole to hole)
3LINKS / SHOCKS
M4x16 SS x 14

M3x18 RS x 3
M3 Nuts - Nyloc x 3
3LINKS / SHOCKS
3.1  UPPER LINKS
Upwards Rod End
Link - 63mm
Link - 93mm x2
Straight Rod End
M3x18 RS x3
Straight Rod End x2
Upwards Rod End x2
D4x7x1 Nylon Spacer
UPPER & LOWER LINKS
UPPER & LOWER LINKS
17

UPPER & LOWER LINKS
UPPER & LOWER LINKS
Link - 114mm
Link - 114mm
Link - 70mm
Link - 70mm
M3x16 RS x 4
Straight Rod End x 4
Straight Rod End x 4
3.2  LOWER LINKS
160 170 180 190 200110 120 130 140 15060 70 80 90 100
mm
2100 10 20 30 40 50
18
M3x16 RS x 4
1CHASSIS

FRONT/REAR AXLE & SHOCKS
FRONT/REAR AXLE & SHOCKS
Tie Rod
Counter Threaded Link - 55mm x 1
BADASSTM
Nylon Rod End (Sideways) x 1
80mm Shock x 4
BADASSTM
Nylon Rod End (Upwards) x 1
10 ROD ENDS
BADASSTM
Stainless Steel Pivot Ball x 4
4 - FRONT/REAR AXLE & SHOCKS
BADASSTM
Straight Nylon Rod End x 2
BRX70 Complete Front PHATTM Axle
w/ 30/8T HD Keyed Gear & BADASSTM HD Steel Uni. Drive Shafts
(Exploded Diagram on Page 41)
BRX70 Complete Rear PHATTM Axle
w/ Reversed 30/8T HD Keyed Gear & BADASSTM HD Steel Shaft
(Exploded Diagram on Page 42)
Parts Needed:
19
