bora Classic 2.0 Series User manual

EN
BORA Classic 2.0 system installation instructions
Cooktop extractor and cooktops
C2XIMEN-005
www.bora.com

EN
2
www.bora.com
1 General information 3
1.1 Liability............................................................................. 3
1.2 Validity of the operating and installation instructions....3
1.3 Product conformity ......................................................... 3
1.4 Data protection................................................................ 3
1.5 Presentation of information............................................ 3
2 Safety 4
2.1 Use as intended............................................................... 4
2.2 General safety instructions ............................................ 4
2.3 Safety instructions for installation................................. 5
2.4 Safety instructions – repairs, servicing and spare parts ..7
2.5 Safety instructions – disassembly and disposal .......... 7
3 Technical data 8
3.1 CKA2/CKA2AB ................................................................ 8
3.2 CKFI .................................................................................. 9
3.3 CKI ..................................................................................10
3.4 CKIW...............................................................................11
3.5 CKCH ..............................................................................12
3.6 CKCB...............................................................................13
3.7 CKG.................................................................................14
3.8 CKT .................................................................................15
4 Installation 16
4.1 General installation information .................................16
4.1.1 Operating the cooktop extractor with a fireplace that
depends on the air in the room ..................................... 16
4.2 Checking the delivery ...................................................17
4.2.1 Scope of delivery of the cooktop extractor
CKA2/CKA2AB .............................................................. 17
4.2.2 Scope of delivery of the cooktops ................................. 17
4.3 Tools and aids................................................................17
4.4 Assembly instructions...................................................17
4.4.1 Safety clearances........................................................... 17
4.4.2 Worktop and kitchen units............................................. 17
4.4.3 Recirculation when using the cooktop extractor as
a recirculation system.................................................... 18
4.4.4 Special assembly instructions for gas cooktop CKG ..... 18

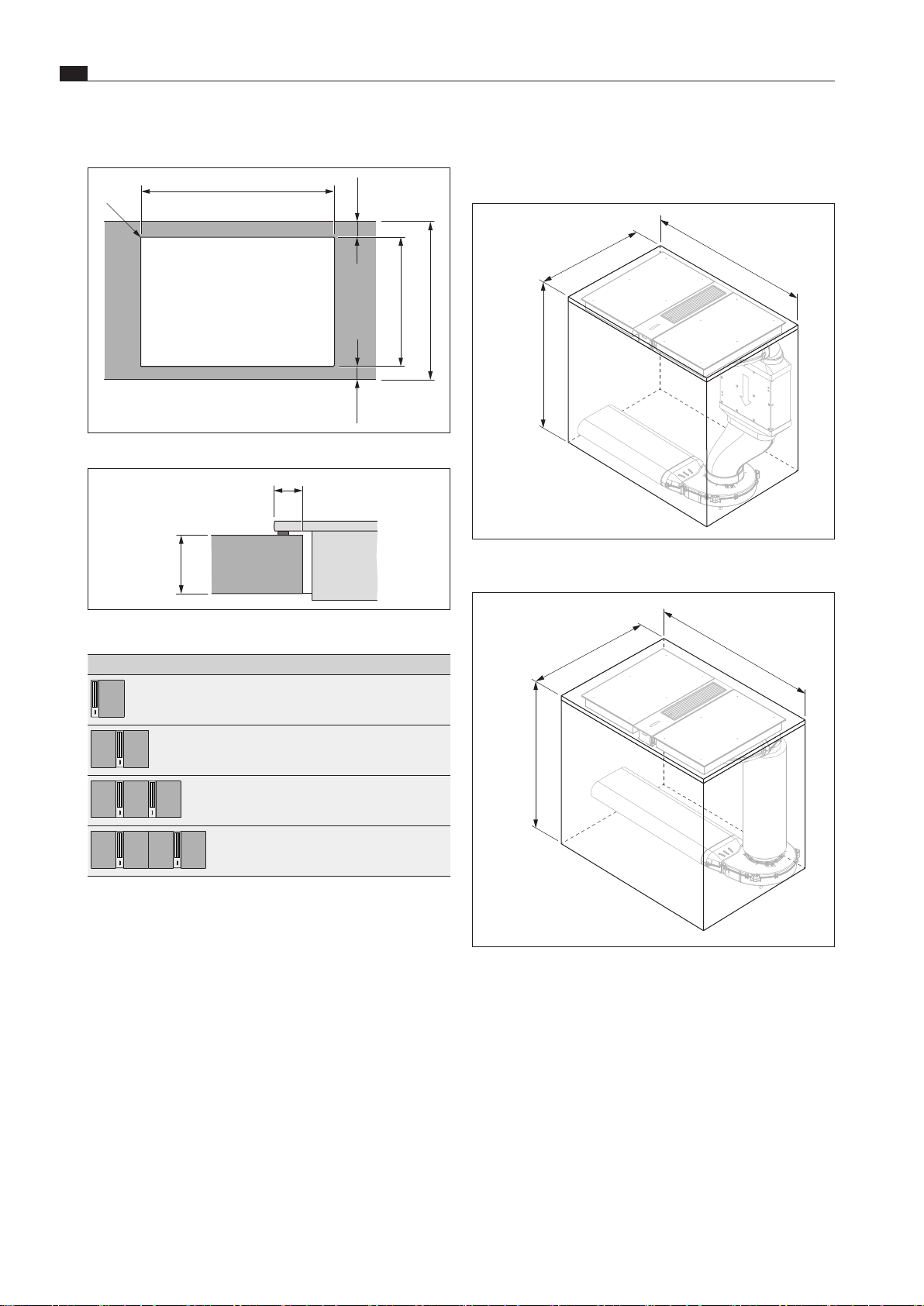

4.5 Cut-out dimensions .......................................................19
4.5.1 Flush installation ............................................................ 19
4.5.2 Surface mounting........................................................... 20
4.6 Installation dimensions.................................................20
4.7 Installation options........................................................21
4.8 Assembling the extraction system...............................22
4.8.1 Assembling cooktop extractor
CKA2/CKA2AB .............................................................. 22
4.9 Installing the cooktop extractor...................................23
4.9.1 Fitting and positioning the cooktop extractor................ 23
4.10 Installing the duct system ............................................23
4.10.1 Fitting the duct system to cooktop extractor
CKA2/CKA2AB .............................................................. 23
4.10.2 Installing the additional fan............................................ 25
4.11 Installing the cooktops .................................................25
4.11.1 Fitting and positioning the cooktops ............................. 25
4.11.2 Securing the cooktop extractor ..................................... 25
4.11.3 Securing the cooktops ................................................... 26
4.12 Connecting external switch contacts ..........................26
4.13 Establishing communication and power connection..28
4.13.1 Establishing contact between the cooktop extractor
and cooktops.................................................................. 28
4.13.2 Fitting split ferrite sleeves.............................................. 28
4.13.3 Establishing contact between the operating unit and
control unit..................................................................... 29
4.13.4 Connecting fans to the control unit ............................... 29
4.13.5 Positioning the control unit............................................ 29
4.13.6 Connecting to the mains................................................ 29
4.14 Gas installation (only in the case of gas cooktop CKG).. 30
4.14.1 Ventilation ...................................................................... 30
4.14.2 Gas connection .............................................................. 30
4.14.3 Additional installation notes for Australia and
New Zealand (AU/NZ).................................................... 30
4.14.4 Gas connection AU/NZ.................................................. 31
4.14.5 Changing the gas type ................................................... 31
4.14.6 Gas configuration........................................................... 33
4.15 Initial operation .............................................................33
4.15.1 Configuration.................................................................. 33
4.15.2 Function test .................................................................. 34
4.16 Sealing the devices .......................................................34
4.17 Handover to user...........................................................34
5 Decommissioning, disassembly
and disposal 35
5.1 Decommissioning..........................................................35
5.2 Disassembly...................................................................35
5.3 Environmentally-friendly disposal................................35
Table of Contents

EN
3
General information
www.bora.com
1 General information
1.4 Data protection
During operation your cooktop extractor saves pseudonymised
data such as menu settings entered by you, operating hours
of the individual technical units and the number of functions
selected. Furthermore, your cooktop extractor documents errors
in combination with the number of operating hours.
Data can only be read out manually via your cooktop extractor.
This decision is therefore your responsibility.
These saved data then enable a rapid error search and
troubleshooting in the event of servicing.
1.5 Presentation of information
We use standard formatting, numbering, symbols, safety
instructions, terms and abbreviations so that you can work
quickly and safely when using this manual.
The term “appliance” is used to refer to cooktops, cooktop
extractors or cooktops with integrated cooktop extractor.
Instructions are indicated with an arrow.
XXAlways follow all instructions in the prescribed order.
Enumerations are indicated with a bullet point at the start of
the line:
XO Enumeration 1
XO Enumeration 2
i Information notes point to special features that must be
taken into account.
Safety and warning instructions
The safety and warning instructions in this manual are
emphasised with symbols and signal words.
Safety and warning instructions are structured as follows:
ÿ
WARNING SYMBOL AND SIGNAL WORD!
Type and source of danger
Results of non-compliance
XX Measures to minimise risk
Please note:
XO warning symbols draw attention to a high risk of injury.
XO The signal word indicates the severity of that risk.
Warning
symbol
Signal word Risk
üDanger Indicates an immediate, hazardous
situation which causes death or
serious injury if not respected.
üWarning Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Caution Indicates a potentially hazardous
situation which can cause minor
injury or damage to property if not
respected.
Tab. 1.1 Meaning of the warning symbols and signal words
These instructions contain important information to protect you
from injury and prevent damage to the appliance.
Please read these instructions carefully before installing or using
the appliance for the first time.
Other documents apply alongside these instructions.
Please by all means adhere to all documents that form part of
the scope of delivery.
Assembly and installation may only be carried out by trained
specialists and taking into account the applicable laws,
regulations and standards. All safety and warning information
as well as the handling instructions in the accompanying
documents must be observed.
1.1 Liability
BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA
APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter
referred to as BORA – does not assume any liability for damage
arising from disregard for or non-adherence to the documents
included in the scope of delivery!
Furthermore, BORA shall not be held liable for damage caused
by improper installation or failure to observe the safety and
warning instructions!
1.2 Validity of the operating and
installation instructions
i These instructions describe the BORA Classic 2.0 system
with software version 03.00.
These instructions apply to several appliance versions. It is
therefore possible that some of the features described do not
apply to your appliance. The details of the figures contained
herein may differ from some appliance versions and are to be
understood as schematic diagrams.
1.3 Product conformity
Directives
The appliances meet the following EU/EC directives:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC Ecodesign Directive
2011/65/EU RoHS Directive
Regulations
Gas appliances meet the following EU directives:
(EU) 2016/426 regulation on appliances burning gaseous fuels

EN
4
Safety
www.bora.com
2 Safety
ÿDANGER!
Risk of electric shock or injury from damaged
surfaces
The underlying electronics can be exposed or
damaged due to ssures, fractures or cracks in
appliance surfaces (e.g. damaged glass ceramic),
particularly in the operating area. This can cause
an electric shock. Furthermore, a damaged surface
can cause injuries.
XX Do not touch the damaged surface.
XX If there are any cracks, fissures or fractures,
switch the appliance off immediately.
XX Safely disconnect the appliance from the mains
using the LS switch, fuses, automatic circuit
breakers or contactor.
XX Contact BORA Service.
ÿWARNING!
Risk of injury from damaged components
Damaged components that cannot be removed
without tools can cause injuries.
XX Try not to repair or replace damaged
components yourself.
XX Contact BORA Service.
ÿWARNING!
Risk of injury or damage due to incorrect
components or unauthorised modifications
Incorrect components can lead to personal
injury or damage to the appliance. Modications,
additions or alterations to the appliance can lead to
safety risks.
XX Only use original components.
XX Do not make any modifications, additions or
alterations to the appliance.
CAUTION!
Appliance components can cause injury if
dropped
Appliance components (e.g. pan supports,
operating controls, covers, grease lters, etc.) can
cause injury if dropped.
XX Place any appliance components that have been
removed in a safe place near the appliances.
XX Ensure that no components removed from the
appliances can fall on the floor.
The appliance complies with the stipulated safety
requirements. The user is responsible for the safe
use of the appliance, cleaning and maintenance.
Improper use can lead to personal injury and damage
to property.
2.1 Use as intended
The appliance is solely intended for preparing food in
private households.
This appliance is not intended for:
XO
outdoor use
XO
heating rooms
XO
cooling, ventilating or dehumidifying rooms
XO
use in mobile installation sites such as motor
vehicles, ships or aeroplanes
XO
use with an external timer or a separate remote
control system (except for emergency shutdown)
XO
use at altitudes of over 2,000 m (metres above sea
level).
Any other use or any use that goes beyond that which
is described here is classed as unintended.
i BORA does not assume any liability for
damages caused by improper use or incorrect
operation.
All misuse is prohibited!
2.2 General safety instructions
ÿDANGER!
Packaging components are a choking hazard
Packaging components (e.g. lm, polystyrene) can
be life-threatening for children.
XX Store all packaging components out of reach of
children.
XX Dispose of the packaging properly and
immediately.

EN
5
Safety
www.bora.com
XX Check the information on the identification plate
and in the event of deviations, do not connect the
appliance.
XX Conduct all work extremely attentively and
conscientiously.
XX Do not connect the appliance to the mains until
the duct system has been installed or the
recirculation filter has been fitted.
XX Only use the connection cables supplied. Where
necessary these are included in the scope of
delivery.
XX Do not use the appliance until installation is
complete. This is the only way to ensure safe
operation.
ÿDANGER!
Risk of electric shock from damaged appliance
A damaged appliance can cause an electric shock.
XX Check the appliance for visible damage prior to
installation.
XX Do not install or connect any damaged
appliances.
XX Do not operate any damaged appliances.
2.3.1 Safety instructions – cooktop
extractor installation
ÿDANGER!
Risk of electric shock from residual charge
Electrical components in the appliance can contain
residual charge and cause an electric shock.
XX Do not touch any exposed contacts.
ÿDANGER!
Risk of electric shock from incorrect stripping
of cables
Incorrect stripping of the connection cable to
external switching devices results in a risk of
electric shock.
XX Ensure that the connection cable is secured with
the strain relief clamp within the control unit.
XX Ensure that the stated stripping lengths are
adhered to.
ÿWARNING!
Risk of injury due to moving fan wheel
There is a risk of injury while the fan is turning.
XX Only install the device with the power
disconnected.
XX Connect both sides of the fan to the duct
system before commissioning.
CAUTION!
Risk of injury from heavy lifting
If not handled correctly, carrying and installing
appliances can cause injury to the limbs or torso.
XX If necessary, carry and install the appliance with
another person.
XX Use appropriate aids to prevent damage or
injury.
CAUTION!
Damage from improper use
The appliance surfaces must not be used as
work or storage surfaces. This can damage the
appliances (particularly in the case of hard and
sharp objects).
XX Never use the appliances as work or storage
surfaces.
XX Keep hard or sharp objects away from the
appliance surfaces.
Faults and errors
XX In the case of faults and errors, follow the
instructions in the “Troubleshooting” chapter.
XX In the event of any faults or errors that are not
mentioned, switch the appliance off and contact
BORA Service.
Pets
XX Keep pets away from the appliance.
2.3 Safety instructions for
installation
i The appliance must only be installed and
assembled by trained specialists who are
familiar with and comply with the standard
national regulations and supplementary
regulations of the local utility companies.
i During installation maintain the minimum
clearance stated in the “Installation” (“Safety
clearances”) chapter.
i Work on electrical components must only be
conducted by trained electrical personnel.
The electrical safety of the appliance is only
guaranteed if it is connected to a protective
conductor system that has been installed in line with
regulations. Ensure that this basic safety precaution
is met.
The appliance must be suitable for the regional
voltage and frequency.

EN
6
Safety
www.bora.com
ÿDANGER!
Risk of electric shock from damaged power
supply cable
If the power supply cable is damaged (e.g. during
installation or by coming into contact with hot
cooking surfaces), this can cause an (lethal)
electric shock.
XX Make sure that the power supply cable does not
become trapped or damaged.
XX Make sure that the power supply cable does not
come into contact with hot cooking surfaces.
Special safety instructions for the installation
of gas cooktops
i Gas installation, appliance installation and
replacing the gas nozzles, as well as changing
the gas type and pressure, may only be carried
out by reliable trained specialists, who are
familiar with and comply with the standard
national regulations and supplementary
regulations of the local utility companies.
XX Observe the special instructions on changing the
gas type and pressure and the specifications for
changing the gas nozzles in the nozzle table
(see Operating instructions).
BORA gas cooktops must only be used with BORA
cooktop extractors.
ÿDANGER!
Risk of explosion and asphyxiation from gas
Leaking gas can lead to an explosion and result
in severe injuries and property damage, or
asphyxiation.
XX Keep sources of ignition (naked flames, electric
fires) away and do not operate any light
switches, or switches on electrical appliances.
XX Do not remove plugs from sockets (risk of
sparking).
XX Close the gas supply immediately and turn off
the mains supply.
XX Ensure there is a good supply of fresh air (open
doors and windows).
XX Plug any leaks immediately.
Special safety instructions for the planning of
extractor systems

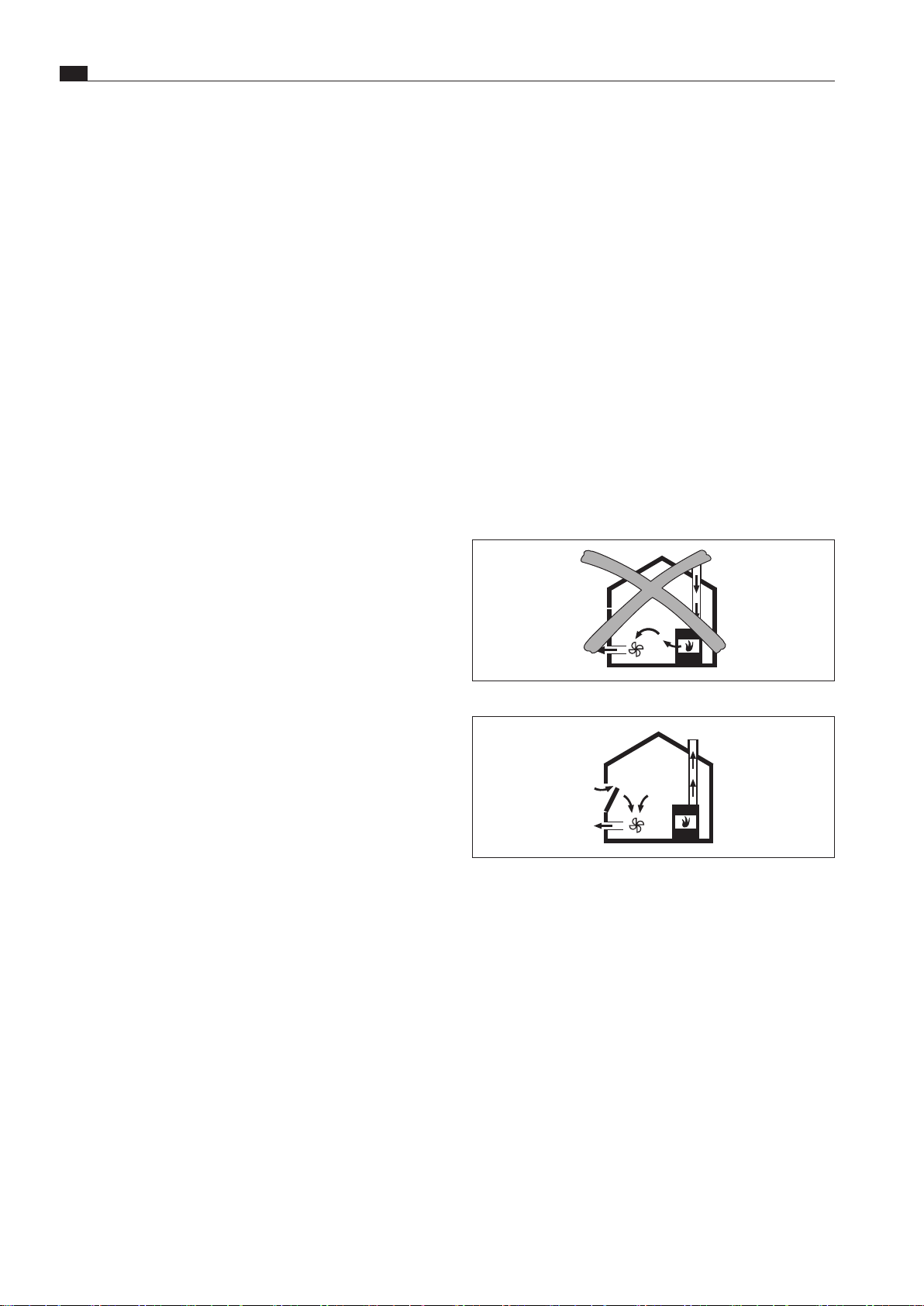

ÿDANGER!
Risk of smoke inhalation
When the cooktop extractor is used in exhaust
air mode, it draws in air from the room it is
installed in and from neighbouring rooms. If there
is insu󹩴cient air supply, low pressure will occur.
When used at the same time as a replace that
is dependent on the air in the room, noxious
gases can be sucked into the living areas from the
chimney or outlet shaft.
XX Make sure that there is always a sufficient air
supply.
XX Only use reliable, tried-and-tested switching
devices, (e.g. window contact switch, low
pressure warning device) and have them
approved by a qualified expert (certified chimney
sweep).
Ducting connected to wall sleeves
In the case of straight ducting and a distance
< 900mm between the fan and wall sleeve, a
safety guard must be provided for (available as an
accessory).
2.3.2 Safety instructions for cooktop
installation
ÿDANGER!
Risk of electric shock from incorrect mains
connection
Connecting the appliance to the mains incorrectly
poses a risk of electric shock.
XX Make sure that the appliance has a fixed
connection to the mains voltage.
XX Make sure that the appliance is connected to a
properly installed protective conductor system.
XX Make sure that technical equipment is provided
to enable all of the appliance’s poles to be
disconnected from the mains with a contact
opening width of at least 3 mm (LS switch and
automatic circuit breakers, fuses, contactor).

EN
7
Safety
www.bora.com
2.5 Safety instructions –
disassembly and disposal
i The appliance must only be disassembled by
trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local
utility companies.
i Work on electrical components must only be
conducted by trained electrical personnel.
XX Before disassembly, safely disconnect the
appliance from the mains supply.
ÿDANGER!
Risk of electric shock from incorrect
disconnection
Incorrectly disconnecting the appliance from the
mains results in a risk of electric shock.
XX Securely disconnect the appliance from the
mains using LS switches, fuses, automatic
circuit breakers or contactors.
XX Use an authorised measuring device to ensure
that there is no power to the appliance.
XX Do not touch exposed contacts on the electronic
unit as they may contain residual charge.
Special safety instruction for the disassembly
of gas cooktops
i The gas connection must only be worked on
by reliable trained specialists who are familiar
with and comply with the standard national
regulations and supplementary regulations of
the local utility companies.
2.4 Safety instructions – repairs,
servicing and spare parts
i The appliance must only be repaired and
serviced by trained specialists who are familiar
with and comply with the standard national
regulations and supplementary regulations of
the local utility companies.
i Work on electrical components must only be
conducted by trained electrical personnel.
XX Before any repair work, safely disconnect the
appliance from the mains supply.
ÿWARNING!
Risk of injury or damage from improper repairs
Incorrect components can lead to personal
injury or damage to the appliance. Modications,
additions or alterations to the appliance can lead to
safety risks.
XX Only use original spare parts for repairs.
XX Do not make any modifications, additions or
alterations to the appliance.
i A damaged power supply cable must be
replaced by a suitable power supply cable. This
may only be done by an authorised member of
the After Sales Service team.

EN
8
Technical data
www.bora.com
3 Technical data
80
69
90
190
41 7
375
Fig. 3.2 CKA2/CKA2AB device dimensions front view
136
13
489
Fig. 3.3 CKA2/CKA2AB device dimensions side view
104
68
280
Fig. 3.4 Device dimensions control unit
3.1 CKA2/CKA2AB
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption (including external
BORA Universal article fans)
max. 550 W
Fuse protection (internal) TR 3.15 A
Dimensions (width x depth x height) 439 x 515 x 190 mm
Weight (incl. accessories/packaging) 7.5 kg
Surface material SSG glass/1.4301
stainless steel and
plastic
Cooktop extractor
Power levels 1 - 5, P
Connection on the exhaust side BORA Ecotube
Tab. 3.1 Technical data CKA2/CKA2AB
Device dimensions CKA2/CKA2AB
86
116
515
330
439
434 0-150
Fig. 3.1 CKA2/CKA2AB device dimensions top view

EN
9
Technical data
www.bora.com

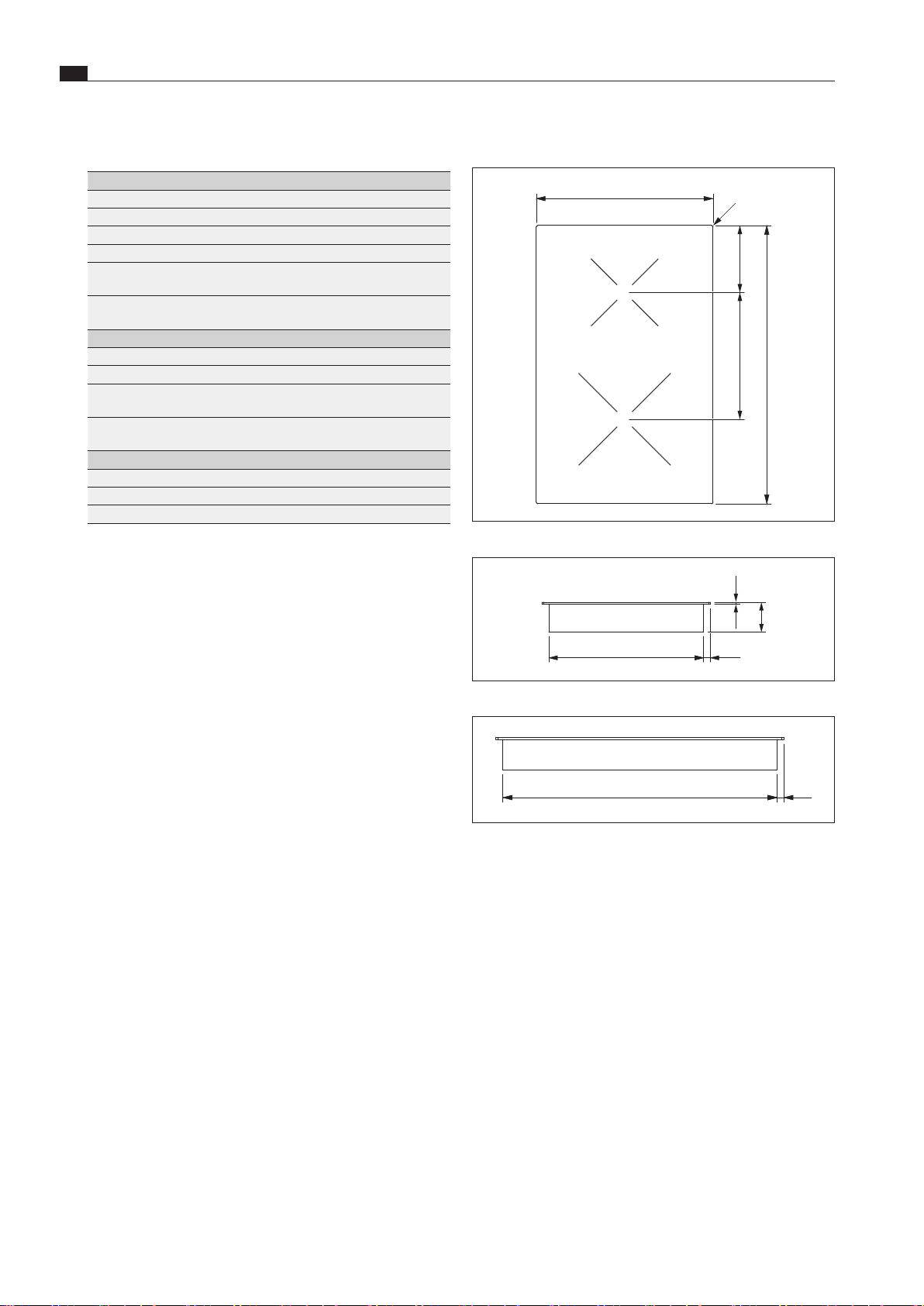

Device dimensions CKFI
R3
327
48,5 230
27,5
230230
515
Fig. 3.5 CKFI device dimensions top view
7
58
13,5 300
Fig. 3.6 CKFI device dimensions front view
12
491
Fig. 3.7 CKFI device dimensions side view
3.2 CKFI
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.68 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 58 mm
Weight
(incl. accessories/packaging)
7.9 kg
Cooktop
Power levels 1 - 9, P
Warming levels 3
Front cooking zone (zone 1)
power setting
230 x 230 mm 2100 W
3680 W
Rear cooking zone (zone 2)
power setting
230 x 230 mm 2100 W
3680 W
Cooktop energy consumption
Front cooking zone (zone 1) 230 x 230 mm 182.8 (Wh/kg)
Rear cooking zone (zone 2) 230 x 230 mm 181.1 (Wh/kg)
Cooking zones bridged 230 x 460 mm 207.0 (Wh/kg)
Total (average) 190.3 (Wh/kg)
Tab. 3.2 Technical data CKFI

EN
10
Technical data
www.bora.com

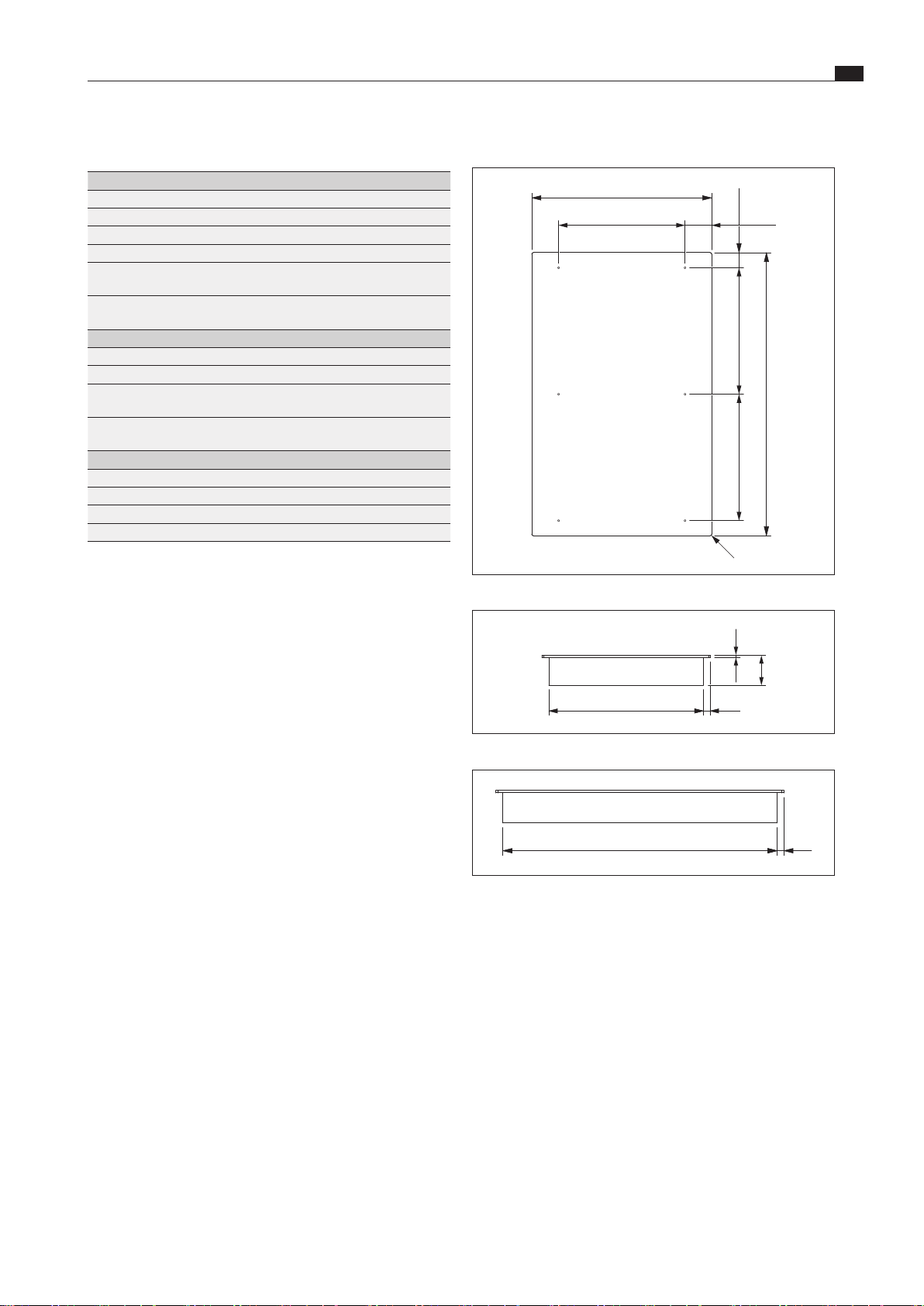

Device dimensions CKI
R3
327
515
124235
Fig. 3.8 CKI device dimensions top view
7
58
13,5 300
Fig. 3.9 CKI device dimensions front view
12
491
Fig. 3.10 CKI device dimensions side view
3.3 CKI
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.68 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 58 mm
Weight
(incl. accessories/packaging)
7.6 kg
Cooktop
Power levels 1 - 9, P
Warming levels 3
Front cooking zone (zone 1)
power setting
Ø 230 mm 2300 W
3680 W
Rear cooking zone (zone 2)
power setting
Ø 165 mm 1400 W
2200 W
Cooktop energy consumption
Front cooking zone (zone 1) Ø 230 mm 180.5 (Wh/kg)
Rear cooking zone (zone 2) Ø 165 mm 178.7 (Wh/kg)
Total (average) 179.6 (Wh/kg)
Tab. 3.3 Technical data CKI

EN
11
Technical data
www.bora.com
Device dimensions CKIW
327
515
Ø250
R3
Fig. 3.11 CKIW device dimensions top view
6
47
116
12,5
302
282
22,5
Fig. 3.12 CKIW device dimensions front view
12,5
490
450
32,5
Fig. 3.13 CKIW device dimensions side view
3.4 CKIW
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.0 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 116 mm
Weight
(incl. accessories/packaging)
9.8 kg
Cooktop
Power levels 1 - 9, P
Warming levels 3
Cooking zone power setting Ø 250 mm 2400 W
3000 W
Tab. 3.4 Technical data CKIW

EN
12
Technical data
www.bora.com
Device dimensions CKCH
R3
327
515 235 140
Fig. 3.14 CKCH device dimensions top view
7
300
240
43,5
13,5
75
45
Fig. 3.15 CKCH device dimensions front view
491
480
12
17,5
Fig. 3.16 CKCH device dimensions side view
3.5 CKCH
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.68 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 75 mm
Weight
(incl. accessories/packaging)
7.2 kg
Cooktop
Power levels 1-9, P, 2-ring additional switching
Warming levels 3
Front cooking zone (zone 1)
power setting
Ø 215 mm 2100 W
3000 W
Rear cooking zone (zone 2)
2-ring connection
Ø 120 mm
Ø 180 mm
600 W
1600 W
Cooktop energy consumption
Front cooking zone (zone 1) Ø 215 mm 191.3 (Wh/kg)
Rear cooking zone (zone 2) Ø 120/180 mm 197.6 (Wh/kg)
Total (average) 194.5 (Wh/kg)
Tab. 3.5 Technical data CKCH

EN
13
Technical data
www.bora.com
Device dimensions CKCB
R3
327
515 235 140
Fig. 3.17 CKCB device dimensions top view
7
300
240
43,5
13,5
75
45
Fig. 3.18 CKCB device dimensions front view
491
480
12
17,5
Fig. 3.19 CKCB device dimensions side view
3.6 CKCB
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.68 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 75 mm
Weight
(incl. accessories/packaging)
7.4 kg
Cooktop
Power levels 1-9, 2-ring connection, roaster
cooking zone connection
Warming levels 3
Front cooking zone (zone 1) Ø 180 mm 1600 W
Rear cooking zone (zone 2)
2-ring connection, roaster
cooking zone connection
Ø 120 mm
Ø 180 mm
Ø 180 x 410 mm
600 W
1600 W
3680 W
Cooktop energy consumption
Front cooking zone (zone 1) Ø 180 mm 193.4 (Wh/
kg)
Rear cooking zone (zone 2) Ø 120/180 mm
Ø 180 x 410 mm
195.5 (Wh/
kg)
Total (average) 194.4 (Wh/
kg)
Tab. 3.6 Technical data CKCB

EN
14
Technical data
www.bora.com
3.7 CKG
Parameter Value
Supply voltage 220-240 V
Frequency 50/60 Hz
Total burner output 5.0 kW
Power rating 20 W
Fuse protection 1 x 0.5 A
Dimensions (width x depth x height)
cooktop pan support high-power burner
pan support normal burner
327 x 515 x 73 mm
270 x 270 x 25/50 mm
235 x 235 x 25/50 mm
Weight (incl. accessories/packaging) 11.5 kg
Cooktop
Power levels 1 – 9, P
Warming levels 3
High-power front burner 800 – 3000 W
Normal rear burner 550 – 2000 W
Total nominal connection values
G20/20 mbar:
5.00 kW 0.449 m³/h
Cooktop energy consumption G20/20 mbar
Category I2H 20 mbar
(measurement taken without cooktop extractor)
High-power front burner 800 – 3000 W 63.3 %
Normal rear burner 550 – 2000 W 61.3 %
Total (average) 62.3 %
Tab. 3.7 Technical data
Additional technical data for Australia and New Zealand
(AUS/NZS):
Total nominal connection values for natural gas/
1.0 kPa test point pressure: 19.5 Mj/h
Cooktop energy consumption AUS/NZS natural gas/
1.00 kPa test point pressure:
High power front burner 12.0 Mj/h
Normal back burner 7.5 MJ/h

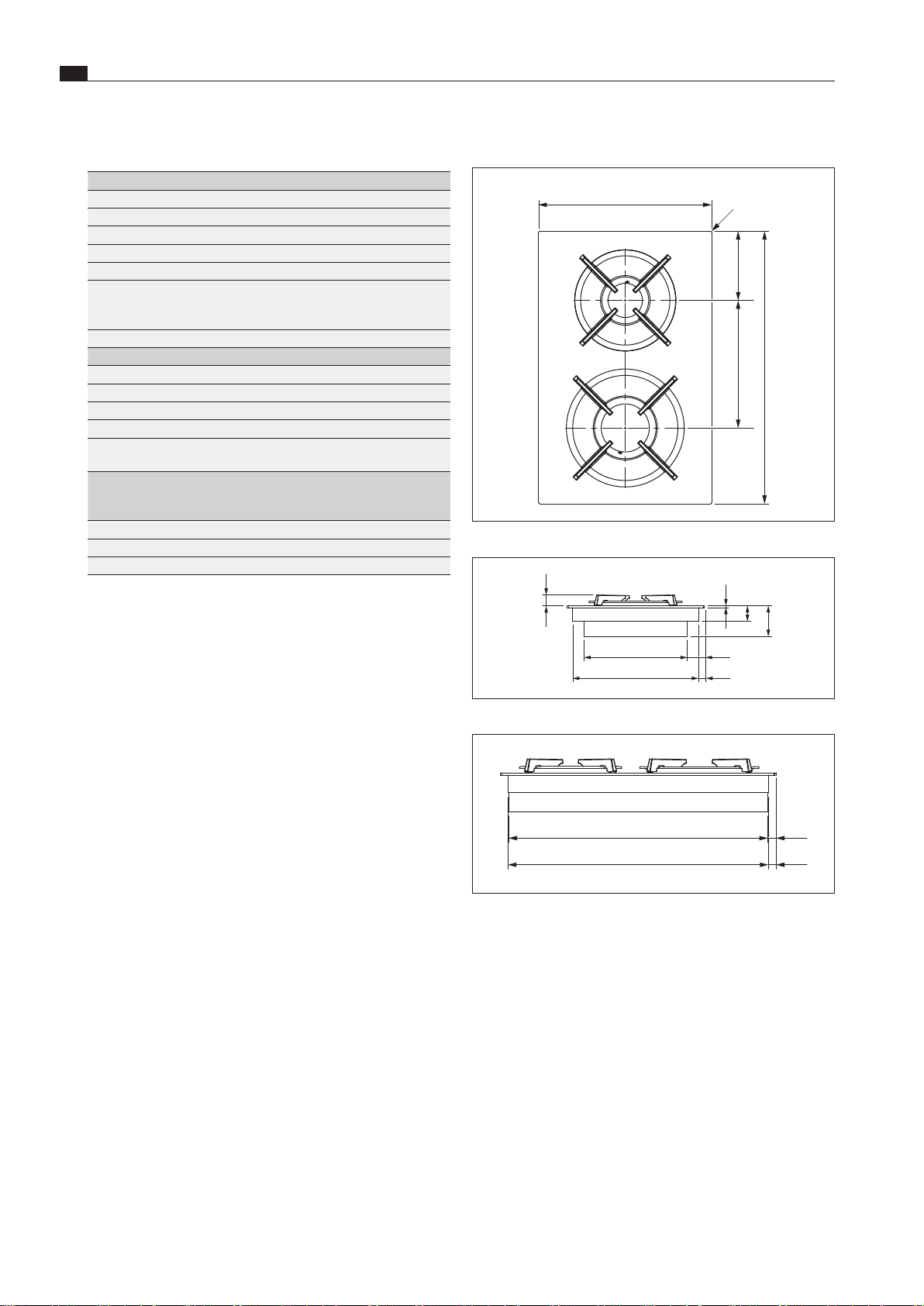

Device dimensions CKG
R3
327
131240
515
Fig. 3.20 CKG device dimensions top view
246
299
40,5
14
7
25
73
37
Fig. 3.21 CKG device dimensions front view
487
485
14
15
Fig. 3.22 CKG device dimensions side view

EN
15
Technical data
www.bora.com
3.8 CKT
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.5 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
327 x 515 x 73 mm
Weight
(incl. accessories/packaging)
13.6 kg
Cooktop
Temperature control (power levels) 150 - 230 °C, 250 °C (1-9, P)
Warming levels 3
Front cooking zone (zone 1) 250 x 220 mm 1750 W
Rear cooking zone (zone 2) 250 x 220 mm 1750 W
Temperature control range 70 - 250 °C
Tab. 3.8 Technical data CKT
Device dimensions CKT
R3
327
38,5
250
37,5
440 515
Fig. 3.23 CKT device dimensions top view
48,5
299
230
14
62
73
7
Fig. 3.24 CKT device dimensions front view
460
487
14
27,5
Fig. 3.25 CKT device dimensions side view

EN
16
Installation
www.bora.com
4 Installation
4.1.1 Operating the cooktop extractor with a
fireplace that depends on the air in the
room
i The state and regional laws and regulations must be
observed with regard to the exhaust duct design.
i A sufficient air supply must be ensured.
Fireplaces that depend on the air in the room (e.g. gas, oil,
wood or coal-fired heaters, continuous-flow water heaters,
instantaneous water heaters) draw in air from the room in which
they are installed and release the exhaust fumes into the outside
air via an exhaust system (e.g. chimney).
If the cooktop extractor is used in exhaust mode, it draws
in air from the room in which it is installed as well as from
neighbouring rooms. Without sufficient air, there will be a drop in
air pressure. Toxic gases could be drawn out of the chimney or
extraction ducting and back into the room.
Fig. 4.1 Exhaust air installation – not permitted
Fig. 4.2 Exhaust air installation – correct
XXIf simultaneously operating both a fireplace and the cooktop
extractor in the same room, ensure that:
XO the maximum low pressure is 4Pa (4 x 10-5bar);
XO a safety device (e.g. window contact switch, low pressure
warning device) is used to ensure that a sufficient supply
of fresh air is guaranteed;
XO the exhaust air is not be ducted into a chimney that is
used for exhaust gases of devices operated with gas or
other combustibles;
XO the installation is checked and approved by an authorised
certified engineer (e.g. heating engineer).
i No window contact switches may be installed that
separate the control unit from the power supply (phase
separation). Only the Home In interface is to be used.
XXObserve all safety and warning information (see the Safety
chapter).
XXFollow the enclosed manufacturer’s information.
4.1 General installation information
i The appliances must not be installed above cooling
devices, dishwashers, stoves, ovens, washing machines
or dryers.
i The contact surfaces of the worktops and wall sealing
strips must be made of a heat-resistant material
(up to approx. 100 °C).
i Worktop cut-outs must be moisture-sealed using suitable
means and, where necessary, fitted with a thermal
insulator.
i External devices may only be connected to the cooktop
extractor connections provided.
i Extremely bright lights aimed directly at the appliances
can cause colour variations in the appliances and are
thus to be avoided.
General installation information for cooktops
i To ensure that the cooktops perform optimally at all
times, there must be sufficient ventilation beneath the
cooktops.
i The performance of the cooktops is affected or the
cooktops overheat if the warm air beneath the cooktops
cannot escape.
i If a cooktop overheats, the power is automatically
reduced or the cooktop is switched off completely
(see Overheating protection).
i If cable protection (false floor) is planned beneath the
appliance, this must be fitted so it does not obstruct
ventilation.
XXMake sure that the area below the cooktop has a sufficient air
supply.
Additional installation notes for Australia and New Zealand
(AU/NZ):
i The gas hose must be inspected every 5 years and
replaced if necessary. The gas hose must meet the
requirements of AS/NZS 1869.

EN
17
Installation
www.bora.com
4.3 Tools and aids
The following special tools are required to correctly install the
system:
XO Screwdriver/Torx screwdriver 20
XO Black, heat-resistant silicone sealant
XO Fine saw
4.4 Assembly instructions
4.4.1 Safety clearances
XXMaintain the following safety clearances:
1
3
2

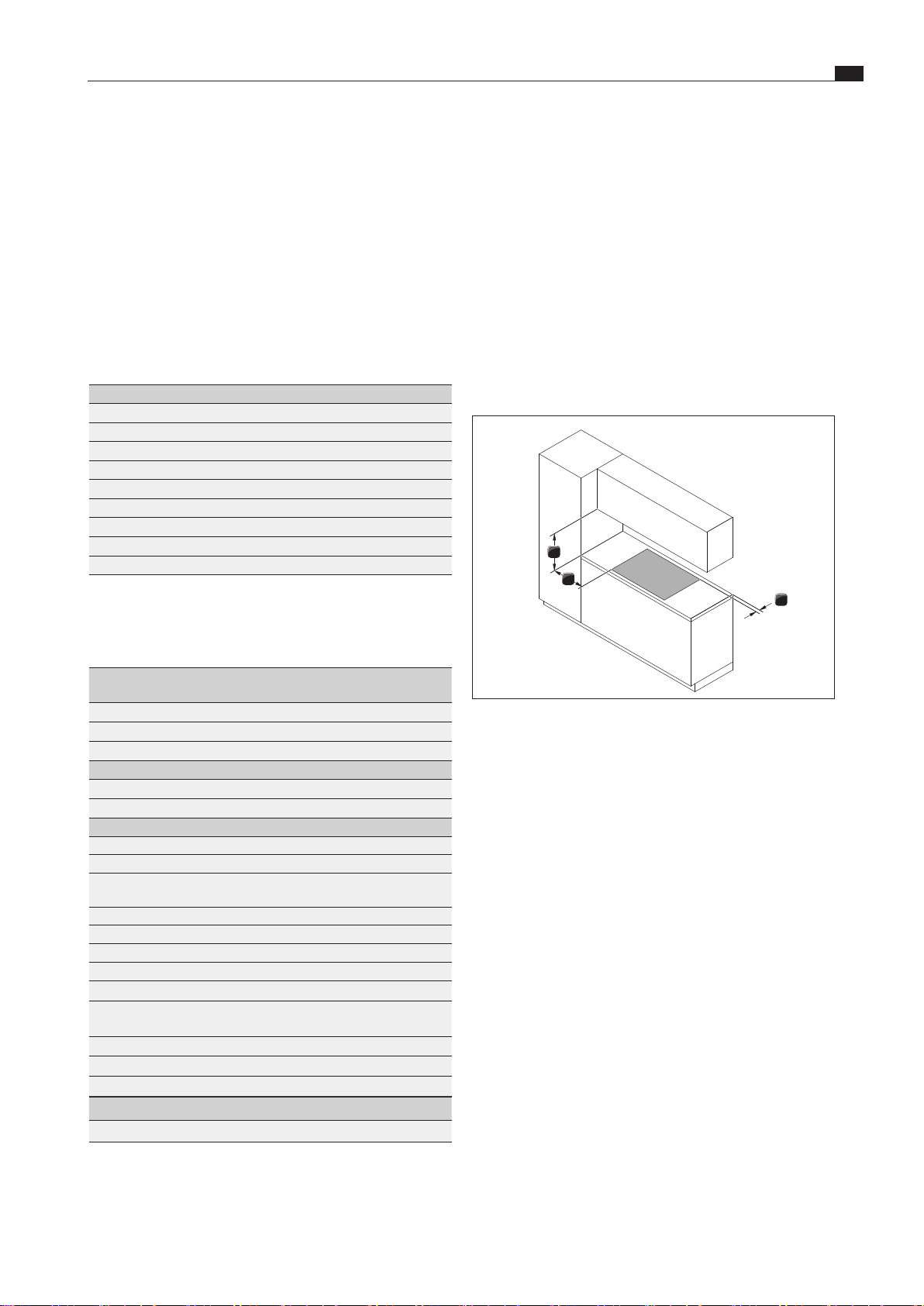

Fig. 4.3 Minimum distance
[1] Minimum clearance of 50mm at the front and back from the
worktop cut-out to the edge of the worktop.
[2] Minimum clearance of 300mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600mm between the worktop and
cabinet above (650 mm in the case of gas devices).
4.4.2 Worktop and kitchen units
XXCreate the worktop cut-out taking into account the specified
cut-out dimensions.
XXMake sure that the cut surfaces of the worktops are properly
sealed.
XXComply with the instructions of the worktop manufacturer.
XO Cross bars on the kitchen unit in the area of the worktop cut-
out may need to be removed.
XO No false floor is necessary below the cooktop. If cable
protection (false floor) is planned, the following must be taken
into account:
XO It must be fitted in such a way that it can be removed for
maintenance work.
XO To ensure sufficient cooktop ventilation, a minimum
distance of 15 mm to the bottom edge of the cooktop
extractor is to be observed.
XO The drawers and/or shelves in the floor unit must be removable.
XO For correct installation, the slide-in units of the base cabinet
must be shortened depending on the installation situation.
4.2 Checking the delivery
XXMake sure the delivery is complete and check it for damage.
XXIf there are any missing or damaged parts, please notify BORA
After Sales Service.
XXDo not under any circumstances install parts which are
damaged.
XXDispose of transport packaging in the proper manner (see the
Decommissioning, disassembly and disposal chapter).
4.2.1 Scope of delivery of the cooktop
extractor CKA2/CKA2AB
Scope of delivery CKA2/CKA2AB Quantity
Installation instructions 1
Operating instructions 1
Extractor base module (CKA2GM) 1
Air inlet nozzle (CKA2ED/CKAEDAB) 1
Grease filter unit (CKA2FFE) 1
Control unit (CKA2SB) 1
Power supply cable (country-specific) 1
Flexible module (CKA2MF) 1
Ferrite sleeve (UFK) 1
Tab. 4.1 Scope of delivery of the cooktop extractor
4.2.2 Scope of delivery of the cooktops
Scope of delivery CKFI, CKI, CKIW, CKCH, CKCB,
CKG, CKT
Quantity
Cooktop 1
Mounting brackets 4
Height adjustment plate set 1
Additional scope of delivery CKFI, CKI, CKIW, CKCH, CKCB
Glass ceramic cleaning instructions 1
Glass ceramic scraper 1
Additional scope of delivery CKG
Cast-iron grate 2
Nozzle set G20/20 mbar natural gas PKGDS2020 1
Flexible gas connection hose, length 500 mm, 1/2”
external thread(EN14800)
1
Cylindrical/conical transition piece 1
Seal 1
Glass ceramic cleaning instructions 1
Glass ceramic scraper 1
Special scope of delivery for Australia and New Zealand:
Gas regulator 1,00 kPa
with test point for natural gas (NG)
1
Test point adapter for liquid gas (LPG) 1
Nozzle set G20/10 mbar (NG/1.0 kPa) – pre installed 1
Nozzle set G31/27,5 mbar (ULPG/2.75 kPa) 1
Additional scope of delivery CKT
Tepan spatula 1
Tab. 4.2 Scopes of delivery of the cooktops

EN
18
Installation
www.bora.com
4.4.4 Special assembly instructions for gas
cooktop CKG
XXPlease note the local regulations and connection requirements
applicable to gas cooktops.
XXBefore connecting the appliance, check that the appliance
settings comply with local connection requirements
(gas type and pressure).
i Minimum requirement for operating gas cooktop CKG:
System software 03.00 (or higher)
XXIf necessary, retrieve the installed software version
(see operating instructions, Menu chapter, Retrieving the
software version).
XXUpdate the system software if necessary (see operating
instructions, Menu chapter, Updating the system software).
i Minimum clearance of 650mm between the worktop and
wall unit in the case of gas devices.
i On recirculation systems, a return flow aperture of at
least 1,000 cm² must be provided for each air cleaning
unit.
i Ensure sufficient ventilation.
i Taking into account the applicable valid regulations,
the cooktop must be connected to the gas line with an
upstream stopcock.
i The gas supply pipe can be connected after the gas
cooktop has been installed.
i The hose connection must be laid in such a way that it is
not subject to deformation, buckling or abrasion.
i The stopcock and gas supply pipe connections must be
accessible.
i It must be possible to inspect the entire length of the
hose line once installed.
i Only compatible connection pieces are to be used for the
hose line.
i The pressure regulator must correspond to the set gas
type and set gas pressure and must meet local and legal
requirements.
i The gas connection hose line must not come into contact
with smoke or the flue outlet of an oven.
i The hose line must not come into contact with hot
surfaces on the cooktop or other devices.
i The gas hose must be inspected every 5 years and
replaced if necessary. The gas hose must meet the
requirements of EN14800.
4.4.3 Recirculation when using the cooktop
extractor as a recirculation system
In the case of recirculation systems there must be a return flow
aperture in the kitchen units:
XO > 500 cm² (per air cleaning box) in combination with cooktops
CKFI, CKI, CKIW, CKCH, CKCB and CKT
XO > 1000 cm² (per air cleaning box) in combination with gas
cooktop CKG
i If several extractor systems are operated in recirculation
mode, the return flow aperture for each air cleaning box
must be calculated correspondingly. Example:
2 recirculation systems = 2 x (> 500 cm²) or
2 x (> 1,000 cm²) in the case of gas appliances
For recirculation, the necessary return flow aperture can be
created using a shortened plinth. A slatted plinth with at least
the minimum opening cross-section can also be used.
XXEnsure that the return flow aperture is large enough.
45
1 32
Fig. 4.4 Recirculation design example (kitchen island +
cooktop + CKA2//CKA2AB + air cleaning unit)
[1] Cooktop
[2] Cooktop extractor CKA2/CKA2AB (recirculation)
[3] Air cleaning unit (ULB1, ULB3, ULBF)
[4] BORA plinth fan EC (ULS)
[5] Recirculation return flow aperture
(Total opening cross section per air cleaning unit ≥500 cm² or
≥1000 cm² in the case of gas cooktop CKG)
i If the gas flame goes out, is excessively affected by the
extractor and/or the flame is not as it should be (e.g.
soot production, flame blowback, etc.), the return flow
aperture must be enlarged.

EN
19
Installation
www.bora.com
4.5 Cut-out dimensions
i The minimum distance of 50 mm from the front edge of
the worktop to the worktop cut-out is a recommendation
from BORA.
XXComply with the instructions of the worktop manufacturer.
XXCreate the worktop cut-out taking into account the specified
cut-out dimensions.
XXMake sure that the cut surfaces of the worktops are properly
sealed.
4.5.1 Flush installation
A ±2
B ±2
519 ±2
≤ R5
≤ R5
≥ 50
(≥ 50)
495 ±2
≥ 600
Fig. 4.7 Cut-out dimensions for ush installation
7 +0,5
12
10 - 40
Fig. 4.8 Groove dimensions for ush installation
Cooktops/cooktop extractor A in mm B in mm
1/1 448 424
2/1 776 752
3/2 1221 1197
4/2 1549 1525
Tab. 4.3 Cut-out dimensions of the appliance combinations in
the case of ush installation
i If the gas cooktop is used in a model with two cooktop
extractors, it is to be installed at the side. If installed
between the cooktop extractors, the pull of air on both
sides may affect the flames.
Air supply to gas cooktop CKG
1 2
Fig. 4.5 Air supply at front of the body
[1] Air supply via the front of the body
(opening cross-section ≥ 50 cm²)
[2] Optional cable protection (shortened)
2
1
Fig. 4.6 Plinth area air supply
[1] Optional cable protection (shortened)
[2] Air supply via the plinth area
(opening cross-section ≥ 150 cm²)
i To ensure a sufficient air supply, an opening cross-
section of at least 50 cm² is recommended in the front of
the kitchen unit, or an opening cross-section of at least
150 cm² in the plinth area.
XXMake sure that the area below the cooktop has a sufficient air
supply.

EN
20
Installation
www.bora.com
4.6 Installation dimensions
Minimum installation dimensions
≥600 ≥800
840
Fig. 4.11 Minimum installation dimensions with shallow silencer
USDF
≥720 ≥800
840
Fig. 4.12 Minimum installation dimensions with round silencer
USDR50
4.5.2 Surface mounting
B ±2
≤ R5
≥ 50 (≥ 50)
495 ±2
≥ 600
Fig. 4.9 Cut-out dimensions for surface mounting
10
10 - 40
Fig. 4.10 Dimension of support for surface mounting
Cooktops/cooktop extractor B in mm
1/1 424
2/1 752
3/2 1197
4/2 1525
Tab. 4.4 Cut-out dimensions of the appliance combinations in
the case of surface mounting
