Borg & Overstrom T2 User manual

This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
The unit should be isolated from the electricity supply before removal of any covers. Great care must be
employed when working with high pressure carbon dioxide, and in no cases should the maximum
operating pressure of 0.4MPa (4 bar) be exceeded.
The appliance is not suitable for installation in an area where a water jet could be used.
The appliance has to be placed in a horizontal position
WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of
obstruction.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.
This appliance is intended to be used in household and similar applications such as:-
Staff kitchen areas in shops, offices and other working environments
Farm houses and by clients in hotels, motels and other residential type environments
Bed and breakfast type environments
Catering and similar non-retail applications
A-weighted emission sound pressure level is below 70 dB(A)
Release date 04.02.2022
T2 Install & Operation
Manual
Safety

R290 is a refrigerant-grade propane used on a wide range of commercial
refrigeration and air conditioning units. A highly pure propane, it has a low
environmental impact and nominal global warming potential (GWP), meaning it
possesses no qualities that can destroy the ozone layer. R290 also is the preferred
hydrocarbon alternative of the Environmental Protection Agency (EPA), substituting
more harmful fluorocarbon refrigerants like R22, R134a, R404a and R502.
Units with R290 can only be maintained and repaired by authorized technicians who
are
properly trained and certified.

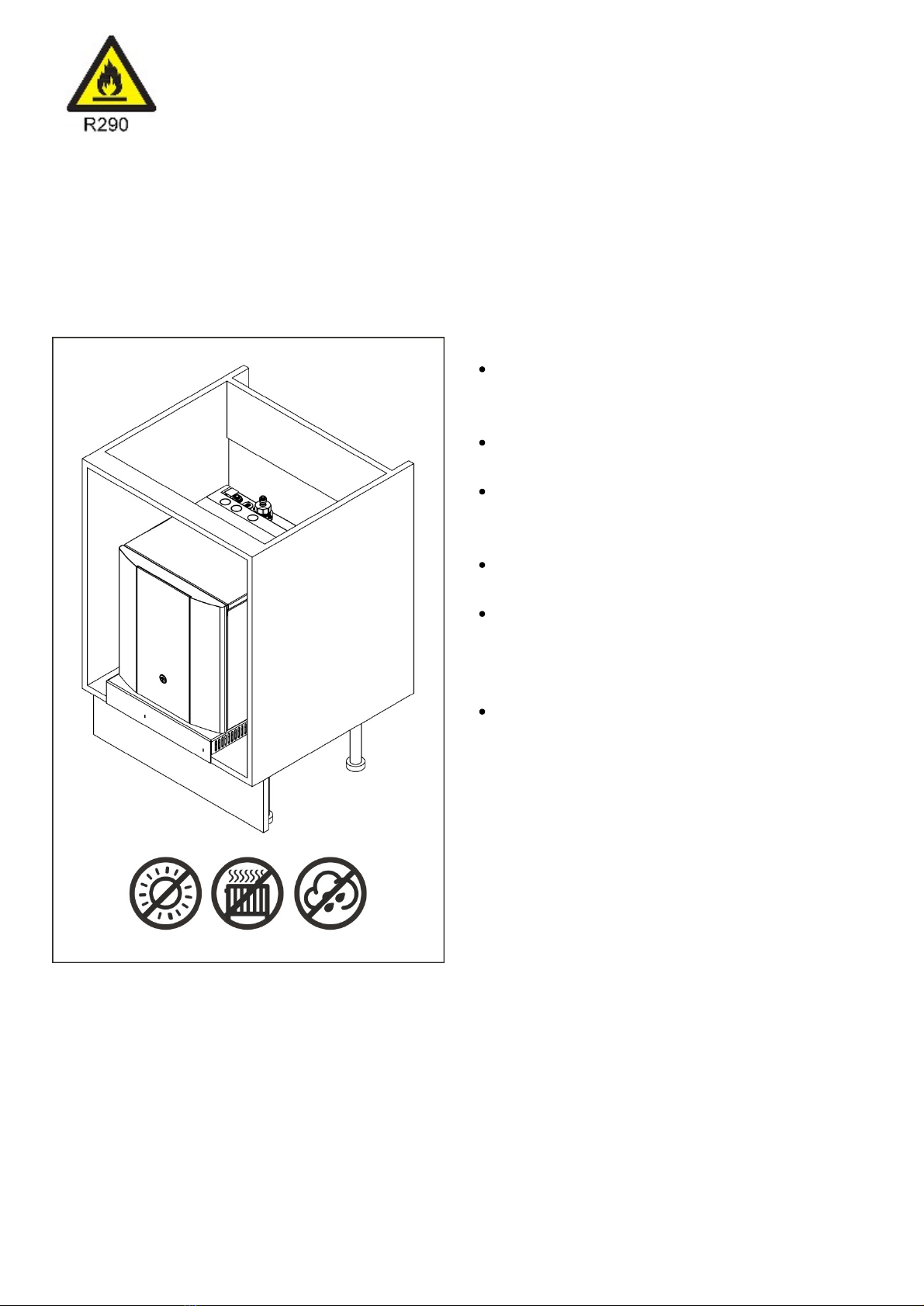

Always place the dispenser in its vertical
position, on a surface which can capably
support its weight.
During use this machine must remain in its
upright position.
Adequate ventilation must be allowed for –
we recommend using the supplied ventilation
ducting kit.
Keep the machine away from sunlight, heat
and moisture.
Power and water supply points must be
available near the dispenser, and must meet
the criteria specified in the ‘Specification’
section of this manual.
The environment where this machine is
installed must be free of dust and
corrosive/explosive gases.
Waste Electrical Products:

The WEEE symbol indicates that this item contains electronic
components which must be collected and disposed of separately.
Never dispose of electrical waste in general municipal waste. Collect
and dispose of such waste separately.
Make use of the return and collection systems available to you, or
your local recycling programme. Contact your local authority or place
of purchase to find out what schemes are available.
Electrical and electronic equipment contains hazardous substances
which, when disposed of incorrectly, may leak into the ground. This
can contribute to soil and water pollution which is hazardous to
human health; and endangers wildlife.
It is essential that consumers look to re-use or recycle electrical or
electronic waste
to avoid it going to landfill sites or incineration without treatment.

Specification

COOLING SYSTEM Stainless steel direct chill coil encased in a solid-block system for instant
response cool down action. Ultra efficiency compression system with
capillary control. Environmentally friendly R290 refrigerant.
COLD TEMPERATURE 2°C - 11°C.
OUTPUT PER HOUR
(ProCore)
50 litres Chilled 50 litres Sparkling
OUTPUT PER HOUR
(ProCore+)
80 litres Chilled 80 litres Sparkling
DISPENSE Quadra Neck Faucet with ergonomically designed and situated light
touch sensitive controls.
MAXIMUM RUNNING
POWER CONSUMPTION
- CHILLED, & SPARKLING
ProCore 0.2kW - 230V ProCore+ 0.26kW - 230V
MAXIMUM RUNNING
POWER CONSUMPTION
- CHILLED & AMBIENT
ProCore 0.14kW - 230V ProCore+ 0.21kW - 230V
QUANTITY OF
REFRIGERATION GAS
ProCore R290a 33g ProCore+ R290a 40g
POWER SUPPLY 220V - 240V AC (50 Hz)
WATER CONNECTION Mains in - 3/4” BSP
C02 CONNECTION 1/4” Push Fit.
DIMENSIONS (w x d x h) 320 x 370 x 340mm.
WEIGHT 27Kg MAX
RATED CURRENT -
CHILLED & AMBIENT
ProCore 1.0A ProCore+ 1.45A
RATED CURRENT -
CHILLED, AMBIENT &
SPARKLING
ProCore 1.2A ProCore+ 1.7A
FUSE RATING 5A
MINIMUM TO MAXIMUM
INLET WATER PRESSURE
0.05MPa (0.5 bar) - 1.0 MPa (10 bar) Internally regulated to 0.3 MPa
(3 bar)
CO2 PRESSURE 0.4MPa (4 Bar) Maximum
MINIMUM TO MAXIMUM 5°C - 35°C

AMBIENT ROOM
OPERATING
TEMPERATURE
CLIMATIC CLASS N

Introduction
The T2 & T2+ epitomises cutting-edge design and innovation with its contoured tap and compact ProCore
unit. This is
our most discreet range and will fit into any environment seamlessly.
The ProCore dispenser is a cooler designed to provide chilled and carbonated water. All the materials and
components
are tested during the entire production process in order to satisfy all expectations.

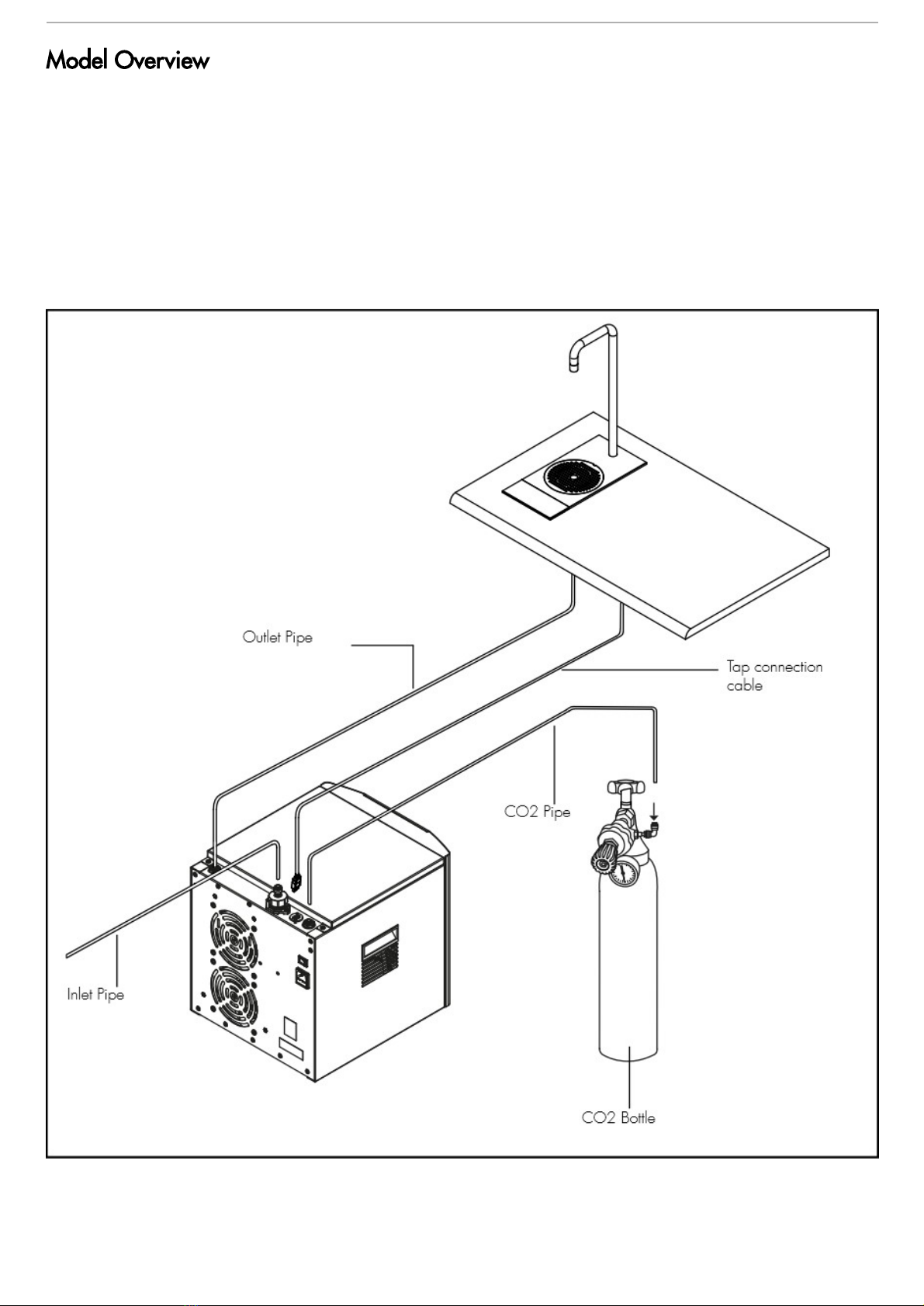

Model Overview

Contents:
1 no T2
1 no Top Plate with Control Panel
1 no Drip Tray
1 no 1.0m x 6mm Insulated Water Pipe

1 no Connector Cable
1 no Waste Drain Pipe
1 no Fixings Set
T2 Tap - Major Components
1. Faucet, 2. Main body, 3. Top Mounting Plate, 4. Drip tray, 5. Capacitive touch display, 6. Connector
Cable
ProCore Electronic - Major Components
Component/Feature Overview

Contents:
1 no Undercounter Unit
1 no 2.0m Power Cord Set
1 no Co2 Regulator with Gauge & Connection
tube*
1 no ProCore Simple-fit Ventilation Kit

1. ProCore Simple-fit Chimney, 2. ProCore Simple-fit Base, 3. Front Panel, 4. Carry Handle, 5. Top Panel,
6. Water Outlet, 7. Water Inlet, 8. Tap Connection, 9. CO2 Inlet*, 10. On/Off Switch, 11. Power
Connection, 12. Side Panel
Please Note:
Mains Installation Kit & Filters are supplied as extra items
according to individual ordering requirement.
*Sparkling versions only
Dimensions

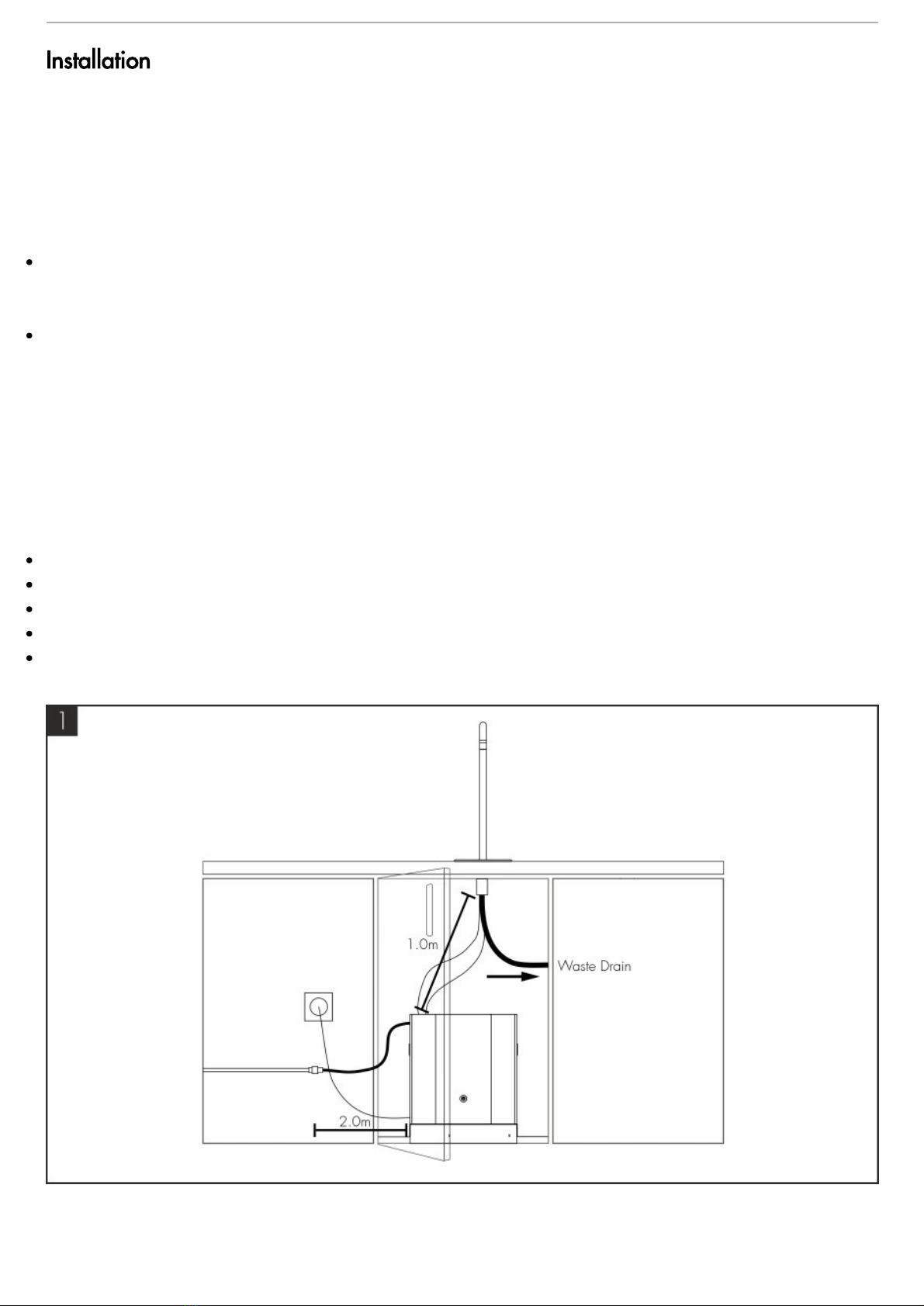

Installation Requirements
Identify a suitable location for the ProCore unit. It should be positioned within 1.0m of the faucet, and within
2.0m of suitable services connections. Allow enough space to fit the ventilation ducting system.
The ProCore unit must be installed in accordance with the relevant requirements of:
The appropriate building regulations by application of either The Building Regulations (England and Wales),
The Building Regulations (Scotland) or The Building Regulations (Northern Ireland). In territories other than
those listed the local regulations in force must be complied with.
The Water Supply (Water Fittings) Regulations (England, Wales and Northern Ireland) or The Water
Byelaws in Scotland.
The unit must not be installed where it is liable to freeze. If the unit is thought to be frozen it must not be
switched on. It should be allowed to thaw and must then be thoroughly inspected to ensure it is
undamaged.
Service Requirements
Water: Mains potable water – internally regulated to 0.3MPa (3 bar)
CO2: Food Grade CO2 to be supplied
Min mains pressure 0.05MPa (0.5 bar)
Electricity: 13A supply – Earth Leakage Protected
Waste Drain Connection
Installation

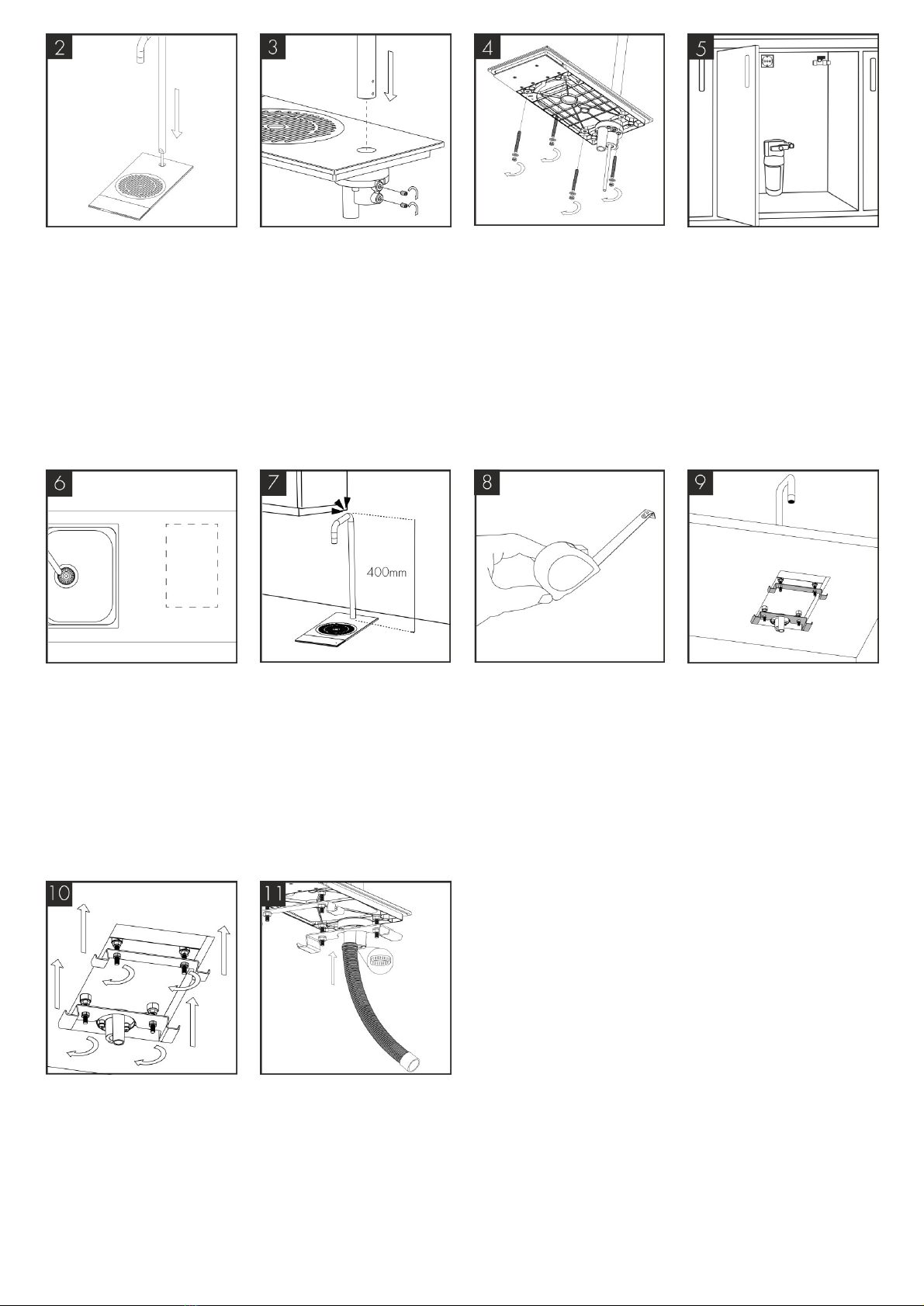

First, install the T2 tap to
the top plate base. Line
up the tap so it’s parallel
to the front of the base.
Insert the tap so the
fixing screws line up
with the indentations.
Tighten up the M4 hex
screws with an Allen key
until the tap is secure.
Using the M6 allthreads
as provided locate them
into the base of the tap
and tighten till secure
using the flange nuts
provided.
When planning and
providing for the
connection to the
services, always allow
for easily accessible
service isolator fittings
and for the position of
an external water filter.
Identify a suitable
position for the faucet.
Refer to the cut out
guide template.
Ensure worktop is level
to allow system to drain.
Also allow for the height
of the swan neck under
any overhanging
cupboard/shelf.
Allow for the space
needed for forming the
required cut out. Relate
the selected position to
the underneath of the
counter and check for
any obstructions.
Allow sufficient space
for fitting the worktop
fixing brackets.
Tighten the 4 fixing
flange nuts so that the
worktop brackets are
fixed up against the
underside of the
worktop.
Fit waste pipe and
secure with jubilee clip.
Connect to drain
ensuring there is a
constant fall.

Tap Control Panel
1. Chilled Dispense, 2. Sparkling Dispense, 3. Ambient Dispense,
4. ‘eco’ Mode Symbol 5. Warning Symbol.
Basic Functions
Operation

When Borg & Overström undercounter units are
installed inside a cabinet or housing, adequate
ventilation is recommended to ensure that they
operate satisfactorily. During a cooling cycle it is
normal for the unit to produce heat, and the
purpose of ventilation is to provide a supply of air
that can absorb the generated heat which would
otherwise accumulate inside the cabinet or
housing, and reduce the cooling performance of
the unit. The amount
of heat generated by the cooling cycle depends
directly upon the amount of usage – the higher the
usage, the more heat produced. To provide
adequate ventilation we recommend that air
grilles/vents are fitted as supplied (or vent
apertures formed) in the cabinet to allow an
airflow as shown below. Normally this should be
enough for all situations.
Important: Before making any cuts into the cupboard or kick board, ensure the area to be cut is free from
water pipes or electrical cables. There is a risk of serious injury or death if electrical cables are cut, and
significant damage to property if a water pipe is cut.
Dispensing from unit:
Press and hold dispense icon and release to finish dispense
• Chilled icon flashing – Unit is chilling down
• Sparkling icon flashing – Tank is refilling
‘eco’ Mode:
‘eco’ mode symbol illuminates when unit is in ‘eco’ mode, to awaken unit press and hold any dispense
icon. The ProCore will activate ‘eco’ mode in the below instances
Dispense inactivity
Low room light level
Warning Symbol
‘Warning triangle’ symbol will illuminate and flash upon a fault. The number of flashes can relate to a
particular fault.Click to view fault codes

Ventilation System Installation

Using the template provided,
carefully mark and cut the
aperture to the edge of the
cabinet.
Situate the ProCore Simple-fit
ventilation base in place centrally
over the aperture. Ensuring that
there is a minimum of 30mm air
gap to each side.
Insert 4 screws into the holes
located. Do not overtighten at this
stage.
Place the rear vent chimney over
the 4 screws and slide
downwards into place.
Tighten all 4 fixing screws. Lift and tilt the unit into position
ready to lower.
Lower the appliance carefully into
position on the ventilation base to
ensure the chimney is located
correctly in the chimney aperture
at the rear of the base.
After installation the vents at the
front of the cabinet and to the
sides of the ventilation base must
not be obstructed.

NOTE: Any obstructions will adversely affect the airflow to the appliance causing potential for poor
performance, over heating or fridge failure.

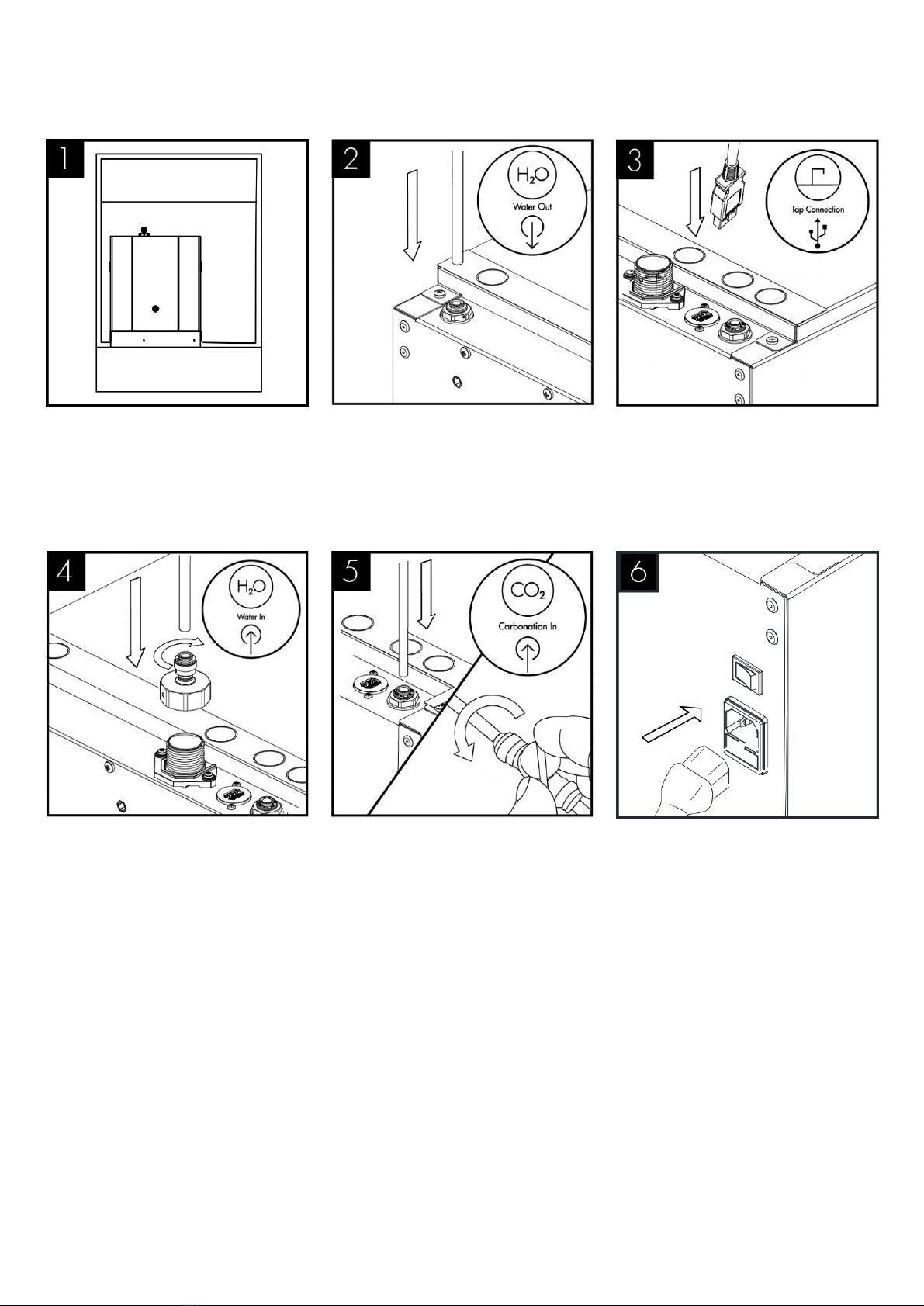

ProCore Installation & Water Connection
Locate the ProCore in a suitable
position, using the supplied
ventilation base by following the
instructions above.
Connect the T2 tap to the water
outlet.
Connect the T2 Tap USB to the
ProCore unit.
Connect the Water Inlet adapter
as supplied and connect to water
supply.
Connect the CO2 supply from
gas regulator, ensuring the
pressure is set to max 58 PSI (4
bar), and turn on the supply (See
CO2 Installation section)

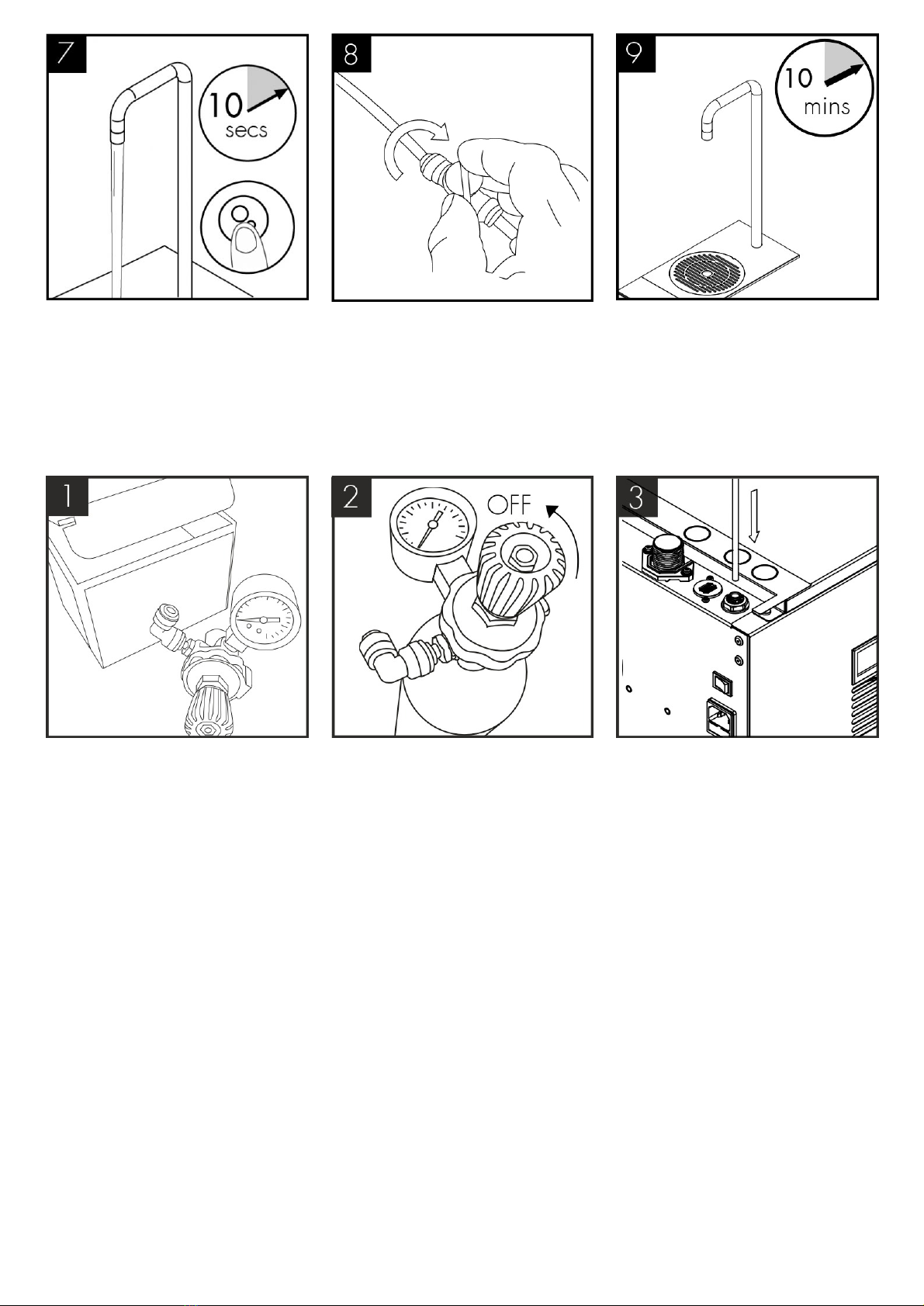

Connect the chiller to the
electricity supply.

The carbonator should be purged
of air by activating the sparkling
water dispense for approximately
10 seconds.
Turn on the water supply to fill the
tank.
Allow the machine to stand for 8 -
12 minutes for the initial chilling
process to complete.
CO2 Bottle Installation - Sparkling Versions Only
Unpack CO2 Regulator and fit
elbow fitting to spigot outlet.
Attach the regulator to the
disposable CO2 bottle, ensuring
the small pressure relief vent in the
stem is facing away from you or
anyone else. Ensure the regulator
is closed. Hand tighten securely.
Connect the assembled CO2
bottle and regulator to the CO2
inlet using a ¼” pipe.

Stand the cylinder in a suitable
place.
We recommend between 3.5 - 4
bar (58 PSI) (max). Do not
exceed 4 bar pressure.
Sparkling Water Flow Rate - Sparkling Versions Only
NOTE: Sparkling water flow rate factory setting = 2.4L per minute MAX. This may need adjusting
depending on inlet pressure. To do so follow below steps:
Remove the 2 screws holding
the unit lid down and slide the
lid off.
Locate the flow control adjuster,
this can be found towards the
front of the unit.
Using a M6 hex key flow can
then be adjusted as follows: turn
the hex key anti-clockwise to
increase flow and clockwise to
restrict flow. After each
adjustment the flow rate should
be timed to an acceptable flow
rate and/or uninterrupted
sparkling dispense
Once the correct flow rate is achieved place the cover back on to the unit by sliding it in place and
replacing the screws.

Sanitisation Guide
NOTE: All maintenance operations must be carried out with the dispenser switched off. This operation must
only be carried out by trained staff. Every 6 months a sanitisation procedure is recommended as follows:
Turn off incoming mains
water.
Briefly press chilled
dispense button to
release internal water
pressure from the
machine.
Remove the existing
filter.
Use Sterizen Hand Gel
and put on protective
gloves.
Add 25 ml of Sterizen
30 to a clean and
empty service filter
cartridge.
Connect to filter head. Turn on incoming water,
allow service
cartridge/doser to fill.
Dispense water using
the chilled button until
the water appears pink.
Repeat with sparkling
button.
Maintenance & Cleaning
