Glacier bay ARNETTE HD67095W-6410H Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Model#
HD67095W-6410H
HD67095W-644405
HD67095W-6404
HD67095W-6401
ARNETTE SINGLE HOLE SINGLE-HANDLE
BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
5/2022 REV.01THD
SKU#
1007747515
320828875
320828870
320828877
With Deck Plate Without Deck Plate

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................7
Troubleshooting........................................7
Service Parts ........................................... 8
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Channel
lock pliers
Tools and Hardware Required ...............2
Operation...................................................6
Phillips
screwdriver
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
SILICONE
Silicone
sealant
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)
PACKAGE CONTENTS
Faucet Assembly Press Pop-Up Assembly
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1Faucet
B
C
D
1Washer
E
1
G
1
Nut H
1
Wrench
Part Description Quantity
J
1Top gasket
1Pop-up body
1Bottom gasket
1Nut
I
Deck plate
Gasket
F1
G
H
I
J
A
B
C
E
F
D

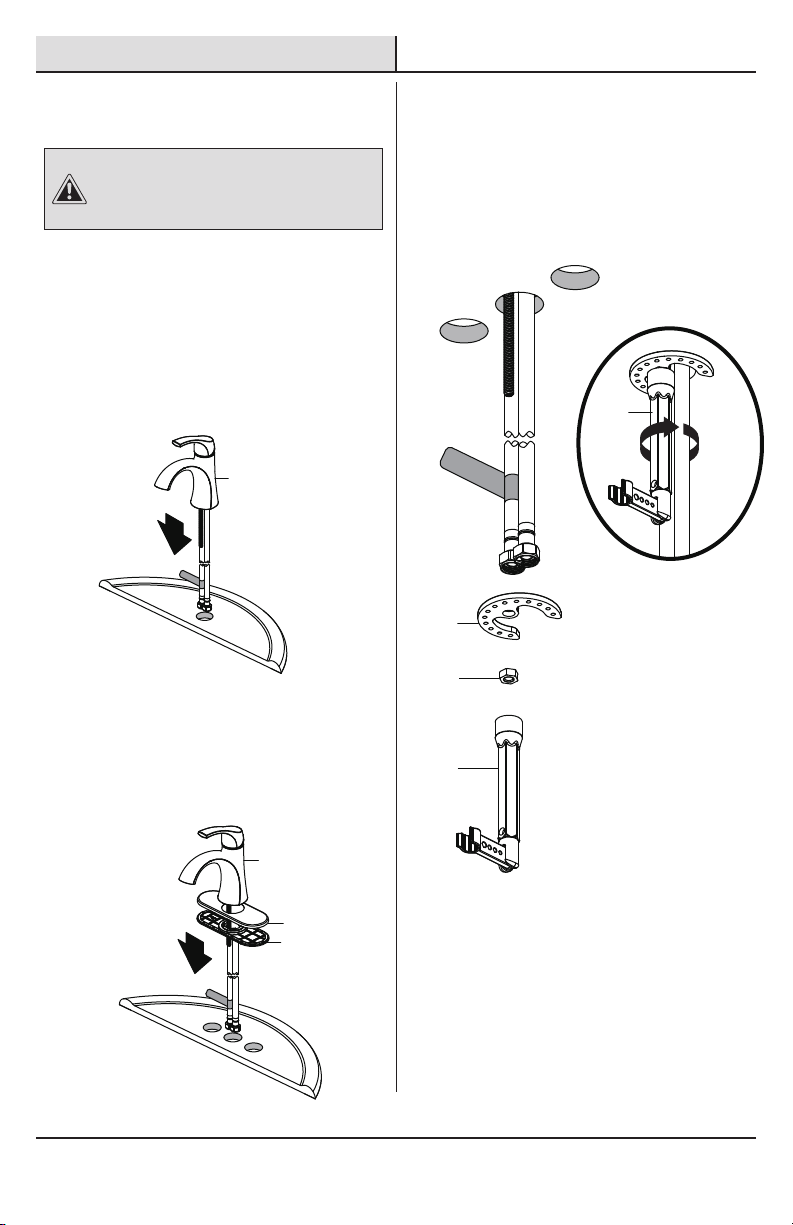

Installation
4
1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
2
□
□
□Clean the mounting surface.
□Remove the preassembled nut (C) and
washer (B) from the new faucet (A).
□WITH DECK PLATE: Align the hole in the
gasket (F) and deck plate (E) with the mounting
hole in the sink. Place the faucet (A) through the
deck plate (E) and mounting hole in the sink until
the faucet (A) sets on top of deck plate (E).
□WITH NO DECK PLATE: Place the faucet (A)
through the mounting holes in the sink until the
faucet (A) sets on top of the sink.
Securing the faucet assembly
Install the washer (B) onto the threaded bolt.
Thread the lock nut (C) onto the bolt using the
wrench (D) provided to tighten rmly.
2
D
C
B
D
A
A
E
F

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
3 Preparing the pop-up assembly
□Remove the bottom gasket (I) and nut (J) from
the top gasket (G) and pop-up body (H).
□Attach these pieces together by pushing the
bottom gasket (I) down into the top of the
nut (J) and twisting together.
G
J
H
I
4 Installing the pop-up body
□Insert the pop-up body (H) into the sink. Ensure
that the top gasket (G) rests securely between
the top of the sink and the top of the pop-up
body (H).
5 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (I) and nut (J) assembly onto the pop-up
body (H) by twisting clockwise until secure.
J
H
I
5
Installation (continued)
G
H

6
Installation (continued)
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) with a coin (1) to ush the water
lines.
□Ensure the faucet (A) handle is in the off
position, and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold water handle to allow
the water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
6Making the water supply
connections
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
2
1
A
1

Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Use wrench to retighten the
bonnet nut sufciently.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
7
□Ensure that the rubber washer
is properly installed.

8
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1
2
5
Handle assembly
Part Description Part Number
3
4
Bonnet nut
Cap
Aerator
6
Cartridge & Screw
Nut
Press pop-up
assembly
10
Washer
9
7
8
Deck plate
Gasket
1
2
3
5
10
Faucet ID tags can
be found on the
hot water inlet
4
6
7
8
9
RP13856*
RP80761*
RP30187
RP70612
RP20133
RP80612*
RP64258
RP40269*
RP56033
RP80829

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
