COFFEE STATION C806
USER MANUAL

My BORK
Register your BORK equipment in your account on the bork.ru website.
You will get quick access to instructions, accessories, spare parts and reminders for consumables replacement.
FIRST BORK COFFEE STATION COMPLETED WITH DISPLAY CONTROL MEANS
3
The touch-screen display with an intuitive interface makes it easy to work with a
coffee station for even inexperienced users.
You need the manual no longer -all necessary information is provided in the
reference of the coffee station.

POSSIBILITY OF DAIRY DRINKS MAKING
The articulated cappuccinatore tube with the 360°rotational angle will help you to
make the perfect milk frother for cappuccino and milkshakes.
HOT WATER DISPENSER
The dispenser is designed to supply hot water when making American coffee or
tea or in the course of cups preheating.
BUILT-IN CONIC-BEARING GRINDER WITH 30 GRINDING DEGREES
Allows you to grind coffee beans prior to cooking, so the resulting coffee is as fresh
and fragrant as possible.
4 5
PRELIMINARY MAKING
Hot water is pumped through the heating system for a short time prior to making
coffee - the ground coffee is moistened with subsequent swelling, which increases the
pressure and allows getting coffee characterized by a rich aroma.
EASY FILTER CLEANING
A built-in electronic valve helps to remove residual moisture at the final stage of
espresso making.

Tamper
Dispenser for hot water
Coffee grinder channel
Cappuccinatore tube
Removable drip tray
Portafilter
Milk pitcher
6 7
Filters
for 1 and 2 cups
with a single bottom
Shaping tool for
briquette coffee
Filters
for 1 and 2
cups with a
double
bottom

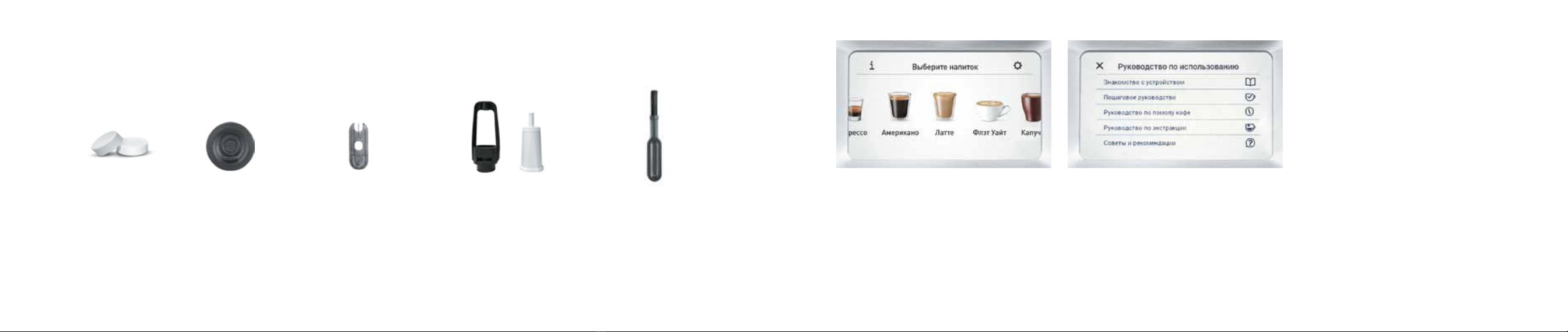

Grain container
On/Off button
Grinding level controller

Cleaning
disc
Cleaning
tablets
Cleaning tool Cleaning brush Filter holder and
water filter
MAIN MENU
The main menu can be applied to choose one
of the predetermined drinks or to add a new one.
The guide for use is located in the upper left corner of
the display, the upper right corner provides settings of
the coffee station.
OPERATING
MANUAL
This section will help you to get acquainted with the
coffee station, will show you in a step-by-step manner
how to
make a drink and will give advice and necessary
recommendations for use.
Read this user guide prior to coffee station
application.
8 9

COFFEE STATION SETTINGS MENU
This section will help you to:
•choose a required language;
•activate cleaning cycles;
•adjust the temperature of milk and water;
•choose a different water hardness value;
•adjust screen brightness and sound volume;
•enable the demo mode;
•reset the coffee station to the factory settings.
SINGLE-AND DOUBLE-BOTTOM FILTERS
Single bottom filters are designed for use with only
freshly ground coffee.
Single-bottom filters do not slow down the flow of
water, since the output is implemented through
multiple openings, so a user needs to experiment in
order to achieve perfect pressure, considering
grinding dimensions, amount of coffee, pressing in a
filter.
Double-bottom filters are recommended for coarse
coffee.
Double-bottom filters slow down the flow of water in
the course of coffee making since coffee is provided
through a single
hole, which creates an ideal pressure which allows
getting excellent quality of espresso without much
effort.
10 11

12 13
RULES OF CONNECTION TO A POWER OUTLET
•Do not touch a plug with wet hands.
•Connect the device to a grounded outlet only.
•Do not pull the cord, rather pulling the plug in
case of device disconnection from mains.
PRELIMINARY HEATING
It is recommended to preheat the filter and cups in
order to maintain the optimum temperature during
and after coffee making.
•Heat the filter and filter holder
under a stream of hot water and dry them thoroughly
with a soft cloth.
•Warm the cup under hot water or with a hot water
dispenser.
•Drain water in 30 seconds and place a cup on the
heating panel.

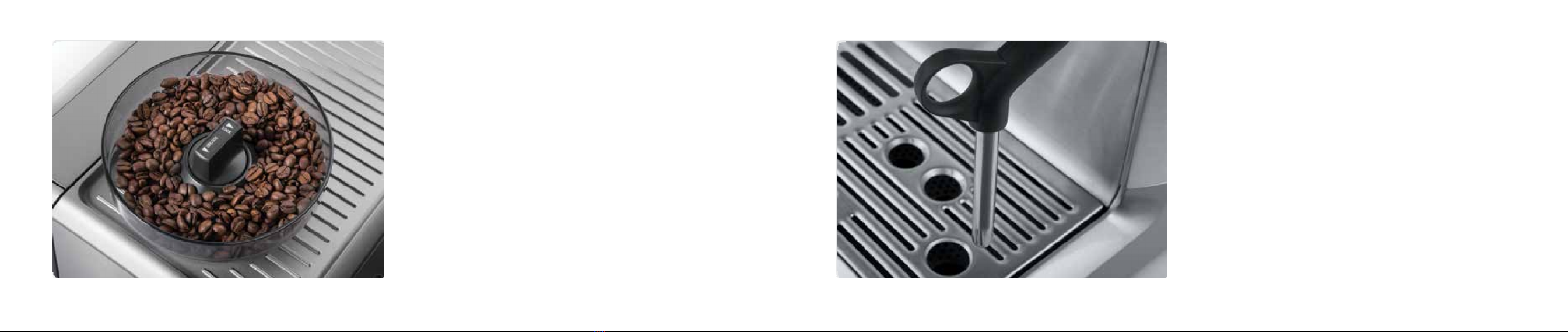

BUILT-IN COFFEE GRINDER
Capacity of a removable coffee grinder container
~ 250 g. In order to avoid grinder clogging, it shall be
prohibited to overfill the container.
Turn the lock in a removable container clockwise in the
direction of LOCK before grinder application
until it issues a characteristic click.
Turn the lock counter-clockwise
in the UNLOCK direction for easy cleaning of the
grinder container until it generates a click and remove
the container.
The coffee grinder is not intended for grinding of sugar
and non-roasted coffee beans.
Do not use flavoured coffee or mixed coffee.
30 GRINDING DEGREES
The grinding degree affects the rate at which water is
taken through the ground coffee in the filter.
The smaller is the number, the finer is the grinding
parameter. The larger is the number, the coarser is the
grinding parameter.
TAMPER
It can be used without coffee station removal from the
body. It can also be applied for manual pressing.
UNIFORM DISTRIBUTION OF GROUND COFFEE IN THE
FILTER
Not only the right amount, but also the uniformity of its
distribution in the filter means much at all stages of
coffee making. It is necessary to apply the tool to form
a coffee briquette and adjust the necessary volume,
evenly distributing ground coffee in the filter.

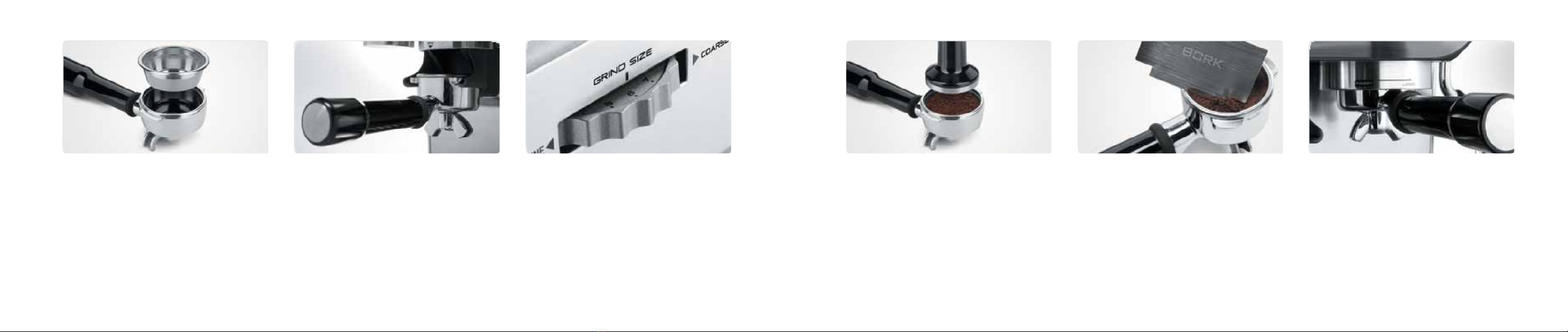

•Distribute coffee in the filter evenly and use
the press.
•Place the tool for coffee briquette formation into the
filter with the blade lowered down, turn it clockwise
and counter-clockwise several times .
•Remove excess coffee from the filter rim in order to
ensure proper sealing.
• Install the filter holder into the cooking unit,
aligning the handle with the INSERT inscription;
turn it right in the direction of the LOCK inscription
until its locking.
•Place the required filter in the filter holder. • Place the filter holder into the stand, locating it
under the grinder channel.
•Turn the control on the side panel of the coffee
station and select one of the 30 degrees of
grinding.
1 - fine grinding, 30 - coarse grinding.
Adjust the degree of grinding only while the grinder
is operating in order to avoid clogging.
14 15

• If necessary - remove the tip of a
cappuchinatore tube with a tool intended
for cleaning.
•Place the tip into water
for some time. Perform cleaning.
•Put the tip back on the
cappuccinatore tube and lock it.
COOKING UNIT CLEANING
•Remove the portafilter.
•Place an empty container under the cooking
unit.
•Enter the menu and choose any drink.
•Begin drink making and wait a few seconds.
CLEANING OF THE DRIP TRAY
It is necessary to clean the removable drip tray
when the indicator is transferred to the EMPTY ME
position.
GRINDER CLEANING
•Turn a lock in the grain container counter-
clockwise.
•Detach the container and remove as much the
remaining coffee beans as possible from the
grinder.
•Put the empty container back
to the coffee station and turn the lock clockwise
until it clicks.
•Click on the "Grind" button in the menu of any
drink, and let the coffee grinder operate for 10–
15 seconds without coffee beans.
•Remove the grain container again after grinder
stopping.
16 17

•Remove the upper grinding element by turning the
metal spring counter-clockwise with subsequent
element removal.
•Take the cleaning brush supplied with the coffee
station and clean the grinding element from
residues of coffee beans.
• Install the upper grinding element and grain
container back.
•Repeat the grinding procedure without coffee
beans, the cleaning procedure will be completed.
18 19
CLEANING OF THE HOUSING
Wipe external parts of the housing with a soft, damp
cloth and subsequently - with a soft, dry cloth.
It is not recommended to wash any parts of the device
or its accessories in the dishwasher.
STORAGE
The device is recommended to be stored in the
assembled condition in acool dry place, isolated from
places of storage of acids and bases at the temperature
from 5 to 30°C and relative humidity of not more than
65%.
SAFETY MEASURES
•The coffee station is intended for home use only.
•Connect the device to a grounded outlet only (the
manufacturer (person authorized by the
manufacturer) does not assume any responsibility for
damage in absence of grounding, implemented in
accordance with local regulations).
•Make sure that it is properly and completely
assembled prior to operation of the coffee station.
•Wash all removable parts before using of the coffee
station.
•It shall be prohibited to operate the device with an
empty water container. Use only cold, preferably
filtered
water. It shall be prohibited to use any other liquids.
•Do not allow children and people with limited
capacity to use the device independently.
•Do not remove the portafilter (cornicle) while making
coffee.
•Small volume of water remains in the portafilter; this
volume is considered normal and depends on the
amount of grinding.
•The coffee must be compacted evenly in the
portafilter for proper extraction.
• Hot water may be generated at the beginning of
steam supply. The steam pipe may be hot, do not
touch it with unprotected hands!
•Do not direct a jet of steam or hot water to body
parts since it can cause burns.
•Application of other liquids is not allowed.
• In case of purchasing ready-made ground coffee,
make sure that a grinding type is suitable for use in
automatic espresso coffee stations.
• Flush the water container, portafilter, cooking unit
and cappuccinatore tube thoroughly after application
of cleaning agents. Keep the coffee station in the
upright position.
• It shall be prohibited to immerse the device, its cord
or plug into water or other liquid.
•The portafilter shall be kept clean. Rinse it after each
use.
•The built-in coffee grinder is not intended for grinding
of green coffee beans.
•Apply special agents for decalcification.

20 21
•Do not operate the coffee station in areas with high
humidity and at temperatures below 0°C. In cases of
transportation or storage of the device carried out at
negative temperatures with subsequent transfer to
warm premises it is necessary to keep the device
indoors for at least
4 hours.
•Do not allow foreign bodies and liquid to enter the
device housing, since such measure can lead to
damage.
•The portafilter sealing element and water container
sealer have normal wear and tear, their service life
depends on the application frequency and accuracy
of handling.
•Transportation of the device shall be allowed only in
the original packaging, as well as in the upright
position.
•The device shall be disposed in accordance with law
requirements of the country, in which it is used.
• It shall be prohibited to use steel wools, abrasive
sponges, chemicals, abrasive cleaning agents for
cleaning of the device,
including equipment which can cause damage and leave
scratches.
•Display application with non-completely clean hands
becomes problematic because of difficulties related
to movement of fingers, as well as due to resulting
fingerprints and stains.
CORRECTIVE MEASURES
•Iit is necessary refer to the section
"Troubleshooting" in case of faults in device
functioning. If it is not possible to fix the problem -
immediately stop using the device
Refer to the nearest BORK service centre for testing,
replacement or repair.
•For safety reasons, all procedures on repair and
maintenance of the device shall be performed only in
authorized BORK service centres. Addresses and
telephone numbers of service centres can be found
on the site www.bork.ru or using the phone number
8 800 500 88 99.
TROUBLESHOOTING
Try to find the cause of a problem and ways to solve it, following the recommendations below if there are any difficulties arising during operation. Contact the BORK service
centre if you still have unresolved problems or questions.
Problem Possible cause Troubleshooting
Coffee does not pour out or pours out too slowly,
dripping
There is no water or too little water in the container. Fill the water container to the required mark.
The coffee grind type is too fine Adjust the degree of grinding. It is recommended to begin from the 10 setting.
If you are using ready-made ground coffee, then it is necessary to make sure that the
grind is suitable for automatic espresso coffee stations.
Too much ground coffee in the filter Apply the automatic dosing function
Coffee is pressed too tight Press the coffee with less pressure
The portafilter has been clogged Clean the portafilter
Excess lime deposits Complete the descaling procedure

22 23
Problem Possible cause Troubleshooting
The coffee is poured out too quickly, espresso is made
without any foam
Too coarse coffee grind Adjust the degree of grinding. It is recommended to begin from the 10 setting.
If you are using ready-made ground coffee, then it is necessary to make sure that the
grind is suitable for automatic espresso coffee stations.
Not enough ground coffee in the portafilter Apply the automatic dosing function
The ground coffee is not tamped enough Use the automatic dosing function and press the ground coffee with a tamper.
The grinder safety valve has been activated Portafilter overflow was registered during supply of
the ground coffee from the channel
Remove excess coffee from the portafilter and coffee grinder container
Loud continuous noise of the coffee station pump The water container is empty or was installed
incorrectly
Fill the container to the required mark and install it into the coffee station until it is
locked.
Problem Possible cause Troubleshooting
The coffee station does not respond to button presses
and knobs activation
Overheating of the pump or the grinder Shut down the coffee station, unplug it and let it cool for 30–60 minutes
Coffee overflow from the portafilter The portafilter was installed in the cooking unit
incorrectly.
Install the portafilter into the cooking unit, aligning the handle with the INSERT
inscription, and turn it right in the LOCK direction until it is locked
Excess ground coffee on the filter rim Remove excess ground coffee from the portafilter rim
The installed portafilter type does not match the
volume of made coffee
Use a smaller portafilter for making of 1 cup of coffee, a larger one - for making of 2
cups.
Too much ground coffee in the portafilter. Apply the automatic dosing function
Ground coffee is pressed too tight Press coffee with less pressure using a tamper

Problem Possible cause Troubleshoot
Steam is not supplied There is no water or too little water in the container. Fill the water container to the required mark.
The cappuccinatore tube is clogged Clean the cappuccinatore tube
The grinder container can not be locked Coffee beans interfere with the container lock Remove the coffee grinder container.Remove coffee beans from the grinder
chamber and from around the upper grinding element.Try closing the container
again.
There are coffee beans in the coffee grinder container,
they are not transferred to grinding elements.
The container is full of grains, which causes the
grinder to clog
The capacity of the container grinder ~ 250 g. Remove some coffee beans, mix
remaining beans
SPECIFICATIONS
Voltage: 220-240 V
Frequency: 50 Hz
Power: 1680 W
Dimensions (H ×W ×D): 325×300×30 mm Weight:
9.8 kg
Made in China
Information about the device's purpose: The device
is intended for making of coffee and coffee drinks.
Special conditions for sale have not been established.
EQUIPMENT KIT
Coffee station: 1 pc.
Case for storage of accessories: 1 pc. Pitcher for milk: 1
pc.
Single-bottom filters for 1 and 2 cups: 1 pair Double-
bottom filters for 1 and 2 cups: 1 pair Water filter: 1 pc.
Water filter holder: 1 pc. Tamper: 1 pc.
Strip for water hardness determination 1 pc.
Cleaning kit: cappucinatore cleaning needle: 1 pc. Brush
for cleaning: 1 pc.
Cleaning disc: 1 pc. Cleaning tablets: 2 pc.
User manual with the warranty card: 1 pc.
Attention! Due to continuous product improvement we
reserve the right to make changes in design, packaging
and specifications of the device. The latest version of
this manual can be checked on the website
www.bork.ru.
Dear customers, if you have any questions
related to purchase, operation and
maintenance of BORK equipment, you can use
the phone number
8 800 500 88 99
(Information support service).
24 25

TRUE MASTERPIECES OF HOME COLLECTION

Grill G 802
•5 automatic modes
•4 roasting degrees
•Detachable panels with the non-stick coating Quantanium
•Thermostat for roasting control
Coffee station C 804
•18 grinding degrees
•Manometer for pressure monitoring
•Steam and hot water supply function
•Possibility of programming
Blender B 802
•12 operating speeds
•5 automatic programs
•ProKinetix's patented knife system
•Possibility of mixture heating
Kettle K 810
•5 automatic modes
•3 degrees of cooked tea strength
•Brewing function
•Delayed start function

Video reviews of premium-class home
appliances, expert advice, recipes and
interviews with star guests -this
information can be found on the official
BORK channel on YouTube.
Collection of home appliances of the
premium class, customer reviews of
BORK products, useful tips and news
from official brand boutiques.
Tips for choosing of household
appliances, recipes from brand-chefs,
design solutions and other ideas for
creation of beautiful and comfortable
life provided by BORK experts.
WARRANTY CARD
The BORK company provides aone-year warranty from the date of purchase of this product The service life determined by BORK representatives for this product amounts to 3years from the date of
sale, provided that the product is used in accordance with rules and recommendations set out in the operating manual attached to it and applicable technical standards.
In order to avoid misunderstandings, we ask you kindly to carefully study the user manual, terms of
the warranty, check correctness of the warranty card. The warranty card is valid if a user has a
correct and legible specification of the following information: model, serial number of the product,
date of sale, clearly visible seals of the seller, buyer's signature. The model and serial number on the
product shall comply with those indicated in the warranty card.
The warranty shall be deemed null and void if any of these conditions are violated and when
data, specified in the warranty card, is altered, deleted or overwritten. If the date of sale can not
be established in accordance
the warranty period and lifetime shall be calculated from the date of product manufacture
in accordance with the Consumer Protection Act.
COFFEE STATION The date of manufacture is encoded in the serial number, for example 1st and 2nd
characters –week of manufacture; 3rd and 4th characters –year of manufacture;
last 5 characters -serial number.
The product is tested, completed and has no mechanical damage.
The customer agrees with terms of the warranty and service agreement.
Customer signature Seller signature
С806
Product
Mode and serial number
Date of purchase Information on
the seller company
(name, legal address)
Stamp here
Name and address of the manufacturer (person authorized by the manufacturer), importer and information intended to contact with them is indicated on packaging of the
product.

TERMS OF SERVICE
The manufacturer reserves the right to refuse satisfaction of customer demands for warranties in case of non-compliance with operating conditions, terms of installation of the product,
intentional or careless actions of the purchaser (customer) or a third party, which caused damage to the product.
The warranty does not cover:
•elements, characterized by natural wear and tear. Thus, normal wear and tear includes
consequences of product application which caused deterioration of the technical condition and
appearance due to prolonged use of this product.
The warranty does not cover products with the damage caused by:
•improper operation, careless handling, improper storage, improper connection, failure to
observe supplied operating instructions;
•contact with foreign objects, substances, liquids, insects or animals, which takes place inside
the unit s housing;
•impact of high and low ambient temperatures on heat sensitive parts of the product;
•mechanical effects;
•improper repair and any other intervention, which resulted in changes in the product design;
•application of the product with industrial and/or commercial purposes;
•damage of the power cord;
•application of detergents, not provided in the instruction manual;
•application of non-standard (non-original) consumables, accessories, spare parts;
•connection to mains with avoltage value other than that specified in instructions for use of the
product or non-correspondence with state standards of the Russian Federation;
• force majeure circumstances (fire, flood, lightning).
Replacement of faulty parts of the product (parts, components, assembly units) during the warranty
period shall not lead to establishment of anew warranty period for the entire product, or apart
replaced.
SERVICE CENTRE ADDRESS
LLC "Service", Moscow, Bolshaya Sadovaya 10.
Current information on availability of service centres in your area can be found on the
site www.bork.ru or using the phone number 8 800 500 88 99.
