Bosch ALS 25 User manual

Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-garden.com
F 016 L81 596 (2016.07) O / 34
ALS
25 | 2400 | 2500 | 30
en Original instructions
ar
ςТЎϩХʉ ЌТϾϦφЍʉ ʌμВТЎϺυ
OBJ_DOKU-56309-001.fm Page 1 Wednesday, July 27, 2016 9:37 AM

2|
F 016 L81 596 | (27.7.16) Bosch Power Tools
English . . . . . . . . . . . . . . . .. . . . . .. . . . . .. . . . . . . . .. . . . . Page 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . .. . . . . . .. . . . . .. . . . . .. . . . . .. . . . . . . . . . I
OBJ_BUCH-2977-001.book Page 2 Wednesday, July 27, 2016 9:38 AM

English | 3
Bosch Power Tools F 016 L81 596 | (27.7.16)
English
Safety Notes
Warning! Read these instructions ca-
refully, be familiar with the controls
and the proper use of the machine.
Please keep the instructions safe for
later use!
Explanation of symbols on the
machine
General hazard safety alert.
Read instruction manual.
Pay attention that bystanders
are not injured through foreign
objects thrown from the ma-
chine.
Warning: Keep a safe distance
from the machine when opera-
ting.
Rotating fan. Keep hands and
feet out of the openings while
the machine is running.
Keep hands and feet out of the
openings while the machine is
running.
Pay attention that bystanders
are not injured through foreign
objects thrown from the machi-
ne. Keep bystanders a safe dis-
tance away from the machine.
Wear eye and ear protection.
Do not work in the rain or leave
the leaf blower/garden vacuum
outdoors whilst raining.
Switch off and remove plug
from mains before adjusting,
cleaning, maintenance or if the
cableisentangledorifthecable
is cut or damaged and before
leaving the leaf blower/garden vacuum
unattended for any period.
Wait until all machine compo-
nents have completely stopped
before touching them. The bla-
des continue to rotate after the machi-
ne is switched off, a rotating blade can
cause injury.
Operation
Never allow children or people unfa-
miliar with these instructions to use
the machine. Local regulations may
restricttheage oftheoperator.When
not in use store the machine out of
reach of children.
This machine is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities,orlackofexperienceand
knowledge, unless they have been gi-
ven supervision or instruction con-
cerning use of the machine by a per-
son responsible for their safety.
Children should be supervised to en-
sure that they do not play with the
machine.
Never operate the machine while
people, especially children or pets,
are nearby.
The operator or user is responsible
for accidents or hazards occurring to
other people or their property.
Other persons and animals should re-
main at a distance of 3 metres or mo-
OBJ_BUCH-2977-001.book Page 3 Wednesday, July 27, 2016 9:38 AM

4| English
F 016 L81 596 | (27.7.16) Bosch Power Tools
re when the machine is being used.
The operator is responsible for third
persons in the working area.
Use the machine only in daylight or
good artificial light.
Never operate the product when you
are tired, ill or under the influence of
alcohol, drugs or medicine.
Avoid operating the machine in bad
weather conditions especially when
there is a risk of lightning.
Always wear substantial clothing on
the upper body and limbs when ope-
rating this tool.
Do not operate the machine when ba-
refoot or wearing open sandals, al-
ways wear substantial footwear and
long trousers.
Failure to keep loose clothing from
being drawn into air intake could re-
sult in personal injury.
Do not operate without tubes in
place.
Failure to keep long hair away from
the air inlet could result in personal
injury.
Thoroughly inspect the area where
themachineistobeusedand remove
all wires and other foreign objects.
Check cable for damage before star-
ting work and replace if necessary.
Keep cable away from heat, oil and
sharp edges.
Always direct the cable to the rear
away from the appliance.
Use the machine only in the correct
orientation for its configuration. This
machineisnotdesignedforuseinver-
ted during vacuum mode.
Neveroperatetheleafblower/garden
vacuum with defective guards or
shields,orwithoutsafetydevices, for
example collection bag in place.
Alwaysensure all handlesand guards
supplied are fitted when using the
leaf blower/garden vacuum. Never
attemptto use anincomplete leaf blo-
wer/garden vacuum or one with an
unauthorised modification.
While operating the leaf blower/gar-
den vacuum always be sure of a safe
and secure operating position at all
times.
Always be aware of your surround-
ings and stay alert for possible ha-
zards that you may not hear whilst
operating the leaf blower/garden va-
cuum.
Do not over reach and keep your ba-
lance at all times.
Always be sure of your footing on slo-
pes.
Walk, never run.
Keepallcooling air inlets clearof deb-
ris.
Never blow debris in the direction of
bystanders.
Do not carry the machine by the
cable.
The wearing of a face mask is recom-
mended.
Wear safety goggles.
Do not modify this product. Unau-
thorized modifications may impair
the safety of your product and may
result in increased noise and vibrati-
on.
OBJ_BUCH-2977-001.book Page 4 Wednesday, July 27, 2016 9:38 AM

English | 5
Bosch Power Tools F 016 L81 596 | (27.7.16)
Do not vacuum solid objects such as
big branches, broken glass, pieces of
metal and stones.
A worn fan or blower housing (chips,
cracks, nicks) may cause an increa-
sed risk of injury from thrown foreign
objects. If the blower housing is da-
maged, consult the Bosch hotline.
Remove the plug from the socket:
– Whenever you leave the machine.
– Before checking, clearing a blockage
or working on the leaf blower/garden
vacuum.
– Afterstrikingaforeignobject,inspect
the leaf blower/garden vacuum for
damage and make repairs as neces-
sary.
– If the leaf blower/garden vacuum
startstovibrate abnormally check im-
mediately.
Connecting to the mains
The voltage indicated on the rating
plate must correspond to the voltage
of the power source.
We recommend that this equipment
is only connected into a socket which
is protected by a circuit-breaker that
wouldbe actuated bya 30 mAresidu-
al current.
Only use or replace power supply
cables for this unit which correspond
to the types indicated by the manu-
facturer. See the operating instruc-
tions for the order no. and types.
Never touch the mains plug with wet
hands.
Do not run over, crush or pull the po-
wer supply cord or extension cord,
otherwise it may be damaged. Pro-
tectthecablefromheat,oilandsharp
edges.
The extension lead must have a cross
section in accordance with the opera-
ting instructions and be protected
against splashed water. The connec-
tion must not be in water.
Electrical Safety
Motor Protector fitted! Motor fit-
ted with safety overload protec-
tion. If motor stops working, allow
a few minutes to cool, before rest-
arting.
Warning! Switch off, remove plug
from mains before adjusting,
cleaning or if cable is entangled.
If a cord becomes damaged during
use, disconnect the supply cord
from the mains immediately. DO
NOT TOUCH THE CORD BEFORE
DISCONNECTING THE SUPPLY.
Your machine is double insulated for
safety and requires no earth connec-
tion.Theoperatingvoltageis230 VAC,
50 Hz (for non-EU countries 220 V,
240 V as applicable). Only use appro-
ved extension cables. Contact your
Bosch Service Centre for details.
Extension cords/leads should only be
used if they comply with H05VV-F,
H05RN-F types or IEC type design
(60227 IEC 53, 60245 IEC 57).
OBJ_BUCH-2977-001.book Page 5 Wednesday, July 27, 2016 9:38 AM

6| English
F 016 L81 596 | (27.7.16) Bosch Power Tools
If you want to use an extension cable
when operating your product, only the
following cable dimensions should be
used:
– 1.0 mm2: max. length 40 m
– 1.5 mm2: max. length 60 m
– 2.5 mm2: max. length 100 m
Note: If an extension cable is used it
must be earthed and connected
through the plug to the earth cable of
your supply network in accordance
with prescribed safety regulations.
If in doubt contact a qualified electrici-
anorthenearestBoschServiceCentre.
WARNING! Inadequate extension
cables can be dangerous. Extensi-
on cable, plug and socket must be
of watertight construction and in-
tended for outdoor use.
It is recommended for increased elec-
trical safety to use a Residual Current
Device (RCD) with a tripping current of
not more than 30 mA. Always check
your RCD every time you use it.
Theconnectionlead must be inspected
for signs of damage at regular intervals
and may only be used if in perfect con-
dition.
If the supply cord is damaged, it must
be replaced by a Bosch Service Centre.
For products not sold in GB:
WARNING: For your safety, it is requi-
red that the plug attached to the machi-
ne is connected with the extension
cord. The coupling of the extension
cord must be protected against splash
water, be made of rubber or coated
with rubber. The extension cord must
be used with a cable strain relief.
Products sold in GB only: Your pro-
duct is fitted with a BS 1363/A ap-
provedelectricplugwithinternalfuse
(ASTA approved to BS 1362).
If the plug is not suitable for your so-
cket outlets, it should be cut off and
an appropriate plug fitted in its place
by an authorised customer service
agent. The replacement plug should
have the same fuse rating as the origi-
nal plug.
Theseveredplugmustbedisposedof
to avoid a possible shock hazard and
shouldnever be inserted into amains
socket elsewhere.
Products sold in AUS and NZ only:
Use a residual current device (RCD)
witharatedresidualcurrentof30 mA
or less.
Maintenance
Keep all nuts, bolts and screws tight
to ensure that the leaf blower/garden
vacuum is always in a safe working
condition.
The leaf blower/garden vacuum
should be stored in a dry, high or lo-
cked up place out of the reach of
children.
Replace worn or damaged parts for
safety.
Check the collection bag frequently
for wear or deterioration.
Do not attempt to repair the machine
unless you are qualified to do so.
Ensure replacement parts fitted are
Bosch approved.
OBJ_BUCH-2977-001.book Page 6 Wednesday, July 27, 2016 9:38 AM

English | 7
Bosch Power Tools F 016 L81 596 | (27.7.16)
Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the garden product in a better
and safer manner.
Intended Use
This product isintendedforblowingandcollectingleaves and
garden waste such as grass clippings in the area around the
garden and house.
This product is not intended for use as a shredder.
It can be dangerous to operate any power tool in a manner
other than as specifically intended. Misuse can result in per-
sonal injury.
Technical Data
Symbol Meaning
Blow Mode
Vacuum Mode
Movement direction
Reaction direction
Switching On
Switching Off
Permitted action
Prohibited action
Wear protective gloves.
Only operate with assembled tube.
Please tighten the screw inthe tool untilthe
line disappears.
Symbol Meaning
Leaf blower/
Garden Vacuum Cleaner ALS 25 ALS 25 ALS 2400 ALS 2500 ALS 30
Article number 3 600 ... HA1 0.. HA1 030
HA1 040
HA1 001 HA1 071 HA1 1..
Rated power input W 2500 2300 2400 2500 3000
Air speed km/h 180/300 180/300 180/300 180/300 180/300
Volume flow rate, max. m3/h 400/800 400/800 400/800 400/800 400/800
Reduction ratio 10:1 10:1 10:1 10:1 10:1
Collection bag volume l4545 45 45 45
Weight (blow mode) kg 3.2 3.2 3.2 3.2 3.2
Weight (vacuum mode) kg 4.4 4.4 4.4 4.4 4.4
Protection class /II /II /II /II /II
Serial number see type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
OBJ_BUCH-2977-001.book Page 7 Wednesday, July 27, 2016 9:38 AM

8| English
F 016 L81 596 | (27.7.16) Bosch Power Tools
Noise/Vibration Information
Sound emission values determined according to
EN 50636-2-100.
Typically the A-weighted noise levels of the product are:
Sound pressure level 82 dB(A); sound power level
102dB(A).UncertaintyK=3dB.
Wear hearing protection!
Vibration total values ah(triax vector sum) and uncertainty K
determined according to EN 50636-2-100:
ah<2.5m/s2, K =1.5 m/s2.
Mounting and Operation
Working Advice
When operating, always hold the machine close to the
ground.
Do not blow hot, flammable or explosive material.
The garden vacuum is only suitable for foliage and garden
waste.
Please inspect the area for little animals and hard objects be-
fore using the tool.
Do not vacuum liquids, plastic bags, cans, pine cones, bran-
ches larger than 5 mm (Ø >5 mm), cloth, tissues and pegs.
Motor is running only if the following parts are assembled:
–vacuumtubeand collection bag in vacuum mode
–tubeand intake grid in blow mode
Troubleshooting
Action Figure Page

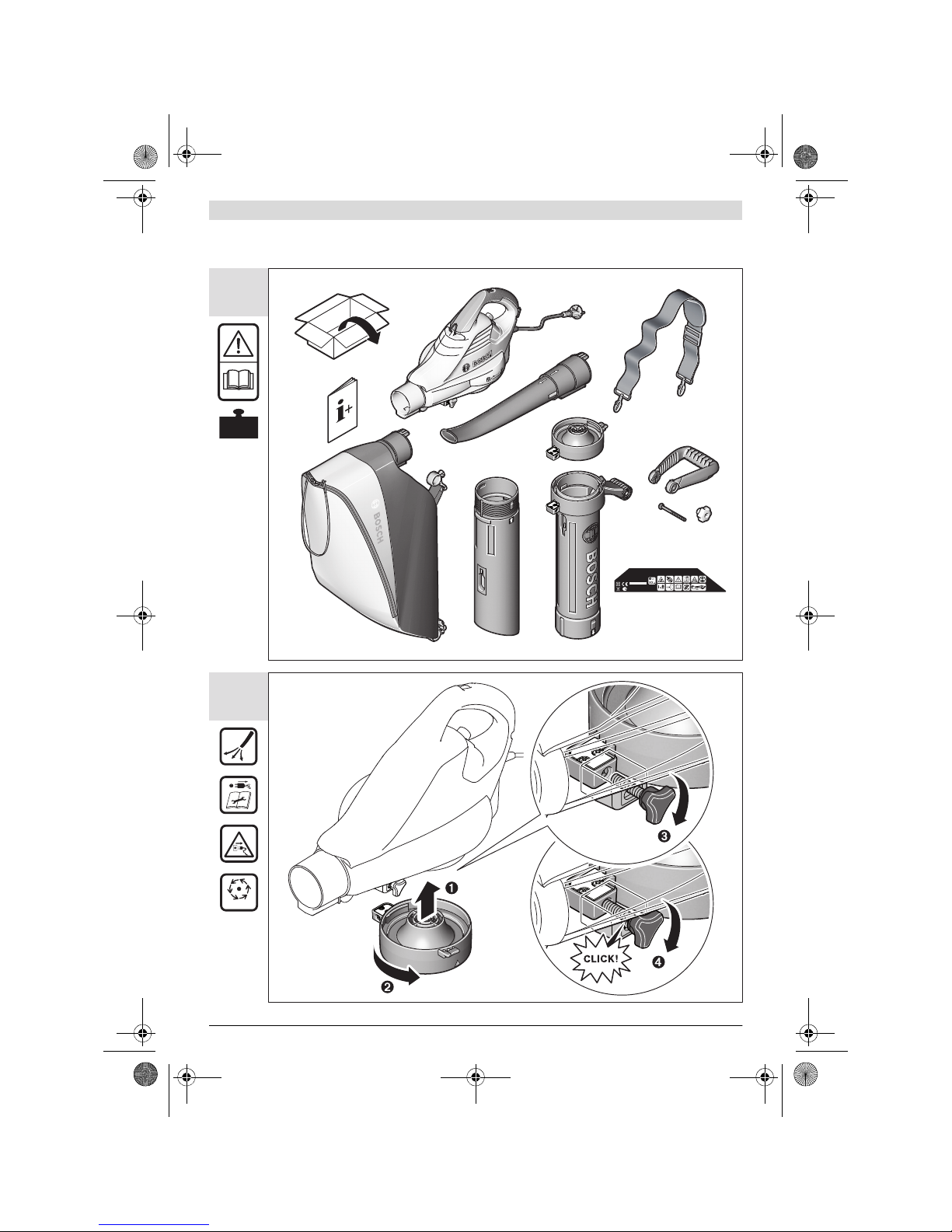

Delivery Scope 119
Safety Cover Assembly 219
Tube Assembly 320
Connecting the extension lead 420
Starting 420
Stopping 420
Blow Mode 521
Selecting Blowing Speed 521
Tube/Safety Cover Disassembly 622
Handle Assembly 722
Vacuum Tube Assembly (one-time
assembly only) 823
Fitting of Shoulder Strap 923
Fitting of Collection Bag 10 24
Connecting the extension lead 11 24
Starting 11 24
Stopping 11 24
Vacuum Mode 12 25
Selecting Volume Flow Rate 12 25
Adjusting Front Handle 13 26
Emptying Collection Bag 14 26–27
Maintenance and Cleaning 15 27–28
Storage and Transport 16 28
Action Figure Page
Problem Possible Cause Corrective Action
Machine fails to operate Components not assembled correctly see assembly
Power turned off Turn power on
Mains socket faulty Use another socket
Extension cable damaged Inspect cable, replace if damaged
Fuse faulty/blown Replace fuse
Motor protector has activated Allow motor to cool down and check that fan is
not blocked
OBJ_BUCH-2977-001.book Page 8 Wednesday, July 27, 2016 9:53 AM

English | 9
Bosch Power Tools F 016 L81 596 | (27.7.16)
Maintenance and Service
Maintenance, Cleaning and Storage
Before any work on the machine itself, pull the mains
plug.
For safe and proper working, always keep the garden
product clean.
Forsafe andproper working,alwayskeep thegarden product
and the ventilation slots clean.
Remove dirt on the machine or the collection bag with a moist
cloth.
Never spray with or immerse the garden product in water.
Store the garden product in a secure, dry place, out of the
reach of children.
Do not place other objects on the garden product.
After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the type plate of
the garden product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: [phone]
E-Mail: [email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: [phone]
Fax: [phone]
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: [phone]
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: [phone]
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Machine functions
intermittently Extension cable damaged Inspect cable, replace if damaged
Internal wiring of machine damaged Contact Service Agent
On/Off switch defective Contact Service Agent
Motor protector has activated Allow motor to cool down and check that fan is
not blocked
Excessive vibrations/
noise Machine defective Contact Service Agent
Machine does not
blow/vacuum Tube obstructed Clear tube
Tube cannot be mounted
on the machine Incorrect assembly see assembly
Vacuuming speed slows
down Collection bag full Empty collection bag
Bag inlet connector obstructed Clear out bag inlet connector
Fan not rotating Fan obstructed Switch off product and clear out as necessary
(wear gloves)
Problem Possible Cause Corrective Action
OBJ_BUCH-2977-001.book Page 9 Wednesday, July 27, 2016 9:38 AM

10 | English
F 016 L81 596 | (27.7.16) Bosch Power Tools
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: [phone]
Fax: [phone]
E-Mail: rbsa-hq.pt[email protected]
Disposal
The garden product, accessories and packaging should be
sorted for environmental-friendly recycling.
Do not dispose of garden products into household waste!
Only for EC countries:
According to the European directive
2012/19/EU for Waste Electrical and Elect-
ronic Equipment and its implementation into
national law, electrical and electronic equip-
ment that are no longer usable must be coll-
ected separately and disposed of in an envi-
ronmentally correct manner.
Subject to change without notice.
OBJ_BUCH-2977-001.book Page 10 Wednesday, July 27, 2016 9:38 AM

 |11
Bosch Power Tools F 016 L81 596 | (27.7.16)


◀

◀










www.bosch-garden.com







53
 – 20300 
+ 212 (0) 522 400 409 / + 212 (0) 522 400 615 :
[email protected] :



 – 06000 
+ 213 (0) 982 400 992 :
+ 213 (0) 34201569 :
[email protected] :


25 – 99
2014
+ 216 71 428 770 :
+ 216 71 354 175 :
[e-mail] :


20

+ 2 02 224 76091 - 95 / + 2 02 224 78072 - 73 :
+ 2 022 2478075 :
[e-mail] :





2012/19/EU








12 |
F 016 L81 596 | (27.7.16) Bosch Power Tools

521
521
622
722

823
923
1024
1124
1124
1124
1225
1225
1326
1426 – 27
1527 – 28
1628










5


−

−






















  


 |13
Bosch Power Tools F 016 L81 596 | (27.7.16)























 
ALS 25ALS 25ALS 2400ALS 2 500ALS 30

3 600 ...HA1 0..HA1 030
HA1 040
HA1 001HA1 071HA1 1..
2 5002 3002 4002 5003 000
180 / 300180 / 300180 / 300180 / 300180 / 300
3400 / 800400 / 800400 / 800400 / 800400 / 800
10:110:110:110:110:1
4545454545
3,23,23,23,23,2

4,44,44,44,44,4
 / II / II / II / II / II

230[U]


EN 50636-2-100
A
A82
3 = KA102

ah
:EN 50636-2-100K
 1,5= K2,5> ah


119
219
320
420
420
420

14 |
F 016 L81 596 | (27.7.16) Bosch Power Tools




4021,0 –
6021,5 –
10022,5 –









◀






(RCD) FI
30

FI









:GB










◀



◀



◀

◀


◀


◀







 |15
Bosch Power Tools F 016 L81 596 | (27.7.16)
−




−



◀


◀

30

◀





◀


◀





◀





◀




◀





◀








50230

240220





IECH05VV-F, H05RN-F
(60227 IEC 53, 60245 IEC 57)


16 |
F 016 L81 596 | (27.7.16) Bosch Power Tools
◀

◀




◀



◀








◀



◀  



◀


◀

◀

◀

◀


◀

◀

◀
◀




◀


◀








−

−




 |17
Bosch Power Tools F 016 L81 596 | (27.7.16)




◀












◀



◀



◀

3


◀


◀



◀


◀


◀



◀



◀


◀



◀


◀






18 |
F 016 L81 596 | (27.7.16) Bosch Power Tools
























































◀




| 19
Bosch Power Tools F 016 L81 596 | (27.7.16)
STOP
a.c.
4,4 kg
1
2
OBJ_BUCH-2977-001.book Page 19 Wednesday, July 27, 2016 9:38 AM

F 016 L81 596 | (27.7.16) Bosch Power Tools
20 |
3
4
OBJ_BUCH-2977-001.book Page 20 Wednesday, July 27, 2016 9:38 AM
