Bosch VJD-8000 User manual

IP Matrix operation with KBD‑UXF
VJD‑8000 | VJD‑7513 | VJD‑7523
en Operation manual

IP Matrix operation with KBD-UXF Table of contents | en 3
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
Table of contents
1Introduction 4
1.1 About the manual 4
1.2 Conventions in this manual 4
1.3 Additional documentation 4
2Requirements 5
3Restrictions 6
4Operation 7
4.1 Keyboard layout 7
4.2 Key description 8
4.3 Keyboard operations 11
4.3.1 Selecting a camera 11
4.3.2 Selecting a monitor 11
4.3.3 Controlling digital speed factor 11
4.3.4 Controlling PTZ cameras 11
4.3.5 Using prepositions 11
4.3.6 Locking/unlocking the keyboard 12
5Keyboard print template 13
6Troubleshooting 14

4en | Introduction IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
1 Introduction
1.1 About the manual
This manual describes how to use the keyboard with the IPMatrix application.
1.2 Conventions in this manual
The symbols and notations that follow are used to draw attention to special situations:
i
Notice!
This symbol indicates special features and provides tips and information for easier, more
convenient use of the software.
Terms that you can find in the program, such as menu options, commands or text in the user
interface, are written in bold.
1.3 Additional documentation
i
Notice!
Read and follow the instructions in the hardware documentation
While setting up the hardware for IPMatrix, read and follow the instructions of the hardware
documentation. The documentation contains important safety messages. It is mandatory to
read and understand the safety messages prior to installation of the hardware.
More information
Find more information, software downloads, and documentation at:
www.boschsecurity.com and the respective product page.

IP Matrix operation with KBD-UXF Requirements | en 5
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
2 Requirements
A prerequisite for using the keyboard is that the required hardware for an IPMatrix system is
available and configured appropriately.
Requirements for installed software
The Configuration Manager 7.60 program or later is required.
Requirements for operational purpose
Make sure the following requirements are fulfilled:
– 1 to 4ready-to-use Bosch VIDEOJET decoder with firmware 10.30 or later connected to a
surveillance network (fully installed and ready for operation)
– 1 to 4KBD-UXF or KBD-Digital keyboards (fully installed and ready for operation)
– 1 to 8 (16) displays with appropriate interface connections or adapters
Note: Up to 2 displays per decoder can be connected to VJD-8000 and VJD-7513, and up
to four displays to VJD-7523.
– Fixed or moving cameras connected to the surveillance network
– A PC with Bosch Configuration Manager program installed and connected to the
surveillance network (only for configuration purposes)
i
Notice!
Prior to operation, the IPMatrix application must be configured using the Configuration
Manager program.
IPMatrix configuration
The IPMatrix application can be configured using the Configuration Manager 7.60 program or
later.
For detailed configuration steps, refer to the IPMatrix configuration manual available on the
online product catalog.

6en | Restrictions IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
3 Restrictions
Observe the following restrictions when using a IPMatrix system:
– The decoder dynamically adapts its performance to high loads by skipping frames, which
can cause juddering in the video stream.
– Playback is only possible from local recordings, not from recordings managed by VRM.
– A long i-frame distance leads to less exact navigation in playback mode and lower
performance in playback backwards mode.

IP Matrix operation with KBD-UXF Operation | en 7
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
4 Operation
After configuring the IPMatrix application using a PC with the Configuration Manager
program, the IPMatrix application operates as a stand-alone CCTV surveillance system. All
operations are carried out using the attached keyboard.
i
Notice!
Refer to the instruction manual delivered with your keyboard. The manual is also available on
the online product catalog.
4.1 Keyboard layout
The following graphic illustrates the different groups of keys on the keyboard, shown in the
right-hand version.
1 2
3
4
4 56
8
7
1 Numbered function keys and audio. 2 Rotatable knob
Use to control the zoom function of a
device or the built-in digital zoom
factor.
3 Joystick
Use to pan or tilt a PTZ device.
Use to move the field of view in a
digitally zoomed viewing pane.
4 Client control keys
These keys are shortcuts to certain
client functions.
5 Playback controls
In playback mode: Use to control the
playback speed of recorded tracks.
6 Number keys
Use to select favorite views, sequences
or single devices.

8en | Operation IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
7 Shuttle ring
In Live mode: Use to select a certain
monitor in a multi-monitor view.
In playback mode: Use to increase or
decrease the playback speed factor.
8 Jog dial
Use to scroll through monitors.
4.2 Key description
The following list shows the icons on the keyboard and their respective function.
Displays monitor numbers and decoder IP addresses
4Press the key to display the monitor numbers and decoder IP addresses as overlay on the
monitors.
Displays camera numbers and camera IP addresses
4Press this key to display the camera numbers and camera IP addresses as overlay on the
monitors.
Calls-up favorites. Maximum 9favorites are available.
4Press the key, enter the number using the number keys, then click OK.
Note: The layouts and camera connections on all displays are re-established.
Saves up to 9favorites.
4Press the key, enter the number using the number keys, then click OK.
Note: The layouts and camera connections on all displays are saved.
Turns audio on/off
4Press the key to turn audio on/off. This applies only to the monitor in the top left of the
screen.
Note: Blinking indicates that the function is enabled.
Starts/stops recording.
Not supported yet.
Switches the keyboard to left-hand use and back.
The key assignment is rotated by 180 degrees.
4Press the key, then click OK.
Note: You must also rotate the printed keyboard inlay with the key labeling by 180 degrees.

IP Matrix operation with KBD-UXF Operation | en 9
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
Switches between live mode and playback mode.
Blinking indicates that the function is enabled.
4Press the key to switch.
Note: Only supported by firmware9.60 and later. Playback permission must be available.
Loads a camera sequence
4Press the key, enter a valid sequence number (1 to 32), then click OK.
Note: Blinking indicates that the input of a number is required.
Switches to previous layout with less monitors
4Press the key to decrease the number of monitors on the current display.
Note: This key provides a round-trip function. The last layout starts again, if the first layout is
reached.
Switches to next layout with more monitors
4Press the key to increase the number of monitors on the current display.
Note: This key provides a round-trip function. The first layout starts again, if the last layout is
reached.
Turns full-screen of currently selected monitor on/off
4Press the key to turn full-screen on or off.
Turns full-screen with picture-in-picture on/off
4Press the key to turn full-screen with picture-in-picture on or off.
1 …. 0 Number keys
4Use to select favorite views, sequences, prepositions, or single devices.
ESC Cancels a number entry.
4Press the key to cancel the entering of a number.
OK Confirms a number entry.
4Press the key to confirm.
Selects or saves a preposition
To select a preposition:
4Press the key, enter the preposition number using the number keys, then click OK.

10 en | Operation IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
Enables/disables focus control
4Press the key, then turn the joystick control knob to change the focus control.
Enables/disables iris control
4Press the key, then turn the joystick control knob to change the iris control.
Displays the next camera
4Press the key to display the next camera on the selected monitor.
Displays the previous camera
4Press the key to display the previous camera on the selected monitor.
Selects a monitor.
4Press the key, enter the monitor number using the number keys, then click OK.
Locks/unlocks the keyboard
4Press the key to lock or unlock the keyboard.
Note: Key is highlighted if state is locked.
Plays recordings fast backwards (stepwise)
4Press the key to play recordings fast backward (stepwise).
Note: Available in playback mode.
Plays recordings backwards
4Press the key to play recordings backwards with normal speed.
Note: Available in playback mode.
Freezes video on monitors on/off (in live mode) or pauses playback (in playback mode)
In live mode:
4Press the key to freeze/unfreeze the video on all monitors.
Note: Selecting another layout, camera or monitor also unfreezes the video.
In playback mode:
4Press the key to pause the playback on the selected monitor.
Starts playback

IP Matrix operation with KBD-UXF Operation | en 11
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
4Press the key to start the playback with normal speed.
Note: Available in playback mode.
Fast forward (stepwise)
4Press the key to move stepwise fast forward in recordings.
Note: Available in playback mode.
4.3 Keyboard operations
4.3.1 Selecting a camera
To select a camera:
1. Press the number keys to enter the camera's number on the list.
2. Press OK to switch the current monitor to the selected camera's view.
4.3.2 Selecting a monitor
To select a monitor:
4In live mode:
Use the keyboard shuttle ring to select a certain monitor in a multi-monitor view. The
selected monitor is surrounded by a colored frame.
or
Press the monitor key, enter the monitor number using the number keys, then
click OK.
4.3.3 Controlling digital speed factor
To control the digital speed factor
4In playback mode:
Use the keyboard shuttle ring to move fast forward or fast backward with different
speeds.
Depending on how much you turn the keyboard shuttle ring, the following speed factors
are available: ¼, ½, 1, 2, 4, 8 and 16
or
In playback pause mode:
Use the jog dial for single step forward or single stop backward.
4.3.4 Controlling PTZ cameras
To control pan and tilt of cameras:
4Use the keyboard's joystick to control the axis of a PTZ camera.
To control zoom function:
4Turn the joystick control knob to zoom in or out. If the camera does not offer an optical
zoom, a digital zoom will be simulated.
4.3.5 Using prepositions
To save a preposition:
1. Move the camera view to the intended position and press the key quickly three
times until the key starts blinking.

12 en | Operation IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
2. Enter the preposition number using the number keys.
3. Click OK.
To select a preposition:
1. Press the key and enter the preposition number using the number keys.
2. Click OK.
4.3.6 Locking/unlocking the keyboard
To lock the keyboard:
4Press the logout key.
To unlock the keyboard:
1. Press the logout key.
2. Enter the IPMatrix passcode.
3. Click OK.

IP Matrix operation with KBD-UXF Keyboard print template | en 13
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC

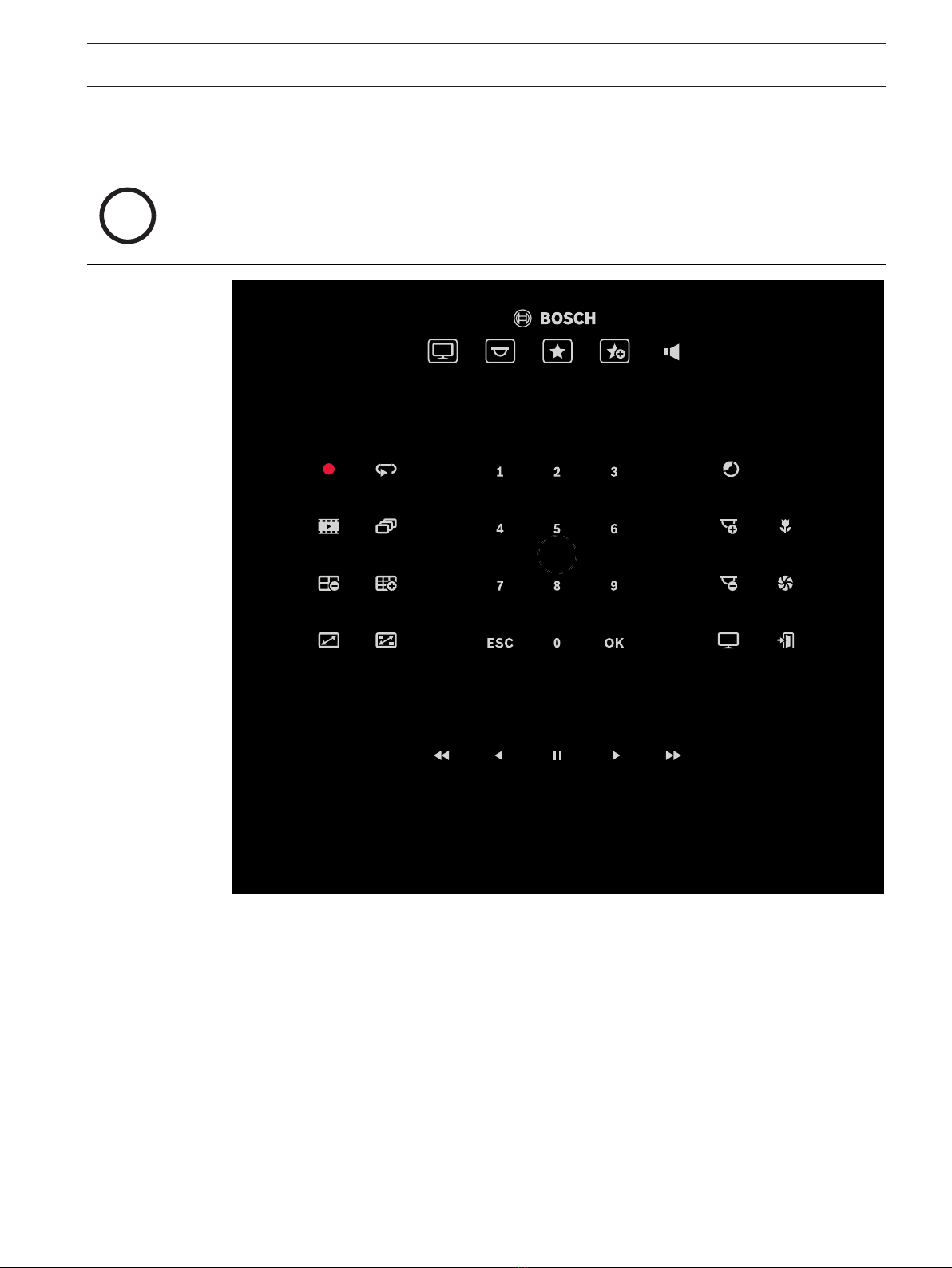

5 Keyboard print template
The following graphic shows the key assignment of the keyboard.
i
Notice!
To print the keyboard assignment on the pre-punched keyboard template provided with the
product, use the true to scale template “Special Print template IP Matrix for KBD UXF” in the
online product catalog.

14 en | Troubleshooting IP Matrix operation with KBD-UXF
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
6 Troubleshooting
For general appearance check the Advanced tab settings of each decoder.
Issue Solution
No keys on the KBD-UXF keyboard lit. Check the power and data connections.
All 5function keys on the KBD-UXF are lit
when turning the keyboard On. No other key
works.
The keyboard is in the wrong interface mode.
Refer to the keyboard manual to change the
mode.
Cannot access cameras. Check the general password. All cameras
must use this password as a common user
password.
In a multi-decoder setup: Settings in the
Configuration Manager program do not affect
the IPMatrix application.
Only settings on the master decoder affect
the IPMatrix application. Select the master
decoder and try again.
The selected monitor is not highlighted. Check the distance between cameos.
Increase the distance if necessary.
No connections after restarting the decoder. Enable reconnect on restart.
Not all monitors can be populated with video
connections.
Check the number of decoders that defines
the maximum possible connections on one
decoder device.
Or
Your layout may provide more monitors than
allowed by the maximum monitors per
display.

Bosch Security Systems B.V.
Torenallee 49
5617 BA Eindhoven
Netherlands
www.boschsecurity.com
© Bosch Security Systems B.V., 2023
202301091602
Building solutions for a better life.
