Fiber Optic Ethernet Media Converter Kit Parts List | en 5
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924
2 Parts List
AUTODOME
For an AUTODOME camera, the following parts are included in the kit of the fiber optic
module:
Part Description
Fiber Optic Media Converter Module (with SFP socket)
Metal adapter plate
Power harness (black)
Three (3) standoff bosses
Ethernet patch (jumper) cable (blue) with RJ45 connectors
Two (2) M4 Phillips pan screws

6en | Parts List Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
MIC

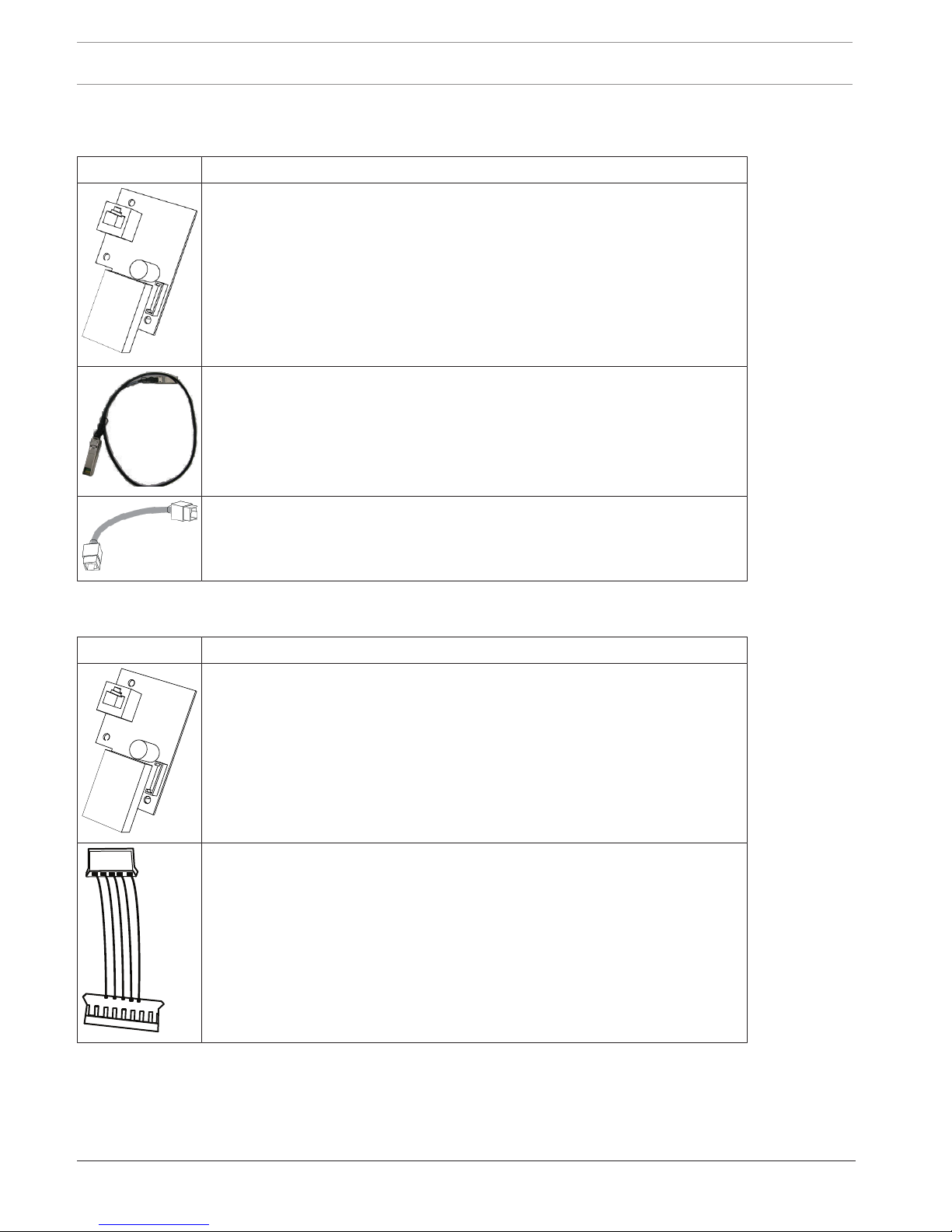

For a MIC camera, the following parts are included in the kit of the fiber optic module:
Part Description
Fiber Optic Media Converter Module
Fiber cable (black) with SFP-style connectors
Ethernet patch cable (gray) with RJ45 connectors
EXTEGRA
For an EXTEGRA camera, the following parts are included in the kit of the fiber optic module:
Part Description
Fiber Optic Media Converter Module (with SFP socket)
Power harness (black)

Fiber Optic Ethernet Media Converter Kit Parts List | en 7
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924

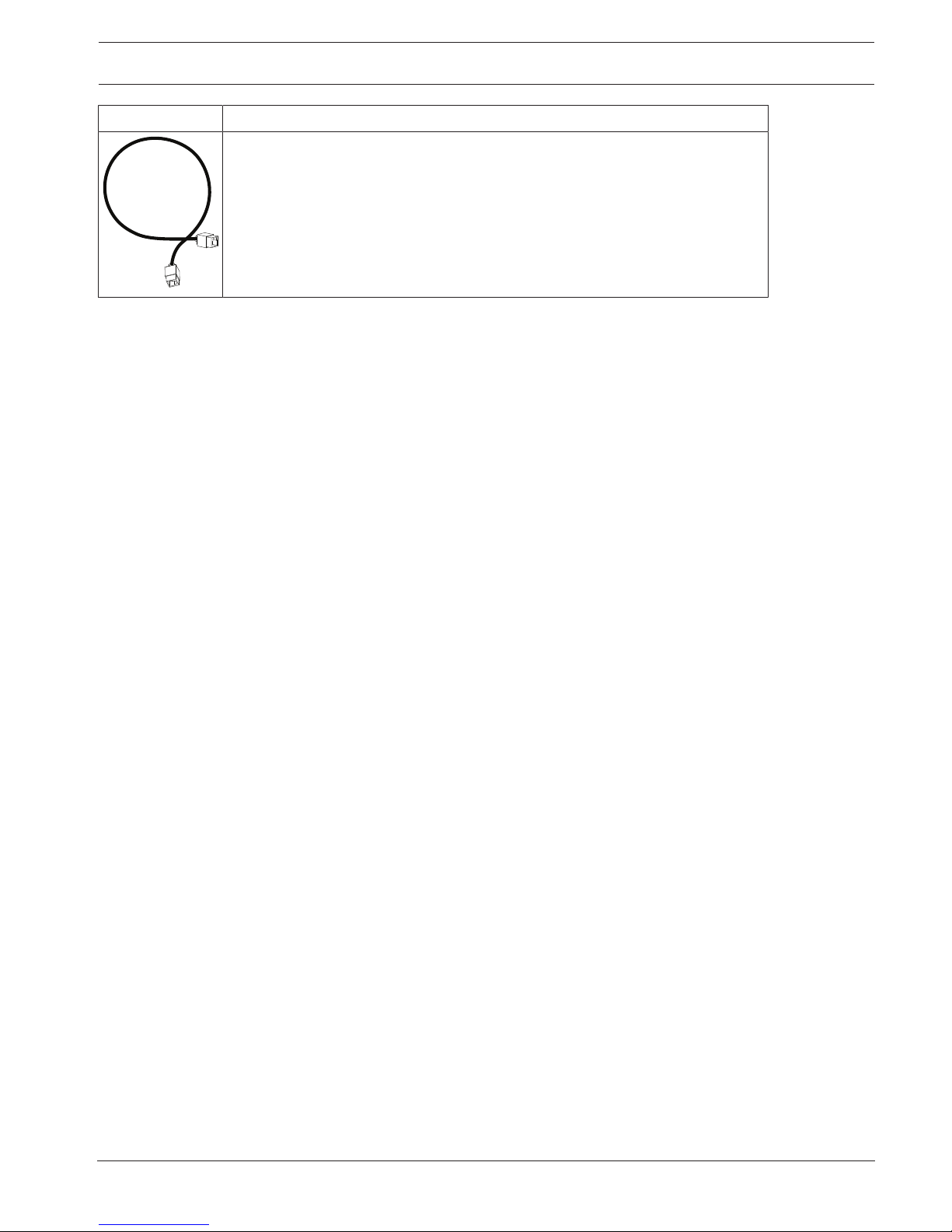

Part Description
Ethernet patch (jumper) cable (blue) with RJ45 connectors

8en | System overview Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
3 System overview
The VG4-SFPSCKT is a media converter module that provides an integrated fiber optic
solution. The module is designed to accept any of the 10/100 Mbps Small Form-factor
Pluggable (SFP) modules listed below, for use with Multimode optical fiber (MMF) or Single
mode (SMF) optical fiber with LC or SC connectors.
The media converter module, along with the SFP module, is user-installed into:
– Any of the following AUTODOME power supply units:
– VG4-A-PA1
– VG4-A-PA2
– VG4-A-PSU1
– VG4-A-PSU2
– Any of the following MIC IP power supply units (for use with a MIC550, a MIC550IR, or a
MIC612 analog camera):
– MIC-IP-PS-115
– MIC-IP-PS-24
– MIC-IPIR-PS-115
– MIC-IPIR-PS-230
– MIC-IPIR-PS-24
– An EXTEGRA IP 9000 FX camera
The Fiber Optic module accepts the following SFP modules:
Sub-module Fiber Type Optical Interface
SFP-2 MMF Duplex LC
SFP-3 SMF Duplex LC
SFP-25 MMF Single SC
SFP-26 MMF Single SC
Notice!
The SFP module is not included with the VG4-SFPSCKT kit; it must be purchased separately.
The SFP-25/SFP-26 modules are counterparts; if you use one in the VG4-SFPSCKT module
then you must use the other in the CNFE2MC head-end unit. For example, SFP-25 is used in
the VG4-SFPSCKT module installed into a VG4 power supply. You must use the SFP-26 module
in the CNFE2MC head-end unit.
The following chart lists the compatibility between the SFP modules:
SFP Sub-module used in
VG4-SFPSCKT
Use this SFP Sub-module
in CNFE2MC
SFP-2 SFP-2
SFP-3 SFP-3
SFP-25 SFP-26
SFP-26 SFP-25

Fiber Optic Ethernet Media Converter Kit Install for an AUTODOME camera | en 9
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924
4 Install for an AUTODOME camera
To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside a VG4 Power Supply
Box for an AUTODOME camera, complete the following steps.
1. Turn off the power to the VG4 power supply box and remove the cover.
2. Remove the 6-pin connector from the P106 connector inside the power supply box, if
present.
3. Connect the supplied power harness (black) to the J103 socket on the power supply
board, located below the Heater connector.

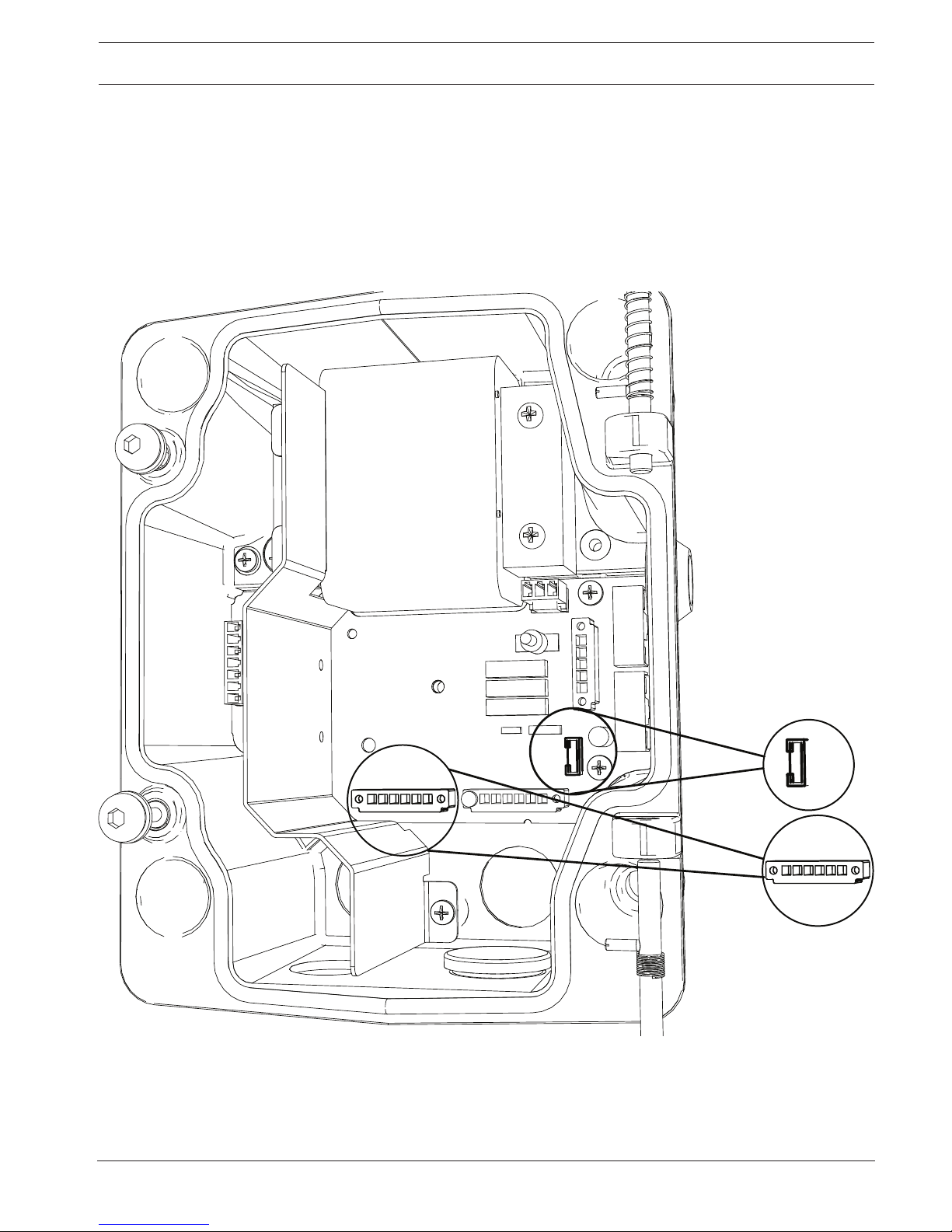

J103
P106
Figure4.1: Locations of P106 and J103 sockets
4. Remove the rubber plug from the SFP module.

10 en | Install for an AUTODOME camera Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
5. Align the standoff pins to the anchor holes on the base plate and on the fiber optic
module, with the standoff pins in between the base plate and the fiber optic module, as
illustrated in the following figure. Press the base plate and the fiber optic module onto
the standoff pins until secure.
Figure4.2: Placement of standoff pins between base plate and fiber optic module
6. Install the fiber board (attached to the metal base plate) in the power supply box as
illustrated in the following figure. Secure the plate using the two screws.

Fiber Optic Ethernet Media Converter Kit Install for an AUTODOME camera | en 11
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924

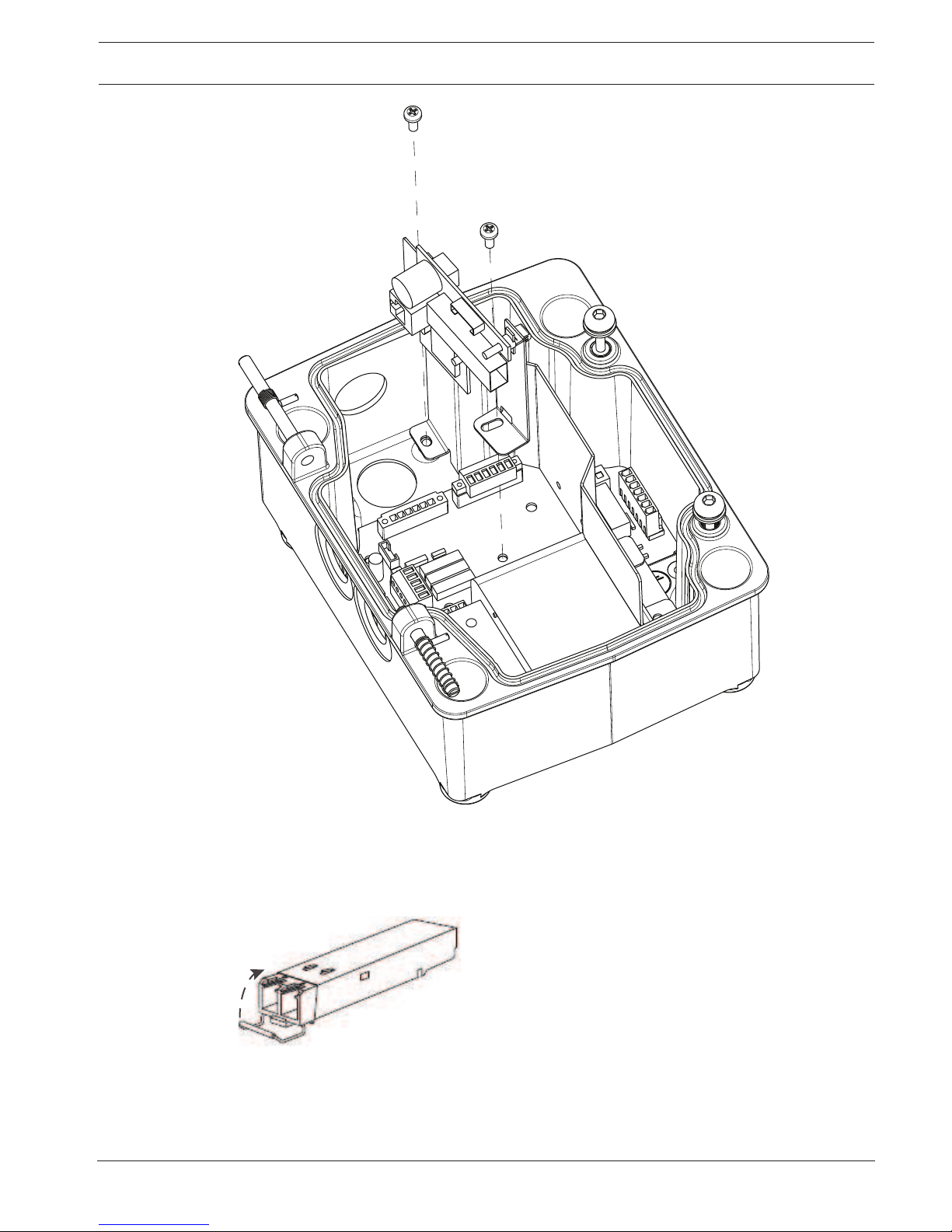

Figure4.3: Attach base plate to power supply box
7. Insert the SFP module into the VG4-SFPSCKT module:
Note: The SFP module is static sensitive. Use static handling procedures when installing
or removing the module.
– Ensure that the bale-clasp on the SFP module is up.
Figure4.4: Move bale clasp up
– Line up the SFP module with the port on the VG4-SFPSCKT module and slide it into
the port until you hear the catches engage.
8. Attach the supplied power harness (black) to its connector on the fiber optic module.

12 en | Install for an AUTODOME camera Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
9. Connect the RJ45 Ethernet patch cable (blue) to its socket on the fiber optic module.
Attach the other end to the female mating connector in the AUTODOME pendant arm.
Note: If installing a Pipe- or Roof-mounted camera, you must install Ethernet cable (with
RJ45 connectors) long enough to connect the camera and the power supply box.
10. Route the appropriate fiber optic cable through the conduit hole (2) on the power supply
box that is aligned with the VG4-SFPSCKT module (1).
Figure4.5: Route cable into power supply box
11. Plug the fiber optic cable (LC or SC connector) into the SFP module inside the power
supply unit.
12. Close and secure the power supply box.
13. Restore the power to the power supply box.

Fiber Optic Ethernet Media Converter Kit Install for a MIC analog camera | en 13
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924
5 Install for a MIC analog camera
To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside a MIC IP Power
Supply (to provide fiber optic connections for a MIC550, MIC550IR, or MIC612 camera),
complete the following steps.
1. Connect the RJ45 cable to the fiber optic module.
Figure5.1: RJ45 connection - Fiber optic module in MIC IP PSU
2. Align the anchor holes on the fiber optic module to the standoff bosses on the base plate,
and then press the module onto the standoff pins until secure.
3. Install the two mounting screws in the fiber optic module.
4. Connect the fiber cable.
Figure5.2: Fiber optic module installed in MIC IP PSU
5. Continue installation of the PSU as necessary, and then close and secure the power
supply enclosure.

14 en | Install for an EXTEGRA IP 9000 FX camera Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
6 Install for an EXTEGRA IP 9000 FX camera
To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside an EXTEGRA IP 9000
FX camera, complete the following steps.

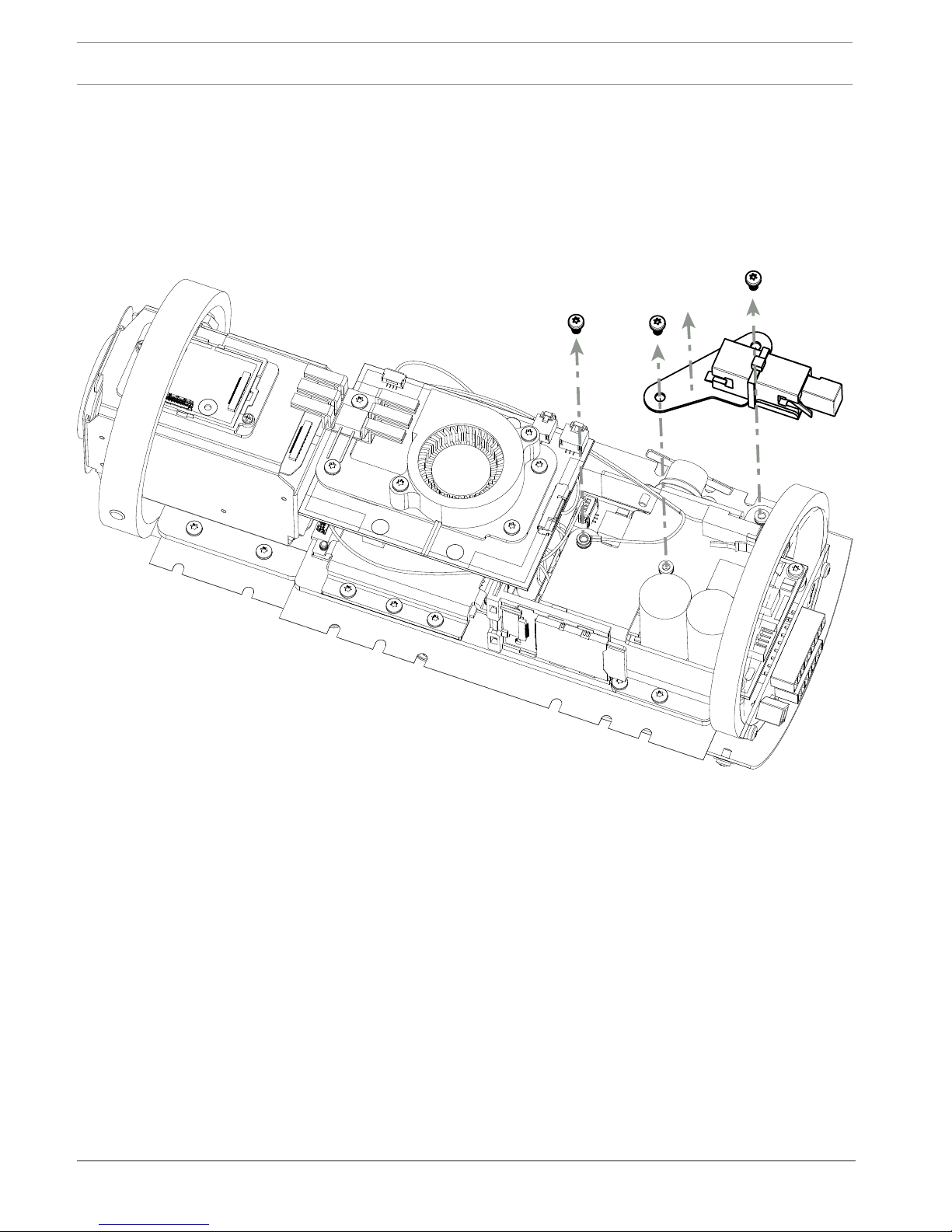

1. Remove the three (3) screws that hold the RJ45 coupler assembly in place inside the
EXTEGRA camera. Remove the RJ45 coupler assembly.
Note: For details about remove the camera sled from the housing, refer to the instructions in
the camera Installation Manual.

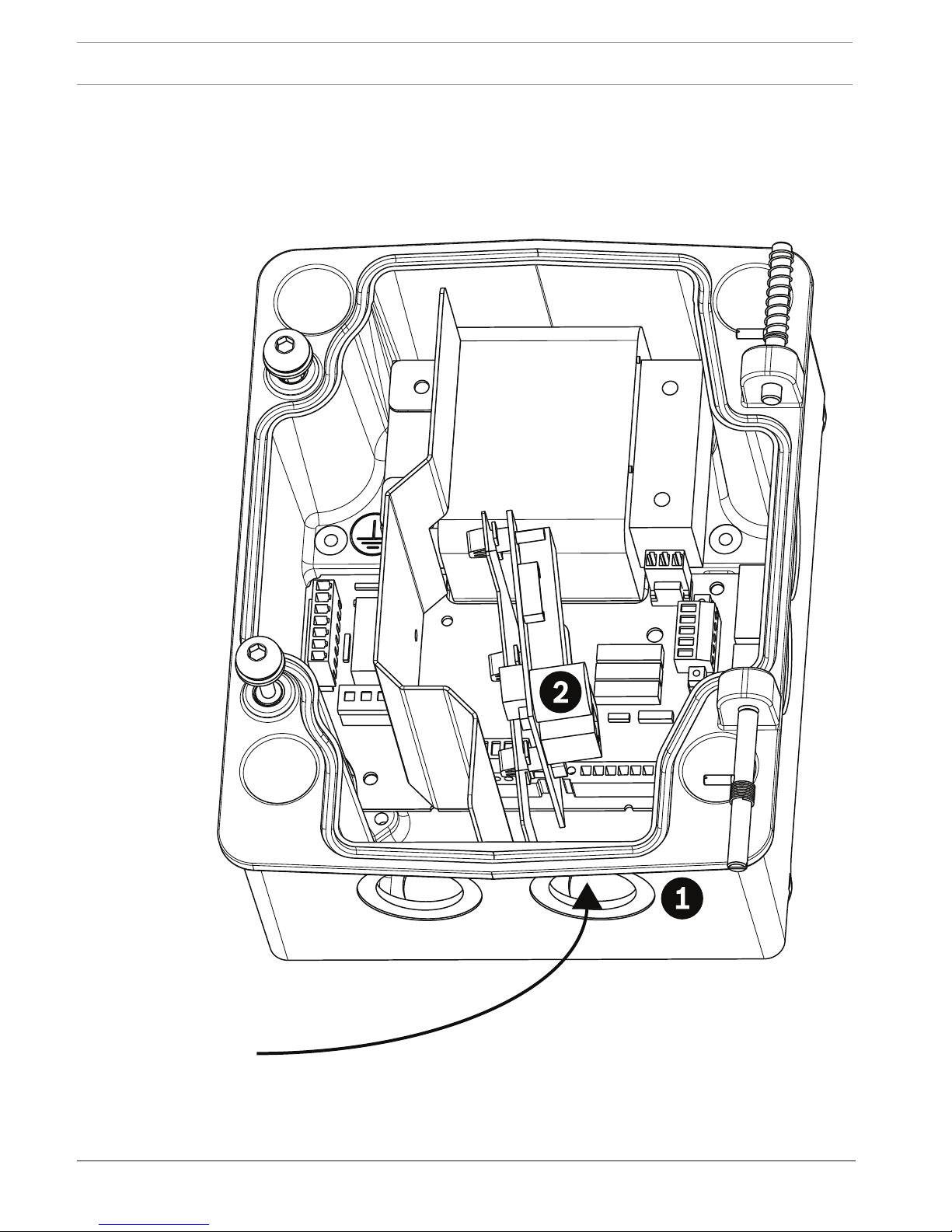

1. Push down the wires (item 1 in the following figure) to prevent the fiber optic board from
crimping the wires.

Fiber Optic Ethernet Media Converter Kit Install for an EXTEGRA IP 9000 FX camera | en 15
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924
2. Align the screw holes on the fiber optic module to the screw holes from which you
removed the screws for the RJ45 coupler assembly.
3. Press the module down until it is secure.
4. Replace the screws.

16 en | Install for an EXTEGRA IP 9000 FX camera Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems

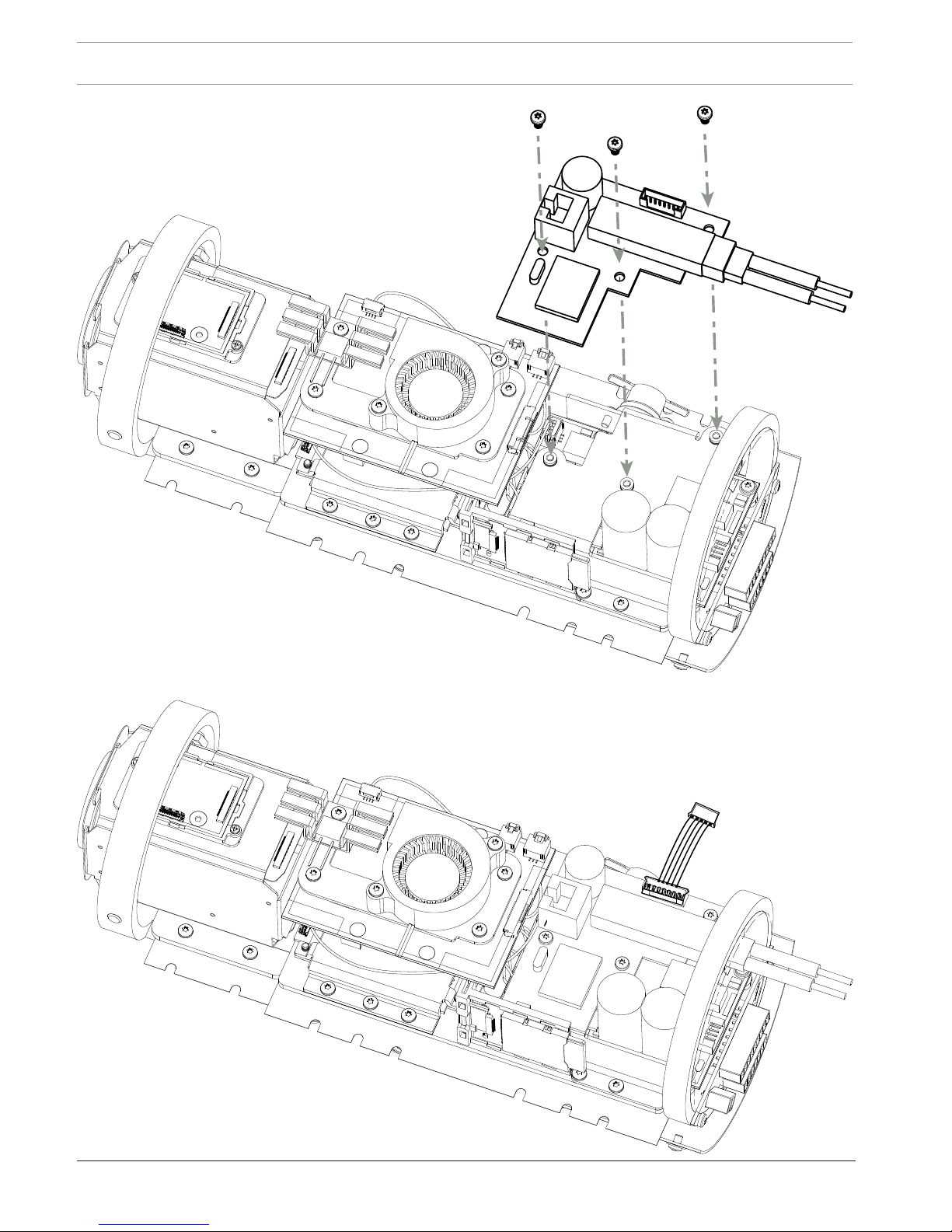

5. Attach the supplied power harness (black) to its connector on the fiber optic module.

Fiber Optic Ethernet Media Converter Kit Install for an EXTEGRA IP 9000 FX camera | en 17
Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924
6. Insert the RJ45 plug.
7. Close the camera as described in the camera Installation Manual.

18 en | Troubleshooting Fiber Optic Ethernet Media Converter Kit
2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems
7 Troubleshooting
Issue Symptom Resolution
No data present No Power Check power to VG4-SFPSCKT:
– If Green LED is present, then
Check power to CNFE2MC:
– If Power LED is Green, then check data link
Invalid Fiber Link Check fiber connection to VG4-SFPSCKT:
– If Red LED is present, then the fiber link is missing. If
the LED is Flashing Red, then
Check the fiber connection to the CNFE2MC:
– If the Link/Act LED is not lit, then the fiber link is
missing.
No Video present RJ-45
Connection
Check the PWR/Link on the VG4-SFPSCKT:
– If the LED is slowly Flashing Red, then
Check all video connections from the VG4 AutoDome.
– If the LED is rapidly Flashing Red, then
Check the RJ-45 connector on the VG4-SFPSCKT:
– If the right LED (Green) is not lit, then no data is
present at this RJ-45 connection.
– If no LED lit on the RJ-45 connector, then there is a
fault with this connector, the RJ-45 cable, or the cable
is not connected to the CNFE2MC.
Check the RJ-45 connector on the CNFE2MC:
– If the right LED (Green) is not lit, then no data is
present at this RJ-45 connection.
– If no LED lit on the RJ-45 connector, then there is a
fault with this connector, the RJ-45 cable, or the cable
is not connected to the VG4-SFPSCKT.
