Bosch LTC-0455-61 User manual

LTC 0435 & LTC 0455
Installation Manual
Digital Color Cameras
EN
Manuel d’installation
Caméra Numérique
Couleur
FR
Installationsanleitung
Digitale Farbkamera
DE
Installatiehandleiding
Digitale Kleurencamera
NL
Manual de instalación
Cámara Digitale de Color
ES
Manuale d’installazione
Videocamera Digitale a Colori
IT
Manual de Instruções
Câmara Digital Colorida
PT
ZH

Bosch Security Systems | 2004-12 | Version 3
EN | 1LTC 0435 & LTC 0455 | Installation Manual
SAFETY PRECAUTIONS
EN
Installation ManualENGLISH
Important Safeguards
1. Keep these instructions.
2. Heed all Warnings.
3. Follow all instructions.
4. Do not use the apparatus near water.
5. Clean with a dry cloth only.
6. Do not install near heat sources such as radiators, heat registers,
stoves, or other apparatus that generates heat (including
amplifiers).
DANGER
The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk to persons.
WARNING
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance accompanying the appliance.
CAUTION
To reduce the risk of electric shock, do not remove cover
(or back). No user - servicable parts inside. Refer
servicing to qualified service personnel.

Bosch Security Systems | 2004-12 | Version 3
EN | 2LTC 0435 & LTC 0455 | Installation Manual
7. Do not defeat the purpose of a polarized or grounded mains plug.
A polarized plug has dissimilar prongs (one wider than the other)
to ensure correct polarity, while a grounded plug has an
additional 'ground' prong provided for your safety. If the plug
supplied with the apparatus does not fit into your outlet, consult
an electrician for advice.
8. Protect the power-supply cord from being walked on or pinched,
particularly close to plugs, receptacles and the point where it exits
from the apparatus.
9. Only use attachments and accessories (including stands, tripods,
mounting brackets and housings) specified or recommended by
the manufacturer.
10. Unplug the apparatus during lightning storms and when unused
for extended periods.
11. Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
12. Servicing is required when the apparatus does not function in the
normal way, has been dropped, if liquid has been spilled on it, or
if it has been exposed to rain or water. Unplug the unit from the
outlet and refer servicing to qualified service personnel.
13. An all-pole mains switch with contact separation of at least 3 mm
in each pole shall be incorporated in the electrical installation of
the building.
EN
WARNING
To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.

Bosch Security Systems | 2004-12 | Version 3
EN | 3LTC 0435 & LTC 0455 | Installation Manual
FCC INFORMATION
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
CAUTION
Any changes or modifications to construction of this
device that are not expressly approved by the party
responsible for compliance could void the userfs authority
to operate the equipment.

Bosch Security Systems | 2004-12 | Version 3
EN | 4LTC 0435 & LTC 0455 | Installation Manual
SPECIFICATIONS
LTC 0435/x0 LTC 0455/x1
Standard resolution High resolution
Standard PAL NTSC PAL NTSC
Active pixels (H x V) 512 x 582 512 x 492 752 x 582 768 x 494
Imager 1/3" interline CCD
Resolution 330 TV lines 540 TV lines
Minimum illumination <0.39 lux <0.65 lux
<0.26 lux with Nightsense™
Signal-to-noise ratio > 50 dB
Video output 1 Vpp, 75Ω
Y/C output NA Y: 1 Vpp, 75 Ω
C: 0.3 Vpp 75 Ω
Synchronization Internal or Line-Lock (selectable)
Shutter Auto / Flickerless / Off (selectable)
PAL: 1/50 - 1/125000 - NTSC: 1/60 - 1/150000
Nightsense™ NA Auto / Forced / Off
(selectable)
Autoblack On / Off (selectable)
AGC On (0-21 dB)/ Off (0 dB) (selectable)
BLC On / Off (selectable)
ATW Auto 2500 to 9000 K (with 'Hold' mode)
Lens mount C and CS compatible
ALC Video-iris or DC-iris (auto detect)
Power supply LTC 04x5/1x & /2x: 12 to 28 VAC or 11 to 36 VDC
LTC 04x5/5x & /6x:  to 2 VAC
Power consumption <4 W
Dimensions (HxWxL) 58 x 66 x 122 mm (2.28 x 2.6 x 4.8 inch without lens)
Weight 450 g (0.99 lbs) (without lens)
Camera mount Two 1/4" 20 UNC - isolated (bottom) and non-isolated
(top)
Operating temperature -20ºC to +50ºC (-4ºF to +122ºF)
Controls On-screen display (OSD) with softkey controls

Bosch Security Systems | 2004-12 | Version 3
EN | 5LTC 0435 & LTC 0455 | Installation Manual
Type number overview
UNPACKING
Unpack carefully and handle the equipment with care. The
packaging contains:
•Camera
• CCD protection cap
• Spare lens connector (male)
• These Instructions
Note:
If equipment appears to have been damaged during shipment, repack
it in the original packaging and notify the shipping agent or supplier.
CONNECTION
Power
Low voltage High voltage
PAL (Europe) NTSC (USA) PAL (Europe) NTSC (USA)
Standard resolution LTC 0435/10 LTC 0435/20 LTC 0435/50 LTC 0435/60
High resolution LTC 0455/11 LTC 0455/21 LTC 0455/51 LTC 0455/61
LTC 04x5/1x and /2x LTC 04x5/5x and /6x

Bosch Security Systems | 2004-12 | Version 3
EN | 6LTC 0435 & LTC 0455 | Installation Manual

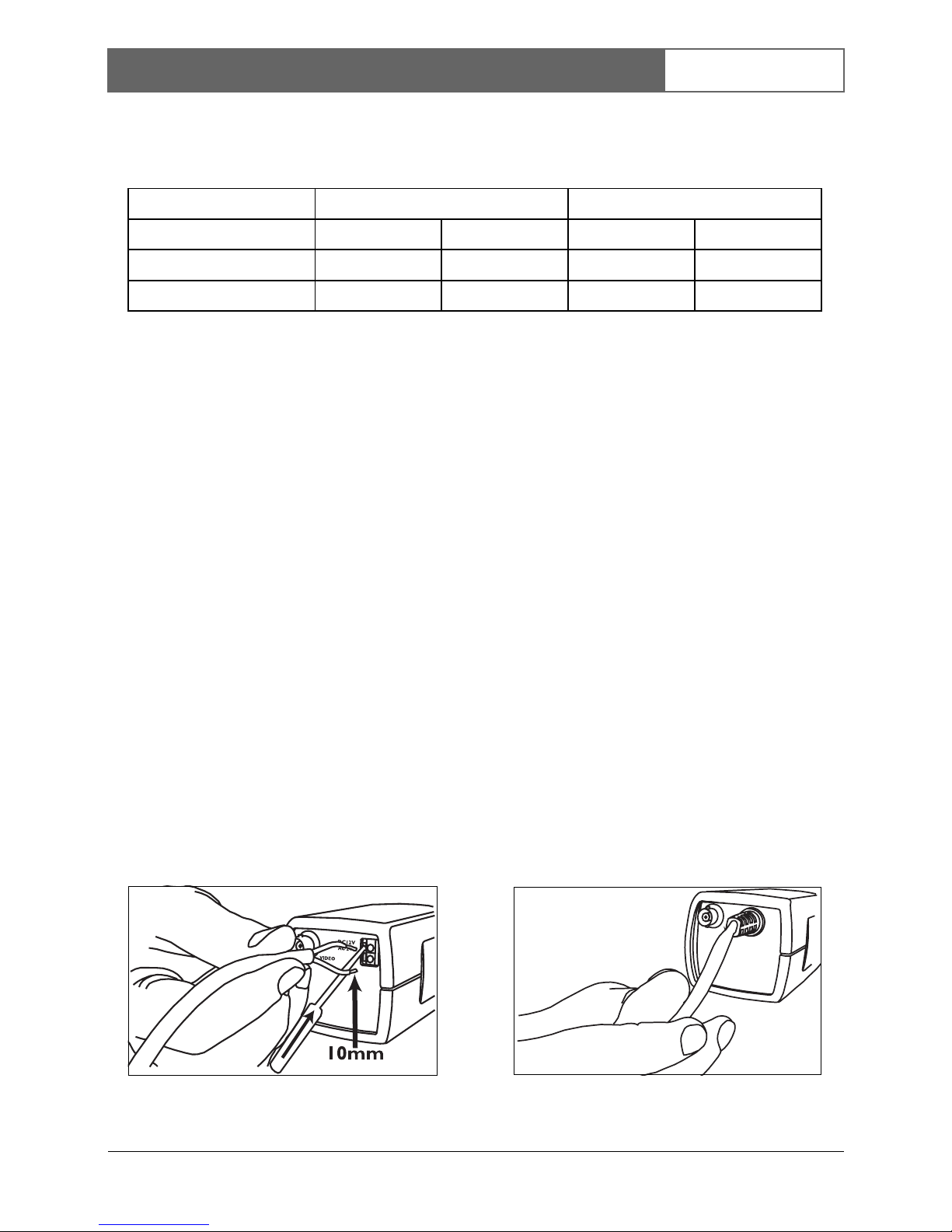

To open the quick-connect, push in on the tabs. Connections are not
polarity sensitive Use stranded or solid wire AWG16 to AWG22, cut
back 10mm (0.4") of insulation.

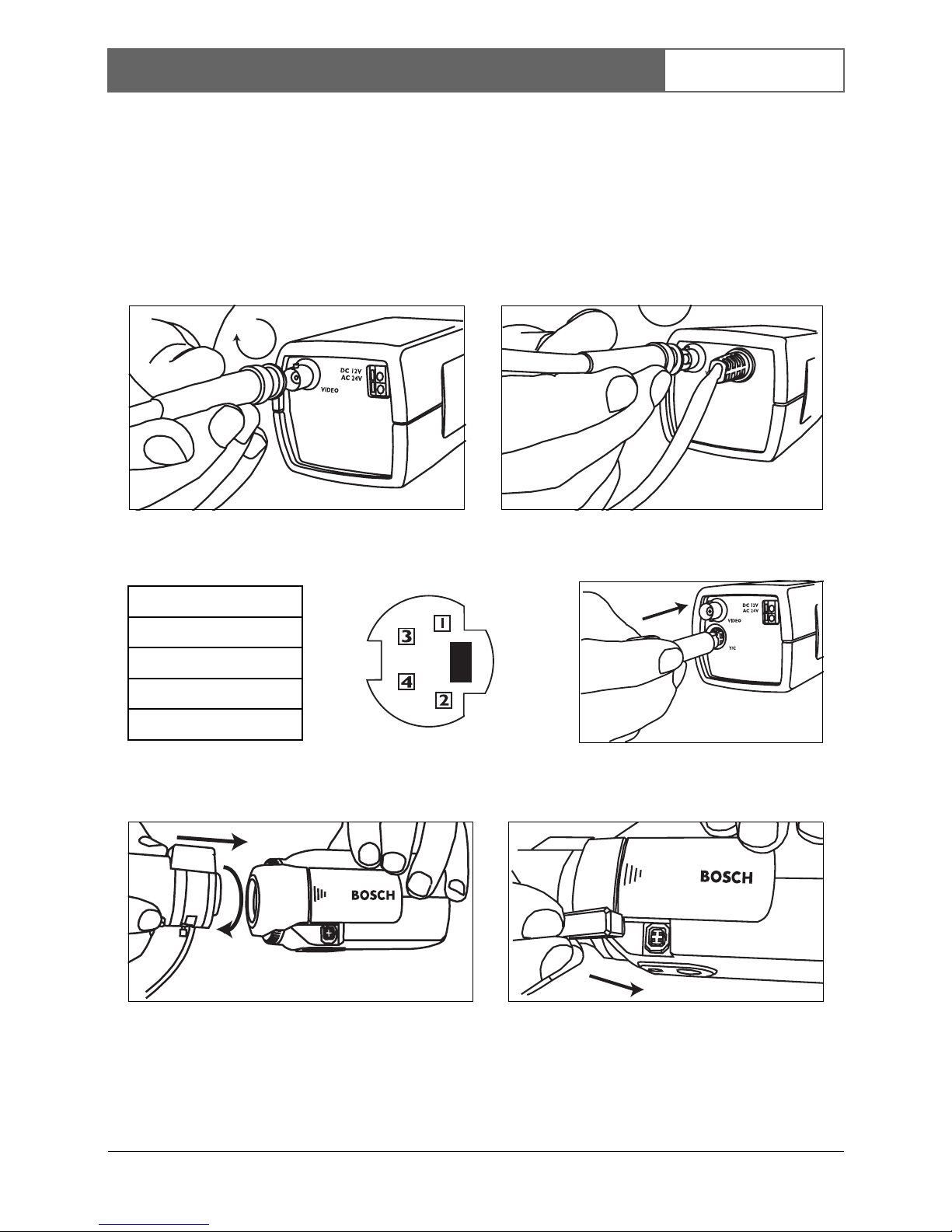

Composite Video
Y/C output (LTC 0455/x1 only)
LENS MOUNTING
Pin Y/C Socket
1GNDY
2GNDC
3Y
4C

Bosch Security Systems | 2004-12 | Version 3
EN | 7LTC 0435 & LTC 0455 | Installation Manual
• Video-iris and DC-iris lenses are recommended for the best
picture performance.
• The camera automatically detects the type of lens used, and
optimizes performance accordingly.
• A spare male lens connector is provided if required.
Note:
If a short circuit is detected on the lens connector, the on-screen
display (OSD) failure message 'LENS SHORT CIRCUIT' is shown.
The lens circuit is automatically disabled to avoid internal damage.
Remove the lens connector and check the pin connections.
Back focus adjustment
• Camera accepts both C and CS-
mount lenses.
1. Unlock the back focus locking
button.

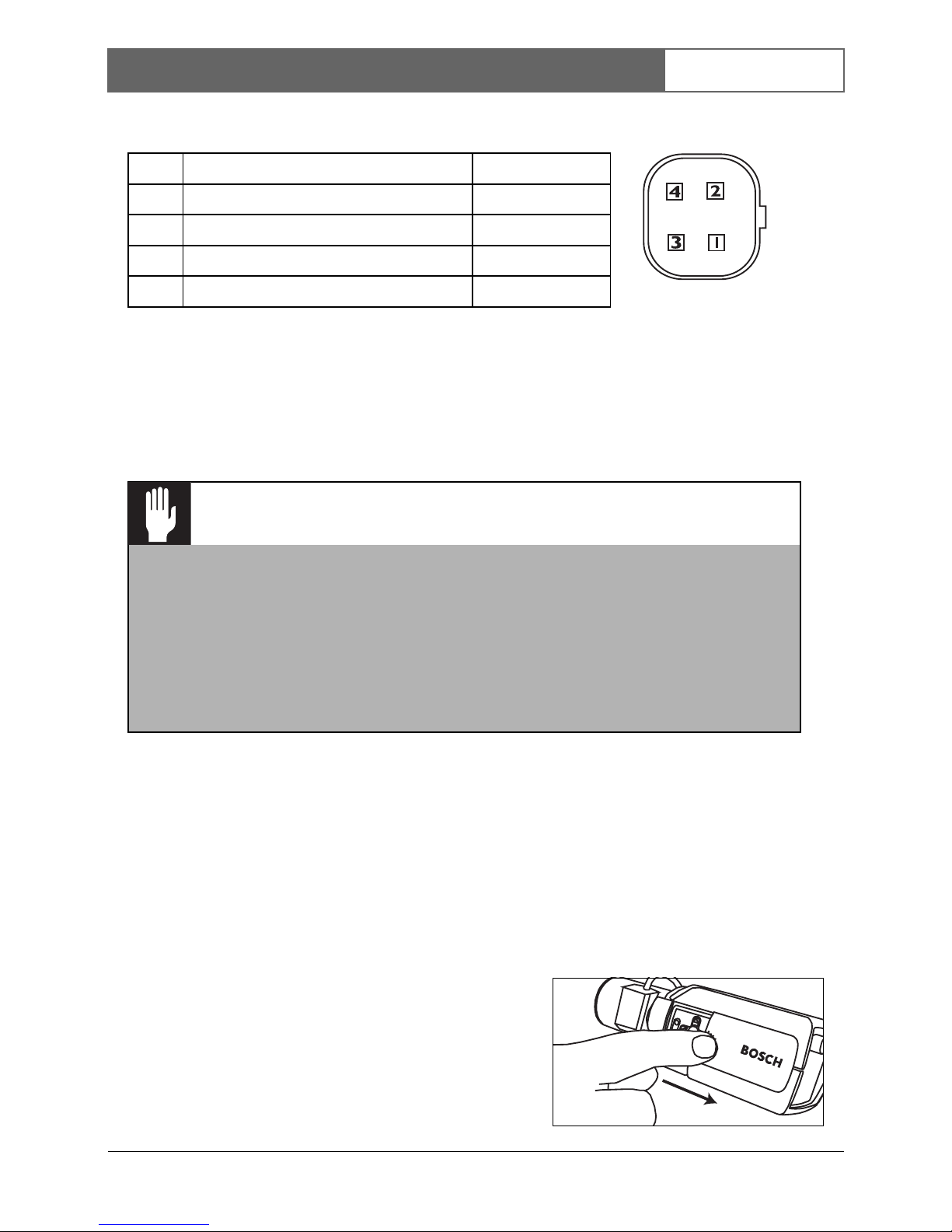

Pin Video iris lens DC iris lens
1Supply (11 V, 50 mA max.) Damp-
2Not used Damp+
3Video signal 1 Vpp, 1 kΩDrive+
4Ground Drive-
CAUTION
• To avoid damaging the CCD sensor when using a C-
mount lens, turn the 'green' back-focus ring counter
clockwise until it stops ('Back focus adjustment')
before mounting the lens.
• Lenses weighing more than 0.5 kg (1.1lbs) must be
separately supported.

Bosch Security Systems | 2004-12 | Version 3
EN | 8LTC 0435 & LTC 0455 | Installation Manual
2. Turn the back focus adjustment as required. (See Note 1).
3. Lock the back focus locking button.
Notes:
1. To optimize picture sharpness in
both bright and low-level lighting, it
is recommended to adjust the back
focus when carrying out the set-up
procedure. The camera's unique
'Lens Wizard' allows focusing at
maximum lens opening to ensure that the object of interest
always remains in focus.
2. When back focusing vari-focus lenses, it must be possible to
obtain a sharp picture in both wide-angle and tele positions, and
for both far and near focus.
3. When back focusing zoom lenses, ensure the object of interest
remains in focus throughout the entire zoom range of the lens.
(See Advanced Set up).
MOUNTING THE CAMERA
The camera can be mounted from
the top or bottom.
Note:
The BOTTOM mounting is
isolated from ground.
CAUTION
Do not point the camera/lens into direct sunlight. When
viewing an outdoor scene, a video- or DC-iris lens is
recommended.

Bosch Security Systems | 2004-12 | Version 3
EN | 9LTC 0435 & LTC 0455 | Installation Manual
ADVANCED SET-UP
The camera will normally give an optimal picture without the need
for further adjustments. However for special circumstances advanced
set up options are available.
Hints for menu navigation
How to use the 5 keys
• Press the menu/select key to access the menus or to move to the
next or previous menu.
• Press the menu/select key for approximately 1.5 seconds to open
the Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set
parameters.
• When in a menu, quickly pressing the menu/select key twice
restores the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item
and hold down the menu/select key until the menu display
disappears.
Lock
Menu/select key
Right key
Down key
Up key
Left key

Bosch Security Systems | 2004-12 | Version 3
EN | 10LTC 0435 & LTC 0455 | Installation Manual

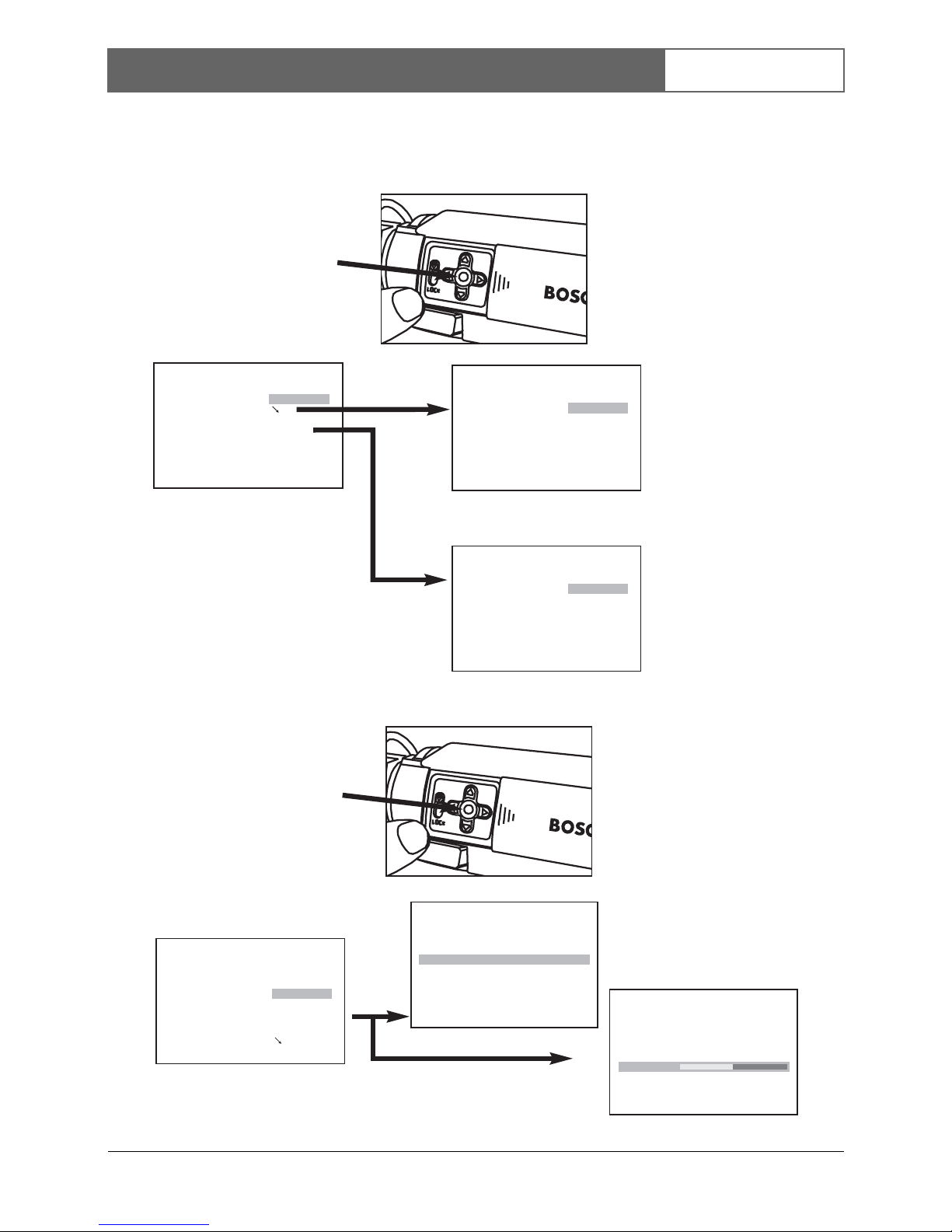

Menu Navigation
MAIN MENU
LEVEL 0
SHUT/AGC
BLC OFF
COLOR ATW
SYNC LINE LOCK
VPHASE 0¡
EXIT
SHUT/AGC MENU
SHUTTER AES
AGC ON
AUTOBLACK ON
NIGHTSENSE OFF
EXIT
COLOR MENU
WHITE BAL ATW
RED-GAIN 0
BLUE-GAIN 0
EXIT
INSTALLER
VERSION 00.0010.XX
LENS AUTO
SPEED FAST
WIZARD
DEFAULTS
EXIT
LENS WIZARD
DETECTED LENS VIDEO
SET BACK FOCUS NOW
SET LVL
EXIT
LENS WIZARD
DETECTED LENS DCIRIS
SET BACK FOCUS NOW
EXIT
COAX COMM ON
Installer Menu
Lens Wizard Menus
Press the menu button
for more than 5sec.
Shutter/AGC Menu
Color Menu
Main Menu
Press the menu
button

Bosch Security Systems | 2004-12 | Version 3
EN | 11LTC 0435 & LTC 0455 | Installation Manual
Main menu
*Note:
If the camera (LTC 0455/x1 only) is in black & white high sensitivity
mode (via NightSense™), the color settings and color menu are not
accessible. The NightSense™ sensitivity boost must be selected OFF
to make color adjustments.
Function Selection Description
LEVEL -15 - 0 - +15 Adjusts video level.
SHUT/AGC Select next menu Shutter / Automatic Gain Control menu.
BLC ON
OFF When 'ON', the level is optimized at the center of the screen. Parts outside the center may be
under- or over-exposed (this is normal).
COLOR* ATW
ATB HOLD
Select next menu
Select to access the color menu. (See Color
menu for detailed explanation).
SYNC LINE LOCK
INTERNAL Select 'LINE LOCK' to synchronize with the power supply frequency. Select 'INTERNAL'
for use with internal synchronization
(automatically selected with DC supply).
V PHASE 0-358º Adjusts the vertical phase offset (when in
'LINE LOCK' mode).
EXIT Exit the menu.

Bosch Security Systems | 2004-12 | Version 3
EN | 12LTC 0435 & LTC 0455 | Installation Manual
Shutter/AGC menu
*Note:
NightSense™ is only available on the LTC 0455/x1 cameras.
Color Menu
*Note:
For special scene conditions only, it will be necessary to change the
white point offsets.
Function Selection Description
SHUTTER AES (AES) Auto-shutter sets the optimum shutter
speed FL for manual iris lenses. (FL)
Flickerless mode avoids OFF interference from
light sources (recommended for use with
video-iris or DC-iris lenses only).
AGC ON/OFF Automatic gain control
AUTOBLACK ON/OFF Autoblack automatically increases the visibility
of details.
NIGHTSENSE AUTO
FORCED
OFF
Nightsense™* extends the low-light
performance of the camera. AUTO mode, the
camera automatically inches to monochrome in
low-light conditions. Forced mode, the picture
remains a high-sensitivity monochrome image.
Some active noise or white spots may appear
in the picture.
EXIT Exit the menu.
Function Selection Description
WHITE BAL ATW
AWB HOLD ATW: Auto tracking white balance allows the camera to automatically adjust for optimal
color reproduction.
AWB HOLD: Puts the ATW on hold and
preserves the color settings.
RED- GAIN* -5 - 0 - +5 Offset factory white point alignment (reducing
red introduces more cyan).
BLUE- GAIN* -5 - 0 - +5 Offset factory white point alignment (reducing
blue introduces more yellow).
EXIT Exit the menu.

Bosch Security Systems | 2004-12 | Version 3
EN | 13LTC 0435 & LTC 0455 | Installation Manual
Accessing installer menu
• To access the installer menu, press and hold the menu/select key
for five seconds.
Installer menu
Lens wizard menu
Function Selection Description
VERSION Read-only firmware release number (for
service purposes).
LENS AUTO Automatically detect lens type.
A different lens type can be selected.
SPEED FAST Selects the response time of DC-iris lenses.
Some lenses require slow lens control to avoid
overshoots.
WIZARD Access the lens wizard menu.
COAX COM ON/OFF If OFF Bilinx™ communication is disabled
DEFAULTS Select next menu Return all set-up settings to
factory defaults.
EXIT Exit the menu.
Function Description
SET BACK FOCUS NOW Back focus the lens (see 'Back focus adjustment'). The
scene is focused at maximum lens opening to ensure
that the object of interest remains in focus in bright and
low-light conditions.
SET LVL When a Video-iris lens is detected, a level
potentiometer is displayed to obtain the best picture
performance. The lens wizard includes a level detector
meter that must be set to the center using the
potentiometer for best results.
EXIT Exit the menu.

Bosch Security Systems | 2004-12 | Version 3
EN | 14LTC 0435 & LTC 0455 | Installation Manual
Adjustment procedure DC-iris Lens:
1. Unlock the back focus locking button.
2. Access the "Lens Wizard" menu.
3. The "SET BACK FOCUS NOW" option is highlighted in the
menu.
4. Turn the back focus adjustment as required.
5. Lock the back focus locking button.
6. Exit the menu.
Adjustment procedure Manual-iris Lens:
1. Unlock the back focus locking button.
2. Adjust the lens to the maximum lens opening.
3. Turn the back focus adjustment as required.
4. Lock the back focus locking button.
Adjustment procedure Video-iris Lens:
1. Unlock the back focus locking button.
2. Access the "Lens Wizard" menu.
3. The "SET BACK FOCUS NOW" option is highlighted in the
menu.
4. Turn the back focus adjustment as required.
5. Select the "SET LVL" option in the menu, and the LEVEL bar
appears.
6. Adjust the level potentiometer located on the lens until the
LEVEL bar is in the central position.
7. Lock the back focus locking button.
8. Exit the menu.

Bosch Sicherheitssysteme GmbH
Ludwig-Bölkow-Allee
85521 Ottobrunn
Germany
www.bosch-sicherheitssysteme.de
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven
The Netherlands
www.boschsecuritysystems.com
3122 165 23071 04-05
© 2003 Bosch Security Systems B.V.
Subject to change Printed in Portugal
