ADS 325
User Manual
Technical Support
1-855-267-2483
For technical questions on your product, contact 855-267-2483,
and select the option for technical support.
For assistance with internet or wireless connectivity, contact
(800) 533-6127, and select the option for connectivity.
Copyright © 2018 Bosch Automotive Service Solutions Inc
All rights reserved.
The information, specifications, and illustrations in this guide are based on the latest information available at the
time of printing. Bosch Automotive Service Solutions reserves the right to make changes at any time, without notice.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |1|en
Table of Contents
Safety Definitions .............................2
Safety Precautions ............................2
General Information ...........................4
Introduction..................................4
Handset Ports ................................5
Handset Back.................................6
Software Descriptions ..........................6
Battery Charging ..............................7

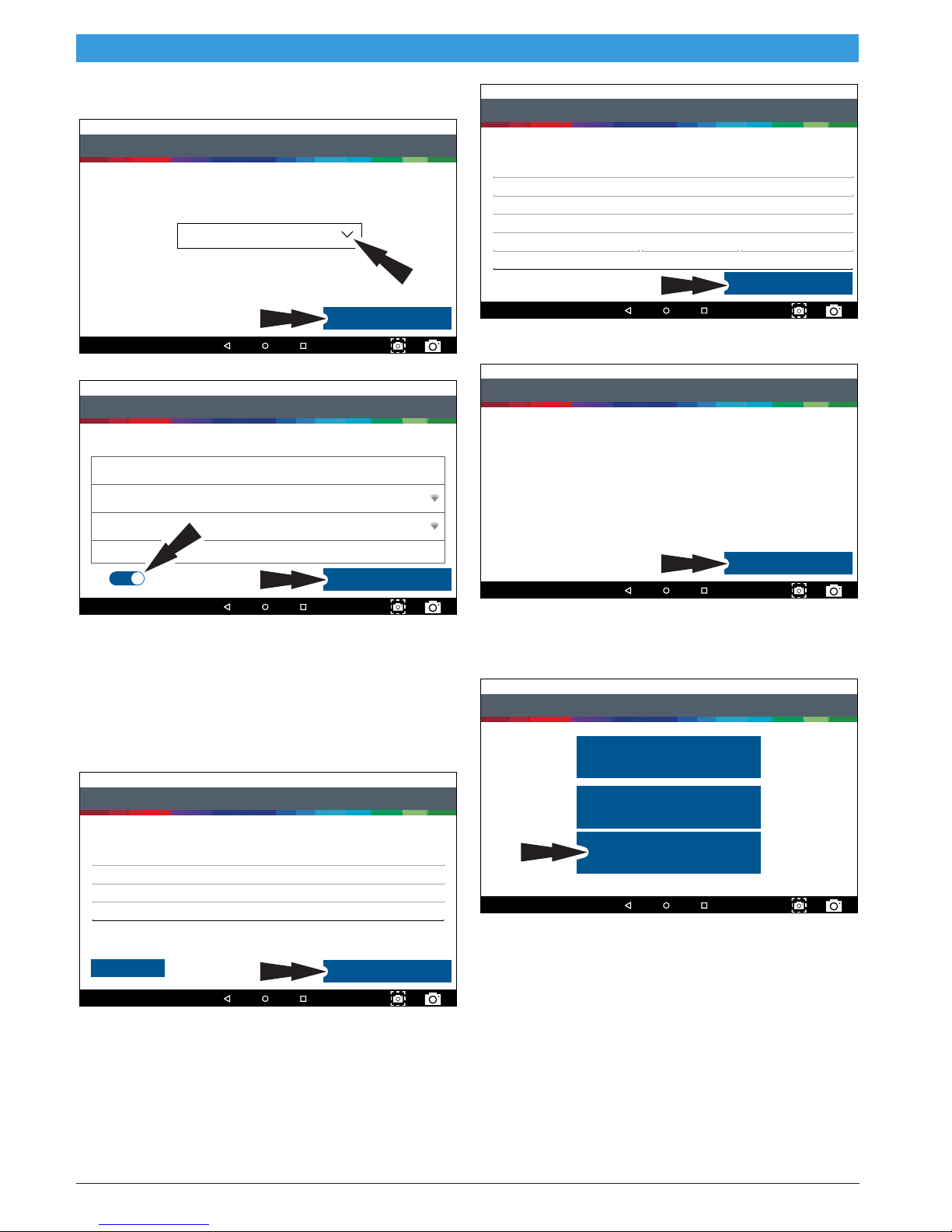

Registration .................................7
30 Day Trial ..................................9
Demo .......................................9

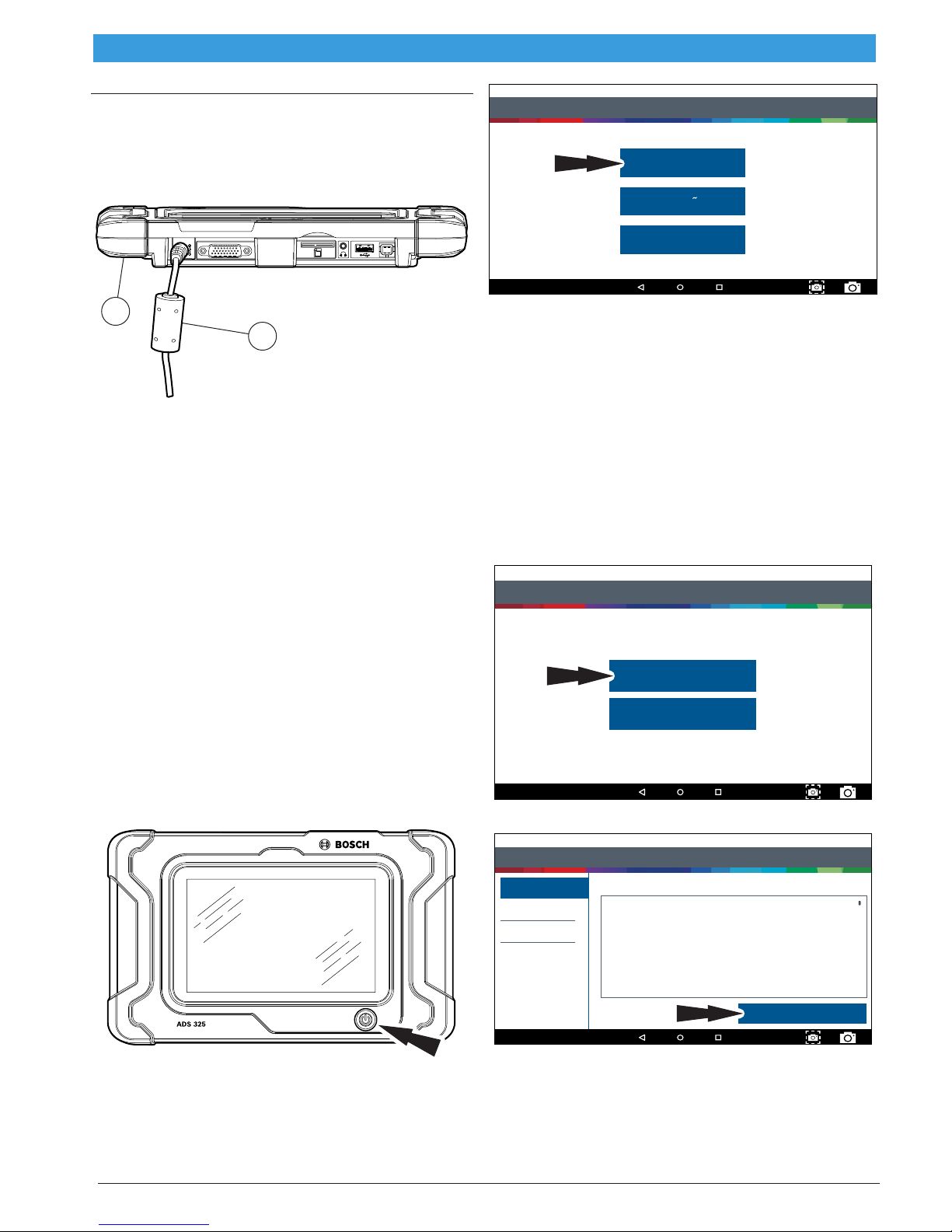

Provide Power to Scan Tool.....................10
Test Startup and Vehicle Connection .............11

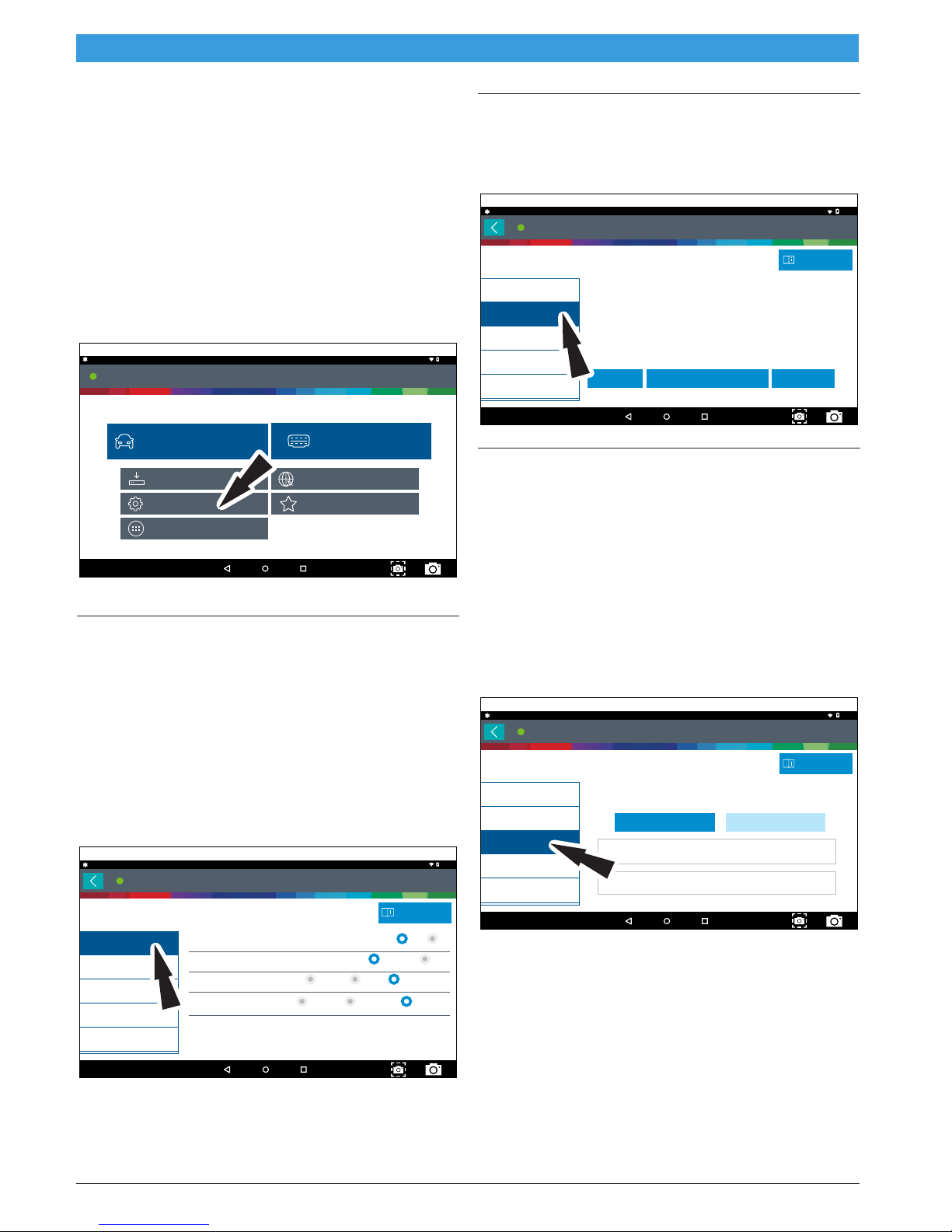

Settings ....................................12
Application Settings ..........................12
Software Information..........................12
Software Update .............................12
Printer setup ................................13
Subscription ................................13
User Details .................................13
Language ...................................14
Direct-Hit® ..................................14
Service.....................................14
Report Options ..............................14
Selecting Vehicle ............................15
AutoID .....................................15
Manual Entry ................................15
Recent .....................................17
Search by VIN ...............................18
OBDII......................................19
Overview ...................................19
Diagnostic Functions ..........................19
Data Stream.................................20
DTCs Modes.................................21
Oxygen (O2) Sensors .........................23
Non-Continuous Tests .........................23
Special Tests ................................24
Vehicle Info .................................25
Saved Diagnostic Data ........................26
Browser....................................28
Read DTCs .................................29
Ford/Lincoln/Mercury .........................30
Data Stream ................................34
Special Tests ................................39
Diagnostic Information ........................40
Automated System Test .......................46
Maintenance Tests ...........................50
Enhanced OBDII .............................51
Saved Diagnostic Data ........................52
Browser....................................52
Customer Support ...........................53
en |2|User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Safety Definitions
Follow all DANGER, WARNING, and IMPORTANT messages.
These safety messages are dened as follows:
DANGER or WARNING: Risk of bodily
harm and/or possible loss of life.
IMPORTANT: The information demands
special attention or risks damage to the
vehicle or tool.
The safety messages cover situations
of which Bosch Automotive Service
Solutions is aware. Bosch Automotive
Service Solutions cannot know, evaluate,
or advise as to all of the possible hazards.
You must be certain that any conditions
or service procedures encountered do not
jeopardize personal safety.
Safety Precautions
DANGER:
When an engine is operating, keep the
service area well ventilated or attach a
building exhaust removal system to the
engine exhaust system. Engines produce
carbon monoxide, an odorless, poisonous
gas that causes slower reaction time and
can lead to serious personal injury or loss
of life.
WARNING:
• When working with hydraulic or fuel
lines, be careful that liquids under
pressure do not escape and create a
dangerous condition. Use adequate
ventilation and make sure there are
no sparks or possibility of sparks that
may ignite any vapor.
• Wear an American National Standards
Institute (ANSI) approved eye shield
when testing or repairing vehicles.
• Objects propelled by whirling engine
components or pressurized liquids
escaping may cause personal injury.
• Set the parking brake and block the
wheels before testing or repairing a
vehicle. It is especially important to
block the wheels on front-wheel drive
vehicles because the parking brake
does not hold the drive wheels.
• Do not drive the vehicle and operate
the software at the same time.
• Maintain adequate clearance around
moving components or belts during
testing.
• Moving components and belts can
catch loose clothing, body parts, or
test equipment and cause serious
damage or personal injury.
• Automotive batteries contain sulfu-
ric acid and produce explosive gases
that can result in serious injury due to
ignition of gases. Keep lit cigarettes,
sparks, flames, and other ignition
sources away from the battery at all
times.
• Refer to the service manual for
the vehicle being serviced. Adhere
to all diagnostic procedures and
precautions Failure to do so could
result in personal injury or otherwise
unneeded repairs.
• Use only specially designed
replacement parts (brake hoses and
lines) for ABS equipped vehicles.
• After bleeding the brake system,
check the brake pedal for excessive
travel or a spongy feel. Bleed again if
either condition is present.
• When installing transmitting devices
(Citizen Band radio, telephone, etc)
on ABS-equipped vehicles, do not
locate the antenna near the ABS
control unit or any other control unit.
• This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant
to Part 15 of the FCC Rules. These
limits are designed to provide
reasonable protection against
harmful interference in a residential
installation. This equipment generates
and radiates radio frequency energy
and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications.
• To reduce risk of injury, charge only
Bosch Automotive Service Solutions
rechargeable batteries for the
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |3|en
handset product with the supplied
charger. Other types of batteries may
burst causing injury to persons and
property damage.
• Use of an attachment not
recommended or sold by the battery
charger manufacturer may result in
fire, electric shock, or personal injury.
• Do not operate the tool with a
damaged cord or connector. Replace
damaged cords and connectors
immediately.
• Do not operate the charger if it has
received a sharp blow, been dropped,
or otherwise damaged in any way.
Take the charger to a qualified service
person.
• Do not disassemble the charger.
Take the charger to a qualified
service person if service or repair
is necessary. Incorrect reassembly
may result in electric shock or fire.
Unplug charger before attempting any
maintenance or cleaning. Turning off
controls will not reduce this risk.
• To prevent possible hearing damage,
avoid using the tool at high volume
levels for long periods.
• Do not expose tool or charger to rain,
moisture, or snow.
• Verify that cords are located where
they will not be stepped on, tripped
over, or otherwise become a safety
hazard or subjected to damage or
stress.
• Use only batteries that are approved
for use with this tool. Use of other
types may increase the risk of fire or
explosion.
• Do not carry a battery in your pocket,
purse, or other container where metal
objects (such as car keys or paper
clips) could short-circuit the battery
terminals. The resulting excessive
current flow can cause extremely
high temperatures and may result in
damage to the battery pack or cause
fire or burns.
• The battery poses a burn hazard
if you handle it improperly. Do not
disassemble it. Handle a damaged or
leaking battery with extreme care. If
the battery is damaged, electrolyte
may leak from the cells and may cause
personal injury.
• Keep the battery away from children.
• Do not store or leave your tool or
battery near a heat source such as
a radiator, fireplace, stove, electric
heater, or other heat-generating
appliance or otherwise expose it to
temperatures in excess of 140 ºF
(60ºC). When heated to excessive
temperatures, battery cells could
explode or vent, posing a risk of fire.
• Do not dispose of your tool’s battery
in a fire or with normal household
waste. Battery cells may explode.
Discard a used battery according to
the manufacturer’s instructions or
contact your local waste disposal
agency for disposal instructions.
Dispose of a spent or damaged
battery promptly.
IMPORTANT:
• To avoid damage or generation of false
data, make sure the vehicle battery is fully
charged and the connection to the vehicle
Data Link Connector (DLC) is clean and
secure.
• Do not place the tool on the distributor
of a vehicle. Strong electromagnetic
interference can damage the tool.
• Never disconnect or reconnect any
electrical connector while the ignition is on.
Powertrain Control Module (PCM) damage
may result.
en |4|User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
General Information
Introduction
May 16, 2018
Connected
Select Vehicle
All Apps
System Settings See What’s New
Web BrowserSaved Diagnostic Data
OBDII
Main Menu
10:22
ss02864
2
1
8 7 5 346
Handset Front
1. Vehicle Connection Indicator
• GREEN - Connected to vehicle.
• RED - Not connected to vehicle.
• AMBER - Demo mode.
2. Main Menu Functions
• Select Vehicle - Shortcut to the select vehicle
screen.
• OBDII - Access global OBDII emission-related ECU
information.
• Saved Diagnostic Data - Locate saved vehicle
scan reports and data stream recordings.
• Web Browser - Full internet access and shortcuts
to repair information and OEM websites.
• System Settings button - Access tool settings,
printer setup, subscription information, software
updates, and more.
• See what’s New - Preview scan tool features and
operation.
• All Apps Button - Access other available Android
applications.
3. Camera
• 5MP front facing camera.
4. Power Button
• Press to power ON handset or if running press to
access menu to: Power Down.
5. Screen Shot Button
• Press to take a picture of the current screen.
6. Recent apps button
• Opens a list of thumbnail images of currently
running apps.
7. Home Button
• Displays the Main Menu screen.
8. Back Button
• Returns to the previous screen or option.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |5|en
Handset
The handset is a ruggedized touchscreen tablet
equipped with the Android operating system. The power
button is located on the lower center front of the Hand-
set.
ss02868
Handset Power Button
Power Button Functions
The power button has two functions
a. ON: Press the power button to turn the handset
on.
b. OFF: Press and release the power button. A pop
up window will appear to shut down the handset.
c. ON: If the screen times out or is in standby mode,
press and release the power button to wake up
the handset. Turn ON: With tool off, press to turn
ON
d. OFF: Press the power button and hold for 5 sec-
onds to turn the handset off completely (not
recommended).
Handset Ports
1
10
1926
18
9
1
ss02866
1 2 3 4 5 6
Handset Ports
1. Power Port
2. DLC Cable Port
3. SD Card Slot
4. Audio port
5. USB Type “A” port
6. USB Type “B” port
en |6|User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Handset Back
ss02880
12
3
Handset Back
1. Light
• The light has two functions
• Camera flash mode
• Flash light mode
2. Camera
• 5MP rear facing camera.
• Rear racing microphone.
3. Microphone
Software Descriptions
Handset Software
The handset comes with the diagnostic software pre-
loaded. Set up Docking Station, attach power supply
provided with kit and charge battery before use.
The first time the handset is powered up, the user needs
to accept the license agreement. Then, the user will
have three choices:
• Register Now: Unlocks all functions of handset.
• Trial mode: Unlocks all functions for 30 days.
• Demo Mode: Displays what functions may look
like.
Periodically, updates will become available and the user
will be notified by an icon on the screen. To update the
handset, there must be Wi-Fi connection available.
Software Applications Overview
The handset allows users to diagnose problems on a
wide variety of vehicles. Users are able to perform com-
mon service procedures, maintenance tests, and special
tests to find deficiencies with vehicle systems or compo-
nents.
The handset will display DTCs from OBDI or OBDII
systems. Real-time sensor data can be viewed in data
stream mode. The user can also obtain diagnostic infor-
mation regarding repairs.
Browser mode allows the user to connect to the internet
to find websites that may help with the repair of the
vehicle. The handset comes with wireless communica-
tion for ease of use and on-screen help when desired.
to indicate contact has been made.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |7|en
Battery Charging
Connect the handset to AC power and fully charge the
battery.
1
10
1926
18
9
1
ss02867
2
1
Power Port
1. Handset
2. AC Power cord
When the handset is turned on, the level of battery
charge is indicated in the upper right corner of the
screen.
NOTE: The tool can be used while charging.
Using the handset
There are three options for use.
• Register Now: It is recommended to register for
full functionality of tool and tech support.
• Trial Mode: This allows use of the handset for 30
days before it must be registered. If the 30 day
trial period is over before it is registered, the
handset functions will be locked out. At that time,
register now or demo mode will need to be
entered.
• Demo Mode: This mode demonstrates the func-
tions by displaying random data.
ss02868
1. Press the power button to turn on the handset
May 16, 2018
Step 1 of 7 - Select as Language
Espanol
Français
English
ss02886
2. Select a language.
Registration
It is important to register the handset right away. To
register, it will need a Wi-Fi internet connection. To
connect to Wi-Fi, refer to steps 2 through 6. Register
now enables the unit. Register later causes the device to
go into a 30-day trial mode. Demo Mode is for training
and demonstration purposes only, it cannot communi-
cate with a vehicle. Demo Mode will use sample data.
1. Select Register Now.
Register the tool, begin a trial period, or run the tool
in demo mode.
May 16, 2018
Step 2 of 7 - Register
Registering your device allows you to get the latest software updates
Skip
Register Now
ss02887
2. Read and accept the End User License Agreement
May 16, 2018
Step 3 of 7 - End User License Agreement
End User License Agreement
Software Product License Agreement
Copyright (c) 2014-2017, Bosch Automotive Service Solutions Inc. All Rights Reserved
By clicking the i Agree button (or authorizing any other person to do so), you accept this
Agreement and are bound by its terms. If you are not sure that you are authorized by
your employer to accept this Agreement, take this package to a principal in your firm
SOFTWARE PRODUCT LICENSE AGREEMENT
Register My Device Now
Register My Device
Later
Demo Mode
IMPORTANT: Do not continue until you have read this Software Product License
Agreement (”Agreement”).
I Agree
ss02888
en |8|User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
3. Select the correct Time Zone.
May 16, 2018
Step 4 of 7 - Setup Time Zone
Setup Time Zone
GMT-04:00 Eastern Standard Time
Next: Step Wi-Fi
ss02889
4. Enable Wi-Fi and select a network and select Next.
May 16, 2018
Step 5 of 7 - Select Wi-Fi
Setup Wi-Fi
Secured with WPA
Wi-Fi
TEST 15
TEST 16
Trial Mode
Secured with WPA2
This will run your tool in Trial Mode for 30 days.
Next: Your Name
ss02890
Note:
• Wi-Fi Must be ON. If Wi-Fi is OFF slide the Wi-Fi
switch to the ON position and follow the prompts
on the screen.
• If a Network password is required the Android Wi-Fi
screen will be displayed. Follow the prompts on the
screen.
5. Activate Warranty
May 16, 2018
Step 6 of 7 - Activate Warranty
Activate Warranty
Valued
Customer
Bosch
Bosch
Next: Contact info
Set Clock
ss02891
Enter your Name. Follow the prompts on the screen to
activate warranty.
May 16, 2018
Step 6 of 7 - Activate Warranty
Activate Warranty
123-555-1234
5678 Shop Lane
Detroit MI 48260
USA
Address 2 (optional)
Confirm Info
ss02892
Enter contact information. Follow the prompts on the
screen.
May 16, 2018
Step 6 of 7 - Activate Warranty
Activate Warranty
ValuedCustomer
123-555-1234
Bosch
Bosch
05-16/2018
5678 Shop Lane
Detroit, MI 48260
USA Activate Now
ss02893
Confirm information. Follow the prompts on the screen
and activate warranty.
6. Setup Printer
May 16, 2018
Step 7 of 7 - Printer Setup
If skipped you may setup a printer later from settings
Skip
Print test page
Printer setup help
ss02895
Note: This can be completed later by going to
Settings located on the Main Menu screen.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |9|en
May 16, 2018
Connected
10:22
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss02923
30 Day Trial
1. Select Register my Device Later for 30 days of full use
of the tool before registration is required. If the
handset is not registered within the 30 day trial
period, after 30 days it will only function in Demo
Mode.
May 16, 2018
Step 3 of 7 - End User License Agreement
End User License Agreement
Software Product License Agreement
Copyrig ht (c) 2014-2017, Bosch Automotive Service Solutions Inc. All Rights Reserved
By clicking the i Agree button (or authorizing any other person to do so), you accept this
Agreement and are bound by its terms. If you are not sure that you are authorized by
your employer to accept this Agreement, take this package to a principal in your firm
SOFTWARE PRODUCT LICENSE AGREEMENT
Register My Device Now
Register My Device
Later
Demo Mode
IMPORTANT: Do not continue until you have read this Software Product License
Agreement (”Agreement”).
I Agree
ss02929
2. ADS 325 is ready to use.
May 16, 2018
Connected
Select Vehicle OBDII
Main Menu You are in Trial Mode Register Now
10:22
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss02924
Demo
1. Select Demo mode
May 16, 2018
Step 3 of 7 - End User License Agreement
End User License Agreement
Software Product License Agreement
Copyrig ht (c) 2014-2017, Bosch Automotive Service Solutions Inc. All Rights Reserved
By clicking the i Agree button (or authorizing any other person to do so), you accept this
Agreement and are bound by its terms. If you are not sure that you are authorized by
your employer to accept this Agreement, take this package to a principal in your firm
SOFTWARE PRODUCT LICENSE AGREEMENT
Register My Device Now
Register My Device
Later
Demo Mode
IMPORTANT: Do not continue until you have read this Software Product License
Agreement (”Agreement”).
I Agree
ss02920
2. ADS 325 is ready to use.
May 16, 2018
Demo
Select Vehicle OBDII
Main Menu You are in Demo Mode Register Now
10:22
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss02925
en |10 |User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Provide Power to Scan Tool
ss02869
1
2
3
Scan Tool Cable Connections
1. OBD II / DLC cable
2. 12 volt power cable (Use with vehicles that do
not supply power through DLC)
3. Scan tool
Power via vehicle DLC
1. Connect the OBD II / DLC cable to the scan tool
2. Connect the OBD II / DLC cable to the DLC on vehicle.
Located within 18 inches (45.7 cm) of steering wheel.
Typically located on the driver’s side, under dash.
3. Turn ignition ON.
Non-powered vehicle DLC setup
Some vehicles do not supply power through DLC. In this case
use the following procedure.
1. Connect OBD II / DLC cable to scan tool.
2. Connect OBD II / DLC cable to DLC on vehicle. Typically
located on the driver’s side under the dash.
3. Connect the 12 volt power cable to the scan tool power port.
4. Connect the 12 volt power connector to the vehicle power
outlet.
5. Turn ignition ON.
May 16, 2018
Connected
Select Vehicle
AllApps
SystemSettings SeeWhat’sNew
WebBrowserSaved Diagnostic Data
OBDII
Main Menu
10:22
ss02870
1
2
3
Scan Tool Connected to Vehicle
1. OBDII/DLC Cable
2. DLC
3. Handset
Turning off handset:
May 16, 2018
Connected
Select Vehicle
All Apps
System Settings See What’s New
Web BrowserSaved Diagnostic Data
OBDII
Main Menu
10:22
ss02902
1. Press and release the power button.
May 16, 2018
Connected
Select Vehicle
All Apps
System Settings See What’s New
Web Browser
Power off
Diagnostic Tool will shut down.
CANCEL OK
Saved Diagnostic Data
OBDII
Main Menu
10:22
ss02901
2. Select OK. The tool will now shutdown.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |11 |en
Test Startup and Vehicle Connection
1. Turn ON the handset.
2. Connect the OBDII/DLC cable to the scan tool.
3. Connect the OBDII/DLC cable to the DLC on the
vehicle.
4. Turn the ignition ON, but keep the engine OFF
(KOEO).
5. Select vehicle from the Main Menu screen.
6. Enter the vehicle information one of two ways:
• AutoID
• Manual entry
7. From the Vehicle selected screen, select any
diagnostic function.
en |12 |User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Settings
Settings allow the user to make adjustments to the
following:
• Applications
• Software information
• Software update
• Printer Setup
• Subscriptions
• User Detail
• Language
• Direct-Hit
• Service
• Report Options
May 31, 2018
Connected
Select Vehicle OBDII
Main Menu
10:33
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss03073
1. Select Settings from the Main Menu.
Application Settings
From the Settings screen select Application Settings.
Follow the prompts on the screen to make changes to
the following:
• Demo Mode
• Turn Demo mode ON or OFF
• Units of measure
• Switch between Standard or Metric
• Use TPR
• Enable TPR
• Data Stream Scroll Options
• Select scrolling options
Settings
10:33
Application Settings Demo Mode ON
Standard Metric
Always Never Ask during test
Always AskHorizontalVertical
OFF
Units of Measure
Use TPR
Data Stream Scroll Options
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
May 31, 2018
Connected
ss03074
Software Information
From the Settings screen select Software Information.
The current software versions will be displayed.
Select View Open Source Software Details to view more
in-depth information.
Settings
10:33
Application Settings
CoreManager 3.1.1.4
Database Publication Date 2018-04-19
Diagnostic API WSI 3.2.5
Release Version: 3.2.0.10
Database Schema 66
DBCoordinatorCore 3.1.1.4
Windows DBCoordinatorAPI 3.1.1.4
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
Release Notes View Open Source Software Details
May 31, 2018
View License
Connected
ss03075
Software Update
From the Settings screen select Software Update.
• Manually check for updates.
• Automatic download.
NOTE: Active internet connection is required for this function.
If an update is available follow the prompts on the
screen to update the handset.
Downloading the software will occur in the background
and varies with Wi-Fi connection speed and quality.
Installing the software can take up to 45 minutes. Please
be sure to have your handset fully charged and allow
sufficient time for the installation.
Settings
10:34
Application Settings Please ensure the tool is connected to the internet
No Updates Available
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
Check for Updates Install Update
May 31, 2018
Connected
ss03076
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |13 |en

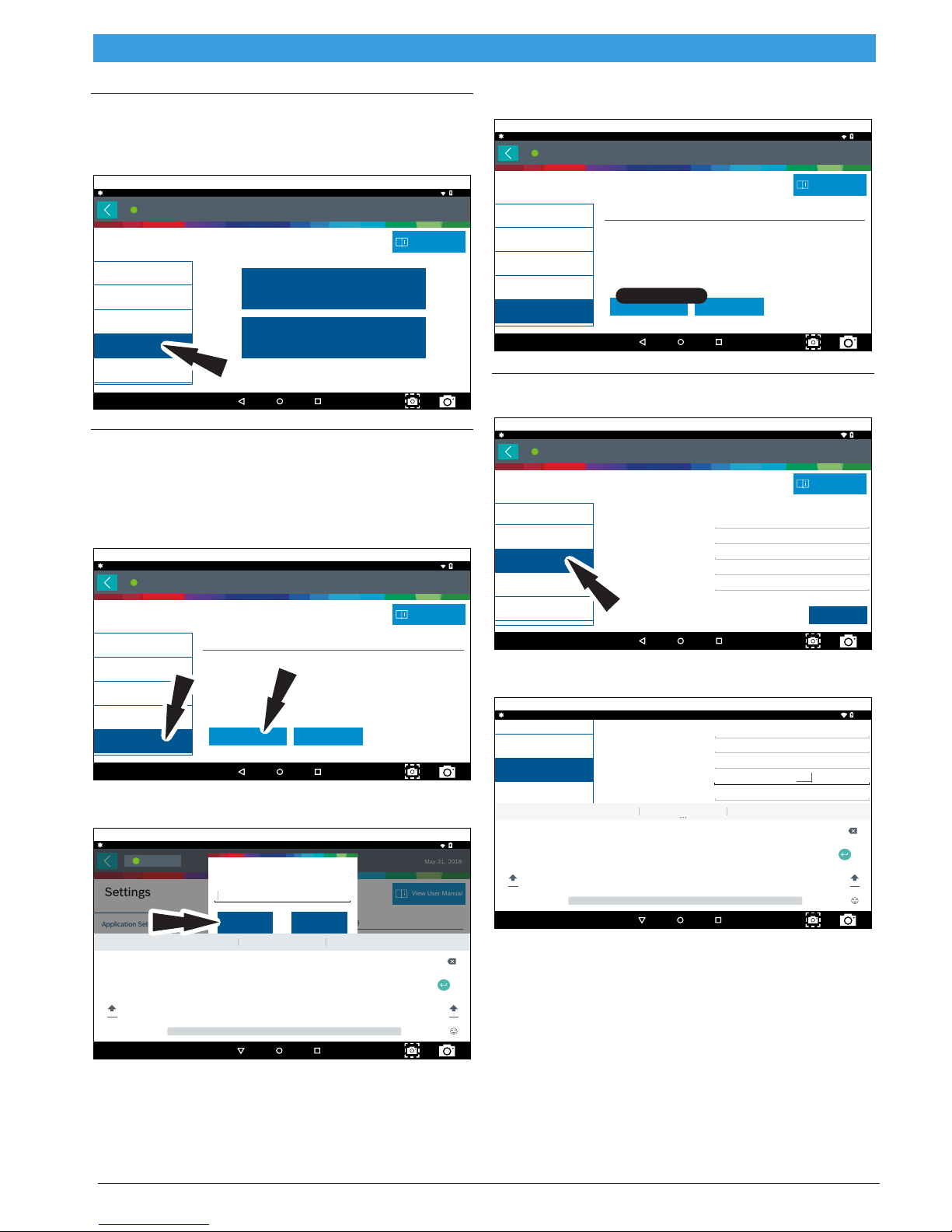

Printer setup
1. Ensure device is connected to internet and that
network has unrestricted access to Google services.
2. Follow the prompts on the screen.
Settings
10:34
Application Settings
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
Printer setup help
Print test page
May 31, 2018
Connected
ss03077
Subscription
The tool must be registered to see this tab.
1. From the Settings screen select Subscription.
• Need to obtain subscription code.
• After one year, the user will be required to renew
the subscriptions to receive product updates.
Settings
10:35
Application Settings
All Coverage Subscription: Expires 5/10/2019
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
Enter Subscription Code Reload Subscriptions
May 31, 2018
Connected
ss03078
2. Select Enter Subscription Code.
Settings
q w e r t y u i o
a s d f g h j k l
z
?123
1 2 3 4 5 6 7 8 9 0
x c v b n m ! ?
, .
p
10:35
Application Settings
All Coverage Subscription: Expires 4/16/2019
View User Manual
May 31, 2018
Connected
Enter Susbcription Code
CancelOK
ss03079
3. Enter Subscription Code and select OK.
Settings
10:35
Application Settings
All Coverage Subscription: Expires 5/10/2019
Software Information
Printer Setup
Software Update
Subscriptions
View User Manual
Enter Subscription Code Reload Subscriptions
May 31, 2018
Subscription Successfully Activated
Connected
ss03080
User Details
1. From the Settings screen select User Details.
Settings
10:38
Owner’s First Name
Owner’s Last Name
Distributor Name
Email
Phone
John
Doe
City Service
3195551234
Printer Setup
User Details
Contact Us
Subscriptions
View User Manual
Language
May 31, 2018
Save
Connected
ss03081
2. Select field to modify.
10:39
Printer Setup
Subscriptions
Contact Us
Owner’s First Name
Owner’s Last Name
Distributor Name
Email
Phone
City Service
John
Doe
3195551234
q w e r t y u i o
a s d f g h j k l
z
?123
1 2 3 4 5 6 7 8 9 0
x c v b n m ! ?
, .
p
come com company
User Details
ss03082
Note: The information saved in User Details will also update regis-
tration information.
en |14 |User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Language
1. From the Settings screen select Language
2. Follow the prompts on the screen
• English
• Spanish
• French
Settings
Language
Contact Us
Service
Reports
Direct-Hit®
English
10:40
May 31, 2018
Connected
View User Manual
Español
Français
ss03083
Direct-Hit®
Identifix® Direct-Hit® provides:
• OEM specific information.
• Wiring diagrams.
• Technical Service Bulletins (TSBs).
• Diagnostic procedures.
• Past reported fixes.
Subscription is required to access Identifix®. To obtain
username and password, select Identifix® link and sub-
scribe.
1. From the Settings screen select Direct-Hit®.
2. Follow the prompts on the screen.
Language
Contact Us
Service
Reports
Direct-Hit
®
Direct-Hit
®
User Name
Password
SaveReset
IDENTIFI
FIND AND FIX FASTER
10:40
May 31, 2018
Connected
View User Manual
Settings
ss03084
Service
1. From the Settings screen select Service.
2. Select Restart Communications.
Restart Communications
Language
Contact Us
Service
Reports
Direct-Hit
®
10:41
May 31, 2018
Connected
View User Manual
Settings
ss03085
3. Handset will Restart Communications.
Restart Communications
Language
Contact Us
Service
Reports
Direct-Hit
®
10:41
May 31, 2018
View User Manual
Settings
Connected
Initializing Communication
ss03085
Report Options
1. Follow the Prompts on the screen.
Remove systems that could not be communicated with on AST /
ASDTC reports
Include Shop Info
Include Shop Logo
Prompt for extra fields when saving reports
Language
Contact Us
Service
Reports
Direct-Hit®
10:41
May 31, 2018
View User Manual
Settings
Connected
ss03087
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |15 |en

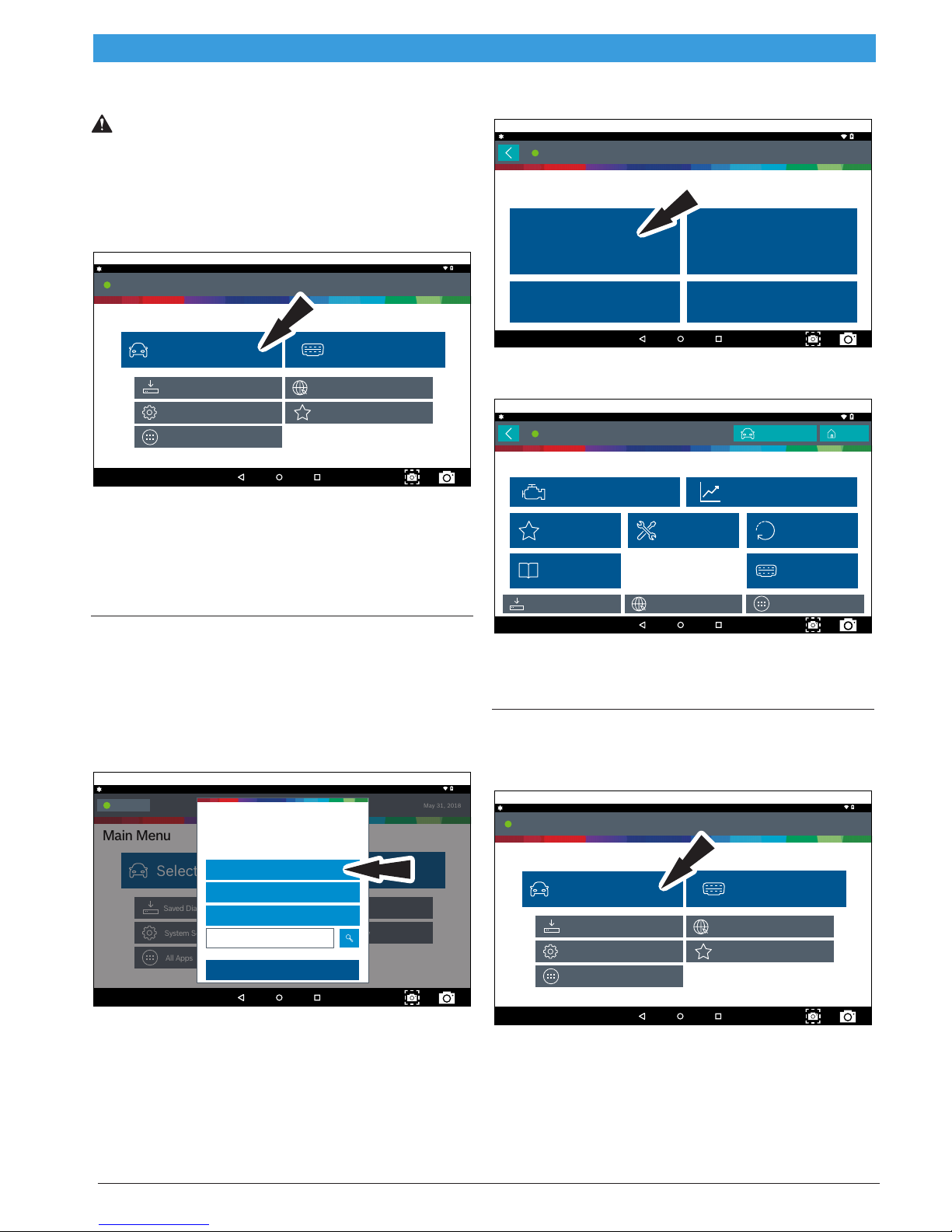

Selecting Vehicle
WARNING: Before performing any
diagnostic functions, refer to the Safety
Precautions and Warnings provided by the
vehicle manufacturer. In addition, follow
any warnings and instructions provided on
the handset.
May 31, 2018
Connected
Select Vehicle OBDII
Main Menu
10:33
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss03088
2. Select, Select Vehicle from the Main Menu screen to
manually choose the vehicle, AutoID to automatically
identify the vehicle or enter the VIN.
3. Select the vehicle specification options on each
screen until the complete vehicle information is
entered.
AutoID
AutoID uses the vehicle’s Mode 9 VIN information, when
available. Most vehicles from 2004 and newer support
AutoID, but some other older vehicles may support
Mode 9 too.
AutoID Operation:
1. Handset must be on and connected to the vehicle.
May 31, 2018
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
10:42
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
ss03089
2. Select AutoID.
3. Once selected the handset will begin communicating
with the vehicle.
4. The vehicle must have the key on, engine off (KOEO).
5. Once the VIN is retrieved it is compared to the vehi-
cle database.
6. If a match is found the vehicle selection information
will be displayed on the screen.
7. Wait for AutoID to finish.
Connected
VIN Match Results (4)
VIN : 1FTPW14V28FC54321
10:43
May 31, 2018
2008 Ford F-150
5.4, FLEX, -, Naturally Aspirated, SOHC
King Ranch
2008 Ford F-150
Lariat
2008 Ford F-150
5.4, FLEX, -, Naturally Aspirated, SOHC
X LT
2008 Ford F-150
FX4
ss03090
8. Select the desired vehicle from the list.
Connected Ford F-150 King Ranch 5.4L
Web Browser
Saved Diagnostic Data
Enhanced OBDII
Vehicle Diagnostics
10:43
Change Vehicle
All Apps
Home
Data Stream
Read DTCs
Maintenance
Tests
Special Tests
Diagnostic
Information
Automated
System Test
ss03091
9. At this point vehicle entry will disappear and the user
will be able to begin using diagnostic functions on
the vehicle.
Manual Entry
The handset must be turned on, and connected to the
vehicle Once those conditions are met, complete the
following:
May 31, 2018
Connected
Select Vehicle OBDII
Main Menu
10:33
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss03088
1. Select, Select Vehicle.
en |16 |User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
May 31, 2018
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
10:44
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
ss03092
2. Select Manual Selection.
Make
No VIN
Selected
Year
VIN J
‘18
VIN H
‘17
VIN G
‘16
VIN F
‘15
VIN E
‘14
VIN D
‘13
VIN C
‘12
VIN B
‘11
‘07
‘08‘09‘10
Cancel
To confirm via VIN, use the tenth digit
Model Submodel Engine
May 31, 2018
10:44
Connected
ss03093
3. Select the model year of the vehicle.
Make
No VIN 2015
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
Acura
Buick
Dodge
Alfa Romeo
Catillac
Fiat
Audi
Chevrolet
Ford
BMW
Chrysler
GMC
ss03094
4. Select the make of vehicle.
Make
No VIN 2015 Acura
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
ILX
TLX
MDX RDX RLX
ss03095
5. Select the model.
Make
No VIN 2015 Acura MDX
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
Base SH-AWD
ss03096
6. Select the sub-model (trim level).
Make
No VIN 2015 Acura MDX Base
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
3.5 GAS J35Y4
Naturally Aspriated,
SOHC
3.5 GAS J35Y5
Naturally Aspriated,
SOHC
ss03097
7. Select the engine.
Note: Some vehicles may not require this selection.
Connected to 2015 Acura MDX Base 3.5L
Web Browser
Saved Diagnostic Data
Enhanced OBDII
Vehicle Diagnostics
10:47
Change Vehicle
All Apps
Home
Data Stream
Read DTCs
Maintenance
Tests
Special Tests
Diagnostic
Information
Automated
System Test
ss03098
8. At this point vehicle entry will disappear and the user
will be able to begin using diagnostic functions on
the vehicle.
582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325 | User Manual |17 |en
Recent
May 31, 2018
Connected
Select Vehicle OBDII
Main Menu
10:33
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss03088
1. Select, Select Vehicle.
May 31, 2018
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
10:48
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
ss03099
2. Select Recent Vehicles.
Connected
Recent Vehicles
10:48
May 31, 2018
2015 Acura
Base 3.5
MDX
2000 Chevrolet
LS 5.71
C2500 2WD
ss03100
3. Press and hold a recent vehicle tile and select one of
two choices:
• Set as current vehicle.
• Delete from recents.
4. Or just tap on the recent vehicle tile.
Connected to 2000 Chevrolet C2500 2 LED LS5.7L
Web Browser
Saved Diagnostic Data
Enhanced OBDII
Vehicle Diagnostics
10:49
Change Vehicle
All Apps
Home
Data Stream
Read DTCs
Maintenance
Tests
Special Tests
Diagnostic
Information
Automated
System Test
ss03101
5. At this point vehicle entry will disappear and the user
will be able to begin using diagnostic functions on
the vehicle.
en |18 |User Manual | ADS 325
582819 | REV. A | 07.2018 Bosch Automotive Service Solutions Inc
Search by VIN
May 31, 2018
Connected
Select Vehicle OBDII
Main Menu
10:33
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
ss03088
1. Select, Select Vehicle.\
May 31, 2018
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
10:50
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
ss03102
2. Select Search By VIN.
May 31, 2018
Select Vehicle OBDII
Main Menu
All Apps
System Settings See What’s New
Web Browser
Saved Diagnostic Data
10:50
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
1 2 3
VIN
SEARCH BY VIN
4 5 6 7 8 9 0
Skip
ClearPasteCopy OK
A S D F G H J K
W E R T Y U P
Z X C V B N M
L
ss03103
3. Enter 17-digit VIN then OK.
Connected
VIN Match Results (4) VIN : 1FTPW14V28FC54321
10:51
May 31, 2018
2008 Ford F-150
5.4, FLEX, -, Naturally Aspirated, SOHC
King Ranch
2008 Ford F-150
Lariat
2008 Ford F-150
5.4, FLEX, -, Naturally Aspirated, SOHC
X LT
2008 Ford F-150
FX4
ss03104
4. Select the desired vehicle from the list.
Connected to 2008 Ford F-150 King Ranch 5.4L
Web Browser
Saved Diagnostic Data
Enhanced OBDII
Vehicle Diagnostics
10:51
Change Vehicle
All Apps
Home
Data Stream
Read DTCs
Maintenance
Tests
Special Tests
Diagnostic
Information
Automated
System Test
ss03105
5. At this point vehicle entry will disappear and the user
will be able to begin using diagnostic functions on
the vehicle.
Table of contents
Other Bosch Tablet manuals
