[en] Instruction manual Extractor hood
Extractor hood
DHU635HZA, DUL.3CA50V

en
3
Table of contents
[en]I ns t r uc t i on manual Ext r ac t or hood
8Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
(Important safety information . . . . . . . . . . . . . . . 4
7Environmental protection . . . . . . . . . . . . . . . . . . 5
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmentally-friendly disposal . . . . . . . . . . . . . . . . . 5
ÇOperating modes . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exhaust air mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1Operating the appliance . . . . . . . . . . . . . . . . . . . 6
Setting the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2Cleaning and maintenance . . . . . . . . . . . . . . . . . 7
Cleaning the metal grease filter . . . . . . . . . . . . . . . . . . 8
3Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fault table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4Customer service . . . . . . . . . . . . . . . . . . . . . . . . . 9
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
8Intended use
Intended use Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 15 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.

en Important safety information
4
(Important safety
information
Impor t ant saf et y informat i on :Warning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.

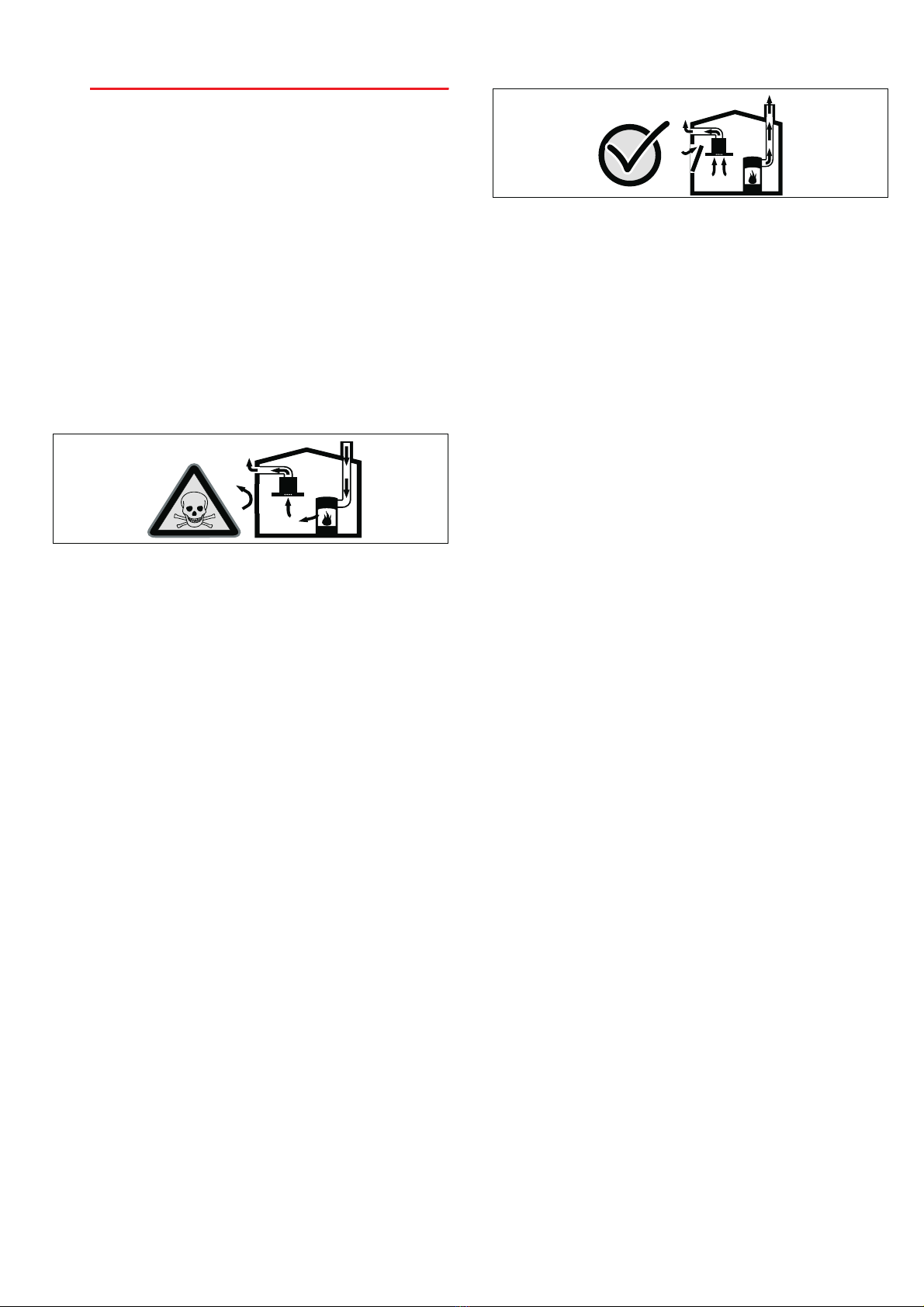

:Warning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4Pa (0.04mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning – Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5kW (wok) is equivalent to the
power of two gas burners.
:Warning – Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.

Environmental protection en
5
:Warning – Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
:Warning – Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
7Environmental protection
En v i r o n ment al pr ot ect i on Your new appliance is particularly energy-efficient.
Here you can find tips on how to save even more
energy when using the appliance, and how to dispose
of your appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient
supply of air to enable the extractor hood to work
efficiently and with a low level of operating noise.
■Adjust the fan speed to the amount of steam
produced during cooking. Only use intensive mode
when required. The lower the fan speed, the less
energy is consumed.
■If cooking produces large amounts of steam, select
a higher fan speed in good time. If the cooking
steam has already spread around the kitchen, the
extractor hood will need to be operated for longer.
■Switch off the extractor hood if you no longer require
it.
■Switch off the lighting if you no longer require it.
■Clean and (if required) replace the filter at regular
intervals in order to increase the effectiveness of the
ventilation system and to prevent the risk of fire.
■Put the lid on to reduce cooking steam and
condensation.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.

en Operating modes
6
ÇOperating modes
Oper at i ng modes Exhaust air mode
Note: The air must not be discharged into a flue that is
used for exhausting fumes from appliances burning gas
or other fuels (not applicable to appliances that only
discharge the air back into the room).
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Air recirculation
Note: To bind odours in air recirculation mode, you
must install an activated carbon filter. The different
options for operating the appliance in air recirculation
mode can be found in the brochure. Alternatively, ask
your dealer. The required accessories are available
from specialist retailers, from customer service or from
the Online Shop.
1Operating the appliance
Oper at i ng the appl i ance These instructions apply to several appliance variants.
It is possible that individual features are described
which do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Note: Fold the glass cover forwards. This increases the
extraction area.
Control panel
Setting the fan
Note: Always adjust the fan strength to meet current
conditions. If there is a large build-up of steam or
fumes, select a high fan setting.
Switching on
Set the slide control to position 1, 2or 3.
Switching off the appliance
Set the slide control to position 0.
Lighting
The lighting can be switched on and off independently
of the ventilation.
Set the slide control to position 1.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter, and is conveyed back into
the kitchen.
1: Lighting
0Switches off the lighting
1Switches on the lighting
2: Fan
0 Switches off the fan
1Switches on fan setting 1
2Switches on fan setting 2
3Switches on fan setting 3
 

Cleaning and maintenance en
7
2Cleaning and maintenance
Cl eani ng and mai nt enanc e :Warning – Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
:Warning – Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
:Warning – Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table. Do not use any of the following:
■Harsh or abrasive cleaning agents,
■Cleaning agents with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the
cleaning agents.
Removing the metal grease filter
:Warning – Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Note: Only use genuine replacement filters. This
ensures optimal performance of the appliance.
1. Open the lock on the metal grease filters and
remove the filters from the retainer.
Notes
– When you do this, take hold of the metal grease
filters from underneath with your other hand.Make
sure that the metal grease filters do not fall and
damage the hob.
– Fat may accumulate in the bottom of the metal
grease filters. Hold the filters level to prevent fat
from dripping out.
2. Clean the metal grease filters.
3. Clean the inside of the appliance.
Area Cleaning agent
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a
soft cloth.
Clean stainless steel surfaces in the grind
direction only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers. Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plastic Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Risk of electric shock caused by penetrating
moisture.
Risk of damage to the electronics from pene-
trating moisture. Never clean operating con-
trols with a wet cloth.
Do not use any stainless steel cleaners.
Area Cleaning agent

en Cleaning and maintenance
8
Cleaning the metal grease filter
Notes
■Do not use any aggressive, acidic or alkaline
cleaning agents.
■When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for
stubborn dirt. It can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy
solution.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has
no effect on the function of the metal mesh grease
filters.
■Do not clean heavily soiled metal mesh grease filters
together with utensils.
■Place the metal mesh grease filters loosely in the
dishwasher. The metal mesh grease filters must not
be wedged in.
Installing the metal mesh grease filter
1. Insert metal grease filter.
2. Fold up metal grease filter and engage the lock.
Note: Make sure that the filter lock engages properly.
Changing the activated charcoal filter (only
in circulating-air mode)
To ensure effective odour removal, the filters must be
serviced regularly.
The active carbon filters must be replaced at least every
4months.
Note: The active carbon filters cannot be cleaned or
reactivated.
Note: Only use genuine replacement filters. This
ensures optimal performance of the appliance.
1. Remove the fleece grease filter; see the section
entitled Removing the metal grease filter.
2. Turn the activated charcoal filter to open the lock.
3. Take out the activated charcoal filter.
4. Insert the new activated charcoal filter.
5. Turn the activated charcoal filter to close the lock.
6. Install the metal grease filter, see the chapter
Installing the metal grease filter.

Trouble shooting en
9
3Trouble shooting
Tr oubl e s hoot i ng Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Fault table
--------
Replacing the LED lights
:Warning – Risk of electric shock!
When changing the bulbs, the bulb socket contacts are
live. Before changing the bulb, unplug the appliance
from the mains or switch off the circuit breaker in the
fuse box.
:Warning – Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than
100seconds.
Important! Only use bulbs of the same type and
wattage.
1. Disconnect the appliance from the power supply.
2. Remove the metal grease filter.
3. Unscrew the bulb and replace it with a bulb of the
same type.
4. Fit the metal grease filters.
5. Plug in the mains plug and switch the circuit breaker
back on.
4Customer service
Cu s t o mer ser vi ce When calling us, please give the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
with these numbers can be found inside the appliance
(remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged into the
mains
Connect the appliance to the
power supply
Power cut Check whether other kitchen
appliances are working
The fuse is faulty Check in the fuse box to make
sure that the fuse for the appli-
ance is in working order
The lighting does
not work.
The LED lights
are defective.
You can read about this in the
section entitled "Replacing the
LED lights".
'5*6%&8%%(
E no. FD no.
After-sales serviceO
GB 03448928979
Calls charged at local or mobile rate.
IE 014502655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.

6

6

5IBOLZPVGPSCVZJOHB
#PTDI)PNF"QQMJBODF
3FHJTUFSZPVSOFXEFWJDFPO.Z#PTDIOPXBOEQSPGJUEJSFDUMZGSPN
t&YQFSUUJQTUSJDLTGPSZPVSBQQMJBODF
t8BSSBOUZFYUFOTJPOPQUJPOT
t%JTDPVOUTGPSBDDFTTPSJFTTQBSFQBSUT
t%JHJUBMNBOVBMBOEBMMBQQMJBODFEBUBBUIBOE
t&BTZBDDFTTUP#PTDI)PNF"QQMJBODFT4FSWJDF
'SFFBOEFBTZSFHJTUSBUJPOoBMTPPONPCJMFQIPOFT
XXXCPTDIIPNFDPNXFMDPNF
-PPLJOHGPSIFMQ
:PV}MMGJOEJUIFSF
&YQFSUBEWJDFGPSZPVS#PTDIIPNFBQQMJBODFTOFFEIFMQXJUIQSPCMFNT
PSBSFQBJSGSPN#PTDIFYQFSUT
'JOEPVUFWFSZUIJOHBCPVUUIFNBOZXBZT#PTDIDBOTVQQPSUZPV
XXXCPTDIIPNFDPNTFSWJDF
$POUBDUEBUBPGBMMDPVOUSJFTBSFMJTUFEJOUIFBUUBDIFETFSWJDFEJSFDUPSZ
3PCFSU#PTDI)BVTHFSÉUF(NC)
$BSM8FSZ4USBF
.ßODIFO
(FSNBOZ
XXXCPTDIIPNFDPN
*9001443332*
9001443332
990605
