Bosch DWK98PR60 User manual

[en] Instructions for installation
and use
Extractor hood

en
2
Table of contents
[en]Instructions for installation and use
INSTRUCTION MANUAL.......................................................... 2
8Intended use................................................................... 2
(Important safety information ........................................ 3
7Environmental protection ............................................. 5
ÇOperating modes ........................................................... 5
1Operating the appliance................................................ 6

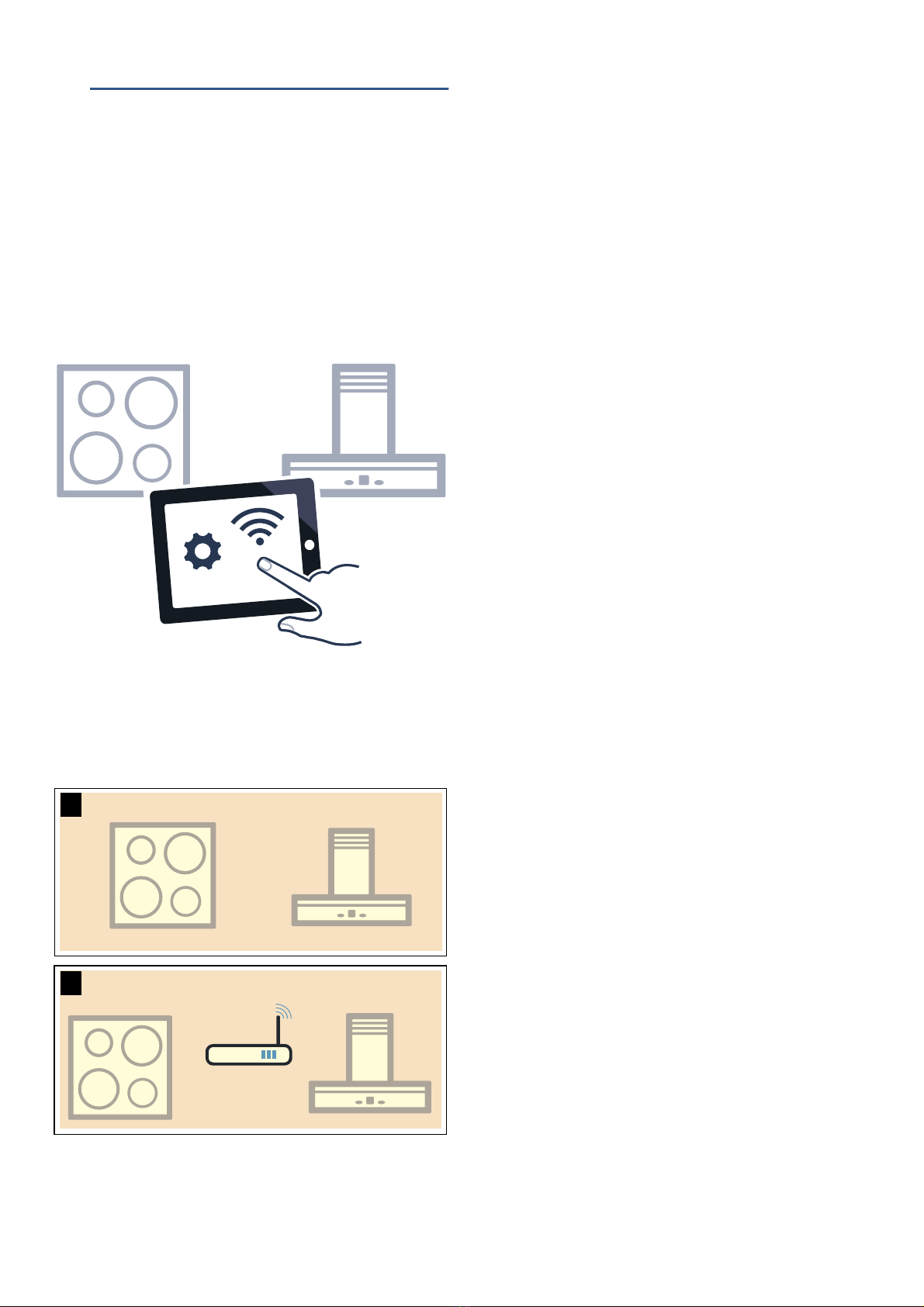

eConnecting to a hob .................................................... 10
oHome Connect ............................................................. 11
2Cleaning and maintenance......................................... 13
3Trouble shooting ......................................................... 15
4Customer service ........................................................ 15
INSTALLATION INSTRUCTIONS .......................................... 16
(Important safety information...................................... 17
KGeneral information .................................................... 19

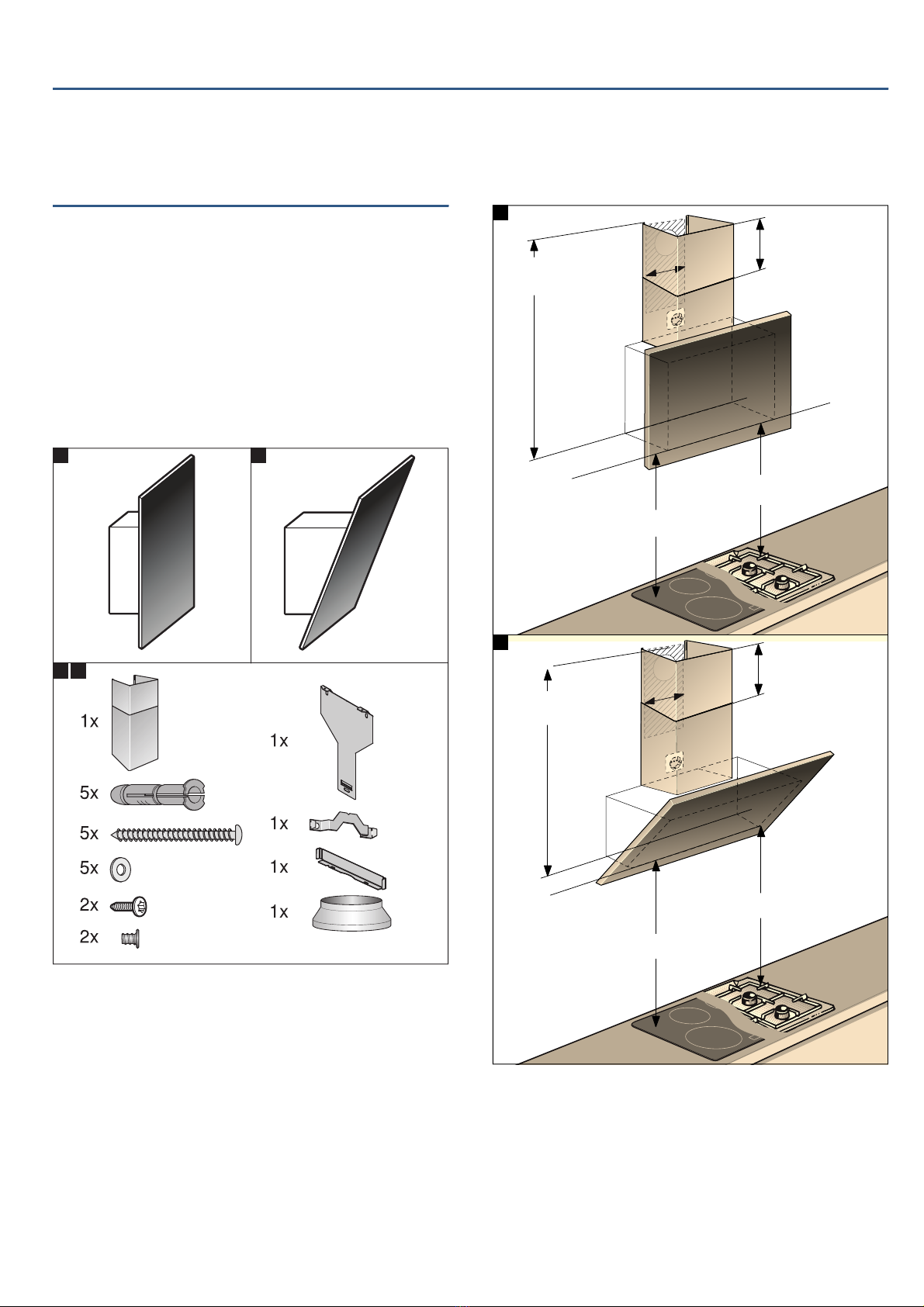

5Installation ................................................................... 20
INSTRUCTION MANUAL
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
8Intended use
Intendeduse Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental capacity
or by persons with a lack of experience or
knowledge if they are supervised by someone
who is responsible for their safety, or have
been instructed in how to use the appliance
safely and have understood the risks involved
in not using it properly.
Children must not play with the
appliance.Cleaning and user maintenance
must not be performed by children unless they
are over 15 years of age and are supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.

Important safety information en
3
(Important safety
information
Importantsafetyinformation :Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
:Warning
Danger of death!

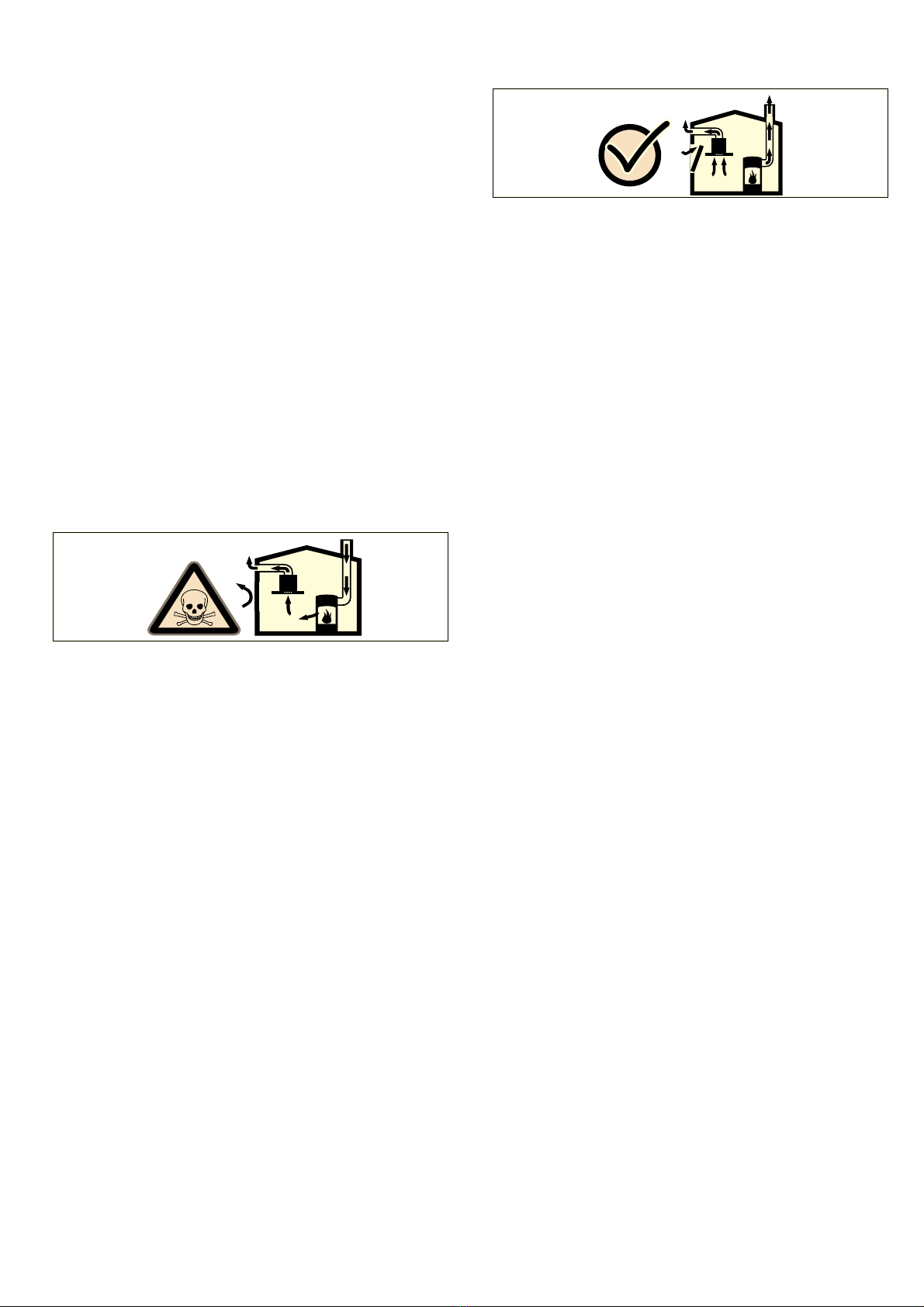

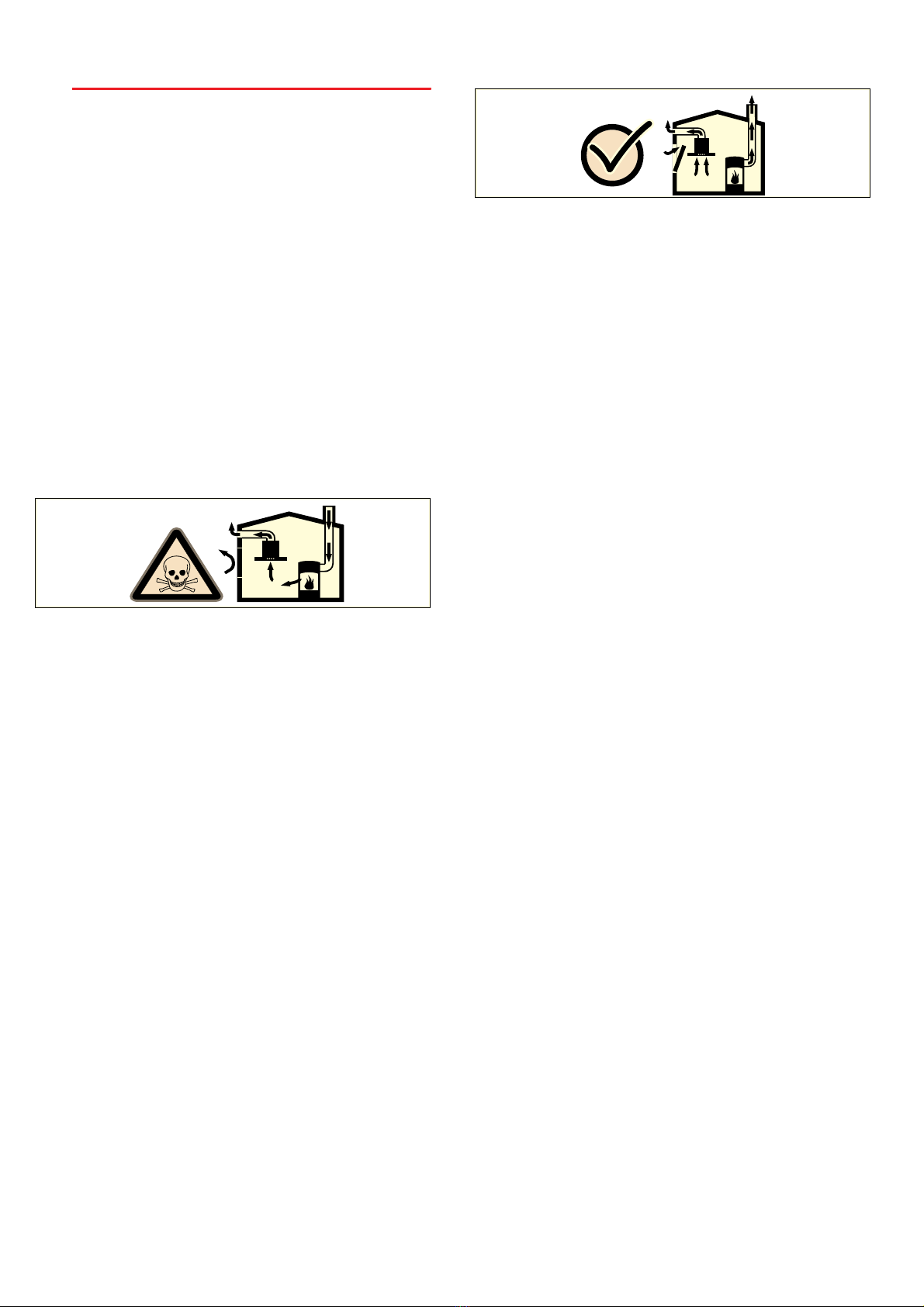

Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Risk of fire!
■Fatty deposits in the grease filter may catch
fire. Regularly clean the grease filter. Never
operate the appliance without a grease
filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.

en Important safety information
4
:Warning
Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than 100
seconds.
:Warning
Risk of injury!
Risk of trapping body parts when opening and
closing the glass front. Do not reach into the
area behind the glass panel, and keep your
fingers away from the hinges.
:Warning
Hazard due to magnetism!
Permanent magnets are inserted in the
appliance front. They may affect electronic
implants, e.g. heart pacemakers or insulin
pumps. Wearers of electronic implants must
stay at least 10 cm away from the appliance
front.
:Warning
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
Risk of damage as a result of incorrect
loading of design elements. Do not pull design
elements.Do not place objects on the design
elements or hang objects from them.

Environmental protection en
5
7Environmental protection
Environmentalprotection Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy
when using the appliance, and how to dispose of your
appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient
supply of air so that the extractor hood can work
efficiently and with a low level of operating noise.
■Adjust the fan speed to the intensity of the cooking
fumes. Only use intensive mode where this is
required. A lower fan speed means that less energy
is consumed.
■If there are intensive cooking fumes, select a higher
fan speed in good time. If cooking fumes have
already spread in the kitchen, the extractor hood
must be operated for longer.
■Switch off the extractor hood if you no longer require
it.
■Switch off the lighting if you no longer require it.
■Clean and, if required, replace the filter at regular
intervals in order to increase the effectiveness of the
ventilation system and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
ÇOperating modes
Operatingmodes Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
Note: To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options for
operating the appliance in circulating-air mode can be
found in the brochure. Alternatively, ask your dealer.
The required accessories are available from specialist
retailers, from customer service or from the Online
Shop.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into the
kitchen.

en Operating the appliance
6
1Operating the appliance
Operatingtheappliance These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel model 1
Setting the fan
Switching on
Touch the #symbol.
The fan will start at fan setting 2.
Selecting a fan setting
Select the fan setting.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the Cor Dsymbol.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the symbol for the required fan
setting.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Fan run-on time
Switching on
Touch the ysymbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the ysymbol.
This immediately stops fan run-on.
Symbol Explanation
#Fan on/off
1-3 Fan settings
CIntensive mode 1
DIntensive mode 2
yFan run-on
>Automatic mode
#Metal grease filter/activated charcoal filter saturation
indicator
DHome Connect
BLight on/off/dimming

Operating the appliance en
7
Automatic mode
Switching on
1. Touch the #symbol.
The fan will start at setting 2.
2. Touch the >symbol.
The optimum fan setting is set automatically using
the PerfectAir sensor.
Switching off
Touch #or any fan setting to switch off automatic
mode.
The fan switches itself off automatically if the PerfectAir
sensor detects no further change in the air quality in the
room.
Automatic mode can run for a maximum of 4 hours.
Sensor control
In automatic mode, the PerfectAir sensor in the
extractor hood detects the intensity of the cooking and
roasting odours. Depending on the setting of the
PerfectAir sensor, the fan automatically switches itself to
another fan setting.
Possible sensor settings:
Default sensitivity setting: „(fan setting 3)
Lowest sensitivity setting: ‚(fan setting 1)
Highest sensitivity setting: † (fan setting D)
If the sensor controller responds too strongly or not
enough, it can be changed accordingly:
1. Touch and hold the >symbol when the fan is
switched off. The setting will be displayed.
2. The sensor controller setting can be changed by
touching symbols 1, 2, 3, Cor D.
3. Take your finger off the >symbol.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■Metal grease filter: #and 1
■Activated charcoal filter: #and 2
■Metal grease filter and activated charcoal filter: #,
1 and 2
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~"Cleaning and maintenance" on page 13
The saturation indicators can be reset while they are
flashing. To do this, touch the #symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■The extractor hood must be connected and switched
off.
■Touch and hold the Dsymbol. Touch the "2"
symbol.Take your finger off the Dsymbol. This
will switch the electronic controller over to air
recirculation mode (filters that cannot be
regenerated).
■Touch and hold the Dsymbol. Touch the "3"
symbol.Take your finger off the Dsymbol. This
will switch the electronic controller over to air
recirculation mode (filters that can be regenerated).
■Repeatedly touching and holding the Dsymbol
and touching the "1" symbol switches the electronic
controller back over to air extraction mode.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the Bsymbol.
Setting the brightness
Press and hold the Bsymbol until the required
brightness is reached.
Audible signal
Switching on
Touch and hold the #and ysymbols at the same
time for approximately 3 seconds when the fan is
switched off. An audible signal will sound as an
acknowledgement.
Switching off
Touch and hold the #and ysymbols at the same
time for approximately 3 seconds when the fan is
switched off. An audible signal will sound as an
acknowledgement.

en Operating the appliance
8
Control panel model 2
Setting the fan
Switching on
Touch the #symbol.
The fan will start at fan setting 2.
Selecting a fan setting
Select the fan setting.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the Cor Dsymbol.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the symbol for the required fan
setting.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Fan run-on time
Switching on
Touch the ysymbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the ysymbol.
This immediately stops fan run-on.
Automatic mode
Switching on
1. Touch the #symbol.
The fan will start at setting 2.
2. Touch the >symbol.
The optimum fan setting is set automatically using
the PerfectAir sensor.
Switching off
Touch #or any fan setting to switch off automatic
mode.
The fan switches itself off automatically if the PerfectAir
sensor detects no further change in the air quality in the
room.
Automatic mode can run for a maximum of 4 hours.
Symbol Explanation
#Fan on/off
1-3 Fan settings
CIntensive mode 1
DIntensive mode 2
yFan run-on
>Automatic mode
EMetal grease filter saturation indicator
FActivated charcoal filter saturation indicator
DHome Connect
lDecorative LED lighting
BLight on/off/dimming

Operating the appliance en
9
Sensor control
In automatic mode, the PerfectAir sensor in the
extractor hood detects the intensity of the cooking and
roasting odours. Depending on the setting of the
PerfectAir sensor, the fan automatically switches itself to
another fan setting.
Possible sensor settings:
Default sensitivity setting: „(fan setting 3)
Lowest sensitivity setting: ‚(fan setting 1)
Highest sensitivity setting: † (fan setting D)
If the sensor controller responds too strongly or not
enough, it can be changed accordingly:
1. Touch and hold the >symbol when the fan is
switched off. The setting will be displayed.
2. The sensor controller setting can be changed by
touching symbols 1, 2, 3, Cor D.
3. Take your finger off the >symbol.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■Metal grease filter: E
■Activated charcoal filter: F
■Metal grease filter and activated charcoal filter: E
and F
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~"Cleaning and maintenance" on page 13
The saturation indicators can be reset while they are
flashing. To do this, touch the appropriate symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■The extractor hood must be connected and switched
off.
■Touch and hold the Dsymbol. Touch the "2"
symbol.Take your finger off the Dsymbol. This
will switch the electronic controller over to air
recirculation mode (filters that cannot be
regenerated).
■Touch and hold the Dsymbol. Touch the "3"
symbol.Take your finger off the Dsymbol. This
will switch the electronic controller over to air
recirculation mode (filters that can be regenerated).
■Repeatedly touching and holding the Dsymbol
and touching the "1" symbol switches the electronic
controller back over to air extraction mode.
Decorative LED lighting
The decorative LED lighting can be switched on and off
independently of the fan.
Touch the lsymbol.
Setting the brightness
Press and hold the lsymbol until the required
brightness is reached.
Setting the colour
1. Switch off the fan.
2. Touch the lsymbol.
3. Touch the 1 or 2 symbol until the colour you require
is selected.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the Bsymbol.
Setting the brightness
Press and hold the Bsymbol until the required
brightness is reached.
Audible signal
Switching on
Touch and hold the #and ysymbols at the same
time for approximately 3 seconds when the fan is
switched off. An audible signal will sound as an
acknowledgement.
Switching off
Touch and hold the #and ysymbols at the same
time for approximately 3 seconds when the fan is
switched off. An audible signal will sound as an
acknowledgement.

en Connecting to a hob
10
eConnecting to a hob
Connectingtoahob You can connect this appliance to a hob and then
control the functions of the hood via your hob.
Appliances can be connected to each other in different
ways:
Home Connect
Two appliances can be connected using the Home
Connect app provided that both of them are Home
Connect compatible.
Refer to the Home Connect documents supplied for
more information.
Connecting appliances directly
If the appliance is connected directly to a hob, it cannot
be connected to your home network as well. The
appliance works like an extractor hood that is not
connected to the network and you can continue to
operate it via the control panel.
Connecting appliances via your home network
If the appliances are connected to each other via your
home network, both the hood controls on the hob and
Home Connect can be used to operate the appliance.
Notes
■Make sure you follow the safety instructions in the
instruction manual for your extractor hood and that
these are complied with even when operating the
appliance via the hood controls on the hob.
■Using the controls on the extractor hood always
takes priority. It is not possible to use the hood
controls on the hob during this time.
Setting up a connection
The hood must be switched off before you can connect
the hob and extractor hood.
Connecting directly
Make sure that the hob is switched on and is in search
mode.
Refer to your hob's instruction manual for more
information.
Notes
■If your extractor hood is connected directly to the
hob, it cannot be connected to your home network
as well and you will not be able to use Home
Connect.
■The hob cannot be connected to your home
network. To break a connection, follow the
instructions in the section entitled "Resetting Home
Connect".
1. Press and hold the Dsymbol until it starts to flash.
2. Confirm the connection on the hob within the next
30 seconds.
The extractor hood has been connected to the hob
when the Dstops flashing and remains continuously
lit.
Connecting via your home network
Follow the instructions in the section entitled "Automatic
login to your home network" or "Manually logging into
your home network" ~"Home Connect" on page 11
Once the extractor hood is connected to your home
network, you can connect to the hob via the Home
Connect app. To do this. follow the instructions on your
mobile device.



Home Connect en
11
oHome Connect
HomeConnect This appliance is Wi-Fi-capable and can be controlled
using a mobile device.
If the appliance is not connected to your home network,
it will function as an extractor hood with no network
connection and can still be operated via the display.
The availability of the Home Connect function depends
on the availability of Home Connect services in your
country. Home Connect services are not available in
every country. You can find more information on this at
www.home-connect.com.
Notes
■Ensure that you follow the safety instructions in this
instruction manual and that you comply with these
even when you are away from home and are
operating the appliance via the Home Connect app.
You must also follow the instructions in the
Home Connect app.
■Using the controls on the appliance itself always
takes priority over remote control. During this time, it
is not possible to operate the appliance using the
Home Connect app.
Setting up
To implement settings via Home Connect, you must
have installed and set up the Home Connect app on
your mobile device.
Refer to the Home Connect documents supplied for
more information.
Follow the steps specified by the app to implement the
settings.
The app must be open in order to perform the set-up
process.
Automatic registration in the home network
Notes
■You require a router that has WPS functionality.
■You require access to your router. If you do not have
this, follow the steps for "Manually logging into your
home network".
■The extractor hood cannot be switched on during the
connection process. You can cancel the process at
any time by pressing the #symbol.
■To connect the extractor hood to your home
network, the hood and the light must be switched off.
1. Press and hold the Dsymbol until it starts to flash.
2. Press "1" to start automatic login to your home
network.
The LED for fan setting 1 and the Dsymbol will
flash.
3. Press the WPS button on the router within the next
2 minutes.
If the extractor hood has successfully connected, it
will automatically connect to the Home Connect app.
The LED for fan setting 3 and the Dsymbol will
flash.
Note: If the extractor hood has been unable to
connect, it will automatically allow you to manually
connect to your home network. The LED for fan
setting 2 and the Dsymbol will flash. Log the
appliance into your home network manually or press
"1" to try logging in automatically again.
4. On your mobile device, follow the instructions for
automatic network login.
The login process is complete when the Dsymbol
stops flashing on the control panel and remains
continuously lit.
Manual registration in the home network
Notes
■The extractor hood cannot be switched on during the
connection process. You can cancel the process at
any time by pressing the #symbol.
■To connect the extractor hood to your home
network, the hood and the light must be switched off.
1. Press and hold the Dsymbol until it starts to flash.
2. Press "2" to manually log into your home network.
The LED for fan setting 2 and the Dsymbol will
flash.
3. Use the "Home Connect" SSID and the "Home
Connect" key to log the mobile device into the
extractor hood network.
If the extractor hood has successfully connected, it
will automatically connect to the Home Connect app.
The LED for fan setting 3 and the Dsymbol will
flash.
4. On your mobile device, follow the instructions for
manually logging into your network.
The login process is complete when the Dsymbol
stops flashing on the control panel and remains
continuously lit.

en Home Connect
12
Connecting to the app
If the Home Connect app is installed on your mobile
device, you can connect it to your extractor hood.
Notes
■The appliance must be connected to the network.
■The app must be open.
1. Press and hold the Dsymbol until the LED for fan
setting 3 and the Dsymbol flash.
2. On your mobile device, follow the instructions in the
Home Connect app.
The connection is process is complete when the D
symbol stops flashing on the control panel and remains
continuously lit.
Software update
Using the software update function, your extractor
hood's software can be updated (e.g. for the purpose of
optimisation, troubleshooting or security updates). To
do this, you need to be a registered Home Connect
user, have installed the app on your mobile device and
be connected to the Home Connect server.
As soon as a software update is available, you will be
informed through the Home Connect app and will be
able to start the software update via the app.
Once the update has been successfully downloaded,
you can start installing it via the Home Connect app if
you are on your local area network.
The Home Connect app will inform you once installation
is complete.
Notes
■You can continue to use your extractor hood as
normal while updates are downloading.
■Depending on your personal settings in the app,
software updates can also be set to download
automatically.
■We recommend that you install security updates as
soon as possible.
Resetting the connection
You can reset the connections you have saved on your
home network and on Home Connect at any time.
Press and hold the #and Dsymbols until an audible
signal sounds.
About data protection
When your appliance is connected for the first time to a
WLAN network, which is connected to the Internet, your
appliance transmits the following categories of data to
the Home Connect server (initial registration):
■Unique appliance identification (consisting of
appliance codes as well as the MAC address of the
installed WiFi communication module).
■Security certificate of the WiFi communication
module (to ensure a secure IT connection).
■The current software and hardware version of your
domestic appliance.
■Status of any previous resetting to factory settings.
This initial registration prepares the Home Connect
functions for use and is only required when you want to
use these Home Connect functions for the first time.
Note: Ensure that the Home Connect functions can be
used only in conjunction with the Home Connect app.
Information on data protection can be accessed in the
Home Connect app.
Declaration of Conformity
Robert Bosch Hausgeräte GmbH hereby declares that
the appliance which features Home Connect is in
accordance with the basic requirements and the other
relevant provisions of the directive 1999/5/EC.
A detailed R&TTE Declaration of Conformity can be
found online at www.bosch-home.com/de on the
product page for appliance in the additional documents.

Cleaning and maintenance en
13
2Cleaning and maintenance
Cleaningandmaintenance :Warning
Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
:Warning
Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
:Warning
Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
:Warning
Risk of injury!
Risk of trapping body parts when opening and closing
the glass front. Do not reach into the area behind the
glass panel, and keep your fingers away from the
hinges.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning product, follow the
instructions in the table. Do not use any of the following:
■Harsh or abrasive cleaning agents, e.g. scouring
powder or liquid scouring cleaner,
■Cleaning products with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■Pressure washers or steam cleaners,
■Cleaning products that dissolve limescale,
■Aggressive all-purpose cleaning products,
■Oven spray.
Note: Wash new sponge cloths thoroughly before use.
Note: Follow all instructions and warnings included with
the cleaning products.
--------
Removing metal grease filter
1. Open the glass front fully.
2. Open the lock and swing down the metal grease
filter. When you do this, take hold of the metal
grease filter from underneath with your other hand.
3. Take the metal grease filter out of the holder.
Notes
– Fat may accumulate in the bottom of the metal
grease filter.
– Hold the metal grease filter level to prevent
grease from dripping out.
Area Cleaning products
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a
soft cloth.
Clean stainless steel surfaces in the direction
of the grain only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers.Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and then dry
with a soft cloth.
Do not use stainless steel cleaner.
Aluminium and plastic Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and then dry
with a soft cloth.
Risk of electric shock caused by penetrating
moisture.
Risk of damage to the electronics caused by
penetrating moisture. Never clean controls
with a wet cloth.
Do not use stainless steel cleaner.

en Cleaning and maintenance
14
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of fire!
Fatty deposits in the grease filter may catch fire.
Regularly clean the grease filter. Never operate the
appliance without a grease filter.
Notes
■Do not use aggressive, acidic or alkaline cleaning
products.
■We recommend cleaning the grease filters every 2
months.
■When cleaning the metal grease filters, also clean
the metal grease filter holder in the appliance using
a damp cloth.
■The metal grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special degreaser to remove
stubborn dirt. This can be ordered from the online shop.
■Soak the metal grease filters in hot soapy water.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal grease filters to drain on an
absorbent material.
In the dishwasher:
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This
discolouration has no effect on the performance of the
metal grease filters.
■Use normal domestic dishwashing detergents.
■Do not clean heavily soiled metal grease filters
together with cookware.
■Place the metal grease filters in the dishwasher,
leaving plenty of space around them. Do not trap the
metal grease filters.
■Select a temperature of no more than 50 °C.
Installing the metal mesh grease filter
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Note: Clean all accessible parts of the housing.
1. Insert the metal grease filter and lock it in place.
When you do this, take hold of the metal grease filter
from underneath with your other hand.
Note: Make sure that the metal grease filter is
positioned correctly.
2. If the metal grease filter has not been inserted
correctly, open the lock and reinsert the metal
grease filter correctly.

Trouble shooting en
15
3Trouble shooting
Troubleshooting Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Malfunction table
--------
LED lights
Defective LED lights may be replaced by the
manufacturer, their customer service or a qualified
technician (electrician) only.
:Warning
Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than 100
seconds.
4Customer service
Customerservice When calling us, please quote the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. These numbers can
be found on the rating plate on the top of the appliance.
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Accessories
(not included in the scope of delivery)
Note: These instructions apply to several appliance
models. It may be the case that an optional accessory
that is listed does not apply for your appliance.
Note: Observe the installation instructions in the
accessory.
--------
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged in.
Connect the appliance to the
electricity supply
Power cut Check whether other kitchen
appliances are working
Faulty fuse Check in the fuse box to make
sure that the fuse for the
appliance is OK
The lighting does
not work.
The LED lights
are defective.
Call the after-sales service.
The button illumi-
nation does not
work.
The control unit is
faulty.
Call the aftersales service.
E no. FD no.
After-sales serviceO
=1U)'(1U
7\SH
GB 0344 892 8979
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
Accessories Order number
Starter set for air recirculation mode (flat hood
with chimney)
Easy-change filter for starter set
DWZ0AF0U0
DWZ0AF0A0
Starter set for air recirculation mode (flat hood
without chimney)
Easy-change filter for starter set
DWZ0AF0T0
DWZ0AF0A0
Starter set for air recirculation mode (angled hood
with chimney)
Easy-change filter for starter set
DWZ0AK0U0
DWZ0AK0A0
Starter set for air recirculation mode (angled hood
without chimney)
Easy-change filter for starter set
DWZ0AK0T0
DWZ0AK0A0
Starter set for air recirculation mode with filter
that can be regenerated (flat hood with chimney)
DWZ0AF0S0
Starter set for air recirculation mode with filter
that can be regenerated (flat hood without chim-
ney)
DWZ0AF0R0
Starter set for air recirculation mode with filter
that can be regenerated (angled hood with chim-
ney)
DWZ0AK0S0
Starter set for air recirculation mode with filter
that can be regenerated (angled hood without
chimney)
DWZ0AK0R0
CleanAir air recirculation module
Easy-change filter for CleanAir air recirculation
module (cannot be regenerated)
DWZ0AX5C0
DSZ5201
Easy-change filter for CleanAir air recirculation
module (can be regenerated)
DZZ0XX0P0

en Customer service
16
INSTALLATION INSTRUCTIONS
Installation instructions
■This appliance is installed on the wall.
■If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-
recirculation mode, an optional accessory must be
fitted. To do this, refer to the installation instructions
provided.The flue duct does not need to be fitted for
air-recirculation mode.
■For additional optional accessories, refer to the
installation instructions provided.
■The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
$ %
$ %
"
PLQ
PP
PLQ PP
PD[PP
PLQ
PP
PLQ PP
PD[PP
PP
PP
#
PP
PP
PP
PP

Important safety information en
17
Note: We recommend fitting the appliance such that the
lower edge of the glass screen is in line with the lower
edges of the adjacent wall-hung cabinets. Make sure
that the specified safety clearances from the hob are
complied with.
(Important safety
information
Importantsafetyinformation Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
Caution!
Damage to the appliance
The surfaces of the appliance are sensitive.
Avoid damaging them during installation.
The width of the extractor hood must
correspond at least with the width of the hob.
For the installation, observe the currently valid
building regulations and the regulations of the
local electricity and gas suppliers.
:Warning
Risk of fire!
Fatty deposits in the grease filter may catch
fire. The specified safety clearances must be
complied with in order to prevent a build-up of
heat. Refer to the information provided for your
cooker. If gas and electric hobs are being
operated together, the largest specified
clearance applies.
:Warning
Risk of fire!
Grease deposits in the grease filter may catch
fire. Never work with naked flames close to the
appliance (e.g. flambéing). Do not install the
appliance near a heat-producing appliance for
solid fuel (e.g. wood or coal) unless a closed,
non-removable cover is available. There must
be no flying sparks.
When conveying the exhaust air, official and
legal regulations (e.g. state building
regulations) must be followed.
" #

en Important safety information
18
:Warning
Risk of death!
Risk of poisoning from flue gases that are
drawn back in. The exhaust air must not be
conveyed into a functioning smoke or exhaust
gas flue or into a shaft which is used to
ventilate installation rooms that contain
heating appliances. If the exhaust air is to be
conveyed into a non-functioning smoke or
exhaust gas flue, you must obtain the consent
of the heating engineer responsible.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in. If installing a ventilation system
in a room with a heat-producing appliance
connected to a chimney/flue, the electricity
supply to the hood must be equipped with a
suitable safety switch.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■The appliance may fall down if it has not
been properly fastened in place. All
fastening components must be fixed firmly
and securely.
Risk of injury!
■The appliance is heavy. To move the
appliance, 2 people are required. Use only
suitable tools and equipment.
Risk of injury!
■Changes to the electrical or mechanical
assembly are dangerous and may lead to
malfunctions. Do not make any changes to
the electrical or mechanical assembly.
:Warning
Hazard due to magnetism!
Permanent magnets are inserted in the
appliance front. They may affect electronic
implants, e.g. heart pacemakers or insulin
pumps. Wearers of electronic implants must
stay at least 10 cm away from the appliance
front.

General information en
19
:Warning
Risk of electric shock!
■Components inside the appliance may have
sharp edges. These may damage the
connecting cable. Do not kink or pinch the
connecting cable during installation.
Risk of electric shock!
■It must always be possible to disconnect
the appliance from the electricity supply.
The appliance must only be connected to a
protective contact socket that has been
correctly installed. If the plug is no longer
accessible once the appliance has been
installed, or a fixed connection is required,
the installation must have an all-pole
isolating switch with a contact gap of at
least 3 mm. Only an electrician may install
the fixed connection. We recommend
installing a residual-current circuit breaker
(RCCB) in the appliance's power supply
circuit.
:Warning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may
only be carried out and damaged power
cables replaced by one of our trained after-
sales technicians. If the appliance is defective,
unplug the appliance from the mains or switch
off the circuit breaker in the fuse box. Contact
the after-sales service.
:Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
KGeneral information
Generalinformation Checking the wall
■The wall must be level, vertical and adequately load-
bearing.
■The depth of the bore holes must be the same
length as the screws. The wall plugs must have a
secure grip.
■The enclosed screws and wall plugs are suitable for
solid brickwork. Suitable fasteners must be used for
other structures (e.g. plasterboard, porous concrete,
poroton bricks).
■The maximum weight of the extractor hood is 40 kg.
Electrical connection
:Warning
Risk of electric shock!
Components inside the appliance may have sharp
edges. These may damage the connecting cable. Do
not kink or pinch the connecting cable during
installation.
The required connection information can be found on
the rating plate on the top of the appliance.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference
suppression regulations.
:Warning
Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed. If the plug is no longer accessible
once the appliance has been installed, or a fixed
connection is required, the installation must have an all-
pole isolating switch with a contact gap of at least
3 mm. Only an electrician may install the fixed
connection. We recommend installing a residual-current
circuit breaker (RCCB) in the appliance's power supply
circuit.

en Installation
20
5Installation
Installation Preparing for installation
Caution!
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-recirculation
mode, an optional accessory must be fitted. To do this,
refer to the installation instructions provided. The flue
duct does not need to be fitted for air-recirculation
mode.
1. Determine where the extractor hood should be
positioned and lightly mark where the lower edge of
the appliance should be on the wall. Determine
where the middle should be based on the hob.
Note: We recommend fitting the extractor hood such
that the lower edge of the glass screen is in line with
the lower edges of the adjacent wall-hung cabinets.
Make sure that the specified safety clearances from
the hob are complied with.
2. Place the template against the line drawn on the wall
and fasten it in place. Mark where the screws should
be inserted.
To fit the flue duct, the template must be cut along
the marked cut line.
3. Drill 8 mm diameter holes to a depth of 80 mm for
fastening the appliance, remove the template and
press in the wall plugs flush with the wall.
$
%
]
]
[
PP
[
PP
[
PP
[
PP
\
\
