Bosch DUL62FA21 User manual

[en] User manual ....................... 3
Extractor hood
DUL62FA21, DUL62FA51

3
ÚTable of contents [en]Usermanual
Important safety information.....................................................3
Environmental protection..........................................................5
Saving energy......................................................................................5
Environmentally friendly disposal ....................................................5
Operating modes........................................................................5
Air extraction mode ............................................................................5
Air recirculation mode........................................................................5
Operating the appliance ............................................................6
Setting the fan .....................................................................................6

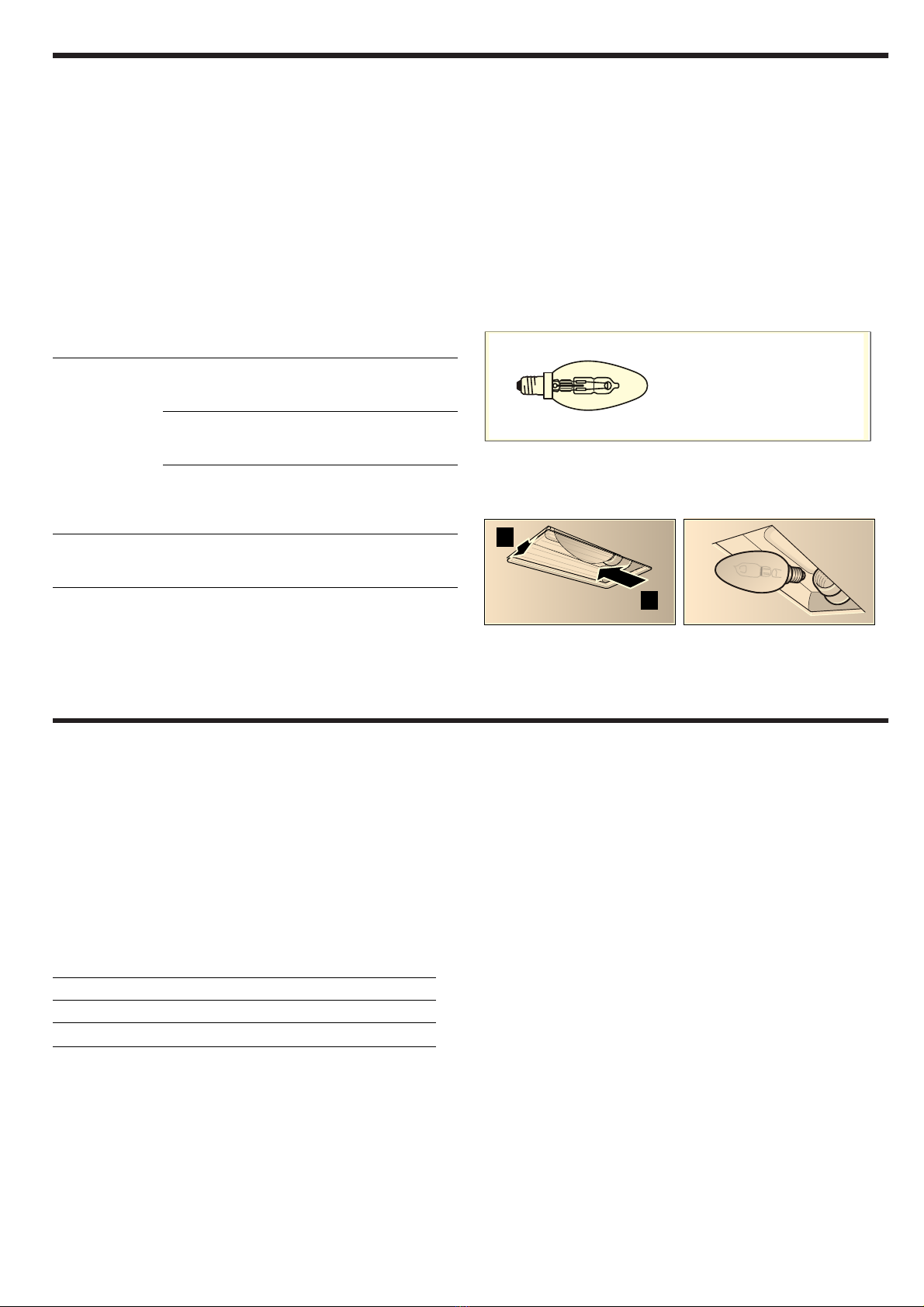

Lighting .................................................................................................6
Cleaning and maintenance........................................................6
What to do in the event of a fault..............................................8
Fault table.............................................................................................8
Customer service .......................................................................8
Accessories ................................................................................9
Product information
Additional information on products, accessories, spare parts
and services can be found online at www.bosch-home.com
and in the online shop at www.bosch-eshop.com
For product information or advice on application and operation,
please contact our Bosch Infoteam on Tel.: [phone]
(Mon-Fri, 8 a.m. to 6 p.m.). Only available in Germany.
: Important safety information
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the user manual
and installation instructions for future use or
for subsequent owners.
The appliance can only be used safely if it
is correctly installed according to the
installation instructions. The installer is
responsible for ensuring that the appliance
works perfectly at its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside.
Do not leave the appliance unattended
during operation. The manufacturer is not
liable for damage which is caused by
improper use or incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Do not let children play with the appliance.
Children must not clean the appliance or
carry out general maintenance unless they
are at least 8 years old and are being
supervised.
Keep children below the age of 8 at a safe
distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance
if it has been damaged in transit.
This appliance is not intended for operation
with an external clock timer or a remote
control.
Danger of suffocation!
Packaging material is dangerous to
children. Never allow children to play with
packaging material.
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the
room if the appliance is being operated in
air extraction mode at the same time as a
non-room-sealed heat-producing appliance
is being operated.
Non-room-sealed heating appliances (e.g.
gas-, oil-, wood- or coal-burning heaters,
continuous flow heaters or water heaters)
draw in combustion air from the room in
which they are installed and discharge the
exhaust gases outdoors through an exhaust
gas system (e.g. a chimney).

4
In combination with an activated extractor
hood, room air is extracted from the kitchen
and neighbouring rooms - a partial vacuum
is produced if not enough fresh air is sup-
plied. Toxic gases from the chimney or the
extraction shaft are sucked back into the liv-
ing space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone
does not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved whenever the air needed for
combustion is able to enter through
openings that cannot be sealed, for
example in doors, windows, in combination
with incoming/exhaust air wall boxes or by
other technical means.
Always consult your responsible master
chimney sweep. They are able to assess
the house's entire ventilation setup and
suggest suitable ventilation measures to
you.
Unrestricted operation is possible if the
extractor hood is operated exclusively in air
recirculation mode.
Risk of fire!
■The grease deposits in the grease filter
may catch fire.
Replace the grease filter at least every
2 months.
Never operate the appliance without a
grease filter.
Risk of fire!
■The grease deposits in the grease filter
may catch fire. Never work with naked
flames close to the appliance (e.g.
flambéing). Do not install the appliance
near a heat-producing appliance for solid
fuel (e.g. wood or coal) unless a closed,
non-removable cover is present. There
must be no flying sparks.
Risk of fire!
■Hot oil and fat ignites quickly. Never leave
hot fat or oil unattended. Never use water
to put out burning oil or fat. Switch off the
hotplate. Extinguish flames carefully using
a lid, fire blanket or something similar.
Risk of fire!
■When gas hotplates are in operation
without any cookware placed on them,
they can build up a lot of heat. A
ventilation appliance installed above the
cooker may become damaged or catch
fire. Only operate the gas hotplates with
cookware on them.
Risk of fire!
■Operating several gas hotplates at the
same time produces a great deal of heat.
A ventilation appliance installed above the
cooker may become damaged or catch
fire. Never operate two gas hotplates
simultaneously on the highest flame for
longer than 15 minutes. One large burner
of more than 5 kW (wok) is equivalent to
the power of two gas burners.
Risk of burns!
The accessible parts become very hot when
in operation. Never touch these hot parts.
Keep children at a safe distance.
Risk of injury!
■Components inside the appliance may
have sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall off.
Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than
100 seconds.

5
Risk of electric shock!
■A defective appliance may cause an elec-
tric shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the fuse in the fuse
box. Call customer service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained customer service technicians. If
the appliance is defective, unplug the
appliance from the mains or switch off the
fuse in the fuse box. Call customer ser-
vice.
Risk of electric shock!
■Penetrating moisture may result in an elec-
tric shock. Do not use high-pressure
cleaners or steam cleaners.
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the
appliance while cooking to avoid condensation. Condensate
may cause corrosion damage.
Risk of damage due to ingress of moisture into the electronics.
Never clean control elements with a wet cloth.
Surface damage due to incorrect cleaning. Always clean
stainless steel surfaces in the direction of the grain. Do not use
any stainless steel cleaners for the control elements.
Surface damage due to harsh or abrasive cleaning agents.
Never use harsh or abrasive cleaning agents.
Risk of damaged caused by returning condensate. Install the
air extraction duct in such a way that it falls away from the
appliance slightly (1° slope).
Environmental protection
Your new appliance is particularly energy-efficient. Here you
can find tips on how to save even more energy when using the
appliance, and how to dispose of your appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient supply of air
to enable the extractor hood to work efficiently and with a low
level of operating noise.
■Adjust the fan speed to the amount of cooking vapour pro-
duced during cooking. Only use intensive mode when
required. The lower the fan speed, the less energy is con-
sumed.
■If cooking produces large amounts of cooking vapours,
select a higher fan speed in good time. If the cooking
vapours have already spread around the kitchen, the extrac-
tor hood will need to be operated for longer.
■Switch off the extractor hood if you no longer require it.
■Switch off the lighting if you no longer require it.
■Clean and (if required) replace the filter at the specified inter-
vals in order to increase the effectiveness of the ventilation
system and to prevent the risk of fire.
Environmentally friendly disposal
Dispose of the packaging in an environmentally friendly
manner.
Operating modes
This appliance can be used in air extraction mode or air
recirculation mode.
Air extraction mode
Note: The air must not be discharged into a flue that is used for
exhaust fumes from appliances that burn gas or other fuels (not
applicable to appliances that only discharge the air back into
the room).
■Before conveying the exhaust air into a non-functioning
smoke or exhaust gas flue, obtain the consent of the master
chimney sweep responsible.
■If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Air recirculation mode
Note: To bind odours in air recirculation mode, you must install
an activated charcoal filter. The different options for operating
the appliance in air recirculation mode can be found in the
brochure. Alternatively, ask your specialist retailer. The required
accessories are available from specialist retailers, from
customer service or from the online shop. The accessory
numbers can be found at the end of the user manual.
This appliance is labelled in accordance with
European Directive 2012/19/EU on waste electrical
and electronic equipment (WEEE).
This Directive provides an EU-wide framework for
returning and recycling old appliances.
The air which is drawn in is cleaned by the
grease filters and conveyed outdoors by a
pipe system.
The air which is drawn in is cleaned by the
grease filters and an activated charcoal filter, and
is conveyed back into the kitchen.

6
Operating the appliance
These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
Note: Switch on the extractor hood when you start cooking and
switch it off again several minutes after you have finished
cooking. This is the most effective way of removing the kitchen
fumes.
Note: Fold the glass cover forwards. This increases the
extraction area.
Control panel
Setting the fan
Note: Always adjust the fan strength to meet current conditions.
If there is a large build-up of steam or fumes, select a high fan
setting.
Switching on
Set the slide control to position 1, 2 or 3.
Note: When the fan is on, an LED is lit.
Switching off
Set the slide control to position 0.
Lighting
The lighting can be switched on and off independently of the
ventilation system.
Set the slide control to position 1.
Cleaning and maintenance
: Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
: Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the
appliance using a damp cloth only. Before cleaning, unplug the
appliance from the mains or switch off the fuse in the fuse box.
: Risk of electric shock!
Penetrating moisture may result in an electric shock. Do not
use high-pressure cleaners or steam cleaners.
: Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Cleaning agent
To ensure that the different surfaces are not damaged by using
the wrong cleaning agent, observe the information in the table.
Do not use:
■Harsh or abrasive cleaning agents,
■Cleaning agents with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning
agents.
1 Lighting
0 Switching off the lighting
1 Switching on the lighting
 
2 Fan
0 Switching off the fan
1 Switching on fan setting 1
2 Switching on fan setting 2
3 Switching on fan setting 3
Area Cleaning agent
Stainless steel Hot soapy water:
Clean using a dishcloth and then dry
with a soft cloth.
Always clean stainless steel surfaces in
the direction of the grain.
Special stainless steel cleaning prod-
ucts are available from our customer
service or from specialist retailers.
Apply a very thin layer of the cleaning
product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dishcloth and then
dry with a soft cloth.
Do not use any stainless steel cleaners.
Aluminium and
plastic
Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a
glass scraper.
Control elements Hot soapy water:
Clean using a damp dishcloth and then
dry with a soft cloth.
Risk of electric shock caused by
penetrating moisture.
Risk of damage to the electronics from
penetrating moisture. Never clean
control elements with a wet cloth.
Do not use any stainless steel cleaners.

7

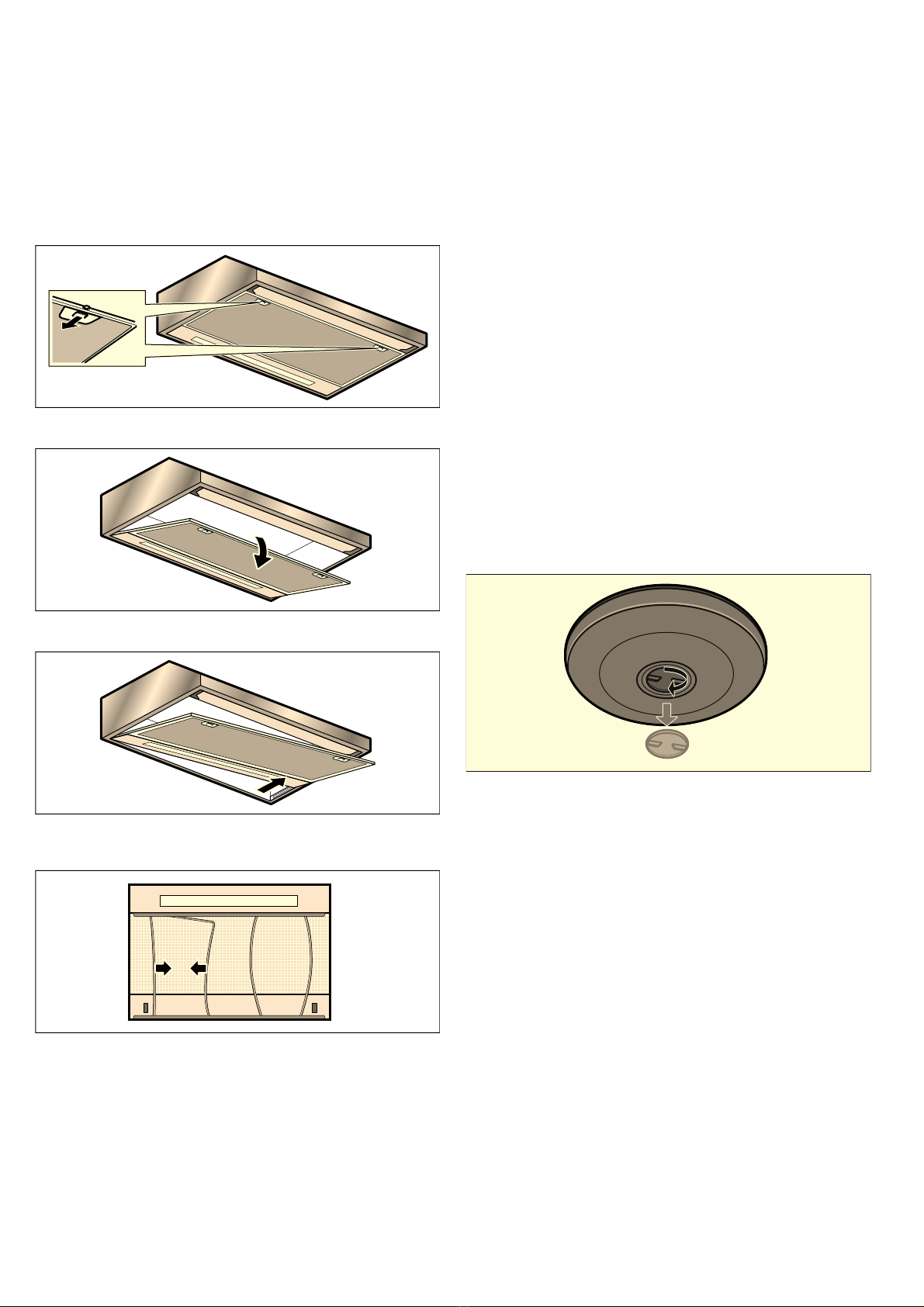

Removing the fleece grease filter
: Risk of fire!
The grease deposits in the grease filter may catch fire.
Replace the grease filter at least every 2 months.
Never operate the appliance without a grease filter.
Note: Only use genuine replacement filters. This ensures
compliance with safety regulations and optimal performance of
the appliance.
1. Press the locks on the left and right of the filter grid.
2. Swing the filter grid down.
3. Position the filter grid at an angle and remove it.
4. Remove the wires
and then remove the fleece grease filter.
5. After removing the fleece grease filter, clean the inside of the
appliance.
6. Clean the filter grid.
Fitting the fleece grease filter
1. Trim the new fleece grease filter to the required size and
place it in the filter grid.
2. Clamp the fleece grease filter in place with the wires.
3. Insert the filter grid.
Note: Make sure that the locks on the left and right of the
filter grid engage.
Changing the activated charcoal filter (only in
air recirculation mode)
To ensure effective odour removal, the filters must be serviced
regularly.
The activated charcoal filters must be replaced at least every
4 months.
Notes
■The activated charcoal filters are not included with the
appliance. Activated charcoal filters are available from
specialist retailers, from our customer service or from our
online shop.
■The activated charcoal filters cannot be cleaned or
reactivated.
Note: Only use genuine replacement filters. This will ensure that
the appliance performs optimally.
1. Remove the fleece grease filter; see the section entitled
Removing the fleece grease filter.
2. Undo the threaded connections on the activated charcoal
filter covers.
3. Remove the activated charcoal filter.
4. Insert the new activated charcoal filter.
5. Screw the covers into place.
6. Fit the fleece grease filter; see the section entitled Fitting the
fleece grease filter.

8
What to do in the event of a fault
You can often easily rectify technical faults with the appliance
yourself. Please read the following notes before calling
customer service.
: Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried
out and damaged power cables replaced by one of our trained
customer service technicians. If the appliance is defective,
unplug the appliance from the mains or switch off the fuse in
the fuse box. Call customer service.
Fault table
--------
Replacing the LED lights
: Risk of electric shock!
When changing the bulbs, the bulb socket contacts are live.
Before changing the bulb, unplug the appliance from the mains
or switch off the fuse in the fuse box.
: Risk of injury!
The light emitted by LED lights is very dazzling and can
damage the eyes (risk group 1). Do not look directly into the
switched on LED lights for longer than 100 seconds.
Important! Only use bulbs of the same type and wattage.
1. Lift the bulb cover slightly and push towards the outside of
the appliance.
2. Unscrew the bulb and replace it with a bulb of the same type.
3. Refit the bulb cover.
4. Insert the mains plug or switch on the fuse again.
Customer service
Our customer service is there for you if your appliance needs to
be repaired. We will always find an appropriate solution in order
to avoid unnecessary visits by engineers.
When calling us, please give the product number (E no.) and
the production number (FD no.) so that we can provide you with
the correct advice. The rating plate with these numbers can be
found inside the appliance (remove the filter grid to gain
access).
You can make a note of the numbers of your appliance and the
telephone number of the customer service in the space below
to save time should it be required.
Please note that a visit from a customer service engineer is not
free of charge in the event that the appliance has been
misused, even during the warranty period.
The contact information for your nearest customer service can
be found here or in the enclosed customer service directory.
Obtaining advice and ordering repairs if a fault occurs
Trust the expertise of the manufacturer. You can therefore be
sure that the repair is carried out by trained service technicians
who carry original spare parts for your appliance.
Fault Possible cause Solution
Appliance not
working
The plug is not
plugged into the
mains
Connect the appliance to
the mains electricity supply
Power failure Check whether other
kitchen appliances are
working
The fuse is
faulty
Check in the fuse box to
make sure that the fuse for
the appliance is in working
order
The lighting
does not work.
The LED lights
are defective.
You can read about this in
the section entitled
"Replacing the LED lights".
'5%%)(


E no. FD no.
Customer service O
A0810 550 511
D089 69 339 339
CH 0848 840 040

9
Accessories
(not included with the appliance)
Activated charcoal filter
Fleece grease filter
--------
DHZ2701
DHZ2140

10

11

020525
*9001759095*
9001759095
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
