[en]Instructions for installation and use
Extractor hood

en
3
ÚTable of contents
[ en] I nst r uct i ons for installation and us e
INSTRUCTION MANUAL ..........................................................3
8Intended use ......................................................... 3
(Important safety information .............................. 4
7Environmental protection.................................... 6
ÇOperating modes.................................................. 6
1Operating the appliance ...................................... 7
eConnecting to a hob ............................................ 9

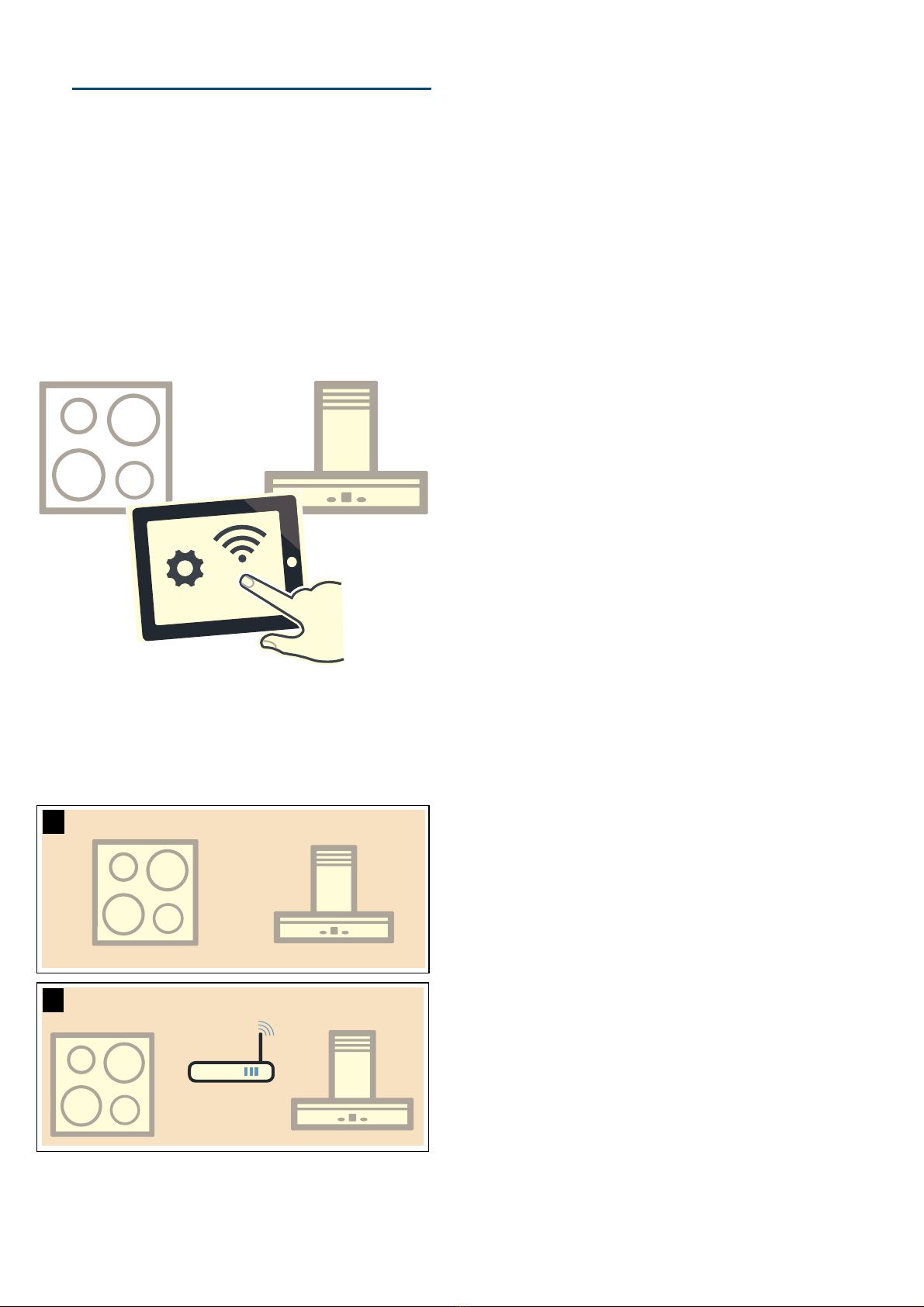

oHome Connect.................................................... 10

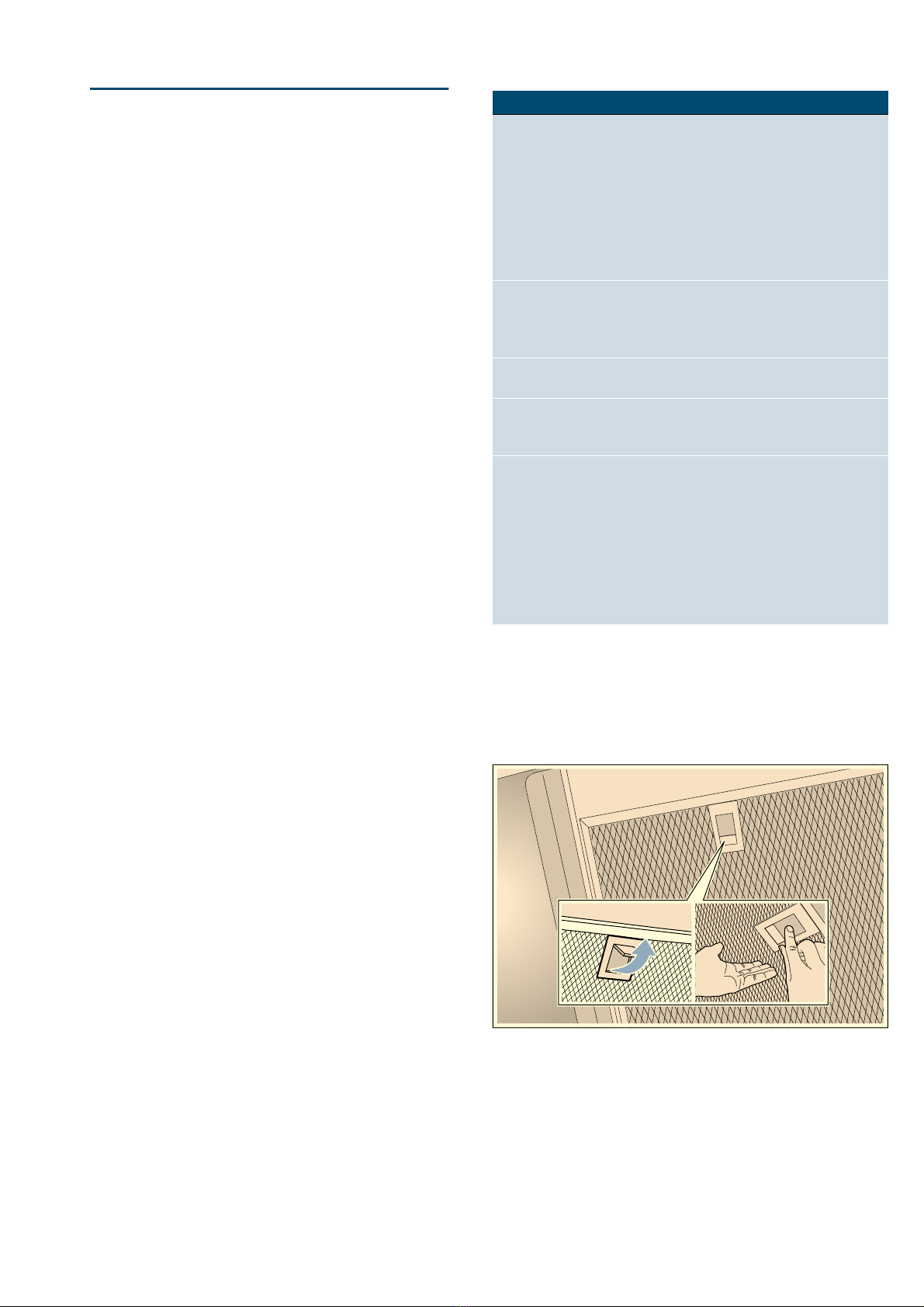

2Cleaning and maintenance................................ 12
3Trouble shooting................................................ 14
4Customer service ............................................... 14
INSTALLATION INSTRUCTIONS...........................................15
(Important safety information ............................ 15
KGeneral information ........................................... 17

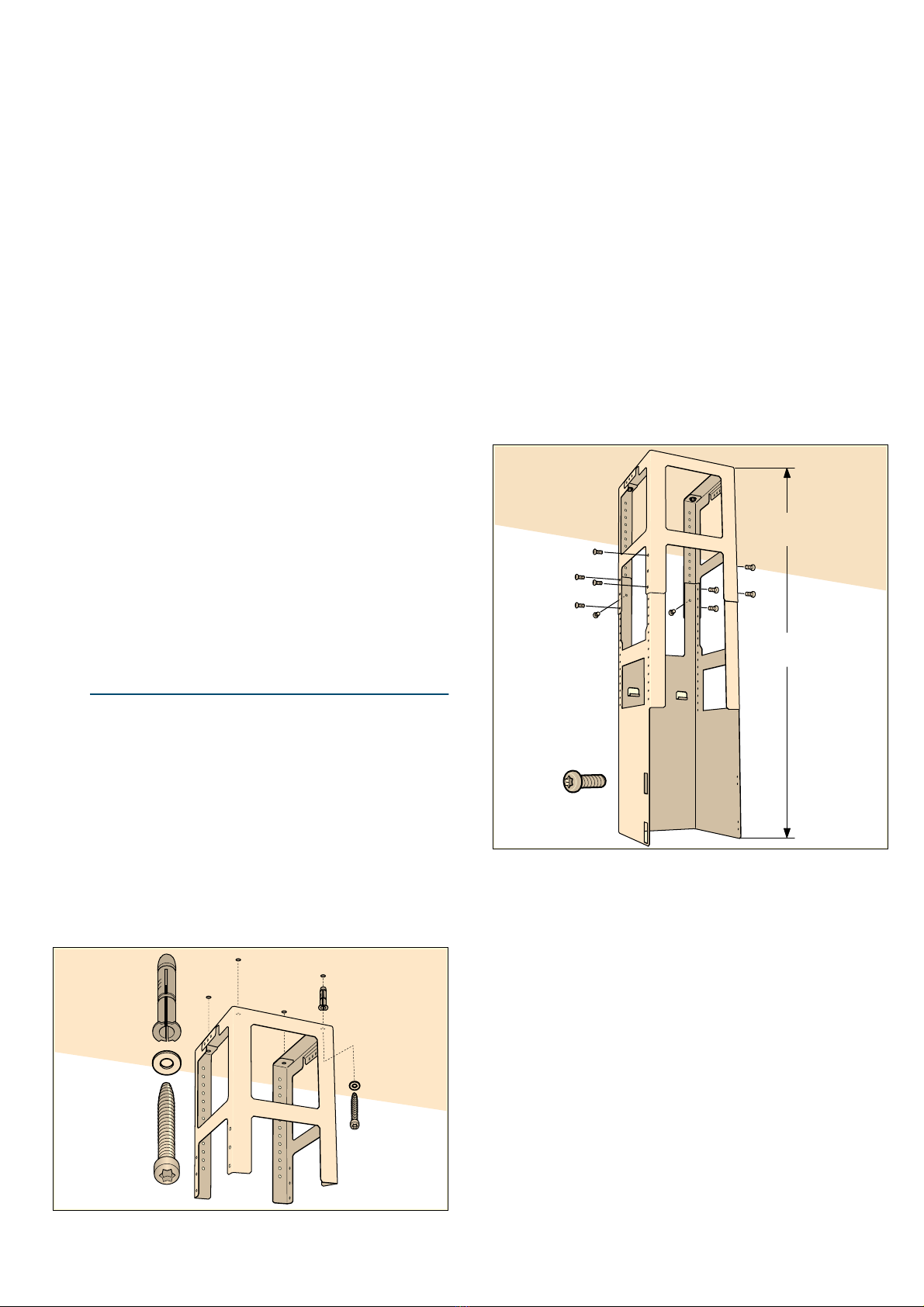

5Installation .......................................................... 18
INSTRUCTION MANUAL
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.siemens-home.bsh-group.com and in the online
shop www.siemens-home.bsh-group.com/eshops
8Intended use
Intended use Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental capacity
or by persons with a lack of experience or
knowledge if they are supervised by someone
who is responsible for their safety, or have
been instructed in how to use the appliance
safely and have understood the risks involved
in not using it properly.
Children must not play with the
appliance.Cleaning and user maintenance
must not be performed by children unless they
are over 15 years of age and are supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.

en Important safety information
4
(Important safety
information
Impor t ant saf et y informat i on :Warning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.

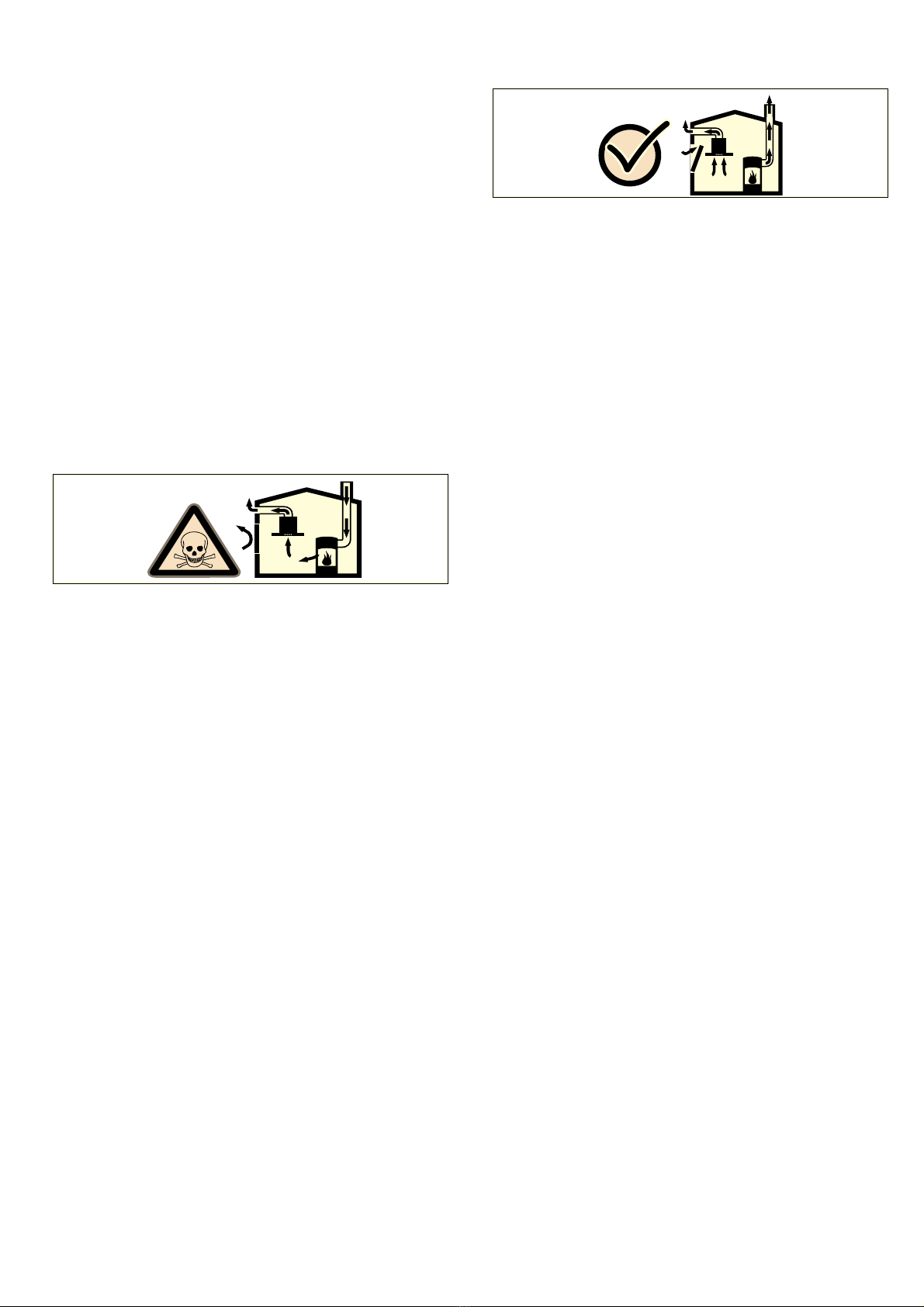

:Warning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning – Risk of fire!
■Fatty deposits in the grease filter may catch
fire. Regularly clean the grease filter. Never
operate the appliance without a grease
filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.

Important safety information en
5
:Warning – Risk of burns!
■The accessible parts become very hot when
in operation. Never touch hot parts. Keep
children at a safe distance.
Risk of burns!
■The appliance becomes hot during
operation. Allow the appliance to cool down
before cleaning.
:Warning – Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than
100 seconds.
:Warning – Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
■Penetrating moisture may result in an
electric shock. Clean the appliance using a
damp cloth only. Before cleaning, pull out
the mains plug or switch off the circuit
breaker in the fuse box.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly
(1° slope).
Risk of damage as a result of incorrect
loading of design elements. Do not pull design
elements.Do not place objects on the design
elements or hang objects from them.
Caution!
There is a risk of surface damage if you do not
peel off the protective film.Remove the
protective film from all parts of the appliance
before using the appliance for the first time.

en Environmental protection
6
7Environmental protection
Envi r onment al pr ot ect i on Your new appliance is particularly energy-efficient.
Here you can find tips on how to save even more
energy when using the appliance, and how to dispose
of your appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient
supply of air to enable the extractor hood to work
efficiently and with a low level of operating noise.
■Adjust the fan speed to the amount of steam
produced during cooking. Only use intensive mode
when required. The lower the fan speed, the less
energy is consumed.
■If cooking produces large amounts of steam, select
a higher fan speed in good time. If the cooking
steam has already spread around the kitchen, the
extractor hood will need to be operated for longer.
■Switch off the extractor hood if you no longer require
it.
■Switch off the lighting if you no longer require it.
■Clean and (if required) replace the filter at regular
intervals in order to increase the effectiveness of the
ventilation system and to prevent the risk of fire.
■Put the lid on to reduce cooking steam and
condensation.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
ÇOperating modes
Oper at i ng modes Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
Note: To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options for
operating the appliance in circulating-air mode can be
found in the brochure. Alternatively, ask your dealer.
The required accessories are available from specialist
retailers, from customer service or from the Online
Shop.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into the
kitchen.

Operating the appliance en
7
1Operating the appliance
Oper at i ng the appl i anc e These instructions apply to several appliance variants.
It is possible that individual features are described
which do not apply to your appliance.
If your appliance has Home Connect, more functions
are only available in the Home Connect app.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel
Setting the fan
Switching on
■Touch the #symbol.
The fan starts at setting ƒ.
■Slide your finger across the III settings range to
change the fan speed.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the @ symbol or slide your finger to the right
across control panel III until 2appears in the display.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you would like to stop intensive mode before the
preset time expires, slide your finger to the left across
control panel III to select the fan setting you require.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the =symbol.
Setting the brightness
Press and hold the =symbol until the desired
brightness is reached.
Boost function
Switching on
Touch the &symbol.
Note: After approximately 20 seconds, the extractor
hood automatically switches back to the fan setting that
was set beforehand.
Switching off
If you want to end the Boost function before the preset
time expires, touch the &symbol.
Automatic mode
Switching on
■Touch the #symbol.
The fan will start at setting 2.
■Touch the !symbol.
The optimum fan setting is set automatically using
an air quality sensor.
Switching off
Touch the !or #symbol to switch off automatic
mode.
The fan will switch itself off automatically if the air quality
sensor detects no further change in the air quality in the
room.
Automatic mode can run for a maximum of four hours.
Symbol Explanation
#Fan on/off
=Light on/off/dimming
&Intensive mode
!Automatic mode
ADecrease fan setting/fan run-on
||| Settings area
@Increase fan setting
Indicator/
symbol
Explanation
!Metal grease filter saturation indicator
"Activated charcoal filter saturation indicator
1-3 Fan settings
2Intensive mode
xFan run-on
!Automatic mode
DHome Connect

en Operating the appliance
8
Sensor control
In automatic mode, an air quality sensor in the extractor
hood detects the intensity of the cooking and roasting
odours. Depending on the air quality sensor setting, the
fan will switch itself to another fan setting automatically.
Possible sensor settings:
Default sensitivity setting: „
Lowest sensitivity setting: ‚
Highest sensitivity setting: †
If the sensor controller responds too strongly or not
enough, it can be changed accordingly:
1. Touch and hold the !symbol for one second
when the fan is switched off. The setting will be
displayed.
2. Slide your finger across control panel III to change
the sensor control setting.
3. Take your finger off the !symbol.
Fan run-on time
Switching on
Note: If intensive mode has been activated, the run-on
function will not be available.
Touch the Asymbol until xlights up on the display
panel.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Slide your finger to the right across control panel III until
a fan setting lights up in the display.
This immediately stops fan run-on.
Saturation display
If the metal grease filters or the activated charcoal filter
are/is saturated, the corresponding symbols flashes
after the appliance is switched off:
■Metal grease filters: !
■Activated charcoal filter: "
■Metal grease filters and activated charcoal filter: !
and "
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~"Cleaning and maintenance" on page 12
Note: The saturation indicator does not apply for non-
renewable activated charcoal filters that are inserted
downstream of the metal grease filter. These activated
charcoal filters must be replaced twice a year.
The saturation indicators can be reset while they are
flashing. Slide your finger to the left across the control
panel to do so.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■The extractor hood must be connected and switched
off.
■Touch and hold the #and !symbols at the same
time until "2" lights up for air recirculation mode
(filters that cannot be regenerated).
■Repeatedly touching and holding this button
combination makes "3" light up for air recirculation
mode (filters that can be regenerated).
■Repeatedly pressing and holding this button
combination switches the electronic controller back
over to air extraction mode ("1" ).
Audible signal
Switching on
Touch and hold the #and &symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is activated, ‚will be lit.
Switching off
Touch and hold the #and &symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is deactivated, ‹will be lit.

Connecting to a hob en
9
eConnecting to a hob
Connect i ng to ahob You can connect this appliance to a hob (if the hob
supports connection to the appliance) and then control
the functions of the hood via your hob.
Appliances can be connected to each other in different
ways:
Home Connect
Two appliances can be connected using the Home
Connect app provided that both of them are Home
Connect compatible.
Refer to the Home Connect documents supplied for
more information.
Connecting appliances directly
If the appliance is connected directly to a hob, it cannot
be connected to your home network as well. The
appliance will function as an extractor hood that is not
connected to the network and you can continue to
operate it via the control panel.
Connecting appliances via your home network
If the appliances are connected to each other via your
home network, both the hood controls on the hob and
Home Connect can be used to operate the appliance.
Notes
■Make sure you follow the safety instructions in the
instruction manual for your extractor hood and that
these are complied with even when operating the
appliance via the hood controls on the hob.
■If the extractor hood is being operated by means of
the controls on the hood itself, this mode of
operation always has priority. It is not possible to use
the hood controls on the hob during this time.
Setting up a connection
The hood must be switched off before you can connect
the hob and extractor hood.
Connecting directly
Make sure that the hob is switched on and is in search
mode.
To do this, refer to the section entitled "Connecting to
the extractor hood" in the instruction manual for your
hob.
Notes
■Before connecting the appliance, reset all existing
connections to the WiFi or other appliances.
■If your extractor hood is connected directly to the
hob, it cannot be connected to your WiFi as well and
you will not be able to use Home Connect.
Press and hold the &symbol until the Dand Ù
indicators start flashing.
The extractor hood has been connected to the hob
when the Dsymbol stops flashing and remains
continuously lit.
Connecting via your home network
Follow the instructions in the section entitled "Automatic
login to your home network" or "Manually logging into
your home network" ~"Home Connect" on page 10
Once the extractor hood is connected to your home
network, you can connect to the hob via the Home
Connect app. To do this. follow the instructions on your
mobile device.



en Home Connect
10
oHome Connect
Ho meConnec t This appliance can be networked and also controlled
using a mobile device.
If the appliance is not connected to your home network,
it will function as an extractor hood with no network
connection and can still be operated via the display.
The availability of the Home Connect function depends
on the availability of Home Connect services in your
country. Home Connect services are not available in
every country. You can find more information on this at
www.home-connect.com.
Notes
■Ensure that you follow the safety instructions in this
instruction manual and that you comply with these
even when you are away from home and are
operating the appliance via the Home Connect app.
You must also follow the instructions in the Home
Connect app.
■Operating the appliance directly from the appliance
always takes priority. It is not possible to operate the
appliance using the Home Connect app during this
time.
Setting up
To implement settings via Home Connect, you must
have installed and set up the Home Connect app on
your mobile device.
Refer to the Home Connect documents supplied for
more information.
The app will guide you through the entire registration
process. Follow the steps specified by the app to
implement the settings.
The app must be open in order to perform the set-up
process.
Notes
■In networked standby mode, your appliance requires
a maximum of 2 W.
■If you need your device's MAC address to connect to
your home network, you can find this next to the
rating plate inside the appliance (you will need to
remove the filter to see it).
Automatic registration in the home network
Notes
■You require a router that has WPS functionality.
■You require access to your router. If you do not have
this, follow the steps for "Manually logging into your
home network".
■The extractor hood cannot be switched on during the
connection process. You can cancel the process at
any time by pressing the #symbol.
■To connect the extractor hood to your home
network, the hood and the light must be switched off.
1. Press and hold the &symbol until the Dand Ù
indicators start flashing.
2. To start automatic login to your home network, swipe
right over settings area ||| until Dand ‚ flash.
3. Press the WPS button on the router within the next
2 minutes.
If the extractor hood has successfully connected, it
will automatically connect to the Home Connect app.
Dand „will flash.
Note: If the extractor hood has been unable to
connect, it will automatically allow you to manually
connect to your home network. Dand ƒwill flash.
Log the appliance into your home network manually
or swipe left over the settings area to try logging in
automatically again.
4. On your mobile device, follow the instructions for
automatic network login.
The login process is complete when the Dindicator
stops flashing on the control panel and remains
continuously lit.
Manual registration in the home network
Notes
■The extractor hood cannot be switched on during the
connection process. You can cancel the process at
any time by pressing the #symbol.
■To connect the extractor hood to your home
network, the hood and the light must be switched off.
1. Press and hold the &symbol until the Dand Ù
indicators start flashing.
2. To manually log into your home network, swipe right
over settings area ||| until Dand ƒflash.
3. Use the "Home Connect" SSID and the "Home
Connect" key to log the mobile device into the
extractor hood network.
If the extractor hood has successfully connected, it
will automatically connect to the Home Connect app.
Dand „will flash.
4. On your mobile device, follow the instructions for
manually logging into your network.
The login process is complete when the Dindicator
stops flashing on the control panel and remains
continuously lit.

Home Connect en
11
Connecting to the app
If the Home Connect app is installed on your mobile
device, you can connect it to your extractor hood.
Notes
■The appliance must be connected to the network.
■The app must be open.
1. Press and hold the &symbol until the Dand „
indicators start flashing.
2. On your mobile device, follow the instructions in the
Home Connect app.
The connection process is complete when the D
indicator stops flashing on the control panel and
remains continuously lit.
Software update
Using the software update function, your extractor
hood's software can be updated (e.g. for the purpose of
optimisation, troubleshooting or security updates). To
do this, you need to be a registered Home Connect
user, have installed the app on your mobile device and
be connected to the Home Connect server.
As soon as a software update is available, you will be
informed through the Home Connect app and will be
able to start the software update via the app.
Once the update has been successfully downloaded,
you can start installing it via the Home Connect app if
you are on your local area network.
The Home Connect app will inform you once installation
is complete.
Notes
■You can continue to use your extractor hood as
normal while updates are downloading.
■Depending on your personal settings in the app,
software updates can also be set to download
automatically.
■We recommend that you install security updates as
soon as possible.
Remote diagnostics
If a fault occurs, the after-sales service can use remote
diagnostics to access your appliance.
Contact the after-sales service, making sure that your
appliance is connected to the Home Connect server
and checking that the remote diagnostics service is
available in your country.
Note: For more information and to check whether the
remote diagnostics service is available in your country,
please visit the Help & Support area of the Home
Connect website for your country: www.home-
connect.com
Resetting the connection
You can reset the connections you have saved on your
home network and on Home Connect at any time.
Press and hold the !and &symbols until the
Dsymbol goes out. When the audible signal is
switched on, an audible signal sounds.
About data protection
When your appliance is connected for the first time to a
WLAN network, which is connected to the Internet, your
appliance transmits the following categories of data to
the Home Connect server (initial registration):
■Unique appliance identification (consisting of
appliance codes as well as the MAC address of the
installed WiFi communication module).
■Security certificate of the WiFi communication
module (to ensure a secure IT connection).
■The current software and hardware version of your
domestic appliance.
■Status of any previous resetting to factory settings.
This initial registration prepares the Home Connect
functions for use and is only required when you want to
use these Home Connect functions for the first time.
Note: Ensure that the Home Connect functions can be
used only in conjunction with the Home Connect app.
Information on data protection can be accessed in the
Home Connect app.
Declaration of Conformity
BSH Hausgeräte GmbH hereby declares that the
appliance which features Home Connect is in
accordance with the basic requirements and the other
relevant provisions of the directive 2014/53/EU.
A detailed RED Declaration of Conformity can be found
online at www.siemens-home.bsh-group.com on the
product page of your appliance with the additional
documents.
2.4 GHz band: max. 100 mW
5 GHz band: max. 100 mW
y
BE BG CZ DK DE EE IE EL
ES FR HR IT CY LV LT LU
HU MT NL AT PL PT RO SI
SK FI SE UK NO CH TR
5 GHz Wi-Fi: for indoor use only

en Cleaning and maintenance
12
2Cleaning and maintenance
Cl eani ng and mai nt enanc e :Warning – Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
:Warning
Risk of electric shock!
■Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the
circuit breaker in the fuse box.
Risk of electric shock!
■Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Caution!
There is a risk of surface damage if you do not peel off
the protective film.Remove the protective film from all
parts of the appliance before using the appliance for the
first time.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning product, follow the
instructions in the table. Do not use any of the following:
■Harsh or abrasive cleaning agents, e.g. scouring
powder or liquid scouring cleaner,
■Cleaning products with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■Pressure washers or steam cleaners,
■Cleaning products that dissolve limescale,
■Aggressive all-purpose cleaning products,
■Oven spray.
Note: Wash new sponge cloths thoroughly before use.
Note: Follow all instructions and warnings included with
the cleaning products.
--------
Removing metal grease filter
1. Open the lock and swing down the metal grease
filter. When you do this, take hold of the metal
grease filter from underneath with your other hand.
2. Take the metal grease filter out of the holder.
Notes
– Fat may accumulate in the bottom of the metal
grease filter.
– Hold the metal grease filter level to prevent fat
from dripping out.
Area Cleaning products
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a
soft cloth.
Clean stainless steel surfaces in the direction
of the grain only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers.Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and then dry
with a soft cloth.
Do not use stainless steel cleaner.
Aluminium and plastic Hot soapy water:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and then dry
with a soft cloth.
Risk of electric shock caused by penetrating
moisture.
Risk of damage to the electronics caused by
penetrating moisture. Never clean controls
with a wet cloth.
Do not use stainless steel cleaner.

Cleaning and maintenance en
13
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning – Risk of fire!
Fatty deposits in the grease filter may catch fire.
Regularly clean the grease filter. Never operate the
appliance without a grease filter.
Notes
■Do not use aggressive, acidic or alkaline cleaning
products.
■We recommend cleaning the grease filters every 2
months.
■When cleaning the metal grease filters, also clean
the metal grease filter holder in the appliance using
a damp cloth.
■The metal grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special degreaser to remove
stubborn dirt. This can be ordered from the online shop.
■Soak the metal grease filters in hot soapy water.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal grease filters to drain on an
absorbent material.
In the dishwasher:
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This
discolouration has no effect on the performance of the
metal grease filters.
■Use normal domestic dishwashing detergents.
■Do not clean heavily soiled metal grease filters
together with cookware.
■Place the metal grease filters in the dishwasher,
leaving plenty of space around them. Do not trap the
metal grease filters.
■Select a temperature of no more than 70 °C.
Installing the metal mesh grease filter
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Note: Clean all accessible parts of the housing.
1. Insert the metal grease filter and lock it in place.
When you do this, take hold of the metal grease filter
from underneath with your other hand.
Note: Make sure that the metal grease filter is
positioned correctly.
2. If the metal grease filter has not been inserted
correctly, open the lock and reinsert the metal
grease filter correctly.

en Trouble shooting
14
3Trouble shooting
Tr oubl e shoot i ng Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Malfunction table
--------
LED lights
Defective LED lights may be replaced by the
manufacturer, their customer service or a qualified
technician (electrician) only.
:Warning – Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than
100 seconds.
4Customer service
Cu s t o mer ser vi ce When calling us, please give the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
with these numbers can be found inside the appliance
(remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Accessories
(not included in the scope of delivery)
Note: These instructions apply to several appliance
models. It may be the case that an optional accessory
that is listed does not apply for your appliance.
Note: Observe the installation instructions in the
accessory.
--------
--------
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged in.
Connect the appliance to the
electricity supply
Power cut Check whether other kitchen
appliances are working
Faulty fuse Check in the fuse box to make
sure that the fuse for the
appliance is OK
The lighting does
not work.
The LED lights
are defective.
Call the after-sales service.
The button illumi-
nation does not
work.
The control unit is
faulty.
Call the aftersales service.
E no. FD no.
After-sales serviceO
GB 0344 892 8999
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
Accessory - narrow 260 mm Order number
Starter set for air recirculation mode
Easy-change filter for starter set
LZ53650
LZ53251
CleanAir recirculation module
Easy-change filter for CleanAir recirculation
module (cannot be regenerated)
LZ57500
LZ56200
Easy-change filter for CleanAir air-recirculation
module (can be regenerated)
LZ00XXP00
Accessory - wide 345 mm Order number
Starter set for air recirculation mode
Easy-change filter for starter set
LZ53850
LZ53451
CleanAir recirculation module
Easy-change filter for CleanAir recirculation
module (cannot be regenerated)
LZ57600
LZ56200
Easy-change filter for CleanAir air-recirculation
module (can be regenerated)
LZ00XXP00

Installation instructions en
15
INSTALLATION INSTRUCTIONS
Instal l ati on instructions Installation instructions
■This appliance is fitted to the kitchen ceiling or a
sturdy suspended ceiling.
■Check the position of the screws using the enclosed
template.
■Follow the enclosed installation instructions for
additional special accessories (e.g. for circulating-air
mode).
■The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
(Important safety
information
Impor t ant saf et y informat i on Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
The surfaces of the appliance are easily
damaged. Avoid damaging them during
installation.
The width of the extractor hood must
correspond at least with the width of the hob.
For the installation, observe the currently valid
building regulations and the regulations of the
local electricity and gas suppliers.
:Warning – Risk of fire!
■Fatty deposits in the grease filter may catch
fire. The specified safety clearances must
be complied with in order to prevent a build-
up of heat. Refer to the information
provided for your cooker. If gas and electric
hobs are being operated together, the
largest specified clearance applies.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
When conveying the exhaust air, official and
legal regulations (e.g. state building
regulations) must be followed.
PP
HOHFWUR JD]
PP
!
!
[ [
[ [
[
[[
[ [
[

en Important safety information
16
:Warning – Risk of death!
Risk of poisoning from flue gases that are
drawn back in. The exhaust air must not be
conveyed into a functioning smoke or exhaust
gas flue or into a shaft which is used to
ventilate installation rooms that contain
heating appliances. If the exhaust air is to be
conveyed into a non-functioning smoke or
exhaust gas flue, you must obtain the consent
of the heating engineer responsible.
:Warning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in. If installing a ventilation system
in a room with a heat-producing appliance
connected to a chimney/flue, the electricity
supply to the hood must be equipped with a
suitable safety switch.
:Warning – Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■The appliance may fall down if it has not
been properly fastened in place. All
fastening components must be fixed firmly
and securely.
Risk of injury!
■The appliance is heavy. To move the
appliance, 2 people are required. Use only
suitable tools and equipment.
Risk of injury!
■Changes to the electrical or mechanical
assembly are dangerous and may lead to
malfunctions. Do not make any changes to
the electrical or mechanical assembly.

General information en
17
:Warning – Risk of electric shock!
■Components inside the appliance may have
sharp edges. These may damage the
connecting cable. Do not kink or pinch the
connecting cable during installation.
Risk of electric shock!
■It must always be possible to disconnect
the appliance from the electricity supply.
The appliance must only be connected to a
protective contact socket that has been
correctly installed.
The mains plug of the mains power cable
must be easily accessible after installation
of the appliance. If this is not possible, an
all-pole isolating switch must be integrated
into the permanent electrical installation
according to the conditions of overvoltage
category III and according to the installation
regulations.
The permanent electrical installation must
only be wired by a professional electrician.
We recommend installing a residual-current
circuit breaker (RCCB) in the appliance's
power supply circuit.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may
only be carried out and damaged power
cables replaced by one of our trained after-
sales technicians. If the appliance is defective,
unplug the appliance from the mains or switch
off the circuit breaker in the fuse box. Contact
the after-sales service.
:Warning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
KGeneral information
Gener al informat i on Exhaust air mode
:Warning – Risk of death!
Risk of poisoning from flue gases that are drawn back
in. The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms that contain
heating appliances. If the exhaust air is to be conveyed
into a non-functioning smoke or exhaust gas flue, you
must obtain the consent of the heating engineer
responsible.
If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Exhaust duct
Note: The device manufacturer does not assume any
warranty for complaints attributable to the pipe section.
■The device achieves its optimum performance by
means of a short, straight exhaust air pipe and as
large a pipe diameter as possible.
■As a result of long rough exhaust air pipes, many
pipe bends or pipe diameters that are smaller than
150 mm, the optimum extraction performance is not
achieved and fan noise is increased.
■The pipes or hoses for laying the exhaust air line
must consist of non-combustible material.
Round pipes
An inner diameter of 150 mm, but at least 120 mm, is
recommended.
Flat ducts
The inner cross-section must correspond to the
diameter of the round pipes.
dia. 150 mm ca. 177 cm2
dia. 120 mm ca. 113 cm2
■Flat ducts should not have any sharp deflections.
■Use sealing strips for deviating pipe diameters.
Preparing the ceiling
■The ceiling must be flat, horizontal and have
adequate load-bearing capacity.
■The depth of the bore holes must be the same
length as the screws. The wall plugs must have a
secure grip.
■The enclosed screws and wall plugs are suitable for
solid brickwork. Suitable fasteners must be used for
other structures (e.g. plasterboard, porous concrete,
poroton bricks).
■The max. weight of the extractor hood is 50 kg.

en Installation
18
Electrical connection
:Warning – Risk of electric shock!
Components inside the appliance may have sharp
edges. These may damage the connecting cable. Do
not kink or pinch the connecting cable during
installation.
The required connection data can be found on the
rating plate inside the appliance; to do this, remove the
metal mesh grease filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference
suppression regulations.
:Warning – Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
The mains plug of the mains power cable must be
easily accessible after installation of the appliance. If
this is not possible, an all-pole isolating switch must be
integrated into the permanent electrical installation
according to the conditions of overvoltage category III
and according to the installation regulations.
The permanent electrical installation must only be wired
by a professional electrician. We recommend installing
a residual-current circuit breaker (RCCB) in the
appliance's power supply circuit.
5Installation
Instal l ati on Fitting the upper support frame
1. Before fitting, determine the total height of the
support frame and mark the screw holes.
Note: The height of the support frame can be
adjusted in 20 mm intervals.
2. On the ceiling, mark the centre point of the
appliance.
3. Using the enclosed template, mark the positions for
the screws on the ceiling.
4. Drill four 8 mm diameter holes to a depth of 80 mm
for the fasteners and press in the wall plugs flush
with the ceiling.
5. Fasten the upper part of the support frame to the
ceiling with 4 screws.
Note: Ensure that the support frame is in the correct
position. The middle bracket defines the preferred
side and must be facing the hob control elements.
Fitting the lower support frame
Fasten the upper and lower part of the support frame at
the specified total height using 10 screws.
Notes
■Ensure that the lower support frame is in the correct
position. The open side must be facing the hob
control elements.
■The support frame can be subsequently re-
positioned by loosening the securing screws.
[
[
[
([KDXVWDLU
PP
&LUFXODWHGDLU
PP
[

Installation en
19
Fitting the appliance
1. Hook the appliance from below into the support
frame.
Note: Ensure that the mains cable is not trapped.
2. Fasten the appliance to the support frame using 2
securing screws.
3. Hook in the retaining clip and screw tight.
Connecting the pipes
Note: If using an aluminium pipe, smooth the
connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe
connector and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Seal both joints appropriately.
Attaching the flue duct
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both sides.
3. Place both parts of the upper flue on the appliance
and push together.
Note: The slots of the upper flue must point
downwards.
4. Push up the upper flue part and secure with 2
screws.
5. Insert both lower parts of the flue and push together.



[
[

0DQXIDFWXUHGE\%6++DXVJHUlWH*PE+XQGHU7UDGHPDUN/LFHQVHRI6LHPHQV$*
%6++DXVJHUlWH *PE+
&DUO:HU\6WU0QFKHQ
VLHPHQVKRPHEVKJURXSFRP
*(50$1<
*9001359533*
9001359533
980215
