Bosch WVG30461GB Specification sheet

en Instruction Manual and Installation Instructions
Washer dryer
WVG30461GB
WVG3046SGB

2
Your new washer dryer
You have chosen a Bosch washer dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Bosch, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Contents enInstruction Manual and Installation Instructions
8Intended use. . . . . . . . . . . . . . . . .4
(Safety instructions . . . . . . . . . . .5
Electrical safety. . . . . . . . . . . . . . . . . . 5
Risk of injury . . . . . . . . . . . . . . . . . . . . 5
Safety for children. . . . . . . . . . . . . . . . 5
7Protection of the environment . .6
Packaging/old appliance . . . . . . . . . . 6
Hints and tips . . . . . . . . . . . . . . . . . . . 6
YThe main points in brief . . . . . . .7
*Getting to know your appliance .8
Washer dryer . . . . . . . . . . . . . . . . . . . 8
Control panel . . . . . . . . . . . . . . . . . . . 9
Display panel . . . . . . . . . . . . . . . . . . 10
ZLaundry. . . . . . . . . . . . . . . . . . . .12
Preparing laundry for washing . . . . . 12
Preparing laundry for drying . . . . . . . 13
1Operating the appliance . . . . . .14
Preparing the washer dryer. . . . . . . . 14
Selecting the programme/Switching
on the appliance. . . . . . . . . . . . . . . . 14
Adjusting the washing programme . . 14
Adjusting the drying programme . . . 15
Loading the laundry . . . . . . . . . . . . . 15
Dosing and adding detergent and
care product . . . . . . . . . . . . . . . . . . . 16
Starting the programme . . . . . . . . . . 17
Childproof lock . . . . . . . . . . . . . . . . . 17
Reloading the laundry. . . . . . . . . . . . 17
Changing the programme. . . . . . . . . 18
Interrupting or ending the
programme . . . . . . . . . . . . . . . . . . . . 18
End of the programme . . . . . . . . . . . 18
After washing/drying. . . . . . . . . . . . . 19
/Overview of programmes . . . . .20
Programme on the programme
selector. . . . . . . . . . . . . . . . . . . . . . . 20
Drying table . . . . . . . . . . . . . . . . . . . .23
Starching . . . . . . . . . . . . . . . . . . . . . .24
Dyeing/Bleaching . . . . . . . . . . . . . . .24
Soaking . . . . . . . . . . . . . . . . . . . . . . .24
0Changing programme default
settings. . . . . . . . . . . . . . . . . . . . 24
°C Temp.. . . . . . . . . . . . . . . . . . . . . .24
0rpm. . . . . . . . . . . . . . . . . . . . . . . .24
ñFinished in . . . . . . . . . . . . . . . . . .25
ŠDry . . . . . . . . . . . . . . . . . . . . . . . .25
\Selecting additional functions . 26
GSpeed Perfect. . . . . . . . . . . . . . .26
FEco Perfect . . . . . . . . . . . . . . . . .26
ZAqua Plus . . . . . . . . . . . . . . . . . .26
MSetting the signal . . . . . . . . . . . 27
2Cleaning and maintenance. . . . 28
Machine housing/Control panel . . . .28
Drum . . . . . . . . . . . . . . . . . . . . . . . . .28
Descaling . . . . . . . . . . . . . . . . . . . . .28
Cleaning the detergent dispenser . . .28
Drain pump blocked . . . . . . . . . . . . .29
Drainage hose on the siphon
blocked . . . . . . . . . . . . . . . . . . . . . . .29
Filter in the water inlet hose
blocked . . . . . . . . . . . . . . . . . . . . . . .30
3Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . . 31
Emergency release, e.g. if a power
failure occurs. . . . . . . . . . . . . . . . . . .31
Information on the display panel . . . .31
Faults and what to do about them. . .32

en Intended use
4
4Customer service . . . . . . . . . . . 35
JTechnical specifications . . . . . 35
[Consumption values . . . . . . . . 36
5Positioning and connecting. . . 37
Included with the appliance . . . . . . . 37
Safety instructions . . . . . . . . . . . . . . 38
Installation surface. . . . . . . . . . . . . . 38
Installing the appliance on a base
or on a wooden joist ceiling. . . . . . . 38
Installing the appliance in a
kitchenette . . . . . . . . . . . . . . . . . . . . 38
Removing the transport locks . . . . . 39
Hose and cable lengths. . . . . . . . . . 39
Water inlet . . . . . . . . . . . . . . . . . . . . 40
Water outlet . . . . . . . . . . . . . . . . . . . 40
Alignment . . . . . . . . . . . . . . . . . . . . 41
Electrical connection . . . . . . . . . . . . 42
Before washing/drying for the
first time. . . . . . . . . . . . . . . . . . . . . . 42
Transportation . . . . . . . . . . . . . . . . . 43
8Intended use
Intendeduse ■For private domestic use only.
■The washer dryer is suitable for
machine washable textiles and hand
washable wool and for drying certain
types of textiles according to care
instructions.
■The appliance is suitable for
operation with cold mains water and
commercially available detergents
and care products which are suitable
for use in a washer dryer.
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids,
cleaning products and cleaning
agents.
■The washer dryer may be operated
by children from 8 years of age, by
persons who have limited physical,
sensory or mental abilities and by
persons who have inadequate
experience or knowledge, provided
they are supervised or have been
instructed by a responsible person.
Children must not perform any
cleaning or maintenance work
without supervision.
■Keep children under the age of 3
years away from the washer dryer.
■Keep pets away from the washer
dryer.
■Install and operate the washer dryer
in a room which has an outflow.
Before operating the appliance: Read
the installation and operating
instructions and all other information
enclosed with the washer dryer, and use
the machine accordingly.
Retain documents for subsequent use.

Safety instructions en
5
(Safety instructions
Safetyinstructions Electrical safety
:Warning
Danger of death!
Danger of death if live parts are
touched.
■When disconnecting the mains
plug, always pull the plug itself
and not the cable, otherwise the
cable could be damaged.
■Never touch or hold the mains
plug with wet hands.
Risk of injury
:Warning
Risk of injury!
■If the washer dryer is lifted
using projecting parts (e.g. the
washer dryer door), these
components may break off and
cause injuries.
Do not lift the washer dryer by
its projecting parts.
■If you climb onto the washer
dryer, the worktop may break
and cause injuries.
Do not climb onto the washer
dryer.
■If you lean/support yourself on
the open door, the washer dryer
may overturn and cause
injuries.
Do not lean on the open
washer dryer door.
■If you reach into the rotating
drum, you may injure your
hands.
Do not grip the rotating drum.
Wait until the drum stops
rotating.
:Warning
Risk of scalding!
■When washing at high
temperatures, you may be
scalded if you touch the hot
washing water (e.g. if draining
hot washing water into a
washbasin).
Do not touch the hot washing
water.
■If a drying programme was
interrupted, the washer dryer
and laundry may be very hot.
Select Intensive Dry 5or
Gentle Dry ‰ and select
15 min drying time to cool
down the laundry and then
remove.
Safety for children
:Warning
Danger of death!
If children play with the washer
dryer, they may get into life-
threatening situations or injure
themselves.
■Do not leave children
unattended near the washer
dryer.
■Do not let children play with the
washer dryer.
:Warning
Danger of death!
Children may lock themselves in
appliances, putting their lives at
risk.
For appliances that have reached
the end of their service life:
■Disconnect the mains plug.
■Cut through the mains cable
and remove it, along with plug.
■Destroy the lock on the washer
dryer door.

en Protection of the environment
6
:Warning
Risk of choking!
Children may become wrapped in
packaging/film or packing parts if
allowed to play with them, or they
may pull them over their heads
and suffocate.
Keep packaging, film and
packaging parts out of the reach
of children.
:Warning
Risk of poisoning!
Detergents and care products may
be poisonous if consumed.
Keep detergents and care
products out of the reach of
children.
:Warning
Eye / skin irritation!
Detergents and care products may
cause irritation if they come into
contact with the eyes or skin.
Keep detergents and care
products out of the reach of
children.
:Warning
Risk of injury!
When you wash/dry at high
temperatures, the glass in the
washer dryer door gets hot.
Do not let children touch the hot
washer dryer door.
7Protection of the
environment
Protectionoftheenvironment Packaging/old appliance
)
Dispose of packaging in an
environmentally friendly manner.
This appliance has been identified in
accordance with the European Directive
2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE). The
Directive specifies the framework for an
EU-wide valid return and recycling of
waste appliances.
Hints and tips
■Utilise the maximum amount of
laundry for the particular
programme.
Overview of programmes
~Page 20
■Wash normally soiled laundry
without prewash.
■Energy saving mode: The display
panel light goes out after several
minutes, Aflashes. To reactivate
the display, select any button.
The energy-saving mode is not
activated if a programme is running.
■The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■If the laundry is then dried in
the appliance, select the maximum
possible spin speed. The less water
the laundry contains, the less time
and energy are required for drying.
Do not dry dripping wet laundry.

The main points in brief en
7

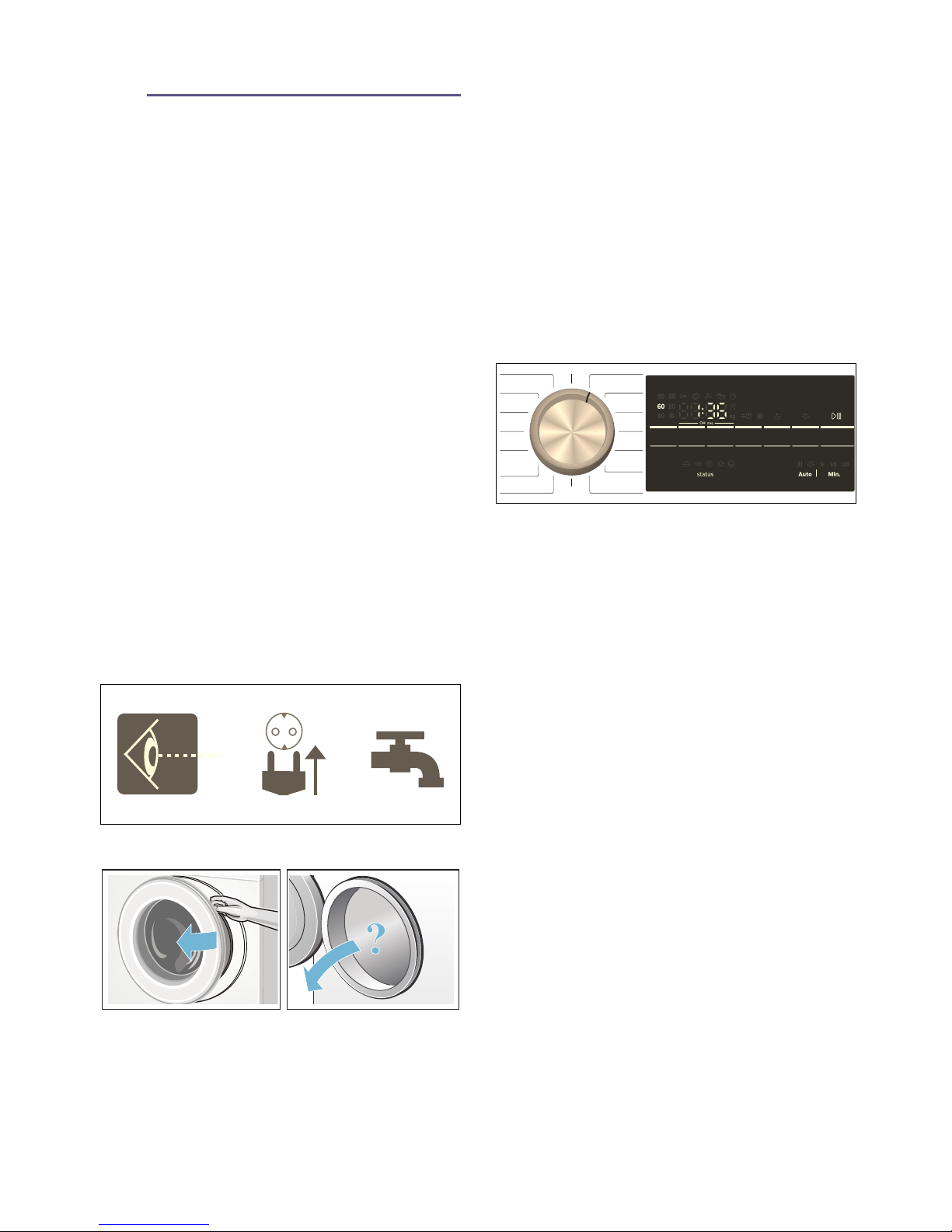

YThe main points in
brief
Themainpointsinbrief
--------
--------
--------
--------
1@@@
Plug into the mains.
Turn the tap on.
Open the washer
dryer door.
Select the washing/
drying programme
Max. load and/or
remaining time in
display panel.
2@ @
If required, change the programme default
settings and/or select additional functions.
Sort the laundry. Load the laundry.
3@ @ @
FODFN
Open the detergent
drawer.
Dose detergent
according to the
dosing
recommendation.
~Page 16
Close the washer
dryer door.
Select AStart/
Reload.
4@ @ @
End of the
programme.
Set programme
selecter to Off.
Open the door and
remove the laundry.
Turn off the water
tap, and disconnect
the mains plug.

en Getting to know your appliance
8
*Getting to know your
appliance
Gettingtoknowyourappliance Washer dryer

6 7


#

(Detergent drawer
0Operating/display panel
8Door with handle
9S Open the door
9T Close the door
@Service flap

Getting to know your appliance en
9
Control panel
Change the default settings for the
selected programme and select
additional functions:
#

(Select a programme. Can be
rotated in either direction. To
switch off the washer dryer, set the
programme selector to Off.
0Select buttons °C Temp., 0rpm
(Spin speed), ñFinished in and
ŠDry for changing default
settings. ~Page 24
Select buttons GSpeed Perfect
/FEco Perfect and ZAqua Plus
for additional functions.
~Page 26
8Display panel for information.
@Start programme. Select the Start/
Reload Abutton to start,
interrupt (e.g. reload laundry) and
cancel the programme.
~Page 17

en Getting to know your appliance
10
Display panel
Displays for the programme



#
+
(Temperature for washing
programme
Ž(cold) – 90° Temperature in °C
0Programme information 1:50* Programme duration after programme
selection in h:min (hours:minutes)
1 – 24 h Finish in time in h(h=hour)
8.0 kg* Max. load for selected programmes
0 – 1500 0* Spin speed in revolutions per minute. If spin
speed is selected as 0, all spinning pro-
cesses will be cancelled and the water after
final rinse cycle will be pumped out.
Programme status End Programme end
0:00 Wrinkle guard process is running
~Page 18
– – – – End of programme with spin speed setting –
– – –
Further information E : - -* Fault display
0* Setting the signal ~Page 27
8Programme progress sym-
bols
NWashing
ORinsing
0Draining/Spinning
ŠDrying
oWrinkle guard

Getting to know your appliance en
11
@Programme information and
additional function symbols
Elights up On if childproof lock has been activated
~Page 17
Eflashes The childproof lock is actived, and if the pro-
gramme selector has been adjusted or the
buttons have been pressed
Õlights up When the door is locked
Õflashes When pressing the Start/Reload button to
start the programme, the door is not closed
properly.
rlights up Water pressure too low. This extends the
programme duration
rflashes The tap has not been turned on or there is
no water pressure
ÅOn if too much foam detected, additional
rinse cycle added on
ñOn if finish in time was selected
Speed Perfect GOn if the desired additional function is
selected, see details ~Page 26
Eco Perfect F
Aqua Plus Ï
Dry ŠOn if drying function is activated.
Start/Reload AOn if the appliance is running; flashes if the
appliance is ready or paused.
HSelectable drying mode and
dry time
»Cupboard dry (Auto dry)
·Extra Dry (Auto dry)
15 15 minutes machine cooling
60, 120 60/120 minutes time dry
* Depends on selected programmes/additional functions.

en Laundry
12
ZLaundry
Laundry Preparing laundry for washing
Sorting laundry according to:
Sort your laundry according to the care
instructions and specifications of the
manufacturer on the care labels:
■Type of fabric/fibre
■Colour
Note: Laundry can discolour or not
be cleaned correctly. Wash white
and coloured items separately.
Wash new bright fabrics separately
the first time you wash them.
■Soiling
–light
do not prewash; if necessary
select the GSpeed Perfect
additional function.
–normal
Select programme with prewash.
If required, pretreat stains.
–heavy
Load less laundry. Select
programme with prewash. If
required, pretreat stains.
–Stains: Remove/pretreat stains
while they are fresh. Firstly, dab
with a soap water; do not rub.
Then select the appropriate
programme and wash the items.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
– Symbols on the care labels
Note: The numbers in the symbols
indicate the maximum washing
temperature that may be used.
Protecting your laundry and washer
dryer:
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the laundry
or components of the washer dryer.
The following instructions must be
observed when preparing your laundry:
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■Do not exceed maximum load.
Overfilling will impair the washing
result.
■Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the washer
dryer. Using a damp cloth,
immediately remove any fine spray
residue and other residue or
droplets.
■Empty any pockets. Remove any
foreign objects.
■Remove metal parts (paper clips,
etc.).
■Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
MSuitable for normal washing
process;
e.g. Cottons programme
NA gentle washing process is
required;
e.g. Easy-Care programme
OAn especially gentle washing
process is required; e.g.
Delicates/Silk programme
WSuitable for washing by hand;
e.g. W Wool program
ŽDo not machine wash.

Laundry en
13
■Ensure that underwired bras are
machine-washable.
■Wash delicates in a net or bag
(tights, underwired bras, etc).
■Close zips, button up covers.
■Brush sand out of pockets and
collars.
■Remove curtain fittings or include in
the net/bag.
Preparing laundry for drying
Note: To ensure an even drying result,
sort the laundry according to the:
■Type of fabric
■Drying programme
■Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled
“dryer-proof” or which has the following
care symbols:
■a= Dry at normal temperature
(Intensive Dry 5)
■`= Dry at low temperature
(Gentle Dry ‰)
The following textiles must not be dried:
■b= care symbol “Do not dry”
■Wool or textiles containing wool.
■Delicates (silk, synthetic curtains).
■Textiles which contain foam rubber
or similar materials.
■Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■Textiles which still contain hairspray
or similar substances.
Notes
■Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for
cotton, more than 800 rpm for easy-
care textiles.
■Do not iron laundry immediately after
drying. It is recommended to roll the
laundry up first to distribute residual
moisture evenly.
■To ensure a good drying
performance, quilts, terry cloths and
other large textiles should be dried
separately. Do not dry more than 5
terry cloths (or 4 kg).
■Do not exceed the maximum load.

en Operating the appliance
14
1Operating the
appliance
Operatingtheappliance Preparing the washer dryer
The washer dryer was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Drum Clean Ûprogramme.
Before washing/drying for the first time
~Page 42
Note:
■Never switch on a damaged washer
dryer!
■Inform your customer
service!~Page 35
1. Insert mains plug.
2. Turn the tap on.
Due to the use of the water
condensation technology for drying,
please keep the connected water
tap open during the drying process,
otherwise proper drying cannot be
guaranteed.
3. Open the door.
Selecting the programme/
Switching on the appliance
Note:
If you have activated the childproof lock,
you must deactivate it before you can
set a programme.
■Select the required programme with
the programme selector. Can be
rotated in either direction.
The washer dryer is switched on.
The following figures are indicated
continuously on the display panel for
the selected programme:
■the programme duration,
■the preset temperature,
■the maximum load (if the door is
open).
Adjusting the washing
programme
You can use the displayed default
settings or adjust the selected
programme optimally to the laundry
items by changing the default settings
or selecting additional functions. The
selectable settings and additional
functions depend on the selected
washing/drying programme.
Overview of programmes~Page 20
Notes
■Options can be selected, deselected
or changed depending on the
progress of the programme.

Operating the appliance en
15
■The buttons are sensitive, they only
need to be touched gently. If the
button °C Temp., 0rpm,
ñFinished in is held down, the
setting options are automatically
scrolled through.
Changing default settings for a
washing programme, e. g. washing
temperature:
■Touch the °C Temp. button to set
desired washing temperature.
Changing the additional functions for
a washing programme, e.g. select G
Speed Perfect:
■Touch the GSpeed Perfect/F
Eco Perfect button until the G
indicator light comes on.
Note:
After changing the programme default
settings and/or additional functions, the
programme duration may change.
Adjusting the drying
programme
Note:
If an individual drying programme or
washing and drying without interruption
is selected, you can change the default
settings for the drying programme if
required.
Overview of programmes~Page 20
Changing the default settings for
a drying programme:
■Touch the ŠDry button to set the
desired drying mode or drying time
(only for an individual drying
programme).
Note:
After changing the default settings for
the drying programme, the programme
duration may change.
Loading the laundry
:Warning
Danger of death!
Laundry items pretreated with solvent-
based detergents, e.g. stain remover/
petroleum ether, may cause an
explosion if loaded into the washer
dryer.
Thoroughly rinse laundry items by hand
before washing.
Notes
■Mix large and small items. Laundry
items of different sizes distribute
themselves better during the spin
cycle. Individual laundry items may
cause an unbalanced load.

en Operating the appliance
16
■Observe the indicated maximum
load. Overfilling adversely affects
the washing result and promotes
creasing.
1. Unfold presorted laundry items and
place in the drum.

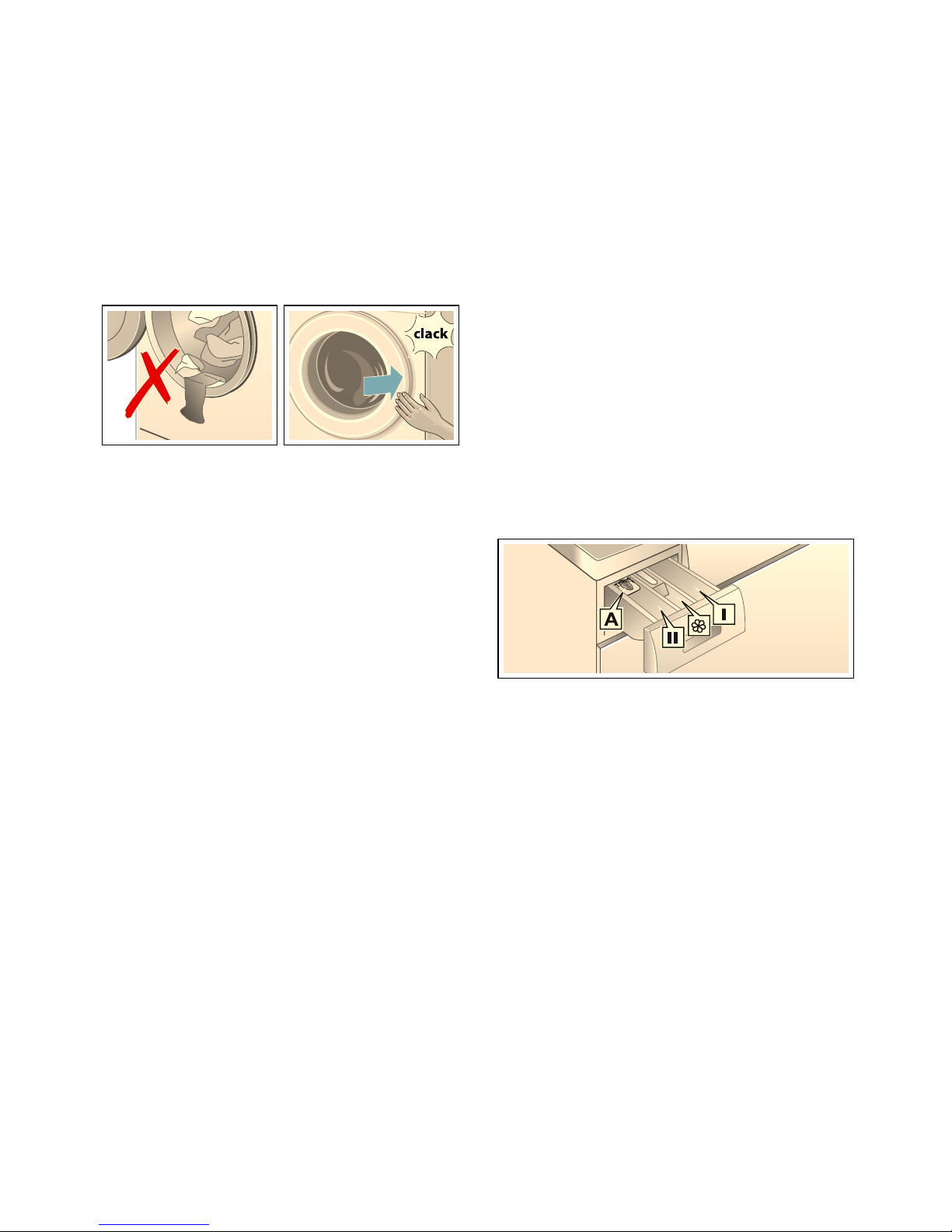

2. Ensure that no laundry items are
trapped between the door and
rubber seal.
3. Close the door.
Note: The indicator light on the A
Start/Reload button flashes and the
default settings for the programme
appear continuously on the display
panel. Changes may be made to the
default settings.
Dosing and adding detergent
and care product
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the washer
dryer.
Keep these agents away from the
surfaces of the washer dryer. Using a
damp cloth, immediately remove any
fine spray residue and other residue/
droplets.
Dosing
Dose the detergents and care products
according to:
■water hardness (ask your water
supply company),
■the manufacturer’s specifications on
the packaging,
■the amount of laundry,
■soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
Notes
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■Be careful when opening the
detergent drawer while the appliance
is running.
Dispenser IDetergent for prewash.
Dispenser iSoftener, starch. Do not exceed
the maximum load.
Dispenser II Detergent for main wash, water
softener, bleach, stain remover.
Dispenser AFor dosing liquid detergent.

Operating the appliance en
17
■If an individual drying programme is
selected, please do not add
detergent and/or care product in the
appliance.

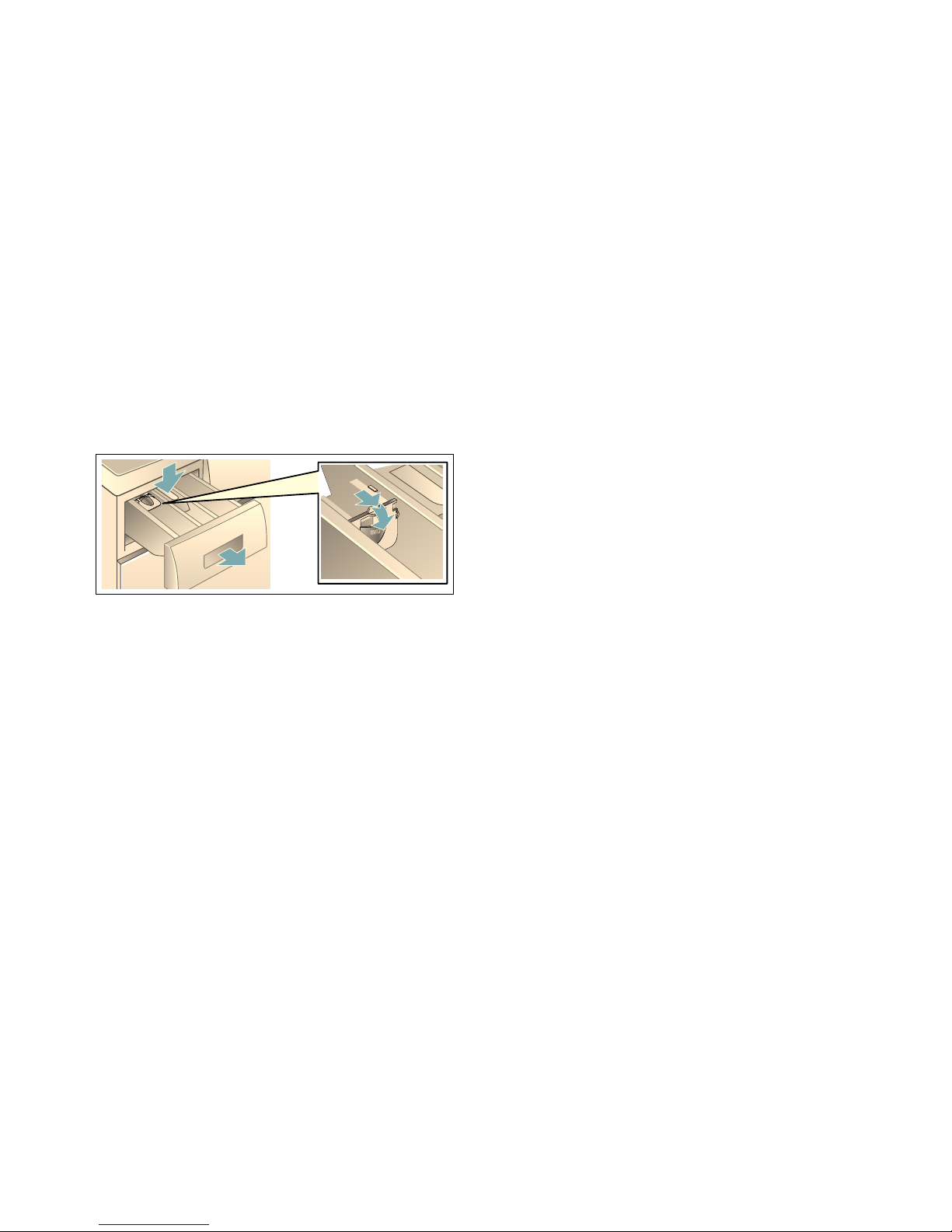

Measuring aid* for liquid detergent
*depending on the model
Position the measuring aid for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with prewash or when
"Finish in" time is selected.
For models without a measuring aid,
pour the liquid detergent into the
appropriate dispenser and place it in
the drum.
Starting the programme
Touch the A Start/Reload button. The
indicator lamp is lit and the programme
starts.
Note: If you want to secure the
programme to prevent it from being
adjusted inadvertently, select the
childproof lock.
The display panel shows the Finished in
time while the programme is running or
the programme duration and the
programme progress symbols when the
washing programme has started.
Display panel~Page 10
Childproof lock
You can secure the washer dryer to
prevent the set functions from being
changed inadvertently. To do this,
activate the childproof lock when the
programme has started.
Activating/deactivating: Touch and hold
the buttons 0rpm and ñFinished in
for approx. 3 seconds. The symbol Eis
indicated in the display. If the button
signal is activated, an acoustic signal
sounds.
■Elights up: The childproof lock is
activated.
■Eflashes: The childproof lock is
active and the programme selector
has been adjusted. To prevent the
Esymbol from flashing, reset the
programme selector to the initial
programme. The symbol lights up
again.
Note:
The childproof lock may remain
activated until the next programme
starts, even after the washer dryer has
been switched off. If this is the case,
deactivate the childproof lock before the
programme starts and, if required, re-
activate after the programme starts.
Reloading the laundry
When the programme has started, the
laundry can be reloaded or taken out as
required.
Touch the A Start/Reload button. The
washer dryer checks whether reloading
is possible.

en Operating the appliance
18
Notes
■If there is a high water level, high
temperature or if the drum is
rotating, the door remains locked
for safety reasons and reloading is
not possible.
If the following is indicated on the
display panel:
Õis lit ~ Reloading is not
possible. To continue the
programme, select the A Start/
Reload button.
■Do not open the door until the door
lock symbol Õ goes out.
■Do not leave door open for
a prolonged period – water could
run out of the laundry.
■The reloading function cannot be
activated during the drying phase.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Select A Start/Reload.
2. Select another programme. If
required, adjust the default settings
and/or select additional functions.
3. Select A Start/Reload. The new
programme starts from
the beginning.
Interrupting or ending the
programme
For programmes at high temperature:
1. Select A Start/Reload.
2. To cool down laundry: Select Rinse
O.
3. Select A Start/Reload.
For programmes at low temperature:
1. Select A Start/Reload.
2. Select Spin/Drain 0/[.
3. Select A Start/Reload.
For drying programmes:
1. Select Intensive Dry 5or Gentle
Dry ‰.
2. Touch button ŠDry and set drying
time to 15 minutes.
3. Select A Start/Reload.
End of the programme
End or – – – – (Rinse stop = without
final drain/spin cycle) is indicated in the
display and acoustic signal sounds.
Setting the signal ~Page 27
If – – – – (Rinse stop = without final
drain/spin cycle) was selected, press
A Start/Reload button to start the final
drain/spin cycle.
Notes
■The programme continues by
pumping out the water and spinning
the laundry (the standard spin speed
can be changed beforehand).
■If only the water is to be pumped out,
approx. 1 minute after the
programme starts, touch the A
Start/Reload button before the spin
cycle starts. The programme is
interrupted and the door lock is
released. The laundry can be
removed.
■If Hot flashes in the display before
the drying programme ends, the
temperature in the drum is high. The
programme for cooling the drum
runs until the temperature in the
drum has dropped.

Operating the appliance en
19
■Wrinkle guard process starts after
drying process is finished to prevent
laundry getting wrinkle if you do not
take laundry out in time. The process
lasts about 30 minutes. 0:00 will be
displayed in time display and o
symbol will be displayed as the
status symbol. You can press any
button or rotate the programme
selector to another position to
terminate this process, then the door
will be released and laundry can be
taken out.
After washing/drying
1. Open the door and remove the
laundry.
2. Turn the programme selector to Off.
The appliance is switched off.
3. Turn off the tap.
Not required for Aqua-Stop models.
4. Disconnect the mains plug.
Notes
■Do not leave any items of laundry in
the drum. In the next wash they may
shrink or discolour another item.
■Remove any foreign objects from
the drum and the rubber seal – risk
of rust.
■Leave the detergent drawer and
door open so that residual water can
evaporate.
■Always remove the laundry.
■Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance
on and wait for the unlocking device.
■When the display panel has gone
out at the end of the programme,
energy-saving mode is active. To
activate the display again, select any
button.

en Overview of programmes
20
/Overview of
programmes
Overviewofprogrammes Programme on the programme
selector
Programme/Type of laundry Options/Information
Name of the programme
Brief explanation of the programme and which textiles it is suitable
for.
maximum load according to
EN50229
maximum load for washing/
maximum load for drying
selectable temperature in °C
selectable spin speeds in rpm
possible additional functions for
washing
possible settings for drying
Cottons i
Standard washing program for hard-wearing textiles made of cotton
or linen.
Note:
* Reduced load for Gadditional functions.
max. 8(5)* kg/5 kg
Ž (cold) – 90 °C
– – – –, 0– 1500 rpm
G, F, Ï
», ·
+ Prewash T
Energy-intensive program for heavily soiled hard-wearing textiles
made of cotton or linen.
Note:
* Reduced load for Gadditional functions.
max. 8(5)* kg/5 kg
Ž (cold) – 90 °C
– – – –, 0– 1500 rpm
G, F, Ï
», ·
Easy-Care f
Textiles made of synthetic materials or blended fabrics.
max. 4.0 kg/2.5 kg
Ž (cold) – 60 °C
– – – –, 0 – 1200 rpm
G, F, Ï
», ·
Mixed Load u
Mixed load consisting of textiles made of cotton and synthetics.
max. 4.0 kg/2.5 kg
Ž (cold) – 40 °C
– – – –, 0– 1500 rpm
G, F, Ï
», ·
