RE 92650/2020-03-03, Bosch Rexroth AG
Axial piston variable pump
A1VO Series 10
RE 92650/2020-03-03
Replaces: 12.2017
Features
▶ Variable displacement pump with axial piston rotary
group ofswashplate design forhydrostatic drives
inopen circuit
▶ Flow isproportional tothe drive speed and
displacement.
▶ The flow can be infinitely varied by controlling the
swashplate angle.
▶ Significant fuel savings up to15% compared tofixed
systems
▶ Optimized efficiency, though same power at less
fuelconsumption
▶ Increased service life compared togear pumps
▶ Compact design by integrated controller
▶ A wide range ofhighly adaptable control devices for all
important applications
▶ Low noise
▶ High power density
▶ Excellent suction characteristics
▶ High flexibility through interchangeable through
driveadapters
▶ For load-sensing systems in smaller working machines
▶ Sizes 18, 28, 35
▶ Nominal pressure 250bar
▶ Maximum pressure 280bar
▶ Open circuit
Contents
Type code 2
Hydraulic fluid 4
Working pressure range 6
Technical data 7
DR/DN – Pressure controller 9
DRS0/DNSO – Pressure controller with load-sensing 10
D3/D4 – Pressure controller with override 11

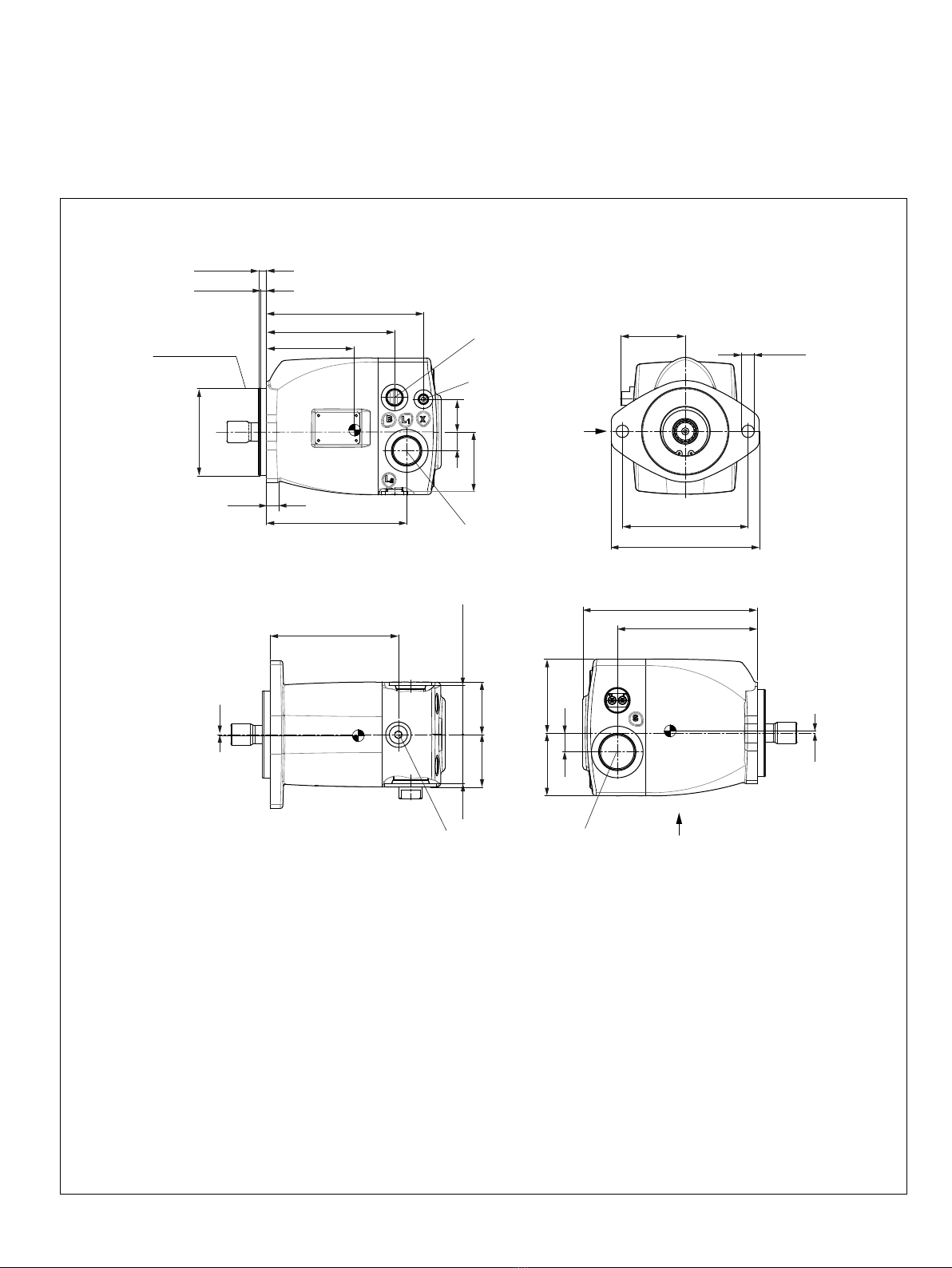

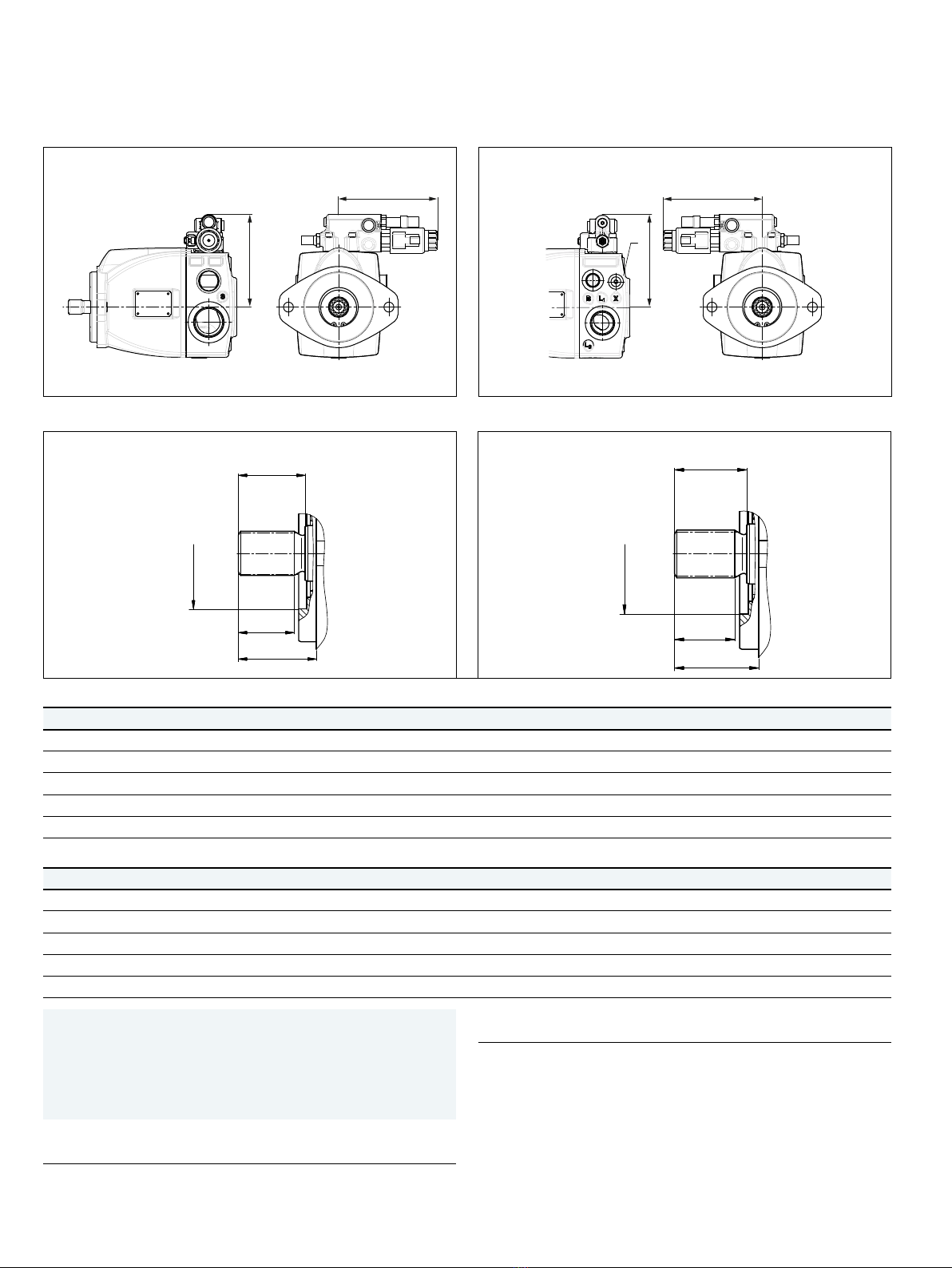

Dimensions size 18 and size 28 12
Dimensions size 35 16

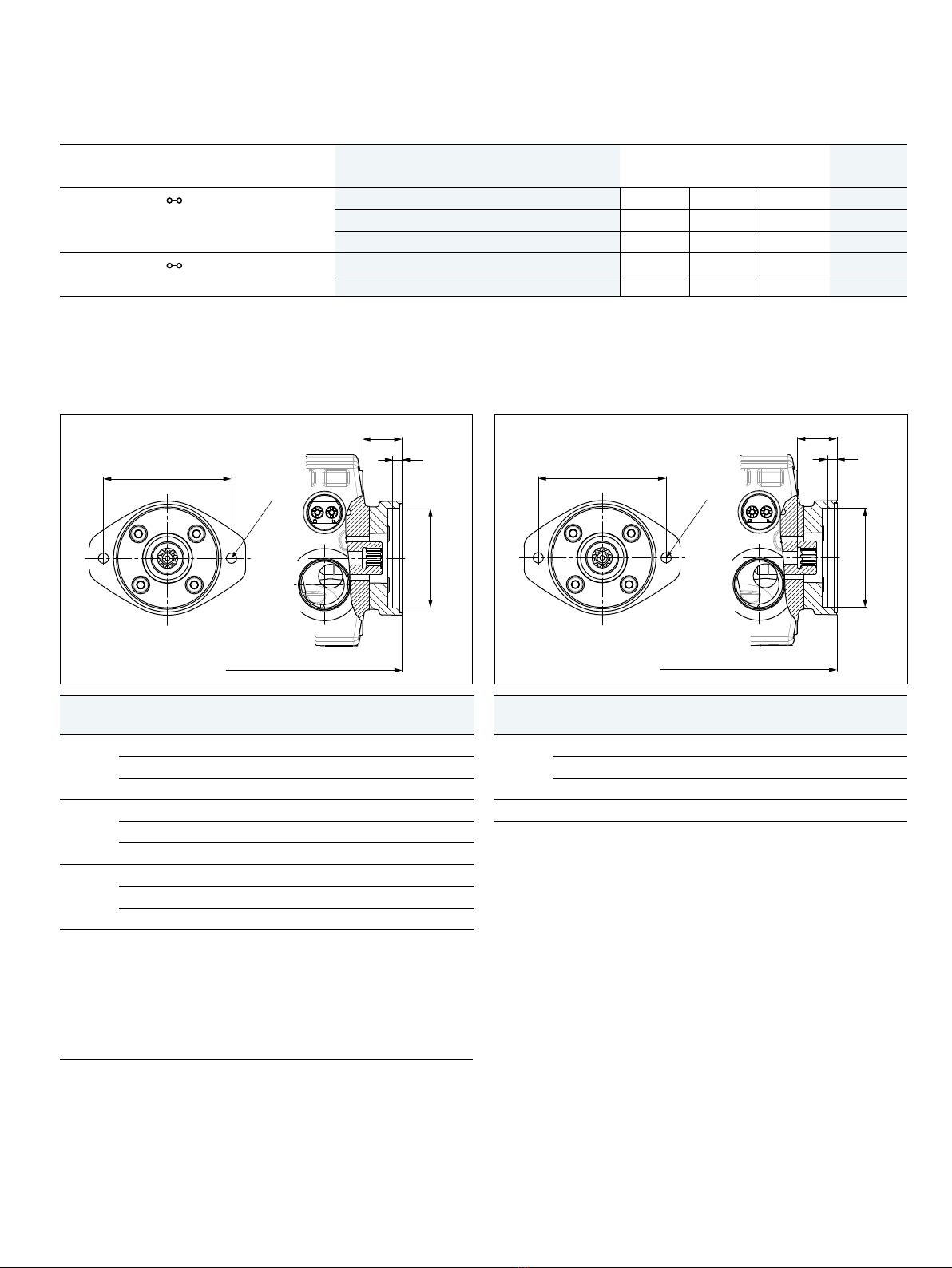

Dimensions for through drives 19
Overview ofmounting options 20
Combination pumps A1VO + A1VO 21
Connector forsolenoids 22
Installation instructions 23
Project planning notes 25
Safety instructions 26

Bosch Rexroth AG, RE 92650/2020-03-03
2A1VO Series 10 | Axial piston variable pump
Type code
Axial piston unit
01 Swashplate design, variable, nominal pressure 250bar, maximum pressure 280bar A1V
Operating mode
02 Pump, open circuit O
Size (NG)
03 Geometric displacement, see technical data onpage 7 018 028 035
Control device 18 28 35
04 Pressure controller Setting range 100 to250bar ● ● ● DR
with load-sensing ● ● ● DRS0
Setting range 20 to100bar ● ● ● DN
with load-sensing ● ● ● DNS0
with override, electrically proportional, negative control U= 12 V ● ● ● D3
U= 24 V ● ● ● D4
Controller design and mounting 18 28 35
05 Mounted (only possible with control valve D3 and D4) ● ● ● A
Cartridge (only possible with control valve DR, DRS0, DN and DNS0) ● ● ● C
Setting 18 28 35
06 Adjustable 2
Connector for solenoids1) (see page22) 18 28 35
07 Without connector (without solenoid, only for hydraulic control) ● ● ● 0
DEUTSCH - molded connector, 2-pin, without suppressor diode ● ● ● P
Additional function
08 Without additional function 0
Series
09 Series 1, index 0 10
Version ofport and fastening threads 18 28 35
10 Threaded ports according toISO 11926-1 with O-ring seal (ANSI),
Metric fastening thread according toDIN13 onthe through drive ● ● ● B
Threaded ports, metric, according toISO 6149-01 with O-ring seal,
Metric fastening thread according toDIN13 onthe through drive ● ● ● M
Direction ofrotation 18 28 35
11 Viewed ondrive shaft clockwise ● ● ● R
counter-clockwise ● ● ● L
Sealing material
12 FKM (fluoroelastomer) V
Mounting flange 18 28 35
13 ISO 3019-1 (SAE J744) 82-2 ● ● –A2
101-2 ● ● ● B2
ISO 3019-2 (metric) 80-2 ● ● –K2
1) Connectors for other electric components may deviate
Type code
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18
A1V O 2 0 / 10 V 00 – 0

RE 92650/2020-03-03, Bosch Rexroth AG
3Axial piston variable pump | A1VO Series 10
Type code
2) For size 35, not for through drive
3) Inaccordance with ANSI B92.1a
4) Mounting holes pattern viewed onthrough drive with working
portB on right.
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18
A1V O 2 0 / 10 V 00 – 0
Drive shaft (permissible input torque, see page8) 18 28 35
14 Splined shaft ANSI B92.1a
(Bosch Rexroth recommends selecting the
respectively larger drive shaft for through drive units)
3/4 in 11T 16/32DP ● ● – S3
7/8 in 13T 16/32 DP2) ● ● ● S4
1 in 15T 16/32DP – – ● S5
Parallel keyed shaft
Through drive not permissible
ISO 3019-1 SAE Ø 19-1 ● ● – K3
ISO 3019-2 metric Ø 20 ● ● – P3
Working port 18 28 35
15 Threaded ports B and S, lateral, on opposite sides ● ● ● 1
Threaded ports B and S, rear, not for through drive ● ● ○ 9
Through drives (for mounting options, see page20)
16 Flange SAE J744 Hub forsplined shaft3)
Diameter Mounting4) Designation Diameter Designation 18 28 35
Without through drive ● ● ● 0000
82-2 (A) A2 5/8 in 9T 16/32 DP S2 ● ● ● A2S2
3/4 in 11T 16/32 DP S3 ● ● ● A2S3
7/8 in 13T 16/32 DP S4 ● ● ● A2S4
101-2 (B) B2 7/8 in 13T 16/32 DP S4 ● ● ● B2S4
1 in 15T 16/32 DP S5 – – ● B2S5
Reduction ofgeometric displacement
17 Without reduction 00
Standard/special version
18 Standard version 0
●= Available ○= On request –= Not available
Notes
Note the project planning notes onpage25.

Bosch Rexroth AG, RE 92650/2020-03-03
4A1VO Series 10 | Axial piston variable pump
Hydraulic fluid
Hydraulic fluid
The axial piston unit A1VO isdesigned for operation
withHLP mineral oil according toDIN 51524.
Application instructions and requirements for
hydraulicfluid selection, behavior during operation
aswellasdisposal and environmental protection should
betaken from the following data sheets before the start
ofproject planning:
▶ 90220: Hydraulic fluids based onmineral oils and
related hydrocarbons
Selection ofhydraulic fluid
BoschRexroth evaluates hydraulic fluids onthebasis
oftheFluid Rating according tothe technical
datasheet90235.
Hydraulic fluids with positive evaluation inthe Fluid Rating
are provided inthe following technical datasheet:
▶ 90245: BoschRexroth Fluid Rating List forRexroth
hydraulic components (pumps and motors)
Selection ofhydraulic fluid shall make surethat
theoperating viscosity inthe operating temperature range
iswithin theoptimum range (νopt; see selection diagram).
Viscosity and temperature ofhydraulic fluids
Viscosity Shaft seal Temperature2) Comment
Cold start νmax ≤ 1600 mm²/s FKM ϑSt≥-25 °C t≤ 3 min, without load (p≤ 50 bar), n≤ 1000 rpm
Permissible temperature difference between axial piston
unitand hydraulic fluid inthe system maximum 25 K
Warm-up phase ν= 1600 … 400 mm²/s t≤ 15 min, p≤ 0.7×pnom and n≤ 0.5×nnom
Continuous
operation
ν= 400 … 10 mm²/s1) FKM ϑ≤ +90 °C measured at port L
νopt = 36 … 16 mm²/s optimal operating viscosity and efficiency range
Short-term
operation
νmin = 10 … 7 mm²/s FKM ϑ≤ +90 °C t≤ 1 min, p≤ 0.3×pnom , measured at port L

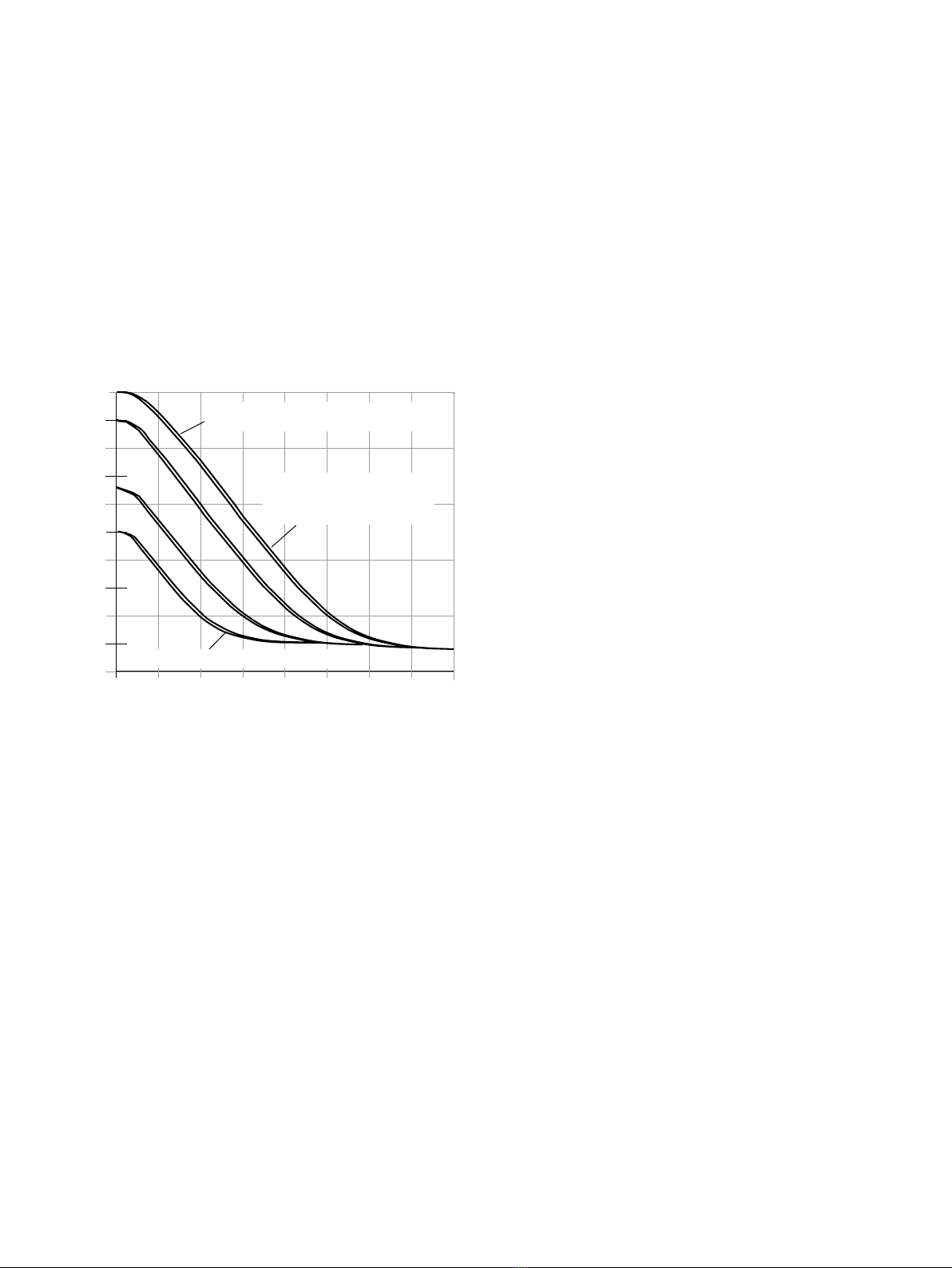

▼Selection diagram
−25 −10 10 30 40 50 90 11570
0
7
10
40
60
20
100
200
400
600
1000
1600
VG 22
VG 32
VG 46
VG 68
VG 100
16
36
Viscosity ν[mm2/s]
Maximum permissible viscosity oncold start
Warm-up phase
Continuous operation
νopt
Minimum permissible viscosity forshort-term operation
Temperature ϑ[°C]
1) This corresponds, forexample ontheVG46, toatemperature
range of+4 °C to+85 °C (see selection diagram)
2) If thetemperature atextreme operating parameters cannot
beadhered to, please contact us.

RE 92650/2020-03-03, Bosch Rexroth AG
5Axial piston variable pump | A1VO Series 10
Hydraulic fluid
Notice
The axial piston unit is not suitable for operation with
water-free HF hydraulic fluids / HF hydraulic fluids
containing water / HFx hydraulic fluids.
Filtration ofthe hydraulic fluid
Finer filtration improves thecleanliness level
ofthehydraulic fluid, which increases theservice life
oftheaxial piston unit.
A cleanliness level ofat least 20/18/15
istobemaintainedaccording toISO4406.
At ahydraulic fluid viscosity ofless than 10 mm²/s
(e.g.duetohigh temperatures during short-term
operation), acleanliness level ofatleast 19/17/14
according toISO 4406 isrequired.
For example, the viscosity is 10 mm²/s at:
▶ HLP 32 atemperature of73 °C
▶ HLP 46 atemperature of85 °C

Bosch Rexroth AG, RE 92650/2020-03-03
6A1VO Series 10 | Axial piston variable pump
Working pressure range
Working pressure range
Pressure atworking port B Definition
Nominal pressure pnom 250 bar The nominal pressure corresponds tothe maximum design pressure.
Maximum pressure pmax 280 bar The maximum pressure corresponds tothe maximum working pressure within
asingle operating period. The sum ofthe single operating periods must not
exceed the total operating period (maximum number ofcycles: approx. 1 million).
Single operating period 0,05s
Total operating period 14 h
Minimum pressure pBabs
(high-pressure side)
14 bar1) Minimum pressure onthehigh-pressure side (B) which isrequired inorder
toprevent damage tothe axial piston unit.
Rate ofpressure change RAmax 16000bar/s Maximum permissible pressure build-up and reduction speed during apressure
change across the entire pressure range.
Pressure atsuction port S (inlet)
Minimum pressure pSmin 0.8bar abs. Minimum pressure atsuction port S(inlet) which isrequired toprevent damage
tothe axial piston unit. The minimum pressure depends onthe rotational speed
and displacement ofthe axial piston unit.
Maximum pressure pSmax 5bar abs.
Case pressure at port L1, L2
Maximum pressure pLmax 2bar abs. Maximum 0.5 bar higher than inlet pressure atport S,
but not higher than pLmax.
▼ Pressure definition
Pressure p
t1
t2tn
Single operating period
Minimum pressure (high-pressure side)
Maximum pressure pmax
Nominal pressure pnom
Time t
Total operating period = t1+ t2+ ... + tn
▼ Rate ofpressure change RAmax
pnom
∆t
∆p
Time t
Pressure p
Notice
▶ Working pressure range applies when using
hydraulicfluids based onmineral oils. Please contact
usforvalues forother hydraulic fluids.
▶ Inaddition tothe hydraulic fluid and the temperature,
the service life ofthe shaft seal isinfluenced bythe
rotational speed ofthe axial piston unit and the
casepressure.
▶ The case pressure must not be below the
ambientpressure.
1) Please contact us about lower pressures

RE 92650/2020-03-03, Bosch Rexroth AG
7Axial piston variable pump | A1VO Series 10
Technical data
Technical data
Size NG 18 28 35
Geometric displacement, per revolution Vg max
Vg min
cm3
cm3
18
0
28
0
35
0
Maximum rotational speed1)2) at Vg max nnom rpm 3300 3200 3000
Flow at nnom and Vg max qvl/min 59 89 105
Power at nnom, Vg max and Δp = 250 bar PkW 25 37 44
Torque at Vg max and Δp = 250 bar MNm 72 111 139
Rotary stiffness
Drive shaft
3/4 in 11T 16/32DP S3 ckNm/rad 9.78 9.78 –
7/8 in 13T 16/32 DP S4 ckNm/rad 12.88 12.88 18.6
1 in 15T 16/32DP S5 ckNm/rad – – 22.9
Ø 20 mm P3 ckNm/rad 16.49 16.49 –
Ø 19.05 mm K3 ckNm/rad 17.27 17.27 –
Moment ofinertia oftherotary group JTW kgm20.000686 0.000737 0.00159
Maximum angular acceleration3) αrad/s² 6800 5500 5000
Case volume Vl 0.5 0.5 0.6
Weight (without through drive) approx. mKg 12.3 12.3 18.4
Weight (with through drive) approx. mKg 13.5 13.5 19.8
Determining theoperating characteristics
Flow qv=Vg×n×ηv[l/min]
1000
Torque M=Vg×Δp [Nm]
20×π×ηhm
Power P=2π×M×n=qv×Δp [kW]
60000 600×ηt
Key
VgDisplacement per revolution [cm3]
Δp Differential pressure [bar]
nRotational speed [rpm]
ηvVolumetric efficiency
ηhm Hydraulic-mechanical efficiency
ηtTotal efficiency (ηt= ηv×ηhm)
Notice
▶ Theoretical values, without efficiency and tolerances;
values rounded.
▶ Operation above themaximum valuesorbelow
theminimum values may result inaloss offunction,
areduced service life orinthe destruction oftheaxial
piston unit. We recommend testing loads through
experimentation orcalculation/simulation and
comparing them with the permissible values.
1) The values are applicable:
‒ forthe optimum viscosity range from νopt = 36 to16 mm2/s
‒ with hydraulic fluid onthebasis ofmineral oils
– atapressure ofpS≥ 1bar abs.at suction port S.
2) For apressure pS<1 bar at suction port S, please contact us.
3) The data are valid forvalues between the minimum required and
maximum permissible rotational speed. Valid forexternal excitation
(e.g. diesel engine 2 to8 times rotary frequency; cardan shaft
twice the rotary frequency). The limit value isonly valid forasingle
pump. The load capacity oftheconnection parts must
beconsidered.

Bosch Rexroth AG, RE 92650/2020-03-03
8A1VO Series 10 | Axial piston variable pump
Technical data
Permissible radial and axial forces of the drive shaft
Size NG 18 28 35
Maximum radial forces a/2
F
q
a
a/2a/2
Fq max N 150 150 650
Maximum axial forces
–
+
Fax
± Fax max N 400 400 650
Note
▶ The values given are maximum values and do not
apply to continuous operation. All shaft loads affect
bearing life!
Permissible input and through-drive torques
Size 18 28 35
Torque at Vg max und Δp = 250 bar1) Mmax Nm 72 111 139
Maximum input torque ondrive shaft2)
S3 3/4 in ME max Nm 143 143 –
S4 7/8 in ME max Nm 198 198 198
S5 1 in ME max Nm – – 319
P3 Ø 20 mm ME max Nm 151 151 –
K3 Ø 19.05 mm ME max Nm 147 147 –
Through-drive torque, maximum
S3 3/4 in MD max Nm 87 87 –
S4 7/8 in MD max Nm 87 87 139
S5 1 in MD max Nm – – 139
▼ Distribution oftorques
ME
MD
M1M2
M3
1. pump 2. pump
Torque at 1st pump M1
Torque at 2nd pump M2
Torque at 3rd pump M3
Input torque ME=M1+ M2+ M3
ME<ME max
Through-drive torque MD=M2+ M3
MD<MD max
1) Efficiency not considered
2) For drive shafts free ofradial force

RE 92650/2020-03-03, Bosch Rexroth AG
9Axial piston variable pump | A1VO Series 10
DR/DN – Pressure controller
DR/DN – Pressure controller
The pressure controller limits the maximum pressure at the
pump outlet within the control range ofthe variable pump.
The variable pump only supplies as much hydraulic fluid as
isrequired bythe consumers. If the working pressure
exceeds the pressure command value at the pressure valve,
the pump will regulate toasmaller displacement toreduce
the control differential.
▶ Basic position indepressurized state:Vg max.
▶DR
Setting range1) for pressure control 100 to250bar.
Standard is250bar
DN
Setting range1) for pressure control 20 to100bar.
Standard is100bar
▼ Characteristic curve DR
250
qv min qv max
100
Working pressure p [bar]
Flow qV
Hysteresis/pressure increase Δp max

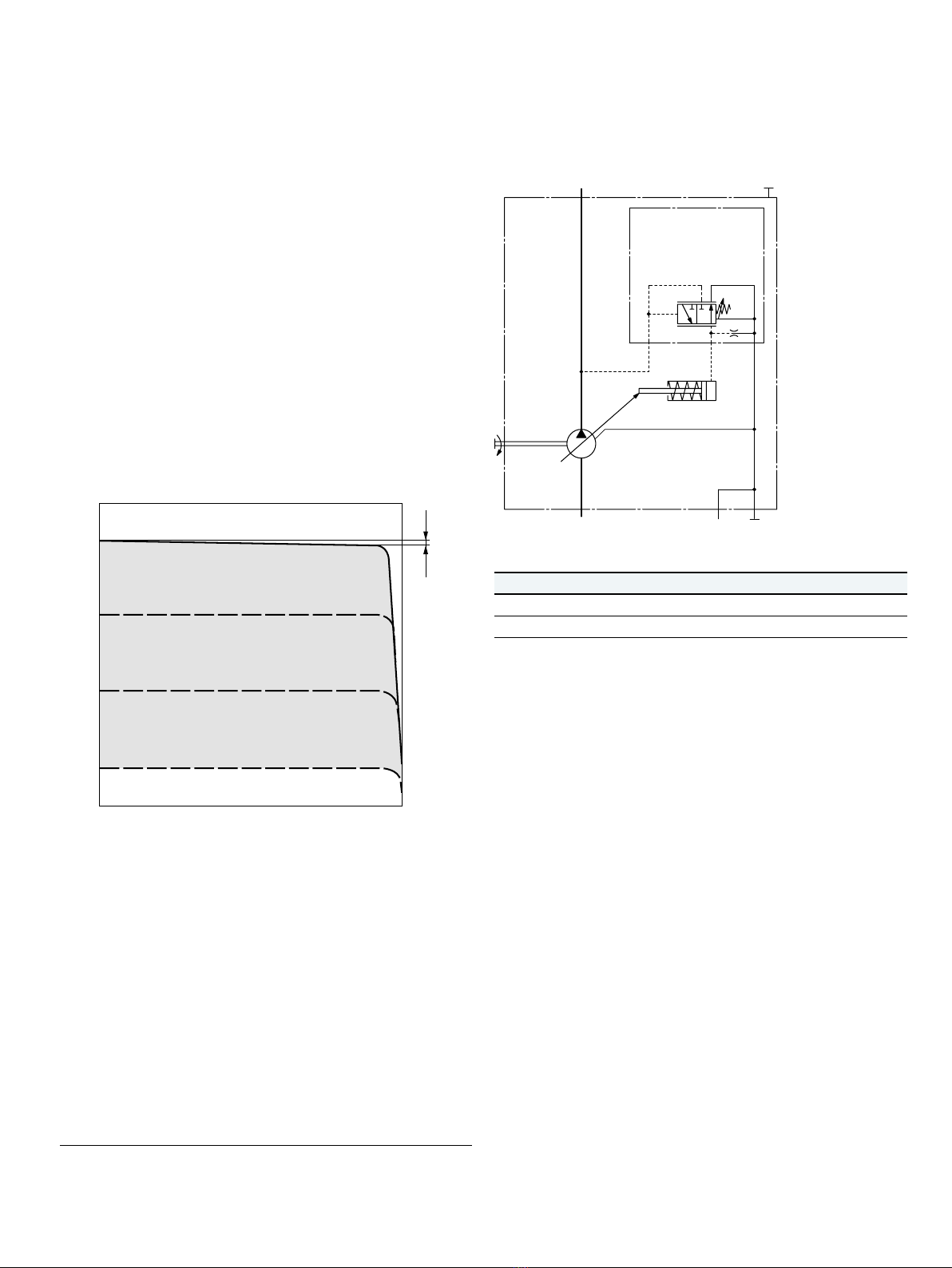

▼ Circuit diagram DR
L
2
L
1
B
S
X
Controller data
NG 18 28 35
Hysteresis and repeat precision Δp Maximum 5 bar
Pilot fluid consumption Approx. 3 l/min maximum
1) Inorder toprevent damage tothe pump and the system,
thepermissible setting range must not beexceeded.
Lower values on request

Bosch Rexroth AG, RE 92650/2020-03-03
10 A1VO Series 10 | Axial piston variable pump
DRS0/DNSO – Pressure controller with load-sensing
DRS0/DNSO – Pressure controller with load-sensing
Inaddition tothe pressure controller function (DR), the
load-sensing controller works as load pressure guided flow
controller and adjusts the displacement ofthe pump tothe
quantity required by the consumer. The load-sensing
controller compares the pressure upstream the metering
orifice tothe one downstream the orifice and keeps the
pressure drop (differential pressure ∆p) occurring here and
thus the flow constant.
The swinging in by the pressure or the flow controller
always takes priority.
▶DRS0
Setting range1) for pressure control 100 to250bar.
▶DNS0
Setting range1) for pressure control 20 to100bar.
Notice
Version DRS0/DNSO does not have any connection
fromXtothe reservoir; thus, the LS must be unloaded in
thesystem.
▼ Characteristic curve DRS0
250
100
qv min qv max
Working pressure p [bar]
Flow qV
Hysteresis/pressure increase Δp max
▼ Characteristic curve at variable rotational speed
qV max
qV min
nmin nmax
Flow qV[L/min]
Rotational speed n
Hysteresis ΔqVmax
▼ Circuit diagram DRS0
S0
DR
L2 L1
B1
S
X
1 The metering orifice (control block) is not included in the
scopeofdelivery.
Differential pressure ∆p
Standard setting: 14 bar. If another setting is required,
please state in the plain text.
Controller data
For data for the pressure controller DR, please refer
topage9. Maximum flow differential (hysteresis
andincrease) measured at drive speed n = 1500 rpm
andtfluid=50 °C
NG 18 28 35
Volume flow difference ΔqV max 3 l/min
Maximum pilot fluid consumption approx. 4 l/min
1) Inorder toprevent damage tothe pump and the system,
thepermissible setting range must not beexceeded.
Lower values on request

RE 92650/2020-03-03, Bosch Rexroth AG
11Axial piston variable pump | A1VO Series 10
D3/D4 – Pressure controller with override
D3/D4 – Pressure controller with override
With the electric pressure adjustment with proportional
solenoid, the high pressure can be continuously set
depending on the solenoid current. If the load pressure
atthe consumer changes, the delivery rate ofthe pump
isadjusted so that the specified pressure is reached again.
Ifthe solenoid current falls below the beginning ofcontrol,
the unit will switch tothe set maximum pressure. The same
is true if the pilot signal is lost.
▼ Current/pressure characteristic curve
(negativecharacteristiccurve)
250
01
140
D3/D4
Working pressure p [bar]
Deactivation ofcontrol
Maximum adjustable
controller pressure
Minimum adjustable controller pressure
Current I/I max
Characteristic curve measured with pump in zero stroke
Further information on request.

Bosch Rexroth AG, RE 92650/2020-03-03
12 A1VO Series 10 | Axial piston variable pump
Dimensions size 18 and size 28
Dimensions [mm]
Dimensions size 18 and size 28
DR, DN – Pressure controller / DRS0, DNS0 – Pressure control with load-sensing
Clockwise rotation
S
S
L2
L2
X
B
XL1B
X
L1
SB
L1
L2
max. 6.4
max. 9.7
max. 7.5
10.5 ±212.5 ±2
10.5 ±2
ø82.55
ø80 ø101.6
70.5
Y
Y
70.5
Y
X
Z
-0.054 -0.054
-0.046
54.5 (L2)
55
(S)
54
(B; L1; X)
143.1 (S)
146.1
11.2
7.31)
70.5
2.31)
77.5
58.5
17.5
179.7 (176.62))
(181.63) L2)
106.4
133
138.6 (L2)
871)
143.1 (B)
132.2
161.6
17.5 31
34
11
109
133
26.5 34
33.68.5
2.5
29
35
12.7
3041.5
⌀14.4
174
70.5
146
View X
Port plate 9
Flange B2
ISO 3019-1
Flange K2
ISO 3019-2
Flange A2
ISO 3019-1
View Y
View X
Port plate 1
View Z
Flange A2
View Z
Flange B2
View Z
Flange K2
1) Center ofgravity
2) Connection surfaces S, B, X, L1and L2with port plate 9
3) With port plates 9 and L2plugged only

RE 92650/2020-03-03, Bosch Rexroth AG
13Axial piston variable pump | A1VO Series 10
Dimensions size 18 and size 28
Dimensions [mm]
Dimensions size 18 and size 28
DR, DN – Pressure controller / DRS0, DNS0 – Pressure control with load-sensing
Counter-clockwise rotation
S
L2
L2
B
X
L1
max. 6.4
ø82.55
70.5
Y
X
-0.054
143.1 (B)
132.2
161.6
17.5 31
34
143.1 (S)
146.1
11.2
77.5
58.5
17.5
179.7 (176.62))
(181.63) L2)
106.4
133
138.6 (L2)
10.5 ±2
7.31)
871)
S
B
X
L1
54.5 (L2)
55
(S)
54
(B; L1; X)
70.5
2.31)
S
B
X
L1
L2
26.5
34
33.6
8.5
2.5 29
35
12.7
30
41.5
Y
70.5
Y
11
109
133
⌀14.4
174
70.5
146
max. 9.7
max. 7.5
12.5 ±2
10.5 ±2
ø80 ø101.6 -0.054
-0.046
Flange B2
ISO 3019-1
Flange A2
ISO 3019-1
View X
Port plate 1
View X
Port plate 9
Flange K2
ISO 3019-2
View Y
View Z
Flange A2
View Z
Flange B2
View Z
Flange K2
1) Center ofgravity
2) Connection surfaces S, B, X, L1and L2with port plate 9
3) With port plates 9 and L2plugged only

Bosch Rexroth AG, RE 92650/2020-03-03
14 A1VO Series 10 | Axial piston variable pump
Dimensions size 18 and size 28
Dimensions [mm]
▼ D3/D4 Pressure controller with override,
electric-proportional, clockwise rotation
▼ D3/D4 Pressure controller with override,
electric-proportional, counter-clockwise rotation
141
127
141
127
▼ Splined shaft SAEJ744 ▼ Splined shaft SAEJ744
S3 – 3/4 in 11T 16/32DP1) S4 – 7/8 in 13T 16/32DP1)
38
30
⌀47
16.5
41
33
18
Ø 47
▼ Keyed shaft ISO 3019-2 ▼ Keyed shaft ISO 3019-1
P3 – 20 K3 – 19-1
⌀47
43.4
232
22.5
ø20
+ 0
– 0.033
Shaft key
width 6
⌀47
32
2.2 20.8
21.1
ø19.05
+ 0
– 0.02
Shaft key
width 4.78
1) Involute spline according toANSI B92.1a, 30° pressure angle,
flatroot, side fit, tolerance class 5

RE 92650/2020-03-03, Bosch Rexroth AG
15Axial piston variable pump | A1VO Series 10
Dimensions size 18 and size 28
2) The countersink may bedeeper than specified inthe standard.
3) Depending onthe application, momentary pressure peaks can
occur. Keep this inmind when selecting measuring devices and
fittings.
4) Depending on the installation position, L1or L2must be connected
(see also the installation instructions onpage23).
5) Only if an S0 controller is present.
6) O = Must beconnected (comes plugged)
X = Plugged (in normal operation)
Ports and fastening threads version "B"
Ports Standard2) Size pmax abs [bar]3) State6)
BWorking port ISO 11926 1 5/16-12UN-2B; 20 deep 280 O
SSuction port ISO 11926 1 5/8-12UN-2B; 20 deep 5 O
L1Drain port ISO 11926 3/4-16UNF-2B; 15 deep 10 O4)
L2Drain port ISO 11926 3/4-16UNF-2B; 15 deep 10 X4)
XPilot signal ISO 11926 7/16-20UNF-2B; 12 deep 280 O5)
Ports and fastening threads version "M"
Ports Standard2) Size pmax abs [bar]3) State6)
BWorking port ISO 6149 M33 × 2; 19 deep 280 O
SSuction port ISO 6149 M42 × 2; 19.5 deep 5 O
L1Drain port ISO 6149 M18×1.5; 14.5deep 10 O4)
L2Drain port ISO 6149 M18×1.5; 14.5deep 10 X4)
XPilot signal ISO 6149 M12×1.5; 11.5deep 280 O5)

Bosch Rexroth AG, RE 92650/2020-03-03
16 A1VO Series 10 | Axial piston variable pump
Dimensions size 35
Dimensions [mm]
Dimensions size 35
DR, DN – Pressure controller / DRS0, DNS0 – Pressure control with load-sensing
Clockwise rotation
S
B
X
L2L1
163
1001)
149
149
182.5
163
203
86
73
22
69.5
3822
57
(X, L1, B) 57
max. 9.7
15 ±2
max. 6.4
174
146
61
ø101.6
4.91)
1.31)
74.5
ø 14.3
Y
X
61
-0.05
Flange B2
ISO 3019-1
View YView X
1) Center ofgravity

RE 92650/2020-03-03, Bosch Rexroth AG
17Axial piston variable pump | A1VO Series 10
Dimensions size 35
Dimensions [mm]
Dimensions size 35
DR, DN – Pressure controller / DRS0, DNS0 – Pressure control with load-sensing
Counter-clockwise rotation
S
B
X
L2
L1
163
1001)
149
149
182.5
163
203
86
73
22
69.5
38
22
57 (X, L1, B)
57
max. 9.7
15 ±2
max. 6.4
174
146
61
ø101.6
4.91)
1.31)
74.5
ø 14.3
Y
X
61
-0.05
Flange B2
ISO 3019-1
View Y
View X
1) Center ofgravity

Bosch Rexroth AG, RE 92650/2020-03-03
18 A1VO Series 10 | Axial piston variable pump
Dimensions size 35
Dimensions [mm]
▼ D3/D4 Pressure controller with override,
electric-proportional, clockwise rotation
▼ D3/D4 Pressure controller with override,
electric-proportional, counter-clockwise rotation
143.5
135
135
X
143.5
▼ Splined shaft SAE J744 ▼ Splined shaft SAE J744
S4 – 7/8 in 13T 16/32DP1) S5 – 1 in 15T 16/32DP1)
41
33
18
Ø 56.9
46
38
23
Ø 56.9
Ports and fastening threads version "B"
Ports Standard2) Size pmax abs [bar]3) State6)
BWorking port ISO 11926 1 5/16-12UN-2B; 20 deep 280 O
SSuction port ISO 11926 1 5/8-12UN-2B; 20 deep 5 O
L1Drain port ISO 11926 3/4-16UNF-2B; 15 deep 10 O4)
L2Drain port ISO 11926 3/4-16UNF-2B; 15 deep 10 X4)
XPilot signal ISO 11926 7/16-20UNF-2B; 12 deep 280 O5)
Ports and fastening threads version "M"
Ports Standard2) Size pmax abs [bar]3) State6)
BWorking port ISO 6149 M33 × 2; 20 deep 280 O
SSuction port ISO 6149 M42×2; 20deep 5 O
L1Drain port ISO 6149 M18 × 1.5; 13 deep 10 O4)
L2Drain port ISO 6149 M18 × 1.5; 13 deep 10 X4)
XPilot signal ISO 6149 M12 × 1.5; 12 deep 280 O5)
Notice
At all ports - in particular when connecting port S- use
the stud ends provided for the standard with the
corresponding width across flats. Please contact us about
larger widths across flats.
1) Involute spline according toANSI B92.1a, 30° pressure angle,
flatroot, side fit, tolerance class 5
2) The countersink may bedeeper than specified inthe standard.
3) Depending onthe application, momentary pressure peaks can
occur. Keep this inmind when selecting measuring devices and
fittings.
4) Depending on the installation position, L1or L2must be connected
(see also the installation instructions onpage23).
5) Only if an S0 controller is present.
6) O = Must beconnected (comes plugged)
X = Plugged (in normal operation)

RE 92650/2020-03-03, Bosch Rexroth AG
19Axial piston variable pump | A1VO Series 10
Dimensions for through drives
Dimensions [mm]
Dimensions for through drives
Flange SAE J744 Hub forsplined shaft1) Availability NG Code
Diameter Mounting2) Designation Diameter Designation 18 28 35
82-2 (A) A2 5/8 in 9T 16/32 DP S2 ● ● ●A2S2
3/4 in 11T 16/32 DP S3 ● ● ●A2S3
7/8 in 13T 16/32 DP S4 ● ● ●A2S4
101-2 (B) B2 7/8 in 13T 16/32 DP S4 ● ● ●B2S4
1 in 15T 16/32 DP S5 – – ●B2S5
●= Available ○= On request –= Not available
1) Inaccordance with ANSI B92.1a, 30° pressure angle, flat root,
sidefit, Tolerance Class 5
2) Mounting holes pattern viewed onthrough drive with working
portB on right.
3) Continuous thread according toDIN 13, see instruction manual for
details on tightening torques.
4) Wave length for pumps with mounting flanges according
toISO3019-1
▼ 82-2 (A)
M2
106.4
M10 x 1.53)
8
Ø82.55+0.02
+0.05
M1 (to mounting flange)
Code NG M1 M2
minimum4)
A2S2 18 203.2 31
28 203.2 31
35 227.6 31
A2S3 18 203.2 37
28 203.2 37
35 227.6 37
A2S4 18 203.2 40
28 203.2 40
35 227.6 40
▼ 101-2 (B)
M2
146
M12 x 1.753)
11
Ø101.6 +0.02
+0.05
M1 (to mounting flange)
Code NG M1 M2
minimum4)
B2S4 18 203.2 40
28 203.2 40
35 227.6 40
B2S5 35 227.6 45

Bosch Rexroth AG, RE 92650/2020-03-03
20 A1VO Series 10 | Axial piston variable pump
Overview ofmounting options
Dimensions [mm]
Overview ofmounting options
Through drive1) Mounting option – 2nd pump
Flange Hub for
splined
shaft
Code A1VO/10
NG (shaft)
A4VG/32
NG (shaft)
A10VG/10
NG (shaft)
A10VO/52/53
NG (shaft)
A10VNO/52/53
NG (shaft)
A10V(S)O/31
NG (shaft)
External
gear pump
82-2 (A) 5/8 in A2S2 18, 28 (S2) – – 10 (U), 18(U) – 18(U) AZPF
3/4 in A2S3 18, 28 (S3) – – 10 (S), 18 (S, R) 28 (R) 18 (S, R) –
7/8 in A2S4 18, 28 (S4) – – – – – –
101-2 (B) 7/8 in B2S4 18, 28 (S4)
35 (S4)
– 18 (S) 28 (S, R) – 28 (S, R) AZPN
AZPG
1 in B2S5 35 (S5) 28 (S) 28 (S) – – – –
1) Additional through drives are available on request
