USER'S MANUAL
560BRGB
BLUETOOTH® I MP3-COMPATIBLE CD
AM/FM RECEIVER
0 Bluetooth ®
MULn·COLOR
ILLUMINATION
OPTIONS
IO~S
AUDIO SYSTEMS
EIJIE

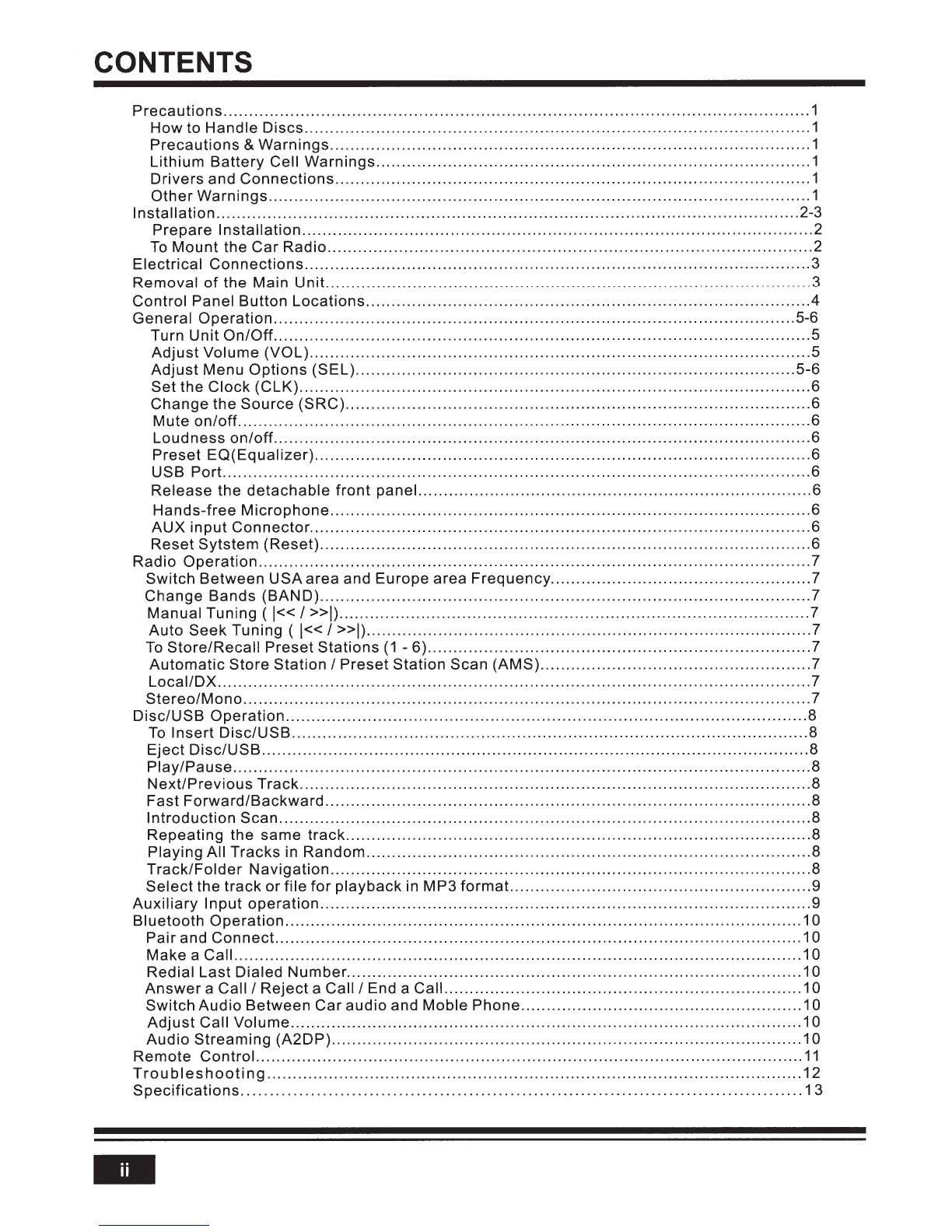

CONTENTS
Precautions .................................................................................................................. 1
How to Handle Discs ................................................................................................... 1
Precautions & Warnings .............................................................................................. 1
Lithium Battery Cell Warnings ..................................................................................... 1
Drivers and Connections ............................................................................................. 1
Other Warnings .......................................................................................................... 1
Installation .................................................................................................................. 2-3
Prepare Installation .................................................................................................... 2
To Mount the Car Radio ............................................................................................... 2
Electrical Connections ................................................................................................... 3
Removal of the Main Unit. .............................................................................................. 3
Control Panel Button Locations ...................................................................................... .4
General Operation ...................................................................................................... 5-6
Turn
Unit On/Off ......................................................................................................... 5
Adjust Volume (VOL) .................................................................................................. 5
Adjust Menu Options (SEL) ...................................................................................... 5-6
Set the Clock (CLK) .................................................................................................... 6
Change the Source (SRC) ........................................................................................... 6
Mute on/off ................................................................................................................ 6
Loudness on/off ......................................................................................................... 6
Preset EQ(Equalizer) ................................................................................................. 6
USB Port.
.................................................................................................................. 6
Release the detachable front panel. ............................................................................ 6
Hands-free Microphone .............................................................................................. 6
AUX input Connector .................................................................................................. 6
Reset Sytstem (Reset) ................................................................................................ 6
Radio Operation ............................................................................................................ ?
Switch Between USA area and Europe area Frequency ................................................... 7
Change Bands (BAND) ................................................................................................ ?
Manual Tuning ( I<< I >>1) ............................................................................................ 7
Auto Seek Tuning ( 1<< I >>1) ....................................................................................... 7
To Store/Recall Preset Stations (1- 6) ........................................................................... 7
Automatic Store Station I Preset Station Scan (AMS) ..................................................... 7
Local/OX .................................................................................................................... ?
Stereo/Mono ............................................................................................................... 7
Disc/USB Operation ...................................................................................................... 8
To Insert Disc/US B ..................................................................................................... 8
Eject Disc/USB ........................................................................................................... 8
Play/Pause ................................................................................................................. 8
Next/Previous Track .................................................................................................... 8
Fast Forward/Backward ............................................................................................... 8
Introduction Scan ........................................................................................................ 8
Repeating the same track ........................................................................................... 8
Playing All Tracks in Random ....................................................................................... 8
Track/Folder Navigation .............................................................................................. 8
Select the track or file for playback in MP3 format ........................................................... 9
Auxiliary Input operation ................................................................................................ 9
Bluetooth Operation ..................................................................................................... 10
Pair and Connect. ...................................................................................................... 10
Make a Call ............................................................................................................... 10
Redial Last Dialed Number ......................................................................................... 10
Answer a Call I Reject a Call I End a Call. ..................................................................... 10
Switch Audio Between Car audio and Moble Phone ....................................................... 10
Adjust Call Volume .................................................................................................... 10
Audio Streaming (A2DP) ............................................................................................ 10
Remote Control ........................................................................................................... 11
Troubleshooting ........................................................................................................ 12
Specifications ................................................................................................ 13
..

PRECAUTIONS
How
to
Handle
Discs
Handle
a
disc
by
its
edges.
Do
not
touch
the
playing
side
Before
inserting
a
disc,
wipe
the
disc
outward
from
the
disc
center
with
a
clean,
soft,
dry
and
lint-free
cloth.
Do
not
use
solvents
or
thinners
such
a
petrol/benzene
or
cleaners.
After
removing
a
disc
from
the
disc
slot,
place
the
disc
in a
sleeve
or
case
to
keep
it
clean
and
prevent
scratches.
Do
not
stick
paper
or
tape
on
the
disc
surface.
If
there
is
glue
(or
adhesive)
on
the
disc
surface,
remove
it
before
using
the
disc.
Precautions
&
Warnings
To
reduce
the
risk
of
fire,
electric
shock,
and
interfer-ence,
do
not
attempt
to
repair
this
unit
yourself.
Refer
all
service
to
a
qualified
technician.
Some
MP3/WMA
files
may
not
be
playable.
Keep
the
volume
at
a
reasonable
level
to
avoid
distracted
driving.
High
volume
levels
may
make
it
difficult
to
concentrate
on
traffic
and
road
conditions
while
driving.
If
the
car
has
been
in
direct
sunlight
for
an
extended
period,
you
may
need
to
reduce
the
temperature
inside
the
car
before
turning
on and
using
the
unit.
If
the
battery
is
disconnected,
discharged,
or
changed,
the
preset
memory
of
the
unit
will
be
lost
and
require
reprogramming.
The
unit
is
designed
to be
installed
in a
level,horizontal
position.
For
optimal
performance,
avoid
installing
the
unit
at
an
angle.
Never
use
excessive
force
when
removing
or
attaching
the
faceplate.
Do
not
tightly
grip
the
display
and
buttons
to
avoid
damage.
Lithium
Battery
Cell
Warnings
Cell
leakage
may
cause
damage
to
the
remote
control.
Do
not
throw
cells
into
as
this
may
cause
an
explosion.
Keep
battery
cells
out
of
reach
of
children.
Drives
and
connections
Never
place
any
foreign
objects
into
the
openings
of
the
car
radio
(disc
compartment,
USB
jack,
AUXIN
connection).
Otherwise
you
might
damage
the
slots
and
connections.
Others
Warnings
Do
not
switch
on
the
car
radio
for
long
periods
of
time
when
the
motor
is
switched
off.
This
could
cause
the
car
battery
to
discharge
and
the
vehicle
can
no
longer
be
started.

INSTALLATION
Prepare Installation
1.
First complete the electrical connections and then check for correctness.
2.
Disconnect the battery negative terminal
of
vehicle before beginning installation.
Installation Opening
This unit can be installed
in
any dashboard Having
an opening as shown the right figure.
Important:
Remove 2 transport CD deck screws before use.
To
Mount the Car Radio
[
JI3
mm
'
..____
__
_____..~
-----
182 mm
----
1
Be sure you test all connections first, and then follow these steps to install this unit.
1.
Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's
negative(-)
terminal.
2.
Disconnect the wire harness and the antenna.
3. Lift the left or right top corner
of
the plastic outer trim ring then pull it out to remove it.
4. Insert the two bracket keys into the left and right side
of
the chassis, as shown the below
figure to remove the chassis from the mounting sleeve.
~acketkey
..
~--
Bracketkey
Plastic
trim
out
5. Insert mounting sleeve into the dashboard and bend the mounting tabs out with a screwdriver.
Make sure that the lock lever
is
flush with the mounting sleeve and is not projecting beyond.
6.
Insert car radio into the mounting sleeve.
7. Use a metal strap to secure the rear part
of
the chassis using the hardware indicated.
8.
Make wiring connections, as illustrated
in
the "Wiring Diagram."
9. Install the plastic outer trim ring.
-

INSTALLATION (CONT.)
INSTALLATION
DIAGRAM
HEXNU~
I
SPRING
WASHER
PLAIN
WASHER
---~
TAPPING
SCREW
---
DASH
BOARD
METAL
MOUNTING
STRAP
MOUNTING
SLEEVE
I
•
-Only
use speakers with 4 ohm impedance.
-Do not attach the control panel to the chassis before wiring
is
complete
-The
maximum current
of
the Amp Remote trigger
is
200mA.
Electrical Connections
WIRING DIAGRAM
Radio
Antenna
c:::::J]l---H,
AUX-Left
input
AUX-Right
input
-----'
Red
:
Front
Right
PRE-AMP
Output
Red:
Rear
Right
PRE-AMP
Outpt
White:
Rear
Left
PRE-AMP
Output
- -
-'
GND-
(Black)
CAUTION Power
B+
(Yellow)
+12V
DC
ACC
+(Red)
NEGATIVE
GROUND
ANT+
(Blue)
Removal of the Main Unit
1.
Remove the metal strap from the main unit.
2.
Remove the plastic trim out from the main unit.
Rear Right
Speaker
Gray
Front Right
Speaker
White
Front Left
Speaker
Green
Rear
left
Speaker
3.
Insert a bracket key into the left and right side
of
the main unit and draw the unit out of
the mounting sleeve.
..

CONTROL PANEL BUTTON LOCATIONS
0@
@ @
@
@@@0®®0®®@@
REMOVE PANEL
@
1.
c2>
(power)
I
SRC (source) button
2. SEL (select/menu) button and VOL (volume) knob
3.
BAND/AMS(automatic store station, automatic music search) and
~(answer
call) button
4.
.,..II
(pause/play), Preset station 1 button
5. INT (intra), Preset station 2 button
6. RPT (repeat), Preset station 3 button
7. ROM (random), Preset station 4 button
8. -10(previous 10 tracks), DIR-(previous folder), Preset station 5 button
9.
+1
O(next 10 tracks), DIR+(next folder), Preset station 6 button
10. CLK (clock setting), MUTE button,
~
(end call) button
11
.
I<<
(tune/seek down, previous track, fast reverse) button
12.
>>I
(tune/ seek up, next track, fast forward) button
13. Hands
-f
ree Microphone 14. EJECT button 15. Disc slot
16. IR remote sensor 17. LCD Display 18. USB Port
19. AUX
IN
(auxiliary input) jack 20. Release button
21
. Reset button
1111

GENERAL OPERATION
Turn Unit On/Off
• Press the power (
(!,)
)
button on the front panel or
on
the remote control to turn
on
the unit.
• Press and hold the power (
(!,))
button on the front panel or briefly press the power (
(!,))
button
on
the
remote control to turn the unit on or off.
Adjust Volume (VOL)
Rotate the
VOL
knob
on
the front panel or press the
VOL+ A
NOL-
Y
button
on
the remote
control to increase or decrease the volume level.
Adjust Menu Options (SEL)
• Press the
SEL
button on the front panel or on the remote control repeatedly to cycle through the
following adjustable audio functions: BASS, TREBLE, BALANCE, FADER, EQ OFF/CLASS/ROCK/
POP
I
FLAT,
LOUD ON/OFF, BLUE
I
RED
I
CYAN
I
GREEN
I
PURPLE
I
YELLOW
I
WHITE
I
AUTO,
OX
I
LOC, STEREO/MONO, VOLUME.
-BASS/TREBLE:-7,-6,
-,
-1,0,+1,-, +6,+7
-BALANCE:L
10,L9,-,L
1,
0,
R1
,-,R9,R10
-FADER:R1O,R9,-,R1
,O,F1
,-,F9,F10
-EQ(Equalizer) Setting:OFF, CLASS, ROCK,
POP,
FLAT
-Loudness: LOUD ON/OFF
-7 color-changing illumination
in
buttons:
This car radio device is equipped 7 color-changing illumination
in
buttons.
The illumination color can be preset Blue, Red, Cyan, Green, Purple, Yellow, White orAuto(
color automatically change one by one
).
-OX/LOCAL: Enables or disables the local broadcast mode (LOCAL).
-Stereo/Mono: Switches between MONO and STEREO reception mode for radio frequencies.
-VOLUME
Level:
0-40
• Press and hold the
SEL
button to access these additional functions: VOL LAS
I
ADJ, AREA US/EU,
CLOCK 12/24, BEEP ON/OFF.
-VOL(LAS/ADJ):This option allows you to preset a volume level as the power-on memory volume
level.
-VOL
LAST:
In
this mode,the unit switches on at the actual volume it had when it was last
switched off.
-VOL
ADJ:
In
this mode, the unit power
on
at the actual volume that you preseted constant
switch-on volume level.
Press the
SEL
button to enter the constant switch-on volume adjusting mode and the "A-VOL XX"
will be shown on the LCD display.
Then you can adjust a constant switch-on volume level by rotating the VOL knob.
-AREA
US/EU: This car radio
is
equipped the USA
I
Europe frequency.
Rotate the volume knob to switch between USA and europe frequency.
The system will change the frequecny setting
in
about 3 seconds.
-CLOCK
12/24:
This unit is equipped with two types of clock display formats, 12 and 24 hours.
Rotate the volume knob to choose 12 hours format or 24 hours format.
-BEEP
ON/OFF:Enables or disables the "BEEP" signal to confirm use.
..

GENERAL OPERATION
• Rotate the VOL knob
on
the front panel or press the VOL+
A
NOL-
Y
button
on
the remote control to
adjust the selected item.
Set the Clock (CLK)
1.
To
display clock time, press and hold the CLKIMUTE button
on
the front panel or press the CLK button
on the remote control.
2.
To
set clock time, press and hold the CLK/MUTE button and the hour will flash.
3.
Press the I<< or >>I button on the front panel or press the PREV
or
NEXT button
on
the remote control
to adjust the hour.
4. Press the CLK/MUTE button
on
the front panel and the minutes will flash.
5.
Press the I<< or >>I button on the front panel or or press the PREV
or
NEXT button
on
the remote
control to adjust the minute.
Change the Source (SRC)
Press the SRC button to switch between RADIO, BT(Biuetooth), DISC(with a CD/MP3 disc inside the disc
slot), USB(with USB device inserted) and AUX-IN(auxiliary input) modes.
Mute on/off
In
power
on
mode, briefly press the MUTE button to toggle mute
on
or off. The muted state will be also
released when the volume knob
is
used.
Loudness on/off
Press the LOUD button on the remote control to turn on the loudness to reinforce the output of bass
frequencies, press again to turn it off.
Preset EQ (Equalizer)
Press the EQ button
on
the remote control to toggle between EQ
OFF,
CLASS, ROCK,
POP,
FLAT.
USB port
The USB port ofthis car radio is designed for media playback from flash memory devices and
charging for iPhone I andriod mobile phone. The charging current consumption is 1 ampere.
Release the detachable front panel
If you want to insert or reset the unit, remove the front panel form the chassis,
press the release button to detach the front panel.
Hands-free Microphone
To
receive your voice when you calling by using this bluetooth handsfree system.
Aux input connector
The 3.5mm auxiliary input stereo connection
is
designed for deiveces with 3.5mm line-out or
headphone output.
Reset System (Reset)
The RESET button
is
used to reset all parameters to factory default settings.
This function may be used when the LCD does not display normally or sound
is
distorted, or
when any of controls are disabled.
To
reset your system, use a thin object with a pointed end
to depress the RESET button.
..

RADIO OPERATION
Switch Between USA area and Europe area Frequency
In
radio mode, press the VOL button to enter the switch state ofthe US(USA) and EU(europe)
frequency, then rotate it to switch between US(USA) and EU(europe) frequency.
The system will change the frequency setting
in
about 3 seconds.
Change Bands (BAND)
Press the BAND button to switch between the FM1, FM2, FM3,
AM1
and AM2 bands.
Each band stores up to six preset stations.
Manual Tuning (
>>1/
I<<)
Press and hold the
>>I
or
I<<
button
on
the front panel or
on
the remote control to enter manual
tuning mode.
In
manual tuning mode, press the
>>I
or
I<<
button to move the radio frequency
number up or down one step.
Auto Seek Tuning
(>>Ill<<
)
In
standby mode or while not
in
manual tuning mode, quickly press the
>>I
or
I<<
button to move to
the next/previous available station automatically.
To
Store
I
Recall Preset Stations
The radio can be stored 6 preset stations for each band (FM1, FM2, FM3,
AM1
and AM2) for a
total
of
30 preset stations.
-
To
memorize a station:
-Turn
the radio
on
and select the desired band and station.
-Select
a station by
>>I
or
1<<
button.
-Press and hold the desired preset button (numbered 1-6
on
the face of the radio) for more than 2
seconds to save the station to that preset number.
-To
recall a preset station:
-Select
the desired band.
-Briefly press a preset button (numbered 1-6) to recall the corresponding preset station.
Automatic Store station/ Preset station scan (AMS)
Press and hold the AMS button for more than 2 seconds to select six strong stations and store
them
in
the current band. The radio will automatically scan the current frequency and enter the six
strongest stations into the preset memory positions for that band.
Briefly press the AMS button
on
the remote control to recall each preset station that saved
in
the
memories
in
each band.
LOCAL/OX
In
urban areas, most stations are strong enough and "LOCAL ON" mode should be selected.
Switch to LOCAL OFF mode to search for stations with weaker signals.
Press the LOC button
on
the remote control to choose local or distant reception mode.
STEREO/MONO
FM
station
is
received
in
stereo mode. However, if the signal
is
weak or reception
is
not as
good as you would like, switching to MONO mode usually improves the overall sound qual
ity.
Press the ST button
on
the remote control to choose
FM
STEREO or MONO audio effect.
-

DISC/USB OPERATION
To
insert DISC
I
USB
•
To
play files on a disc, insert a disc with the label surface facing upward into the disc slot.
Playback will begin automatically.
Label
Surface
Up
•
To
play files
in
a USB device, open the USB port cover, then insert a USB storage device into the USB
port. Playback will begin automatically.
Eject Disc/USB
·To
eject a disc, press the
~II
button to stop playback. Press the
~
(eject) button to eject the disc and
then remove
it.
•
To
eject a USB device, press the
~II
button to stop playback, then remove the USB device.
Play/Pause
Press the
~II
(play/pause) button to pause or resume playback.
Next/Previous Track
To
play the next track, press the >>I button;
To
play the previous track, press the I<< button.
Fast Forward/Backward
To
fast forward, press and hold the >>I button;
To
fast backward, press and hold the I<< button.
Introduction Scan
Press the INT button to play the first
10
seconds of each track, press again to stop the introduction scan,
and play the current track.
Repeating the same track
Press the RPT button to toggle between RPT ALL (Play all track), RPT FLR(Continuously repeats all
tracks
in
current folder), and RPT ONE (Continuously repeats current track).
Playing all tracks
in
random
Press the ROM button to play all tracks
in
random order, press again to cancel this function.
Track/Folder Navigation
• During a disc, USB mode, press the
5/-1
0/DIR- button to go backward 1
0 tracks.
Press the
6/+1
0/DIR+ button to jump forward 10 tracks.
• During an MP3 disc, USB mode, press and hold the
5/-1
0/DIR- button to go back the previous folder.
Press and hold the
6/+1
0/DIR+ button to go to the next folder.
You
can repeat this function depending on the number and level offolders.
• These buttons have no this function if the USB device has no folders.
-

DISC/USB OPERATION
Select the track or file for playback
in
MP3 format
During CD, USB playback, press and hold the
AMS
button to enter the track search modes:
a)
In
playback
of
CD or files with MP3 format, press and hold the
AMS
button once to access
the track or file number searching mode which allow you to quickly find a specific track or MP3
file by its serial number, and the "TRK SCH" and "TRK
****"
will appear
on
the LCD display
in
sequence.
b)
Rotate the
VOL
knob to select the number of your favorite track or file with high speed.
You
can also press the numerical keys
on
the remote control to select a specific track by
its serial number.
c)
Finally press the
SEL
button to confirm and play the selected track.
AUXILIARY INPUT OPERATION
This car radio
is
equipped
an
external auxiliary input jack (3.5mm)
on
the front panel, and a pair audio
auxiliary input RCA connector at the rear cabinet of the head unit, it
is
compatible with audio output
from
an
MP3 music player.
If you have plugged such a player into the AUX
IN
jack with a audio cable. Or connect other audio
device to the audio auxiliary input RCA connector
on
the rear cabinet of the head unit with a audio input
cable. Press the
SRC
button to switch to the AUX input mode, then you can listen to music from external
devices.
Note:
Do not use the AUX
IN
jack and the audio auxiliary input RCA connector at the same time,
otherwise, it will cause the audio auxiliary function unusable.
..

BLUETOOTH OPERATION
Pair and Connect
Prior to using the Bluetooth device
as
a handsfree system for a Bluetooth-enabled mobile phone for the
first time, you must pair and connect the two devices as follows:
1.
In
any mode, prior to pairing and connecting, the BT logo
in
the LCD indicating that no device
is
connected.
To
begin pairing, enable BT mode
on
your mobile phone.
2.
When the phone finds the car audio system, the "BOSS 560BRGB" name will
be
displayed.
3.
Choose the "BOSS 560BRGB" from the device list to pair and connect with the car audio
system. Upon confirming, the BT logo will stop flashing.
4.
When pairing
is
complete, the mobile phone audio will automatically transfer to the car
audio system whenever a call
is
made or received, or when the mobile phone plays music.
Make a Call
•
To
make a call, dial the call directly from the paired mobile phone.
•
To
make a call with this bluetooth handsfree system:
a)
When linking up the Bluetooth-enabled mobile phone to this bluetooth handsfree system,
press the
~
button to access the dial telephone number mode, then press the "0-9",
*
and
#
button
on
remote control to input the telephone number, and the entered number
will
be
shown
on
the LCD display.
b)
If a number has been incorrectly inputted, press the DEL button or
~
button to delete
it.
c)
Press the
~
button to make outgoing call.
Redial Last Dialed Number
Press and hold the
~
button on the control panel to redial the last dialed phone number.
Answer a Call
• When the mobile phone
is
called, the incoming telephone number displays
on
the LCD.
·To
receive the call, press the
~
button
on
the front panel or remote control.
Reject or End a Call
To
reject or end the call, press the
~
button on the front panel or remote control.
Switch Audio Between Car Audio and mobile Phone
During a call, press the VOL knob/button to switch the audio source from the car audio system back to
your mobile phone.
Adjust Call Volume
• During a call, use VOL knob or VOL+
A
NOL-
Y button to adjust the call volume level.
• Use the MUTE button to mute sound.
Audio Streaming (A2DP)
The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your
Bluetooth mobile device directly to your head unit.
You
can also control your music from the front panel
ofthe head unit using AVRCP (audio video remote control profile).
1.
After pairing, connecting and enabling streaming audio from a compatible mobile device,
press the SRC button to enter BT mode and display pause
in
the LCD display.
2.
When a mobile device is paired, music played through that device will automatically be heard through
the car audio system and display A2DP in the LCD display.
3.
Press the >>I or I<< button to play the next or previous
on
the mobile phone.
4.
Press the
~II
button to pause or resume music playback.

REMOTE CONTROL (CONT.)
Remove Insulating Sheet
The remote control comes with an insulating sheet
attached to the underside
of
the remote control, as
illustrated on the right. The remote control will not
work until the insulating sheet is removed.
Replace Lithium Battery Cell
1. When the lithium cell battery becomes weak,
replace it as illustrated on the right.
2. Press and hold the movable block
in
the direction
indicated by arrow 1.
At
the same time, pull the cell
holder out
of
the remote control in the direction
indicated by arrow
2.
3. Replace the old cell with a
new
one, making sure the
(+)polarity is facing upward.
4. Re-insert the cell holder into the remote control.
A-
Cell leakage may cause damage to the remote control.
-Do not throw cells into as this may cause an explosion.
-Keep
battery cells out
of
reach
of
children.
Remote Control Operation
Position the emitting window
of
the remote control toward the sensor window
of
the unit.
• The operation angle for front panel remote control reception is about 30 degrees.
• The distance between the emitting window
of
the remote control and the sensor window
of
the unit should remain less 5 meters.
Button Names and Locations
1.
<.!>
(Power on/off) button
2. VOL
+NOL-(volume increase/decrease) button
3.
Band button,
~
(answer call) button
4. PREV: tune down, seek down; Track down, fast reverse
5.
SEL(selection) button
6. NEXT: tune up, seek up; Track up, fast forward
7. Mute button, DEL(Delete) button
8.
CLK(clock setting) button,
!,;!
(end call) button
9.
~II
button, preset station 1 button, keypad 1
10. INT(intro) button, preset station 2 button,keypad 2
11.
RPT(repeat) button, preset station 3 button, keypad 3
12. RDM (random), preset station 4 button, keypad 4
13.
-1
O(previous 10 tracks), preset station 5 button, keypad 5
14. +10(next 10 tracks), preset station 6 button, keypad 6
15. ST(stereo) button, keypad 7
16. LOUD(Ioudness) button, keypad 8
17. AMS(automatic music search) button, keypad 9
18. SRC(Source) button,
keypad*
19. EQ(Equalizer) button, keypad 0
20. LOC(Iocai)/DX button,
keypad#
Note: When using the remote control
for
the first time, you
4
7
9
10
12
13
15
18
19
must pull out the portective plastic tab from the battery compartment
found on the back
of
the remote control.
8
11
14
16
17
20
-

TROUBLESHOOTING
The following chart will help in solving most problems that may occur.
If you still have questions after going through the checklist, please consult your local customer service
representative. Before going through this check list, refer the wiring and operating procedures.
Symptom
Cause Solution
The car ignition switch have
If the power supply is connected to
not turn on.
the car accessory circuits, but the
engine is not moving, switch the
No power
ignition key to "ACC".
The fuse has been blown. Replace a new one.
Presence of CD disc inside
Remove the disc from the player,
the player.
and insert a new one.
Inserting the disc in reverse
Insert the CD with the label facing
Disc can not be loaded
direction.
upward.
or ejected.
The surface of CD is extremely
Clean the disc or try to replace
dirty or has been scraped.
a new one.
Temperature inside the car
Cool off or until the ambient
is too high.
temperature return to normal.
Condensation
Leave the player off for an hour or so,
and then try again.
Volume is in minimum.
Adjust volume to a desired level.
No sound
The wiring is not properly
Check wiring connection.
connected.
The installation angle is
Adjust the installation angle
more than 30°.
less than 30°.
Sound skips
The surface of CD is extremely
Clean the disc or try to replace
dirty or has been scraped.
a new one.
1. The built-in microcomputer is not
1. Press the RESET button to
operating properly due to noise.
restore the program.
The operation keys
do not work
2. The front panel has not
2. Fixed the front panel into
properly installed.
its place.
No radio reception.
The antenna cable is not connected.
Insert the antenna cable firmly into
the antenna socket of this radio.
In automatic search mode
The transmission signals are
Select a radio station manually.
the radio does not stop at
too weak.
a transmitting station.

SPECIFICATIONS
General
Chassis Dimensions.............................................................178(W) x 160(D) x 50(H) mm
Power Supply Requirement ...................................................................................DC 12V
Current Consumption ........................................................................................15A (max.)
Maximum Power Output ...................................................................................60W x 4CH
Radio
FM
USA/ Europe Frequency Range...................................... 87.5- 107.9 MHz (200KHz/Step)
87.5- 108.0 MHz(50KHz/Step)
Usable Sensitivity ...................................................................................................
30 dBu
I.F. Frequency ....................................................................................................10.7 MHz
AM
USA/ Europe Frequency Range........................................... 530- 1710KHz (10KHz/Step)
522 -1620 KHz (9KHz/Step)
Usable Sensitivity ..................................................................................................20 dBu
I.F. Frequency .....................................................................................................
450KHz
CD/USB
Usable Audio Formats ................................................................................CD/MP3/WMA
USB Port Type..............................................................................................................2.0
USB Charging...........................................................................................................5V/1A
Pre-amp Output .........................................................................................Front and Rear
Frequency Response ................................................................................
20Hz-20KHz
S/N Ratio ...................................................................................................................60dB
BT
BT Profile supports ...........................................................................A2DP, AVRCP, HFP
Range
of frequency ...............................................................................2.4GHz spectrum

IO~S
AUDIO SYSTEMS
•

THANK YOU
from
BOSS AUDIO SYSTEMS
FOR YOUR PURCHASE
There's a reason
we
have been a leader and
innovator
in
the
business since 1987.
Our
goal
is
for
you
to
be
completely
satisfied
with
your
purchase.
If
for
any reason you are unsatisfied, please
let
us
be
the
first
to
know.
Contact
our
Customer
Care
dept.
at
805.988.0192
WE
WANT
YOUR POSITIVE FEEDBACK
AND
REVIEWS!
www.bossaudio.com
1115

IO~S
AUDIO SYSTEMS
£f_j
II::,
IO~S
AUDIO SYSTEMS
3451
Lunar
Court
Oxnard, CA 93030
PLACE
POSTAGE
HERE

ao~s
AUDIO SYSTEMS
EUIE
UNIT PRODUCTS HEAD
LIMITED WARRANTY
This product has a manufacturer's warranty against defects in materials and workmanship to the or iginal
purchaser
for a period of two years from the date-of-purchase (DOP). This manufacturer warranty is
