BV765BLC USER'S MANUAL
BLUETOOTH ®I DVD/MP3/CD AM/FM RECEIVER
FEATURING 6.5" (165 mm) WIDESCREEN TOUCHSCREEN

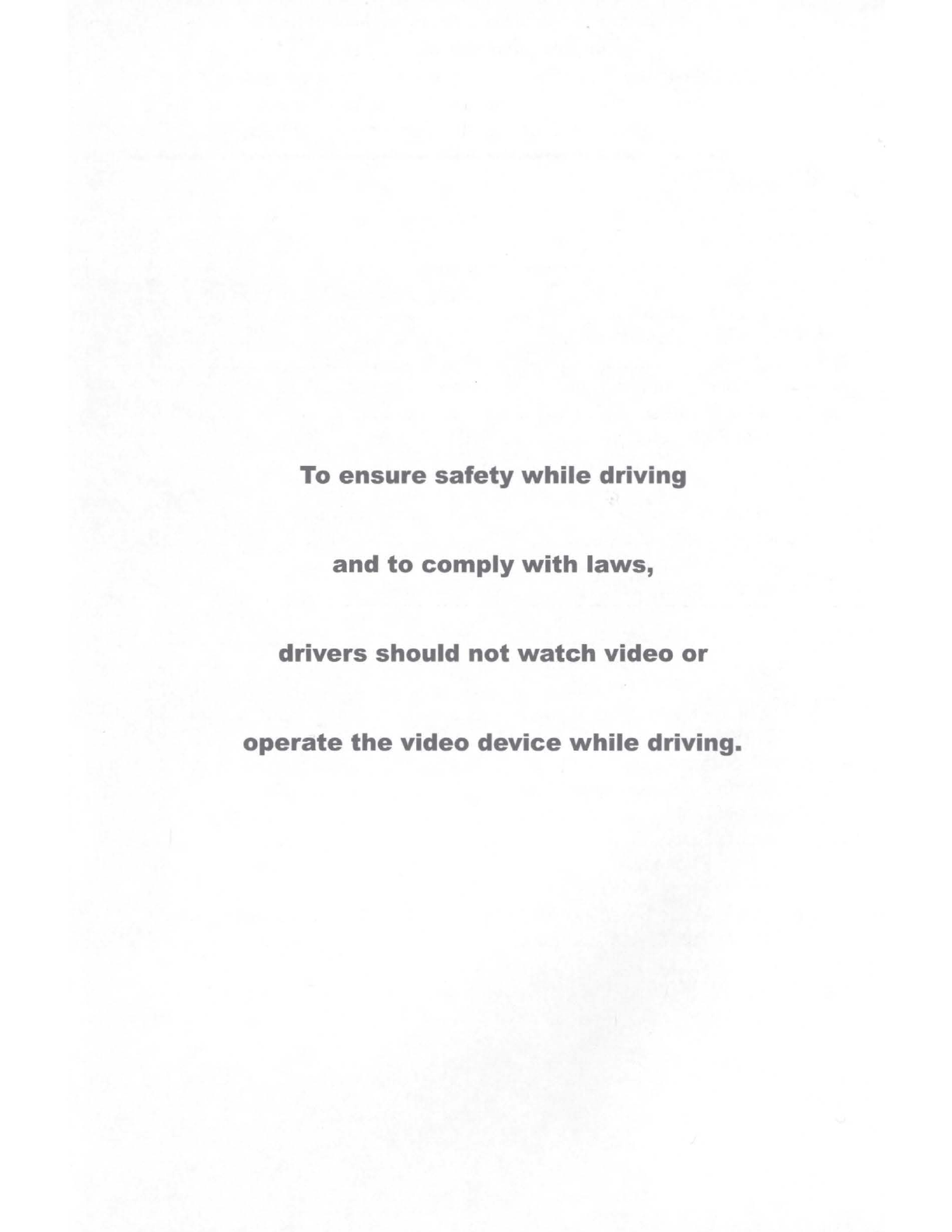

To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.

Congratulations on your purchase of a Boss Audio Systems®
Multimedia Receiver.
It has been designed, engineered and manufactured to bring you
the highest level of performance and quality, and will offer you
years of entertainment pleasure.
CONTENTS
Specifications...................................................................................................1
Safety Notice....................................................................................................2
Accessories......................................................................................................3
Unit lnstallation.................................................................................................3
Remote Control Operation...............................................................................4
Wires Connection Description..........................................................................5
Panel lntroduction............................................................................................6
Main Menu Operation Instruction.....................................................................?
Access Setup lnterface....................................................................................8
General Settings.......................................................................................7
Camera Settings.......................................................................................8
Clock Settings...........................................................................................8
Audio Settings...........................................................................................8
Tuner Settings...........................................................................................9
Illumination Settings.................................................................................9
About Settings.........................................................................................10
Tuner Operation.............................................................................................10
DISC/CD/USB/SD Playback........................................................................... 11
DVD Mode operation.............................................................................. 11

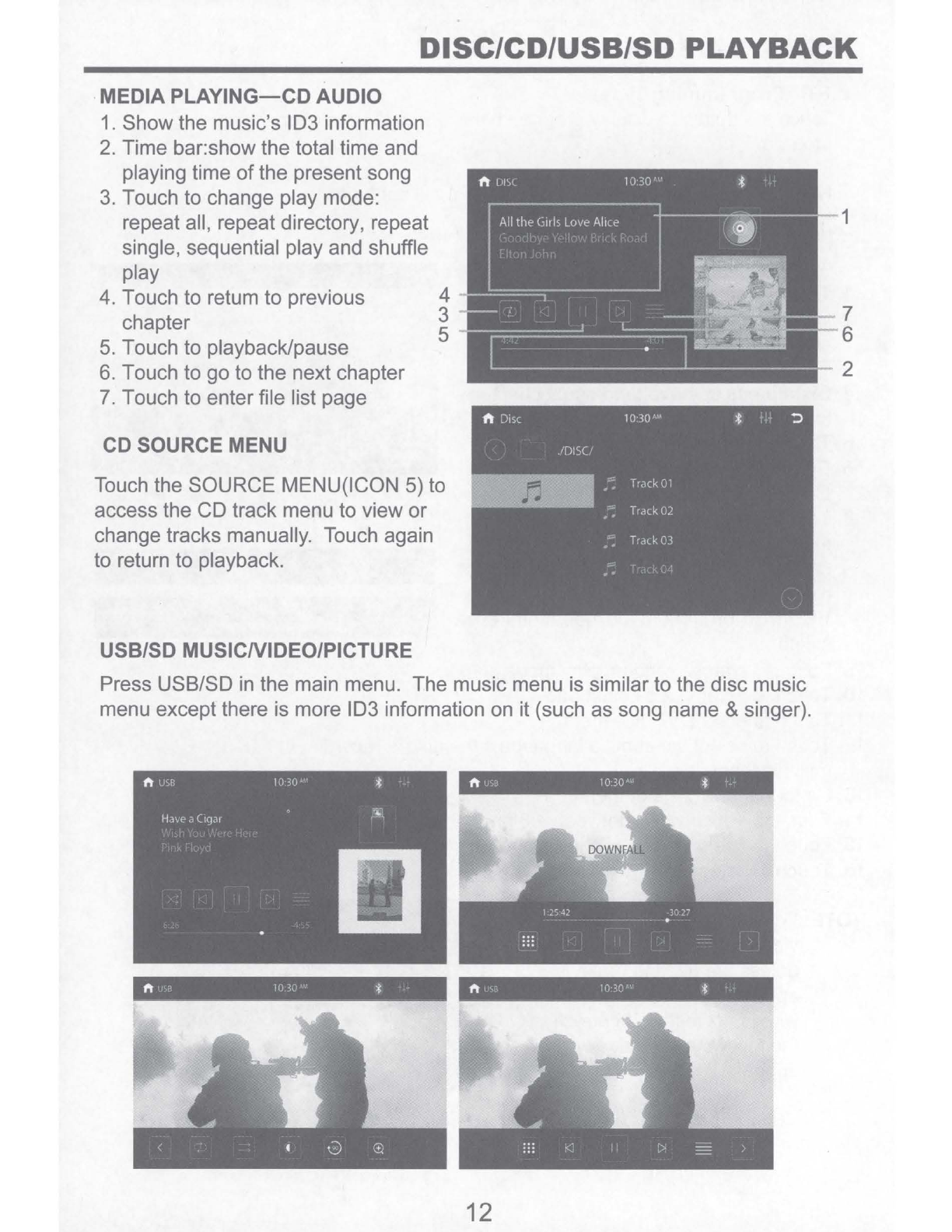

Media Playing-CD Audio.....................................................................12
CD Source Menu ...................................................................... .. ...........12
USB/SD MusicNideo/Picture..................................................................12
Bluetooth Operation........................................................................................13
Bluetooth Operation Menu......................................................................13
Bluetooth Dialing.....................................................................................13
Bluetooth Call..........................................................................................13
Bluetooth Phone Book............................................................................14
Bluetooth Phone Call History..................................................................14
Bluetooth Music Steaming-A2DP............................................................14
Bluetooth Pairdevice..............................................................................14
Photos.............................................................................................................15
Camera/Aux/AV Menu....................................................................................15
Troubleshooting..............................................................................................16

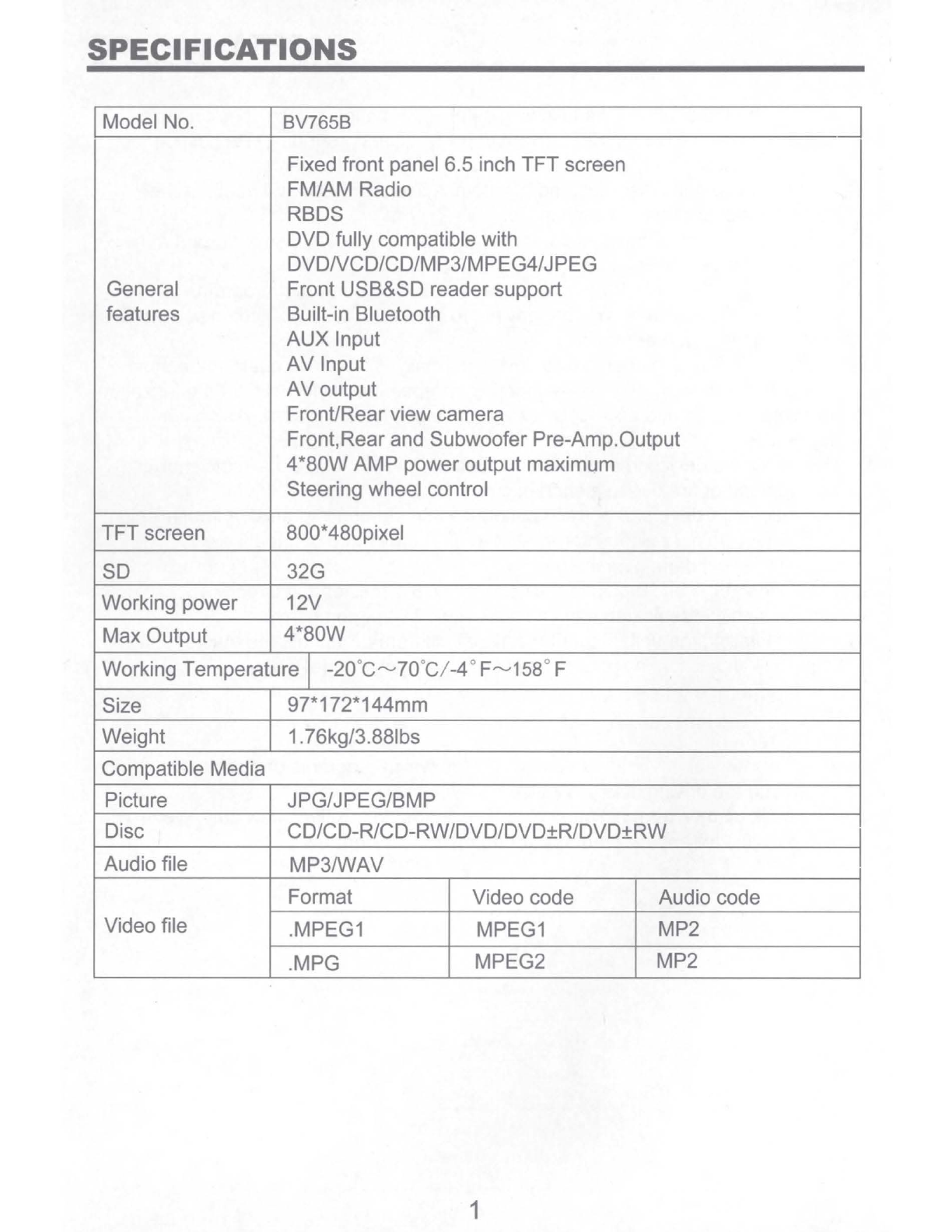

SPECIFICATIONS
IModel No. IBV765B
Fixed front panel 6.5 inch TFT screen
FM/AM Radio
RBDS
DVD fully compatible with
DVDNCD/CD/MP3/MPEG4/JPEG
General Front USB&SD reader support
features Built-in Bluetooth
AUX Input
AV Input
AV output
Front/Rear view camera
Front,Rear and Subwoofer Pre-Amp.Output
4*80W AMP power output maximum
Steering wheel control
TFT screen 800*480pixel
SD 32G
Working power 12V
Max Output 4*80W
Working Temperature I -20° C'""'-'?0 °C/ -4° F'""'-'158 °F
Size 97*172*144mm
Weight 1.76kg/3.881bs
Compatible Media
Picture JPG/JPEG/BMP
Disc CD/CD-R/CD-RW/DVD/DVD±R/DVD±RW
Audio file MP3/WAV
Format Video code Audio code
Video file .MPEG1 MPEG1 MP2
.MPG MPEG2 MP2
1

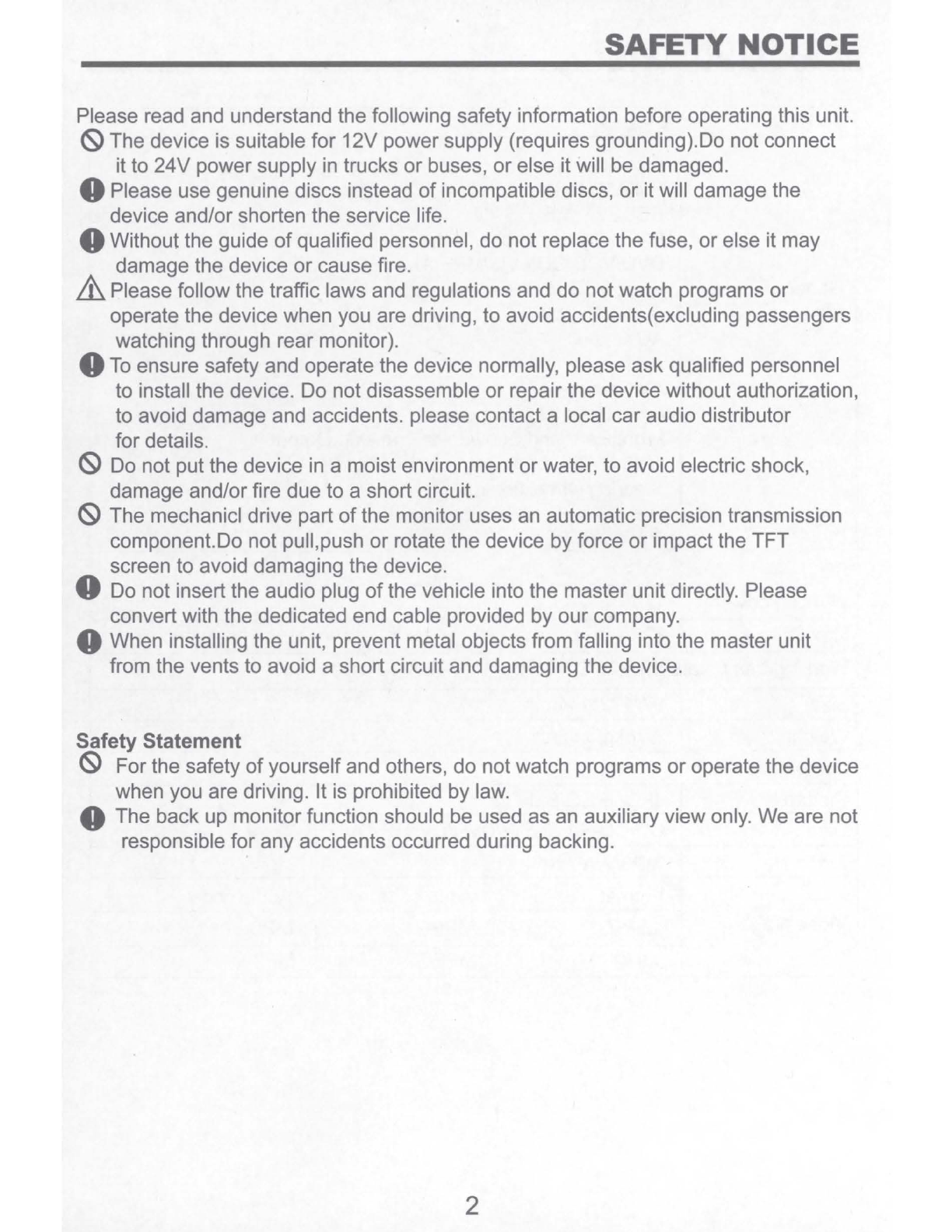

SAFETY NOTICE
Please read and understand the following safety information before operating this unit.
(S) The device is suitable for 12V power supply (requires grounding).Do not connect
it to 24V power supply in trucks or buses, or else it will be damaged.
0 Please use genuine discs instead of incompatible discs, or it will damage the
device and/or shorten the service life.
0 Without the guide of qualified personnel, do not replace the fuse, or else it may
damage the device or cause fire.
_& Please follow the traffic laws and regulations and do not watch programs or
operate the device when you are driving, to avoid accidents(excluding passengers
watching through rear monitor).
0 To ensure safety and operate the device normally, please ask qualified personnel
to install the device. Do not disassemble or repair the device without authorization,
to avoid damage and accidents. please contact a local car audio distributor
for details.
(S) Do not put the device in a moist environment or water, to avoid electric shock,
damage and/or fire due to a short circuit.
(S) The mechanic! drive part of the monitor uses an automatic precision transmission
component.Do not pull,push or rotate the device by force or impact the TFT
screen to avoid damaging the device.
0 Do not insert the audio plug of the vehicle into the master unit directly. Please
convert with the dedicated end cable provided by our company.
O When installing the unit, prevent metal objects from falling into the master unit
from the vents to avoid a short circuit and damaging the device.
Safety Statement
(S) For the safety of yourself and others, do not watch programs or operate the device
when you are driving. It is prohibited by law.
O The back up monitorfunction should be used as an auxiliary view only. We are not
responsible for any accidents occurred during backing.
2

ACCESSORIES
Remote...........................................................................1
Power Cable...................................................................1
Mounting Brackets..........................................................2
Screw..............................................................................8
Trim Ring........................................................................1
UNIT INSTALLATION
1.Putthe 2 brackets to the left and right side of the unit;
2.Use screws to fix the brackets to the unit.
3.0nce the screws are attached, the brackets can be adjusted
forward or backward depending on the installation requirements.
3

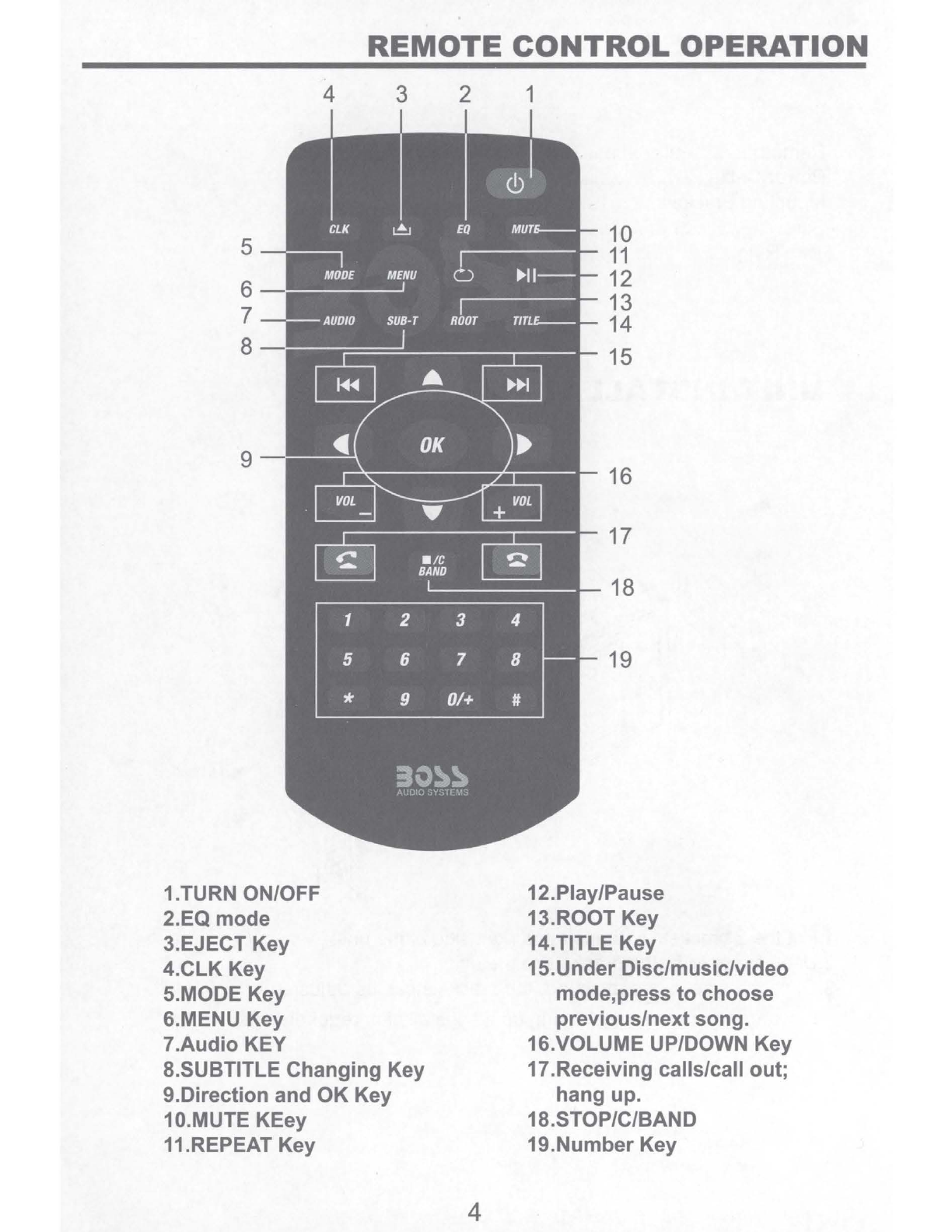

REMOTE CONTROL OPERATION
1.TURN ON/OFF
2.EQ mode
3.EJECT Key
4.CLK Key
5.MODE Key
6.MENU Key
7.Audio KEY
4 3
8.SUBTITLE Changing Key
9.Direction and OK Key
10.MUTE KEey
11.REPEAT Key
2
4
1
10
11
12
13
14
15
16
17
18
19
12.Play/Pause
13.ROOT Key
14.TITLE Key
15.UnderDisc/music/video
mode,press to choose
previous/next song.
16.VOLUME UP/DOWN Key
17.Receiving calls/call out;
hang up.
18.STOP/C/BAND
19.NumberKey

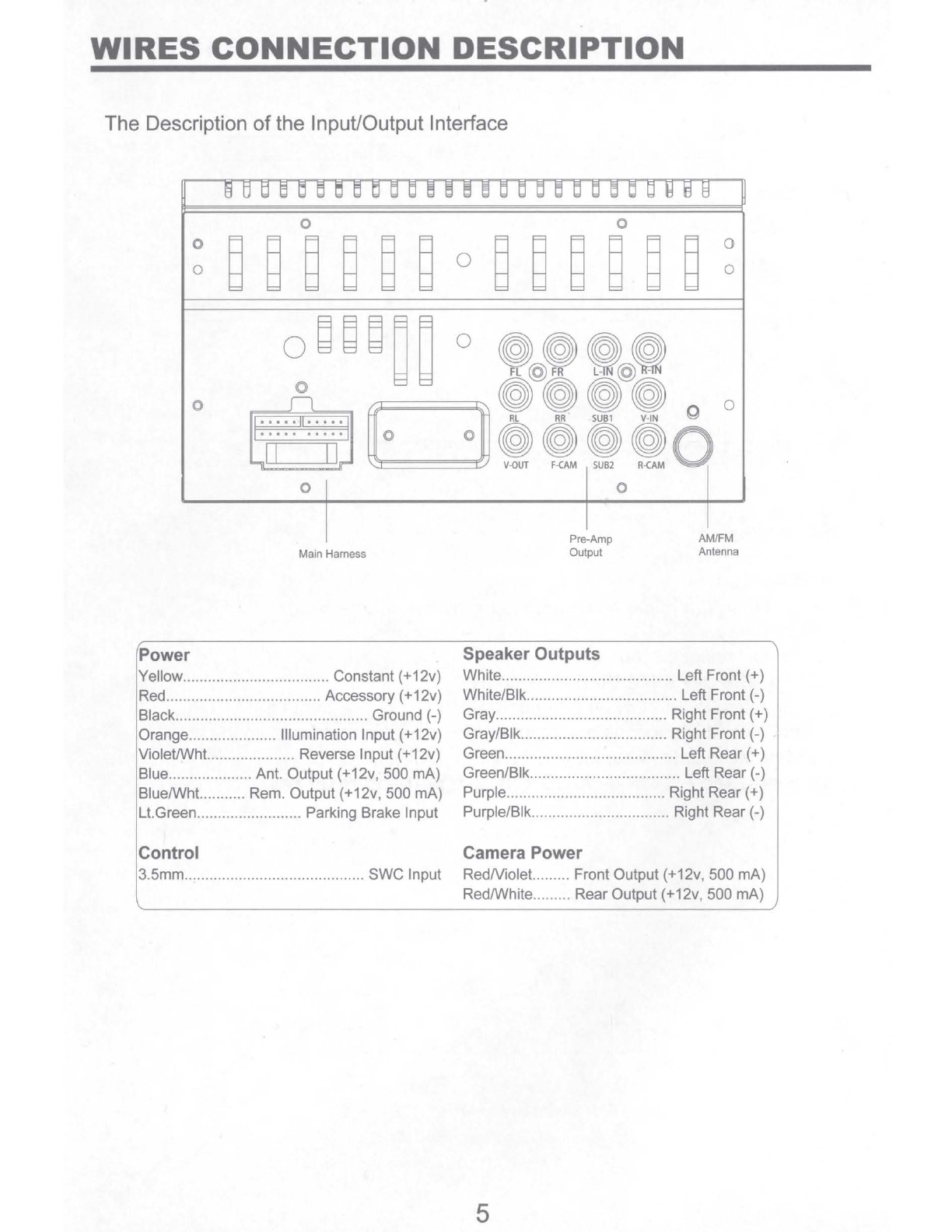

WIRES CONNECTION DESCRIPTION
The Description of the lnpuUOutput Interface
Power
0
0
0
0
Main Harness
Yellow................................... Constant (+12v)
Red................ ... . .. ............ .. . Accessory (+12v)
Black.............................................. Ground (-)
Orange..................... Illumination Input (+12v)
Violet/Wht......... .. . .. ....... Reverse Input (+12v)
Blue.................... Ant. Output (+12v, 500 mA)
Blue/Wht........... Rem. Output (+12v, 500 mA )
Lt.Green. .. .................... .. Parking Brake Input
Control
3.5mm........................................... SWC Input
Pre-Amp
Output
Speaker Outputs
0
0
0
AM/FM
Antenna
White......................................... Left Front (+)
White/Blk.................. ... ............... Le ft Front (-)
Gray .. ... ........... .. ....................... Right Front (+)
Gray/Bl k.. ................... ... ......... .. Right Front (-)
Green............... .. . .. ..................... Left Rear (+)
Green/Blk.................................. .. Left Rear (-)
Purple...................................... Right Rear (+)
Purple/Blk................................. Right Rear (-)
Camera Power
RedNiolet......... Front Output (+12v, 500 mA )
Red/White......... Rear Output (+12v, 500 mA )
5

PANEL INTRODUCTION
1 --- ,r- ""P ....-~-a : ~- - ::~~::~:: _: __: .:.::.:::::::~~~:::=::~ '~=:;;,.~. ~
2
---++• :1 1\ i Ill
3--- ·- -~ I
~I ~~ l I
1.Eject key
Press EJECT to remove the Disc
2.MENU key
Press to return to the home menu,or previous source.
3.MODE key
Press to select system mode.
4.TURN ON/OFF&VOLUME UP/DOWN
Long touch to turn ON/OFF the unit. Short touch to activate the MUTE
function and silence the audio output. Touch again to restore sound.
Rotate to adjust the output volume UP or DOWN.
5.0pen to see AUX IN jack, SD solt, usb port and reset key.
6

MAIN MENU OPERATION INSTRUCTION
MAIN MENU 1
1.TunerInterface
2.Streaming Interface
3.DISC Interface
4.Phone Interface
5.USB Interface
6.SD Interface
7.Front/Rear Camera Interface
8.AV INPUT Interface
MAIN MENU 2
9.AUX IN Interface
1O.Setting Interface
•
There are seven Setting Menus
GENERAL SETINGS-Menu 1
1. Touch to setwallpaper
1 2
I I
5 6
9 10
1
2
3
4
5
3
I
7
4
I
8
2. Retain ACC Power: Select how many seconds to delay shut down after the
vehicle powers down .
3. When turned on, an audible beep tone confirms each function selection.
4. Touch System Language to select Spanish/English
5. Touch to select parental control level
7

ACCESS SETUP INTERFACE
CAMERA SETTINGS-Menu 2
6
7
1.Camera Trigger:Touch to select Front/Rear/Off, select to display Front Camera ,
Rear Camera, or no response when reversing.
2.Rear Camera: Touch to turn on or turn off the Rear Camera function on main UI.
3.Rear Cam Pwr: Turn on to power Rear Camera.
4.Front Camera: Touch to turn on or turn off the Front Camera function on main UI.
5.Front Cam Pwr : Turn on to power Front Camera.
6.Select the delay setting to define the refresh rate for the Rear Camera image
when the vehicle is in reverse gear. Options are off/ 1 Sec / 2 Sec / 3 Sec.
It can switch to front camera delay or Front Camera delay follow the Camera
Trigger change . •
CLOCK SETTINGS-Menu 3
a. Press to set clock mode:
12/24 hr
b. Press to set hour
c. Press to set minute
d. Press to set AM/PM at 12hr
mode
AUDIO SETTINGS-Menu 4
1
2
3
4
5
11
1\ SElTll"l,S
General
{ C1mera
Clock
it Audio
Tuner
8
10:30'''
*
r 7
SD Level 0
PHONE leVl'I
()
Sl f,EAMIN(, L,•vel 0
AUX IN level
(I
AV INPUT Level 0
L-
a
b
C
d
7
8
9

ACCESS SETUP INTERFACE
1\ Audio
10:30 .. ,
0 0 0
I I I i I I
i i
i ' l
I I ii I I
60 150 400 lk 3k 7k 15k 20k
User Reset Loud -
1. Touch to select whether to output sound from an external amplifier
2. Startup volume: default volume;
CD .Ifthe volume at the last shutdown is less.than this volume, the
volume at the last shutdown will be used when rebooting;
@.ifthe volume at the last shutdown is greater than this volume, this
default volume will be used when rebooting
3-10. Press to set preset gain.
11. Slide up or down to enter previous functions.
TUNER SETTINGS -Menu 5
1. Touch to choose between America/
EU regions.
2. Perform radio auto preset (ps)
functionality
3. Touch to choose Local or Distance
4. Touch to turn on or turn off RBDS;
Touch Set to enter RBDS page.
5. Touch to choose Stereo or Mono
ILLUMINATION SETTINGS -Menu 5
1. Touch to turn on the illumination
detection function
2. Touch to set screen brightness
3. Touch to set gamma brightness
9
1
2
1
2
3

TUNER OPERATION
ABOUT SETTINGS -Menu 7
1. Touch to enter the touch calibration
interface
2. Touch to view the version number
of the machine.
3. Touch to restore the machine to
factory status.
4. Touch to select whether it is
necessary to display a warning
interface when booting up.
TUNER OPERATION
1. Touch Ll to go back to the home
page
2. Show PS,PTY and RT messages
from RDS
3. Short press to seek backwards, long
press to enter manual mode
4. Short press to seek forward, long
press to enter manual mode
1
2
5. Short press to select the preset station,
long press to save current Freq
RBDS: Touch Setting >Tuner> RBDS > Set to enterthe RBDS setup menu.
You can choose what program type you'd like to listen to: news, sports,
information, etc.
a.CT{Clock Time)
Turn on to automatically correct the
current time every time the RBDS is
opened.
b.TA{Traffic Announcement)
ON:When this is turned on the radio
will automatically search for traffic
station.
a
b
C
4
d
OFF:Turn offto end the TA function. In other modes, the traffic announcements will
automatically switch to radio mode. Once the traffic announcements are complete
it will automatically switch to the previous mode.
c.AF{Auto Frequency)
When the AF function is turned on, the radio will automatically fine tune to other
frequencies when the received stations become weak. A warning message will be
displayed on the screen when receiving emergency announcements.
10

DISC/CD/USB/SD PLAYBACK
d.PTY(Programming Type)
Touch the button to display program types. Search for stations according to
program type.
NOTE: If RBDS is turned OFF, AF/TNPTYwill not function.
DVD MODE OPERATION
ft 11" 1030 *
1. Touch to selecttitle/chapter of DVD
2. Short press to move to the previous
chapter, long press to rewind quickly.
3. Touch to playback/pause
4. Short press to move to the next chapter,
long press to fast forward quickly.
5. Touch to enter DVD root menu
6. Go to the next page of the menu bar
7. Go to the previous page of the menu bar
8. Touch to change the repeat mode in
the following sequence:
DVD:repeat all, repeat off, repeat chapter,
repeat title
VCD(PBC off):repeat all, repeat off, repeat
single
9. Touch to change random play mode
10. Touch to entervideo adjust page
11. Touch to enter DVD title menu
7 1
8
14
2
9
15
12. Touch to select the subtitle language if the disc is recorded in
multiple languages
13. Go to the next page of menu bar
14. Touch to switch video between 4:3 and 16:9
15. Touch to select DVD audio language
16. Touch to select DVD video angle
NOTE: When properly installed, a
video cannot be displayed
unless the parking brake is
applied. If the parking brake
wire is not installed correctly,
the following message will
appear.
11
3
10
16
4
11
5
12 6
13

DISC/CD/USB/5D PLAYBACK
·MEDIA PLAYING-CD AUDIO
1. Show the music's 1D3 information
2. Time bar:show the total time and
playing time of the present song
3. Touch to change play mode:
repeat all, repeat directory, repeat
single, sequential play and shuffle
play
4. Touch to return to previous 4
3
chapter
5. Touch to playback/pause 5 -
6. Touch to go to the next chapter
7. Touch to enterfile list page
CD SOURCE MENU
Touch the SOURCE MENU(ICON 5) to
access the CD track menu to view or
change tracks manually. Touch again
to return to playback.
USB/SD MUSICNIDEO/PICTURE
Press USB/SD in the main menu. The music menu is similar to the disc music
menu except there is more 1D3 information on it (such as song name & singer).
ft "' IO 30' *
ft lt1 lC f
12
1
2

BLUETOOTH OPERATION
BLUETOOTH OPERATION MENU
Click the phone icon to enter the Bluetooth function interface.
1.Bluetooth setting menu:
a.Turn Bluetooth on and off.
Turn on and the display loops
between the gray Bluetooth icon,
the white Bluetooth icon. The icon
2
a
b
C
will turn blue when a phone is paired. d
b.Connect automatically. e
c.Answerautomatically.
d.PIN code: The default password is
"0000" and can be changed by clicking
"0000".
e.Default Bluetooth name for this unit:
BossAudio BV765B
2.Function area:
1
a
b
C
d
e
a.Click to see the dialing keypad. Users can dial phone numbers and make calls.
b.Click to see the Bluetooth phonebook menu.
c.Click to see the Bluetooth call history.
d.Bluetooth pairing interface.
e.Bluetooth setting menu.
BLUETOOTH DIALING
1.Shows the numberdialed in.
Press -to delete wrong numbers.
2.Key area.
3.Touch to call out.
BLUETOOTH CALL
1.Showcontact name. 1
2.Touch to select talk through
phone or through Bluetooth.
3.Touch to mute or un-mute mic.
4.Keypad area.
5.Press to hang up the phone call.
2 3
13
3
4 5
1
2

BLUETOOTH OPERATION
BLUETOOTH PHONE BOOK
1
2
1.Touch to search for a name or phone number.
2.Contact list.
BLUETOOTH PHONE CALL HISTORY
1.Clickto sync phonebook.
2.Touch to show missed calls.
3.Touch to showthe dialed phone
number.
4.Touch to showthe received phone
number.
BLUETOOTH MUSIC-A2DP
1.Previous song.
2.Play/pause.
3.Next song.
4.Enter EQ setting menu.
BLUETOOTH PAIR DEVICE
14
" PHOl,f
Keypad
Phonebook
•Recents
,~ -Device
Setup
1 2
10:30''" *
.,,, ... -
• y
Allen Peterson 805-827-0255 ""\
•
Bob Simpson 805-293-6658
.. ~
Kevm Rolsten 805-825-0247
~
Laura Smith 805-827-3589
·~
4

PHOTOS
PHOTOS
1.Keypad:enter number to select file.
2.Previous pie.
ft l fO 30 *
3.PLAY/PAUSE: PLAY/PAUSE: Touch to
start picture playing mode. Press again
to pause. During picture playing mode,
each picture will be played for 5
seconds and then automatically move
to the next if the PLAY/PAUSE button
is not pressed.
4.Next picture.
5.List:Press to enterfile list. 1
6.Go to the next page of the menu bar ..
7.Go to the previous page of the menu bar.
8.Select repeat mode. 7 8
9.Random play.
1 O.Touch to enter the video adjust page.
11.Turn right 90 degrees.
12.Zoom ouUin the present picture.
CAMERA/AUX/AV MENU
FRONT CAMERA:
Turn on the switching interface of rear camera
and front camera at the same time
REAR CAMERA:
Rearview function. The rear view video signal
can display automatically when reversing the
car and then return the screen to the last source
when the car is moved out of reverse.
AUX IN:
External audio input function Connectthe audio
device to the unit by the 3.5mm jack in front of
the panel and touch AUX IN icon.
AV INPUT:
External video and audio input function
Connect the video and audio device to the
unit by the RCAjacks and touch AV INPUT
icon.
15
2 3 4 5 6
9 10 11 12

TROUBLESHOOTING
Media displayed Cause Corrective Action
Loading Disc is being read
No Disc/Bad Disc Disc is dirty Clean the disc
Disc is upside down Insert Disc in right way
Unknown Disc Unsupported Disc type Check the disc and change
Error Illegal mechanism Press EJECT for 5s to reset
operation loading mechanism
Problem Cause Corrective Action
Radio fuse blown Install newfuse with right rating
Unit will not power on Car battery fuse blown Install new fuse with right rating
Illegal operation Press the RESET button
Screen touch is Place of touch screen is Go to setup menu and set the
insensitive uncalibrated· calibration
Improper audio output Check wiring and correct
No audio output connection
VOLUME 0 Turn up the volume
Low audio output Heavily biased volume Check and adiust the channel
balance balance to the center position
Speaker power rating not Connect proper speakers
Poor sound quality compatible with unit
or distortion Speaker short circuit Check wiring
Auto antenna is not Connect the auto antenna
Weak station properly connected properly
searching LOCAL function is Turn LOCAL function OFF
activated
16

TROUBLESHOOTING
Problem Cause Corrective Action
Incorrect connection Check wiring and correct
No image to parking wire
Prking brake is not Stop vehicle in safe place and
engaged set parking brake ON
Flashing image or
Impropervideo signal Check wiring and correct
interference appears connections
on screen
Improper image, Improper aspect ratio Use correct aspect ratio setting
improper height/width setup
radio display
Cannot insert Disc Disc already inside unit Eject the current Disc and insert
the new one
Lost of noise during Disc is scratched or Use a new one
in good condition
warped
play, and stop then Disc is dirty or wet Clean the Disc
17
