LithoVue™System Workstation
en User’s Manual ����������������������������������������������������������������������������������������������4

2
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
TABLE OF CONTENTS
1 INTRODUCTION ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
1.1 Safe Use Requires Reading the User’s Manual................................................................................................ 6
1.2 Post-Procedure...................................................................................................................................................... 6
2 CLINICAL INFORMATION����������������������������������������������������������������������������������������������������������������������������������������������� 6
2.1 Indications for Use and Intended Use................................................................................................................ 6
2.2 Contraindications................................................................................................................................................... 6
2.3 Clinical Benefits ..................................................................................................................................................... 6
2.4 User Training, Knowledge, and Skills................................................................................................................. 6
2.5 Warnings ................................................................................................................................................................. 7
2.6 Precautions............................................................................................................................................................. 8
2.7 Adverse Events....................................................................................................................................................... 9
3 HOW SUPPLIED ������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
3.1 System Workstation Components..................................................................................................................... 10
3.2 System Workstation Assembly.......................................................................................................................... 11
Assembling the Cart............................................................................................................................................. 11
Assembling the Cart Base and Cart Post ......................................................................................................... 11
Attaching the Touch PC Mounting Plate to the Cart Post.............................................................................. 12
Attaching the Cart Handle .................................................................................................................................. 13
Attaching the Power Transformer Bracket...................................................................................................... 14
Installing the Touch PC onto the Cart................................................................................................................ 14
Cart Adjustment.................................................................................................................................................... 17
Adjusting Touch PC Height ................................................................................................................................. 18
Adjusting Touch PC Tilt........................................................................................................................................ 18
Confirming Installation ........................................................................................................................................ 18
Connecting an External Monitor or DVI Switcher with the DVI Cable ........................................................ 20
3.3 Transportation, Use and Storage ...................................................................................................................... 20
3.4 Specifications and Device Compatibility ......................................................................................................... 21
Electrical ............................................................................................................................................................... 21
Physical (nominal) ............................................................................................................................................... 21
Illumination Output (nominal) ............................................................................................................................ 22
Medical Electrical Classifications .................................................................................................................... 22
LithoVue Flexscope Fluid Compatibility............................................................................................................ 22
System Workstation Device - Accessory Compatibility................................................................................ 22
Software Information.......................................................................................................................................... 22
4 LITHOVUE SYSTEM������������������������������������������������������������������������������������������������������������������������������������������������������� 23
4.1 System Workstation Features and User Interface......................................................................................... 23
System Workstation Front Panel Features and User Interface.................................................................... 23
System Workstation Rear Panel Features ....................................................................................................... 24
4.2 System Workstation Cart Features ................................................................................................................... 24
4.3 Main Operating Screen ...................................................................................................................................... 26

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
3
Main Operating Screen Features ...................................................................................................................... 26
Light On/Off Button............................................................................................................................................... 26
Image Brightness Control Buttons .................................................................................................................... 27
Image Brightness Indicator................................................................................................................................ 27
Time Remaining Indicator ................................................................................................................................... 27
Controls Swap Button.......................................................................................................................................... 28
Live Video Image Display Area .......................................................................................................................... 29
Message Screens ................................................................................................................................................ 29
5 SYSTEM OPERATION���������������������������������������������������������������������������������������������������������������������������������������������������� 30

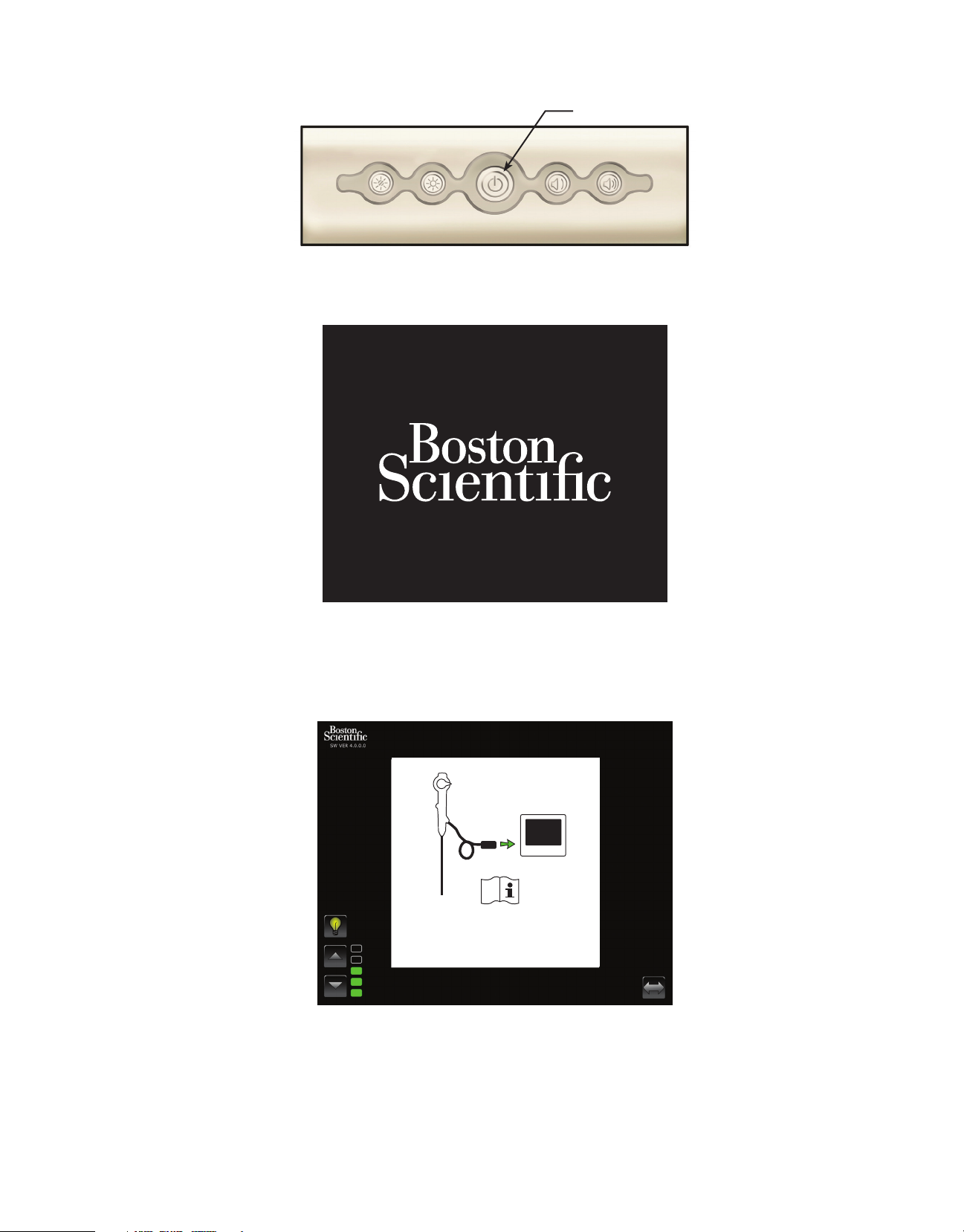

5.1 Starting The System Workstation ..................................................................................................................... 30
5.2 Checking the Quality of the Video Image......................................................................................................... 32
5.3 Adjusting the Brightness of the Video Image ................................................................................................. 32
5.4 Completing a Procedure..................................................................................................................................... 32
Using the LithoVue System in an Ureteroscopy Procedure......................................................................... 32
5.5 Safely Shutting Down the System Workstation.............................................................................................. 34
5.6 Disposal of the Product, Accessories, and Packing Materials ................................................................... 34
6 CLEANING AND MAINTENANCE ������������������������������������������������������������������������������������������������������������������������������� 34
6.1 Cleaning the System Workstation..................................................................................................................... 34
6.2 Maintenance, Service and Replacement Parts.............................................................................................. 35
7 TROUBLESHOOTING����������������������������������������������������������������������������������������������������������������������������������������������������� 35
7.1 Isolating the System Workstation from the Mains Power Supply............................................................... 35
7.2 Loss of Image........................................................................................................................................................ 35
7.3 Loss of Articulation Control on the LithoVue Flexscope................................................................................ 36
7.4 System Workstation Power Loss ...................................................................................................................... 38
7.5 System Workstation Becomes Non-Operational .......................................................................................... 38
7.6 Patient Counseling............................................................................................................................................... 41
8 SERVICE AND WARRANTY������������������������������������������������������������������������������������������������������������������������������������������ 41
8.1 Warranty................................................................................................................................................................ 41
8.2 Obtaining Warranty Service from Boston Scientific Corporation ............................................................... 41
9 ELECTROMAGNETIC COMPATIBILITY (EMC) REQUIREMENTS���������������������������������������������������������������������������� 41
9.1 Guidance and Manufacturer’s Declaration-Electromagnetic Emissions................................................... 41
9.2 Guidance and Manufacturer’s Declaration – Immunity All Equipment and Systems .............................. 42
9.3 Guidance and Manufacturer’s Declaration – Emissions and Equipment and Systems
that are Not Life-Supporting ............................................................................................................................. 43
9.4 Recommended Separation Distance of Other Equipment ............................................................................ 44
9.5 Symbol Definitions............................................................................................................................................... 44

4
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
ONLY
Caution: Federal Law (USA) restricts this device to sale by or on the order of a physician.
1 Introduction
This user’s manual describes how to use, maintain, and troubleshoot the LithoVue System (see Figure 1�1).
The LithoVue System is a software-controlled digital flexible ureteroscope system that consists of the LithoVue
System Workstation (Touch PC and Cart) and the LithoVue Single-Use Digital Flexible Ureteroscope (sterile,
single-use disposable). The LithoVue System Workstation is referred to as the System Workstation, and the
LithoVue Single-Use Digital Flexible Ureteroscope is referred to as the LithoVue Flexscope in these instructions.
The LithoVue Flexscope connects to the System Workstation via the Flexscope Connector Cable Plug
Receptacle (hereafter referred to as Workstation Receptacle) on the front of the System Workstation (see
Figure 1�1).
The LithoVue System is designed to allow physicians to access, visualize, and perform procedures in the
urinary tract, using appropriate accessory devices (e.g., baskets, laser fibers, and forceps).
The LithoVue System is available in the configurations shown in Table 1�1:
Table 1�1 LithoVue System Available Configurations
Model Number (UPN) Description
M0067913500 LithoVue Single-Use Digital Flexible Ureteroscope
(Standard Deflection) - Global
M0067913600 LithoVue Single-Use Digital Flexible Ureteroscope
(Reverse Deflection) - Global
M0067917000
M006791700R0 LithoVue Touch PC

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
5
Figure 1�1 – LithoVue System
DVI Cable
User Supplied
Monitor
LithoVue Flexscope
System Workstation
Main Operating
Screen
DC
Power Cord
AC Power Cord Connector
Cable
Flexscope
Connector
Cable Plug
Receptacle
The System Workstation does the following:
(a) Provides power for the illuminating LED and video image hardware in the LithoVue Flexscope.
(b) Receives video signals from the LithoVue Flexscope and processes the images for display on the
System Workstation screen or on a user-supplied monitor, if connected.
(c) Provides illumination control. The illumination provided by the LithoVue Flexscope is adjusted
automatically by the system to ensure adequate light levels at the treatment site. Additionally,
the user may also turn the illumination on/off and adjust the illumination levels using the controls
provided on the System Workstation.

6
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
(d) Displays the video images. The system workstation can also send the video signals via a DVI Cable
for display on a user-supplied video monitor. When using a user-supplied video monitor, the system
will duplicate the video image, but will not duplicate the system controls.
(e) Provides the user interface.
1�1 SAFE USE REQUIRES READING THE USER’S MANUAL
Prior to using the LithoVue System, you must read this User’s Manual and the LithoVue Single-Use Digital
Flexible Ureteroscope Instructions for Use to become familiar with the LithoVue System’s features and
controls. This manual and the LithoVue Single-Use Digital Flexible Ureteroscope Instructions for Use provide
the information necessary for inspecting, preparing and operating the system.
Failure to thoroughly understand and follow all instructions, cautions and warnings provided in this User’s
Manual and the LithoVue Single-Use Digital Flexible Ureteroscope Instructions for Use may result in injury
to the patient and/or user, and/or may result in damage to, or malfunction of, this equipment. Additionally,
damage to other equipment or property may result.
Follow all instructions, cautions, and warnings provided with all products and equipment to be used in
conjunction with the LithoVue System to avoid any possible hazards due to device incompatibility.
If the instructions are unclear to you, contact Boston Scientific for assistance, using the information found in
Section 8 “Service and Warranty”.
Keep this User’s Manual in an accessible location.
1�2 POST-PROCEDURE
Any serious incident that occurs in relation to this device should be reported to the manufacturer and the
relevant local regulatory authority.
2 Clinical Information
2�1 INDICATIONS FOR USE AND INTENDED USE
The LithoVue System is intended to be used to visualize organs, cavities and canals in the urinary tract (urethra,
bladder, ureter, calyces and renal papillae) via transurethral or percutaneous access routes. It can also be
used in conjunction with endoscopic accessories to perform various diagnostic and therapeutic procedures
in the urinary tract.
2�2 CONTRAINDICATIONS
Contraindications for this device are those specific to urinary tract endoscopy.
Diagnostic or therapeutic ureteroscopy is contraindicated in people with an untreated urinary tract infection.
Other contraindications to therapeutic ureteroscopy (e.g., lithotripsy, endopyelotomy, tumor therapy) are more
numerous and can mirror those associated with the corresponding open surgical interventions. Patients on
anticoagulants or with coagulopathies should be managed appropriately.
2�3 CLINICAL BENEFITS
The LithoVue System is a supportive device to endoscopic diagnosis and treatments and contributes to
procedural benefits by enabling navigation to and visualization of the organs, cavities and canals in the urinary
tract via transurethral or percutaneous access routes. It can also be used in conjunction with endoscopic
accessories to perform various diagnostic and therapeutic procedures in the urinary tract.
2�4 USER TRAINING, KNOWLEDGE, AND SKILLS
Read the entire User’s Manual and LithoVue Single-Use Digital Flexible Ureteroscope Instructions for Use
before using the LithoVue System. Study labeling thoroughly for safe handling and storage. Use the LithoVue
System as intended.
The LithoVue System Workstation should only be assembled and installed by a trained biomedical technician.

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
7
Only physicians who have ureteroscopic, diagnostic, and therapeutic training should use the LithoVue System.
A thorough understanding of the techniques, principles, clinical applications, and risks associated with
endoscopic urinary tract procedures is necessary before using this device. This includes, but is not limited to
devices used in laser lithotripsy, administration of irrigation/contrast, and use of procedural accessories such
as baskets/forceps, access sheaths, renal sheaths, guidewires, and antiretropulsion devices.
Nursing support staff should have reasonable experience with common medical equipment and urology
procedures.
2�5 WARNINGS
• Do not use the LithoVue System in the presence of flammable fluids and gases such as alcohol or
oxygen. Doing so can result in fire and burns to the operator and patient.
• Do not insert or advance the LithoVue Flexscope unless there is a clear live endoscopic view of the
lumen through which the scope is being advanced (or confirm with visualization by other imaging
modalities). Doing so can cause patient injury such as perforation, avulsion, hemorrhage, or urothelial
damage.
• In the event that the live endoscopic image is lost, do not advance or insert the LithoVue Flexscope and
do not insert, advance or actuate accessories. Doing so can cause accessory damage or patient injury
such as perforation, avulsion, hemorrhage, or urothelial damage.
• Do not use excessive force when advancing or withdrawing the scope. Doing so can cause patient injury
such as perforation, hemorrhage or urothelial damage or damage to the LithoVue Flexscope. If resistance
is felt during advancement or withdrawal of the scope, investigate the source of resistance and take
remedial action (e.g., fluoroscopy, contrast injection).
• Do not force the distal tip of the LithoVue Flexscope against the sidewall of the ureter or renal pelvis.
Doing so can cause patient injury such as perforation, avulsion, hemorrhage or urothelial damage.
• Do not use excessive force when advancing or withdrawing an accessory within the LithoVue Flexscope.
Doing so can cause patient injury such as perforation, avulsion, hemorrhage, urothelial damage or
damage to the LithoVue Flexscope.
• When inserting or using accessories, maintain continuous visualization of the distal tip. Ensure the
distance between the distal tip of the LithoVue Flexscope and the object in view is greater than the
LithoVue Flexscope’s minimum visible distance. Failure to do so may result in accessory damage or
patient injury such as perforation, hemorrhage or urothelial damage.
• Do not withdraw a laser fiber back into the LithoVue Flexscope while the laser is firing. Doing so may
cause patient injury and/or scope damage.
• Do not look directly into the light emitted from the LithoVue Flexscope. Doing so can result in eye injury.
• Verify ground isolation when setting up and using accessories from different manufacturers. Failure to do
so can result in shocks and accessory malfunction leading to patient injury.
• Do not open the handle of the LithoVue Flexscope. Doing so can damage the waterproof seals and result
in risk of electric shock.
• The LithoVue Flexscope is a single-use device and there are no serviceable parts. Do not repair damaged
or non-operating LithoVue Flexscopes. Do not use the LithoVue Flexscope if damage is discovered or
suspected.
• Do not excessively bend the flexible shaft or the articulating section of the LithoVue Flexscope as this
may break or kink the shaft.
• If damage to the LithoVue Flexscope occurs or it malfunctions during a procedure, stop using the
LithoVue Flexscope immediately. See Section 7 “Troubleshooting” for more information. Continue the
procedure with a new LithoVue Flexscope, as appropriate.

8
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
• No modification of this equipment is allowed. Do not attempt to repair or alter any components/parts of
the LithoVue System Workstation. The LithoVue System Workstation contains no operator-serviceable
components. All repairs and servicing are to be performed only by authorized Boston Scientific service
personnel. See Section 8 “Service and Warranty” for additional information.
• To avoid the risk of electric shock, this equipment must only be connected to a supply mains with
protective earth. Prior to installation, ensure that the selected hospital’s electrical outlet has a proper
ground connection and complies with the information listed on the label located on the rear of the
Touch PC.
• Prior to use of a cardiac defibrillator, remove the LithoVue Flexscope from the patient. Failure to remove
the LithoVue Flexscope from a patient during use of a cardiac defibrillator could result in damage to the
system due to the discharge of the cardiac defibrillator.
• The use of accessories, a power supply and/or cables other than those specified or supplied as spare
parts from Boston Scientific may increase electromagnetic emissions or decrease immunity of the
LithoVue System.
• When the LithoVue System is used with other electrical medical equipment, the applied parts must be
Type BF or Type CF applied parts.
• Components added to the system by the user must be certified to the respective IEC standards (IEC
60601-1 for medical equipment, IEC 60950 for data processing equipment, and IEC 60065 for A/V
equipment) or other country equivalent. In addition, the user must ensure the new configuration complies
with local regulations and hospital requirements for electrical safety.
• If the System Workstation stops functioning during a procedure, follow the procedure described in
Section 7 “Troubleshooting”.
• Using a System Workstation without disinfecting it can expose the operator to bio-hazardous materials.
To prevent exposure to bio-hazardous materials, disinfect the System Workstation between uses using the
cleaning procedure describe in Section 6.1 “Cleaning the System Workstation”.
2�6 PRECAUTIONS
• Only use the LithoVue Flexscope in conjunction with the LithoVue System Workstation. Connection to
other devices may cause device or property damage or operator injury.
• Only physicians with adequate ureteroscopic training should perform procedures with the LithoVue
Flexscope. Consult the medical literature regarding techniques, complications, and hazards prior to any
procedure.
• Use the LithoVue Flexscope with caution in patients who have undergone previous urinary tract
reconstructive surgery or with known strictures. These conditions may prevent passage of the flexible
scope shaft.
• Failure to thoroughly understand and follow all instructions, cautions and warnings provided in this
User’s Manual and the LithoVue Single-Use Digital Flexible Ureteroscope Instructions for Use may result
in injury to the patient and/or user; and/or may result in damage to, or malfunction of, this equipment.
Additionally, damage to other equipment or property may result. Follow all instructions, cautions and
warnings provided with all products and equipment to be used in conjunction with the LithoVue System
to avoid any possible hazards due to device incompatibility.
• The LithoVue System has been tested and shown compatible with laser lithotripsy devices. The use of
other energized procedural devices may cause loss of image, device damage, or patient injury.
• When using the LithoVue Flexscope with a laser lithotripsy device, all personnel within the treatment room
shall wear protective laser eyewear in accordance with the laser manufacturer’s Instructions for Use.
• Do not use accessories that fail to meet the compatibility requirements of the LithoVue Flexscope as
stated in the Lithovue Single-Use Digital Flexible Ureteroscope Instructions for Use. Doing so may cause
damage to the LithoVue Flexscope, System Workstation and/or accessory.

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
9
• To ensure satisfactory LithoVue System performance, perform the prescribed inspections and operational
checks on the LithoVue Flexscope described in the Lithovue Single-Use Digital Flexible Ureteroscope
Instructions for Use before use. Additionally, verify the System Workstation is properly installed. See
Section 3.2.“Confirming Installation” for more information.
• The distal tip of the LithoVue Flexscope should be straight when inserting and withdrawing accessories.
Follow the accessory instructions for use regarding inserting the accessory into a flexible ureteroscope.
Failure to follow the accessory instructions for use may result in patient injury, or accessory and
LithoVue Flexscope damage or malfunction.
• The LithoVue Flexscope features a strain relief at the transition from the handle to the shaft. The strain
relief protects the device during use. To prevent damage to the shaft and/or light fiber, do not bend the
shaft sharply.
• Use only those fluids/lubricants recommended in the compatibility section of the LithoVue Single-
Use Digital Flexible Ureteroscope Instructions for Use or see Section 3.4 “LithoVue Flexscope Fluid
Compatibility”.
• Do not use accessories that fail to meet the compatibility requirements of the LithoVue Flexscope as
stated in the LithoVue Single-Use Digital Flexible Ureteroscope Instructions for Use. Doing so may cause
damage to the LithoVue Flexscope and/or accessory.
• The LithoVue Flexscope Connector Cable (hereafter referred to as Flexscope Cable) should connect to
the Workstation Receptacle easily. If the Flexscope Cable does not connect, verify that the arrows on
the Flexscope Cable and the Workstation Receptacle line up and that the Workstation Receptacle is not
damaged. Forcing the Flexscope Cable into the Workstation Receptacle may damage the scope and/or
System Workstation.
• Do not insert a wet, contaminated, or damaged Connector Cable plug into the System Workstation as
poor video performance or damage to the system may result.
• Do not remove the Connector Cable from the System Workstation by pulling on the cable as poor video
performance or damage to the system may result. Slide the locking collar on the Connector Cable’s plug
toward the cable and pull the plug out to remove the cable.
• Placing the System Workstation near other medical electrical equipment may result in electromagnetic
interference (EMI) which may degrade the video image. Additionally, EMI from the System Workstation
may interfere with other equipment in the operating room. Verify that all electrical equipment is working
properly before starting the procedure. Failure to do so may result in the equipment not working properly
resulting in either a delay of the procedure or an adverse event.
• Spilling liquids on the System Workstation can damage it or cause it to shut down. Do not place liquids
above or near the System Workstation.
• During assembly and before each use, inspect all components for damage. Do not use a component
if it appears damaged. Contact Boston Scientific for service using the information found in Section 8
“Service and Warranty”.
2�7 ADVERSE EVENTS
Possible complications include, but may not be limited to:
• Bleeding • Pain • Sepsis • Urothelial damage
• Avulsion • Discomfort • Perforation (ureter, • Extravasation
• Stenosis/Stricture • Urinoma renal pelvis or bladder)
• Inflammation • Infection • Ureteral reflux
• Laceration • Fever • Hematoma

10
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
3 How Supplied
CAUTION: Examine the System Workstation packaging� Do not use if packaging has been opened or the
components appear damaged� Do not use if labeling is incomplete or illegible�
CAUTION: Inspect the components for damage� Do not use a component if it appears damaged� Contact
Boston Scientific for service�
3�1 SYSTEM WORKSTATION COMPONENTS
The LithoVue System Workstation is shipped in a cardboard shipping crate. Inside the shipping crate, the
components of the System Workstation are packaged separately, as noted in Figure 3�1. The lists below detail
the contents included in each component box.
NOTE: Depending on the model, the power cord may be packaged either in the Touch PC box or in the
cardboard shipping crate.
Figure 3�1 – LithoVue System Workstation Packaging
Touch PC Packaging Fillers
Outer Shipping Box
Workstation
Cart
Label
Shipping
Pallet
Final Packaging
Shipping Configuration

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
11
Touch PC Packaging:
• Touch PC
• Power Transformer
• (8) No. M4 x 10 mm pan-head Phillips Mounting Screws {(4) required for mounting the Touch PC to the
Touch PC Mounting Plate} Note: (4) extra Mounting Screws are provided
• DVI Cable
• LithoVue System Workstation User’s Manual
Cart Packaging:
• Cart Base with attached wheels
• Cart Post
• Touch PC Mounting Plate
• Cart Handle with (2) No. 10-32 x 9/16" Phillips-head screws pre-installed
• Power Transformer Bracket Kit containing:
- Power Supply Holder with Velcro straps and Clamping Block
- Cord Wrap Hook with Clamping Block
- (2) No. 10-32 x 9/16" Phillips-head screws
- Power cord strain relief kit containing: (1) nylon cable clamp, (1) #8 flat washer and
(1) 8-32 x 1/4" Phillips-head screw
• Hardware bag containing:
- (3) No. 10-32 x 9/16" flat-head Phillips screws (for Touch PC Mounting Plate)
- #2 Phillips-head Screwdriver
- 9/64" Hex Wrench (used to adjust Tilt Tension Adjustment Screws)
- 1/2" (13 mm) Socket Wrench
- (1) Manual Tilt Lexan Cover (optional - cover the screws on Touch PC Mounting Plate)
- (1) 5/16" flat washer, (1) 5/16" split lock washer and (1) 5/16"-18 x 1" Hex Head Cap Screw
3�2 SYSTEM WORKSTATION ASSEMBLY
CAUTION: Do not attempt to repair or alter any components/parts of the LithoVue System Workstation�
The LithoVue Touch PC contains no operator-serviceable components� All repairs, upgrades and
servicing are to be performed only by authorized Boston Scientific service personnel� See Section 8
“Service and Warranty” for additional information�
Assembling the Cart
Follow these steps to assemble the Cart:
Assembling the Cart Base and Cart Post
1. Remove the Cart components from the box. The Cart Post, Cart Base, Touch PC Mounting Plate, Cart
Handle, Power Transformer Bracket and hardware are all packaged separately within the outer Cart Box.
2. Confirm that all components listed in Section 3.1, “System Workstation Components”, are included in the
packaging and that the components are not damaged.
3. Insert the Cart Post into the Cart Base and lay the assembly on its side for access to the bottom of the
Cart Base.
4. Assemble the (1) 5/16" hex head cap screw, (1) 5/16" flat washer and (1) 5/16" split lock washer as shown
in Figure 3�2 Start the screw by hand before using the 1/2" (13 mm) wrench to fully tighten the screw.
Tighten the screw until fully seated and the post no longer rotates.

12
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
Figure 3�2 – Attaching the Cart Post to the Cart Base
5/16" flat washer, 5/16" split lock
washer, and hex head cap screw
Cart Base
Cart Post
5. Return the Cart to the upright position and confirm that the three caster locks are pressed down to lock
the Cart into position.
Attaching the Touch PC Mounting Plate to the Cart Post
The three-hole pattern on the top of the Cart Post is designed to orient the Touch PC Mounting Plate in one
direction only. The Touch PC Mounting Plate is designed to always position the Touch PC opposite the Cart’s
Height Adjustment Knob. Secure the Touch PC Mounting Plate to the Cart Post as follows:
1. Place the Touch PC Mounting Plate on the Cart Post, aligning the three-hole pattern.
2. Insert the (3) flat-head Phillips Mounting Screws into the Touch PC Mounting Plate and Cart Post. Start
the screws by hand before tightening with the Phillips-head screwdriver. Tighten the screws until they
are snug and fully seated. See Figure 3�3.
3. Optional – if desired, cover the top of the mount with the included adhesive Lexan cover.

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
13
Figure 3�3 – Installing the Touch PC Mounting Plate
(3) No. 10-32 x 9/16"
Mounting Screws
Touch PC
Mounting Plate
Top of Cart Post
Attaching the Cart Handle
1. Separate the two pieces of the Cart Handle by using a Phillips-head screwdriver to remove the (2) pre-
installed screws.
2. Attach the two pieces of the Cart Handle together around the Cart Post below the Cart label. The dark
part of the handle should face in the same direction as the Cart’s Height Adjustment Knob. See Figures
3�4 and 3�5.
3. Re-insert the (2) screws and use a Phillips-head screwdriver to secure the two handle pieces firmly
around the Cart Post. Be careful not to overtighten the screws.
Figure 3�4 – Attaching the Cart Handle
10-32 x 9/16"
Phillips-head
screws
Cart Handle Cart Post

14
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
Figure 3�5 – Proper Placement of the Cart Handle
Attaching the Power Transformer Bracket
1. Attach the Cord Wrap Hook and Power Transformer Bracket’s Clamping Blocks together around the Cart
Post approximately 40 cm (16") from the Cart Base. Ensure the Velcro straps for the Power Transformer
are facing forward (same direction as the Touch PC Mount). See Figure 3�9 for correct installation with
the Power Transformer.
2. Insert the (2) screws using a Phillips-head screwdriver to secure the Cord Wrap Hook and Power
Transformer Bracket firmly to the Cart Post. Be careful not to overtighten the screws.
Installing the Touch PC onto the Cart
Follow these steps to install the Touch PC onto the Cart:
1. Remove the Touch PC and ancillaries from the box.
2. Confirm that all components listed in Section 3.1 “System Workstation Components” are included in the
packaging and that the components are not damaged.
3. Loosen the Tilt Adjustment Lever and adjust the mounting plate so that it is approximately vertical. See
Figure 3�6.
NOTE: if the Touch PC Mounting Plate is difficult to adjust, the tilt tension adjustment screws will need to
be loosened. See Section 3.2 “Adjusting Touch PC Tilt” for instructions on how to adjust the tilt tension
adjustment screws.

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
15
Figure 3�6 – Touch PC Tilt Adjustment Lever
Tilt Adjustment Lever
4. Tighten the Tilt Adjustment Lever to prevent movement of the mounting plate during assembly.
5. Using a Phillips-head screwdriver, install two of the four M4 x 10 mm Mounting Screws in the two upper
holes of the inner set of the Touch PC’s VESA-mounting holes (See Figure 3�7). Leave about 1/4" of space
between the head of the screw and the Touch PC.
Figure 3�7 – Touch PC Mounting Holes
6. Have an assistant lift the Touch PC using the handholds molded into the sides of the Touch PC, and slide
the two M4 x 10 mm Mounting Screws on the Touch PC into the two top slots on the mounting plate. The
assistant should hold the Touch PC in this position.
7. Using a Phillips-head screwdriver, insert and tighten the lower two M4 x 10 mm Mounting Screws in the
two lower holes of the Touch PC Mounting Plate. See Figure 3�8.

16
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
Figure 3�8 – Installing the Touch PC Mounting Plate
Inner VESA
Mounting Hole Set
8. Tighten the top two M4 x 10 mm Mounting Screws holding the Touch PC to the mounting plate.
9. Install the Power Transformer into the Power Transformer Bracket with the power indication LED visible
and AC power cord connection facing down and hold it in place using the Velcro straps. See Figure 3�10�
10. Attach the AC Power Cord to the Power Transformer. Place the Nylon Cable Clamp (from the Power Cord
Strain Relief Kit) over the AC Power Cord.
11. Mount the Nylon Cable Clamp to the bottom of the Power Transformer Bracket using the #8 flat washer
and 8-32 x 1/4" Phillips-head screw (from the Power Cord Strain Relief Kit).
NOTE: The loop of the Nylon Cable Clamp should point out the side of the Power Transformer Bracket.
See Figure 3�9�
Figure 3�9 – Installing the Power Cord Strain Relief Kit
Power Cord
Strain Relief Kit
Power Cord Strain
Relief Kit with
Phillips-head Screw
Close-up View Showing
Bottom of Bracket
Front
View
12. Organize the Power Cord in the Cord Wrap Hook.
13. Run the DC plug up the outside of the cart post and plug it into the DC power receptacle on the bottom of
the Touch PC.

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
17
Figure 3�10 – Installing the Power Transformer Bracket
Clamping Blocks
Cord Wrap Hook
Power
Transformer
Power
Transformer
Holder with
Velcro Straps
Cart Adjustment
The Cart is equipped with (2) adjustment mechanisms, one for adjusting the Touch PC’s height and another for
adjusting the Touch PC’s tilt. See Figure 3�11.
Figure 3�11 – Cart Adjustments
Height
Adjustment
Knob
Tilt Adjustment
Lever

18
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
Adjusting Touch PC Height
CAUTION: The Touch PC Cart Post operates by pneumatic pressure and will travel upward when
disengaged� Ensure that nothing obstructs upward travel before turning the Height Adjustment
Knob� Grasp the Touch PC using the side handholds to control the upward travel of the Touch PC
when the Height Adjustment Knob is loosened�
1. To adjust the Touch PC’s height, loosen the Cart’s Height Adjustment Knob while supporting the Touch PC
using the handholds molded into the sides of the Touch PC. Move the Touch PC to its desired location.
2. Tighten the Cart’s Height Adjustment Knob.
Adjusting Touch PC Tilt
1. To adjust the Touch PC’s tilt, loosen the Cart’s Tilt Adjustment Lever.
2. Grasp the handholds molded into the sides of the Touch PC and tilt to the desired angle.
3. Retighten the Tilt Adjustment Lever.
4. If the Touch PC does not hold its tilt position, use the 9/64" (3.5 mm) hex wrench provided with the Cart to
tighten the tilt tension adjustment screws equally. See Figure 3�12.
5. If the Touch PC is too difficult to tilt, use the 9/64" (3.5 mm) hex wrench provided with the Cart to loosen
the tilt tension adjustment screws equally. See Figure 3�12.
Figure 3�12 – Adjusting Cart Tilt
Tilt Tension
Adjustment Screws
Tilt Adjustment
Lever
Confirming Installation
Confirm the correct installation of the System Workstation after assembly by following these steps:
1. Verify that all fasteners on the Cart and Touch PC mounting system are secure.
2. Plug the System Workstation into the hospital electrical outlet. If there is a switch on the Power
Transformer (MPU101-105), then ensure the switch is turned on. The green LED on the Power
Transformer will light when the Power Transformer is on.
CAUTION: To avoid risk of electric shock, ensure the Power Cord is plugged into the Touch PC
before plugging the System Workstation into the hospital’s electrical outlet�
3. Press the power button on the front panel to power on the System Workstation. (see Figure 3�13).

BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
19
Figure 3�13 – Front Panel Power Button
Power Button
The System Workstation displays the boot screen (see Figure 3�14).
Figure 3�14 – Boot Screen
4. The System Workstation will display the LithoVue Flexscope disconnected message screen (see
Figure 3�15) in the image display area. Once this image has been displayed, the System Workstation is
functioning correctly and is now ready for use.
Figure 3�15 – Flexscope disconnected message screen

20
BSC (MB Perfect Bound ManualTemplate 8.5 x 11, 92238517A), eManual, MB, Lithovue, US, 51628022-01A
Black (K) ∆E ≤5.0Black (K) ∆E ≤5.0
Connecting an External Monitor or DVI Switcher with the DVI Cable
If desired, you can display the live video image on an external DVI-compatible monitor or split the image signal
using a DVI switcher by following these steps:
1. Confirm that the external monitor and/or DVI switcher meets the specifications described in Section 3.4
“System Workstation Device - Accessory Compatibility”.
2. Connect the supplied DVI Cable from the DVI output jack on the bottom of the System Workstation to the
DVI In jack on the external monitor or DVI switcher.
3. Turn on the external monitor. The video image (but no touch screen buttons) will be displayed on the
external monitor.
CAUTION: Users are responsible for using appropriate audio-visual equipment and for verifying
proper installation prior to use�
3�3 TRANSPORTATION, USE AND STORAGE
The following instructions provide information for proper movement and storage of the System Workstation.
1. Ensure the Power Cord is securely looped around the Cart’s Cord Wrap Hook to prevent cord damage
during transportation.
2. Lift the pedal on the locking casters to unlock the System Workstation and move to the desired location.
To ensure safe movement of the system, check that the wheels are free of obstacles.
3. Store the System Workstation in an area that is safe from impact or other accidental damage.
4. Confirm that storage area environment is within the limits provided in Table 3�1.
5. Confirm that the storage area is free from risk of water leakage or splashes.
6. Push pedal on the locking casters down to secure the system’s position. This will prevent accidental
rolling and potential impact damage.
Table 3�1 Transportation, use, and storage environmental limits
Environmental Limits during Use
Ambient temperature (°C) 10 to 35
Relative humidity (%) 30 to 75 RH (non-condensing)
Atmospheric pressure (hPa) 700 to 1060
Environmental Limits during Transport and Storage
Ambient temperature (°C) -20 to 60
Relative humidity (%) 10 to 90 RH (non-condensing)
Atmospheric pressure (hPa) 500 to 1060
