Bounce LED RGB Series User manual

Spectrum RGBW (24v)
RGB SERIES

+
R
G
B
W
+
R
G
B
W
Spectrum RGBW (24v)
1.5W (24V)
R 21lm / G 42lm / B 9lm / W 18lm
R 640nm / G 520nm / B 465nm
W 6500K
5 Years
40 Modules per chain
85
MODULE DIMENSIONS
POWER OUTPUT
TYPICAL LUMENS
COLOUR TEMPERATURE
WARRANTY
MAX SERIES
IP65 (Suitable for outdoor use)
IP RANK
15.5
+
R
G
B
W
+
R
G
B
W
The Bounce Spectrum RGBW module allows for variable colour with the addition
of a white option for external signage and lighting applications. Combine with an
L-Tech RGBW Control Kit to achieve full-colour control for your creative project.
80-150 mm
SUITABLE FOR SIGN DEPTH
RGB SERIES
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com
Cobra Spectrum RGB
Spectrum RGB
RGB RANGE
Spectrum RGBW
7.2W/m (12V)
1.2W (24V)
1.5W (24V)
1.2W (24V)
RGB
RGB
RGBW
RGB
5YR
5YR
5YR
5YR
8.0mm x 5m
67x16x10mm
85x16x8mm
67x16x8mm
1.5m/series
40/series
40/series
20/series
20-100mm
80-150mm
80-150mm
80-150mm
Spectrum Pixel
7.6

+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
178 mm
MAX. PITCH
(MODULE SPACING)
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
160°
VIEWING ANGLE
0° 10° 20° 30° 40°
50°
60°
70°
80°
90°
100°
50°
60°
70°
80°
90°
100°
10°20°30°40°
0° 0.2
0.4
0.2
0.6
0.8
1.0
0.4 0.6 0.8 1.00.20.40.60.81.0

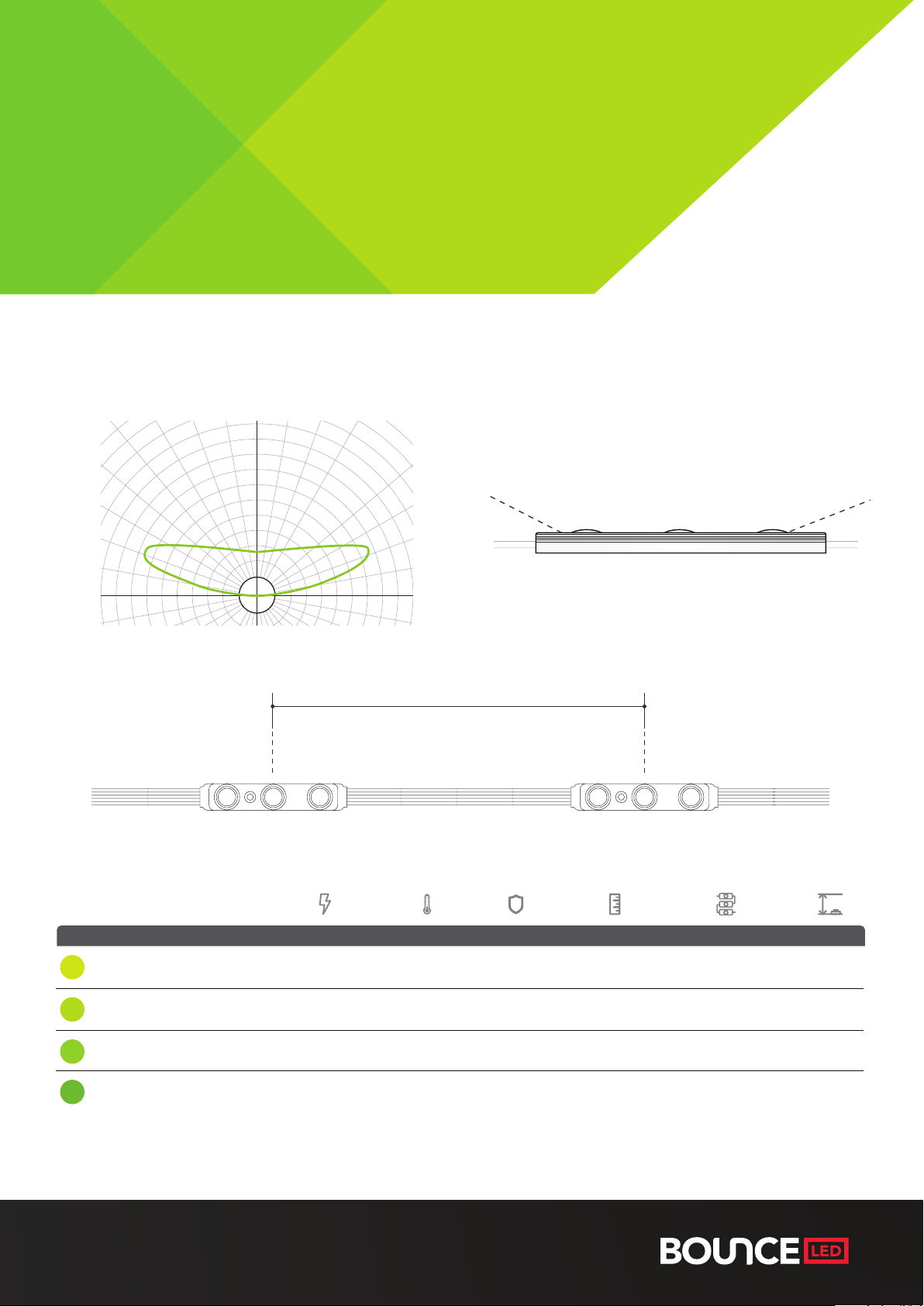

BEAM DISTRIBUTION DETAIL
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com
Cobra Spectrum RGB
Spectrum RGB
RGB RANGE
Spectrum RGBW
7.2W/m (12V)
1.2W (24V)
1.5W (24V)
1.2W (24V)
RGB
RGB
RGBW
RGB
5YR
5YR
5YR
5YR
8.0mm x 5m
67x16x10mm
85x16x8mm
67x16x8mm
1.5m/series
40/series
40/series
20/series
20-100mm
80-150mm
80-150mm
80-150mm
Spectrum Pixel
I still need to update this table with nal details - do we
just want the RGB Series on here going forward?

PLEASE CONTACT US FOR FURTHER WARRANTY INFORMATION
PH 02 9517 3222 | E [email protected]
www.bounceled.com
LED Product Warranty
LIMITED WARRANTY | Subject to change without notice
Bounce LED is committed to providing defect-free products that will give the purchaser years of trouble-free operation. All
production facilities maintain strict quality assurance standards and our products are have been designed and thoroughly
tested ensure the highest quality.
Bounce LED products are warranted to meet the performance criteria outlined in the written data sheets and specifications
and are to be free from defects in materials and workmanship for the warranty period stated. Should any LED products fail to
perform as specified during the warranty period, Bounce LED will replace all defective product in accordance with the terms
and conditions.
Modules must be installed with qualified constant voltage SMPS with international certificate to guarantee warranty.
TERMS AND CONDITIONS
This warranty is based on reasonable indoor or outdoor usage in architectural and/or signage applications for image
identification, when installed and used in accordance with instructions from Bounce LED. Normal operating conditions are
defined as 8-12 hours per day, 7 days per week, continuous use in typical outdoor heat and humidity, and environmental
conditions as stated in our product specification.
All LED systems, to varying degrees, have some amount of light degradation over the life of the product. Bounce LED designs
all of its LED systems to minimise this light degradation but considers this a normal part of LED technology.
This warranty is valid when the LED products of Bounce LED are properly installed and wired in accordance with all
instructions, building codes, the latest domestic and international safety agencies that are recognised as having applicable
safety requirements.
Any improper use in conditions that are not stated in Bounce LED’s written data sheets and instruction, or stated herein,
including the use of third party dimming, flashing or other effect devices, extreme environmental conditions or any other
unintended usage will void this warranty.
LIMITATION OF LIABILITY
Bounce LED is committed to making high quality lighting products. Returning of defective products will help us monitor and
further improve product quality. Repair or replacement of the product is the sole remedy available.
Under no circumstance shall Bounce LED be liable for any incidental or consequential loss or damage whatsoever arising out
of, or in any way related to any defect in or non-performance of the products. No warranty of merchantability or fitness for a
particular purpose is made or implied.
Furthermore, Bounce LED shall not be responsible for any other costs, including installation or field support labour or loss of
profits, income or revenue. Additionally, any drawing, layout, quotation or other communication regarding suggested product
type, amount of usage is for reference only and should be treated as an estimate.
Bounce LED shall not be responsible for minimum illumination levels or other performance criteria that is not stated in Bounce
LED’s written data sheets and instructions, or stated herein.
Bounce LED reserves the right to test and examine all products returned under this warranty to evaluate proper usage,
determine the cause of failure, and make a determination, in its sole judgement whether the products are defective and
covered by this warranty.

WARNING Please read these instructions completely and carefully.
Risk of electrical shock. Disconnect power before servicing or installing product
Installation Guide
+
R
G
B
W
+
R
G
B
W

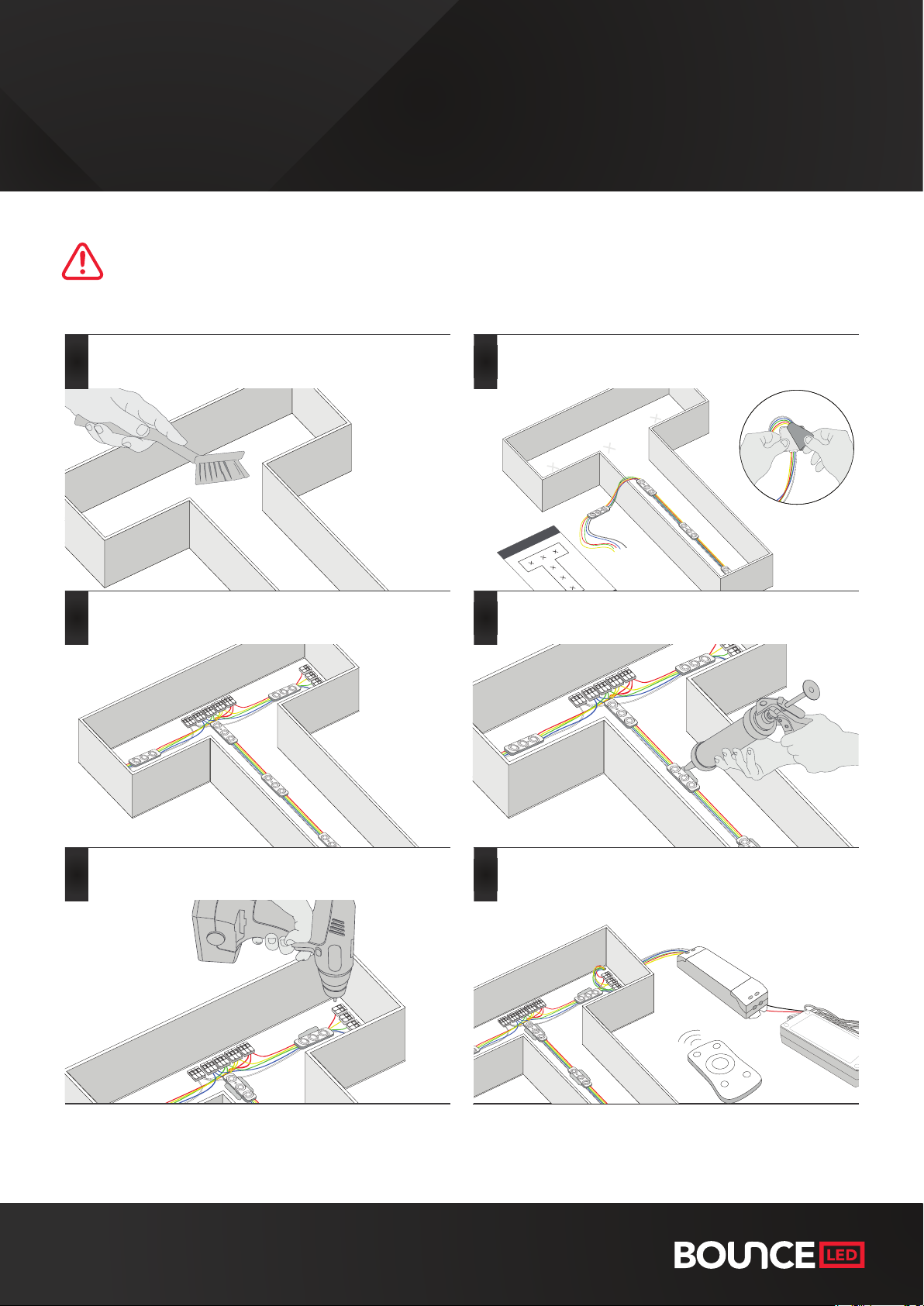

Ensure the inside of your channel letter or sign box is clean and
free of debris.
Remove tape from the rear side and stick LED modules in place
using supplied LED layout.
1 2
Wire up your modules using WAGO Splicing Connectors. Always
ensure positive-positive, R-R, B-B and G-G connection. Do not
exceed the maximum modules per series as this will result in
voltage drop.
Secure LEDs by gluing modules in place
3 4
Drill holes out the back of the letters or sign box for connection
to DC power supply
Connect the LED modules from the sign to the receiver and
power supply. If there are multiple letters/signs, they should
connected in parallel to avoid voltage drop.
5 6
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
+
R
G
B
W
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com
+
