Meteor ATRIA 8 User manual

INSTALLATION GUIDE
REMOTE EMERGENCY PACK
meteor-lighting.com
• Before wiring to power supply and during servicing or relamping, turn off
power at fuse or circuit breaker.
• All servicing or relamping must be performed by qualified service personnel.
• Product must be grounded to avoid potential electric shock or other potential
hazard.
• Product must be installed at locations and heights, in a manner consistent
with its intended use, and in compliance with Electrical Code and local codes.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT SAFETY INFORMATION
READ AND FOLLOW ALL SAFETY INSTRUCTIONS

Page 2
INSTALLATION GUIDE
WIRING DIAGRAM
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 REMOTE EMERGENCY PACK

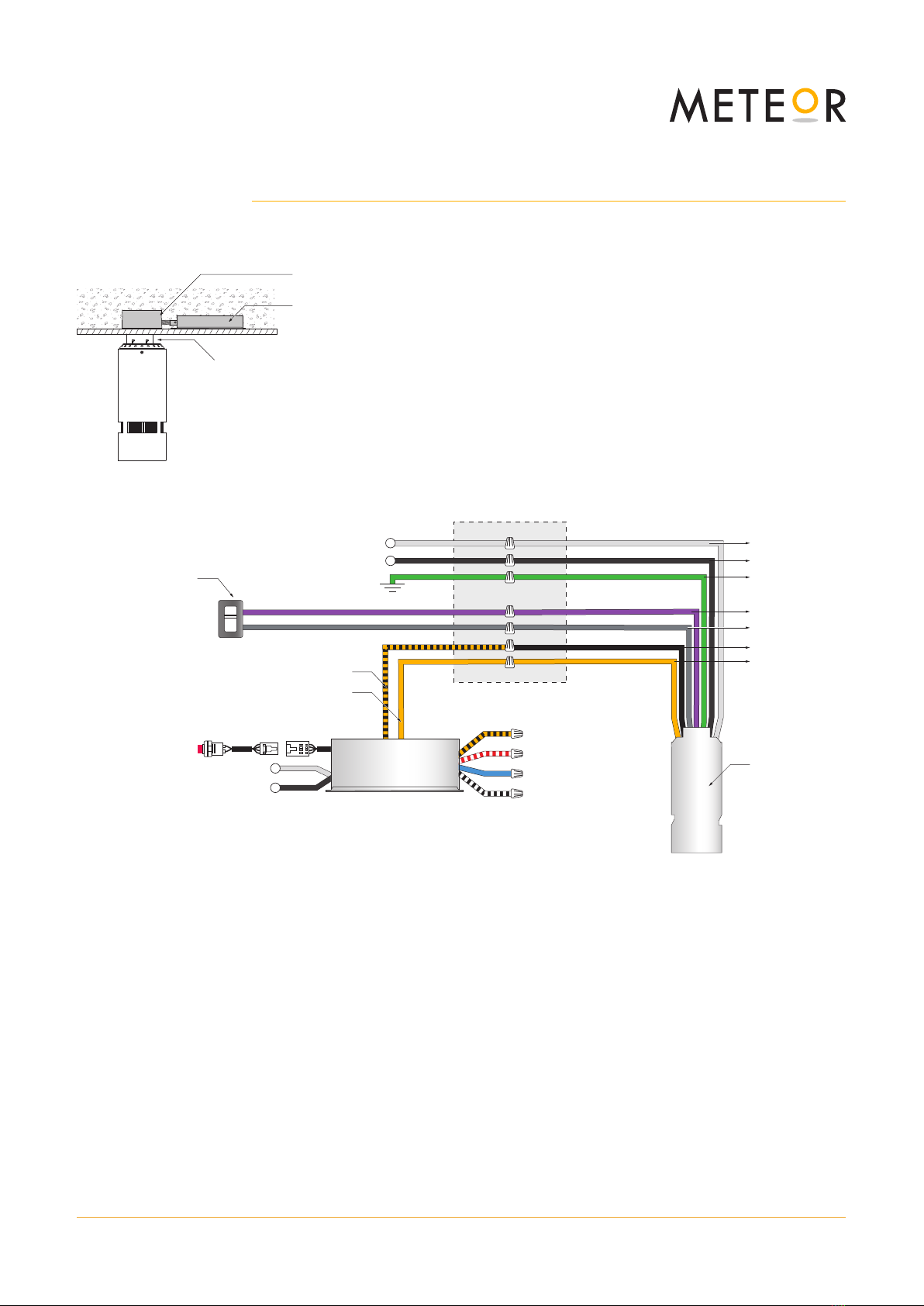

Surface Mount (0-10V / DALI) - Remote Emergency Pack
Junction Box (Not included)
Emergency Battery (Indoor only)
Mounting Bracket
Test Method
Disconnect the AC power of the LED fixture and EMP. The LED Fixture should be lit by EMP.
White (Neutral)
Pink/Gray (-)
Violet (+)
Green(Ground)
Black(Line)
White (Neutral)
Black (Line)
Green(Ground)
Violet (+)
Pink/Gray (-)
Yellow/Black(-)
White/Red
Blue
White/Black
0-10V Dimmer
White (Neutral)
Black (Line)
EMP 20W
BSL20B2UEK55C1I1
LED Fixture
EMP Yellow (+)
EMP Yellow/Black (-)
ATTENTION
Do not press the test
switch button.
Un-switchable AC source
To detect AC power outage
Junction Box
Black (-)
Yellow (+)

Yellow/Black(-)
White/Red
Blue
White/Black
Page 3
INSTALLATION GUIDE
WIRING DIAGRAM
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 REMOTE EMERGENCY PACK

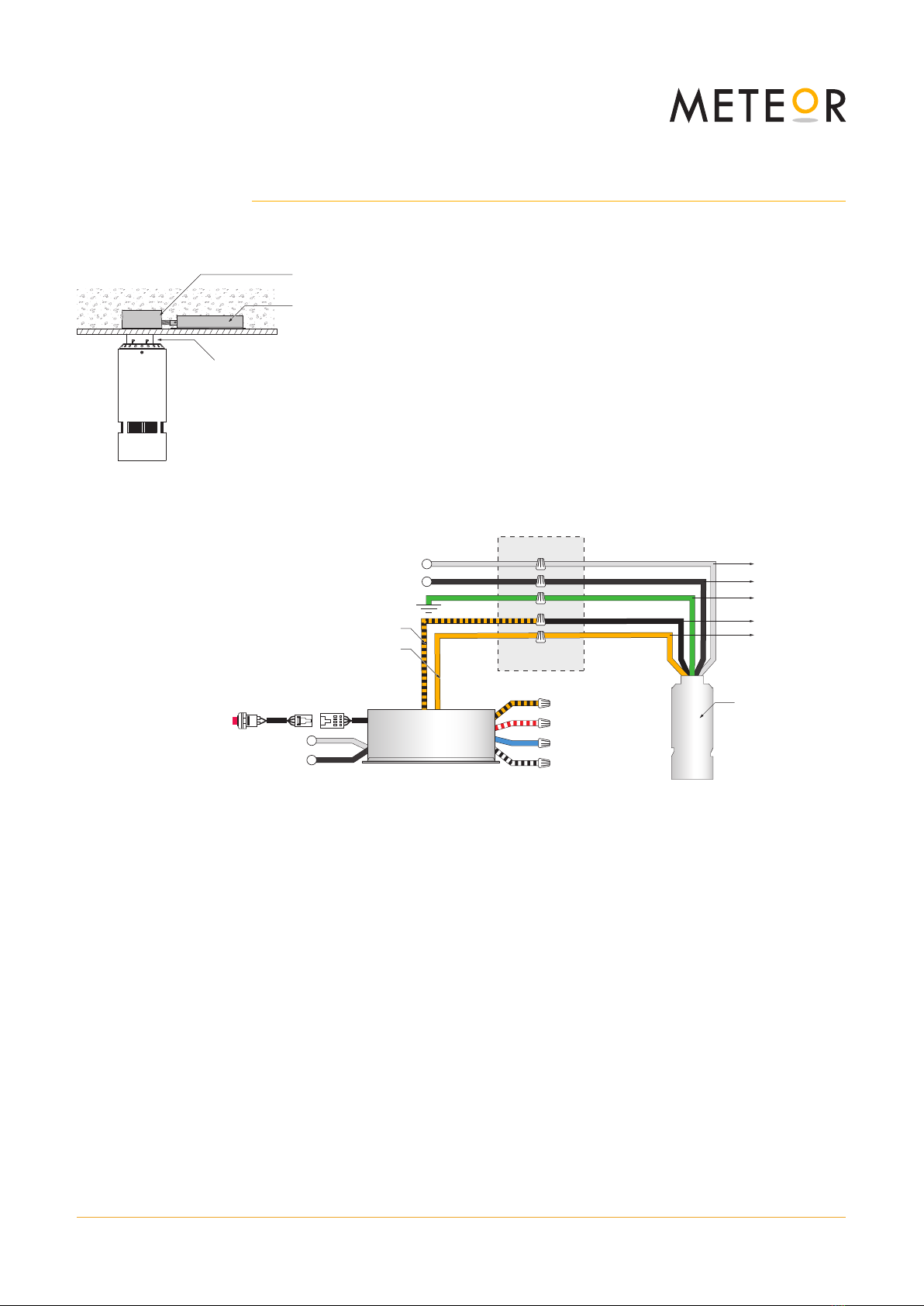

Surface Mount (DMX / TRIAC)
Test Method
Disconnect the AC power of the LED fixture and EMP. The LED Fixture should be lit by EMP.
White (Neutral)
Black (Line)
Green(Ground)
White (Neutral)
Black (Line)
EMP 20W
BSL20B2UEK55C1I1
ATTENTION
Do not press the test
switch button.
Un-switchable AC source
To detect AC power outage
Black (-)
Yellow (+)
Junction Box (Not included)
Emergency Battery (Indoor only)
Mounting Bracket
Junction Box
LED Fixture
EMP Yellow (+)
EMP Yellow/Black (-)
Green(Ground)
Black(Line)
White (Neutral)

Yellow/Black(-)
White/Red
Blue
White/Black
Junction Box
Page 4
INSTALLATION GUIDE
WIRING DIAGRAM
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 REMOTE EMERGENCY PACK

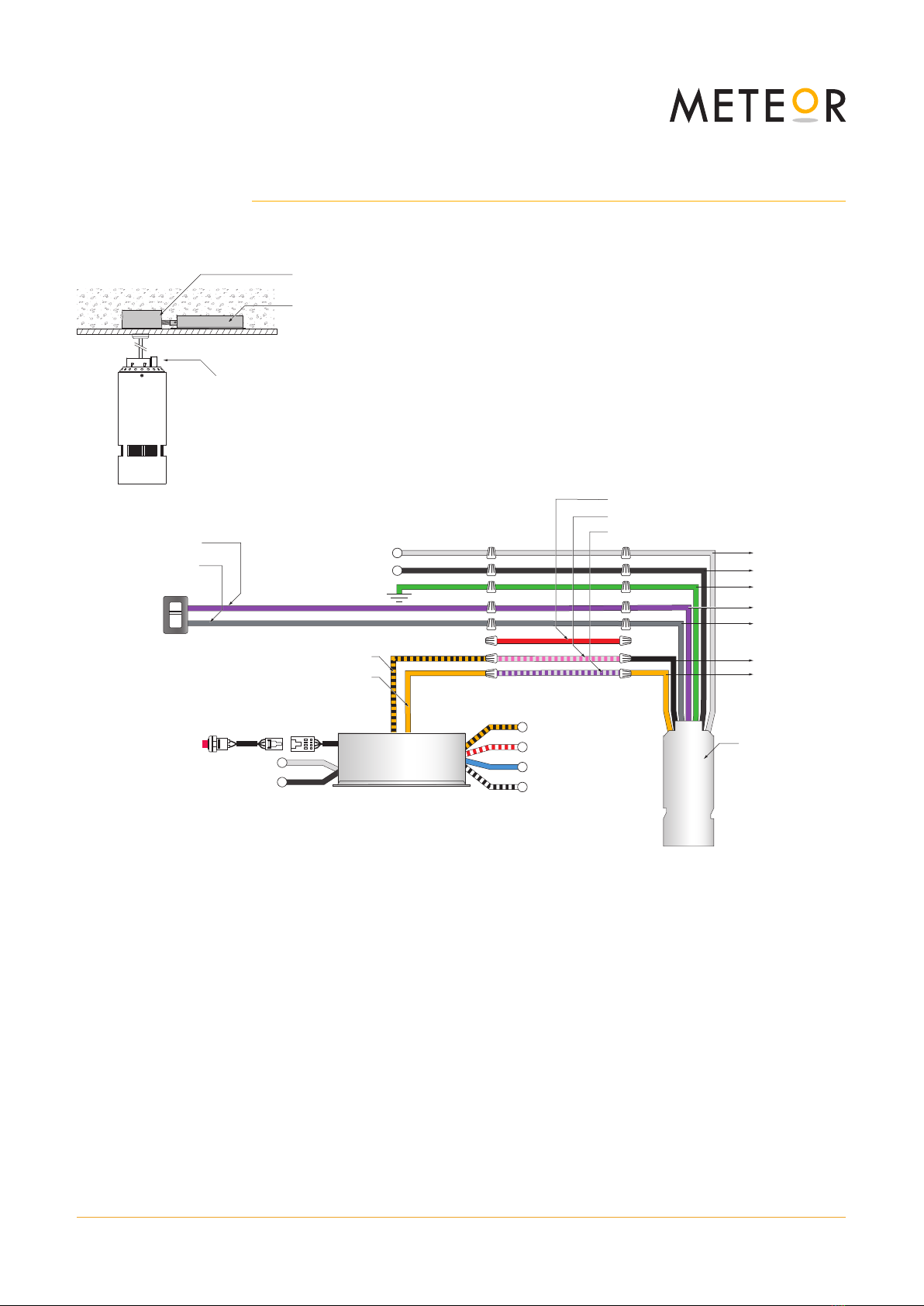

AD10 / Stem ( 0-10V / DALI )
Adjustable Cable or Stem
Test Method
Disconnect the AC power of the LED fixture and EMP. The LED Fixture should be lit by EMP.
White (Neutral)
Red
Black (Line)
Green(Ground)
Violet (+)
Pink/Gray (-)
0-10V Dimmer
White (Neutral)
Black (Line)
EMP 20W
BSL20B2UEK55C1I1
ATTENTION
Do not press the test
switch button.
Un-switchable AC source
To detect AC power outage
EMP Pink / Gray &White
EMP Violet & White
Junction Box (Not included)
Emergency Battery (Indoor only)
LED Fixture
EMP Yellow (+)
EMP Yellow/Black (-)
Pink/Gray (-)
Violet (+)
Green(Ground)
Black(Line)
White (Neutral)
Black (-)
Yellow (+)

Junction Box
Page 5
INSTALLATION GUIDE
WIRING DIAGRAM
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 REMOTE EMERGENCY PACK
AD10 / Stem ( DMX / TRAIC )
Test Method
Disconnect the AC power of the LED fixture and EMP. The LED Fixture should be lit by EMP.
White (Neutral)
Black (Line)
Green(Ground)
White (Neutral)
Black (Line)
EMP 20W
BSL20B2UEK55C1I1
ATTENTION
Do not press the test
switch button.
Un-switchable AC source
To detect AC power outage
Red
Pink/Gray
Violet
Adjustable Cable or Stem
Junction Box (Not included)
Emergency Battery (Indoor only)
LED Fixture
EMP Yellow (+)
EMP Yellow/Black (-) Black (-)
Yellow (+)
Green(Ground)
Black(Line)
White (Neutral)
EMP Pink / Gray &White
EMP Violet & White
Yellow/Black(-)
White/Red
Blue
White/Black

Page 6
INSTALLATION GUIDE
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 SAFETY INSTRUCTIONS
Read and Follow all Safety Instructions:
1. This product is for use with an emergency LED lighting load in compliance with NFPA-101 and NEC 700.12.
2. Make sure all connections are in accordance with the National Electrical Code or Canadian Electrical Code and any
local regulations.
3. To reduce the risk of electric shock, disconnect both normal and emergency power supplies before servicing.
4. This emergency driver is intended to be mounted on or enclosed within a luminaire and is suitable for both factory
or field innstallation. Emergency driver with separate battery is intended to be enclosed within a luminaire and is
suitable for both factory or field installation.
5. This product is suitable for use in damp locations product is also suitable for installation in sealed and gasketed
fixtures. Product is not suitable for heated air outlets, outdoors, wet, or hazardous locations. Maximum allowable
case temp is 65ºC. See the unit label for Tcase measurement location.
6. An unswitched AC power source is required (120-277 VAC, 50/60 Hz).
7. Do not install near gas or electric heaters.
8. Do not attempt to service the battery. A sealed, no-maintenance battery is used that is not field replaceable.
Contact the manufacturer for information on service.
9. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
10. Do not use this product for other than intended use.
11. Installation and servicing should be performed by qualified personnel.
12. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by
unauthorized personnel.
13. For Canadian application the output terminals should be in compliance with the accessibility requirement of the
Canadian Electric Code.
14. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference that may cause undesired operation.
15. This product must be grounded. See the wiring diagrams for details.
Save these Instructions
This Product Contains A Rechargeable Lithium-ion Battery.
The Battery Must Be Recycled Or Disposed Of Properly.
IMPORTANT SAFEGUARDS
Self-Testing Emergency LED Driver
Installation Instructions
BSL07/13/14/20

Page 7
INSTALLATION GUIDE
09-11-2023
Meteor Lighting reserves the right to make changes to this product for design and development improvements at any time without prior notice, and such modification
shall be effective immediately. ©Meteor Illumination Technologies, Inc.
meteor-lighting.com 1300 John Reed Court, Unit B, City of Industry, California 91745 E: [e-mail] T: 213-255-2060
ATRIA 8 EMERGENCY PACK SPECIFICATIONS
Specifications
UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2, No. 141
For Field or Factory Installation
(Indoor and Damp)
Class 2 Option - UL 1310 Certified, CSA 22.2
No. 223-M91 compliant
Illumination Time
90 Minutes
Full Warranty
5 Years (NOT pro-rata)
Universal Input Voltage
120-277 VAC, 50/60 Hz
Output Voltage
20-54 OR 54-200 VDC
Output Power
20 W
Test Switch/Charging Indicator Light
Test Switch Assembly is UL2043 Plenum-Rated.
Battery
High-Temperature, Maintenance-Free
LFP Battery Technology
Recharge Time
24 Hours
Temperature Rating
Ambient: 0°C to +55°C (32°F to 131°F)
Dimensions
B2 Enclosure: 15.34” x 2.25” x 1.16” (369 mm x 58
mm x 30 mm)
Mounting Center: 15.0” (356 mm)
Maximum Weight
BSL20B2: 3.07 lbs
Benefits:
•UL Listed for field or factory installation.
• When paired with a compatible LED luminaire, provides NFPA
101
compliant emergency lighting.
• Intelligent output initially provides rated power regardless of
the LED
array voltage.
• High or low voltage output variants
• Meets CEC Title 20 (California Energy Commission) efficiency
standards.
• Smart Charger Technology with low energy consumption helps
meet
Title 24 building requirements.
• Self-Test automatically performs the code required testing per
the
latest standard (UL 924, 10th edition, May 5th, 2022)
• Allows for luminare to be completely installed prior to AC mains
availability (ABConnect).
• Easily disabled for storage and fool proof commissioning
(ABConnect).
• Universal Input reduces ordering and stocking complexity and
reduces field wiring errors.
• Compatible with a wide variety of LED arrays and AC drivers.
• Test switch is IP65 rated for protection to dust and water
ingress.
• Small size, with and without conduit, and separate battery
variants
provides maximum flexibility during installation
• No conduit is needed for plenum rated test switch assembly.
Dimensions:
B2 Enclosure Dimensions (with conduit version shown below)
15.34” x 2.25” x 1.16”
Mounting center - 15.0”
