The Bowflex Xceed™
Home Gym
Assembly Manual
P/N 001-6907 Rev. B (08/22/06)
Costco_BFX_Xceed_AM_RevB 082206.indd 1 8/23/2006 3:29:53 PM
Table of Contents
Specifications / Approvals . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . 2
Getting To Know Your Machine . . . . . . . . . . . . . . . . 3
Parts Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hardware Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-15
Congratulations on your commitment to fitness and your purchase of the Bowflex Xceed™
home gym. Before assembling your Bowflex Xceed™ home gym please read the Assembly Manual
and follow the Important Safety Precautions. For information on how to use your Bowflex Xceed™
home gym refer to the Bowflex Xceed™ Owner’s Manual.
Nautilus, Inc.
16400 S.E. Nautilus Drive
Vancouver, Washington, USA 98683
1-800-NAUTILUS (1-800-628-8458)
Fax (800) 898-9410
Nautilus.com
Bowflex.com
Costco_BFX_Xceed_AM_RevB 082206.indd 2 8/23/2006 3:29:53 PM
Bowflex Xceed™ Assembly Manual 1
Specifications / Approvals
Regulatory Approvals:
Product Weight 157 lbs. (71 kg)
Product Dimensions 53" (135 cm) long x 49" (124 cm) wide x 82" (208 cm) high
Workout Area 96" (244 cm) long x 78" (198 cm) wide
Number of Exercises Over 60
Power Rod® Resistance 210 lbs. (95 kg)
Power Rod® Upgradability 310 lbs. (141 kg.)
410 lbs. (186 kg.)
User Weight Limit 300 lbs. (136 kg)
Meets:
EN957-1 Class H
EN957-2 Class H
Meets:
ASTM F2276-05
ASTM F2216-05
US
US
Product Specifications:
Costco_BFX_Xceed_AM_RevB 082206.indd 3 8/23/2006 3:29:54 PM
2Bowflex Xceed™ Assembly Manual
Important Safety Precautions
Used to call attention to POTENTIAL hazards that could result
in personal injury or loss of life.
READ ALL INSTRUCTIONS BEFORE
ASSEMBLING THE MACHINE.
IMPORTANT SAFETY INSTRUCTIONS
The following definition applies to the word “Warning” found throughout this manual:
For your safety, perform
all assembly steps in the
sequence given. Improper
assembly can lead to injury.
Some components can be
heavy or awkward to handle.
Get help if necessary.
Costco_BFX_Xceed_AM_RevB 082206.indd 4 8/23/2006 3:29:55 PM
Bowflex Xceed™ Assembly Manual 3
Getting to Know Your Machine
Before You Assemble
Please take the time to read all assembly
instructions before attempting to assemble your
Bowflex Xceed™ home gym. Select where you are
going to locate your machine carefully. The best
place for your Bowflex Xceed™ home gym is on a
hard, level surface.
Select a workout area that provides a minimum
clearance behind the rod box of 0.5 ft (15 cm) and a
total width of 6.5 ft (2.0 m). Allow a minimum of 3.0
ft (0.9 m) free space in front of the machine.
Basic Assembly Principles
Here are a few basic tips that will make your
assembly of the Bowflex Xceed™ home gym quick
and easy. By using these principles, you can simplify
each process and save yourself extra time and effort.
1. To make the assembly process go faster,
gather the pieces you need for each step and
thoroughly read the assembly instructions for
that step prior to starting assembly for the step.
2. When tightening a locknut on a bolt, use a
combination wrench to grip the locknut and
ensure that it is fastened securely.
3. When attaching two pieces, gently lift and look
through the bolt holes to help guide the bolt
through the holes.
4. As a general rule, and for all bolts and nuts
on your Bowflex Xceed™ home gym, turn bolts
or nuts toward the right to tighten and left to
loosen. Or you can remember the mnemonic:
“Righty tighty, lefty loosey.”
IMPORTANT: LEAVE ALL CABLES COILED AND WRAPPED UNTIL YOUR
BOWFLEX XCEED™ HOME GYM IS FULLY ASSEMBLED.
Costco_BFX_Xceed_AM_RevB 082206.indd 5 8/23/2006 3:29:55 PM
4Bowflex Xceed™ Assembly Manual
�
Leg Extension Attachment
The Leg Extension Attachment
has the parts shown here.
Parts Reference Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 6 8/23/2006 3:29:57 PM
Bowflex Xceed™ Assembly Manual 5
Lock Knob Leg Extension
Backbone
2 Chrome
Tubes (3/4")
4 Foam Rollers 4 End Caps (3/4")2 Snap Hooks
& 2 Cables
50" Bent Lat Bar Squat Bar 2 Squat Straps 8 Snap Hooks Tools Included:
Seat Backbone Seat Back
Seat
Bottom
Upper Lat Tower Lat Cross Bar with
Pulleys
2 Hand Grips
Lower Lat Tower
Frame
Rod Box w/ Rods Seat
Support
Rail
Squat Pulley Frame Left Pulley Arm Right Pulley Arm
Base Frame Left Frame Rail Right Frame Rail Rear Cross
Member
NOTE: Specifications Subject to Change Without Notice
Leg Extension Parts
NOTE: Specifications Subject to Change Without Notice
7/32”
3/16”
Abdominal Crunch
Shoulder Harness
Parts Reference Guide
2 Hex Wrenches
Costco_BFX_Xceed_AM_RevB 082206.indd 7 8/23/2006 3:30:07 PM
6Bowflex Xceed™ Assembly Manual
Qty:2
(5/16" x 2 1/2")
Qty: 2
(3/8" x 3")
Qty: 2
(3/8" x 1") (in separate
bag with washers)
Qty: 4
(5/16" x 3/4")
Qty: 20
(3/8" x 3/4")
Qty: 2 Threaded Studs
(1/2" x 9 1/2")
Qty: 1
(3/8" x 5")
Qty: 4
(1/2")
Qty: 3
(3/8")
Qty: 2
Cap Screws (1/4" x 1/2")
Qty: 3
Self Threading Screws (#10 x 1")

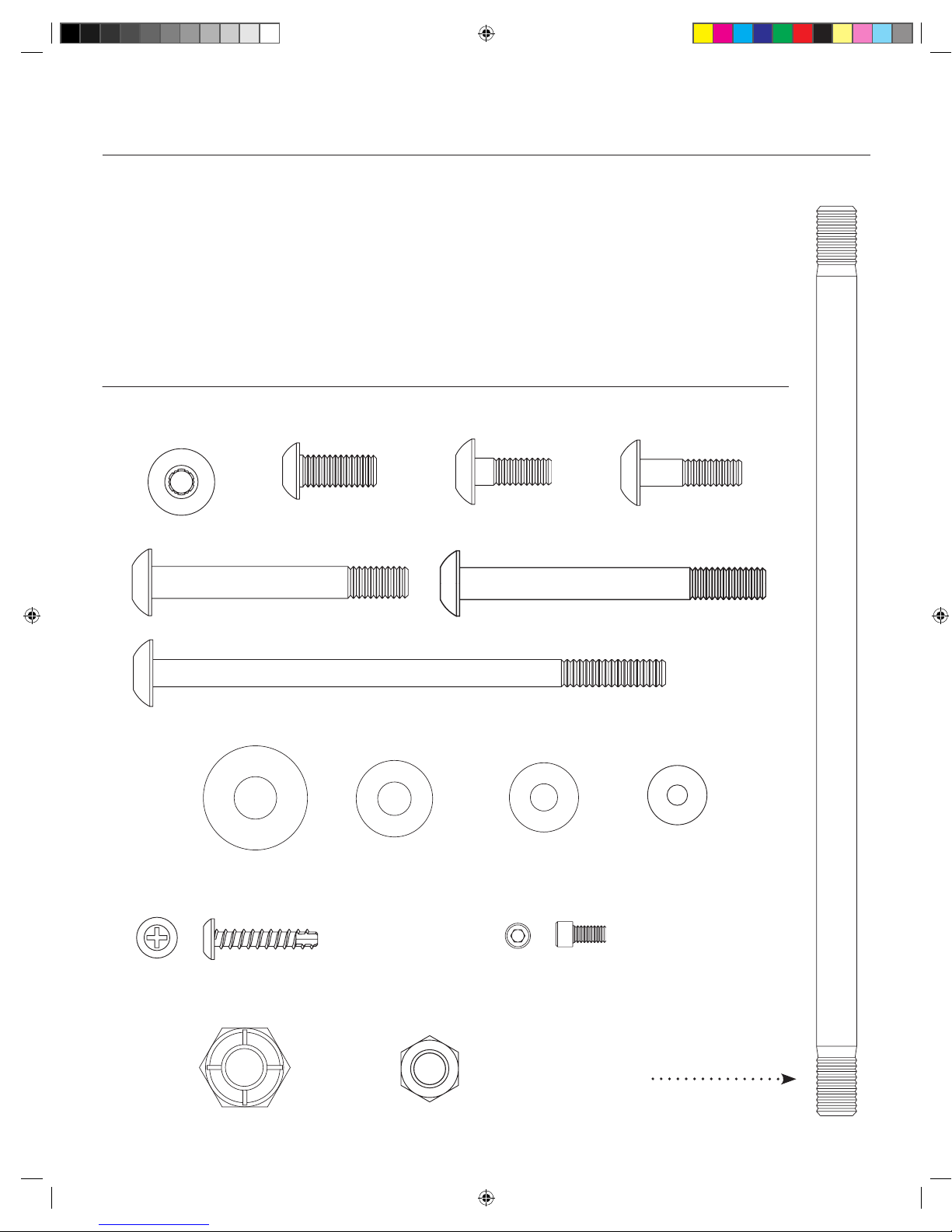

Hardware Guide
Button Head Screws:
Flat Washers:
Qty: 26
(3/8")
Qty: 6
(5/16")
Qty: 3
(1/4")
Qty: 4
(1/2")
Nylock Nuts:
Tools you will need:
You will need the tools listed below to complete the assembly of your Bowflex Xceed™ home
gym. If you don’t have these tools, you can find them at any hardware or department store.
(NOTE: Drawings not to scale.)
• Flat Blade Screw Driver
• Rubber Mallet
• Utility Knife
• Scissors
• Allen wrenches (included)
• 7/16" Combination Wrench
• 9/16" Combination Wrench
• Adjustable Wrench
• Socket Wrench Set
• Phillips Screw Driver
Costco_BFX_Xceed_AM_RevB 082206.indd 8 8/23/2006 3:30:16 PM
Bowflex Xceed™ Assembly Manual 7
Assembly Guide
Step 1 Base Frame Assembly
Parts:
• Base Frame • Right Frame Rail
• Left Frame Rail • Rear Cross Member
Hardware:
• 6 Button Head Screws ( 3/8" X 3/4")
• 6 Flat Washers (3/8")
Tool: 7/32" Allen Wrench
(or Hex Wrench)
1-1 Lay all parts on floor as
shown.
1-2 Insert Frame Rail
connectors into the
Base Frame and
Rear Cross Member.
Secure with screws
and washers as shown.
Finger tighten screws
at this time.
Step 2 Lower Lat Tower Assembly
Parts:
• Lower Lat Tower Frame
• Rod Box with Power Rod® Pack
Hardware:
• 3 Self Threading Screws (#10 X 1")
• 3 Flat Washers (1/4")
Tool: Phillips Screw Driver
2-1 Lay parts on floor as shown.
Firmly slide Rod Box into Lower
Lat Tower Frame.
2-2 Fasten the Rod Box to the
Lower Lat Tower Frame with
screws and washers as shown.
Tighten screws until snug.
Self Threading
Screws
Flat Washers
Rod Box w/ Rods
Lower Lat Tower Frame
Rear Cross
Member
Right Frame Rail
Button Head
Screws
Flat
Washers
Flat Washers
Base Frame
Button Head Screws
Left Frame Rail
Button Head Screws
Flat Washers
Costco_BFX_Xceed_AM_RevB 082206.indd 9 8/23/2006 3:30:17 PM
8Bowflex Xceed™ Assembly Manual
Assembly Guide
Step 3 Install Lower Lat Tower Assembly
Parts:
• Lower Lat Tower Assembly
• Base Frame Assembly
Hardware:
• 2 Button Head Screws (3/8" X 3/4")
• 2 Flat Washers (3/8")
Tool: 7/32” Hex Wrench
3-1 Align the Lower Lat Tower Assembly over
the Base Frame. Push the bottom of the Lower
Lat Tower onto the connector of the Rear Cross
Member as shown.
3-2 Secure Lower Lat Tower Assembly
using screws and washers as shown.
Finger tighten screws at this time.
Step 4 Install Seat Support Rail
Parts:
• Seat Support Rail
• Base Frame Assembly
Hardware:
• 2 Button Head Screws (3/8" X 3/4")
• 2 Flat Washers (3/8")
Tool: 7/32" Hex Wrench
4-1 Slide the bottom of the Seat Support
Rail onto the Base Frame connector
as shown.
4-2 Slide the top of the Seat Support
Rail onto the Lower Lat Tower
Assembly connector as shown.
Secure using screws and washers
as shown.
Finger tighten screws at this time.
Base Frame
Assembly
Button
Head
Screw
Flat
Washer
Button
Head
Screw
Flat
Washer
Base Frame/
Lower Lat Tower
Assembly
Seat Support Rail
Flat
Washer
Button
Head
Screw
Button
Head
Screw
Flat
Washer
Lower Lat Tower
Assembly
Costco_BFX_Xceed_AM_RevB 082206.indd 10 8/23/2006 3:30:19 PM
Bowflex Xceed™ Assembly Manual 9
Step 6 Install Pulley
Arms
Parts:
• Right Pulley Arm
• Left Pulley Arm
• Main Assembly
Hardware:
• 4 Washers (3/8")
• 4 Button Head Screws
(3/8" X 3/4")
Tools: 7/32" Hex Wrench
6-1 Slide Left and Right Pulley Arms
onto the connectors on the base
frame as shown.
6-2 Secure Pulley Arms to Base Frame
using screws and washers as shown.
Finger tighten screws
at this time.
Step 5 Install Squat Pulley Frame
Parts:
• Squat Pulley Frame Assembly
• Main Assembly
Hardware:
• 1 Button Head Screw (3/8" X 5")
• 1 Nylock Nut (3/8")
• 2 Button Head Screws (3/8" X 1")
• 4 Washers (3/8")
Tools: 7/32" Hex Wrench & Adjustable
or Socket Wrench
5-1 Place the Squat Pulley Frame behind the Seat
Support Rail and align the top screw holes.
Secure using a 3/8" X 5" screw, washer and
nut in the top hole as shown.
5-2 Install screws and washers into the bottom
holes of the Squat Pulley Frame as shown.
Button
Head
Screw
Flat
Washers
Nylock
Nut
Squat Pulley
Frame
Flat
Washers
Button Head
Screws
Base Frame &
Lower Lat Tower
Assembly
Flat Washers
Button Head
Screw
Button
Head
Screw
Right Pulley Arm
Left Pulley Arm
Button Head
Screws
Washers
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 11 8/23/2006 3:30:23 PM
10 Bowflex Xceed™ Assembly Manual
Step 8 Install Slider Pulleys
Parts:
• 2 Slider Pulleys with Cable Assembly
• Main Assembly
Hardware:
• 2 Cap Screws (1/4" X 1/2")
Tools: 3/16 Hex Wrench
8-1 Unwrap the Slider Pulley and uncoil the
cable.
8-2 Install a Slider Pulley onto each Pulley
Arm as shown. Choose any of the four
holes to secure.
8-3 Install a cap screw into the underside
of each Pulley Arm, as shown.
Cap
Screw
Slider Pulley w/
Cable Assembly
Cap
Screw
Slider Pulley w/
Cable Assembly
Step 7 Secure Pulley Arms
Hardware:
• 2 Threaded Studs (1/2" X 9 1/2")
• 4 Nylock Nuts (1/2")
• 4 Washers (1/2")
Tool: Rubber Mallet
7-1 Align the two holes in the Pulley Arms
with those in the Lower Lat Tower
Assembly and secure using threaded
studs, washers and nuts as shown.
Flat Washers
Threaded
Studs
Nylock Nuts
Nylock Nuts
Flat Washers
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 12 8/23/2006 3:30:26 PM
Bowflex Xceed™ Assembly Manual 11

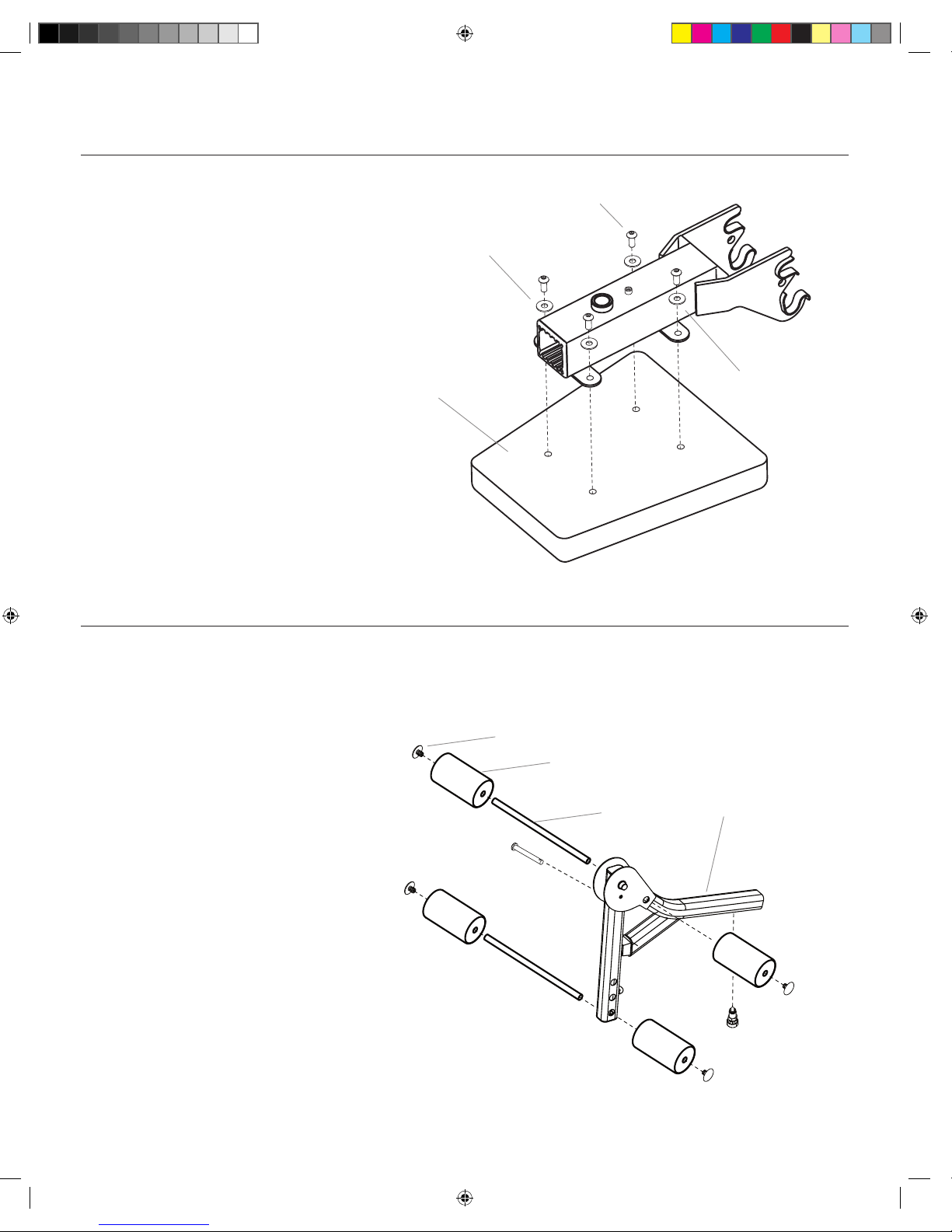

Step 10 Leg Extension Assembly
Parts:
• Leg Extension Backbone
• 2 Chrome Tubes
• 4 Foam Rollers
• 4 End Caps
Tool: Rubber Mallet
10-1 Insert Chrome Tubes through
the upper hole and one of
the lower holes in the Leg
Extension. (Select hole for
your comfort level.)
10-2 Slide Foam Rollers onto the
Chrome Tubes and secure
with end caps. A rubber
mallet may be needed to
secure the end caps.
NOTE: The Leg Extension may be adjusted
during workout to best suit your height
and personal preferences.
Step 9 Seat Assembly
Parts:
• Seat Backbone
• Seat Bottom
Hardware:
• 4 Button Head Screws (5/16" X 3/4")
• 4 Washers (5/16")
Tool: 3/16" Hex Wrench
9-1 Install the Seat Backbone to the
underside of the Seat Pad using
screws and washers as shown.
Button Head
Screws
Flat Washers
Seat Backbone
Seat Bottom
�
�
�
Leg Extension
Backbone
End Caps
Foam Rollers
Chrome Tubes
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 13 8/23/2006 3:30:28 PM
12 Bowflex Xceed™ Assembly Manual

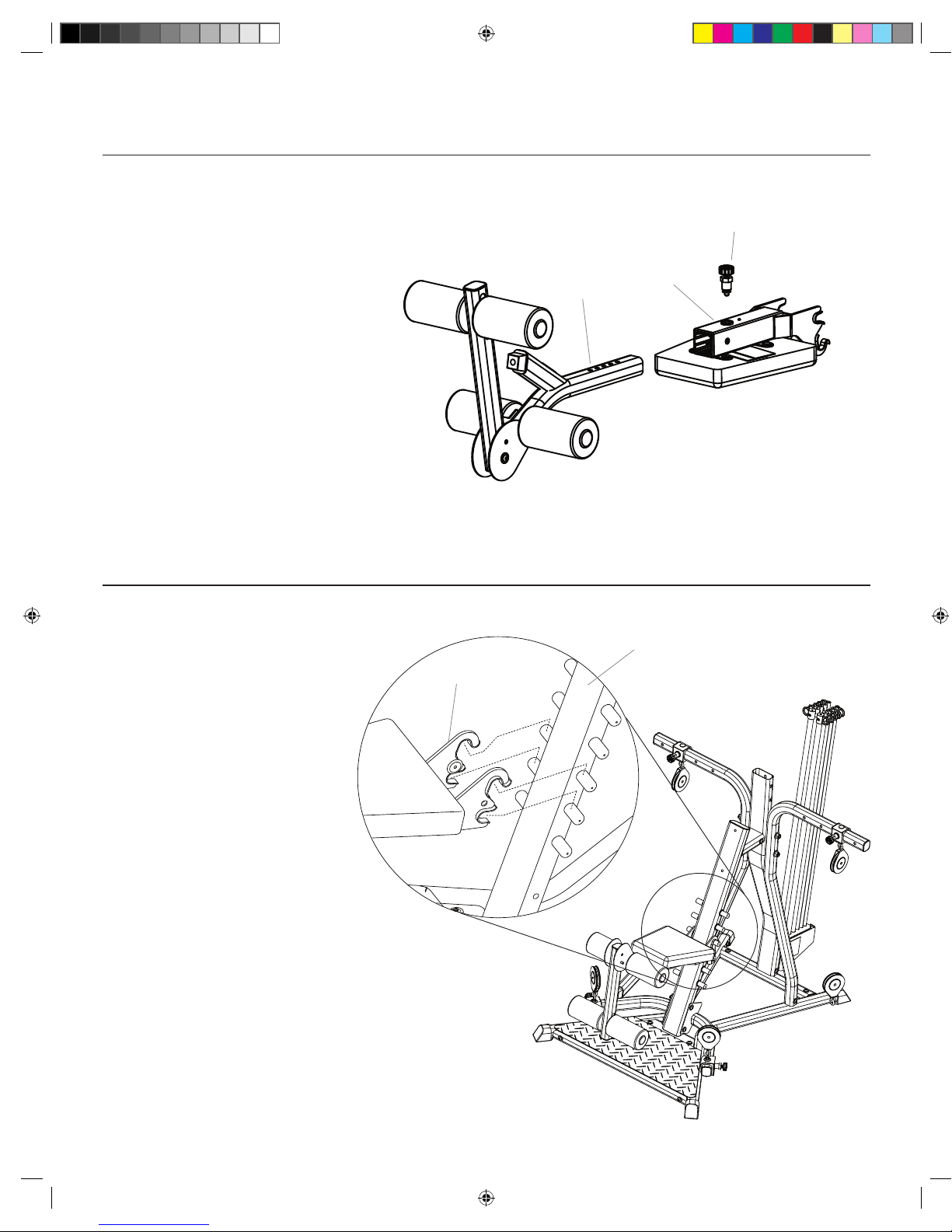

Step 11 Install Optional
Leg Extension Assembly
Parts:
• Leg Extension Assembly
• Lock Knob
11-1 Insert Leg Extension
Backbone into open end of
Seat Backbone as shown.
11-2 Align one hole of the Leg
Extension with the hole in
the Seat Backbone to fit your
height and secure with the
Lock Knob as shown.
Lock Knob
Step 12 Install Seat Assembly
Parts:
• Seat Assembly
• Main Assembly
12-1 Align the top two hooks on
the Seat Backbone with one
of the lower pairs of pins on
the Seat Support Rail.
12-2 Tip seat front up and slide
hooks onto pins. Rotate seat
down and back to use.
Note: Use lower pins until the seat
back is installed. Reverse
procedure to remove seat.
Seat
Backbone
Leg
Extension
Backbone
Seat
Backbone
Seat Support
Rail
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 14 8/23/2006 3:30:29 PM
Bowflex Xceed™ Assembly Manual 13
Step 14 Upper Lat Tower Assembly
Parts:
• Upper Lat Tower
• Lat Cross Bar
Hardware:
• 2 Button Head Screws (3/8" X 3")
• 2 Washers (3/8")
• 2 Nylock Nuts (3/8”)
Tool: 7/32" Hex Wrench and Adjustable Wrench
14-1 Align the two holes on the Lat Cross Bar with
those on the Upper Lat Tower as shown.
14-2 Secure using washers and screws as shown.
Step 13 Install Seat Back Pad
Note: The back of the Seat Back Pad has two
pairs of holes. Select the appropriate
set based on your height.
Parts:
• Seat Back Pad
• Main Assembly
Hardware:
• 2 Button Head Screws (5/16" X 2 1/2")
• 2 Washers (5/16")
Tool: 3/16" Hex Wrench
13-1 Position Seat Back Pad against the
Seat Support Rail and align the
screw holes for your height with
those on the Seat Support Rail.
13-2 Secure Seat Back Pad to the Seat
Support Rail using screws and
washers as shown.
Button Head
Screws
Flat Washers
Lat Cross Bar
Upper Lat Tower
Seat Back Pad
Flat
Washers
Button
Head
Screws
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 15 8/23/2006 3:30:32 PM
14 Bowflex Xceed™ Assembly Manual
Step 15 Install Upper Lat Tower Assembly
Parts:
• Upper Lat Tower Assembly
• Main Assembly
Hardware (1:1):
• 6 Button Head Screws (3/8" X 3/4")
• 6 Washers (3/8")
Tool: 7/32" Hex Wrench
15-1 Position the Upper Lat Tower Assembly
over the Lower Lat Tower Assembly.
15-2 Slide the Upper Lat Tower onto the
Lower Lat Tower and secure with screws
and washers as shown.
Upper Lat Tower
Button Head
Screws
Flat
Washers
Flat
Washers
Button Head
Screws
Lower Lat Tower
Step 16 Tighten Hardware
16-1 Carefully go over the entire Bowflex Xceed™ home gym and tighten all
hardware before proceeding to the next step. Pay close attention to the
hardware installed in Steps 1, 3, 4, and 6.
Assembly Guide
Costco_BFX_Xceed_AM_RevB 082206.indd 16 8/23/2006 3:30:35 PM
Bowflex Xceed™ Assembly Manual 15
Step 18 CONGRATULATIONS!
You have successfully completed assembly
of your Bowflex Xceed™ home gym! Please
inspect your machine to ensure that all
fasteners are tight and components are
properly assembled. Review all warnings
affixed to machine.
Assembly Guide
Step 17 Connect Cables
Parts: Completed Bowflex Xceed™ home gym
Tool: Scissors or other cutting tool
17-1 Remove the wrapping from around the coiled cable and
pulley attached to the Right and Left Frame Rails.
17-2 Remove the wrapping from around the coiled cable and
pulley attached to the left and right side of the lat tower.
17-3 Attach the cable to the home gym following the routing for
the various exercise positions.
NOTE: As you use your home gym, you will connect the cables
and pulleys in a variety of ways to perform the exercises.
Refer to the Owner’s Manual for information on using
the Bowflex Xceed™ home gym..
Chest Exercises
Leg and Squat
Exercises
Lat Pulldown
Exercises
Failure to visually check and test assembly
before use can cause damage to the Bowflex
Xceed™ home gym and serious injury to users
and bystanders and can also compromise the
effectiveness of your exercise program.
Costco_BFX_Xceed_AM_RevB 082206.indd 17 8/23/2006 3:30:40 PM
Important Contact Numbers
OFFICES IN THE UNITED STATES:
E-mail: customerservice@nautilus.com
• NAUTILUS INNOVATION CENTER
Nautilus, Inc.
1886 Prairie Way
Louisville, Colorado, USA 80027
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
Email: [email protected]
Fax: 800-898-9410
• TECHNICAL/CUSTOMER SERVICE
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
Email: [email protected]
Fax: 877-686-6466
• CORPORATE HEADQUARTERS
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
If you need assistance, please have both the serial number of your machine and the date of
purchase available when you contact the appropriate Nautilus office listed below.
INTERNATIONAL OFFICES:
For technical assistance and a list of distributors in your
area, please call or fax one of the following numbers.
• INTERNATIONAL CUSTOMER SERVICE
Nautilus International S.A.
Rue Jean Prouvé 6
1762 Givisiez / Switzerland
Tel: + 41-26-460-77-77
Fax: + 41-26-460-77-70
Email: [email protected]
BUSINESS OFFICES:
• SWITZERLAND OFFICE
Nautilus Switzerland S.A.
Tel: + 41-26-460-77-66
Fax: + 41-26-460-77-60
• GERMANY and AUSTRIA OFFICE
Nautilus GmbH
Tel: +49-2204-610-27
Fax: +49-2204-628-90
• ITALY OFFICE
Nautilus Italy s.r.l.
Tel: +39-031-51-10-86
Fax: +39-031-34-24-97
• UNITED KINGDOM OFFICE
Nautilus UK Ltd.
Tel: +44-1908-267-345
Fax: +44-1908-267-346
• CHINA OFFICE
Nautilus Representative Office
Tel: +86-21-523-707-00
Fax: +86-21-523-707-09
Costco_BFX_Xceed_AM_RevB 082206.indd 18 8/23/2006 3:30:42 PM
Costco_BFX_Xceed_AM_RevB 082206.indd 19 8/23/2006 3:30:42 PM
© 2006 Nautilus, Inc. All Rights Reserved.
Nautilus, Inc. World Headquarters, 16400 S.E. Nautilus Drive, Vancouver, Washington USA 98683 1-800-NAUTILUS (1-800-628-8458)
Bowflex, Bowflex Xceed, Power Rod and the Bowflex logo are either registered trademarks or trademarks of Nautilus, Inc. All other
trademarks are trademarks of their respective companies.
Printed in China
Costco_BFX_Xceed_AM_RevB 082206.indd 20 8/23/2006 3:30:42 PM
Other manuals for Xceed
3
Table of contents
Other Bowflex Home Gym manuals
Bowflex
Bowflex SelectTech 4.1 User manual
Bowflex
Bowflex Ultimate 51370 User manual
Bowflex
Bowflex PR1000 User manual
Bowflex
Bowflex Classic User manual
Bowflex
Bowflex PR1000 User manual
Bowflex
Bowflex Xceed Plus User manual
Bowflex
Bowflex ULTIMATE 2 User manual
Bowflex
Bowflex PR3000 User manual
Bowflex
Bowflex Blaze User manual
Bowflex
Bowflex The BOWFLEX Xtreme2 User manual
Bowflex
Bowflex Motivator 2 User manual
Bowflex
Bowflex Xceed User manual
Bowflex
Bowflex Bowflex Sport User manual
Bowflex
Bowflex Xtreme SE User manual
Bowflex
Bowflex HVT User manual
Bowflex
Bowflex Bowflex Xtreme 2 SE User manual
Bowflex
Bowflex Bowflex Xtreme 2 SE User manual
Bowflex
Bowflex SelectTech 5.1 User manual
Bowflex
Bowflex Bowflex Xtreme 2 SE User manual
Bowflex
Bowflex Xtreme User manual
