Seattle X30N

About the Owner’s Manual
Features
Please read the owner’s manual thoroughly to ensure correct usage of the projector and its
features.
After reading, store the owner’s manual in a safe place for future reference.
1. Dress up Design
2. Designed for tough environment
3. Side change lamp
 6LGHFKDQJH¿OWHU
5. Quick off
6. Advanced Anti-theft features
7. Five auto features (Auto Search, Auto Sync, Auto Ceiling, Auto Keystone and Auto
Filter Alert)
8. Seven display modes (Natural, Cinema, User, Green board, White Board, Black Board
and Daylight)
9. Built-in 8W speaker
10. Logo capture
11. Image freeze function
12. Digital zoom adjustment
The content of this manual is subject to change without previous notice.
All rights reserved.
Issue of edition 0809.10_01
Projector

Control Panel Window Introduction
49
Control Panel Window Introduction
n
Power Control
Icon Name
Power on
Power off
o
Input Source
Icon Name
Video
S-Video
Y,Pb,Pr
DVI-I
RGB 1
Change Input Source
p
Function Key
Icon Name Icon Name
Up Freeze
Down Blank
Left Keystone Correction +
Right Keystone Correction -
Menu Increase Brightness
Auto Sync Decrease Brightness
Mute Higher Contrast

50
Control Panel Window Introduction
p
Function Key
Icon Name
Lower Contrast
Zoom In
Zoom Out
Volume Up
Volume Down
q
Projector Status
Icon Name
System Status
Input Source Status
Lamp Timer
Air Filter Timer

51
Control Panel Window Introduction
n
Network Control Window introduction
Icon Name Description
Scan all Capture the projector information 1 time only.
Start Auto Scan According to the system setting, get the projector
information automatically.
Stop Auto Capture
Auto Search Search the projector in the same network to
register and modify the setting.
Open Project File 2SHQSURMHFW¿OHZKLFKZDVVDYHG
Save Project File Save the registered projector in this project.
System Setting Setting the projector system remind message.
About Icon content description.
Exit Exit the Network software.
Register projector
Exit

Maintenance Of Projector
52
Maintenance of Projector

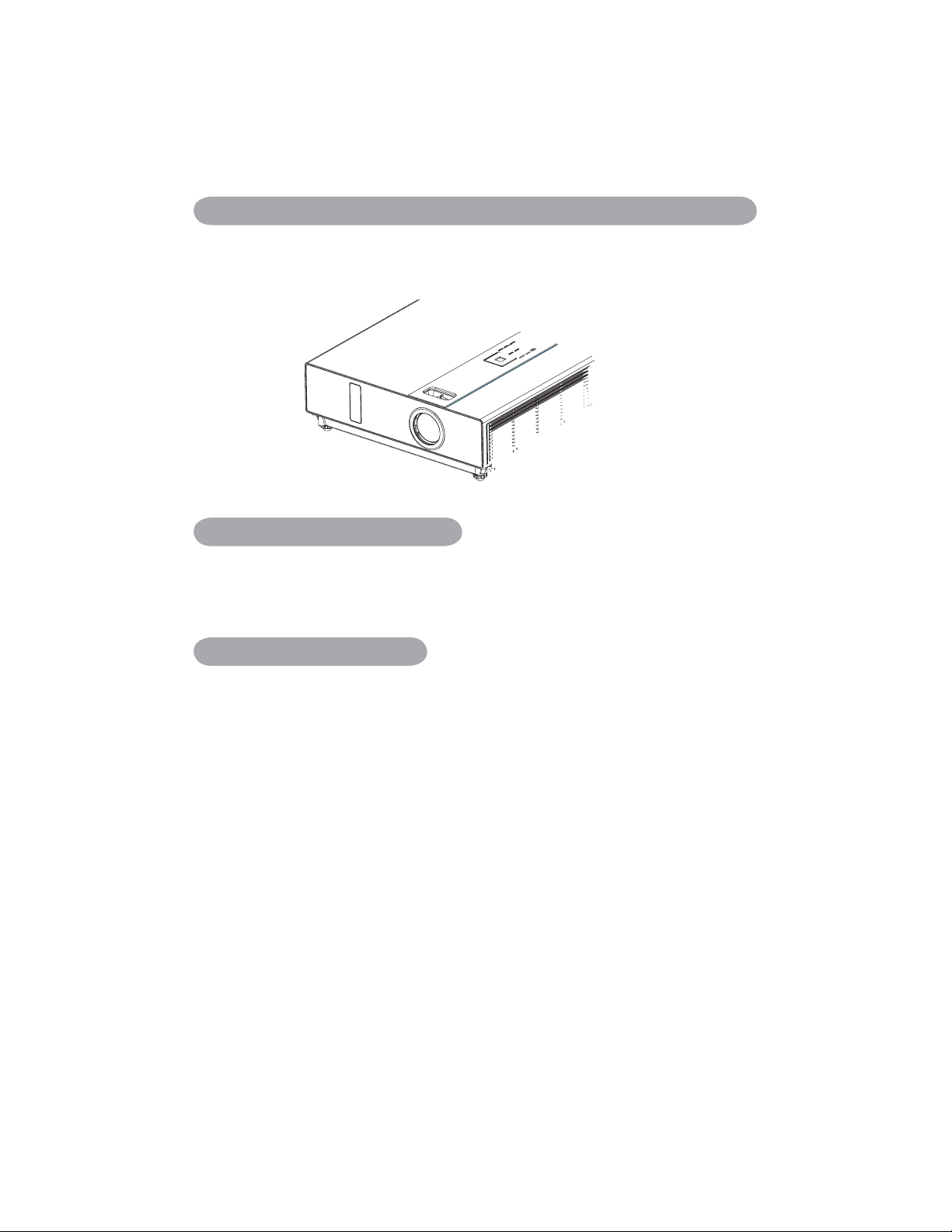

Air Filter
:KHQDZDUQLQJPHVVDJHDSSHDUVWRUHPLQG\RXWRFOHDQWKHDLU¿OWHU
please replace a new one as soon as possible. Please check and clean the
DLU¿OWHUSHULRGLFDOO\
Replacing the Air Filter
:KHQWKHXVHWLPHUHDFKHVWKH¿OWHUFRXQWHUWLPHWKHSURMHFWRUZLOO
GLVSOD\DPHVVDJHWKDWLQGLFDWHVWRUHSODFHDQHZ¿OWHU,IWKHUHLVQRVSDUH
DLU¿OWHUDYDLODEOHSOHDVHFRQWDFW\RXUGHDOHU
7XUQRIIWKHSURMHFWRUDQGXQSOXJWKHSRZHUFRUG$OORZWKHSURMHFWRUWRVXI¿FLHQWO\
cool down.
n
5HPRYHWKH¿OWHUFRYHUIURPWKHULJKWVLGHRISURMHFWRU
o
3XOORXWWKHDLU¿OWHU
p
,QVWDOODQHZDLU¿OWHU
q
3XWWKH¿OWHUFRYHURQ
r
5HVHW¿OWHUWLPHUDIWHUFOHDQLQJRUFKDQJLQJDLU¿OWHU3
Up
New one
3OHDVHFOLFNKHUHLI\RXUSURMHFWRULVZLWKKLJKHI¿FLHQF\¿OWHU

53
Maintenance of Projector
Lamp
1. If you want to replace new lamp, but the projector was just turned off,
please let the projector cool down and unplug power cord at least 60
minutes.
2. If the projector is mounted in the ceiling, contact your dealer to replace
the lamp.
Replacing New Lamp
1. Remove the lamp door.
2. Loosen 2 screws of the lamp holder. Take the handle on the top of the
lamp, pull out the lamp straight off the projector.
,QVHUWQHZODPSORFNWKHODPSGRRU¿UPO\ZLWKVFUHZV
4. Put the lamp door on.
5. Please reset the lamp timer after replacing lamp. (P.34)
ACIN
3OHDVHFOLFNKHUHLI\RXUSURMHFWRULVZLWKKLJKHI¿FLHQF\¿OWHU

54
Maintenance of Projector
WARNING
The projector uses a high-pressure mercury lamp.
The explosion of lamp with a loud bang or burn out could possibly cause
LQMXU\RUD¿UH
:KHQWKHEXOEEXUWVLWLVSRVVLEOHIRUVKDUGVRIJODVVWRÀ\LQWRWKHODPS
housing; and for gas containing mercury to escapefrom the projector’s
vent holes.
If the lamp has broken, do not check the inside of the projector. Please
ventilate the room immediately.
Do not touch or bring your face close to the broken pieces since it might
get into your eyes or mouth. In case of injury, seek medical advice
immediately.
Disposal of a Lamp
Dispose of a lamp in accordance with the local recycling laws.
Do not put it to your trash.
Recycling Lamp’s laws of the USA, go to www.lamprecycle.org.
Recycling Product’slaws of USA, go to www.eiae.org.
Recycling Product’slaws of Canada, go to www.epsc.ca.
For more information about recycling laws, please contact local
government agency or dealer
CAUTION HOT
Before replacing the Lamp part, pay attention to the following items:
1.The Lamp is optional part. Contact the dealer for replacement lamp.
2.The lamp becomes very hot when in use. Turn the power off and
disconnect the power cord.
3.Wait 1 Hour before replacing the lamp.
4.Do not use old lamp part.

55
Maintenance of Projector
Other Care
Cleaning The Lens
If the lens is dirty and dusty, display quality maybe decreased. Before
cleaning the lens, please make sure that the projector is cool down
adequately.
After the projector has cooled down adequately, lightly wipe the lens with
the available lens-cleaning cloth.
Do not touch the lens directly with your hand.
Additional
-In order to ensure the safe use of your projector, please contact your
dealer to inspect about once a year.
-Before maintenance, make sure the power cable is unplugged, allow the
SURMHFWRUWRFRROVXI¿FLHQWO\7KHKLJKWHPSHUDWXUHVWDWHRIWKHSURMHFWRU
could cause a burn in and/or malfunction to the projector.
-Never try to maintain the inside of the projector by yourself

Troubleshooting
56
Troubleshooting
Indicator
The power and lamp indicators show the status of the projector. Before requesting repair,
check the projector status using the chart below. If the problem cannot be resolved,
contact your dealer.
In normal status~~~
POWER LAMP CONDITIONS DESCRIPTION
Blinking In
Green Off Stand by mode Projector is ready to be turned on.
Lighting In
Green Off On mode Projector is on and operating.
Lighting In
Green
Blinking In Red
( Slow ) Cool down mode Projector is in cool down mode and will not respond to user input.
In abnormal status~~~
POWER LAMP CONDITIONS DESCRIPTION
Blinking In
Green
Blinking In Red
( Fast ) Fan fault mode
The projector has detected a
problem of a slow internal fan
speed. The lamp will shut off
automatically. Contact your
dealer.
Blinking In
Green Lighting In Red Lamp cover open
The lamp cover is open or there
is a problem with the lamp. If the
lamp door is closed and replacing
the lamp does not correct the
issue, contact your dealer.
Blinking
In Green (Fast)
Blinking In Red
( Fast ) High temperature
The projector has overheated and
shut itself down.
Correct the over temperature
condition immediately.
1. Check that the ventilation slots
are free from obstructions.
2. Check the cleanliness of the air
¿OWHU
Blinking In
Green (Slow)
Blinking In Red
(Slow) Lamp fail
The lamp does not light. Come
back to “ stand by mode ”, and
press the power button.

57
Troubleshooting
Error For Machine Defects
The following problems may be confused with a machine defect. Check and follow the
table. If it couldn’t be improved, contact your dealer.
Symptom Cause / Remedy
Projector power
does not turn on.
The power cord is disconnected.
Plug the power cord into an AC outlet.
Intending to turn on the projector again during the cool down mode.
Wait until the cool down mode has completed.
7KHUHLVQRODPSDQGRUODPSFRYHULVQRW¿UPO\FORVHG
Please turn off the power and disconnect the power plug from the power
RXWOHW&KHFNLIWKHODPSLVLQVWDOOHGRUWKHODPSFRYHULV¿UPO\FORVHG
and turn on the power again.
Power cord has impaired.
When you touch the power cord, the indicator goes on then off, please
remove the power cord and connect it again. If the situation is repeated,
remove the power cord and contact your dealer.
No Video
The input is not connected correctly.
Select the appropriate input source.
No signal input.
Connect correctly.
The lens cover is attached to the lens.
Remove the lens cover.
Colors are pale
Color density and color matching are not adjusted correctly.
Adjust the RGB setting.
Color lose.
Caused by poor VGA cable connection.
Abnormal brightness
& contrast
Brightness and contrast are not adjusted correctly.
Adjust the brightness and contrast setting.
The lamp is near the end of its service life.
Replace with a new lamp.
Video is blurred
The projection lens is not focused.
Adjust the focus using the focus ring.
The lens is dirty or misty.
Clean the lens.

58
Troubleshooting
Error For Machine Defects
Symptom Cause / Remedy
No audio
The projector is not connected correctly.
Check audio cable if connect correctly.
The volume is set to minimum.
Adjust the volume.
Mute is turned on.
Press the MUTE button.
Remote control is
not working.
No battery.
Before using the remote control, please check the battery of remote
control.
Remote signal is obstructed.
Remove the obstacle between projector and remote control.

59
Troubleshooting
List of Supported Monitor Displays
Computer mode
Signal Refresh Rate (Hz) Resolution (dots)
VGA 60 640x480
VESA 60 /72 /75/85 640x480
SVGA 56 /60/72/75 /85 800x600
XGA 60 /70/75/85 1024x768
SXGA 70 /75 1152x864
SXGA 60 /75 1280x960
SXGA 60 1280x1024
WXGA 60 /75 1280x800
WXGA+ 60/75/85 1440x900
SXGA + 60/75 1400x1050
UXGA 60 1600x1200
WSXGA+ 60 1680x1050
WUXGA 60 1920x1200
MAC 67 1280x1024 / 640x480
MAC 75 832x624
MAC 75 1024x768
MAC 75 1152x870
Component (Y,Pb,Pr)
Signal Refresh Rate (Hz) Resolution (dots)
SDTV(480i) 30 720x480
SDTV(480p) 60 720x480
HDTV(720p) 60 1280x720
HDTV(1080i) 30 1920x1080
Composite / S-Video
Signal Refresh Rate (Hz) Resolution (dots)
TV(NTSC) 60 720x480
TV(PAL,SECAM) 50 720x576

Appendix
Appendix
Menu Tree (PC Mode)
AUDIO
Brightness
Contrast
Sharpness
DisplayMode
Nature
Cinema
Daylight
Green Board
White Board
Black Board
Volume
Mute
SETTING
H Position
VPosition
Phase
Frequency
Auto Keystone
Keystone V
Auto Sync
Auto Search
ADVANCED
Zoom / Pan
Blank Power Off
Blank
Reset
Resize
Language
Select Source
Logo Setting
RGB 1
DVI-I
Y,Pb,Pr
Video
S-Video
RGB 2
Logo Mode
Background
Logo Size
Logo Capture
SECURITY
PINLock Protection
On 1
On 2
Off
ModifyPIN
Filter Timer
Reset Filter Timer
Filter Counter 800 hours
1000 hours
500 hours
4:3
16:9
PRESENTATION
Auto Ceiling
Front
Ceiling
Rear
Ceiling And Rear
Lamp Mode
Lamp
Reset Lamp Timer
(optional)
Freeze
English
ᖅᡝϛМ
䳾ᥟύЎ
Вҁ俟
䚐ạ㛨
Nederlands
Français
Deutsch
Italiano
Polski
Português
Русский
Español
Українська

Svenska
1:1(Native)
*DVI doesn’t support H / V POSITION, PHASE, FREQUENCY, AUTO SYNC function.

Appendix
AUDIO Volume
Mute
SETTING
Auto Keystone
Auto Sync
Auto Search
SECURITY
PINLock Protection
On 1
On 2
Off
ModifyPIN
Filter Timer
Reset Filter Timer
Filter Counter
800 hours
1000 hours
500 hours
ADVANCED
Zoom / Pan
Freeze
Blank Power Off
Blank
Reset
Resize
Language
Select Source
Logo Setting
RGB 1
DVI-I
Y,Pb,Pr
Video
S-Video
RGB 2
Logo Mode
Background
Logo Size
Logo Capture
Close Caption Off
C.C2
C.C1
C.C3
C.C4
T1
T2
T3
T4
4:3
16:9
PRESENTATION
Auto Ceiling
Front
Ceiling
Rear
Ceiling And Rear
Lamp Mode
Lamp
Reset Lamp Timer
(optional)
Brightness
Contrast
Sharpness
DisplayMode
Nature
Cinema
Daylight
Green Board
White Board
Black Board
English
ᖅᡝϛМ
䳾ᥟύЎ
Вҁ俟
䚐ạ㛨
Nederlands
Français
Deutsch
Italiano
Polski
Português
Русский
Español
Українська

Svenska
Menu Tree (Video Mode)

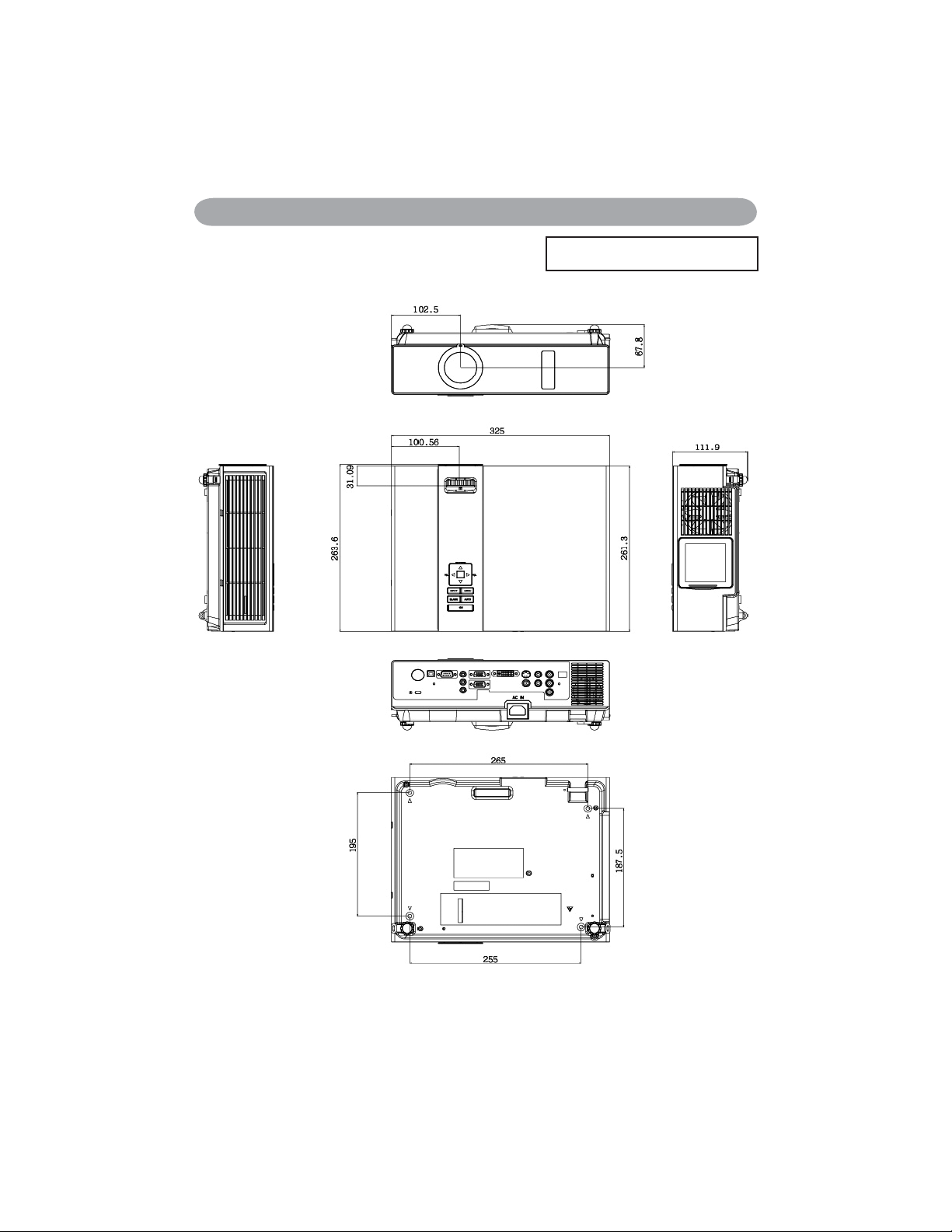

Appendix
Appearance (Please click here if your projector is
ZLWKKLJKHI¿FLHQF\¿OWHU

About the Owner’s Manual
Features
Please read the owner’s manual thoroughly to ensure correct usage of the projector and its
features.
After reading, store the owner’s manual in a safe place for future reference.
1. Dress up Design
2. Designed for tough environment
3. Side change lamp
 6LGHFKDQJH¿OWHU
5. Quick off
6. Advanced Anti-theft features
7. Five auto features (Auto Search, Auto Sync, Auto Ceiling, Auto Keystone and Auto
Filter Alert)
8. Seven display modes (Natural, Cinema, User, Green board, White Board, Black Board
and Daylight)
9. Built-in 8W speaker
10. Logo capture
11. Image freeze function
12. Digital zoom adjustment
The content of this manual is subject to change without previous notice.
All rights reserved.
Issue of edition 0809.10_01
Projector
Back

64
Safety InstructionsContents of Your Box
- VOL +
INPUT
ESC
MENU
Auto
K
Still Blank
Check-list of your accessories
Please make sure that following items are included in the box, along with the main.
If any items missing, contact your dealer.
1.Projector
6.Remote control
2. Computer cable
3.Power cord 4.Quick Start Guide
5.Owner’s Manual CD
Back

65

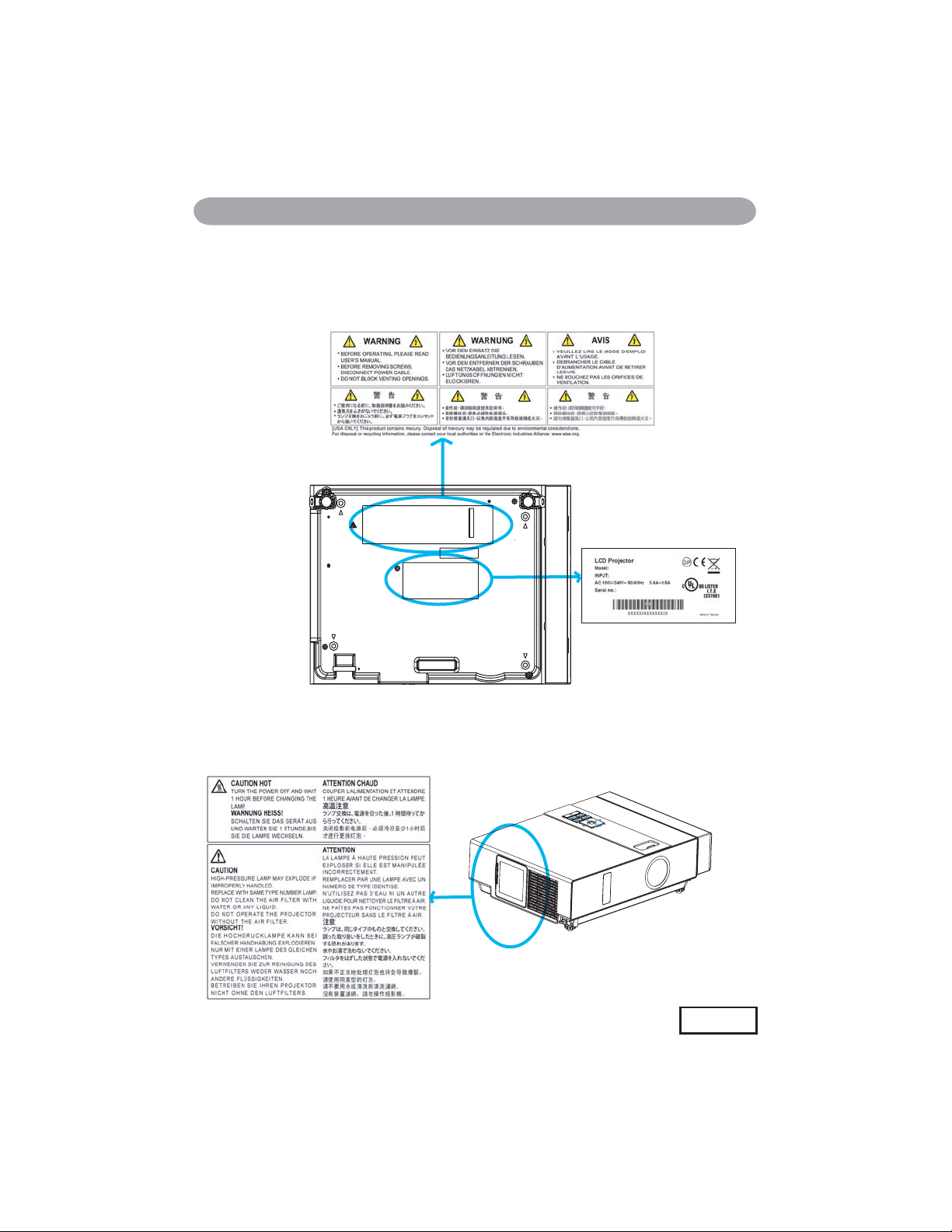

Safety Labels
Back
Safety labels are used on or within the projector to alert you to items or areas
requiring your attention.
WARNING LABEL
EMI LABEL
LAMP DOOR WARNING LABEL

66
Safety Labels
1
2
6
7
3
4
5
6
7

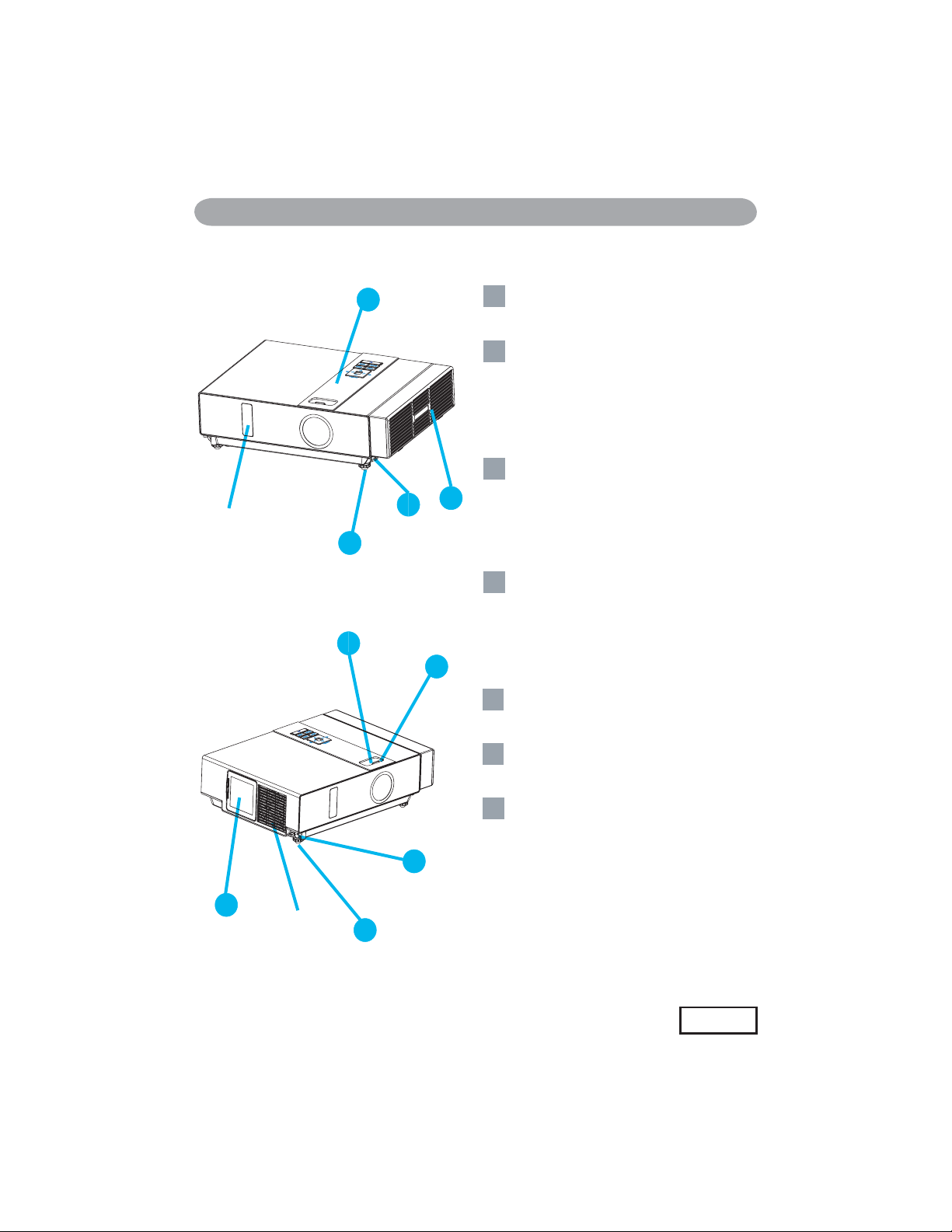

Projector
1Control panel
Operating system.
12 Filter cover
Prevents dust and other foreign particles
from being drawn into projector.
5HPRYHWKH¿OWHUFRYHUWRFOHDQWKHDLU
¿OWHU
3Focus ring
Use the focus ring to focus the projector
image.
Rotate the focus ring until the image is
clear.
14 Zoom ring
Use the zoom ring to adjust the size of the
projected image.
Rotate the zoom ring until the image is the
desired size.
15 Lamp door
The lamp unit is inside.
16 Foot adjust button
Lock / unlock the adjustable foot.
17 Front adjustable foot
Extend and retract to adjust the projection
angle.
Front IR receiver
Outlet ventilation
Back
