Boyo VTM7003QMA User manual

7" COLOR LCD WATERPROOF QUAD MONITOR WITH TOUCH-SCREEN
Operating Instructions
Please read this manual thoroughly before operating the unit,
and keep it for future reference.
V1.0
VTM7003QMA

Contents
3. Monitor Installation
5. Monitor Operations
7. Menu and Touch-Screen Operations
8. Specifications
4. Connections
4
5
6
15
9
6. Remote Operations 7
1. Precautions 1
9. Troubleshooting 16
2. Accessories 3

1. Precautions
Storage and Keeping
1. Do not expose the monitor to excessive heat or cold. The storage temperature of this device
-22℉~176℉, and the operating temperature is -4℉~158℉. The humidity is Rh90%.
2. Never use this device where it is damp, such as close to wash basin, kitchen, swimming pool
and the like (except for monitor designed to be weatherproof).
3. Never use this device in a dusty or smoky condition.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or subject to
severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this device.
7. Do not place cables where they may be pinched or stepped on.
8. Leave at least a 2" space between the monitor and walls, cabinets or other objects to allow
adequate air circulation around the unit.
Operating Precautions
1. The device may be powered by a 12 or 24 volt automotive battery or vehicle electrical system
2. Make sure all cables are connected properly. Observe polarity. Improper cable connections may
damage the monitor. Remove the power cable connections when you do not intend to use the unit.
1. High voltage inside. The enclosure shall not be opened unless by professionals.
2. Do not watch the video while driving unless you are backing up the vehicle.
Warning!
!
!
Special Notice
-1-

1. Remove all the cable connections from the monitor before cleaning the unit.
2. Use a mild household detergent and clean the unit with a slightly damp,soft cloth.
Never use strong solvents such as thinner or benzine, as they might damage the finish
of the device.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude to
constitute risk of electric shock to persons.
You are cautioned that any changes or modifications not expressly approved in this manual could
void your warrantee and neccessitate expensive repairs.
CAUTION
This symbol is intended to alert the user not to waste electrical and electronic
equipment.
Declaration of conformity
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Maintenance
E
13
-2-

2. Accessories
-3-
Accessories may be different for different applications.
!
Special Notice
U- Support Bracket Center Mount Bracket
Adapter Cable IR Remote Control
Sun Shield
AV and Power Supply
Angle Adjustment Screws
4P Female - RCA Male Cables
Manual

3. Monitor installation
Center Mount Bracket
-4-

Camera 4 Camera 2
Camera 3
White: Trigger 1 Blue: Trigger 2
Green: Trigger 3 Brown: Trigger 4
Black: Ground
4. Connections
Camera 1
Yellow: Split trigger
Green: Rec. V. output Yellow:Live V. output
Red: Power
11
-5-
1
1
AUX audio input
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10 11
White: Audio output

5. Monitor Operations
Power off/on button
Remote signal receiver window
2 3 4 5 6
1
-6-
To increase / decrease the volume and switch between values
of each sub-menu
Menu selection and display mode (single, dual, triple, quad-view,
PIP image) selection
Menu control button
Jump key selector. Fast jump to the display mode specified
by SYSTEM SETUP - JUMP KEY
2
3
4
5
6
1

1.
2. Never disassemble the remote control or allow it to drop, or wet.
Please align the remote control with the remote signal receiver window to operate.
get
!
WARNING
6. Remote Operations
1 2
43
67
59
8
10
11 13
12
MODE SEL.
LANG REST AV
DN
MENU
UP
VOL VOL
MUTE
POWER
P/N
-7-

MUTE
To mute / unmute the volume
MODE
Menu selection and display mode (single, dual, triple, quad-view,
PIP image) selection
SEL.
Jump key selector. Fast jump to the display mode specified
by SYSTEM SETUP - JUMP KEY
POWER
Power off/on button
MENU
Menu control button
UP
Menu selection up
DN
Menu selection and display mode (single, dual, triple, quad-view,
PIP image) selection
P/N
PAL/NTSC TV system selector
Language selection
LANG
To restore factory settings
REST
AV
VOL+
To increase the volume and switch between values of each sub-menu
VOL-
To decrease the volume and switch between values of each sub-menu
1
2
3
4
5
6
7
8
9
10
11
12
13
-8-
Jump key selector. Fast jump to the display mode specified
by SYSTEM SETUP - JUMP KEY

-9-
7. Menu and Touch-Screen Operations
7.2 Trigger Setting
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
TRIGGER SETUP
TURN IMAGE SINGLE
REAR IMAGE BACK
TRIGGER DELAY 03 SEC
SPLIT SCREEN:
LEFT LEFT
RIGHT RIGHT
AUDIO LEFT
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
OSD SETUP
SCALE ON
INPUT SCAN OFF
BOUNDARY WHITE
LANGUAGE ENGLISH
V19:E00A20130723 (to be updated)
_
+
/
_
+
/
S
S
7.1 OSD Setting
SCALE:
To turn on / off electronic distance label. When set as ON,
electronic distance label will be displayed when rear view
camera (camera 3) is activated.
INPUT SCAN:
To turn on / off auto identification of camera inputs.
When INPUT SCAN is set as ON, monitor will display
connected cameras and skip inputs not in connection.
BOUNDARY:
To set color of the separation line between camera inputs.
White, gray, black and uncolored are available.
LANGUAGE:
To set OSD language. English, French, Dutch, Spanish,
German and Italian are available.
SOFTWARE VERSION:
To be updated at all times.
TURN IMAGE:
To set the camera input(s) to be displayed when left-side camera
(camera 1) / right-side camera (camera 2) is activated.When set
as SINGLE, correspond camera input will be displayed when either
camera is activated.When set as SPLIT,split image of left-side and
rear view camera will be displayed when left-side camera is
activated; split image of right-side and rear view camera will be
displayed when right-side camera is activated.
REAR IMAGE:
To set the camera input(s) to be displayed when rear view camera
is activated. When set as BACK, the rear view camera will be
displayed when activated. When set as TRIPLE,left-side,
right-side and rear view camera will be displayed.
TRIGGER DELAY:
To set the delaying time of video display when trigger
signal goes off. Delaying time frame: 0-30 seconds.
SPLIT SCREEN:
To set the camera input(s) to be displayed when “split”trigger wire
is activated. LEFT / RIGHT is to set the camera input
to be displayed on the left / right side of monitor screen.
AUDIO is to set the audio output from any of the four cameras.

-10-
S
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
SYSTEM SETUP
AUTOSCAN OFF
SCAN DELAY 01 SEC
JUMP KEY LEFT
POWER ON H-SPLIT
BEEP ON
SYSTEM NTSC
DIMMER 01
REC-V OUT QUAD
LEFT H-SPLIT
RIGHT TREFOIL
FRONT Y-SPLIT
BACK
QUAD
DUAL
TRIPLE
PIP1
PIP2
PIP3
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER
PRIORITY
CAMERA SETUP
_
+
/

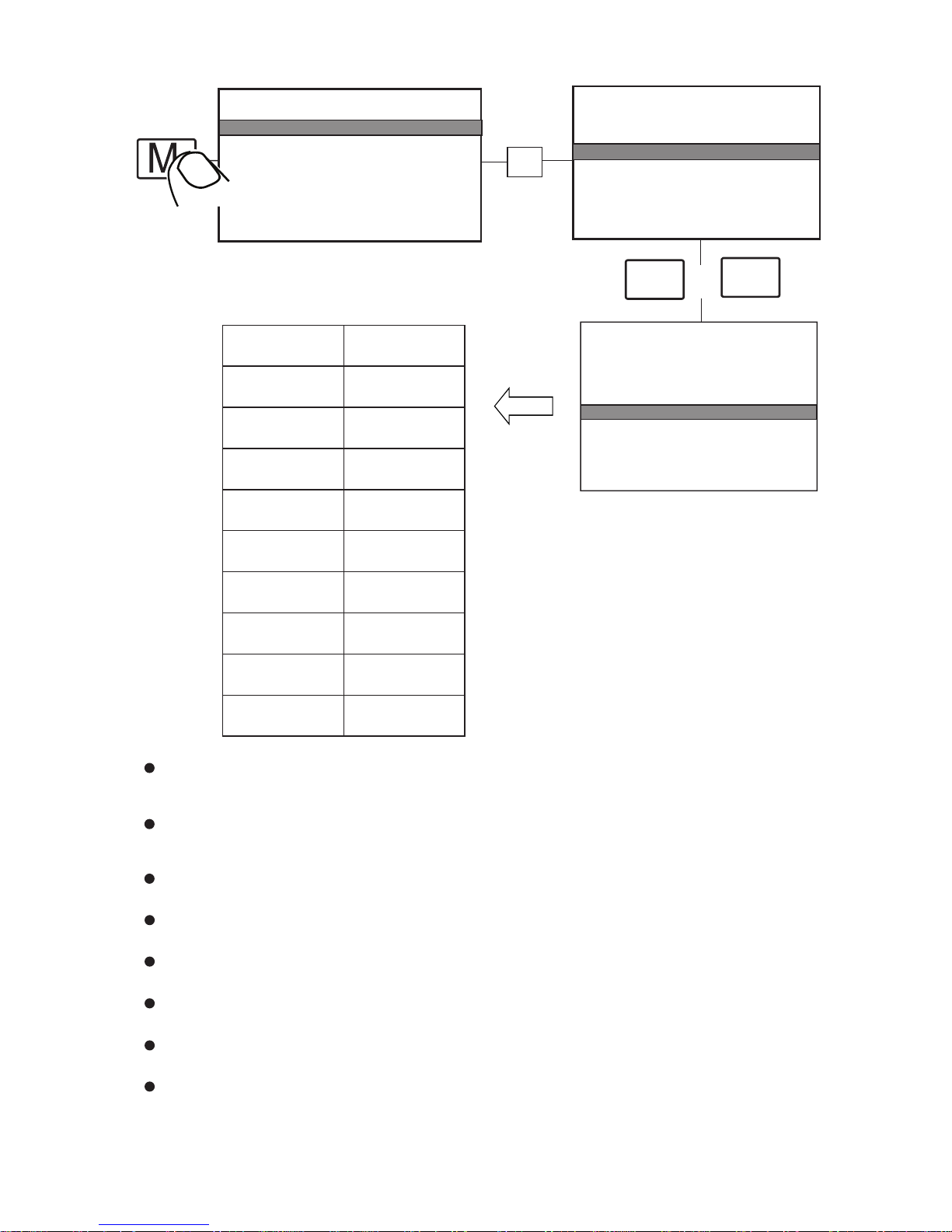

7.3 Jump Key Setting
REC-V OUT:
To set the camera input(s) to be recorded when connected to DVR via the green RCA wire.
Left-side, right-side, front view, rear view camera and quad view image can be selected.
AUTOSCAN:
To set the auto scanning function. When AUTOSCAN is set as ON,
monitor will automatically switch between connected camera inputs and quad image.
SCAN DELAY:
To set the switching time of AUTOSCAN. Switching time frame: 0-60 seconds.
JUMP KEY:
To set the shortcut display mode from the 13 modes to the left.It can be activated by jump key selector.
POWER ON:
To set the default display model from the 13 modes to the left or STANDBY mode.
BEEP:
To turn on / off the warning tone. Default setting is ON and there will be a beeping sound when menu is being operated.
SYSTEM:
To set TV system: PAL / NTSC.
DIMMER:
To set the camera input(s) to be displayed when “split”trigger wire is activated.
LEFT / RIGHT is to set the camera input to be displayed on the left / right side of monitor screen.
AUDIO is to set the audio output from any of the four cameras.

-11-
Touch-Screen Operations
Switch to full screen by touching any channel in multi-viewing mode
Buttons function of touch menu (not available in DVD/VGA/aux
channel or when auto scan is on)
(4) Brightness increase / decrease
LEFT
(1) ///
1234
LEFT RIGHT
BACK
(3) Touch
vol IIIIIIIIIIIIIII 15
(2) The previous
display mode /The display mode
preset in JUMP KEY
FRONT
TOUCH
LEFT
7.4
7.4.1
TOUCH MENU AREA
7.4.2
Touch
Touch
LEFT RIGHT
BACK
FRONT
TOUCH MENU AREA

-12-

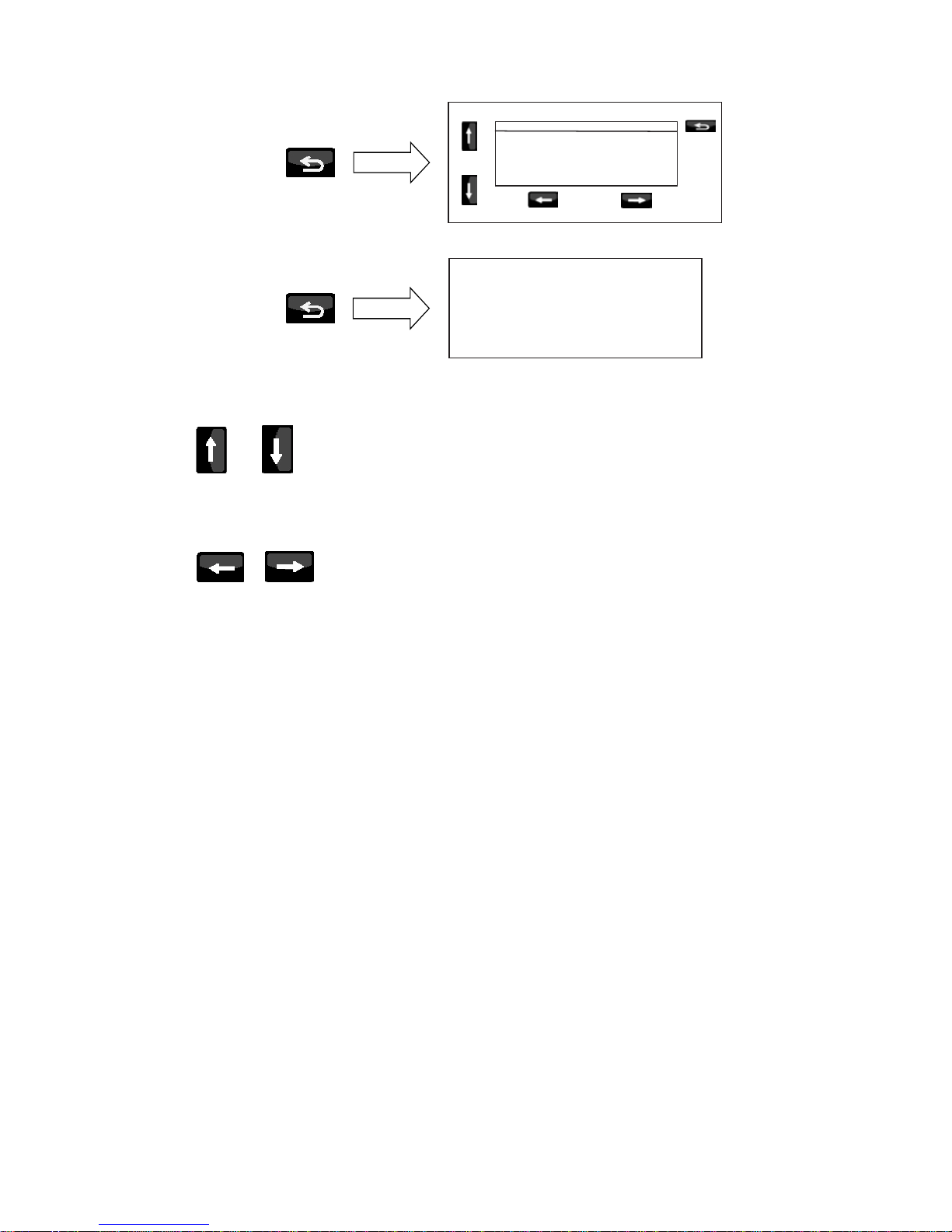

(6) Menu selection up/down
(7) Switches between values of each sub-menu
Touch
Touch The previous display
mode
MAIN MENU
OSD SETUP
SYSTEM SETUP
TRIGGER SETUP
TRIGGER PRIORITY
RESET ALL
CAMERA SETUP
(5)
again

-13-
LEFT RIGHT
FRONT BACK
RIGHT
FRONT LEFT
BACK
LEFT
RIGHT
FRONT
LEFT
BACK
RIGHT
Switch to the next display mode
Switch to the previous display mode
BACK
RIGHT
LEFT RIGHT
LEFT RIGHT
FRONT
7.4.3 Exchange picture locations of any two cameras displayed
in multi-viewing mode
7.4.4 Exchange picture locations of two cameras in dual / triple-viewing mode
(1 displayed, 1 hidden)
7.4.5
7.4.6
LEFT
BACK
RIGHT
Touch till areas
darkended and
release fingers
Long press(>3S)
Keep touching;use another
finger to touch the desired
channel emerged on top
Release fingers
RIGHT
LEFT FRONT
Touch and slide
to the right
Touch and slide
to the left
RIGHT
LEFT
FRONT
BACK

-14-
Increase the volume
7.4.8
7.4.7
Decrease the volume
LEFT RIGHT
Touch the right corner
and slide downwards
RIGHT
LEFT
VOL IIIIIIIIIIIII------- 13
LEFT RIGHT
Touch the right corner
and slide upwards
RIGHT
LEFT
VOL IIIIIIIIIIIIIII----- 15

8. Specifications
Dimension 7"
NTSC/PAL
Resolution 800 (W) × 3 (RGB) × 480 (H)
Brightness 400cd/㎡
Contrast 500:1
Viewing Angle U: 50, D: 70, L: 70, R: 70
16:9
Aspect Ratio
Pixel Pitch (mm) 0.0642 (W) x 0.1790 (H)
Operating Temperature -4℉~158℉
Storage Temperature -22℉~176℉
Power Consumption Max. 25W
Power Output to Camera Max. 4 × 300mA, 12V
Power Supply 10V~32V
Video Input 4 video inputs for camera - peak value: 1Vp-p, impedance: 75 ohm
1 DVD input - peak value: 1Vp-p, impedance: 75 ohm
Audio Input 4 audio inputs for camera - peak value: 1Vp-p, impedance: 4.7K ohm
1 DVD audio input - peak value: 1Vp-p, impedance: 4.7K ohm
Video Ouput 1 REC Video output - peak value: 1Vp-p, impedance: 75 ohm
Audio Output 1 REC audio output - peak value: 1Vp-p, impedance: 4.7K ohm
TV System
-15-

Symptom Possible Causes/Solutions
No picture, no sound
No picture
No sound
Dark picture
No color
Upside down or lateral
inverted picture
No reverse gear activated
screen(i.e. Picture)
Improper connection of automobile Use of un-
authorized power supply. Power switch is on OFF position.
adapter.
Check whether AV cable is properly connected.
Check whether audio wire is properly connected or the sound
volume is turned off or set too low.
Check whether brightness and contrast are adjusted correctly;
Check whether the environmental temperature is too low.
Adjust the color settings.
The black wire of the monitor AV cable to the reversing light may
be loose. The red wire from the monitor may be loose.
9. Troubleshooting
The symptoms described below do not necessarily mean a failure within the
display. Please check the following items before you initiate request for repair.
Use the remote control horizontal /vertical selection switch to set
proper orientation
-16-

Serial No: Stock code:
WARNING
Monitor systems are strictly intended to be installed as a supplement
and not intended for use as substitutes for rear-view mirror devices,
or for any other standard motor vehicle equipment required to be
installed on vehicles by law. Our products are no substitute for proper
defensive driving techniques, observance of traffic laws and motor
vehicle safety regulations.
