BPC HP-115 User manual

USER MANUAL
HP-100 SERIES
UNINTERRUPTIBLE POWER SUPPLIES
( 1 Phase Input & Output )
HP-115
( NS151A )

CONTENTS
I. SAFETY................................................................................................................................... 1
II. INTRODUCTION ..................................................................................................................... 2
2.1 System Description .......................................................................................................... 2
2.2 Technical Specifications................................................................................................... 4
III. INSTALLATION....................................................................................................................... 6
3.1 Unpacking ........................................................................................................................ 6
3.2 Location Selection............................................................................................................ 6
3.3 Cable Connections .......................................................................................................... 6
3.4 Start-Up............................................................................................................................ 8
IV. OPERATING PROCEDURE ................................................................................................... 9
4.1 Turn On procedure........................................................................................................... 9
4.2 Turn Off procedure........................................................................................................... 9
4.3 When Utility Power Is Interrupted .................................................................................... 9
4.4 Automatic battery test system (Optional) ........................................................................ 9
V. FRONT PANEL ....................................................................................................................... 10
5.1 Introduction ..................................................................................................................... 10
5.2 Front Panel Menu Descriptions........................................................................................ 10
5.3 Main Menu ....................................................................................................................... 11
5.3.1 COMMAND Menu items ........................................................................................ 11
5.3.2 MEASURES Menu items....................................................................................... 12
5.3.3 ALARMS Menu items ............................................................................................ 12
5.3.4 USER OPTIONS Menu items................................................................................ 13
5.3.5 TIME Menu items .................................................................................................. 14
5.3.6 CALIBRATION Menu items ................................................................................... 14
5.3.7 ADJUST MODE submenu ..................................................................................... 14
5.3.8 INFORMATION Menu items.................................................................................. 14
5.4 Fault messages and quick troubleshooting...................................................................... 15
5.5 STATUS Messages ......................................................................................................... 16
VI. OPTIONAL EQUIPMENT........................................................................................................ 17
6.1 Software Options.............................................................................................................. 17
6.1.1 T-MON Software ................................................................................................... 17
6.2 SNMP Module.................................................................................................................. 18
6.3 UPS DB-9 (female) port definition.................................................................................... 18
6.4 Remote monitoring panel (RMP) ..................................................................................... 19
6.5 UPS Port Sharer (Multiple server shut down unit)...........................................................19
6.6 RSC24 RS232 / RS485 Interface ....................................................................................19
VII. CUSTOMER SERVICE ........................................................................................................... 22
7.1 Maintenance..................................................................................................................... 22
7.2 Troubleshooting ............................................................................................................... 22
7.3 Storage............................................................................................................................. 22
VIII. LIMITED WARRANTY.......................................................................................................... 23

1
I. SAFETY
This manual contains important instructions for HP-100 series UPS that should be followed during
installation and maintenance.
IMPORTANT NOTICES
1. Read instructions carefully before operating the UPS
2. All warnings in the manual should be adhered to.
3. All operating instructions should be followed.
4. The unit should be supplied by a grounded outlet. Do not operate the unit without ground source.
5. Power cord of the UPS should be routed carefully so that they are not to be walked on.
6. Please save this manual.
7. Please save or recycle the packaging materials.
WARNING!
•Do not insert any object into ventilation holes or other openings.
•To reduce the risk of fire or electric shock, install in temperature and humidity controlled indoor
area free of conductive contaminants.
•To reduce the risk of fire, replace fuses with the same type and rating when necessary.
CAUTION!
•Only qualified personnel should install or service UPS/batteries.
•Risk of electric shock, do not remove cover. No user serviceable parts inside, refer
servicing to qualified service personnel.
•The output may be energized when the unit is not connected to a mains supply.
•Risk of electric shock hazardous live parts inside this unit are energized from the battery
supply even when the input AC power is connected.
•To reduce the risk of electric shock, disconnect the UPS from the mains supply before installing a
computer interface signal cable. Reconnect the power cord only after signalling interconnections
have been made.
ABOUT THE BATTERY
•A battery can present a risk of electric shock or burn from high short circuit currents. The
following precaution should be observed when working on batteries :
* Remove watches, rings or other metal objects.
* Use tools with insulated handles.
•The batteries in this UPS are recyclable. Batteries must be disposed of according to local
environmental laws. The batteries contain lead and pose a hazard to the environment and human
health if not disposed of properly.
•Do not dispose of batteries in a fire. The batteries will explode. Do not open or mutilate the
batteries. They contain an electrolyte which is toxic and harmful to the skin and eyes. If
electrolyte comes into contact with the skin the affected area should be washed immediately.
•The internal energy source (the battery) cannot be de-energized by the user.

2
II. INTRODUCTION
Thank you for selecting this uninterruptible power supply (UPS). To choose the HP-100 series as your
equipment protector was a wise investment. It includes many features to protect your critical equipments.
The HP-100 series UPS system is connected between mains and critical loads, such as computer
systems, telecommunication systems, computerized instruments etc.
The advantages of using UPS:
•Increased power quality:
The UPS has its own internal voltage and frequency regulator circuits which ensure that its output is
maintained within close tolerances independent of voltage and frequency variations on the mains
power lines.
•Increased noise rejection:
By rectifying the input ac power to dc power, and then converting it back to ac, any electrical noise
that may present on the input mains supply line is effectively isolated from the UPS output, therefore
the critical load sees only clean power.
•Power blackout protection:
If the mains power fails, the UPS continues to power the critical load from its battery source, leaving
the load immune from power disturbances.
2.1 System Description
Features :
•On-line technology with pure sine wave output.
•PWM and IGBT technology.
•Microprocessor controlled main controller board.
•Static (STS) and maintenance by-pass.
•LCD (Liquid Crystal Display) display.
•Alarm history ( Memory for max. 64 alarms. )
•Automatic battery testing (optional).
•High quality maintenance-free lead-acid type batteries.
•High nonlinear load capacity, special for computers.
•Accessories :
oOptional UPS monitoring software ( T-MON, RUPS

, RUPSII

, UPSILON 2000

) SNMP
devices, compatible to any operating system.
oRemote Monitoring Panel (RMP) available : You can observe the UPS status and parameters
without using a computer at a remote location up to 200 meters away ( via RS485 interface).
oUPS Port Sharer available
HP-100 Series Uninterruptible Power Supplies (UPS) are advanced true On-Line Sine wave devices with
static transfer switch which provide reliable, regulated, transient-free AC power to sensitive equipment.
Since the UPS is a true On-Line system, conditioned power is provided continuously to the connected
equipments. Unlike standby power systems, the UPS is constantly regulating and filtering the output
power. When incoming power is interrupted, the UPS protects the computers instantaneously without any
transfer time.
The HP-100 Series has high non-linear load capability (i.e. Crest Ratio 3:1) and this is suitable for
powering special loads such as switching power supplies or highly capacitive inputs like computers.
The system's static transfer switch (STS) provides by-pass power as its standby source. During an
overload condition, the S.T.S will switch the customer's load over to the bypass line with no interruption.
The S.T.S will transfer back to the inverter automatically when the overload condition has been cleared. If
the inverter fails internally, the unit switches to bypass within a few milliseconds.

3
Rectifier : The first stage of the UPS. It supplies the DC bus voltage, which is necessary for operating the
inverter by rectifying line voltage.
Inverter : It is made by utilizing the latest technology of power transistor (IGBT) and pulse width
modulation (PWM). Inverter converts dc bus voltage into an alternative voltage like line voltage. And
provides this voltage and frequency being fixed.
Static Transfer Switch (static by-pass) : Static transfer switch is an electronically controlled switching
circuit checked by main controller board. In case of inverter overload or any other faults, STS transfers
the critical load to the mains without any interruption.
Mechanical Transfer Switch (Opsiyonel) : The mechanical transfer switch consists of a manually
operated switch. When the UPS is switched off due to failure or maintenance, it feeds critical loads from
mains.
Battery Group : It keeps dc voltage, which is necessary for the inverter, as a reservoir dc power supply
in case of mains failure.
Battery Charger : It produces a well regulated dc voltage suitable for charging the UPS batteries.

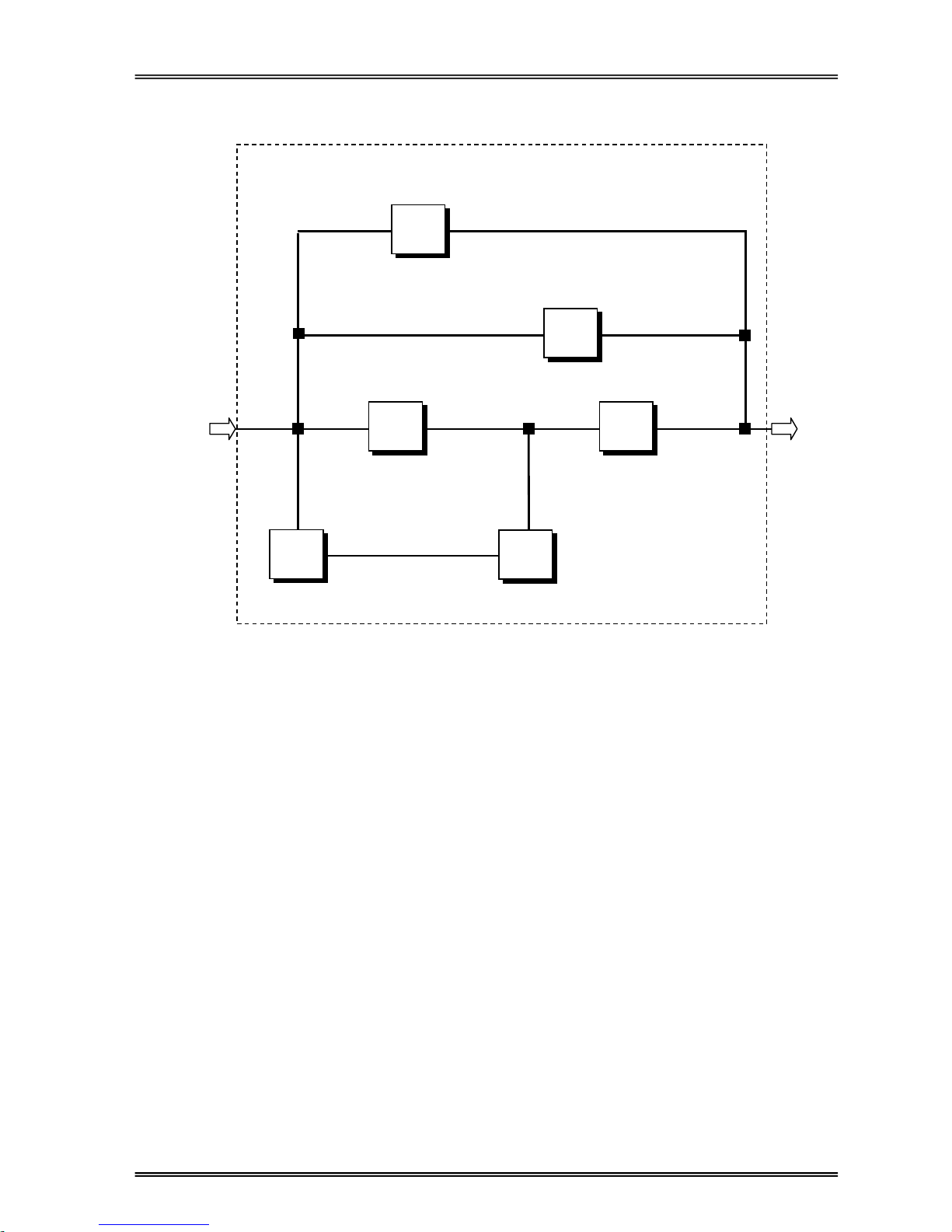

Figure 2.1 UPS Block Diagram
Inverter
Rectifier
Static By-Pass
Static Transfer Switch
Mechanical Transfer Switch
AC
Input AC
Output
Battery Group
Battery Charger

4
2.2 Technical Specifications
HP-115
Power 15 kVA
Power Factor 0,7
Automatic Battery Test Optional
Alarm Relays 
RS 232 
INPUT
Input Voltage 220 or 230 VAC 1Ph + N
Input Voltage Tolerance + 15%, -20%
By-pass Voltage 220 or 230 VAC ±10%
Input Current 85 A
Input Frequency 50 Hz. ±5%
RFI Level EN50091
OUTPUT
Nominal Output Power 10500W
Output Voltage 220 or 230 VAC
Output Voltage Tolerance ±1%
Output Frequency 50 Hz.
Line Synchronized ±1%
Output Frequency Tolerance Free Running ±0.2%
Efficiency (100% Load) 85-87 %
Crest Factor 3:1
Overload capacity 100% - 125% Load 2.5 min. 125% - 150% Load 10 sec.
>150% instant by-pass.
Total Harmonic Distortion (THD) < 3%
BATTERY
Batteries
20x12V
Floating Charge Voltage
270 Vdc
End of Discharge Voltage
200 Vdc
Autonomy Time (100%Load )
10 min.
Charging Current
2.5 A
ENVIRONMENT
Operating Temperature 0 - 40
o
C
Acoustic Noise <55dBA
Dimension (HxWxD mm)
725 x 300 x 790
Relative Humidity (max.) 90%

5
Front View
D
H
W
Figure 2.2
Rear View
RS232 and Alarm
Contact Outputs
PK1
On / Off
Switch
F1 - AC Input Fuse
AC Output
Connections
F2 – Batt. (+) Fuse
F3 – Batt. (-) Fuse

6
III. INSTALLATION
3.1 Unpacking
The UPS is packed and enclosed in a structural cardboard carton to protect it from damage.
1. Inspect for damage that may have occurred during the shipment If any damage is noted, call the
shipper immediately and retain the shipping carton and the UPS.
2. Carefully open the carton and take the UPS out.
3. Retain the carton and packing material for future use.
Unit package contents :
HP-115
User Manual 
Guarantee Certificate 
Battery Cabinet 
Additional battery cabinet Optional
220V Input cable -
UPS Monitoring Software T-MON
3.2 Location Selection
The UPS is designed to be installed in a protected environment. The following conditions should be
prohibited.
1. Blocking the airflow intake and outlet. (It is recommended to retain 10 cm (4”) minimum. Between the
rear side and the wall.)
2. Environment temperature and humidity out of specification.
3. Location subject to excessive moisture, dust and corrosion.
4. Location exposed to heat source or direct sunlight.
3.3 Cable Connections
CAUTION!
Only qualified personnel should install or service UPS / batteries.
The ac input to the UPS should be supplied by a separate line from the ac distribution board.
The input/output cables can be sized to suit the modules rating according to the table below.
15 kVA 3 x 16 mm
2
