B+B SmartWorx CR10 v2 User manual

CDMA Industrial Router
CR10 v2
USER’S MANUAL
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

USED SYMBOLS
Used symbols
Danger – Information regarding user safety or potential damage to the router.
Attention – Problems that can arise in specific situations.
Information, notice – Useful tips or information of special interest.
GPL licence
Source codes under GPL licence are available free of charge by sending an email to:
[email protected].
Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Manual Rev. 1 released in CZ, February 2, 2016
i
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

CONTENTS
Contents
1 Safety Instruction 2
2 Product Disposal Instructions 3
3 Router Description 4
4 Contents of Package 5
5 Router Design 6
5.1 Router versions .................................... 6
5.2 Delivery identification ................................ 7
5.3 Version of module firmware ............................. 8
5.4 Order codes ...................................... 9
5.4.1 Basic versions ................................ 9
5.4.2 Full version .................................. 9
5.5 Basic dimensions of the router box ......................... 10
5.5.1 Plastic box .................................. 10
5.5.2 Metal box ................................... 10
5.6 Mounting recommendations ............................. 11
5.7 Removing from the DIN rail ............................. 13
5.8 Description of the front panel ............................ 14
5.8.1 Status indication ............................... 15
5.8.2 Power connector PWR ............................ 16
5.8.3 Antenna connector ANT, DIV (alternatively WIFI or WMBUS) ...... 17
5.8.4 SIM card reader ............................... 18
5.8.5 Ethernet Port ETH .............................. 19
5.8.6 PORT1 .................................... 20
5.8.7 PORT2 .................................... 20
5.8.8 USB Port ................................... 21
5.8.9 I/O Port .................................... 21
5.8.10 Reset ..................................... 23
6 First Use 24
6.1 Connecting the router before first use ....................... 24
6.2 Start .......................................... 25
6.3 Configuration ..................................... 25
6.3.1 Configuration over web browser ....................... 25
6.3.2 Configuration over Telnet .......................... 26
ii
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

CONTENTS
7 Technical Parameters 27
7.1 Basic parameters ................................... 27
7.2 Standards and regulations .............................. 27
7.3 Technical parameters of module .......................... 28
7.4 Technical parameters of processor ......................... 28
7.5 Technical parameters of I/O port .......................... 28
7.6 Technical parameters of expansion port ...................... 28
8 Recommended Literature 29
9 Troubleshooting 30
9.1 FAQ .......................................... 30
10 Customers Support 32
iii
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

LIST OF FIGURES
List of Figures
1 Contents of package ................................. 5
2 Front panel CR10 v2B ................................ 6
3 Front panel CR10 v2F ................................ 6
4 Front panel CR10 v2F with WiFi .......................... 6
5 Front panel CR10 v2B SL .............................. 6
6 Front panel CR10 v2F SL .............................. 6
7 Front panel CR10 v2F SL with WiFi ......................... 6
8 Label CR10 v2B ................................... 7
9 Label CR10 v2B SL ................................. 7
10 Label CR10 v2F ................................... 7
11 Label CR10 v2F SL ................................. 7
12 Basic dimensions of plastic box ........................... 10
13 Basic dimensions of metal box ........................... 10
14 Space around antennas (plastic) .......................... 11
15 Space around antennas (metal) ........................... 11
16 Cable routing (plastic) ................................ 12
17 Cable routing (metal) ................................. 12
18 Space in front of connectors (plastic) ........................ 12
19 Space in front of connectors (metal) ........................ 12
20 Default position of DIN holder ............................ 13
21 Removing from the DIN rail ............................. 13
22 Front panel CR10 v2F ................................ 14
23 Power connector ................................... 16
24 Connection of power supply ............................. 16
25 Connecting of the antenna .............................. 17
26 Ejected SIM holder .................................. 18
27 Ethernet connector .................................. 19
28 Connection of ethernet cable ............................ 19
29 PORT1 cable connection .............................. 20
30 PORT2 cable connection .............................. 21
31 USB connector .................................... 21
32 I/O connector ..................................... 22
33 Connection of I/O cable ............................... 22
34 Connection of input and output to the router .................... 22
35 Router reset ...................................... 23
36 Router connection .................................. 24
37 Entering the IP address of the router ........................ 25
38 Entering login information .............................. 25
39 Router web interface ................................. 26
iv
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

LIST OF TABLES
List of Tables
1 Router versions .................................... 6
2 Delivery identification ................................ 7
3 Version of firmware module ............................. 8
4 Ordering codes for Basic versions ......................... 9
5 Ordering codes of full version ............................ 9
6 Front panel description ................................ 14
7 Status indication ................................... 15
8 Connection of power connector ........................... 16
9 Connection of Ethernet connector .......................... 19
10 Connection of USB connector ............................ 21
11 Connection of I/O port ................................ 21
12 Description of reset and restart router ....................... 23
13 Basic parameters ................................... 27
14 Standards and regulations .............................. 27
15 Technical parameters of module .......................... 28
16 Technical parameters of processor ......................... 28
17 Technical parameters of I/O port .......................... 28
1
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

1. SAFETY INSTRUCTION

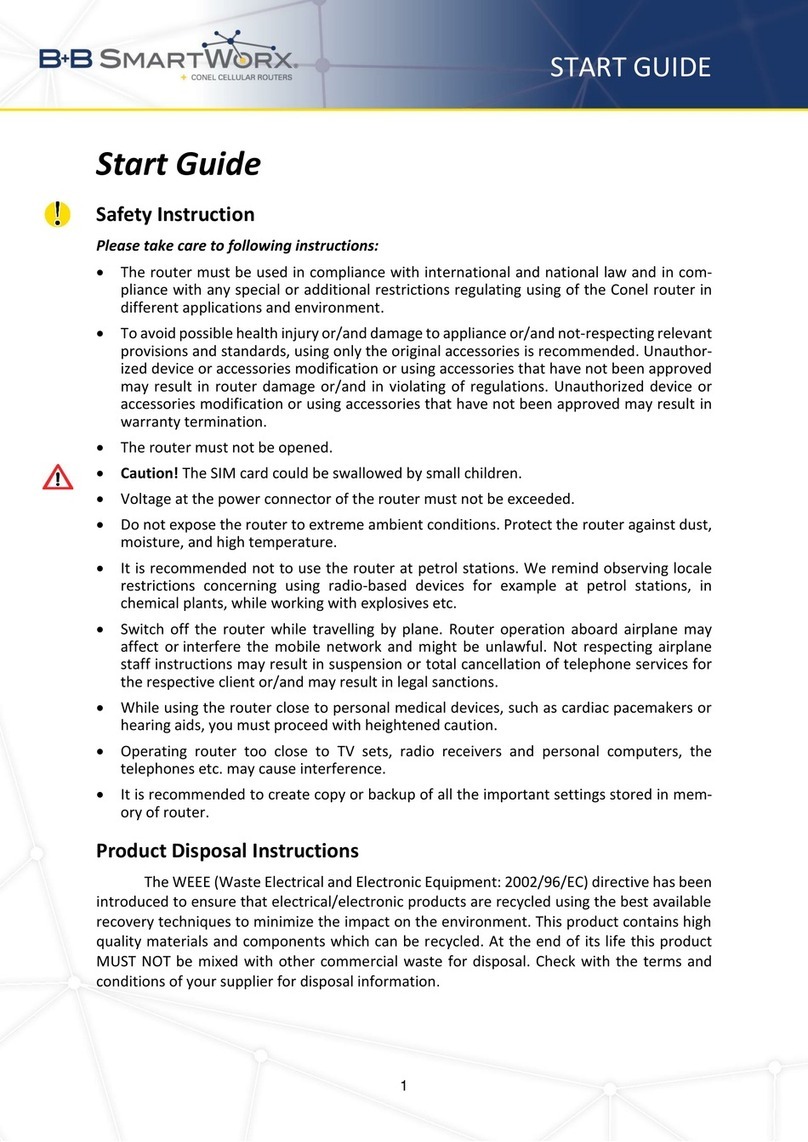

1. Safety Instruction
Please, observe the following instructions:
•The router must be used in compliance with all applicable international and national laws
and in compliance with any special restrictions regulating the utilization of the router in
prescribed applications and environments.
•To prevent possible injury and damage to appliances and to ensure compliance with
all relevant provisions, use only the original accessories. Unauthorized modifications or
the use of unapproved accessories may result in damage to the router and a breach
of applicable regulations. Unauthorized modifications or use of unapproved accessories
may void the warranty.
•The router can not be opened.
•Turn off the router and disconnect it from power supply before handling of the SIM card.
•Caution! The SIM card could be swallowed by small children.
•Input voltage must not exceed 36 V DC max.
•Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture and high temperature.
•The router should not be used in locations where flammable and explosive materials
are present, including gas stations, chemical plants, or locations in which explosives
are used. We remind the users of the duty to observe the restrictions concerning the
utilization of radio devices at such places.
•Switch off the router when traveling by plane. Utilization of the router in a plane may
endanger the operation of the plane or interfere with the mobile telephone network, and
may be unlawful. Failure to observe these instructions may result in the suspension
or cancellation of telephone services for the respective client, or, it may result in legal
sanctions; it may also result in both eventualities.
•When using the router in the close proximity of personal medical devices, such as cardiac
pacemakers or hearing aids, you must proceed with heightened caution.
•The router may cause interference when in the close proximity of TV sets, radio receivers
or personal computers.
•It is recommended that you should create an appropriate copy or backup of all the im-
portant settings that are stored in the memory of the device.
2
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

2. PRODUCT DISPOSAL INSTRUCTIONS
2. Product Disposal Instructions
The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been
introduced to ensure that electrical/electronic products are recycled using the best available
recovery techniques to minimize the impact on the environment. This product contains high
quality materials and components which can be recycled. At the end of it’s life this product
MUST NOT be mixed with other commercial waste for disposal. Check the terms and condi-
tions of your supplier for disposal information.
3
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

3. ROUTER DESCRIPTION
3. Router Description
CDMA router CR10 v2 is used to wirelessly connect various equipments and devices via
Ethernet interface 10/100 to the Internet or intranet. Thanks to high data transfer speed of up
to 14.7 Mbit/s (download) and upload speed up to 5.4 Mbit/s it is an ideal wireless solution
for traffic and security camera systems, individual computers, LAN networks, automatic teller
machines (ATM) and other self-service terminals, etc.
As a standard, this exceptionally CR10 v2 wireless router is equipped with one Ethernet
10/100, one USB Host port, one binary Input/output (I/O) port and one SIM card. To save
and backup communication data a version with two SIM cards is available. The wide range of
interface options of the CDMA router further expands Port1 and Port2 expansion ports, which
are selected by the customer. For Port1 are available: Ethernet port 10/100, serial interface
ports RS232, RS485, RS422, MBUS or inputs/outputs (I/O – CNT). Port2 may be equipped
with serial interfaces RS232, RS485, RS422, MBUS, wireless interfaces WIFI or WMBUS,
SDH expansion port or inputs/outputs (I/O – CNT). Both of ports can be fitted with internal
switch SWITCH. This 3G wireless router is supplied either in a plastic or metal casing, based
on the requirements of the customer.
Configuration is done via web interface protected by password. The router supports cre-
ation of VPN tunnels using technologies IPsec, OpenVPN and L2TP to ensure safe communi-
cation. Web interface provides detail statistics about the 3G router activities, signal strength,
detailed log, etc. Cellular router supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP,
control by SMS and many other functions.
Other diagnostic functions ensuring continuous communication include automatic inspec-
tion of PPP connection offering an automatic restart feature – in case of connection losses, or
hardware watchdog which monitors the status of the router. With the help of a special window
(start up script window) you may insert Linux scripts for various actions. For some applica-
tions the key option to create several different configurations for one 3G router, the so-called
profiles (maximum of 4), and the option to switch between them (for example via SMS, binary
input status, etc.) is essential. Cellular routers may automatically upgrade configuration and
firmware from server. This allows mass reconfiguration of many routers in one time.
The router also supports additional software like R-SeeNet for permanent traffic monitoring
of routers or communication VPN server Digicluster.
Examples of possible applications
•mobile office
•fleet management
•security system
•telematic
•telemetric
•remote monitoring
•vending and dispatcher machines
4
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

4. CONTENTS OF PACKAGE
4. Contents of Package
Basic delivered set of router includes:
•router,
•power supply,
•crossover UTP cable,
•up to three external antennas,
•clip for the DIN rail,
•paper start guide.
Figure 1: Contents of package
Temperature range for power supply is reduced to 0 ◦C to +40 ◦C!
As optional accessories can also be supplied the following expansion ports (one for Basic
version or two for Full version):
•RS232, RS485/422, MBUS, ETHERNET, CNT, SWITCH, WIFI, WMBUS or SDH.
•Separation columns for mounting expansion boards are included.
5
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5. Router Design
5.1 Router versions
CR10 v2 router is supplied in the following versions (see table below). All versions are
available in plastic or metal box according to customer requirements.
Router versions Router Box
SIM1 SIM2
I/O
USB
PORT1 PORT2
ETH
CR10 v2B Plastic 1 x 1 x 1 x 1 x 1 x
CR10 v2B SL Metal 1 x 1 x 1 x 1 x 1 x
CR10 v2F Plastic 1 x 1 x 1 x 1 x 1 x 1 x 1 x
CR10 v2F SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Table 1: Router versions
Figure 2: Front panel CR10 v2B
Figure 3: Front panel CR10 v2F
Figure 4: Front panel CR10 v2F with WiFi
Figure 5: Front panel CR10 v2B SL
Figure 6: Front panel CR10 v2F SL
Figure 7: Front panel CR10 v2F SL with WiFi
6
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.2 Delivery identification
Trade name Type name Other
CR10 v2B CR-10-v2 Basic version
CR10 v2B SL CR-10-v2 Basic version in the metal box
CR10 v2F CR-10-v2 Full version
CR10 v2F SL CR-10-v2 Full version in the metal box
Table 2: Delivery identification
Figure 8: Label CR10 v2B
Figure 9: Label CR10 v2B SL
Figure 10: Label CR10 v2F
Figure 11: Label CR10 v2F SL
7
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.3 Version of module firmware
Each operator can have another CDMA network, so it is necessary to generate a special
firmware for each operator. Version of the firmware is indicated by two-digit code in the name
of the product.
Operator Code
Poland Orange 01
Poland Plus 02
Czech Republic O2 03
Germany Inet 04
Sweden Net.1 05
Norway Net.1 06
Russia Skylink 07
Ukraine MTS 09
Romania Romtelecom 10
Togo 11
Austria Kapsch 12
Hungary Mavir 14
Netherlands Alliander 15
Austria Kapsch EAG 16
Netherlands Alliander 15
Austria Kapsch (EAG) 16
Austria Kapsch (EVN) 17
Austria Argonet 18
Table 3: Version of firmware module
Example of trade name: CR10 v2B-01
Example of type name: CR-10-v2B ver. 01
8
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.4 Order codes
5.4.1 Basic versions
Expansion port Ordering code
Version without expansion port CR10 v2B-01 set
Version with Ethernet expansion port CR10 v2B-01 ETH set
Version with RS232 expansion port CR10 v2B-01 RS232 set
Version with RS485 expansion port CR10 v2B-01 RS458 set
Version with MBUS expansion port CR10 v2B-01 MBUS set
Version with CNT expansion port CR10 v2B-01 CNT set
Table 4: Ordering codes for Basic versions
5.4.2 Full version
Expansion port Participation Ordering code
Version without expansion port CR10 v2F-01 set
Version with Ethernet exp. port PORT1 CR10 v2F-01 ETH set
Version with RS232 exp. port PORT1 a PORT2 CR10 v2F-01 RS232 set
Version with RS485 exp.port PORT1 a PORT2 CR10 v2F-01 RS458 set
Version with MBUS exp. port PORT1 a PORT2 CR10 v2F-01 MBUS set
Version with CNT exp. port PORT1 CR10 v2F-01 CNT set
Version with SWITCH exp. port PORT1 + PORT2 CR10 v2F-01 SWITCH set
Version with WIFI exp. port PORT2 CR10 v2F-01 WIFI set
Version with WMBUS exp. port PORT2 CR10 v2F-01 WMBUS set
Version with SDH exp. port PORT2 CR10 v2F-01 SDH set
Table 5: Ordering codes of full version
Code for the second expansion port must be written after the first port. See example below:
•Full version with Ethernet and RS232 port: CR10 v2F-01 ETH RS232 set.
•Full version with Ethernet and RS232 port in metal cover:
CR10 v2F-01 ETH RS232 SL set.
9
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.5 Basic dimensions of the router box
5.5.1 Plastic box
Figure 12: Basic dimensions of plastic box
5.5.2 Metal box
Figure 13: Basic dimensions of metal box
10
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.6 Mounting recommendations
•possibility to be put on a work surface,
•DIN rail EN 60715 with included clip CPD2 (or CKD2 for metal version).
For the most of applications with a built-in router in a switch board it is possible to recognize
two kinds of environments:
•no public and industry environment of low voltage with high interference,
•public environment of low voltage without high interference.
For both of these environments it is possible to mount router to a switch board, the following
there is no need to have examination immunity or issues in connection with EMC according to
EN 60439-1 ed.2:00 + A1:04.
Compliance of EN 60439-1 ed.2:00 + A1:04 specification it is necessary to observe next
assembly of the router to the switch – board:
•For whip antennas we recommend to observe a distance of 6 cm from cables and metal
surfaces on every side due to the elimination of interference. While using an external
antenna except for the switch-board it is necessary to fit a lightening conductor.
•Before mounting a router on sheet-steel we recommend using a "cable" antenna.
Figure 14: Space around antennas (plastic) Figure 15: Space around antennas (metal)
11
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
•For every cables we recommend to bind the bunch, we recommend for this use:
–Length of the bunch (combination of power supply and data cables) can be maxi-
mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable
leads towards the switch – board. We recommend installing over – voltage protec-
tors (surge suppressors).
–With data cables they mustn’t carry cables with reticular tension ∼230 V/50 Hz.
Figure 16: Cable routing (plastic) Figure 17: Cable routing (metal)
•Sufficient space must be left in front of individual connectors for handling of cables,
Figure 18: Space in front of connectors (plastic) Figure 19: Space in front of connectors (metal)
•For correct function of the router we recommend to use in the switch-board earth-bonding
distribution frame for grounding of power supply of router, data cables and antenna.
12
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.7 Removing from the DIN rail
DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of
CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail,
is shown in the following figure:
Figure 20: Default position of DIN holder
For removing from the DIN rail it is necessary to lightly push upward the router so that the
top part of the CPD2 holder (or CKD2 for metal version) hitched to the DIN rail get out of this
rail and then fold out the top part of the router away from the DIN rail.
Figure 21: Removing from the DIN rail
13
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.8 Description of the front panel
On the front panel is the following:
Caption Connector Description
PWR 2-pin Connector for the power supply adapter.
ETH RJ45 Connector for connection into the local computer network.
PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS,
ETHERNET, CNT or SWITCH.
PORT2 RJ45 Connector for expansion port RS232, RS485/422, MBUS,
SWITCH, WIFI, WMBUS or SDH (only FULL versions).
ANT SMA Connector for main antenna.
DIV SMA Connector for diversity antenna.
WIFI R-SMA Connector for WIFI antenna. Available only when the
router is equipped with an expansion port WIFI.
WMBUS SMA Connector for WMBUS antenna. Available only when the
router is equipped with an expansion port WMBUS.
USB USB-A Host Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
I/O 3-pin Connector for connection of the binary input and output.
SIM1 — Holder for the first SIM card.
SIM2 — Holder for the second SIM card (only FULL versions).
Table 6: Front panel description
Figure 22: Front panel CR10 v2F
14
23-05-16
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
www.lucom.de [e-mail]

5. ROUTER DESIGN
5.8.1 Status indication
About router status inform eight LED indicators on the front panel. ETH port, PORT1 and
PORT2 have two additional LEDs that provide information about port status.
Caption Color State Description
PWR Green Blinking
On
Fast blinking
Router is ready
Starting of the router
Updating firmware
DAT Red Blinking Communication in progress on radio channel
WAN Yellow 1x flash per sec.
2x flash per sec.
3x flash per sec.
Signal strength is from –50 dBm to –69 dBm
Signal strength is from –70 dBm to –89 dBm or differ-
ence between neighbours cells is exactly 3 dBm
Signal strength is from –90 dBm to –113 dBm or differ-
ence between neighbours cells is smaller than 3 dBm
USR Yellow Function of this LED diode can be selected by user
OUT Green On Binary output active
IN Green On Binary input active
ETH Green On
Off
Selected 100 Mbit/s
Selected 10 Mbit/s
ETH Yellow On
Blinking
Off
The network cable is connected
Data transmission
The network cable is not connected
PORT Green Depends on the expansion port (see user’s manual for used port)
PORT Yellow Depends on the expansion port (see user’s manual for used port)
SIM1 Yellow On The first SIM card is active
SIM2 Yellow On The second SIM card is active
Table 7: Status indication
State indication of WAN LED is updated every 10 seconds.
