D-Link DSL-2540B - ADSL2/2+ Modem With EN Router User manual

2D-Link DSL-2540B Quick Install Guide
• ADSL2/2+ 4-Port Ethernet Router
• 12VDC, 1A DC CEC-compliant switching power adapter
• RJ-11 telephone cable
• RJ-45 Ethernet cable
• Quick Install Guide
• CD-ROM (User Manual + Drivers)
General Information

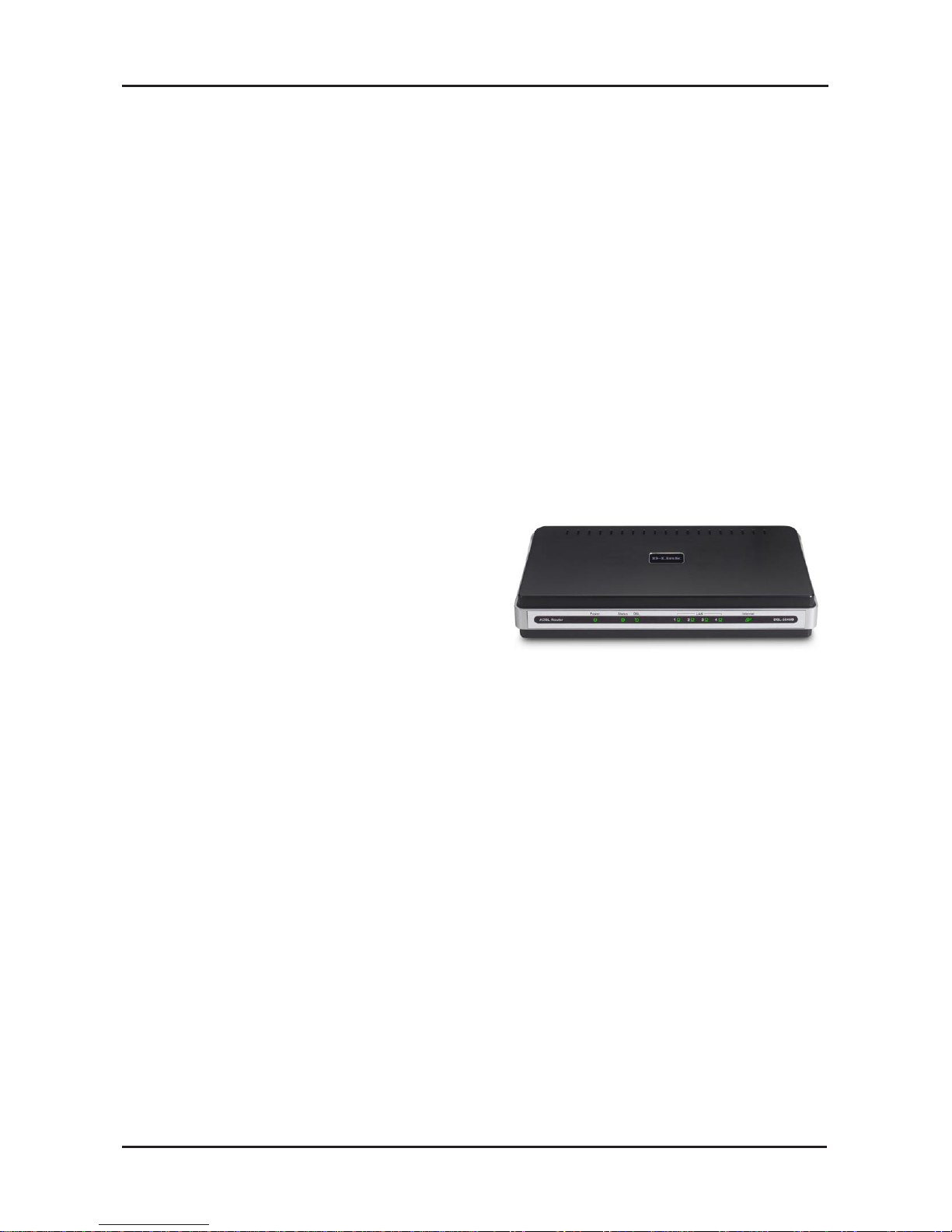

The D-Link DSL-2540B is an ADSL2+ router offering the convenience
of four Ethernet ports for additional computers. This Quick Install
Guide provides you with a simple and easy-to-understand format to
install and configure your router.
Package Contents
Note: Using a power supply with a different voltage rating than the
one included with the DSL-2540B will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.

3 D-Link DSL-2540B Quick Install Guide
Important Safety Instructions
• Place your router on a flat surface close to the cables in a location
with sufficient ventilation.
• To prevent overheating, do not obstruct the ventilation openings of
this equipment.
• Plug this equipment into a surge protector to reduce the risk of
damage from power surges and lightning strikes.
• Operate this equipment only from an electrical outlet with the correct
power source as indicated on the adapter.
• Do not open the cover of this equipment. Opening the cover will void
any warranties on the equipment.
• Unplug equipment first before cleaning. A damp cloth can be used
to clean the equipment. Do not use liquid/aerosol cleaners or
magnetic/static cleaning devices.

4D-Link DSL-2540B Quick Install Guide

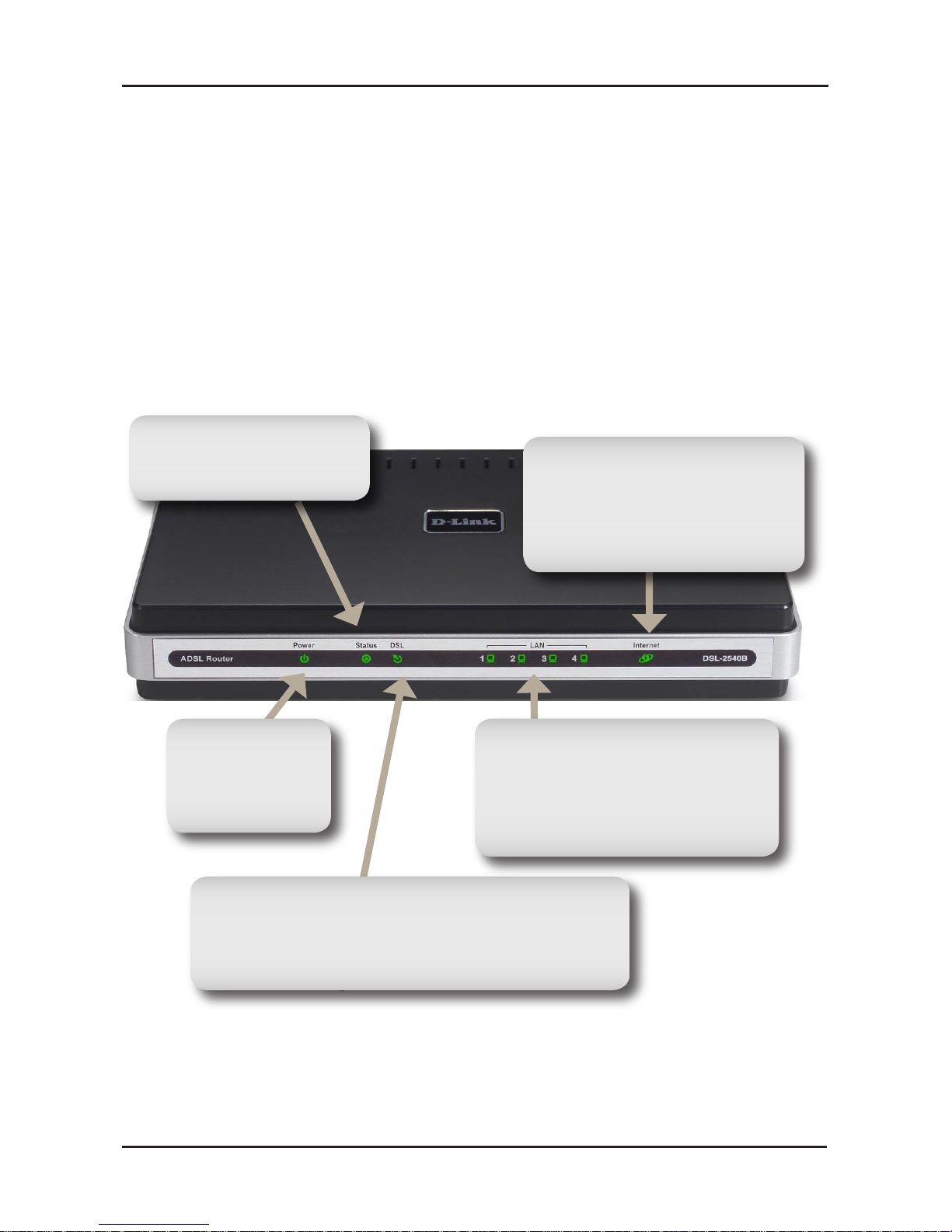

Front Panel View
Status LED
A blinking light indicates
traffic is passing through.
Power LED
A solid green light
indicates the unit
is powered up.
DSL LED
A Solid light indicates the DSL is synchronized. A
flashing LED indicates the router is attempting to
synchronize with the DSL provider.
Internet LED
A solid green light indicates
that the router has an IP
address and is connected to
the internet.
Local Network LED
A solid light indicates a connection
to an Ethernet-enabled computer.
This LED blinks during data
transmission.

5 D-Link DSL-2540B Quick Install Guide

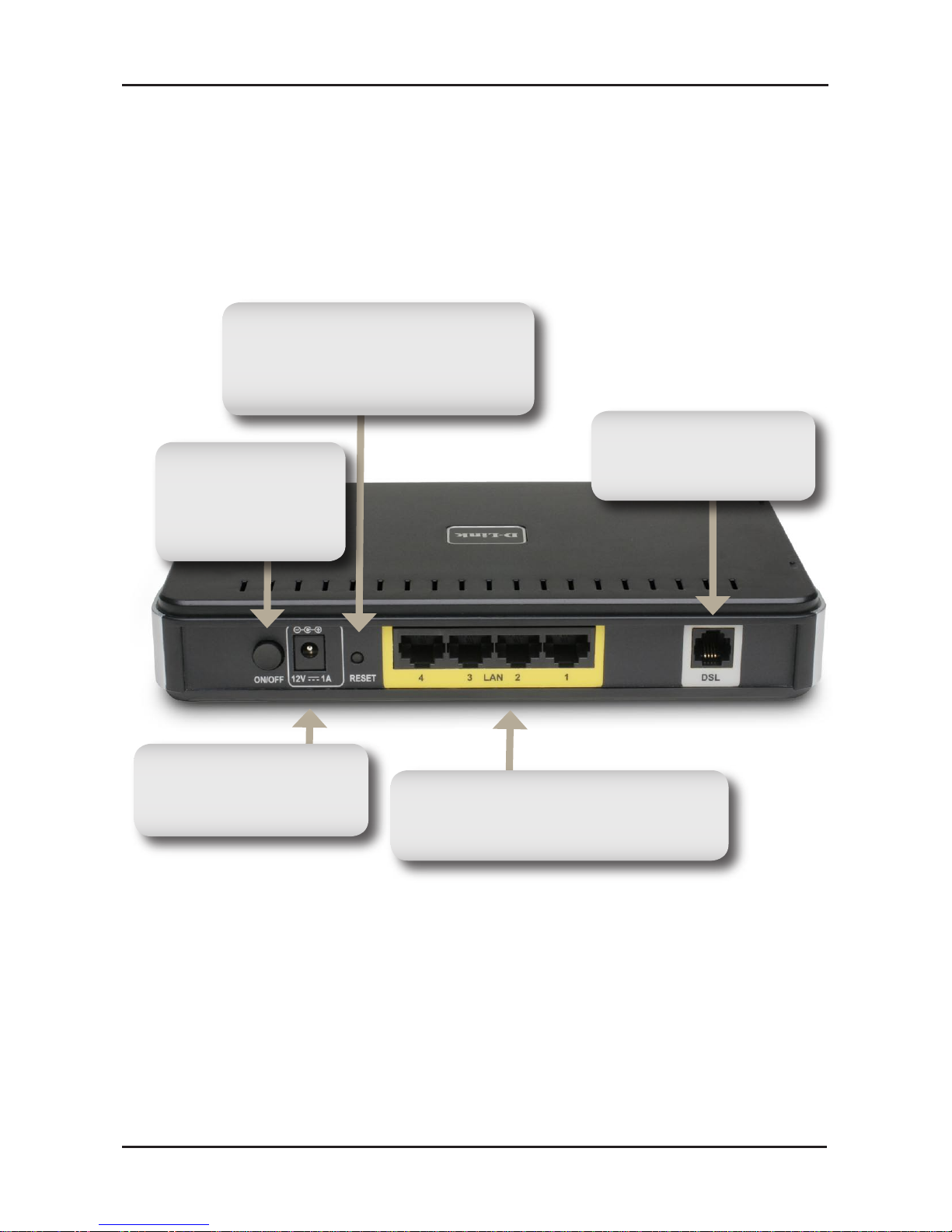

Rear Panel View
ON/OFF
Press this button to
turn the unit on or
off.
Power Receptor
Receptor for the supplied
power adapter.
DSL Line
Connect to an active
telephone line (RJ-11).
Reset
Pressing the Reset button restores
the router to its original factory
default settings.
LAN Port
Connect Ethernet devices such as
computers, switches, and hubs.

6D-Link DSL-2540B Quick Install Guide
Installing the Router
Connect the ADSL and Telephone Lines
• Connect an RJ-11 cable between the wall phone jack and the
line-end of the splitter (see diagram below).
• Attach another RJ-11 phone cable to the router-end of the splitter
and the ADSL port on the rear panel of the router.
• The phone-end of the splitter will be connected to the telephone
using a third RJ-11 phone cable.
Note: See connections on the installation diagram.
Connect the PC to the Router
• To use the Ethernet connection, connect the Ethernet cable from
the computer directly to the router. Connect one end of the Ethernet
cable to the port labeled LAN on the back of the router and attach
the other end to the Ethernet port of your computer.
• If your LAN has more than one computer, you can attach one
end of an Ethernet cable to a hub or a switch and the other to
the Ethernet port (labeled LAN) on the router. Note that either a
crossover or straight-through Ethernet cable can be used.The router
automatically recognizes the type of connection that is required.

7 D-Link DSL-2540B Quick Install Guide
Connect the Power Adapter
• Complete the process by connecting the supplied 12VAC, 1A power
adapter to the POWER connector on the back of the device and
plug the adapter into a wall outlet or power strip. Then turn on and
boot up your PC and any LAN devices, such as hubs or switches,
and any computers connected to them.

8D-Link DSL-2540B Quick Install Guide

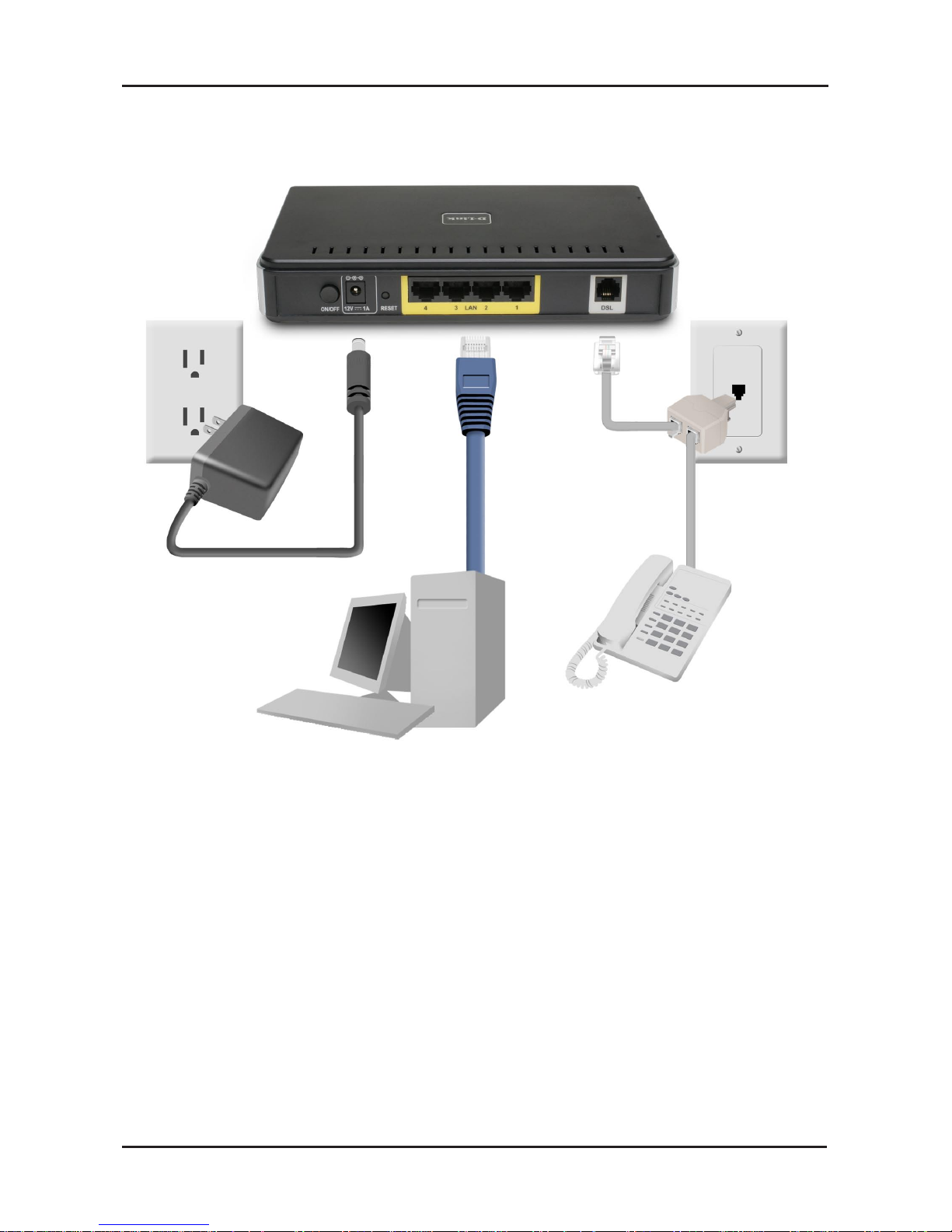

Installation Diagram

9 D-Link DSL-2540B Quick Install Guide

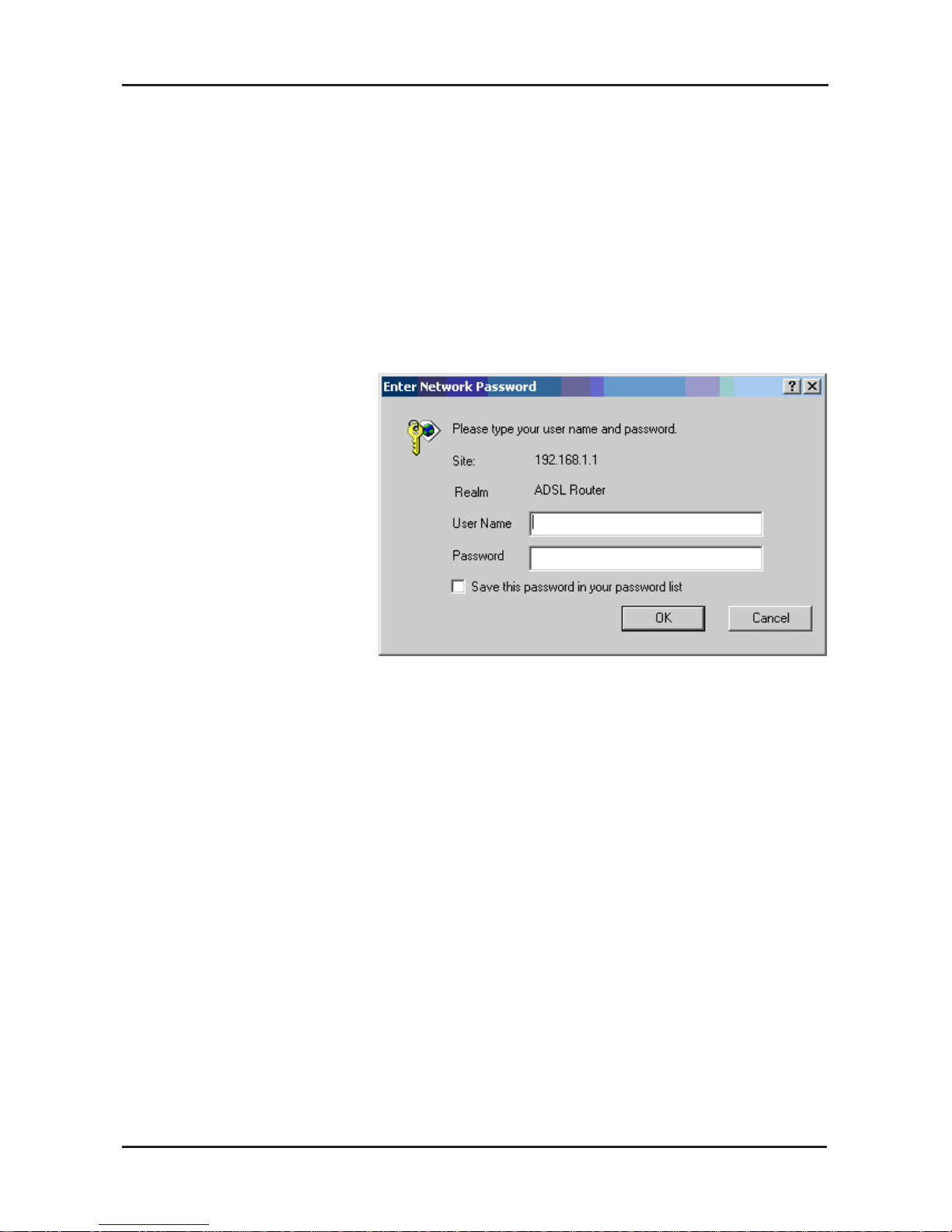

Prior to accessing the router through the LAN or USB port, note the
following necessary configurations:
• Your PC’s TCP/IP address: 192.168.1.x(where “x” is any number
between 2 and 254)
• The router’s default IP address: 192.168.1.1
• Subnet mask: 255.255.255.0
Below are the procedures for configuring your computer. Follow the
instructions for the operating system that you are using.
Configuring Your Computer
Windows®2000
These are instructions for configuring a Windows®2000 operating
system. If you are using Windows®XP please proceed to page 9.
1. In the Windows taskbar, click on the Start button and point to
Settings > Control Panel > Network and Dial-up Connections
(in that order).
2. Click on Local Area Connection. When you have the Local Area
Connection Status window open, click on Properties.
3. Listed in the window are the installed network components. If
the list includes Internet Protocol (TCP/IP), then the protocol has
already been enabled, and you can skip to Step 10.
4. If Internet Protocol (TCP/IP) does not appear as an installed
component, then click on Install.
5. In the Select Network Component Type window, click on Protocol
and then the Add button.
6. Select Internet Protocol (TCP/IP) from the list and then click OK.

10D-Link DSL-2540B Quick Install Guide
7. If prompted to restart your computer with the new settings, click
OK.
8. After your computer restarts, click on the Network and Dial-up
Connections icon again, and right click on the Local Area
Connection icon and then select Properties.
9. In the Local Area Connection Properties dialog box, select
Internet Protocol (TCP/IP) and then click on Properties.
10. In the Internet Protocol (TCP/IP) Properties dialog box, click in
the radio button labeled Use the following IP address and type
192.168.1.x (where “x” is any number between 2 and 254) and
255.255.255.0 in the IP address field and Subnet Mask field.
11. Click OK twice to save your changes and then close the Control
Panel.
Windows®XP
1. In the Windows taskbar, click on the Start button then go to
Control Panel and then click Network Connections.
2. In the Network Connections window, right click on the Local
Area Connection icon and click on Properties.
3. Listed in the Local Area Connection window are the installed
network components. Make sure the box for Internet Protocol
(TCP/IP) is checked and then click on Properties.
4. In the Internet Protocol (TCP/IP) Properties dialog box, click on
the radio button labeled Use the following IP address and type
192.168.1.x(where x is any number between 2 and 254) for the
IP address field and 255.255.255.0 for the Subnet Mask field.
5. Click on OK twice to save your changes and then close the Control
Panel.
