Model 1696/1697/1698
Modelo 1696 / 1697 / 1698
LABORATORY GRADE
SWITCHING MODE
PROGRAMMABLE DC
POWER SUPPLIES with
PC INTERFACE

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS & PRECAUTIONS FOR USE .............................................................. 3
2. SPECIFICATIONS ............................................................................................................................................ 4
3. INTRODUCTION .............................................................................................................................................. 5
4. CONTROLS & INDICATORS........................................................................................................................... 6
5. GENERAL OPERATING PRINCIPLE.............................................................................................................. 8
6. OPERATING INSTRUCTIONS......................................................................................................................... 9
6.1 SETTING OF OPERATION MODE ......................................................................................................... 9
6.2. MANUAL OPERATION MODE .......................................................................................................... 13
7. USING THE PRESET FEATURE .................................................................................................................... 14
7.1 OPERATING THE TIMED PROGRAM ................................................................................................ 15
7.2. RUNNING THE TIMED PROGRAM ................................................................................................... 16
8. MAINTENANCE.............................................................................................................................................. 19
8.1 RECALIBRATION................................................................................................................................ 19
8.2 TROUBLE SHOOTING......................................................................................................................... 20
9. PC INTERFACE CONTROL USER MANUAL................................................................................................ 21
9.1. INTRODUCTION................................................................................................................................. 21
9.2. SYSTEM REQUIREMENT AND INSTALLATION .............................................................................. 21
9.3. RS-232 INTERFACE OPERATION....................................................................................................... 22
9.4. RS-485 INTERFACE OPERATION....................................................................................................... 24
9.4.1 Configuration of each Power Supply..............................................................................................................29
9.4.2 Configuration of Multi Windows Analysis.....................................................................................................32
SERVICE INFORMATION................................................................................................................................... 37
WARRANTY INFORMATION.............................................................................................................................. 38

3
1. IMPORTANT SAFETY INSTRUCTIONS
1. Do not use this apparatus near water.
2. Clean only with dry cloth.
3. Do not block any ventilation openings.
4. Do not install unit near any heat source or heating emitting devices.
5. Prevent the power cord from being walked on or pinched.
6. Unplug this unit during lightning storms or when unused for long periods of time.
PRECAUTIONS
1. The unit must be used within its specified range.
The rated input voltages can be found on the rating label at the back of the unit.
Before plugging into the AC supply, check with the rating label.
2. This unit has a built-in Tracking O.V.P. (Over Voltage Protection) feature. In the event of the output voltage becoming 10% greater than the set
value, the O.V.P. wi11 be triggered and the output power will be cut off and > FAULT< warning will appear.
When you get this warning, switch off the unit and remove all loading.
If you switch the unit back on again it should resume normal operation. In the event that this problem persists contact the manufacturer.
3. This unit has a buzzer built inside. The buzzer will sound when Over Temperature/Overload/Over Voltage Protection has been triggered.
When you get this warning, switch off the unit and remove all loading.
Check your load and output voltage setting.
Allow the unit to cool down for 30 minutes.
If you switch the unit back on again, it should resume normal operation.
In the event this problem persists, the unit must be investigated by your agent.
4. Only use the supplied software and optional accessories with this unit.
5. Refer all servicing to manufacturer.
Warning!
The maximum output voltage for Model 1698 is up to 60Vdc.
It may be hazardous to touch metal part of the terminals.

4
2. Technical Specifications of models 1696, 1697, 1698
Specifications
1696
1697
1698
Output Voltage
1-20VDC
10-5A -40VDC
1-60VDC
Output Current
0-10A
0-5A
0-3.3A
Ripple & Noise (P-P)
25mV
25mV
25mV
Load Regulation
0.5% + 200mV
0.5% + 200mV
0.5% + 200mV
Line Regulation
50mV
50mV
50mV
Input Voltage
100 - 240 VAC, 50Hz / 60Hz
Display Meter
4 digit - display LCD Ammeter, Voltmeter and Power meter
Meter's Accuracy
1.5% + 2 counts
LCD Module Back Light
48 x 6mm
Cooling System
Thermostatic control fan
Protection Devices
Over Temperature, Tracking OVP
Approvals
CE
Dimension (HxWxD)
3.85 x 7.6 x 8.46" (98x193x215mm)
Weight
6.6lbs. (3Kg)
Accessory
PC Windows TM software, RS-232 cable and Operation manual

5
3. INTRODUCTION
This series of laboratory grade, switching mode, programmable power supplies are ideal for repetitive test routines in R&D, Production, Product
Evaluation and various applications.
Information appearing on the large back-lit LCD makes the panel controls simple and easy to use in spite of its sophisticated features.
Because of the MCU (Micro-Controller Unit) and the related software, user re-calibration without opening the case is an added bonus.
When used with a standard PC, the supplied user friendly software and built in RS-232 interface provides two way communications improving
the functionality of these units.
Data logging with color graphic display in adjusting range Voltage, Current, Watts, and time periods are all valuable tools in data analysis.
Please keep this manual in a safe place and contact the manufacturer for any special requirements in application software or other features.

6
4. CONTROLS AND INDICATORS
1. JOG DIAL
2. UP & DOWN KEY
3. DUAL FUNCTION CONTROL KEYS
4. BLACK COLOR NEGATIVE POLARITY OUTPUT TERMINAL
5. RED COLOR POSITIVE POLARITY OUTPUT TERMINAL
6. GREEN COLOR GROUND TERMINAL (connected to chassis)

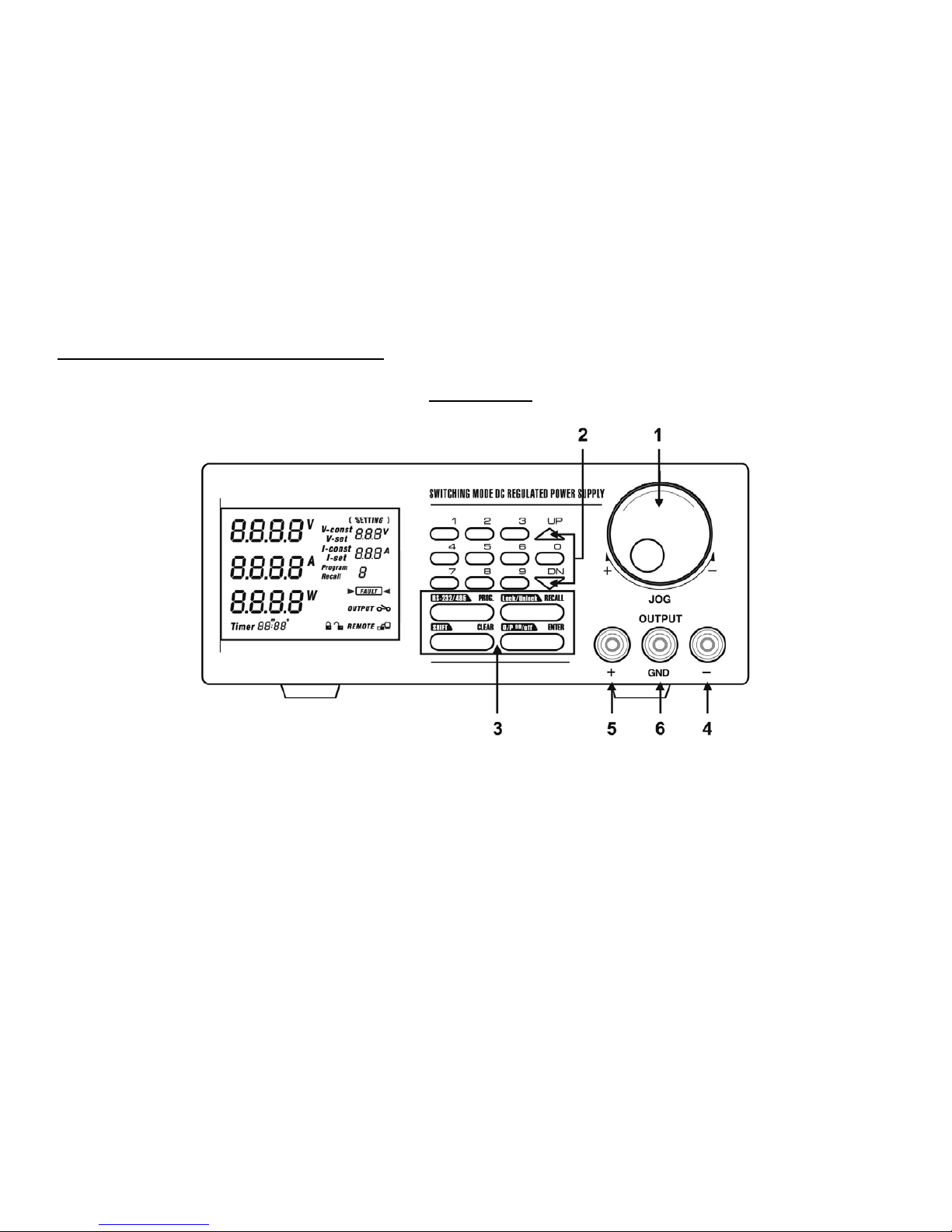

FRONT PANEL

7
4. CONTROLS AND INDICATORS
7. POWER SWITCH
8. AC 100 - 240VAC POWER SOCKET WITH INPUT POWER FUSE
9. RS-232 PORT
10. RS-485 PORT

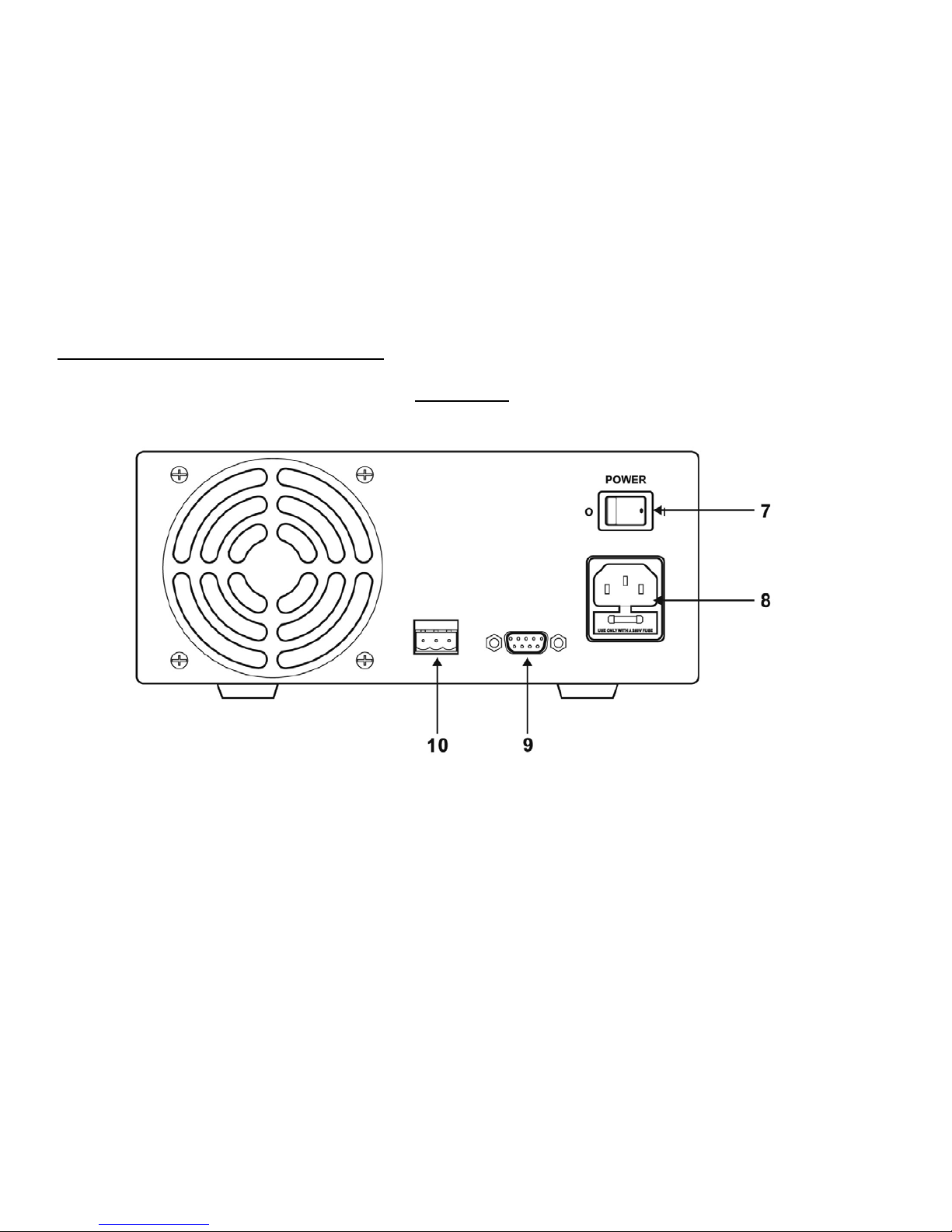

BACK PANEL

8
5. GENERAL OPERATION PRINCIPLE
There are four operation methods for this unit:
•Manual Operation
•Presets
•Timed Program
•PC Interface Mode.
•
The large Liquid Crystal Display will guide you through the various operations/procedures interactively once you understand the operation principle.
There are four Dual Function Control Keys for various operation modes and input states of the unit.
To change/set operation mode (output on /off, key lock &etc.), in most cases you need two Dual Function keys to complete the operation.
To change input values of various settings (voltage, current, preset number, cycles, time period &etc.), use the ENTER key to get ready and confirm the new settings.
Liquid Crystal Display
The back-lit display shows both the preset and the actual voltage, current levels at the output terminals; and status of constant current (CC)or constant voltage (CV) mode. Be
aware of new symbols appearing on the display while inputting. They will guide you and remind you of the correct procedure.
Example: Inputting values of various settings
When a new setting (voltage, current, time periods & etc.) is ready for inputting, the symbol for the related setting will appear on the display. After you key in the required value,
always follow by pressing ENTER to confirm or to complete the operation.
Presets and Timed Subprograms
This unit has the capacity to store 10 programs.
Program 1 to 9 is for nine sets of Presets of voltage and current.
The program 0 is reserved for the 20 timed subprograms; each is capable of storing 1 second to 99-minute operation period with its preset voltage and current levels.
The timed subprograms can be set to operate repeatedly in sequence from 1 to 256 cycles or indefinitely.

9
6. OPERATING INSTRUCTIONS
6.1 Setting of Operation Modes
Output On/Off Mode
1. Press SHIFT key.
The display will show Sh:Ft.
2. Press (O/P On/Off) key within 3 seconds.
Watch for the appearing On/Off symbol in the display to confirm your setting, otherwise repeat the above procedure.
Lock/Unlock the Keypad and Jog Dial
1. Press SHIFT key.
The display will show Sh:Ft.
2. Press (Lock/Unlock) key within 3 seconds.
Watch for the appearing Lock/Unlock symbol in the display to confirm your setting, otherwise repeat the above procedure.
PC Interface RS-232/RS4S5
1. Press SHIFT key.
The display will show Sh:Ft.
2. Press (RS232/485) key within 3 seconds.
3. Select desired PC Interface by the (RS232/485) key.
4. For RS 232 press RECALL to confirm setting.
5. For RS 485 enter 485 address followed by RECALL to confirm setting.
Upper Voltage Limit Setting
This feature limits the upper level setting of output voltage to prevent inadvertent setting of high voltage, which may damage your application. The
value of this upper voltage range limit will be retained until further reset.

10
OPERATING INSTRUCTIONS
Precaution
Reset back to the maximum rated voltage of the unit is recommended to avoid false fault report of the unit
1. Press SHIFT and follow by 0 key.
2. The displaywill show and thepresent upper voltage limit.
3. Input your desired voltage followed by ENTERto confirm.
4. Recheck setting by repeating step 1.

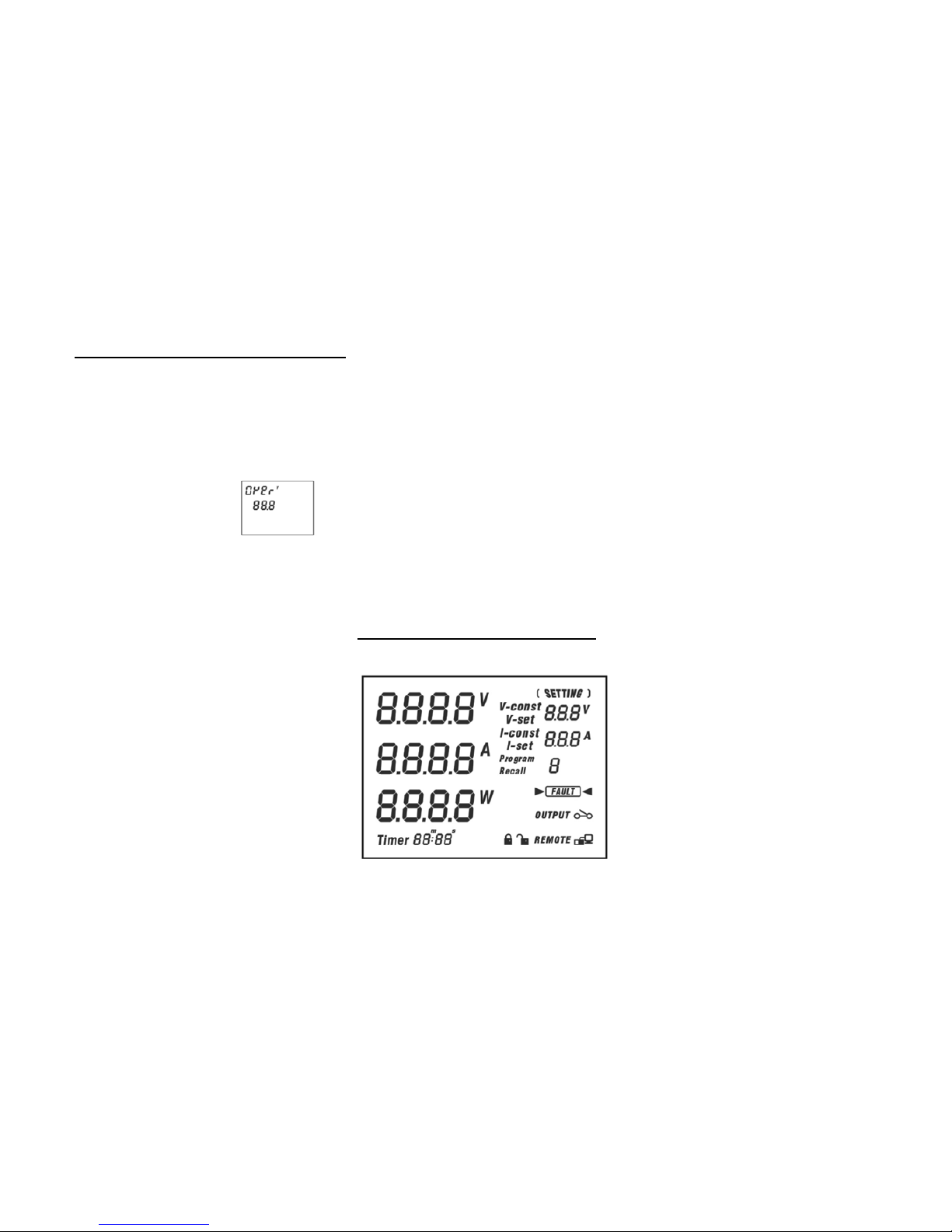

CONTROL SYMBOLS ON DISPLAY

11
OPERATING INSTRUCTIONS
Showing output terminals in ON/OFF state.
Showing keypad & Jog dial are in Locked (de-activated) or Unlock (activated) state.
Unit is ready for or has already been linked up with computer.
OUTPUT ENABLE/DISABLE AT POWER UP
Press the SHIFT then the UP key.
This will enable the output at power up.
i.e. When you switch on the power supply,
the output is also on automatically with last set voltage value.
Press the SHIFT then the DN key.
This will disable the output at power up.
This is the default setting for safety reason!!
WARNING SYMBOL ON DISPLAY
Over Voltage Protection is activated. Take off all loads. See Precautions at first page.
UPPER VOLTAGE LIMIT SYMBOL ON DISPLAY
Press the SHIFT then the 0 key.
The display on the LCD shows the unit ready for input of Upper Limit Range and the original set voltage.

12
STANDARD OPERATION SYMBOLS
V- const Constant Voltage mode showing set voltage.
V- set This only appears voltage level is ready for setting.
I-set This only appears current level is ready for setting.
I-const This only appears when unit is in (CC) constant current mode.
They show the actual Volts, Amperes and Watts at the output terminals.

13
6.2 Manual Operation Mode
In the Manual Operation Mode, once the voltage and current levels have been set, the unit wi11 keep these settings even after unit has been
switched off until further reset.
There are 3 ways to input a setting:
1. By the Jog Dial.
2. By the UP or DOWN key.
3. By the Key Pad.
For any wrong input, e.g. out of specification values, display will show "OUT OF RANGE" FOR ABOUT 3 SECONDS, then returns to
it's previous settings and ready for correct new input.
Manual Setting of Voltage and Current by Jog Dial
1. To change the voltage setting, just rotate the Jog Dial, no other step is needed.
2. To change the current setting, press ENTER twice, the LCD will show I-set, push for desired value.
3. Press ENTER to confirm your chosen current setting.
Manual Setting of Voltage and Current by Up & Down Key
1. To change the voltage setting, just press the Up & Down Key,no other step is needed.
2. To change the current setting, press ENTER twice, the LCD will show I-set, push the Up & Down key for desired value.
3. Press ENTER to confirm your chosen current setting.
Manual Setting of Voltage and Current by Key Pad
1. Press ENTER.
Display will show V -set and the present voltage setting, key in the desired voltage level.
2. Press ENTER to confirm your chosen voltage setting and the display will show I-set.
3. You can key in the desired current setting now, if you do not want to change the current setting, you still need to press ENTER again
to confirm the new settings of voltage and current to complete the operation.
4. You must press the ENTER key 3 times in total even if you want to change the voltage, otherwise the unit will flash CANCEL
and returns to its old settings
Note :
If during any of the above keypad operations, you fall to input a setting within 10 seconds, the unit will cancel the procedure and resume its previous
settings. You can exit any of the above operations by pressing the CLEAR key and the unit will revert to its previous settings.

14
7. USING THE PRESET FEATURES
PRESET PROGRAM SYMBOLS
Program Unit is ready for inputting of a Preset Program Number (19).
Recall Unit is ready for recalling a Preset Program Number.
The unit can store nine preset voltage and current settings.
Once programmed, these settings will be retained even when the unit is switched off.
Preset Programming
1. Press PROG key
The display will show Program_
Key in Program Number (1-9) at the keypad
2. The display will show :-
a) The newly keyed in Program Number.
b) The old settings of voltage and current with V-set ready for voltage to be reset.
c) Set the required voltage level than press ENTER to confirm.
d) The display will show I-set ready for current level to be reset.
e) Set required current level then press ENTER to confirm.
f) The program will automatically advance to the next Preset (as shown in the display Program_ section).
g) If you want to change the voltage and current setting of next Preset repeat procedure B to E, otherwise just press ENTER to
go to the next Preset.
Whenever you want to determine Preset Programming you can press the CLEAR key to return to normal operation mode.

15
Selecting Presets
1. Press the RECALL key
The display will show Recall_
2. Press the number key (1-9).
The display will show the chosen Preset Number, its voltage and current level.
3. Press ENTER to activate .The unit will resume the chosen reset values.
If during any of the above procedures, you fail to input a setting within 10 seconds, the unit will cancel the procedure and resume the previous
settings. You can exit any of the above operations by pressing the CLEAR key and the unit will resume to its previous settings.
7.1 _ Operating the Timed Program
The unit can be programmed to operate up to 20 timed subprograms (1-19 STEP as shown in the display). Each subprogram is capable of running a
preset operation period of 1 second to 99 minutes and 99 seconds with its own preset voltage and current level. The timed subprogram can be set to run
in sequence repeatedly from 1 to 256 cycles or indefinitely. You can run the unit through the sequence of sub programs for the input cycles number
unless interrupted by pressing the CLEAR key.
Programming the Unit
1. Press the PROG key
2. Press the 0 key (to get to the Timed Program Mode) and the display will show Program 0 StEP-..00
3. Input subprogram number 0 to 19 and press ENTER to confirm.
4. Input voltage level followed by ENTER to confirm and the display will show I-set.
5. Input current followed by ENTER to confirm. The bottom left corner of the display will show Timer00m00s and the appearing minute symbol m.
6. Input minute period (0-99) followed by ENTER to confirm. The bottom left corner of the display will show Timer00m00s and the appearing
second symbol s.
7. Input seconds period (0-99) followed by ENTER to confirm. The timed subprogram will automatically to next subprogram number ready input of
new settings.
8. Repeat procedure 4 to 7.
9. A subprogram is confirmed to retain the new settings only when procedure 7 is completed.
10. You can always input zero time period as a terminating subprogram.

16
Note:
A. Once the subprograms are filled, the unit will return to manual operation mode.
B. Any subprogram with zero time period will become the Terminating Subprogram. For example, if you set the subprogram 7 with zero time
period, all the subprograms after 7 (i.e. 8, 9, 10-19) become non-existent.
The timed program will only cycle from subprogram 0 (STEP) to subprogram 6. You can use this feature to cut off the subprograms that
are not required for the sequence.
C. A subprogram is confirmed to the new settings only when procedure 7 is done.
D. During any of the above procedures, if you fall to input a setting within 10 seconds, the unit will exit from that procedure and return to
manual operating mode. For any wrong input, display will show OUT OF RANGE for about 3 seconds and then returns to its previous
procedure/settings ready for the correct new input.
7.2 Running the Timed Program Cycles
Once the desired numbers of subprograms have been filled as explained in the previous section, all the presets of voltage and current levels
and operation periods will be retained until further programming.
1. Press RECALL followed by the 0 key.
The display will show STEP 00 and Recall 0 and the settings of the first timed subprogram.
2. Use UP^ or DN/ keys to check the settings of all the timed subprograms.
3. Press ENTER and the display will show CYC-0000, the unit is ready for input of repetitive operation cycles.
4. Key in number of cycles required, 1-256 (or 0 if running indefinitely) followed by ENTER to start the cycle operation. If you enter a
number higher than 256, the supply will still stop at the 256th cycle and all cycles after are ignored.
5. The unit wi11 run through the Timed Subprogram 0 to 19 or 0 to any subprogram prior to the subprogram with zero rimed period.
6. The display will show the on-going cycle's count down time of operation period, actual and set voltage and current, number of cycles
executed.
7. You can also see the power (Watt) display if you press ENTER.
8. To return to the previous display press ENTER again.
Note: Beware that the life span of the power supply is limited by the life of the relay, which is l00x 10,000 operations as stated by the relay
manufacturer.

17
TIMED PROGRAM SYMBOLS

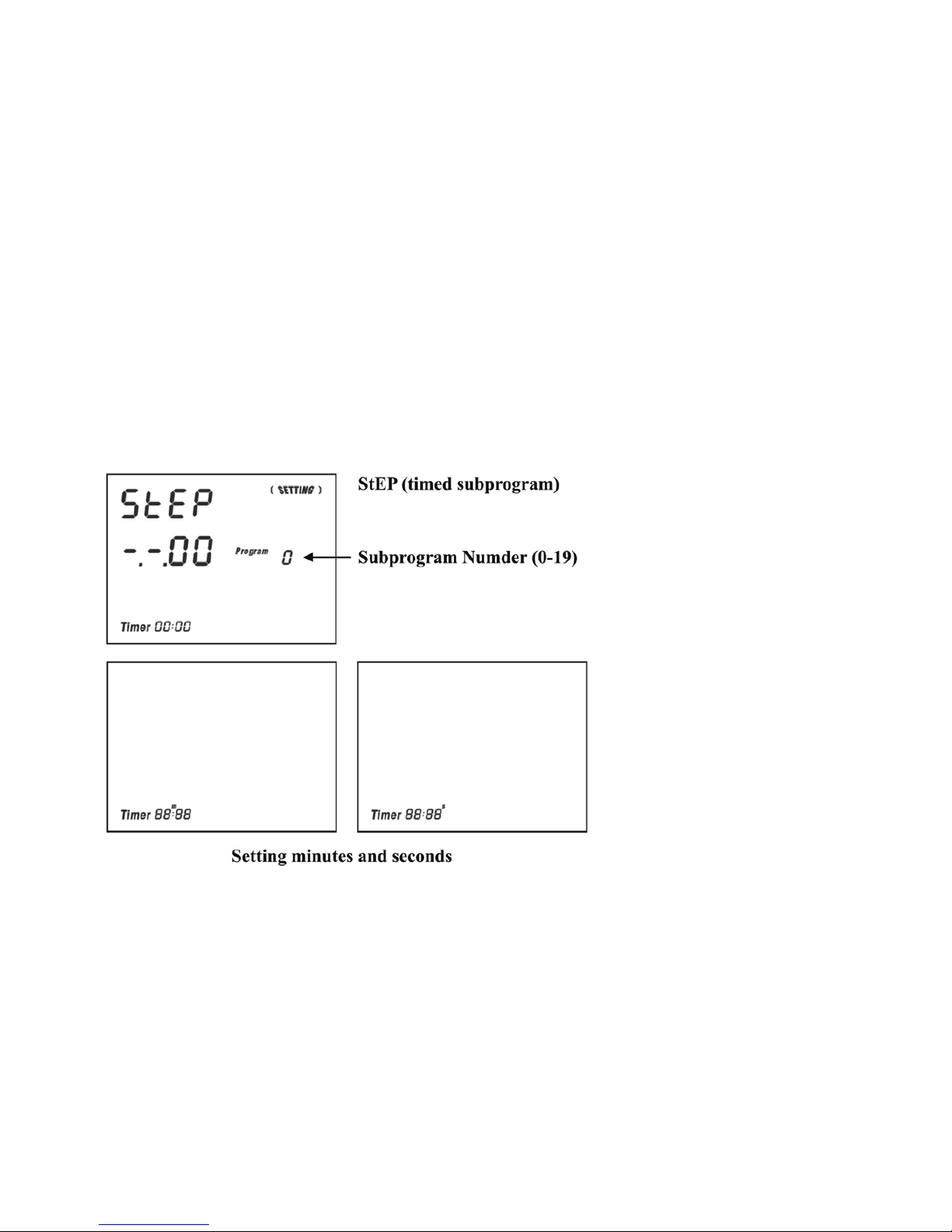

1. Inputting Subprograms

18

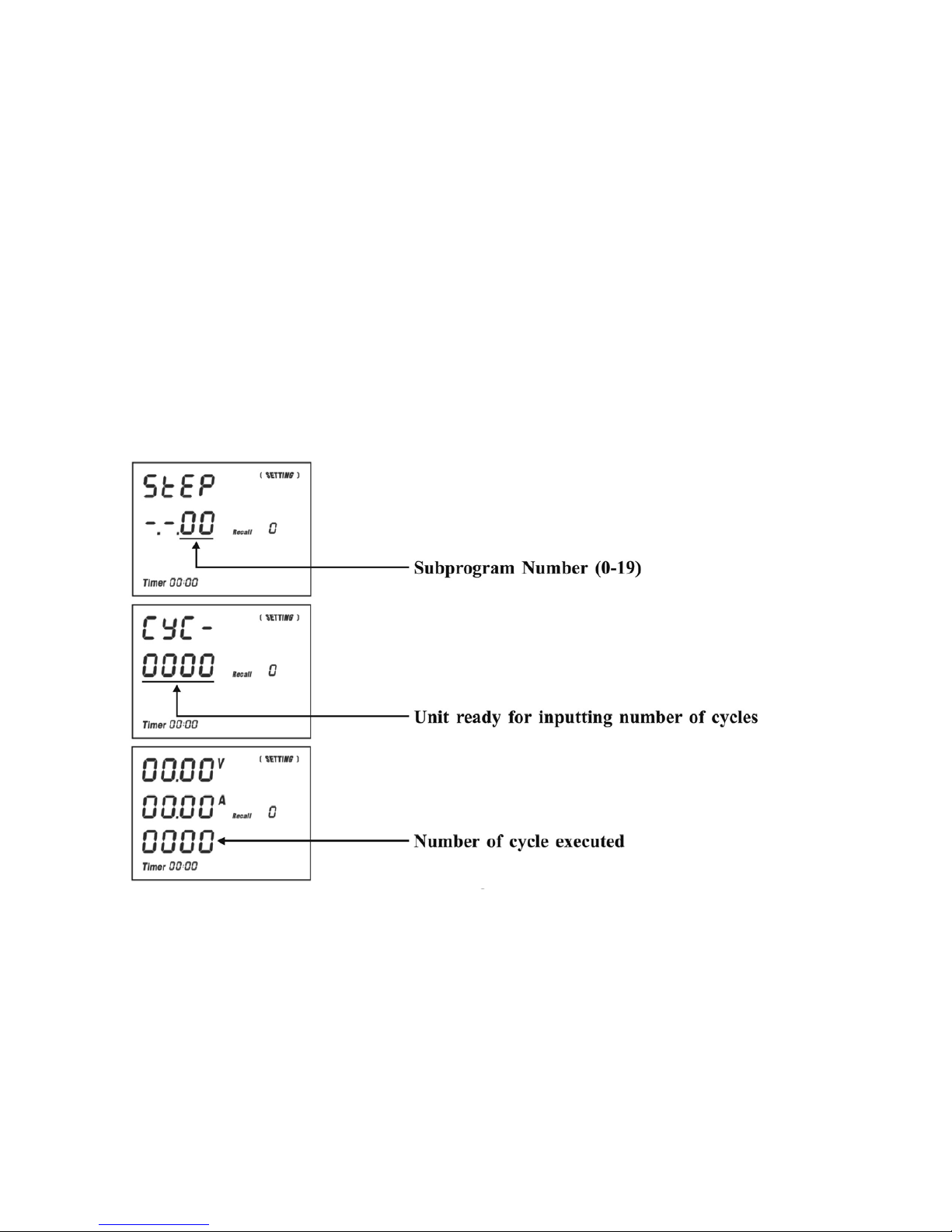

2. Symbols Running in a Timed Program Cycle
Unit is ready for the recheck of all subprogram settings.

19
8. MAINTENANCE
8.1 RECALIBRATION
Introduction
This in-case recalibration is to reduce the difference between the Set values and the displayed values on the LCD Display. You only use the recalibration when
the difference is greater than 0.1V for voltage or -0.01A / +0.02A for current. The whole recalibration for voltages and current takes less than 15 minutes. It is
performed by a proprietary software using regression algorithm.
The recalibration software is compatible to Window XP, Me, 2000, 98SE, 98.
Installation of the recalibration software
1. In the installation disk, run Setup.exe inside the folder of Re-calibration to install the recalibration software.
2. Follow the instructions in the setup program.
3. Finally a SDP Recalibration icon is created in the Program Menu.
Operation Instruction
1. Ensure your PC is off; connect RS-232 to serial com. port of your PC and the power supply.
2. On Your Power Supply, press [SHIFT] key, then quickly press [RS232/485] key and select RS-232 followed by [ENTER] key.
3. Switch on your PC and run the SDP recalibration software.
4. Follow the instructions shown in the software.

20
8.2 TROUBLE SHOOTING
1. Keypad and Dial do not work.
Check key lock symbol for lock state, unlock unit by pressing SHIFT then Lock/Unlock key, otherwise switch the unit off and then back on
to see if the problem persists.
2. No output power. Check the output for on/off symbol on the display. Press SHIFT O/P ON/OFF key.
3. Cannot get a high voltage setting within the rated maximum. Check the upper voltage limit setting by pressing SHIFT then the 0 key. Reset to
the rated maximum voltage.
4. CANCEL symbol keeps appearing in all keying in operations. Keying in time may not be fast enough as only 10 seconds are allowed for data
inputting and 3 seconds for operation mode setting.
5. OUT OF RANGE keeps appearing.
Check if setting is within the rated range.
If this occurs during voltage setting, see point 3.
