Pi Supply PiJuice User manual
User Guide
www.pijuice.com
www.pi-supply.com
INTRO
Getting Started with Your New PiJuice!
As one of the smallest systems around, there are so many
amazing things you could do with the Raspberry Pi if it were
self-powered and portable. With PiJuice, we want to provide not
only the best mobile hardware/software solution but also a set
of inspiring and affordable guided projects for fun and learning in
1
Integrated RTC (Real Time Clock).
Full power management API available to Raspberry Pi OS
with auto shutdown capability when running low on batteries.
Full UPS (Uninterrupted Power Supply) solution.
On board EEPROM for easy plug and play operation.
On board intelligent ON/OFF switch.
Programmable multi-colored RGB LED.
So you’ve got a PiJuice, but now what? We’ve prepared a variety
of exciting and fun projects just for you! From creating your very
own games console to hacking together a weather station, the
possibilities are endless.
Want to know more?
Discover PiJuice projects on pages 5 & 6
2
INTRODUCTION
3
START
How to get PiJuice up and running
We’ve designed PiJuice to be extremely easy to use. It is a truly
plug and play device.
Stuck?
If you need help you can talk to
us on Twitter!
@PiSupply
4
In the box...
1x PiJuice Board with battery, 1x PiJuice Guide (you’re reading it!)
4x Mounting posts attached to PiJuice, 8x mounting screws (4 are
already assembled to the board).
1
Prepare your Raspberry Pi and SD Card
Visit pisupp.ly/pijuice to download the PiJuice software.
2
Switch on the PiJuice...
Then start making with Raspberry Pi!
4
Visit the Pi Supply Maker Zone at
pisupp.ly/make to nd out more!
5
With your Raspberry Pi turned off...

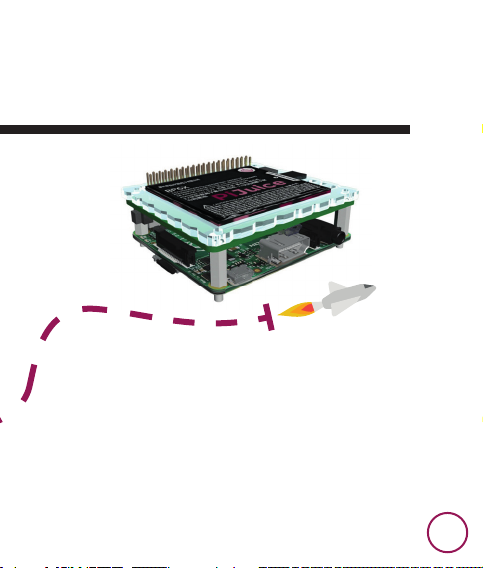

Attach the PiJuice to the board and screw it into place.
3
START GUIDE
PROJECTS
Get making with PiJuice
We’ve prepared a selection of fun and engaging projects just
for you. Follow the link under each project to nd the full build
tutorials.
REMOTE CAMERA SYSTEMS
pisupp.ly/remote-camera
WEATHER STATION
pisupp.ly/weather-station
COMPACT ROBOT
pisupp.ly/robot
5
6
DIY PORTABLE GAMES CONSOLE
pisupp.ly/games-console
POINT AND SHOOT CAMERA
pisupp.ly/compact-camera
PORTABLE POCKET PI
pisupp.ly/pocket-pi
PROJECT GUIDES
7
THAT’S UP TO YOU!
The only thing limiting what you now do with your PiJuice is your
imagination. Go forth and be awesome!
SUBMIT YOUR IDEAS
And nd new community made projects
#PiJuiceProjects
WANT MORE?
8
TIME STATE HOLOGRAM
WARP DRIVE
QUANTUM TELEPORTER
MERKABA FIELD
WHAT WILL YOU MAKE NEXT?
9
SMALL PRINT
PiJuice, the PiJuice logo, Pi Supply and the Pi Supply logo are trademarks of RAAMaudio UK Ltd,
Unit 4, Bells Yew Green Business Court, TN3 9BJ, United Kingdom.
Raspberry Pi is a trademark of the Raspberry Pi Foundation.
Your PiJuice should be treated with care.
These suggestions will help you to prolong the life of your device. For
PiJuice to operate correctly and to avoid any potential issues with the
product please observe the following:
Do not expose it to water or moisture.
Do not expose it to heat. PiJuice is designed for reliable operations at room
temperature.
Please ensure you handle PiJuice carefully to avoid damaging the printed circuit
boards and components.
Avoid handling the PiJuice while it is powered to minimise the risk of electrostatic
discharge damage.
All add ons used with PiJuice should comply with relevant standards for the
country of use and be marked accordingly to ensure that safety and performance
requirements are met.
If the device comes into contact with moisture or dust, turn it off and clean
immediately.
Do not hit, shake or drop the PiJuice to avoid damage and injury.
Do not put pressure on the device, as it may damage the battery or device itself.
Please do not touch the connection port of the PiJuice, as static electricity may
harm components in the device.
10
WARRANTY AND COMPLIANCE
Do not use PiJuice around flammable gas.
Do not place PiJuice on uneven or unstable surfaces.
PiJuice and the battery that comes with the device are not waterproof.
Please do not use these devices in areas of high temperature or humidity.
Do not use alcohol or harsh chemicals to clean the device.
PiJuice contains a LiPo battery which is dangerous and can cause res or
explosions if used or charged incorrectly. Only charge your battery within PiJuice
and do not leave the battery in direct sunlight or expose to excessive heat. If you
notice any damage, bulging, fluid leakage or other signs of battery malfunction
please contact your local battery disposal outlet and discontinue use of the battery
immediately.
Take extra care when putting together your PiJuice. Remember, circuit boards,
although durable, will break if you don’t treat them with care. RAAMaudio UK Ltd is
not responsible for any of the below.
Personal injury or damage to product resulting from removal of the lithium
battery cover. Working with Lithium polymer cells is dangerous and should
only be carried out by a trained engineer, hence why the battery pack is
provided fully assembled and protected.
Data loss as a result of SD Card corruption.
Any electrical injury resulting from misuse of the PiJuice board.
Damage to PiJuice resulting from user error. Please ensure that you are free
of static electricity when handling PiJuice to prevent unwanted electrostatic
discharges from damaging the board.
Malfunction of components as a result of mishandling PiJuice.
This device comes with a 1-year manufacturers warranty for manufacturing defects
only. This does not cover accidental damage or misuse.
If you are in any doubt about the information here, please cease using PiJuice
Mailing address:
Pi Supply, Unit 4 Bells Yew Green Business Court
Bells Yew Green, East Sussex, TN3 9BJ, United Kingdom
www.pi-supply.com | www.pijuice.com
